响应面法优化磷酸三丁酯-丁酸乙酯体系协同提锂工艺研究

doi:10.19964/j.issn.1006-4990.2022-0034

摘要/Abstract

摘要：

以磷酸三丁酯（TBP）体积分数、铁锂物质的量比、相比三因素为自变量,以锂萃取率为响应指标,采用响应面分析法研究了磷酸三丁酯-丁酸乙酯体系从盐湖卤水中协同提锂工艺。通过响应面法得到体系的最优工艺条件为TBP体积分数为43%、铁锂物质的量比为1.9、相比（有机相与水相体积比）为2.4,在此条件下锂萃取率的预测值为92.39%、实际测量值为91.42%,预测值和实测值之间的相对误差为1.05%。该研究可为盐湖卤水中锂的提取分离提供参考。

关键词: 响应面分析法, 萃取, 卤水, 锂

Abstract:

The process of synergistic extraction of lithium from salt lake brine by tributyl phosphate-ethyl butyrate system was studied by response surface method with volume concentration of TBP,molar ratio of iron-lithium and phase ratio as independent variables and lithium extraction efficiency as response index.The optimal process conditions of the system obtained by response surface method were as follows:the volume concentration of TBP was 43%,the molar ratio of iron to lithium was 1.9 and phase ratio was 2.4.Under these conditions,the predicted value of lithium extraction efficiency was 92.39%,the actual measured valuewas 91.42%,and the relative error between predicted value and measured value was 1.05%.This study could provide a reference for the separation and extraction of lithium from salt lake brine.

Key words: response surface method, extraction, brine, lithium

中图分类号:

TQ131.11

石成龙,马淑清,秦亚茹,刘兵,李海朝. 响应面法优化磷酸三丁酯-丁酸乙酯体系协同提锂工艺研究[J]. 无机盐工业, 2022, 54(10): 37-41.

SHI Chenglong,MA Shuqing,QIN Yaru,LIU Bing,LI Haichao. Study on optimization of synergistic lithium extraction process of tributyl phosphate-ethyl butyrate system by response surface method[J]. Inorganic Chemicals Industry, 2022, 54(10): 37-41.

图/表 7

表1

表2

表3

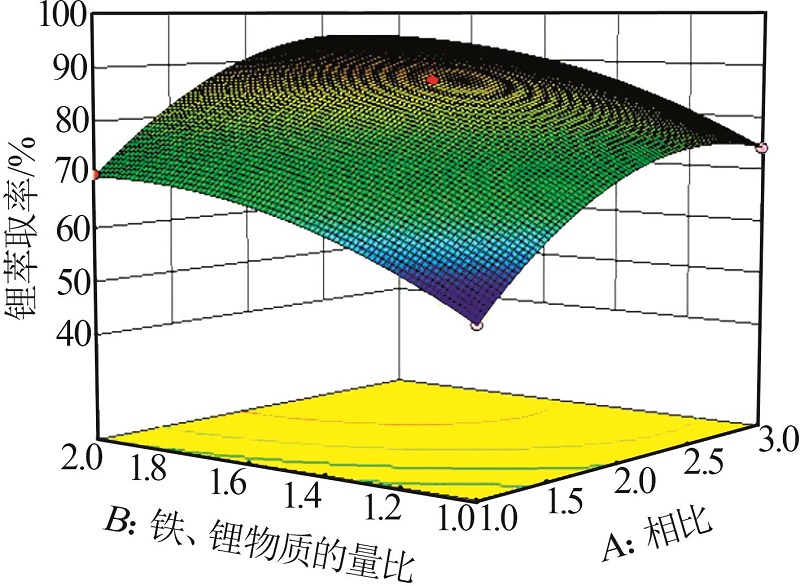

图1

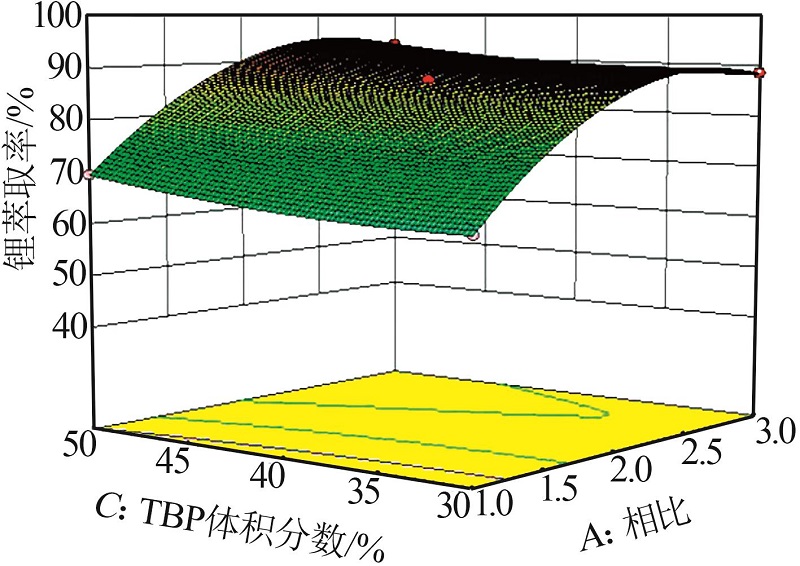

图2

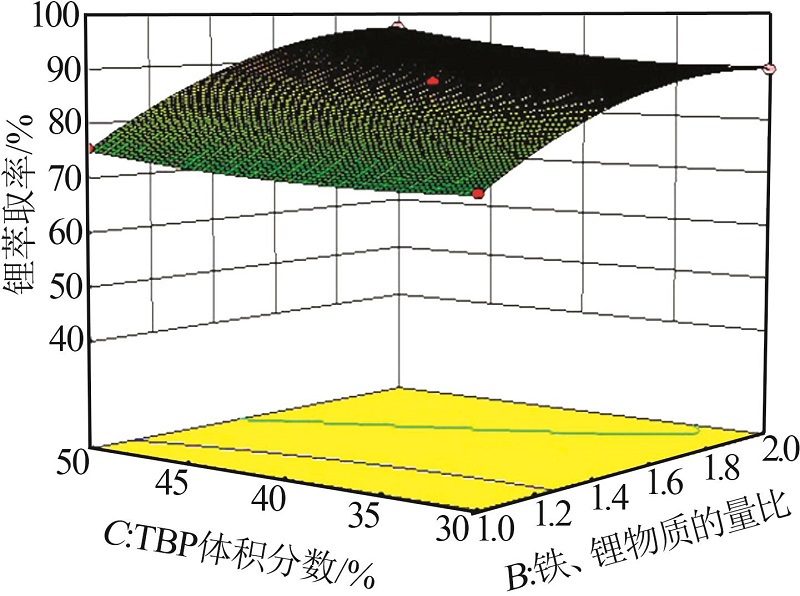

图3

表4

参考文献 23

[1]	邓小川, 朱朝梁, 史一飞, 等. 青海盐湖锂资源开发现状及对提锂产业发展建议[J].盐湖研究, 2018, 26(4): 11-18.
	DENG Xiaochuan, ZHU Chaoliang, SHI Yifei, et al.The current situation of Qinghai salt lake lithium resources development and the suggestions for lithium industry[J].Journal of Salt Lake Research, 2018, 26(4): 11-18.
[2]	吴静, 任秀莲, 魏琦峰.盐湖卤水中锂的分离提取研究进展[J].无机盐工业, 2020, 52(12): 1-6.
	WU Jing, REN Xiulian, WEI Qifeng.Research progress on separation and extraction of lithium from salt-lake brine[J].Inorganic Chemicals Industry, 2020, 52(12): 1-6.
[3]	葛涛, 徐亮, 孟金伟, 等. 盐湖卤水提锂工艺技术研究进展[J].有色金属工程, 2021, 11(2): 55-62.
	GE Tao, XU Liang, MENG Jinwei, et al.Research progress of lithi-um extraction technology from salt lake brine[J].Nonferrous Metals Engineering, 2021, 11(2): 55-62.
[4]	陈琳琳, 李小为, 蒋磊, 等. 钛系颗粒状吸附剂用于盐湖卤水中锂的吸附研究[J].当代化工研究, 2021(21): 4-7.
	CHEN Linlin, LI Xiaowei, JIANG Lei, et al.Study on adsorption of lithium from salt lake brine by titanium-based granulated adsorbent[J].Modern Chemical Research, 2021(21): 4-7.
[5]	陈旺, 蒋磊, 潘巧珍, 等. 钛系锂离子筛的制备及其吸附性能研究[J].无机盐工业, 2021, 53(10): 47-51.
	CHEN Wang, JIANG Lei, PAN Qiaozhen, et al.Research on preparation and adsorption performance of titanium lithium ion sieve[J].Inorganic Chemicals Industry, 2021, 53(10): 47-51.
[6]	唐娜, 龚经款, 项军.铝基锂吸附剂制备及其吸附性能研究[J].无机盐工业, 2020, 52(8): 51-56.
	TANG Na, GONG Jingkuan, XIANG Jun.Preparation and adsorption properties of aluminum-based lithium adsorbent[J].Inorganic Chemicals Industry, 2020, 52(8): 51-56.
[7]	卞维柏, 潘建明.选择性吸附提锂材料的研究进展[J].化工进展, 2020, 39(6): 2206-2217.
	BIAN Weibai, PAN Jianming.Research progress in selective adsorption materialsfor lithium extraction[J].Chemical Industry and Engineering Progress, 2020, 39(6): 2206-2217.
[8]	李志录, 王敏, 赵有璟, 等. 膜特征对锂资源提取过程的影响[J].化工进展, 2021, 40(9): 5061-5072.
	LI Zhilu, WANG Min, ZHAO Youjing, et al.Effects of membrane characteristics for lithium extraction[J].Chemical Industry and Engineering Progress, 2021, 40(9): 5061-5072.
[9]	孟庆伟, 张峰, 陈璐, 等. 离子筛吸附与陶瓷膜耦合用于盐湖卤水提锂[J].化工学报, 2017, 68(5): 1899-1905.
	MENG Qingwei, ZHANG Feng, CHEN Lu, et al.Lithium recovery from Qarham brine using adsorption-membrane separation hybrid system[J].CIESC Journal, 2017, 68(5): 1899-1905.
[10]	贾航, 何利华, 徐文华, 等. 膜分离法及电化学吸附法盐湖提锂的研究进展[J].稀有金属与硬质合金, 2017, 45(1): 11-16.
	JIA Hang, HE Lihua, XU Wenhua, et al.Research progress of lithium recovery from salt lake brines with membrane separation method and electrochemical-adsorptive method[J].Rare Metals and Cemented Carbides, 2017, 45(1): 11-16.
[11]	蒋应平, 薛宇飞, 邓超群.采用TBP-NX混合萃取体系从盐湖卤水提锂[J].有色金属工程, 2021, 11(11): 41-47.
	JIANG Yingping, XUE Yufei, DENG Chaoqun.Solvent extraction of lithium from salt lake brine by TBP-NX mixed extraction system[J].Nonferrous Metals Engineering, 2021, 11(11): 41-47.
[12]	康锦, 卫丽娜, 成怀刚.离子液体用于盐湖卤水萃取提锂的研究进展[J].无机盐工业, 2022, 54(1): 1-6.
	KANG Jin, WEI Lina, CHENG Huaigang.Research progress on application of ionic liquids in extracting lithium from salt lakes[J].Inorganic Chemicals Industry, 2022, 54(1): 1-6.
[13]	张丽芬, 邢学永, 王文娟, 等. 高镁锂比盐湖卤水萃取提锂研究[J].矿冶工程, 2020, 40(5): 94-96.
	ZHANG Lifen, XING Xueyong, WANG Wenjuan, et al.Extraction of lithium from salt lake brine with high magnesium/lithium ratio[J].Mining and Metallurgical Engineering, 2020, 40(5): 94-96.
[14]	王艺博, 阮久莉, 郭玉文, 等. TBP为萃取剂分离废磷酸铁锂电池中金属锂的研究[J].现代化工, 2021, 41(7): 185-190.
	WANG Yibo, RUAN Jiuli, GUO Yuwen, et al.Separation of lithium metal from spent lithium iron phosphate batteries with TBP as extractant[J].Modern Chemical Industry, 2021, 41(7): 185-190.
[15]	卫丽娜, 康锦, 李虎, 等. 盐湖提锂萃取剂及萃取体系研究进展[J].无机盐工业, 2021, 53(5): 21-25.
	WEI Lina, KANG Jin, LI Hu, et al.Research progress of lithium extractants and extraction systems from salt lakes[J].Inorganic Chemicals Industry, 2021, 53(5): 21-25.
[16]	谢铿, 王海北.混盐型高锂卤水萃取分离锂[J].有色金属工程, 2021, 11(11): 34-40.
	XIE Keng, WANG Haibei.Extraction and separation of lithium from a salt lake brine with high lithium content[J].Nonferrous Metals Engineering, 2021, 11(11): 34-40.
[17]	ZHOU Zhiyong, FAN Jiahui, LIU Xueting, et al.Recovery of lithium from salt-lake brines using solvent extraction with TBP as extractant and FeCl₃ as co-extraction agent[J].Hydrometallurgy, 2020,191.Doi:10.1016/j.hydromet.2019.105244 .
[18]	WANG Yong, LIU Haotian, FAN Jiahui, et al.Recovery of lithium ions from salt lake brine with a high magnesium/lithium ratio using heteropolyacid ionic liquid[J].ACS Sustainable Che- mistry & Engineering, 2019, 7(3): 3062-3072.
[19]	CHEN Shangqing, Xuejiao NAN, ZHANG Nan, et al.Solvent extraction process and extraction mechanism for lithium recovery from high Mg/Li-ratio brine[J].Journal of Chemical Engineering of Japan, 2019, 52(6): 508-513.
[20]	欧阳杰, 谷晋川, 温鑫, 等. 响应面法优化D201树脂处理含铁废盐酸溶液的工艺研究[J].离子交换与吸附, 2018, 34(6): 549-558.
	OUYANG Jie, GU Jinchuan, WEN Xin, et al.Optimization of D201 resin for treatment of iron containing waste hydrochloric acid solution by response surface method[J].Ion Exchange and Adsorption, 2018, 34(6): 549-558.
[21]	方楠, 吴健, 何强, 等. 响应面法优化铁尾矿砂对铜（Ⅱ）的吸附条件[J].矿产综合利用, 2020(1): 140-145.
	FANG Nan, WU Jian, HE Qiang, et al.Optimization of adsorption conditions of copper（Ⅱ） on ferrous mill tailings by response surface methodology[J].Multipurpose Utilization of Mineral Resources, 2020(1): 140-145.
[22]	杨蓉, 朱丽峰, 张媛, 等. 基于响应面法的半水硫酸钙复合改性除砷研究[J].人工晶体学报, 2019, 48(12): 2316-2322.
	YANG Rong, ZHU Lifeng, ZHANG Yuan, et al.Removal of arsenic by complex modification of calcium sulfate hemihydrate based on response surface method[J].Journal of Synthetic Crystals, 2019, 48(12): 2316-2322.
[23]	李丽娟, 彭小五, 时东, 等. 含锂卤水中锂资源高效利用与绿色分离的新型萃取体系[J].盐湖研究, 2018, 26(4): 1-10.
	LI Lijuan, PENG Xiaowu, SHI Dong, et al.Eco-friendly separation and effective applications of lithium resources from various brine with lithium:Their extractant and extraction system[J].Journal of Salt Lake Research, 2018, 26(4): 1-10.

水平	因素
水平	A 相比	B 铁锂物质的量比	C TBP体积分数/%
-1	1	1.0	30
0	2	1.5	40
1	3	2.0	50

方差来源	平方和	自由度	均方差	F值	P值
模型	2 531.24	9	281.25	4 069.38	<0.000 1**
A	1 140.27	1	1 140.27	16 498.38	<0.000 1**
B	752.14	1	752.14	10 882.62	<0.000 1**
C	49.90	1	49.90	722.00	<0.000 1**
AB	0.66	1	0.66	9.61	0.017 3*
AC	0.77	1	0.77	11.20	0.012 3*
BC	2.53	1	2.53	36.58	0.000 5**
A²	433.29	1	433.29	6 269.21	<0.000 1**
B²	124.11	1	124.11	1 795.78	<0.000 1**
C²	9.08	1	9.08	131.33	<0.000 1**
残差	0.48	7	0.069
失拟项	0.30	3	0.099	2.11	0.241 7
净误差	0.19	4	0.047
总离差	2 531.73	16
