无机盐工业 ›› 2024, Vol. 56 ›› Issue (9): 12-23.doi: 10.19964/j.issn.1006-4990.2024-0059

• 综述与专论 • 上一篇    下一篇

基于固-固反应机制锂硫电池的最新研究进展

陈雪1,2,3(), 欧阳全胜1,2,3(), 邵姣婧3,4()

  1. 1.贵州轻工职业技术学院先进电池与材料工程研究中心,贵州 贵阳 561113
    2.废旧动力电池梯次利用及资源化省级协同创新中心,贵州 贵阳 561113
    3.贵州省普通高等学校石墨烯材料工程研究中心,贵州 贵阳 561113
    4.贵州大学材料与冶金学院,贵州 贵阳 550025
  • 收稿日期:2024-01-29 出版日期:2024-09-10 发布日期:2024-09-26
  • 通讯作者: 欧阳全胜(1968— ),男,博士,教授,主要研究方向为锂离子电池梯次利用与回收;E-mail:qsouyang@163.com
    邵姣婧(1988— ),女,博士,教授,主要研究方向为锂电池用关键材料设计制备及应用研究;E-mail:shaojiao_jing@163.com
  • 作者简介:陈雪(1993— ),女,博士,讲师,研究方向为锂硫电池电解液设计与应用;E-mail:1548582799@qq.com
  • 基金资助:
    贵州轻工职业技术学院自然科学研究项目(23QY01);贵州省科学技术基金资助项目(黔科合基础-ZK[2024]一般608);贵州省科学技术基金资助项目(黔科合基础-[2018]1086);贵州省科学技术基金资助项目(黔科合平台人才-CXTD[2023]016)

Recent research progress of lithium-sulfur batteries based on solid-solid reaction mechanism

CHEN Xue1,2,3(), OUYANG Quansheng1,2,3(), SHAO Jiaojing3,4()

  1. 1.Advanced Batteries and Materials Engineering Research Center,Guizhou Light Industry Technical College,Guiyang 561113,China
    2.Provincial Collaborative Innovation Center of Used Power Batteries Recycling,Guiyang 561113,China
    3.Graphene Materials Engineering Research Center of Guizhou Colleges and Universities,Guiyang 561113,China
    4.School of Materials and Metallurgy,Guizhou University,Guiyang 550025,China
  • Received:2024-01-29 Published:2024-09-10 Online:2024-09-26

摘要:

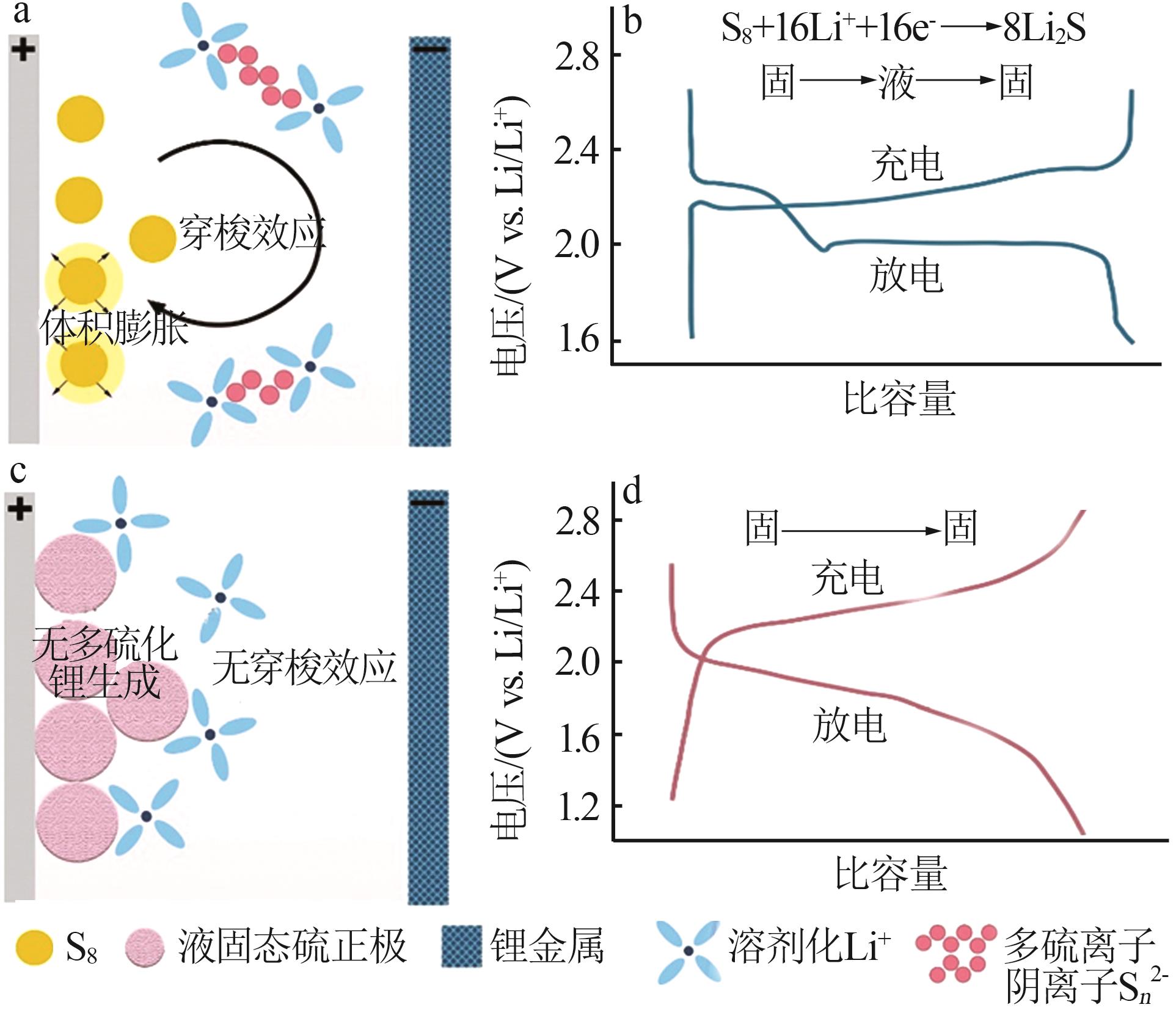

锂硫电池具有高的理论能量密度,且单质硫存在环境友好和价格低廉等优势,被认为是发展前景良好的储能器件。然而,硫在常规醚类电解液中进行充放电是基于固-液-固两相转换的反应机制,会生成溶解性较高的中间产物多硫化锂从而引发穿梭效应,导致活性物质不可逆流失和锂负极腐蚀。因此,发展不涉及液相多硫化锂溶解于电解液的固-固反应机制尤为重要。大量研究证明,通过优化正极材料设计、调控电解质体系及其协同设计等策略,可实现硫正极的固-固反应机制,避免多硫化锂溶解于电解液,从而提升锂硫电池的电化学性能。主要综述了硫正极实现固-固机制的可行途径并进行了机理探讨,最后对构筑高能量密度实用化锂硫电池的发展提出了展望,旨在解决贫电解液条件下锂负极腐蚀和硫正极基于固-固反应机制存在反应动力学缓慢的问题。

关键词: 锂硫电池, 正极材料设计, 电解液调控, 固-固反应机制

Abstract:

Lithium sulfur batteries are considered to be promising energy storage devices due to their high theoretical energy density,as well as the advantages of environmental friendliness and low-cost of sulfur.However,sulfur cathodes usually react with lithium ions under solid-liquid-solid biphasic reaction mechanism in conventional ether-based electrolytes,which generates intermediate products of lithium polysulfides and leads to the irreversible loss of active materials and corrosion of lithium anodes.Hence,it is vital to develop sulfur cathodes operating on sold-solid reaction mechanism without dissolving of lithium polysulfides into electrolytes.At present,vast research revealed that the realization of sulfur cathodes based on solid-solid reaction mechanism could be achieved by rational design of cathode materials,regulating the electrolyte systems,or their synergistic design,which thus improved the electrochemical performance of lithium sulfur batteries.The strategies towards achieving solid-solid reaction mechanism of sulfur cathodes in recent years were summarized and the detailed mechanism was discussed.Finally,the development prospect of constructing practical lithium-sulfur batteries with high energy density was put forward,aiming at solving the problems of lithium anode corrosion under the condition of lean electrolyte and the sluggish reaction kinetics based on the solid-solid reaction mechanism of sulfur cathode.

Key words: lithium sulfur batteries, cathode materials design, electrolytes modification, solid-solid reaction mechanism

中图分类号:
