无人机用锂离子电池正极材料Li1.20Mn0.54Ni0.13Co0.13O2的Mo6+掺杂改性研究

doi:10.19964/j.issn.1006-4990.2020-0365

摘要/Abstract

摘要：

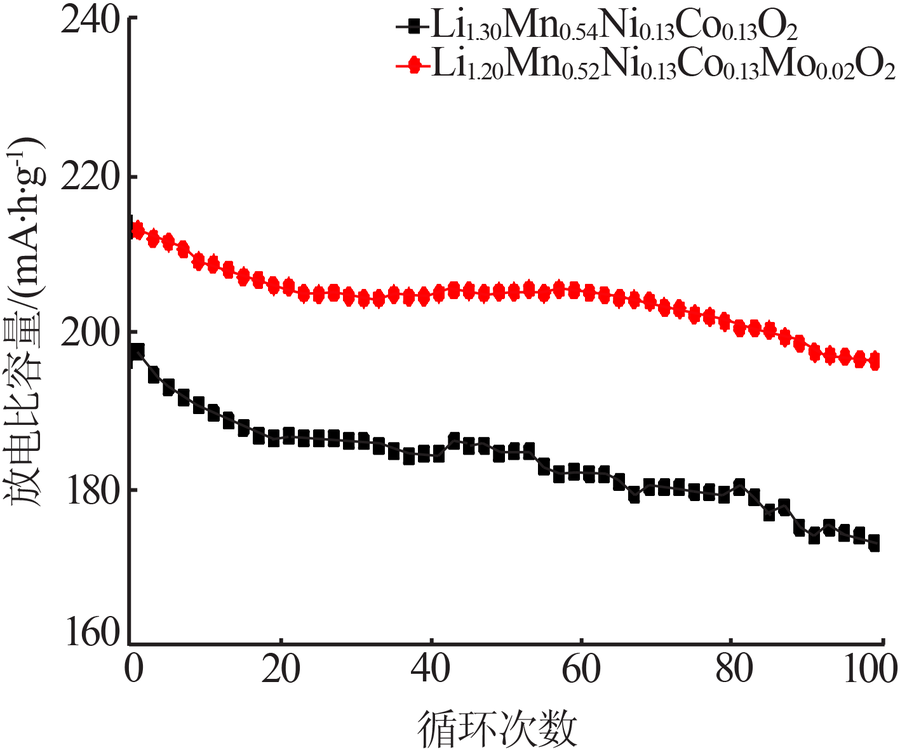

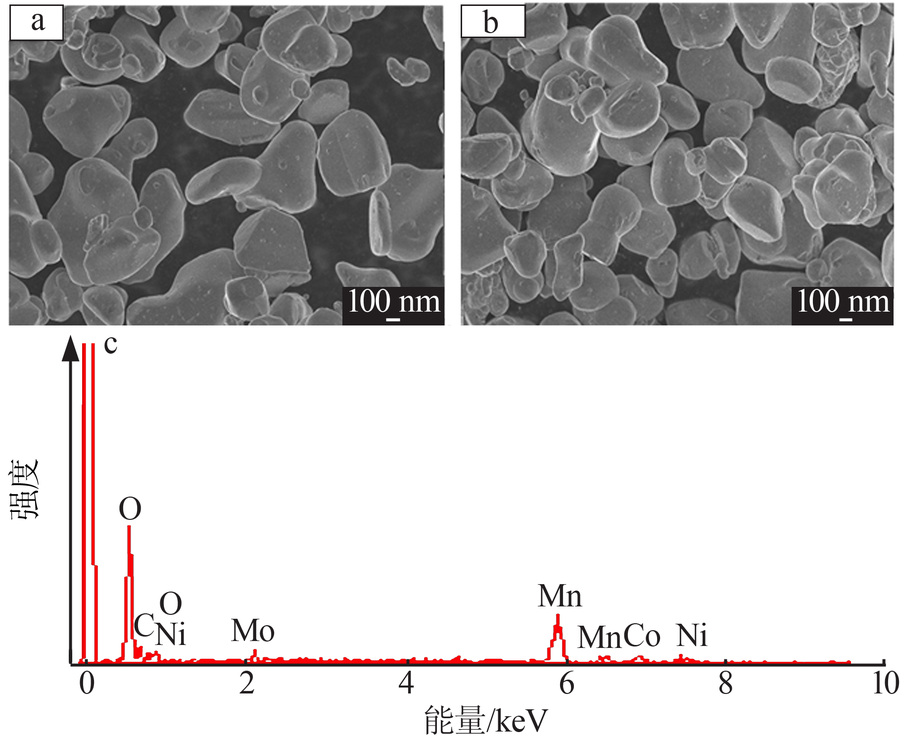

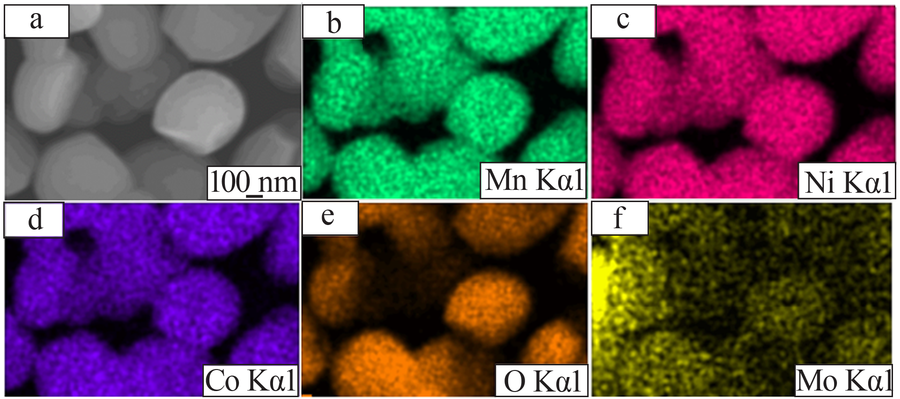

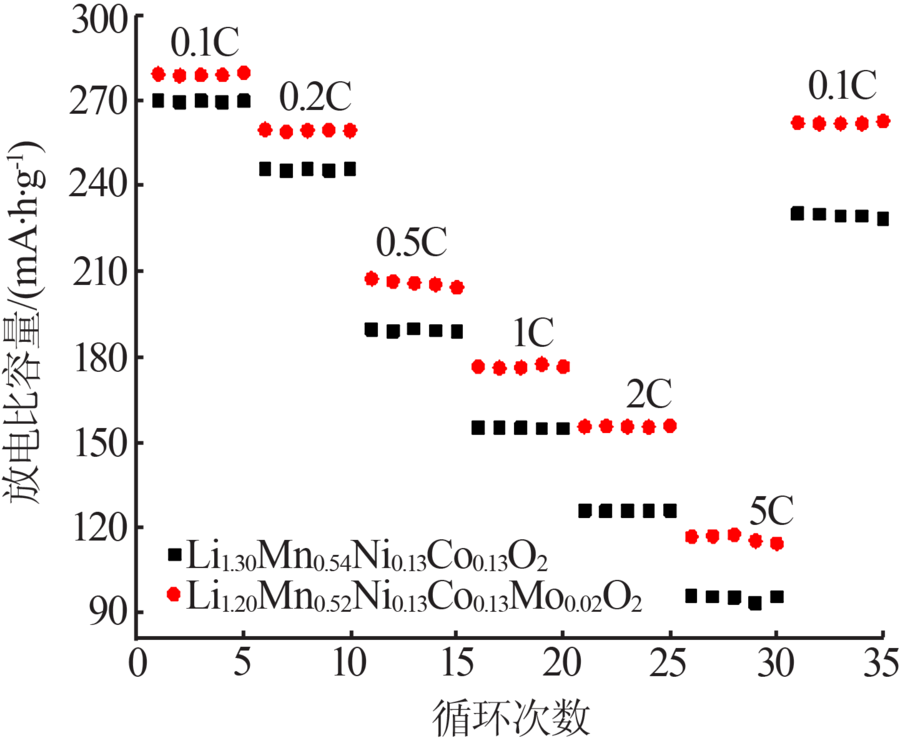

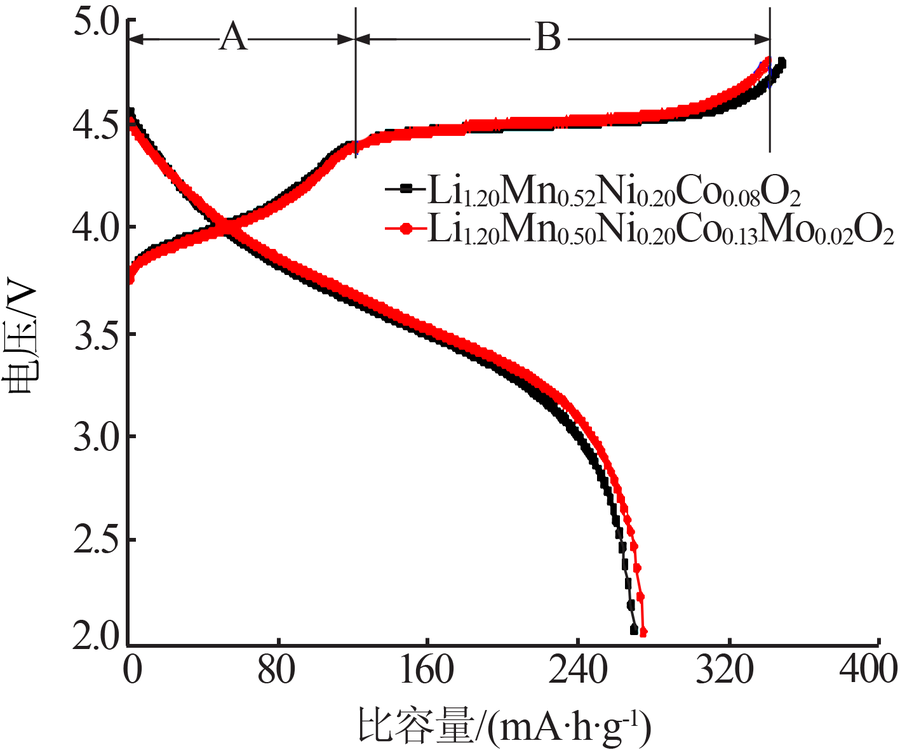

采用碳酸盐共沉淀法和高温烧结工艺将一定量的Mo⁶⁺掺杂到Li_1.20Mn_0.54Ni_0.13Co_0.13O₂正极材料中。利用XRD、SEM、EDS和恒流测试仪研究Mo⁶⁺掺杂对Li_1.20Mn_0.54Ni_0.13Co_0.13O₂正极材料的晶体结构、微观形貌和电化学性能的影响。结果显示,Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂表现出更低的阳离子混排和优异的电化学性能。经过Mo⁶⁺掺杂后的正极,由于Li⁺高速的迁移速率,使得首次不可逆容量损失降低,并展现出更好的高倍率性能和优异的循环稳定性。在0.5C倍率下循环100周后,Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂的容量保持率达到92.2%,远远大于Li_1.20Mn_0.54Ni_0.13Co_0.13O₂的87.5%。另外,当放电倍率增大到5C时,Li_1.20Mn_0.54Ni_0.13Co_0.13O₂的放电比容量要比Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂低21.0 mA·h/g。因此,采用Mo⁶⁺掺杂改性Li_1.20Mn_0.54Ni_0.13Co_0.13O₂正极材料,可以有效提高锂电池的循环保持率和高倍率放电性能。

关键词: 无人机, 锂离子电池, Li_1.20Mn_0.54Ni_0.13Co_0.13O₂, Mo⁶⁺ 掺杂, 电化学性能

Abstract:

A certain content of Mo⁶⁺ was doped into the Li_1.20Mn_0.54Ni_0.13Co_0.13O₂ cathode materials via using the carbonate co-precipitation method and high temperature calcination process.The influences of doping Mo⁶⁺ on crystal structure, morphology and electrochemical properties of the cathode materials were investigated by XRD, SEM, EDS and galvanostatic charge-discharge tests.The results showed that the Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂ exhibited lower cation mixing and excellent electro-chemical properties.Due to the high migration rate of Li⁺, the first irreversible capacity loss of the Mo⁶⁺ doped cathode was reduced, which led to better high rate performance and excellent cycle stability.After 100 cycles at 0.5C, the capacity retention rate of Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂ was 92.2%, which was much higher than that of Li_1.20Mn_0.54Ni_0.13Co_0.13O₂（87.5%）. In addition, when the discharge rate increased to 5C the discharge capacity of Li_1.20Mn_0.54Ni_0.13Co_0.13O₂ was 21.0 mA·h/g lower than that of Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂.Therefore, using Mo⁶⁺ doping Li_1.20Mn_0.54Ni_0.13Co_0.13O₂ cathode materials could effectively improve the cycle retention and high rate discharge performance of lithium-ion battery.

Key words: unmanned aerial vehicles, Li-ion batteries, Li_1.20Mn_0.54Ni_0.13Co_0.13O₂, Mo⁶⁺ doping, electrochemical property

中图分类号:

TQ137.12

张亚锋,李宏伟,赵志坚. 无人机用锂离子电池正极材料Li_1.20Mn_0.54Ni_0.13Co_0.13O₂的Mo⁶⁺掺杂改性研究[J]. 无机盐工业, 2021, 53(11): 81-85.

ZHANG Yafeng,LI Hongwei,ZHAO Zhijian. Study on Mo⁶⁺ doping into Li_1.20Mn_0.54Ni_0.13Co_0.13O₂ as cathode materials for Li-ion batteries applied in unmanned aerial vehicles[J]. Inorganic Chemicals Industry, 2021, 53(11): 81-85.

图/表 8

图1

表1

图2

表2

图3

图4

图5

图6

参考文献 14

[1]	刘大亮, 孙国平, 刘亚飞. 掺混工艺对LiNi_0.5Co_0.2Mn_0.3O₂正极材料性能的影响[J]. 无机盐工业, 2019, 51(10):39-42.
[2]	SUN M H, HUANG S Z, CHEN L H, et al. Applications of hierarc-hically structured porous materials from energy storage and conver-sion,catalysis,photoatalysis,adsorption,separation,and sensing to biomedicine[J]. Chemical Society Reviews, 2016, 45:3479-3563.
[3]	OZ E, ALTIN S, DEMIREL S, et al. Electrohemical effects and ma-gnetic properties of B substituted LiCoO₂:Improving Li-battery per-formance[J]. Journal of Alloys and Compounds, 2016, 657:835-847.
[4]	FANG Y, HUANG Y, TONG W, et al. Synjournal of hollow peanut-like hierarchical mesoporous LiNi_1/3Co_1/3Mn_1/3O₂ cathode materials with exceptional cycle performance for lithium-ion batteries by a simple self-template solid-state method[J]. Journal of Alloys and Compounds, 2018, 743:707-715.
[5]	王甲泰, 赵段, 马莲花, 等. 锂离子电池正极材料磷酸铁锂的研究进展[J]. 无机盐工业, 2020, 52(4):18-22.
[6]	ZHAO C, WANG X, LIU X, et al. Mn-Ni contentdependent struc-tures and electrohemical behaviors of serial Li_1.2Ni_0.13+_xCo_0.13Mn_0.54-_xO₂ as lithium-ion battery cathodes[J]. ACS Applied Materials & Inter-faces, 2014, 6:2386-2392.
[7]	JIN X, XU Q J, LIU H M, et al. Excellent rate capability of Mg doped Li[Li_0.2Ni_0.13Co_0.13Mn_0.54]O₂ cathode material for lithium-ion batte-ry[J]. Electrohimica Acta, 2014, 136:19-26.
[8]	范宏. 不同Ti⁴⁺含量掺杂Li[Li_0.2Mn_0.54Ni_0.13Co_0.13]O₂的制备和电化学性能[J]. 无机盐工业, 2017, 49(7):69-73.
[9]	WANG Z Y, LIU E Z, HE C N, et al. Effect of amorphous FePO₄ coa-ting on structure and electrohemical performance of Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ as cathode material for Li-ion batteries[J]. Journal of Power Sources, 2013, 236:25-32.
[10]	KANG S F, QIN H F, FANG Y, et al. Preparation and electrochemi-cal performance of yttrium-doped Li[Li_0.20Mn_0.534Ni_0.133Co_0.133]O₂ as cathode material for lithium-ion batteries[J]. Electrohimica Acta, 2014, 144:22-30.
[11]	GAO H Y, JIAO L F, PENG W X, et al. Enhanced electrochemical performance of LiFePO₄/C via Mo-doping at Fe site[J]. Electro-chimica Acta, 2011, 56:9961-9967.
[12]	YUAN W, YAN J, TANG Z Y, et al. Mo-doped Li₃V₂(PO₄)₃/C ca-thode material with high rate capability and long term cyclic stabi-lity[J]. Electrochimica Acta, 2012, 72:138-142.
[13]	XUE L, LI Y, XU B, et al. Effect of Mo doping on the structure and electroc hemical performances of LiNi_0.6Co_0.2Mn_0.2O₂ cathode mate-rial at high cut-off voltage[J]. Journal of Alloys and Compounds, 2018, 748:561-568.
[14]	LU Y, SHI S, YANG F, et al. Mo-doping for improving the ZrF₄ co-ated-Li[Li_0.20Mn_0.54Ni_0.13Co_0.13]O₂ as high performance cathode ma-terials in lithium-ion batteries[J]. Journal of Alloys and Compoun-ds, 2018, 767:23-33.

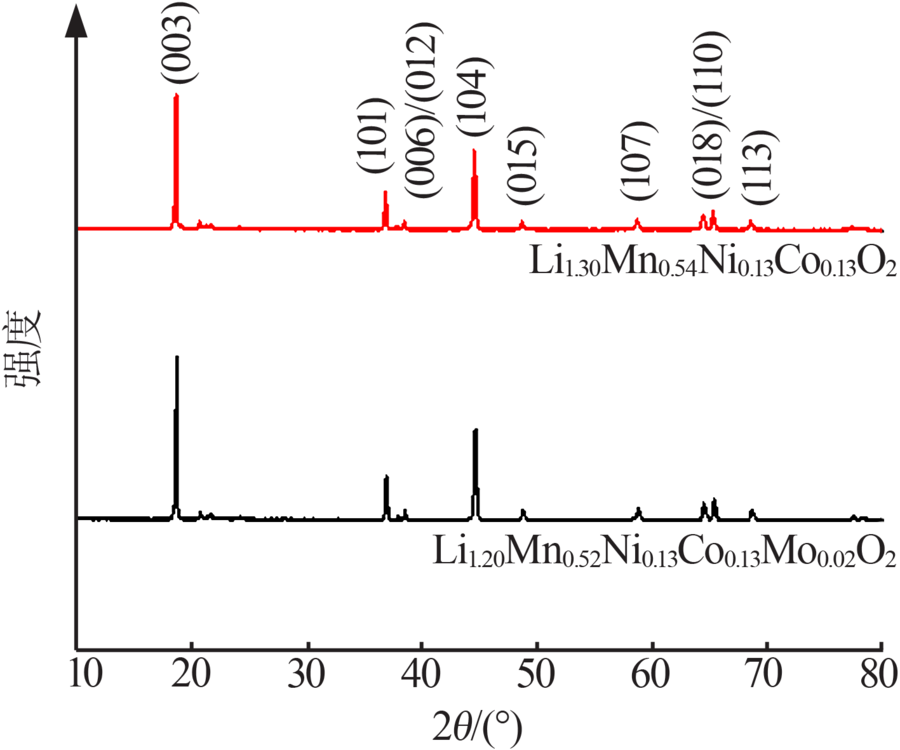

样品	a/nm	c/nm	c/a	I_（003）/I_（104）
Li_1.20Mn_0.54Ni_0.13Co_0.13O₂	0.284 8	1.420 7	4.988	1.62
Li_1.20Mn_0.52Ni_0.13Co_0.13Mo_0.02O₂	0.286 2	1.428 9	4.993	1.74

x	元素理论化学计量比				元素实验化学计量比
x	Mn	Ni	Co	Mo	Mn	Ni	Co	Mo
0.00	0.540	0.130	0.130	0.000	0.542	0.127	0.131	0.000
0.02	0.520	0.130	0.130	0.020	0.519	0.131	0.129	0.021
