氟掺杂对LiMn0.8Fe0.2PO4/C正极材料电化学性能的影响

doi:10.19964/j.issn.1006-4990.2024-0054

摘要/Abstract

摘要：

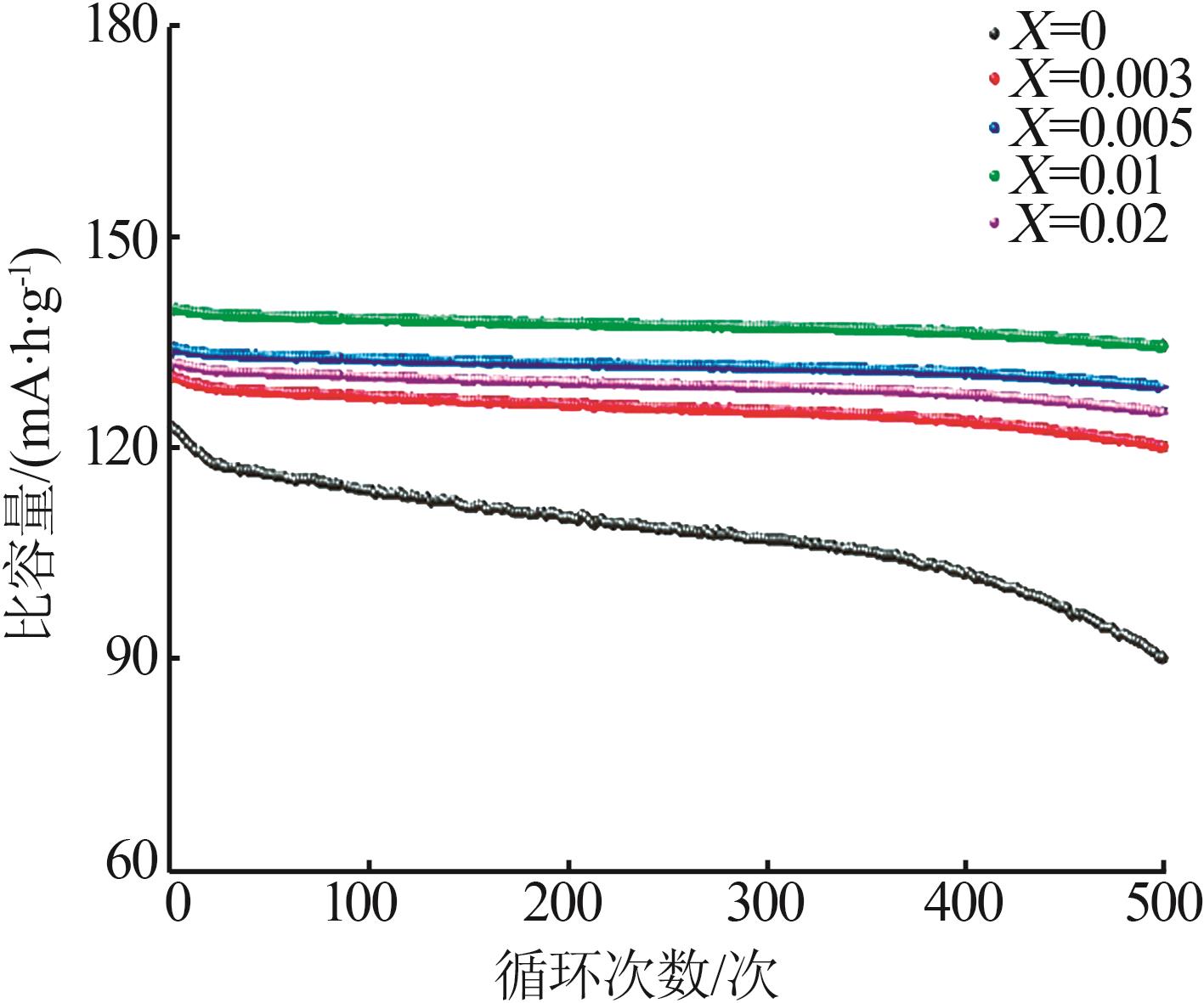

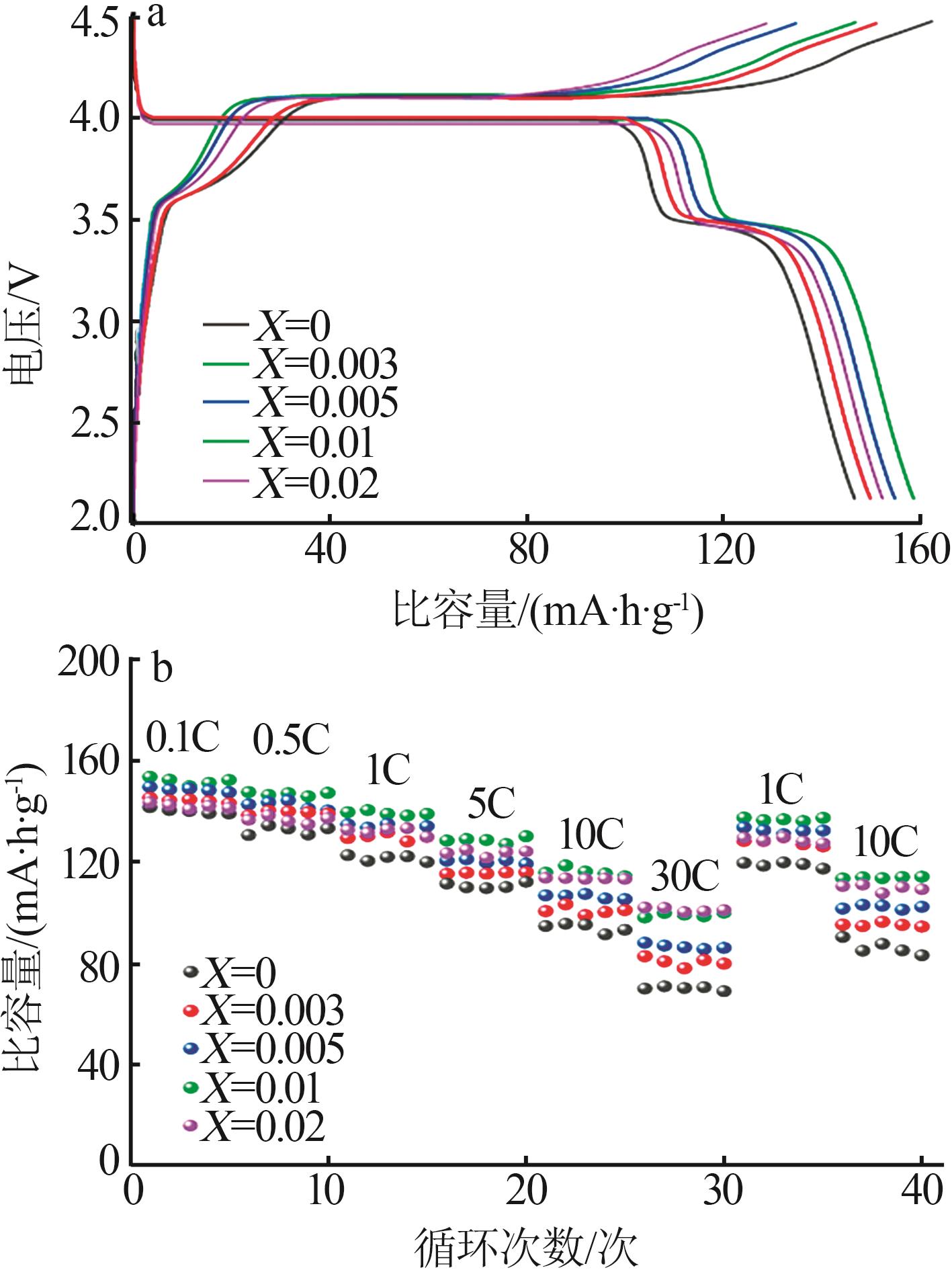

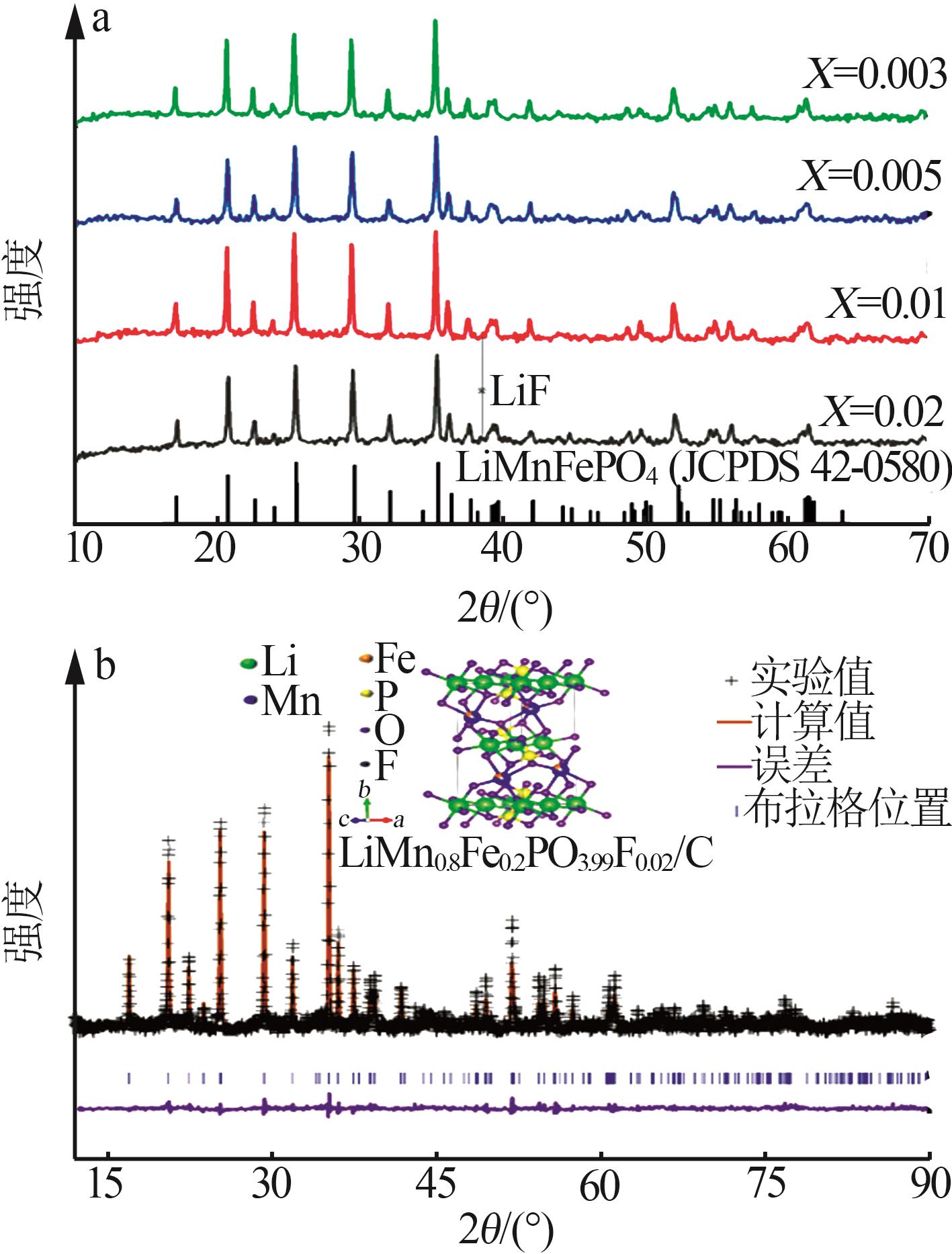

随着新能源汽车和锂离子电池的普及和推广，磷酸锰铁锂材料作为锂离子电池正极材料，其电化学性能亟待进一步优化。在诸多磷酸锰铁锂改性手段中，阴离子位取代的研究较少。LiF作为掺杂剂，通过F^-取代PO₄^3-部分氧位的改性方法可提高磷酸锰铁锂的电化学性能。以Li₂CO₃、LiF、MnCO₃、FeC₂O₄·2H₂O、NH₄H₂PO₄和蔗糖为原料，通过高温固相法制备LiMn_0.8Fe_0.2PO_4-_X F₂_X /C（X=0.003、0.005、0.01、0.02）材料，并研究了不同氟掺杂量对LiMn_0.8Fe_0.2PO₄/C正极材料电化学性能的影响。结果表明，氟的掺入仅对LiMn_0.8Fe_0.2PO₄/C的晶格参数有轻微的改变，而对粒径影响不大；在电化学方面，氟掺杂使LiMn_0.8Fe_0.2PO₄/C具有良好的可逆容量和倍率性能，LiMn_0.8Fe_0.2PO_3.99F_0.02/C表现出最高的初始容量和最佳的倍率性能，0.1C和5C倍率下的放电比容量分别为155.1 mA·h/g和128.6 mA·h/g。相较于未掺杂的LiMnFePO₄，LiMn_0.8Fe_0.2PO_3.99F_0.02/C在1C下循环500次后容量保持率从73.3%提高到96.1%。

关键词: 电化学性能, 磷酸锰铁锂, 正极材料, 氟掺杂

Abstract:

With the popularization and promotion of new energy vehicles and lithium-ion batteries，the electrochemical performance of lithium manganese iron phosphate as cathode material for lithium-ion batteries needs to be further optimized.Among the modification methods of lithium ferromanganese phosphate，there are few studies on anion substitution.By the modification method of F^- replacing PO₄^3- partial oxygen site，LiF was used as a dopant to improve the electrochemical performance of lithium manganese iron phosphate.LiMn_0.8Fe_0.2PO_4-_X F₂_X /C（X=0.003，0.005，0.01，0.02） materials were prepared by high temperature solid state method using Li₂CO₃，LiF，MnCO₃，FeC₂O₄·2H₂O，NH₄H₂PO₄ and sucrose as raw materials，and the effects of different fluorine doping contents on the electrochemical properties of LiMn_0.8Fe_0.2PO₄/C cathode materials were studied.The analyses demonstrated that fluorine could be incorporated into LiMn_0.8Fe_0.2PO₄/C without altering the olivinestructure，but slightly changing the lattice parameters and having little effect on the particle sizes.The results of electrochemical measurement showed that fluorine doping in LiMn_0.8Fe_0.2PO₄/C resulted in good reversible capacity and rate capability.LiMn_0.8Fe_0.2PO_3.99F_0.02/C exhibited highest initial capacity and best rate performance.Its discharge capacities at 0.1C and 5C rates were 155.1 mA·h/g and 128.6 mA·h/g，respectively.After 500 cycles at 1C，the capacity retention was increased from 73.3% to 96.1% compared with the unmodified materials.

Key words: electrochemical performance, LiMn_0.8Fe_0.2PO₄, cathode material, F-doping

中图分类号:

TM911

刘佳盛, 罗晓强, 侯翠红, 薛灵伟. 氟掺杂对LiMn_0.8Fe_0.2PO₄/C正极材料电化学性能的影响[J]. 无机盐工业, 2024, 56(11): 45-50.

LIU Jiasheng, LUO Xiaoqiang, HOU Cuihong, XUE Lingwei. Effects of fluorine doping on electrochemical behavior of LiMn_0.8Fe_0.2PO₄/C cathode materials[J]. Inorganic Chemicals Industry, 2024, 56(11): 45-50.

图/表 9

图1

表1

图2

图3

图4

图5

图6

图7

图8

参考文献 17

1	PADHI A K， NANJUNDASWAMY K S， GOODENOUGH J B.Phospho-olivines as positive-electrode materials for rechargeable lithium batteries［J］.Journal of the Electrochemical Society，1997，144（4）：1188-1194.
2	潘晓晓，庄树新，孙雨晴，等.动力型磷酸铁锂正极材料改性的研究进展［J］.无机盐工业，2023，55（6）：18-26.
	PAN Xiaoxiao， ZHUANG Shuxin， SUN Yuqing，et al.Research progress of modified-LiFePO₄ as cathode materials for lithium ion batteries［J］.Inorganic Chemicals Industry，2023，55（6）：18-26.
3	NATARAJAN S， ARAVINDAN V.Burgeoning prospects of spent lithium-ion batteries in multifarious applications［J］.Advanced Energy Materials，2018，8（33）：1802303.
4	张彬，张萍，向晓刚，等.不同钴含量对三元正极材料性能的影响研究［J］.无机盐工业，2021，53（11）：91-94.
	ZHANG Bin， ZHANG Ping， XIANG Xiaogang，et al.Study on effect of different cobalt content on properties of ternary cathode materials［J］.Inorganic Chemicals Industry，2021，53（11）：91-94.
5	吴兆国，曹骏，杨则恒.基于水热/溶剂热法制备不同形貌LiNi_0.8Co_0.1Mn_0.1O₂锂离子电池正极材料［J］.无机盐工业，2022，54（2）：72-77，105.
	WU Zhaoguo， CAO Jun， YANG Zeheng.Preparation of LiNi_0.8Co_0.1Mn_0.1O₂ cathode materials with different morphologies based on hydrothermal/solvothermal method［J］.Inorganic Chemicals Industry，2022，54（2）：72-77，105.
6	YANG Hao， FU Cuimei， SUN Yijian，et al.Fe-doped LiMnPO₄@C nanofibers with high Li-ion diffusion coefficient［J］.Carbon，2020，158：102-109.
7	张凯，江奥.球形LiMnPO₄/C正极材料的喷雾干燥法制备及性能研究［J］.无机盐工业，2021，53（1）：54-58.
	ZHANG Kai， JIANG Ao.Preparation and properties of spherical LiMnPO₄/C cathode materials by spray drying method［J］.Inorganic Chemicals Industry，2021，53（1）：54-58.
8	ZHAO Ming， FU Yu， XU Ning，et al.High performance LiMnPO₄/C prepared by a crystallite size control method［J］.Journal of Materials Chemistry A，2014，2（36）：15070-15077.
9	ZOLLER F， BÖHM D， LUXA J，et al.Freestanding LiFe_0.2Mn_0.8PO₄/rGO nanocomposites as high energy density fast charging cathodes for lithium-ion batteries［J］.Materials Today Energy，2020，16：100416.
10	CUI Xiaoling， Kuanyou TUO， DONG Hong，et al.Modification of phosphorus-doped carbon coating enhances the electrochemical performance of LiFe_0.8Mn_0.2PO₄ cathode material［J］.Journal of Alloys and Compounds，2021，885：160946.
11	LIU Weifang， LIU Xichang， HAO Rui，et al.Contribution of calcium ion doping to the rate property for LiFe_0.5Mn_0.5PO₄/C［J］.Journal of Electroanalytical Chemistry，2023，929：117117.
12	YI Huihua， HU Chenglin， FANG Haisheng，et al.Optimized electrochemical performance of LiMn_0.9Fe_0.1- _x Mg _x PO₄/C for lithium ion batteries［J］.Electrochimica Acta，2011，56（11）：4052-4057.
13	KIM G H， MYUNG S T， BANG H J，et al.Synthesis and electrochemical properties of Li［Ni_1/3Co_1/3Mn_（1/3– _x_）Mg _x ］O_2– _y F _yvia coprecipitation［J］.Electrochemical and Solid-State Letters，2004，7（12）：A477.
14	AMATUCCI G G， PEREIRA N， ZHENG T，etal.Failure mechanism and improvement of the elevated temperature cycling of LiMn₂O₄compounds through the use of the LiAl _x Mn_2– _x O_4– _z F _z solid solution［J］.Journal of the Electrochemical Society，2001，148（2）：A171.
15	XIONG Wenting， HU Wei， LI Huili.First-principles calculations of the atomic structure and electronic structure of F-doped Li（Ni_0.8Co_0.1Mn_0.1）O₂ cathode material for lithium-ion batteries［J］.Journal of Electronic Materials，2022，51（7）：3944-3949.
16	PAN Maosen， LIN Xuehao， ZHOU Zhentao.Electrochemical performance of LiFePO₄/C doped with F synthesized by carbothermal reduction method using NH₄F as dopant［J］.Journal of Solid State Electrochemistry，2012，16（4）：1615-1621.
17	KIM S B， KIM H， PARK D H，et al.Li-ion diffusivity and electrochemical performance of Ni-rich cathode material doped with fluoride ions［J］.Journal of Power Sources，2021，506：230219.

X	a/Å	b/Å	c/Å	V/Å³
0	6.033 97	10.441 92	4.691 01	295.56
0.003	6.029 95	10.411 56	4.694 47	294.72
0.005	6.047 55	10.357 42	4.703 92	294.64
0.010	6.059 33	10.351 02	4.730 51	294.47
0.020	6.026 84	10.353 23	4.708 76	293.81
