铁离子改性碳分子筛对氮气/甲烷分离性能的研究

doi:10.19964/j.issn.1006-4990.2022-0260

摘要/Abstract

摘要：

针对碳分子筛对氮气/甲烷分离体系分离比低的问题，采用浸渍法以市售空分碳分子筛（CMS）为基体，制备了分离氮气/甲烷的铁离子改性碳分子筛。通过静态吸附量、分离比、吸附动力学及热力学性质考察了铁离子负载量对碳分子筛吸附分离氮气/甲烷性能的影响。结果表明：铁（Ⅲ）的负载减小了CMS的比表面积、微孔体积和孔径，使CMS超微孔的孔径分布呈现更集中的趋势。这种集中性以动力学性能下降为代价，明显提高了碳分子筛对氮气/甲烷的吸附分离比。在303 K、0.7 MPa条件下，综合性能优异的0.3%铁改性CMS具有6.03的氮气/甲烷吸附分离比。

关键词: 氮气/甲烷, 铁, 改性, 变压吸附, 碳分子筛

Abstract:

Aiming at the problem of low separation ratio of carbon molecular sieve to N₂/CH₄ system，the commercial carbon molecular sieve（CMS） for air separation was used as support to prepare the iron ion-modified carbon molecular sieve by an impregnation method.The adsorption and separation performance of nitrogen/methane on different amount of iron modified carbon molecular sieves was systematically investigated by static adsorption capacity，separation ratio，adsorption kinetics and thermodynamic properties.The results showed that the specific surface area，micropore volume and pore size of adsorbent were reduced due to the loading of Fe³⁺ species，making the pore size distribution of ultra-microporous adsorbent be more concentrated.This concentration significantly improved the adsorption and separation ratio of carbon molecular sieves for N₂/CH₄ at the expense of decreased kinetic performance.Under the condition of 303 K and 0.7 MPa，the 0.3%Fe-modified CMS revealed excellent comprehensive performance with a N₂/CH₄ separation ratio of 6.03.

Key words: N₂/CH₄, Fe, modification, pressure swing adsorption, carbon molecular sieve

中图分类号:

TQ424.2

把余德,周世奇,敬方梨,罗仕忠. 铁离子改性碳分子筛对氮气/甲烷分离性能的研究[J]. 无机盐工业, 2023, 55(1): 144-150.

BA Yude,ZHOU Shiqi,JING Fangli,LUO Shizhong. Study on performance of nitrogen/methane separation on iron ions modified carbon molecular sieve[J]. Inorganic Chemicals Industry, 2023, 55(1): 144-150.

图/表 9

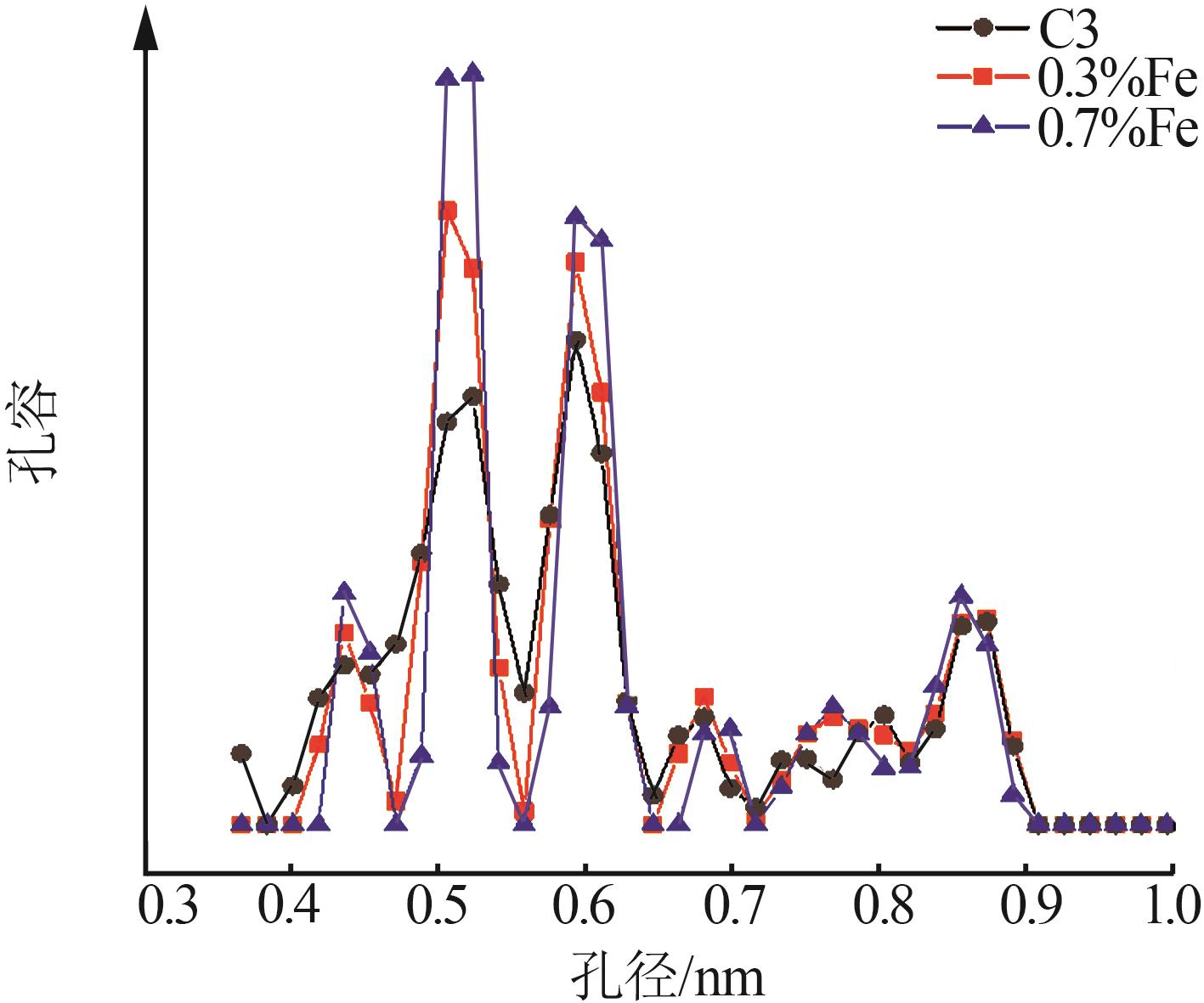

图1

表1

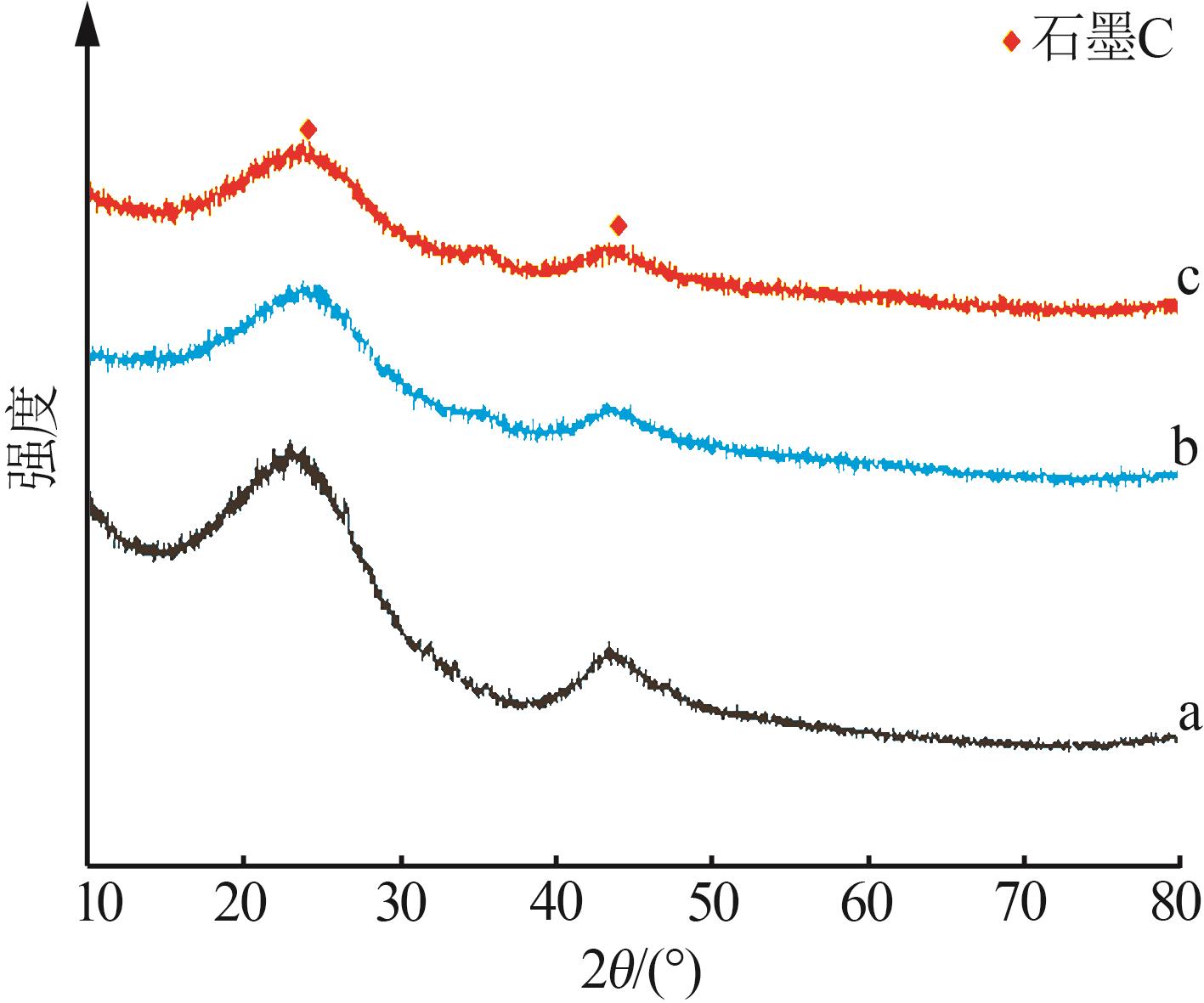

图2

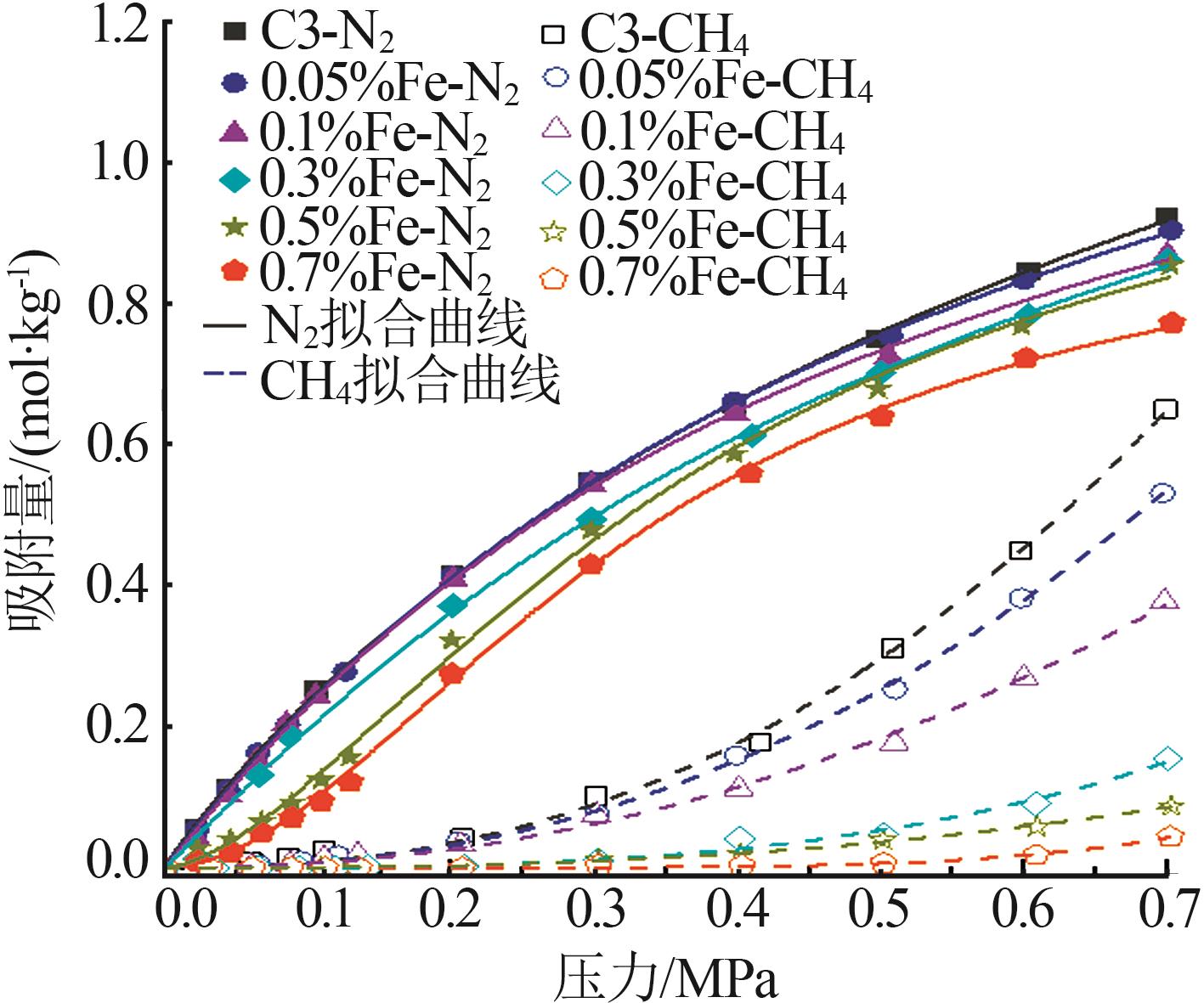

图3

表2

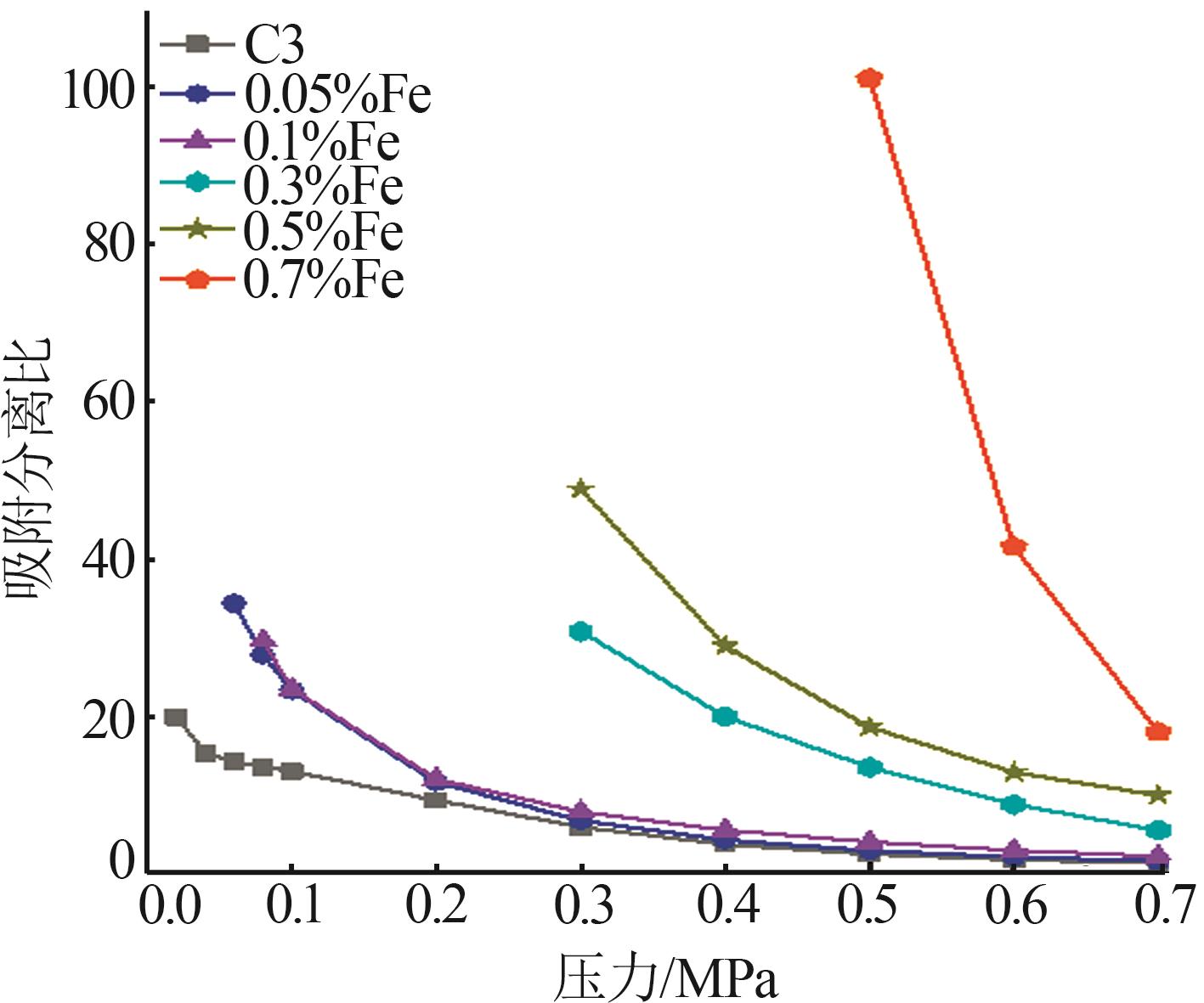

图4

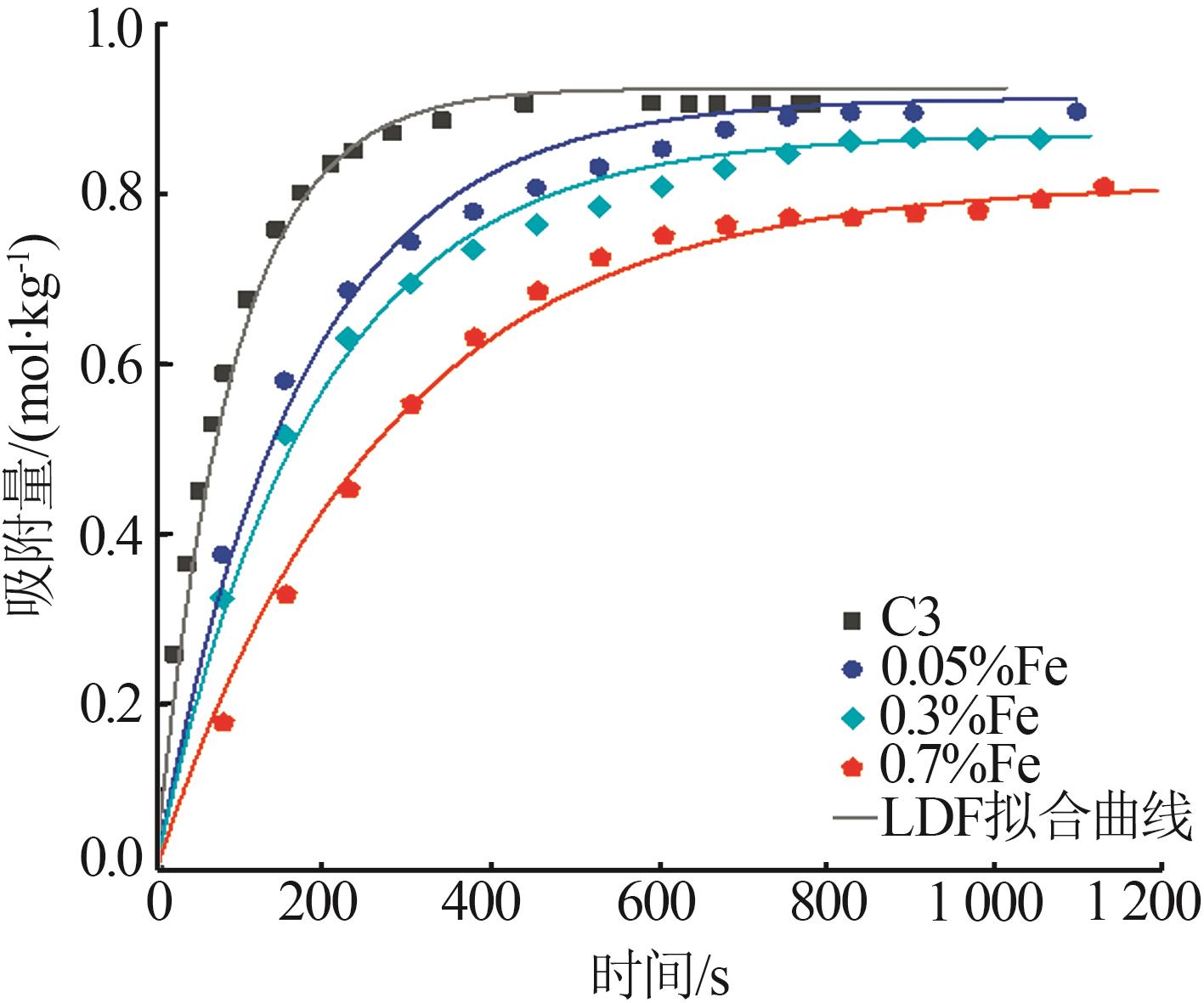

图5

表3

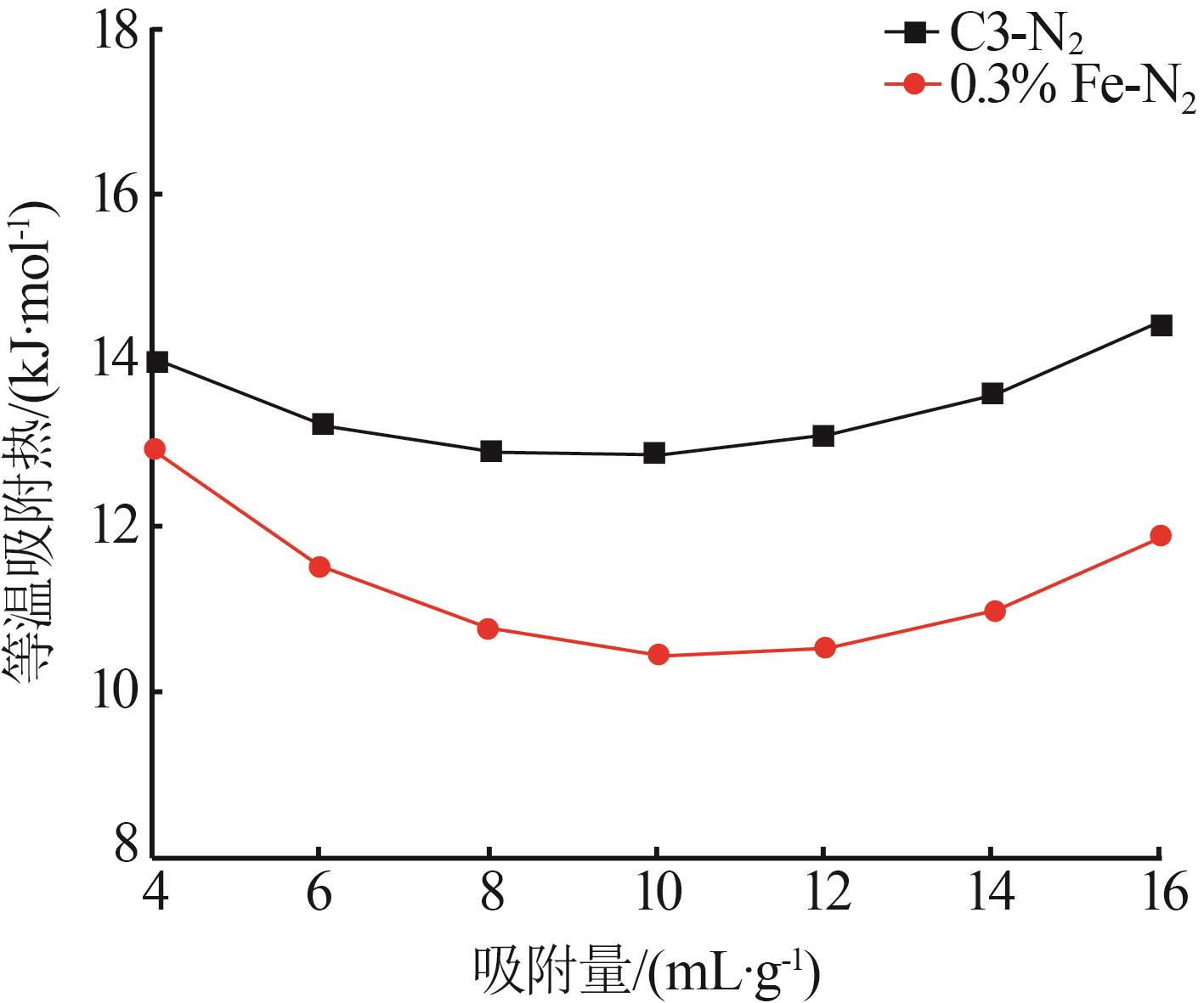

图6

参考文献 31

1	HAMEDI H, KARIMI I A, GUNDERSEN T. Optimal cryogenic processes for nitrogen rejection from natural gas[J].Computers & Chemical Engineering, 2018, 112：101-111.
2	WANG Qi, YU Yixuan, LI Yunhe, et al. Methane separation and capture from nitrogen rich gases by selective adsorption in microporous materials：A review[J].Separation and Purification Technology, 2022, 283.Doi：10.1016/j.seppur.2021.120206. doi: 10.1016/j.seppur.2021.120206
3	LI Xinping, WANG Yaowei, WU Tangyin, et al. High-performance SSZ-13 membranes prepared using ball-milled nanosized seeds for carbon dioxide and nitrogen separations from methane[J].Chinese Journal of Chemical Engineering, 2020, 28（5）：1285-1292.
4	KUZNICKI S M, BELL V A, NAIR S, et al. A titanosilicate molecular sieve with adjustable pores for size-selective adsorption of molecules[J].Nature, 2001, 412（6848）：720-724.
5	LEE K， W C Ⅲ ISLEY, DZUBAK A L, et al. Design of a metal–organic framework with enhanced back bonding for separation of N₂ and CH₄ [J].Journal of the American Chemical Society, 2014, 136（2）：698-704.
6	SHI Qi, WANG Jing, SHANG Hua, et al. Effective CH₄ enrichment from N₂ by SIM-1 via a strong adsorption potential SOD cage[J].Separation and Purification Technology, 2020, 230.Doi：10.1016/j.seppur.2019.115850. doi: 10.1016/j.seppur.2019.115850
7	NANDANWAR S U, CORBIN D R, SHIFLETT M B. A review of porous adsorbents for the separation of nitrogen from natural gas[J].Industrial & Engineering Chemistry Research, 2020, 59（30）：13355-13369.
8	QU Donglei, YANG Ying, LU Kai, et al. Microstructure effect of carbon materials on the low-concentration methane adsorption se-
	paration from its mixture with nitrogen[J].Adsorption, 2018, 24（4）：357-369.
9	YANG Xiong, LI Ziyi, ZHANG Chuanzhao, et al. Practical separation performance evaluation of coal mine methane upgrading with carbon molecular sieves[J].Chemical Engineering Journal, 2019, 367：295-303.
10	TANG Riling, DAI Qiongbin, LIANG Wanwen, et al. Synthesis of novel particle rice-based carbon materials and its excellent CH₄/N₂ adsorption selectivity for methane enrichment from low-rank natural gas[J].Chemical Engineering Journal, 2020, 384.Doi：10.1016/j.cej.2019.123388. doi: 10.1016/j.cej.2019.123388
11	TAE-HWAN K, VIJAYALAKSHMI S, SEOK-JIN S, et al. The pore mouth tailoring of coal and coconut char through acid treatment followed by coke deposition[J].Journal of Porous Materials, 2002, 9：279-286.
12	YANG Zhiyuan, WANG Dechao, MENG Zhuoyue, et al. Adsorption separation of CH₄/N₂ on modified coal-based carbon molecular sieve[J].Separation and Purification Technology, 2019, 218：130-137.
13	LIU Dingding, YI Honghong, TANG Xiaolong, et al. Adsorption separation of CO₂/CH₄ gas mixture on carbon molecular sieves modified by potassium carbonate[J].Journal of Chemical & Engineering Data, 2016, 61（7）：2197-2201.
14	ACKLEY M W, GIESE R F, YANG R T. Clinoptilolite：Untapped potential for kinetics gas separations[J].Zeolites, 1992, 12（7）：780-788.
15	MAJUMDAR B. Adsorption and diffusion of gases in barium exchanged small pore titanium silicate[D].Singapore：National University of Singapore, 2005.
16	YOON J W, CHANG H, LEE S J, et al. Selective nitrogen capture by porous hybrid materials containing accessible transition metal ion sites[J].Nature Materials, 2017, 16（5）：526-531.
17	张欢, 王芳, 李守强, 等. 中高压吸附平衡及吸附速率精密测试设备开发[J].山东化工, 2016, 45（8）：12-14, 18.
	ZHANG Huan, WANG Fang, LI Shouqiang, et al. Development of precision measurement equipment in middle-high pressure adsorption equilibrium and adsorption rate[J].Shandong Chemical Industry, 2016, 45（8）：12-14, 18.
18	YANG Zhiyuan, NING Hailong, LIU Jiaoping, et al. Surface modification on semi-coke-based activated carbon for enhanced separation of CH₄/N₂ [J].Chemical Engineering Research and Design, 2020, 161：312-321.
19	AHMED M J, DHEDAN S K. Equilibrium isotherms and kinetics modeling of methylene blue adsorption on agricultural wastes-based activated carbons[J].Fluid Phase Equilibria, 2012, 317：9-14.
20	XIAO Gongkui, LI Zhikao, SALEMAN T L, et al. Adsorption equilibria and kinetics of CH₄ and N₂ on commercial zeolites and carbons[J].Adsorption, 2017, 23（1）：131-147.
21	SIMONIN J P. On the comparison of pseudo-first order and pseudo-second order rate laws in the modeling of adsorption kinetics[J].Chemical Engineering Journal, 2016, 300：254-263.
22	MARQUES B S, FRANTZ T S, SANT'ANNA CADAVAL JUNIOR T R, et al. Adsorption of a textile dye onto piaçava fibers：Kinetic，equilibrium，thermodynamics，and application in simulated effluents[J].Environmental Science and Pollution Research International, 2019, 26（28）：28584-28592.
23	SIRCAR S, HUFTON J. Why does the linear driving force model for adsorption kinetics work？[J].Adsorption, 2000, 6：137- 147.
24	NING Ping, LI Fenrong, YI Honghong, et al. Adsorption equilibrium of methane and carbon dioxide on microwave-activated carbon[J].Separation and Purification Technology, 2012, 98：321- 326.
25	WIRYOATMOJO A S, MANNAN H A, NASIR R, et al. Surface modification effect of carbon molecular sieve（CMS） on the morphology and separation performance of mixed matrix membran-es[J].Polymer Testing, 2019, 80.Doi：10.1016/j.polymertesting.2019.106152. doi: 10.1016/j.polymertesting.2019.106152
26	卢永康, 白占旗, 缪光武, 等. CH₄/N₂吸附分离技术中吸附材料的研究进展[J].浙江化工, 2019, 50（3）：19-24, 27.
	LU Yongkang, BAI Zhanqi, MIAO Guangwu, et al. Research progress of adsorption separation material for methane in coalbed methane[J].Zhejiang Chemical Industry, 2019, 50（3）：19-24, 27.
27	卢守青, 王亮, 秦立明. 不同变质程度煤的吸附能力与吸附热力学特征分析[J].煤炭科学技术, 2014, 42（6）：130-135.
	LU Shouqing, WANG Liang, QIN Liming. Analysis on adsorption capacity and adsorption thermodynamic characteristics of different metamorphic degree coals[J].Coal Science and Technology, 2014, 42（6）：130-135.
28	SINGH V K, KUMAR E A. Measurement and analysis of adsorption isotherms of CO₂ on activated carbon[J].Applied Thermal Engineering, 2016, 97：77-86.
29	YI Huama, SUN Weiruo, MARUTI B, et al. Adsorption and diffusion of nitrogen，oxygen，argon，and methane in molecular sieve carbon at elevated pressures[J].Separations Technology, 1991, 1（2）：90-98.
30	LOUGHLIN K F, HASSAN M M, FATEHI A I, et al. Rate and equilibrium sorption parameters for nitrogen and methane on carbon molecular sieve[J].Gas Separation & Purification, 1993, 7（4）：264-273.
31	YANG Ying, RIBEIRO A M, LI Ping, et al. Adsorption equilibrium and kinetics of methane and nitrogen on carbon molecular sieve[J].Industrial & Engineering Chemistry Research, 2014, 53（43）：16840-16850.

样品	比表面积/（m²?g^-1）	孔容/（cm³?g^-1）
C3	386.5	0.114
0.3%Fe	362.2	0.112
0.7%Fe	361.1	0.110

样品	N₂				CH₄
样品	q_e/（mol·kg^-1）	B/（MPa^-1）	n	R²	q_e/（mol·kg^-1）	B/（MPa^-1）	n	R²
C3	1.89	1.82	1.06	0.999	0.941	7.47	3.88	0.991
0.05%Fe	1.69	1.64	1.02	0.999	0.81	5.83	3.52	0.988
0.1%Fe	1.68	1.55	1.00	0.990	0.66	3.56	3.10	0.987
0.3%Fe	1.65	2.20	1.18	0.996	0.24	7.62	4.67	0.974
0.5%Fe	1.61	1.87	1.31	0.994	0.11	13.92	4.61	0.988
0.7%Fe	1.60	1.65	1.34	0.992	0.07	45.78	9.54	0.983

样品	N₂
样品	q_m/（mol?kg^-1）	k_s/（10^-3s^-1）	R²
C3	0.924	11.0	0.988
0.05%Fe	0.906	6.5	0.990
0.3%Fe	0.839	4.7	0.997
0.7%Fe	0.741	2.4	0.998
