硫酸钙晶须/SBS复合改性沥青性能研究

李雪连1,2,3(), 唐梓涵1, 许杰1, 李雄1

  1. 1.长沙理工大学交通运输工程学院,湖南 长沙 410114
    2.公路养护技术国家工程实验室(长沙理工大学),湖南 长沙 410114
    3.极端环境绿色长寿道路工程全国重点实验室(长沙理工大学),湖南 长沙 410114
  • 收稿日期:2023-11-30 出版日期:2024-09-10 发布日期:2024-09-26
  • 作者简介:李雪连(1978— ),女,博士,教授,博士生导师,主要研究方向为道路材料与结构;E-mail:lixuelian@csust.edu.cn
  • 基金资助:
    国家自然科学基金项目(52178412)

Study on performance of calcium sulfate whisker/SBS composite modified asphalt

LI Xuelian1,2,3(), TANG Zihan1, XU Jie1, LI Xiong1

  1. 1.Changsha University of Science and Technology,School of Traffic and Transportation Engineering,Changsha 410114,China
    2.National Engineering Laboratory of Highway Maintenance Technology,Changsha 410114,China
    3.National Key Laboratory of Green and Long-Life Road Engineering in Extreme Environment,Changsha 410114,China
  • Received:2023-11-30 Published:2024-09-10 Online:2024-09-26

摘要:

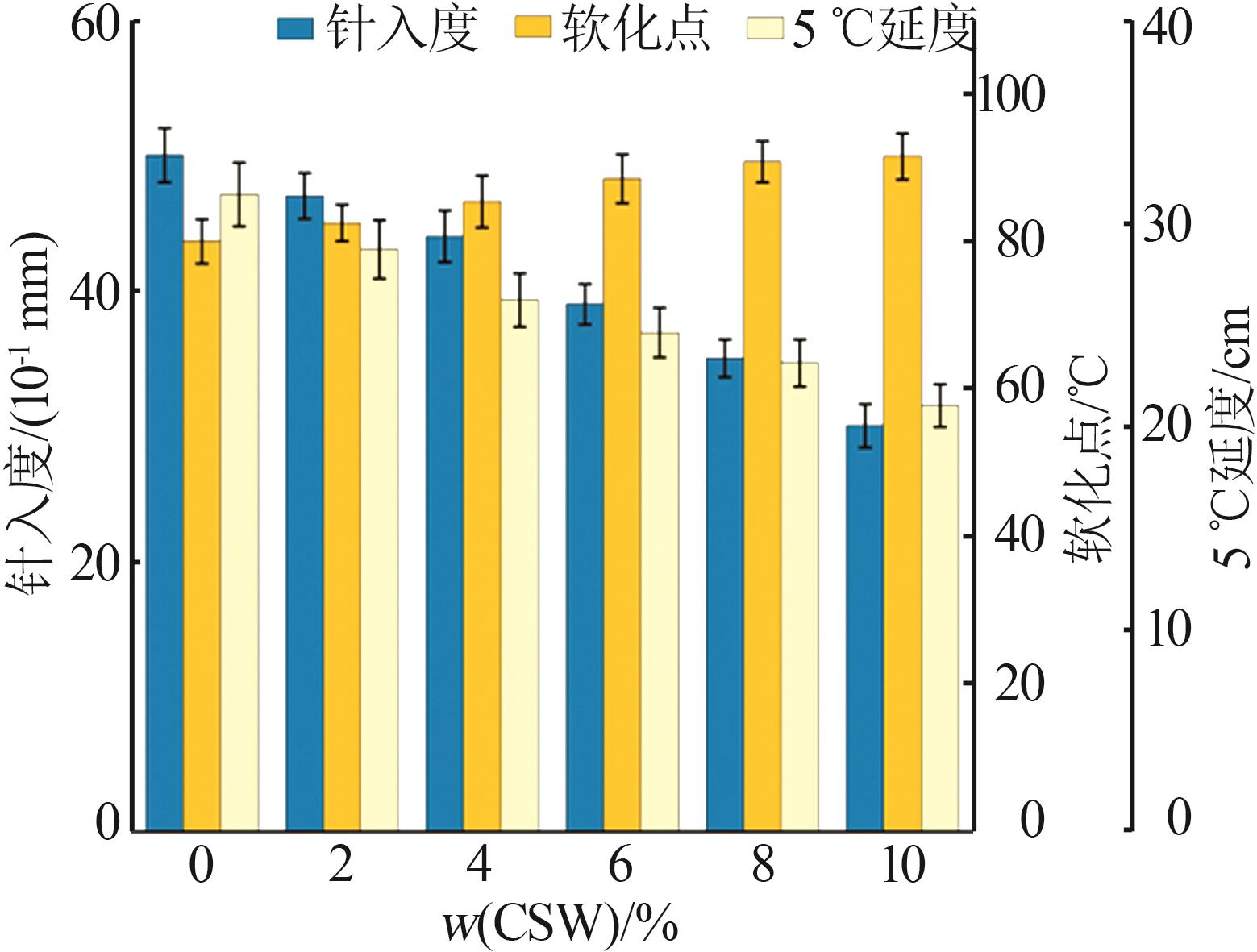

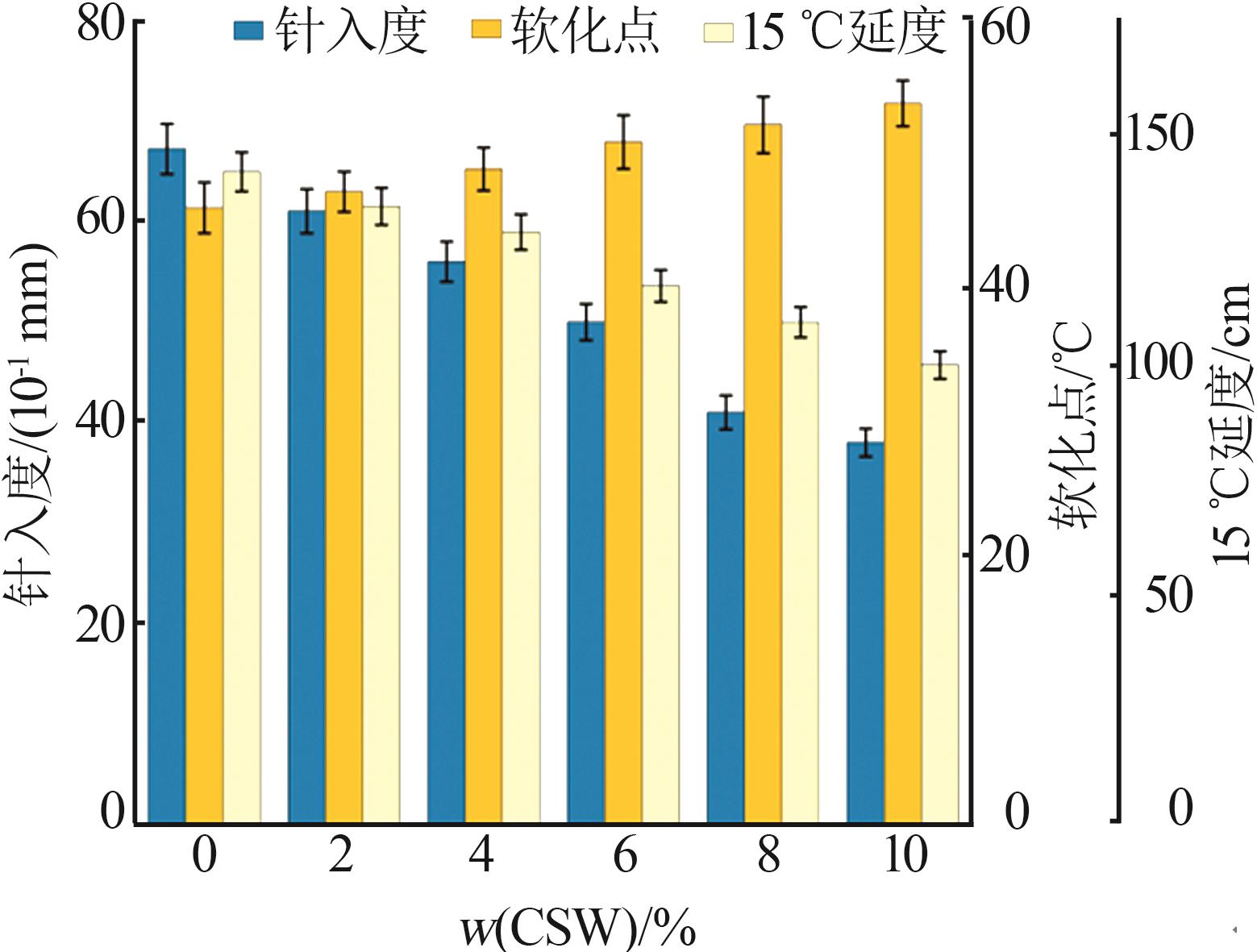

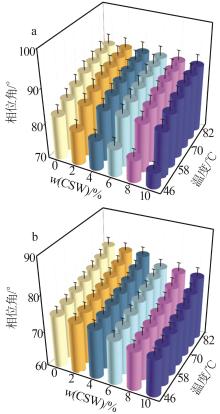

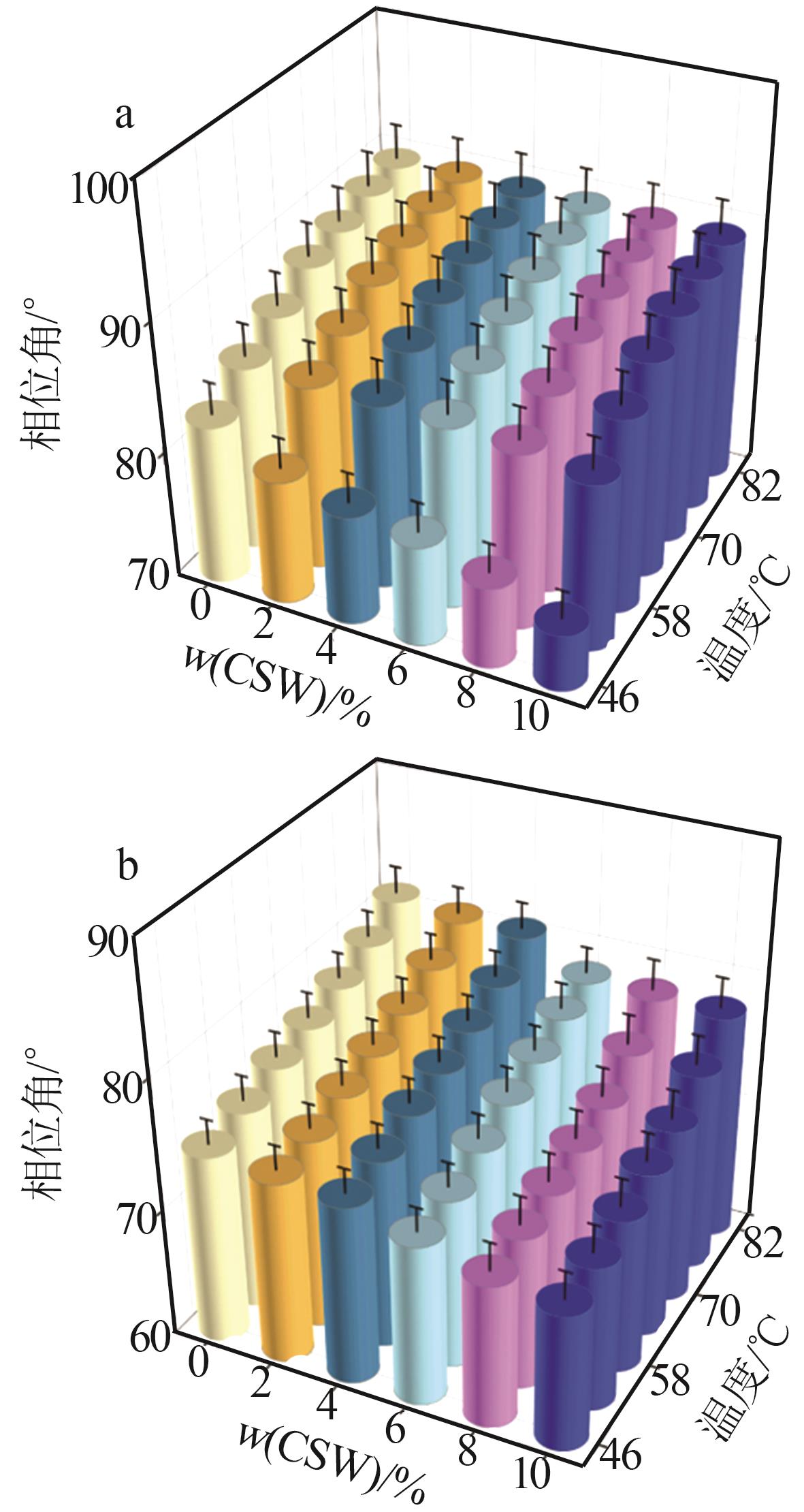

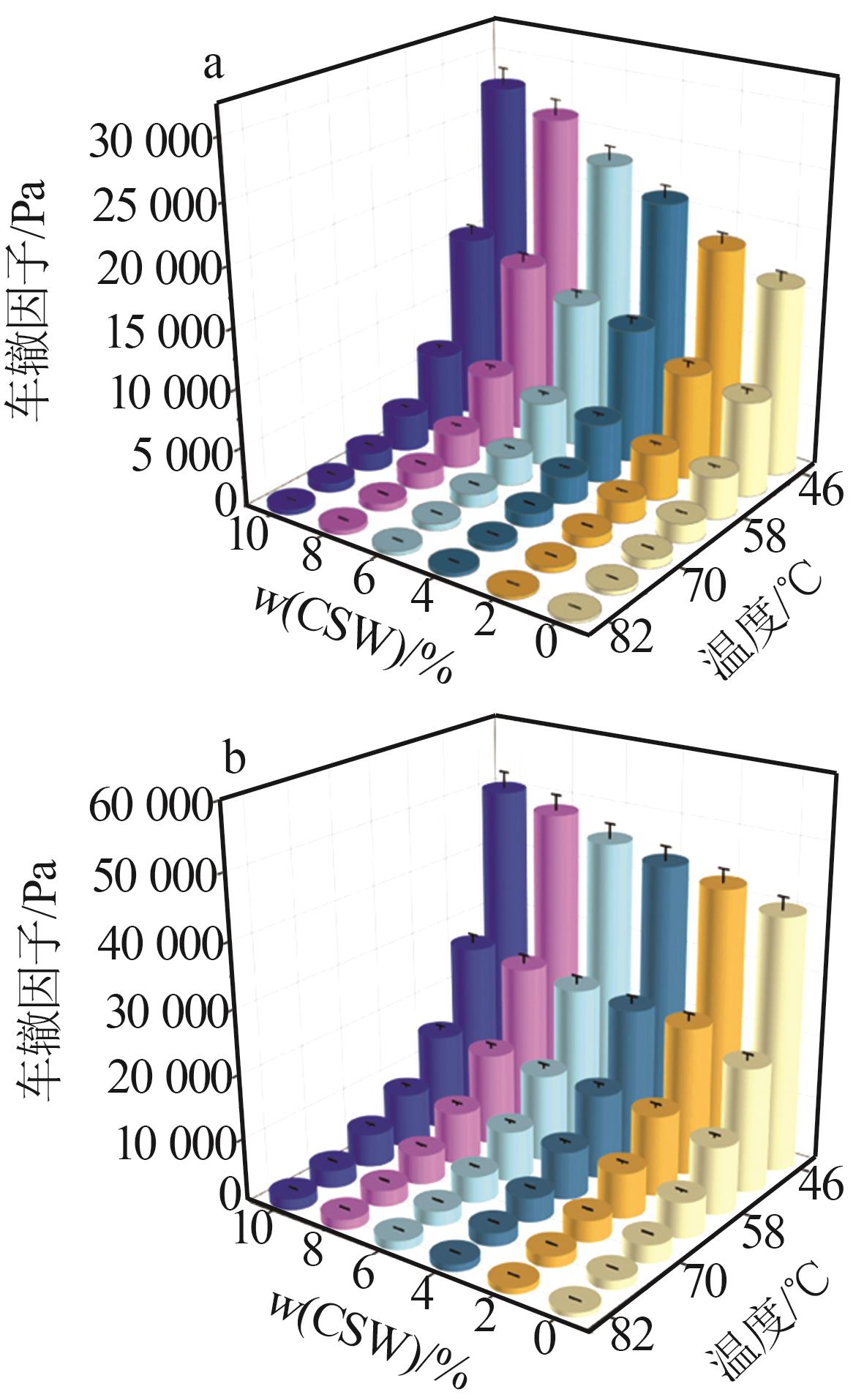

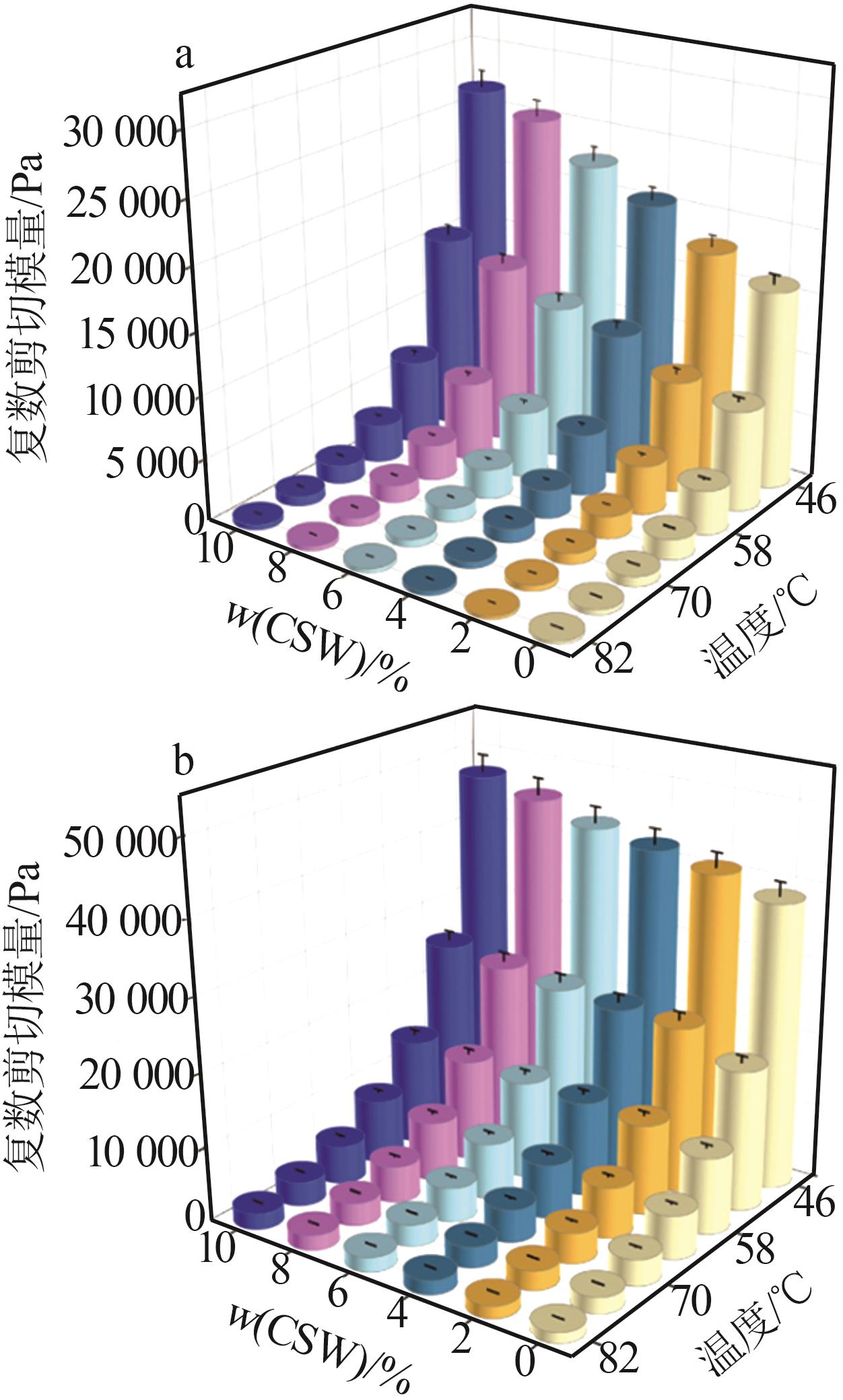

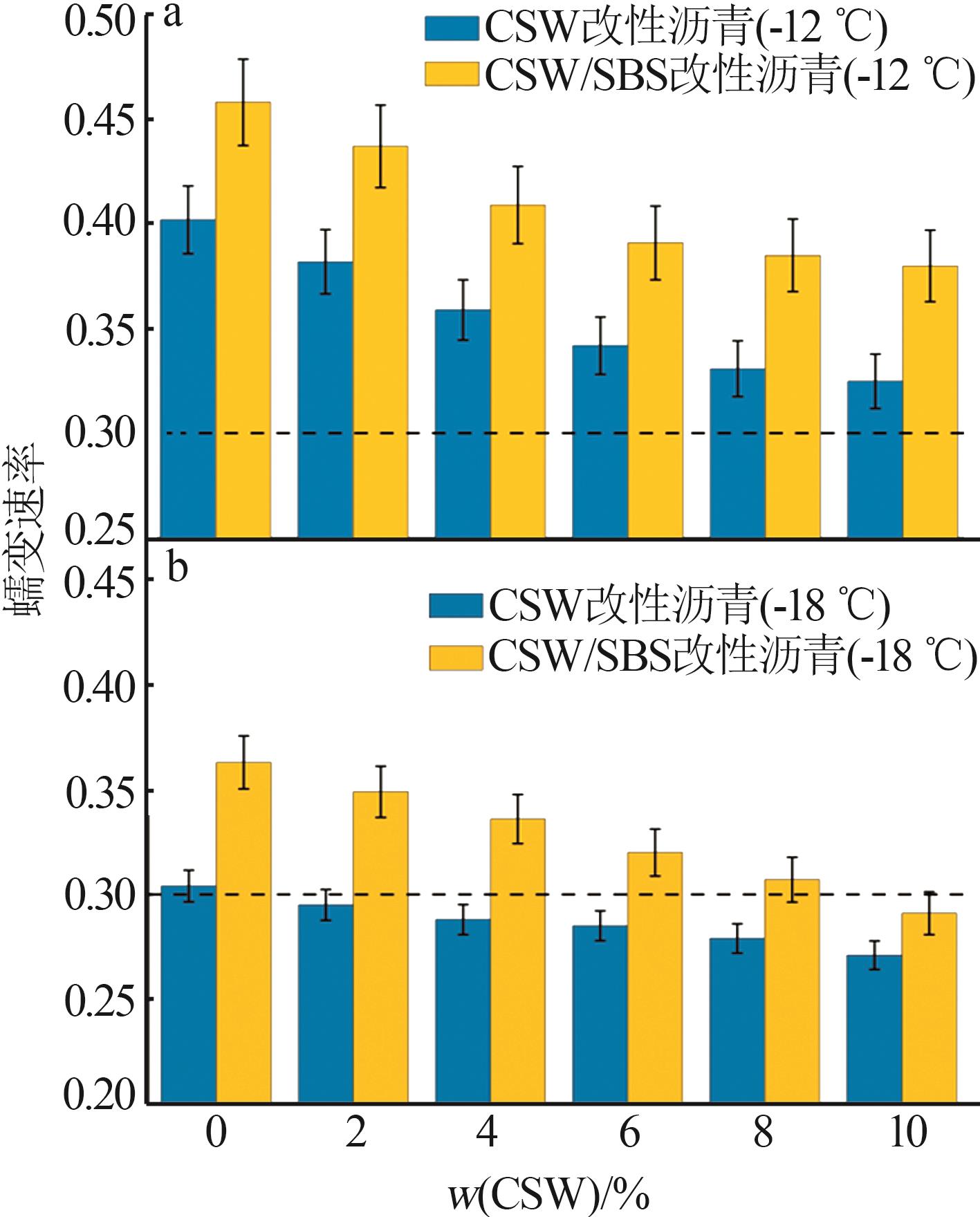

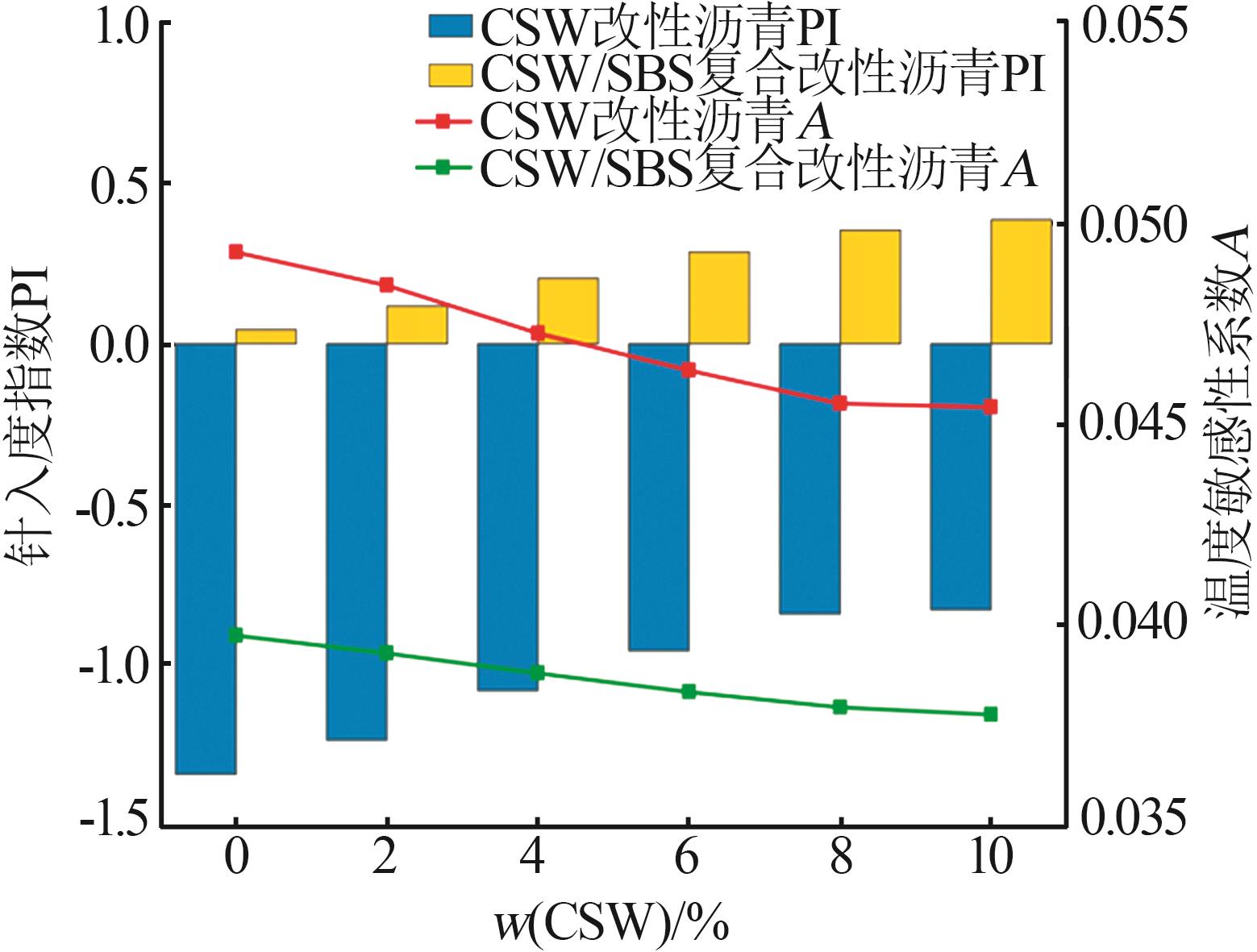

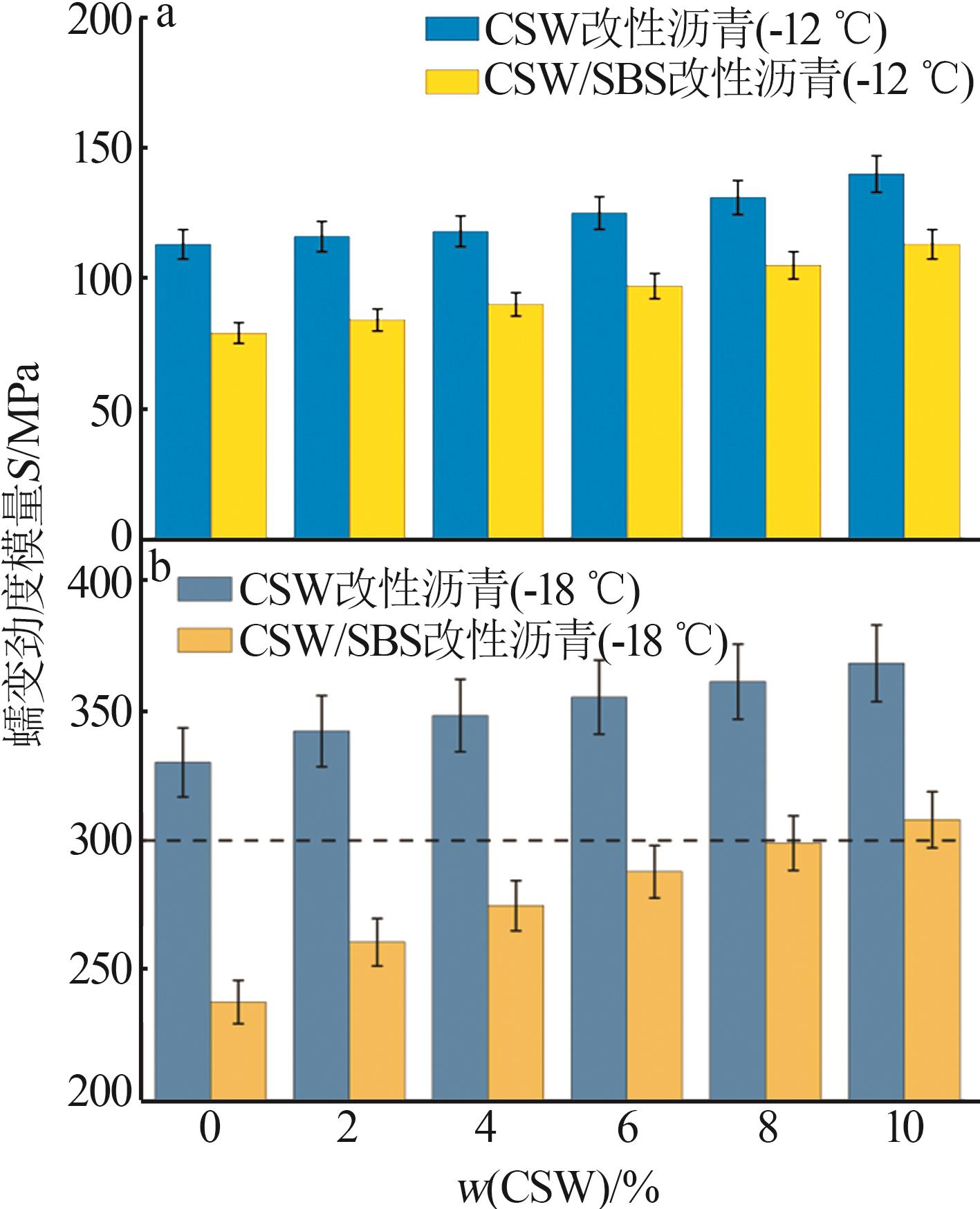

为分析硫酸钙晶须(Calcium Sulfate Whisker,CSW)与苯乙烯-丁二烯-苯乙烯嵌段共聚物(Styrene-butadiene-styrene Block Copolymer,SBS)复合改性沥青的常规物理性能和高低温流变性,采用沥青三大指标、动态剪切流变(Dynamic Shear Rheology,DSR)和弯曲梁流变(Bending Beam Rheology,BBR)试验,研究了不同CSW掺量对复合改性沥青基本性能和高低温流变性能的影响,并设置CSW改性沥青为对照组。研究结果表明:随着CSW掺量增加,CSW改性沥青的温度敏感性和高温性能提高而低温性能下降;掺量10%CSW改性沥青的针入度指数PI为-0.83,车辙因子G*/sin δ为27.70 kPa,蠕变劲度模量S为368 MPa,蠕变速率m为0.271;CSW/SBS复合改性沥青的温度敏感性和高低温流变性能较CSW改性沥青均明显提高,其中,PI、G*/sin δm分别提升了147.0%、82.3%和7.4%,S降低了19.5%。同时,掺量8%CSW/SBS复合改性沥青的高温、低温PG等级分别为82 ℃和-18 ℃,比CSW改性沥青的高低温等级分别升了两级和一级。因此,CSW可明显改善沥青的高温性能和温度敏感性,但对沥青低温性能稍微不利,若将其与SBS进行复合改性,可保证沥青的低温性能。

关键词: 硫酸钙晶须, 改性沥青, 高温性能, 低温性能, 温度敏感性

Abstract:

In order to investigate the physical and high/low-temperature rheological properties of asphalt modified with calcium sulfate whisker(CSW) and styrene-butadiene-styrene block copolymer(SBS),three major indicators,dynamic shear rheology(DSR),and bending beam rheology(BBR) tests were conducted to investigate the effects of different CSW contents on this composite modified asphalt.Meanwhile,CSW-modified asphalt was set as a control group.The results showed that with the increase of CSW content,the temperature sensitivity and high-temperature performance of CSW-modified asphalt were increased while the low-temperature performance decreased.The penetration index(PI),rutting factor G*/sin δ,creep modulus S,and creep rate m of the CSW-modified asphalt with 10% CSW were -0.83,27.70 kPa,368 MPa,and 0.271,respectively.The temperature sensitivity and high/low-temperature rheological properties of CSW/SBS modified asphalt were significantly improved compared with those of CSW-modified asphalt.PI,G*/sin δ,and m were improved by 147.0%,82.3%,and 7.4%,respectively.But S was decreased by 19.5%.At the same time,the high-temperature and low-temperature PG of the CSW/SBS modified asphalt with 8% CSW were 82 ℃ and -18 ℃,respectively,which were elevated by two and one levels,respectively.Therefore,the high-temperature performance and temperature sensitivity of asphalt binders could be significantly improved by the addition of CSW,but the low-temperature performance was slightly decreased.The low-temperature performance of asphalt binders could be maintained while CSW was composited with SBS.

Key words: calcium sulfate whiskers, modified asphalt, high-temperature performance, low-temperature performance, temperature sensitivity
