脱除磷石膏中水溶磷、水溶氟的实验研究

doi:10.19964/j.issn.1006-4990.2021-0394

摘要/Abstract

摘要：

磷石膏的综合利用对磷化工行业可持续发展和长江流域生态保护具有重大意义。但是磷石膏中含有少量磷、氟以及有机物等有害杂质影响其应用性能,不能直接利用。因此,通过采用石灰中和、水洗、浮选3种净化除杂预处理工艺研究了云南安宁某公司磷石膏中水溶磷、水溶氟的脱除规律。结果表明,石膏调浆-石灰-母液循环预处理技术能有效脱除磷石膏中的水溶磷、水溶氟,脱除率分别为74.95%、76.20%,质量分数可降至0.090%、0.043%,满足GB/T 23456—2018《磷石膏》的二级品指标限值要求;三级逆流水洗工艺也能有效脱除磷石膏中的水溶磷、水溶氟,脱除率分别为78.81%、89.94%,质量分数可降至0.087%、0.018%,预处理后的磷石膏质量也可达到GB/T 23456—2018《磷石膏》的二级品指标要求;而“一粗二精”正浮选工艺不仅能实现石膏和石英的高效分离,而且也能实现水溶磷、水溶氟的有效脱除,从而提高了产品纯度,并且达到GB/T 23456—2018《磷石膏》的一级品指标要求。从经济可行性角度和当前磷石膏的低值化利用途径分析,研究形成的石膏调浆-石灰-母液循环磷石膏预处理工艺更具有适用性。

关键词: 磷石膏, 水溶磷, 水溶氟, 脱除

Abstract:

The comprehensive utilization of phosphogypsum is of great significance to the sustainable development of phosphor-chemical enterprise and the eco-environmental protection of the Yangtze River Valley.However,the phosphogypsum contains a small amount of phosphorus,fluorine,organic compounds,and so on.The harmful impurities impact its application performance,which can′t be used directly.So,the distribution and removal of water-soluble phosphorus and water-soluble fluorine in phosphogypsum from a company in Anning were studied by lime neutralization,water washing and flotation.The results showed that the water-soluble phosphorus and water-soluble fluorine in phosphogypsum could be removed effectively by gypsum mixing,adding lime and mother solution cyclic utilization technique.The removal rates of them were 74.95% and 76.20% respectively,and their contents were 0.090% and 0.043% separately,which could meet the limit requirements of secondary indicators in GB/T 23456—2018《phosphogypsum》 standard.The water-soluble phosphorus and water-soluble fluorine could also be removed effectively by the three-stage countercurrent washing process.The removal rates of them were 78.81% and 89.94% respectively,and their contents were 0.087% and 0.018% separately.The quality of the pretreated phosphogypsum also could meet the secondary grade index requirements of GB/T 23456—2018《phosphogypsum》 standard.The efficiency separation of CaSO₄·2H₂O and SiO₂ was successfully achieved by the direct flotation process of one-stage roughing and two-stage cleaning.Simultaneously,the water-soluble phosphorus and the water-soluble fluorine in phosphogypsum were also effectively removed.Thus the quality of phosphogypsum was improved and reached the first-grade index requirements of GB/T 23456—2018《phosphogypsum》.From the perspective of economic feasibility and the analysis of the current low value utilization of phosphogypsum,the gypsum slurry mixing lime mother liquor circulating phosphogypsum pretreatment process formed by research is more applicable.

Key words: phosphogypsum, water-soluble phosphorus, water-soluble fluorine, removal

中图分类号:

TQ126.3

张利珍,张永兴,吴照洋,张秀峰,谭秀民. 脱除磷石膏中水溶磷、水溶氟的实验研究[J]. 无机盐工业, 2022, 54(4): 40-45.

ZHANG Lizhen,ZHANG Yongxing,WU Zhaoyang,ZHANG Xiufeng,TAN Xiumin. Experimental study on removal of water-soluble phosphorus and water-soluble fluorine from phosphogypsum[J]. Inorganic Chemicals Industry, 2022, 54(4): 40-45.

图/表 11

表1

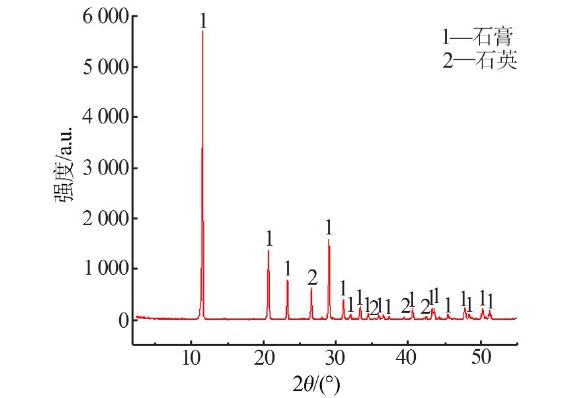

图1

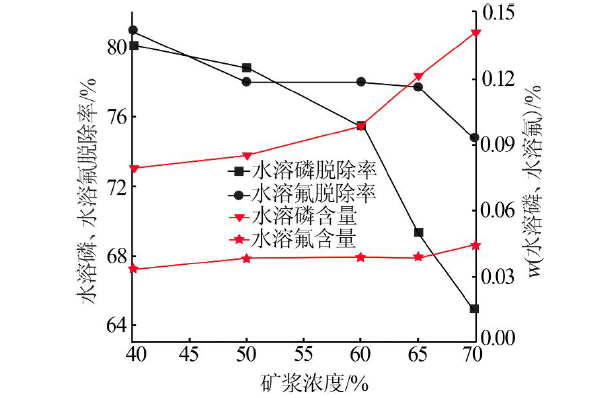

图2

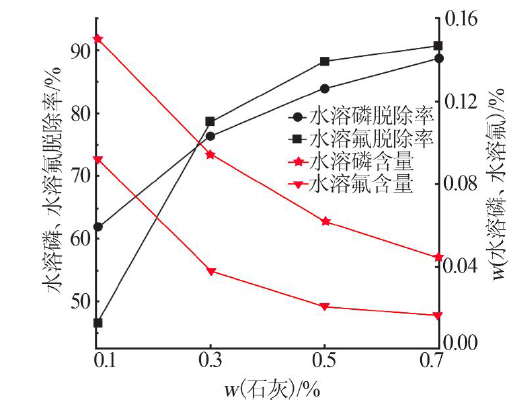

图3

表2

表3

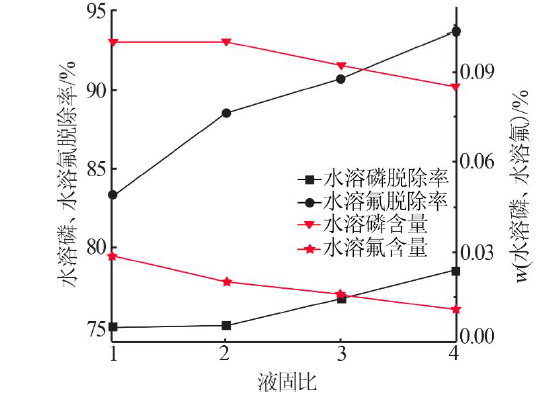

图4

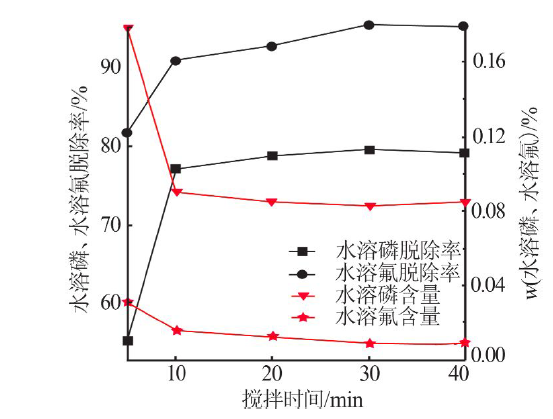

图5

表4

表5

表6

参考文献 11

[1]	张利珍, 张永兴, 张秀峰, 等. 中国磷石膏资源化综合利用研究进展[J]. 矿产保护与利用, 2019, 39(4):14-18,92.
[2]	叶学东. 2019年我国磷石膏利用现状及形势分析[J]. 磷肥与复肥, 2020, 35(7):1-3.
[3]	杜明霞, 王进明, 董发勤, 等. 磷石膏资源化利用研究进展[J]. 矿产保护与利用, 2020, 40(3):121-126.
[4]	项双龙, 吴有丽, 廖吉星. 磷石膏无害化处理工艺技术研究[J]. 硫磷设计与粉体工程, 2016(4):18-19,22.
[5]	白有仙, 吴培利, 刘健, 等. 磷石膏循环洗涤工艺研究[J]. 化肥工业, 2009, 36(1):34-36.
[6]	吴长江. 磷石膏可溶磷水洗影响因素研究[J]. 研究与开发, 2018, 44(9):147-148.
[7]	付全军, 罗蜀峰, 马先林, 等. 浸取中和法脱除磷石膏中杂质的研究[J]. 无机盐工业, 2015, 47(7):44-47.
[8]	张茹, 李艳军, 刘杰, 等. 磷石膏的综合利用及有害元素处理方法[J]. 矿产保护与利用, 2015(2):50-54.
[9]	邓淋, 俞倩倩. 磷石膏资源化研究现状[J]. 硫酸工业, 2020(7):1-5,38.
[10]	朱志伟, 何东升, 陈飞, 等. 磷石膏预处理与综合利用研究进展[J]. 矿产保护与利用, 2019(4):19-25.
[11]	张利珍, 吕子虎, 张永兴, 等. 磷石膏提质降杂实验研究[J]. 无机盐工业, 2021, 53(6):171-173,184.

化学成分	质量分数/%	化学成分	质量分数/%
CaO	28.19	P₂O_5总	0.920
SO₃	36.42	P₂O_5水溶	0.330
SiO₂	12.03	F_总	0.320
Al₂O₃	0.74	F_水溶	0.250
Fe₂O₃	0.14	MgO	0.062
结晶水	16.00	Na₂O	0.081

陈化时间/h	质量分数/%		脱除率/%
陈化时间/h	P₂O_5水溶	F_水溶	P₂O_5水溶	F_水溶
0	0.097	0.044	75.80	74.81
4	0.100	0.040	74.43	76.54
8	0.093	0.042	76.47	75.62
16	0.089	0.036	77.23	78.87
24	0.097	0.038	75.35	77.85

编号	产出磷石膏
	P₂O_5水溶		F_水溶
	质量分数/%	脱除率/%	质量分数/%	脱除率/%
A-循-5	0.075		0.034
A-循-10	0.085		0.046
A-循-15	0.082		0.045
A-循-20	0.100		0.057
B-循-5	0.085		0.039
B-循-10	0.100		0.045
B-循-15	0.096		0.041
B-循-20	0.099		0.041
平均	0.090	74.95	0.043	76.20

项目	液固比为2						液固比为3
	磷石膏					水洗液 pH	磷石膏					水洗液 pH
	w（水溶 P₂O₅）/%	脱除率/ %	w（水溶 F）/%	脱除率/ %	pH	水洗液 pH	w（水溶 P₂O₅）/%	脱除率/ %	w（水溶 F）/%	脱除率/ %	pH	水洗液 pH
洗1	—		—		—	2.75	0.140		0.065		—	2.90
洗2	—		—		—	3.01	0.099		0.026		—	3.23
洗3	0.087	78.810	0.018	89.940	5.58	4.06	0.087	78.330	0.011	93.710	5.89	4.25

项目		w（CaSO₄· 2H₂O,干基）/%	w（P₂O₅, 干基）/%	w（F^-, 干基）/%	w（MgO, 干基）/%	w（NaO, 干基）/%	w（Cl^-, 干基）/%	w（SiO₂, 干基）/%
指标	一级	≥90	≤0.20	≤0.10	≤0.10	≤0.06	≤0.02
指标	二级	≥80	≤0.30	≤0.20	≤0.30	≤0.10	≤0.04
石灰-1		82.74	0.065	0.023	0.004	0.011	0.004	14.71
石灰-2		83.36	0.10	0.057	0.007	0.023	0.005	14.47
水洗		83.49	0.087	0.018	0.005	0.008	0.007	14.29
正浮选		97.50	0.08	0.02	0.024	0.009	0.000 2	1.17

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
