无机盐工业 ›› 2021, Vol. 53 ›› Issue (8): 101-105.doi: 10.19964/j.issn.1006-4990.2020-0531

• 环境·健康·安全 • 上一篇    下一篇

反渗透膜法处理磷酸铁生产废水的零排放工艺研究

刘茂举(),龚福忠(),铁云飞,李艳琳

  1. 广西大学化学化工学院,广西南宁 530004
  • 收稿日期:2020-09-27 出版日期:2021-08-10 发布日期:2021-08-11
  • 作者简介:刘茂举(1993- ),男,硕士研究生,从事无机化工材料制备及膜技术处理工业废水研究; Email: 1430046884@qq.com
  • 基金资助:
    广西创新驱动发展专项(桂科AA19046002);广西科学研究与技术开发研究项目(桂科AC16380096)

Study on reverse osmosis membrane process with zero-discharge for treating of wastewater from iron phosphate production

Liu maoju(),Gong Fuzhong(),Tie Yunfei,Li Yanlin

  1. College of chemistry and chemical engineering,Guangxi university,Nanning,530004,China
  • Received:2020-09-27 Published:2021-08-10 Online:2021-08-11

摘要:

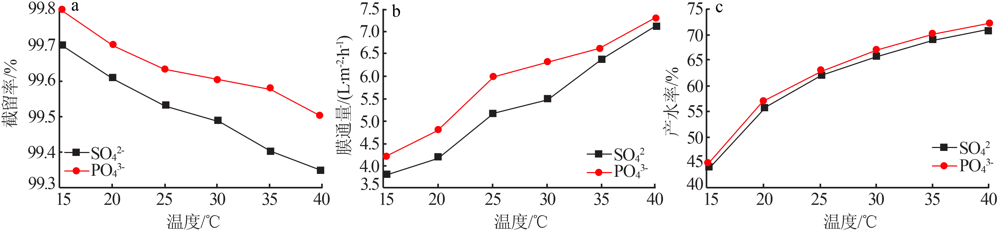

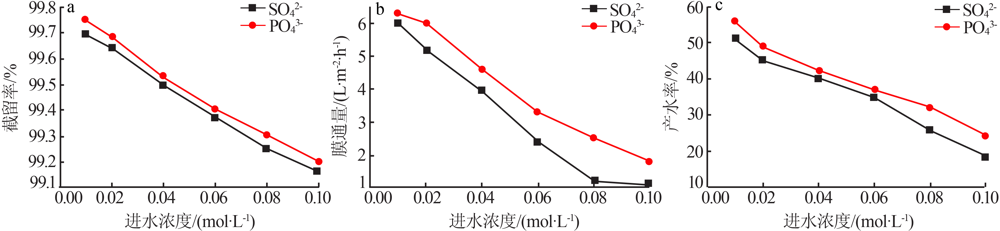

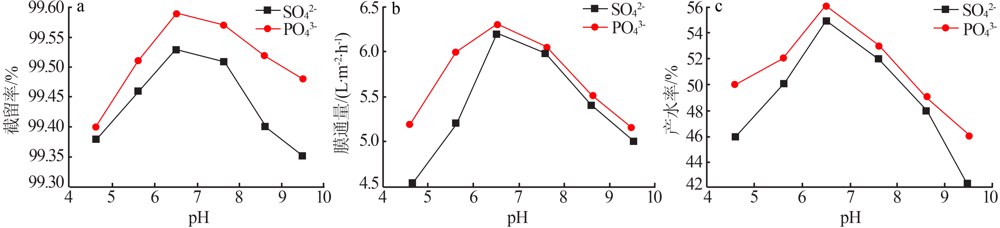

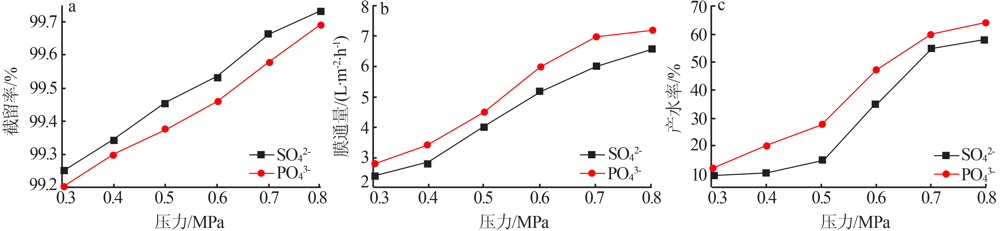

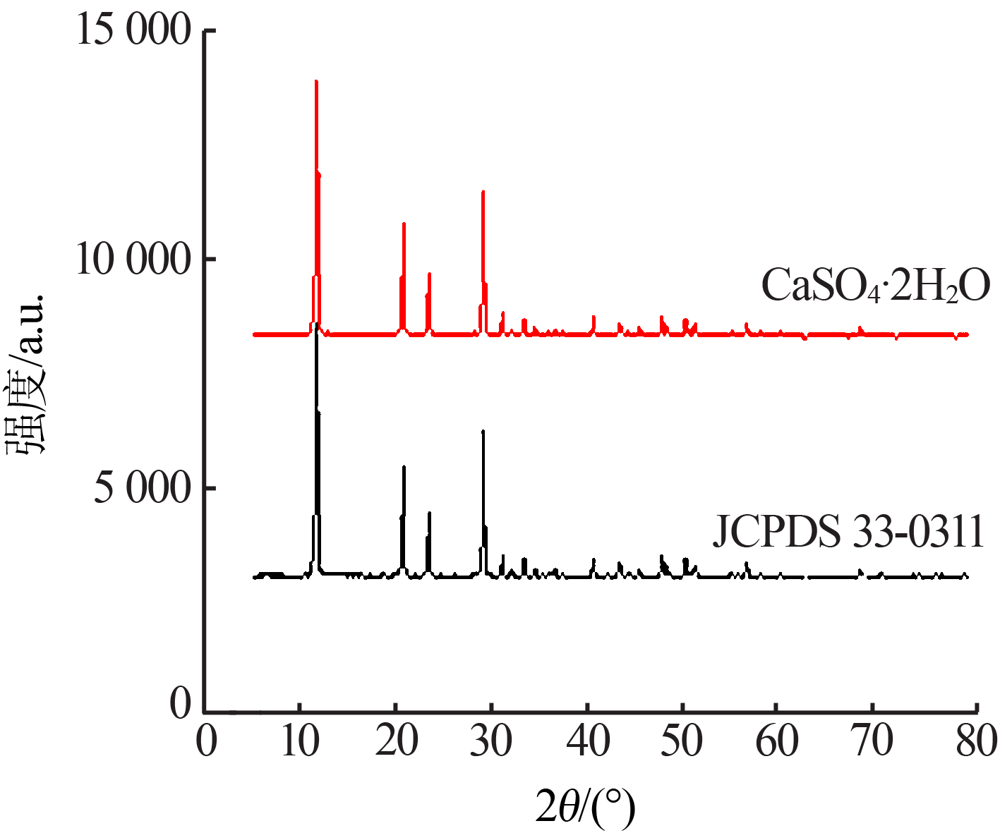

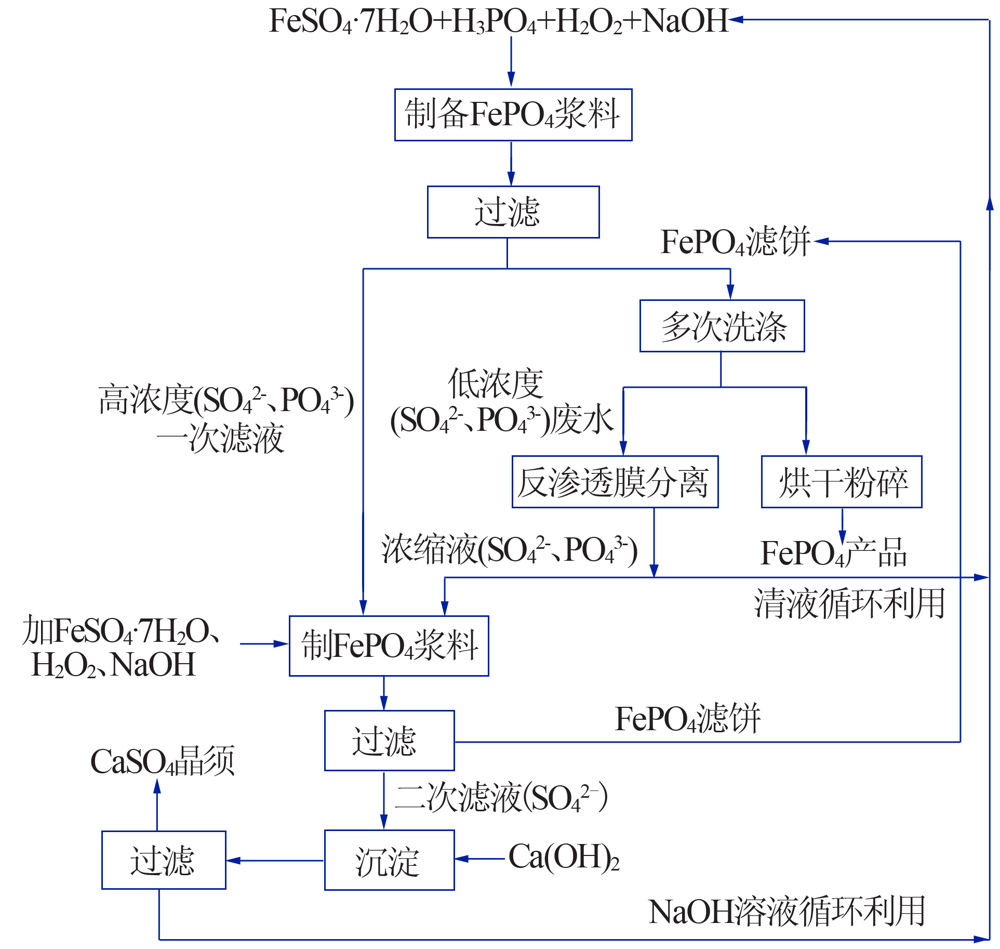

以硫酸亚铁为原料生产电池级磷酸铁过程中产生大量的含硫酸根、磷酸根、钠离子的废水。为减少废水排放并使之得到循环利用,采用反渗透膜技术对中试生产电池级磷酸铁的废水处理进行了零排放设计和实验研究,考察了进水压力、进水浓度、温度、pH等因素对硫酸根和磷酸根的截留率、膜通量和产水率的影响。实验结果表明所采用的反渗透膜对硫酸根、磷酸根的截留率达99.15%以上,进水压力、进水浓度、温度、pH等因素对截留率影响较小,但对膜通量和产水率影响较大。截留率随着进水压力的增加略有增加,随进水浓度增加和温度的升高而略有减小,膜通量和产水率随进水压力和温度的升高而增大,随进水浓度的增大而减小,pH=6.5时截留率、膜通量和产水率最高。同时采用生产废水制备了硫酸钙晶须,实现了废水零排放。

关键词: 磷酸铁, 废水, 反渗透膜, 硫酸钙晶须, 制备

Abstract:

In the process of producing battery grade iron phosphate with ferrous sulfate as raw material,a large amount of waste water containing SO42-,PO43- and Na+ is produced.In order to reduce the waste water discharge and recycle them,the reverse osmosis membrane process design and experimental study were carried out for a zero-discharge waste water of the pilot produc-tion of battery grade iron phosphate.The effect of input pressure,feed concentration,temperature and pH value on the retent-ion rate of SO42- and PO43-,membrane flux and water yield were investigated.Experimental results showed that the retention rate of SO42- and PO43- by the reverse osmosis membrane was over 99.15%.The input pressure,feed concentration,temperature and pH value had little influence on the retention rate,but showed great influence on the membrane flux and water yield.The retention rate increased slightly with the increase of input pressure and decreased slightly with the increase of feed concentration and temperature.The membrane flux and water yield increased with the increase of input pressure and temperature,and decreased with the increase of feed concentration.The interception rate,membrane flux and water yield were highest at pH=6.5.The calcium sulfate whisker was also prepared from the wastewater,and the zero discharge of waste water was realized.

Key words: iron phosphate, wastewater, reverse osmosis membrane, calcium sulphate wisher, preparation
