医药废硫酸钠盐燃烧特性及低温炭化除杂研究

doi:10.19964/j.issn.1006-4990.2020-0604

摘要/Abstract

摘要：

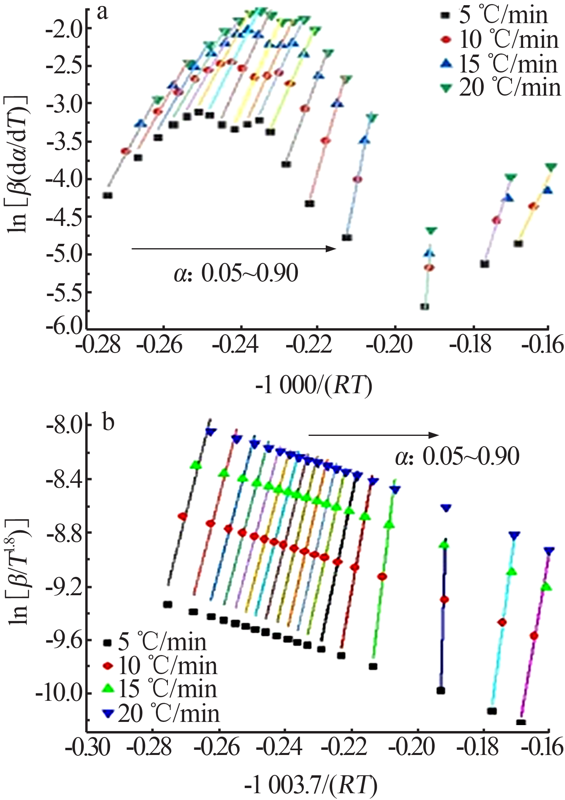

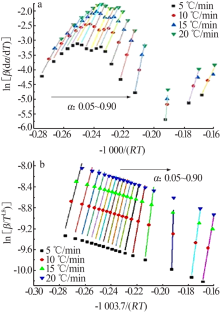

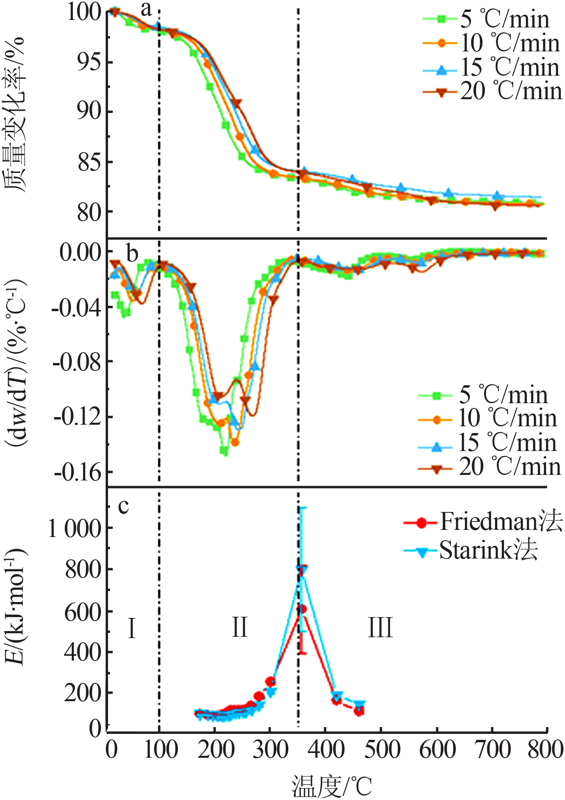

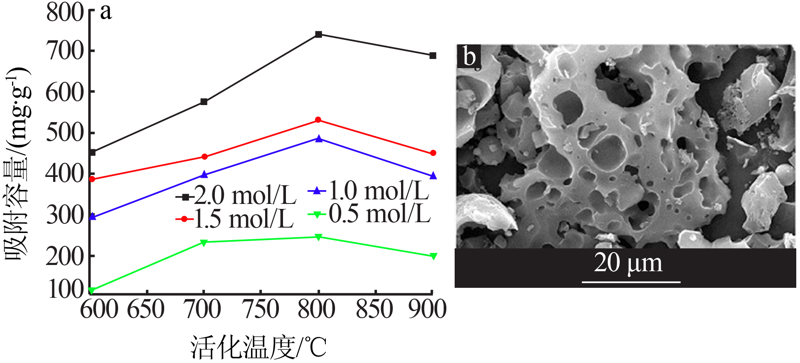

使用低温炭化-高温活化两步工艺处理典型的医药废盐,成功回收了无机盐和活性炭材料。低温炭化阶段将废盐中的有机物转变为不溶性残余炭渣,通过简单的溶解、过滤即可实现无机盐与有机物的分离;残余炭渣作为炭前体经过活化可得到活性炭材料。使用原子荧光光谱法、气相色谱-质谱联用法对废盐成分进行分析,采用Friedman法和Starink法计算废盐焚烧的活化能,通过管式炉模拟试验对废盐低温炭化条件进行优化,最后采用氢氧化钾浸渍法活化残余炭渣以制备活性炭。结果表明,废盐中溶解性有机碳在空气气氛、350 ℃、60 min条件下去除率达到99.98%,得到的无机盐产品符合GB/T 6009—2014《工业无水硫酸钠》Ⅲ类要求。残余炭渣经活化所得活性炭对亚甲基蓝的吸附容量达到762.86 mg/g。

关键词: 医药废盐, 热重分析, 低温炭化, 残余炭渣, 资源化

Abstract:

A two-step process of low temperature carbonization and high temperature activation was used to treat typical medical waste salt,and inorganic salt and activated carbon materials were recovered successfully.The organic matter in the waste salt was converted into insoluble residual carbon slag in low temperature carbonization section,which could be separated from inorganic salts by simple dissolution and filtration.Activated carbon material could be obtained by activating residual carbon residue as carbon precursor.The components of waste salt were analyzed by atomic fluorescence spectrometry and gas chroma-tography mass spectrometry.The activation energy of waste salt incineration was calculated by Friedman method and Starink method.The carbonization conditions of waste salt at low temperature were optimized by pipe furnace simulation test.The carbon residues were KOH impregnation method to prepare activated carbon.The results showed that the removal rate of dissolved organic carbon in the waste salt reached 99.98% under the conditions of air atmosphere,350 ℃ and 60 min,and the obtained inorganic salt products met the requirements of GB/T 6009—2014“Industrial anhydrate Sodium Sulfate” class Ⅲ.The adsorption capacity of activated carbon for methylene blue reached 762.86 mg/g.

Key words: pharmaceutical waste salt, thermal treatment, low-temperature carbonization, carbon residues, recovery

中图分类号:

X787

杨文振,熊萍,孙秀云,韩卫清. 医药废硫酸钠盐燃烧特性及低温炭化除杂研究[J]. 无机盐工业, 2021, 53(9): 76-82.

Yang Wenzhen,Xiong Ping,Sun Xiuyun,Han Weiqing. Study on combustion characteristics of waste pharmaceutical Na₂SO₄ and impurity removal by low-temperature carbonization[J]. Inorganic Chemicals Industry, 2021, 53(9): 76-82.

图/表 13

表1

表2

图1

表3

图2

图3

表4

图4

表5

图5

图6

表6

图7

参考文献 22

[1]	周海云, 鲍业闯, 包健, 等. 工业废盐处理处置现状研究进展[J]. 环境科技, 2020, 33(2):70-75.
[2]	丁志广, 郭键柄, 卢超. 化工废盐无害化处理的实验研究[J]. 无机盐工业, 2020, 52(2):58-61.
[3]	姜海超, 申银山, 陈晓飞, 等. 含氰工业废盐中杂质的高温氧化脱除实验研究[J]. 无机盐工业, 2020, 52(2):62-64.
[4]	王利超, 王志良, 马堂文, 等. 模拟氯化钠盐渣的高温处理[J]. 化工环保, 2014, 34(5):419-422.
[5]	Cao M, Liu L, Yu Z, et al. Studies on the corrosion behavior of Fe-20Cr alloy in NaCl solution spray at 600 ℃[J]. Corrosion Science, 2018, 133:165-177. doi: 10.1016/j.corsci.2018.01.033
[6]	李强, 戴世金, 郑怡琳, 等. 工业废盐中有机物脱除和资源化技术进展[J]. 环境工程, 2019, 37(12):200-206.
[7]	李春雨, 蒋旭光, 安春国, 等. 农药生产废渣燃烧/热解特性研究[J]. 中国电机工程学报, 2009, 29(23):45-50.
[8]	董俊佳, 刘志英, 王雷, 等. 医药类废盐渣的燃烧/热解特性及动力学研究[J]. 环境污染与防治, 2019, 41(9):1070-1075.
[9]	廖辉伟, 姜珊, 贾金, 等. 农药含钾废渣的热解动力学[J]. 环境化学, 2012, 31(4):478-482.
[10]	Vyazovkin S, Burnham A K, Criado J M, et al. ICTAC Kinetics Co-mmittee recommendations for performing kinetic computations on thermal analysis data[J]. Thermochimica Acta, 2011, 520(1/2):1-19. doi: 10.1016/j.tca.2011.03.034
[11]	Wang X, Ren Q, Li L, et al. TG-MS analysis of nitrogen transformation during combustion of biomass with municipal sewage sludge[J]. Journal of Thermal Analysis and Calorimetry, 2016, 123(3):2061-2068. doi: 10.1007/s10973-015-4712-z
[12]	苏梦, 祝建中, 朱晓强, 等. 二氰蒽醌农药废盐热处理特性[J]. 科学技术与工程, 2019, 19(24):423-429.
[13]	Yousaf B, Liu G, Abbas Q, et al. Systematic investigation on com-bustion characteristics and emission-reduction mechanism of potentially toxic elements in biomass- and biochar-coal co-combustion systems[J]. Applied Energy, 2017, 208:142-157. doi: 10.1016/j.apenergy.2017.10.059
[14]	Huang L, Xie C, Liu J, et al. Influence of catalysts on co-combus-tion of sewage sludge and water hyacinth blends as determined by TG-MS analysis[J]. Bioresource Technology, 2018, 247:217-225. doi: 10.1016/j.biortech.2017.09.039
[15]	Huang J, Liu J, Chen J, et al. Combustion behaviors of spent mush-room substrate using TG-MS and TG-FTIR:Thermal conversion,kinetic,thermodynamic and emission analyses[J]. Bioresource Technology, 2018, 266:389-397. doi: 10.1016/j.biortech.2018.06.106
[16]	李唯实, 黄泽春, 雷国元, 等. 典型农药废盐热处理过程动力学特征[J]. 中国环境科学, 2018, 38(7):2691-2698.
[17]	张进, 何鑫, 姚思童, 等. 漫反射傅里叶变换红外光谱法定量分析食盐中的硫酸根[J]. 中国调味品, 2015, 40(12):127-131.
[18]	黄欣, 陈业钢, 苏楠楠, 等. 高盐废水分质结晶及资源化利用研究进展[J]. 化学工业与工程, 2019, 36(1):10-23.
[19]	范庆玲, 郭小甫, 袁俊生. 垃圾焚烧飞灰水洗液纯化及无机盐分离[J]. 无机盐工业, 2019, 51(3):67-71.
[20]	Otowa T, Nojima Y, Miyazaji T. Development of KOH activated high surface area carbon and its application to drinking water purification[J]. Carbon, 1997, 35(9):1315-1319. doi: 10.1016/S0008-6223(97)00076-6
[21]	李建生, 高长青, 王雪, 等. 高性能活性炭开发生产中的无机活化剂[J]. 无机盐工业, 2019, 51(8):1-6.
[22]	Wang J, Lei S, Liang L. Preparation of porous activated carbon from semi-coke by high temperature activation with KOH for the high-efficiency adsorption of aqueous tetracycline[J]. Applied Surface Science, 2020, 530.DOI: 10.1016/j.apsusc.2020.147187. doi: 10.1016/j.apsusc.2020.147187

工业分析（收到基）				元素分析（冷冻干燥基）
w（灰分）	w（挥发分）	w（固定碳）	w（水分）	w（C）	w（H）	w（O）	w（N）	w（S）
79.11	17.78	0.65	2.46	4.13	1.37	45.39	4.25	14.42

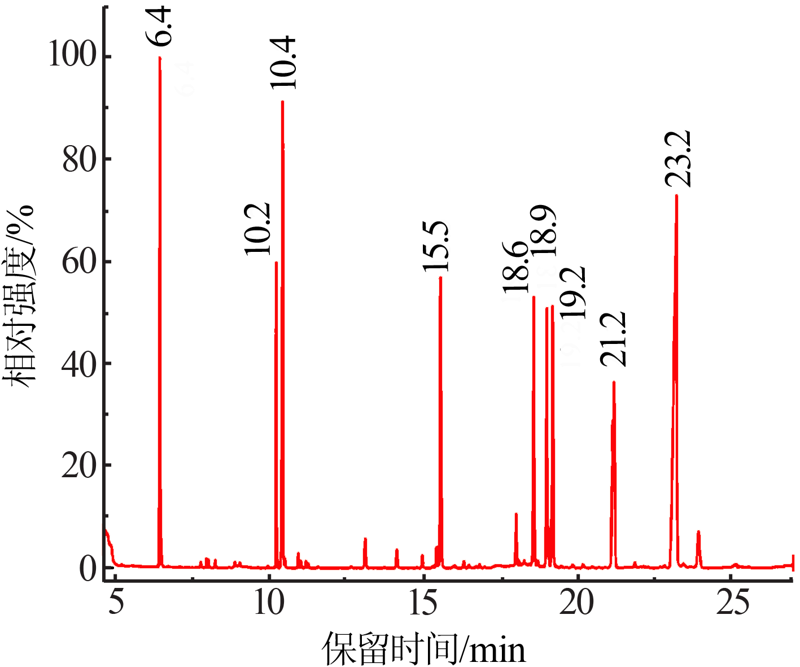

保留时间/min	名称	峰面积分数/%	沸点/℃
6.4	二甲基甲酰胺	10.56	153
10.2	氨基甲酸甲酯	6.01	177
10.4	N-甲基甲酰胺	12.14	199
15.5	甲酰基三甲基脲	8.75	—
18.6	2,6-二甲氧基-4-氟嘧啶	8.00	100
18.9	—^①	8.14	—
19.2	1,1-二甲基脲	8.47	163
21.2	1,2-二甲基咪唑烷-2,4,5-三酮	10.58	—
23.2	1,3-二甲基脲	27.36	270

α	Friedman法		Starink法
α	E/（kJ·mol^-1）	R²	E/（kJ·mol^-1）	R²
0.05	94.88	0.962	97.05	0.937
0.10	91.03	0.959	95.10	0.954
0.15	88.08	0.960	93.01	0.959
0.20	87.39	0.964	91.46	0.961
0.25	89.26	0.971	90.63	0.964
0.30	94.25	0.977	91.05	0.967
0.35	102.98	0.979	92.88	0.970
0.40	113.15	0.977	97.21	0.971
0.45	114.92	0.980	102.41	0.971
0.50	111.98	0.979	105.81	0.973
0.55	111.47	0.982	107.58	0.975
0.60	116.51	0.995	109.21	0.981
0.65	136.50	0.995	116.40	0.987
0.70	178.38	0.992	138.10	0.988
0.75	252.99	0.984	205.57	0.983
0.80	601.08	0.635	794.17	0.527
0.85	161.57	0.973	186.79	0.983
0.90	107.92	0.931	143.39	0.978

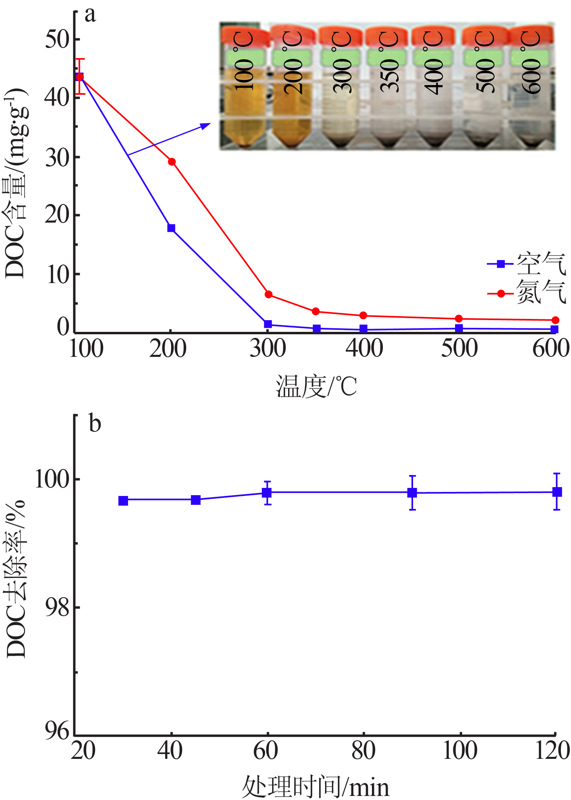

处理时间/min	DOC含量/（mg·g^-1）	处理时间/min	DOC含量/（mg·g^-1）
30	1.39	90	0.85
45	1.29	120	0.77
60	0.87

	项目		w（Na₂SO₄）/%	w（水分）/%	w（水不溶物）/%	w（钙镁）/%	w（氯）/%
国标	Ⅰ类	优级品	≥99.6	≤0.05	≤0.005	—	≤0.05
	Ⅰ类	一等品	≥99.0	≤0.50	≤0.05	≤0.15	≤0.35
	Ⅱ类	一等品	≥98.0	≤0.80	≤0.10	≤0.30	≤0.70
	Ⅱ类	合格品	≥97.0	≤3.00	≤0.20	≤0.40	≤0.90
	Ⅲ类	一等品	≥95.0	≤3.50	—	≤0.6	≤2.0
	Ⅲ类	合格品	≥93.3	—	—	—	—
回收无机盐			96.57	0.03	未检出	0.21	3.19
