无机盐工业 ›› 2023, Vol. 55 ›› Issue (12): 66-73.doi: 10.19964/j.issn.1006-4990.2023-0055
收稿日期:
2023-02-07
出版日期:
2023-12-10
发布日期:
2023-12-14
通讯作者:
罗冬梅(1969— )女,教授,研究方向为矿物绿色加工、低品位矿及固废低碳资源化利用和储能材料;E-mail:dmluo@scu.edu.cn。作者简介:
张瑞(1996— ),女,硕士,研究方向为钠离子电池负极材料钛酸钠的制备及电化学性能研究;E-mail:2515541008@qq.com。
基金资助:
ZHANG Rui(), WANG Zhenghao, CHEN Liang, GUO Xiaodong, LUO Dongmei()
Received:
2023-02-07
Published:
2023-12-10
Online:
2023-12-14
摘要:

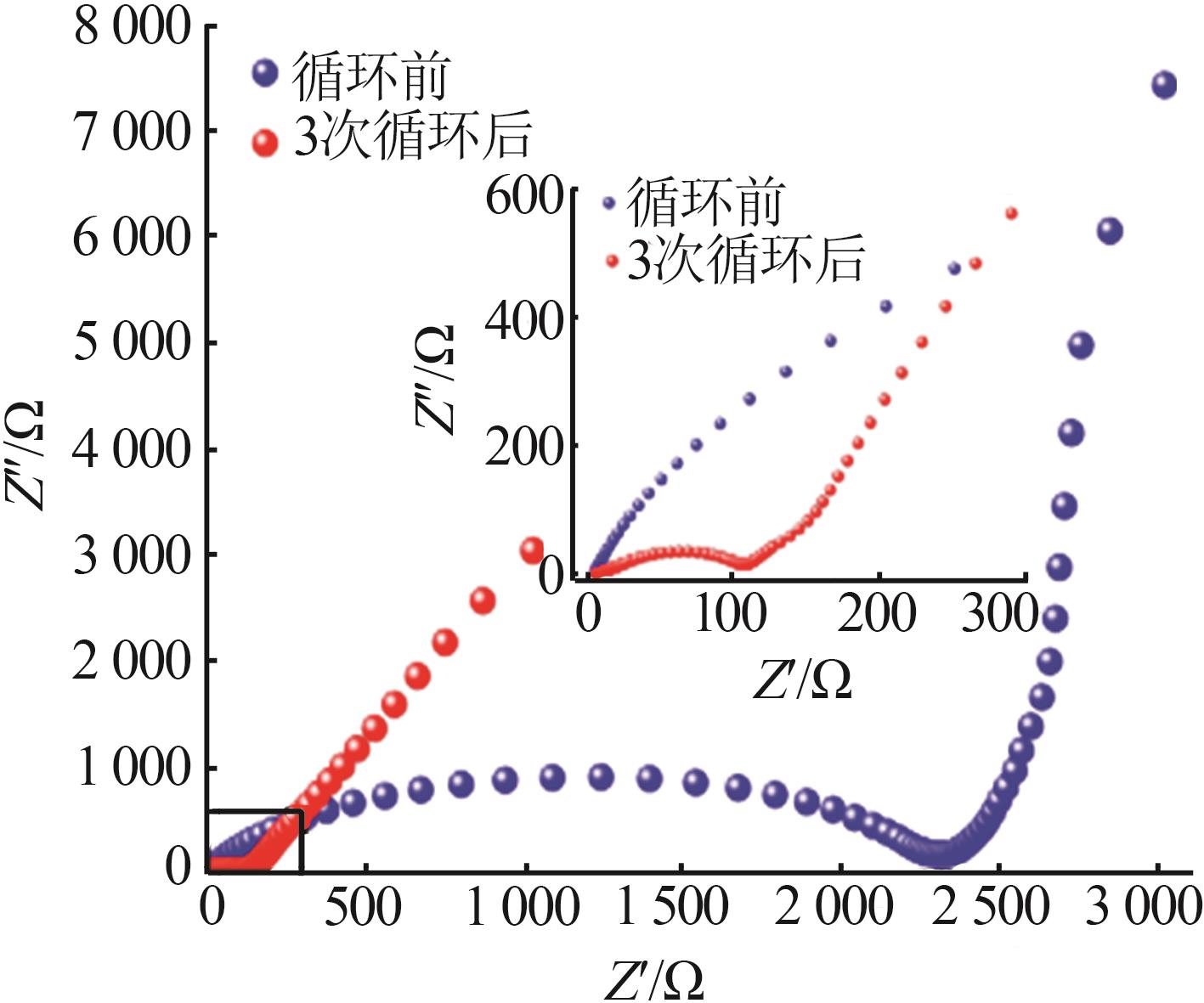

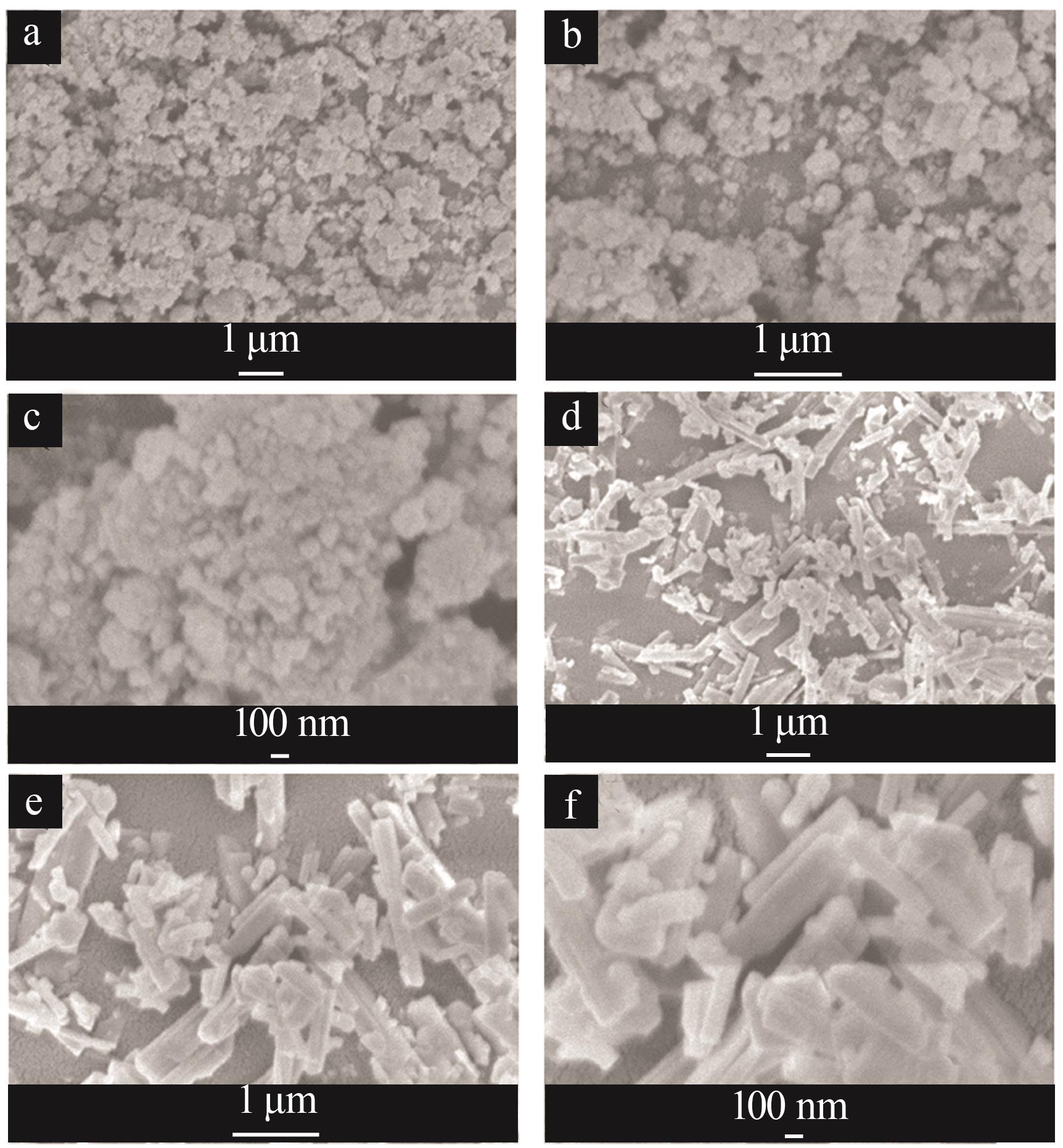

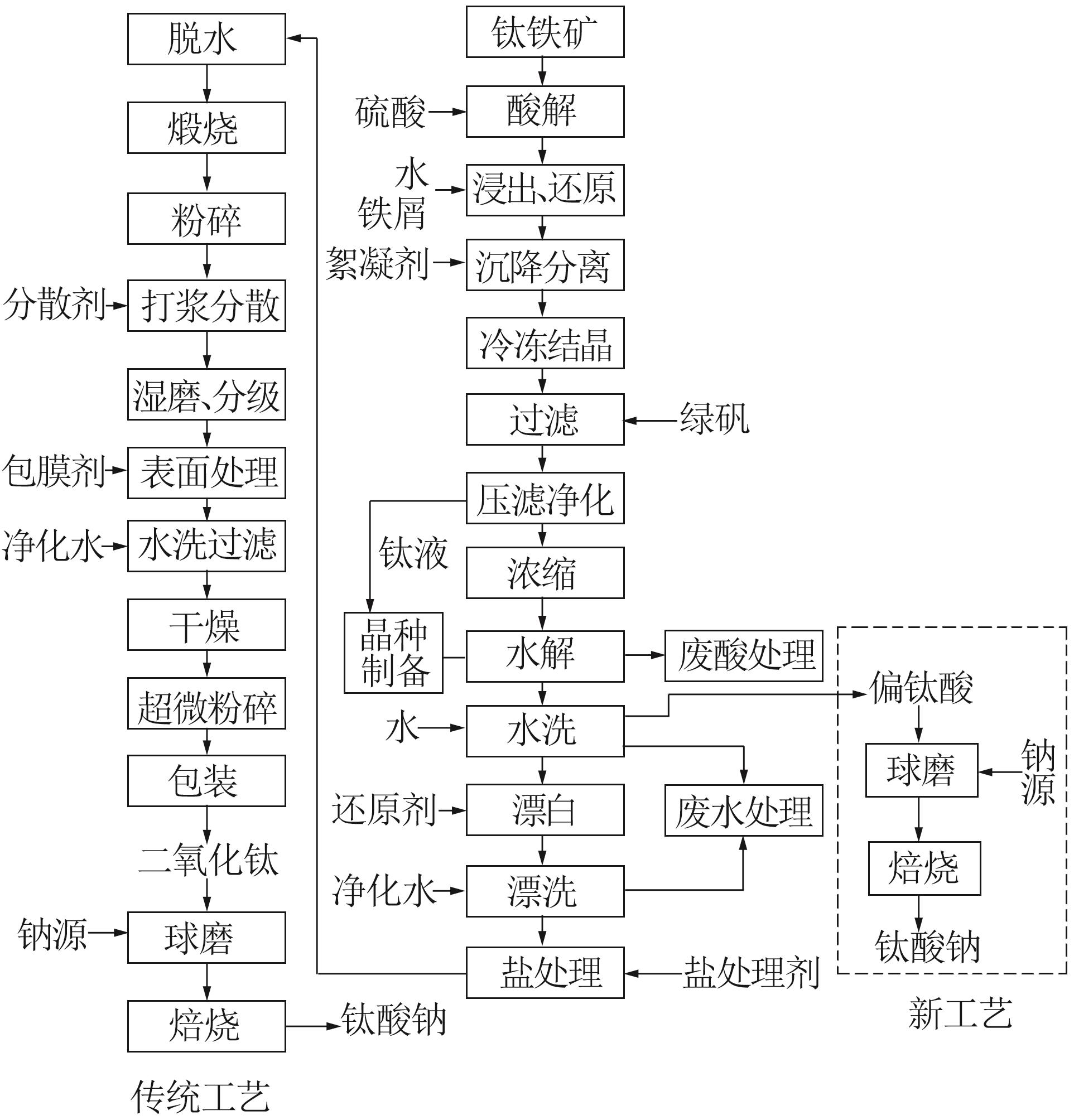

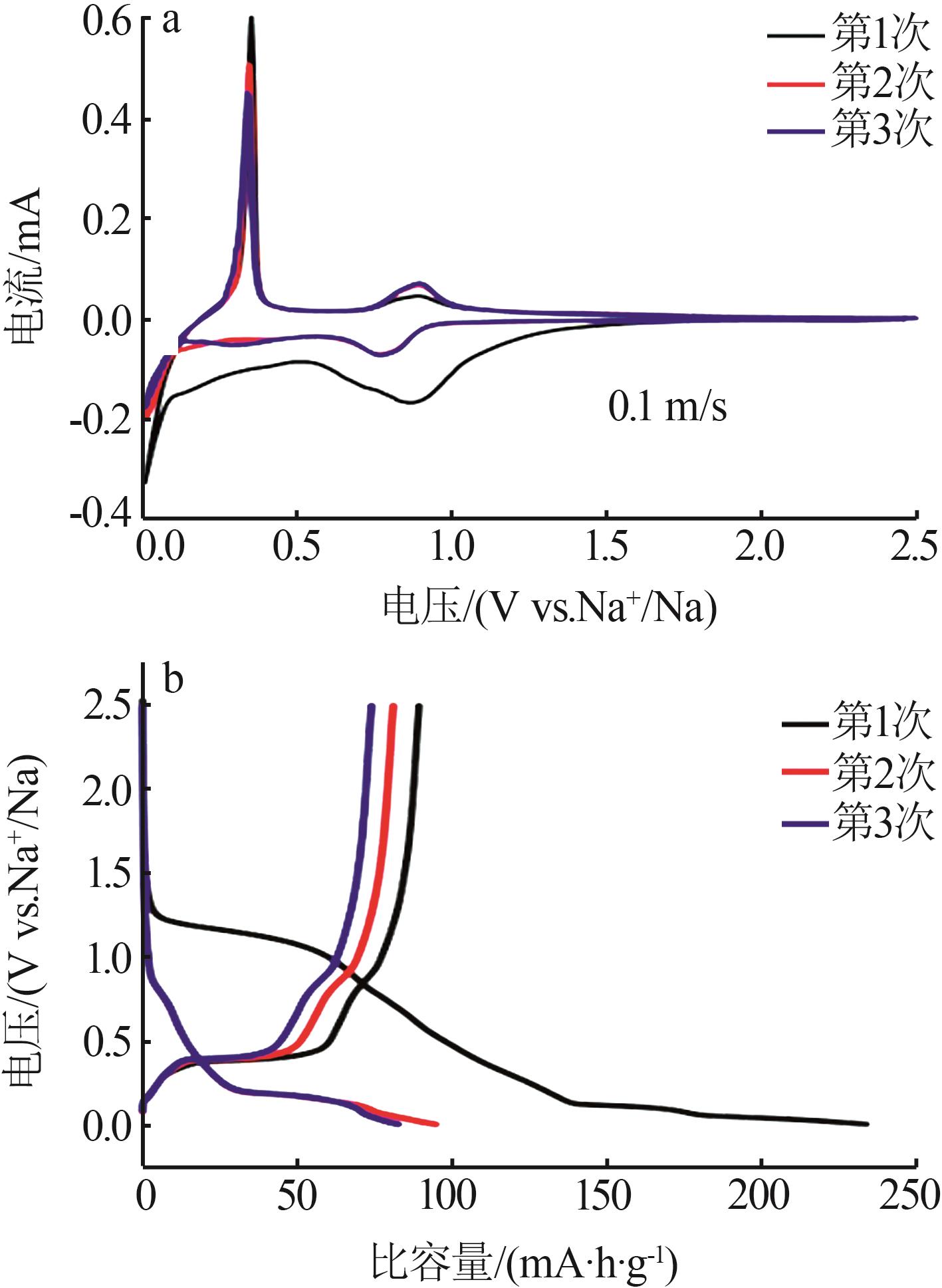

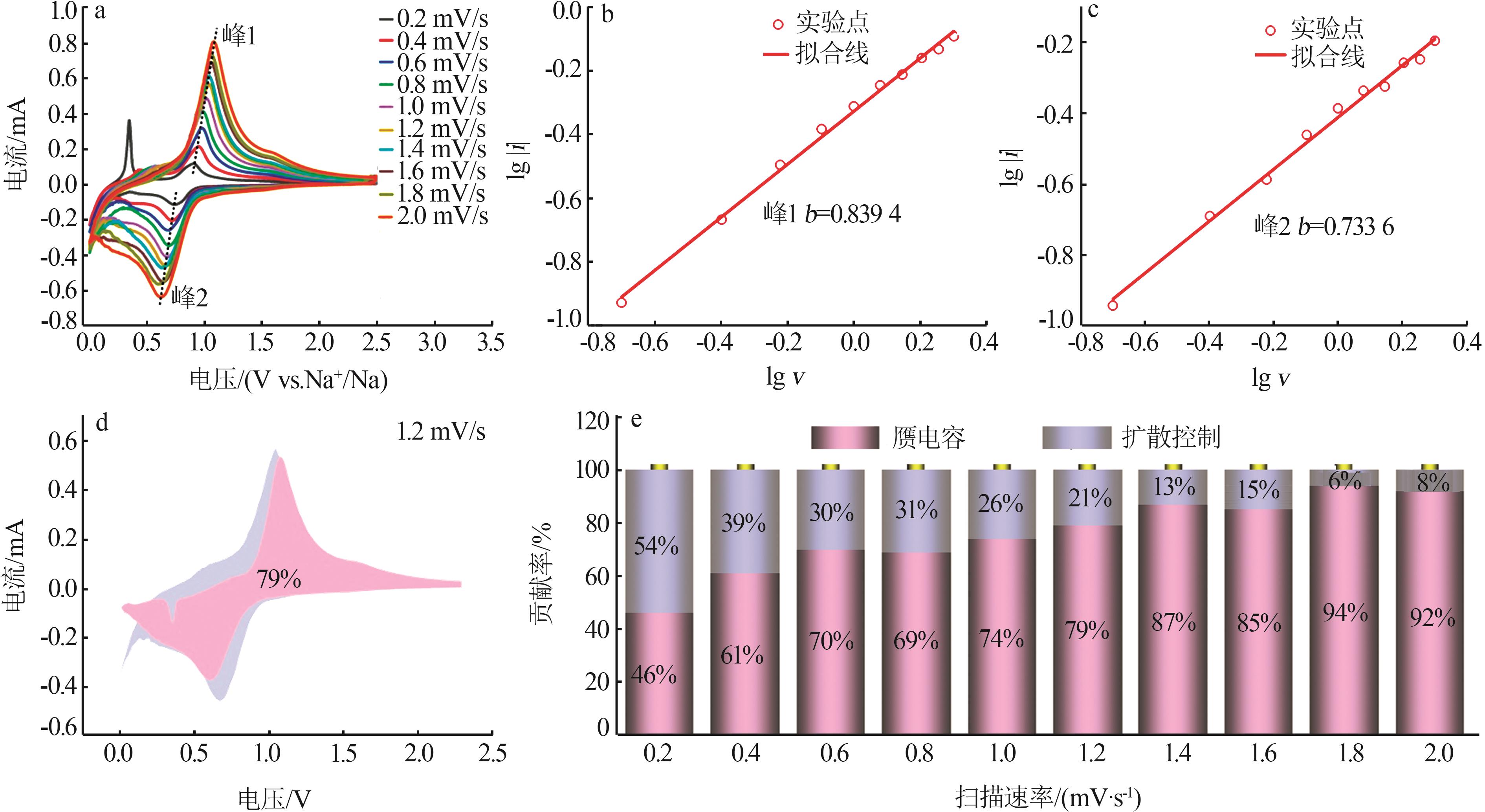

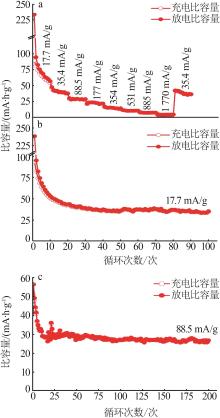

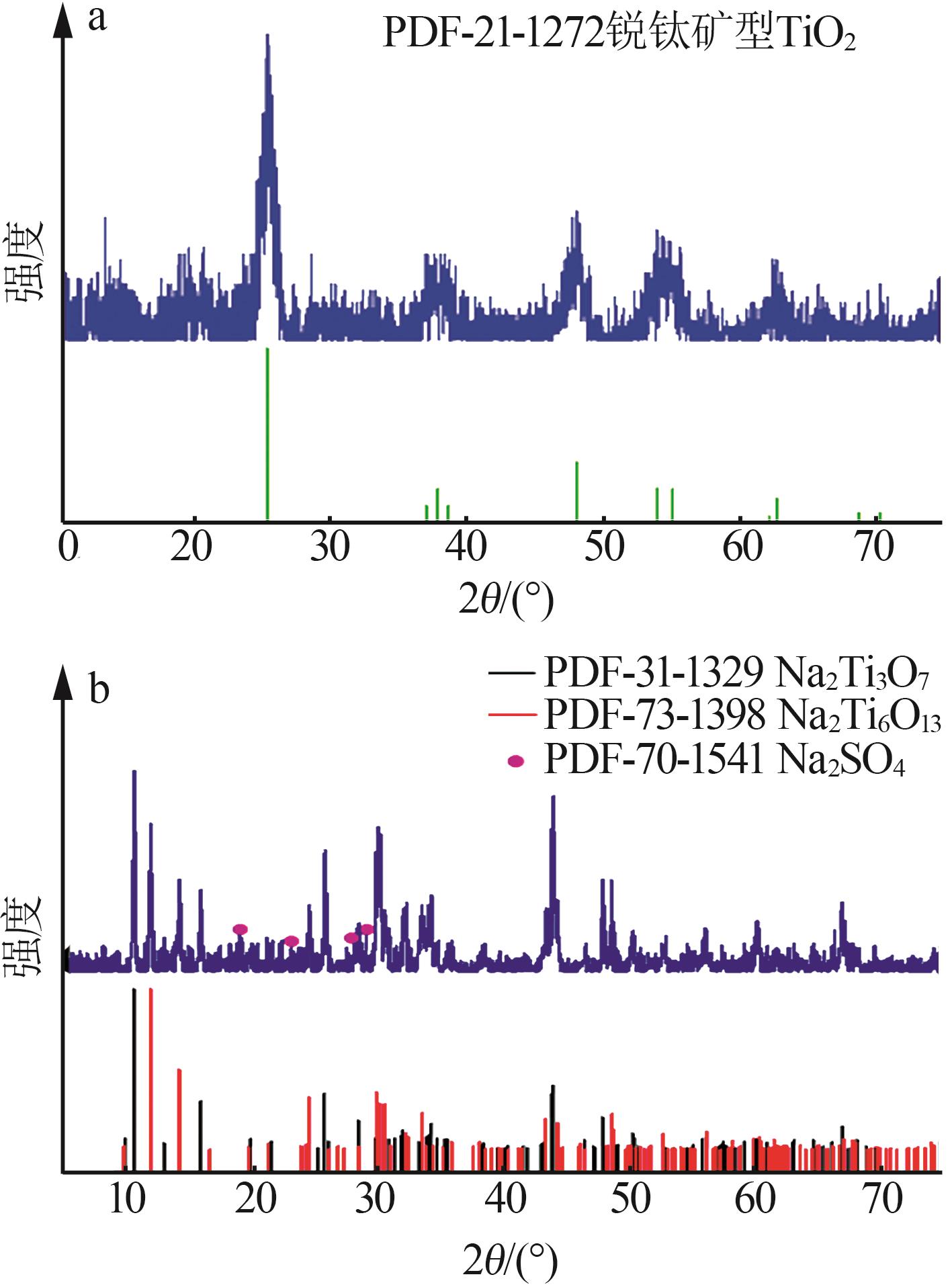

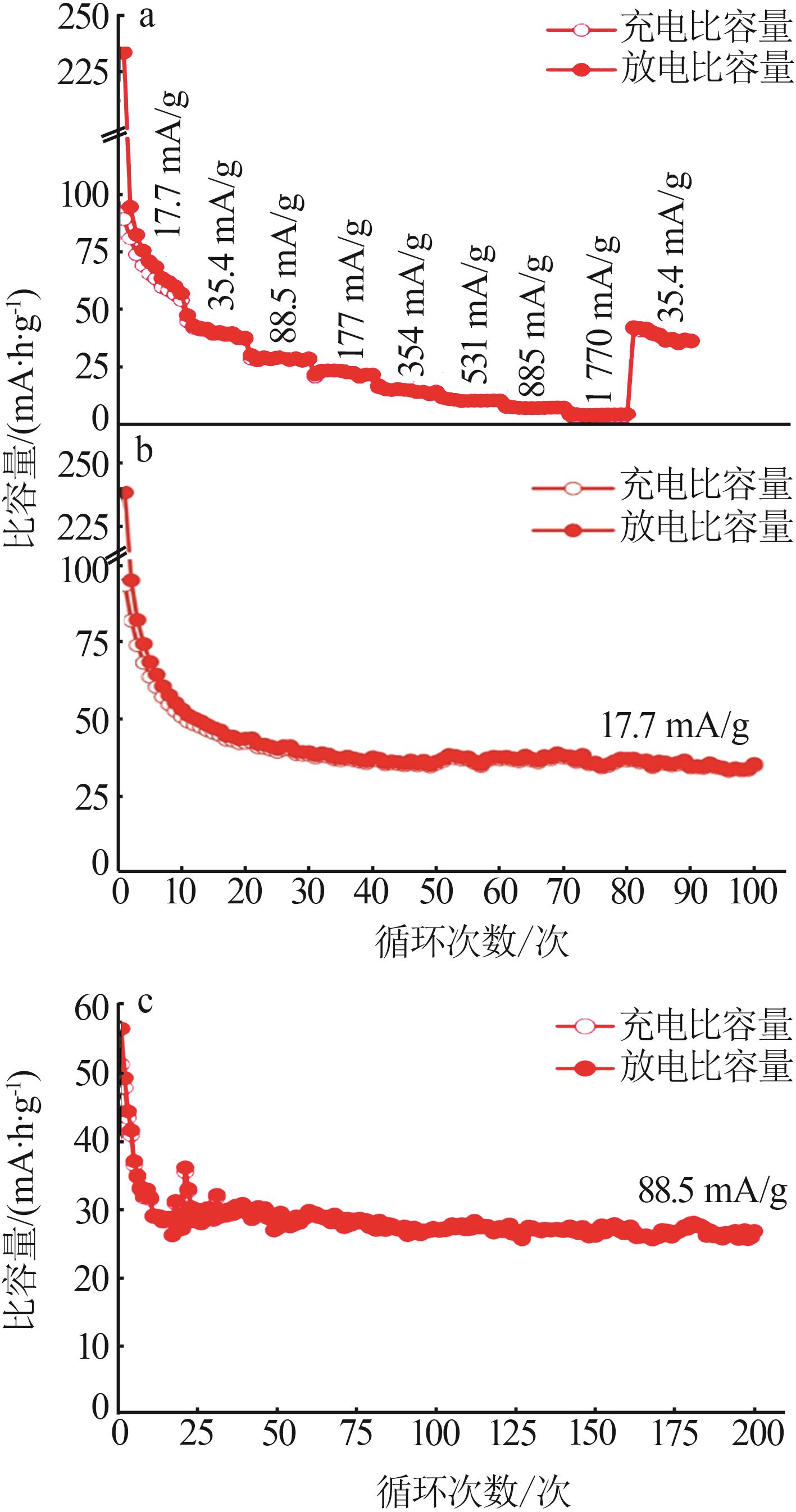

采用传统方法制备钛酸钠材料时,所使用的钛源(如TiO2,四异丙醇钛等)均为分析纯试剂,由含钛矿物经过多道工序加工获得,导致成本较高且制备钛酸钠的流程冗长。以工业钛液为原料,通过常压水解制备的偏钛酸前驱体为钛源,使用高温固相法合成了钛酸钠负极材料,缩短了制备钛酸钠的流程。结果表明:合成的钛酸钠主要是Na2Ti3O7和Na2Ti6O13的混合相,在低电流密度为17.7 mA/g下,其初始放电比容量可达233.77 mA·h/g;在电流密度为88.5 mA/g下循环200次后,放电比容量为26.87 mA·h/g,容量保持率为47.56%,充放电效率为99.54%;所制备的混合钛酸钠的储钠过程以赝电容行为占主导作用。
中图分类号:
张瑞, 王正豪, 陈良, 郭孝东, 罗冬梅. 工业钛液合成钛酸钠负极及其储钠性能[J]. 无机盐工业, 2023, 55(12): 66-73.
ZHANG Rui, WANG Zhenghao, CHEN Liang, GUO Xiaodong, LUO Dongmei. Synthesis of sodium titanate anode from industrial titanium liquid and its sodium storage performance[J]. Inorganic Chemicals Industry, 2023, 55(12): 66-73.
表4
本文所制备的混合钛酸钠与其他方法所制备的钛酸钠的电化学性能的对比
制备方法 | 原料 | 产物物相 | 电流密度/循环次数/放电比容量 |
---|---|---|---|
水热法[ | 锐钛TiO2,NaOH | Na2Ti3O7/Na2Ti6O13 | 20 mA/g,100次,约80 mA·h/g;2 000 mA/g, 4 000次,19.45 mA·h/g |
溶胶-凝胶法[ | 丁醇钛,NaOH | Na2Ti3O7;Na2Ti3O7/MWCNT | 0.2C,50次,8 mA·h/g;0.2C,50次,160 mA·h/g |
喷雾干燥法[ 1 000 ℃,8 h) | TiO2,Na2CO3 | 800 ℃:Na2Ti3O7; 1 000 ℃:Na2Ti3O7 | 35.6 mA/g,500次,44 mA·h/g;178 mA/g, 500次,32 mA·h/g |
高温固相法[ | TiO2和Na2CO3·H2O,TiO2和NaOH | 24 h:CO-Na2Ti3O7; 20 h:OH-Na2Ti3O7 | 0.1C,100次,<10 mA·h/g;0.1C,100次,约 76.9 mA·h/g |
高温固相法[ | TiO2(锐钛与金红石混合)和Na2CO3 | m-Na2Ti3O7;t-Na2Ti3O7 | 20 mA/g,20次,35.5 mA·h/g;20 mA/g,20次, 约92 mA·h/g |
高温固相法(800 ℃,20 h) | 工业钛液水解得到的偏钛酸,Na2CO3 | Na2Ti3O7/Na2Ti6O13 | 88.5 mA/g,200次,26.87 mA·h/g |
1 |
DONG Shengyang, LV Nan, WU Yulin, et al. Titanates for sodium-ion storage[J]. Nano Today, 2022, 42:101349.
doi: 10.1016/j.nantod.2021.101349 |
2 |
DELMAS C. Sodium and sodium-ion batteries:50 years of resear-ch[J]. Advanced Energy Materials, 2018, 8(17):1703137.
doi: 10.1002/aenm.v8.17 |
3 |
PLACKE T, KLOEPSCH R, DÜHNEN S, et al. Lithium ion,lithium metal,and alternative rechargeable battery technologies:The odyssey for high energy density[J]. Journal of Solid State Electrochemistry, 2017, 21(7):1939-1964.
doi: 10.1007/s10008-017-3610-7 |
4 | MATSUMOTO K, HWANG J, KAUSHIK S, et al. Advances in sodium secondary batteries utilizing ionic liquid electrolytes[J]. Energy & Environmental Science, 2019, 12(11):3247-3287. |
5 |
LIBICH J, MINDA J, SEDLAŘÍKOVÁ M, et al. Sodium-ion batteries:Electrochemical properties of sodium titanate as negative electrode[J]. Journal of Energy Storage, 2020, 27:101150.
doi: 10.1016/j.est.2019.101150 |
6 |
HASA I, MARIYAPPAN S, SAUREL D, et al. Challenges of today for Na-based batteries of the future:From materials to cell metri-cs[J]. Journal of Power Sources, 2021, 482:228872.
doi: 10.1016/j.jpowsour.2020.228872 |
7 | LI Shiyou, WEN Shuxiang, DING Hao, et al. Improve the electrochemical performance of Na2Ti3O7 nanorod through pitch coat-ing[J]. ACS Sustainable Chemistry & Engineering, 2022, 10(13):4247-4257. |
8 | MUKHERJEE A, DAS D, BANERJEE S, et al. Synthesis and electrochemical performance of in situ and ex-situ carbon-coated Na2Ti3O7,as a promising anode for sodium-ion batteries[J]. Electrochemical Science Advances, 2022. Doi:10.1002/elsa.202100118 . |
9 | 张希, 杨军, 乔志军, 等. 炭负极材料储钠机理的研究进展[J]. 化工新型材料, 2023, 51(1):51-55. |
ZHANG Xi, YANG Jun, QIAO Zhijun, et al. Application progress of carbon anode materials in sodium-ion batteries[J]. New Chemical Materials, 2023, 51(1):51-55. | |
10 | 王祺. 钠离子电池负极材料的研究进展[J]. 化工技术与开发, 2022, 51(8):52-54,5. |
WANG Qi. Research progress of anode materials for sodium ion batteries[J]. Technology & Development of Chemical Industry, 2022, 51(8):52-54,5. | |
11 | 马存双, 万延华, 许永开, 等. 超薄氮硫掺杂碳包覆二硫化铁的制备及储钠性能[J]. 无机盐工业, 2022, 54(6):55-60. |
MA Cunshuang, WAN Yanhua, XU Yongkai, et al. Preparation and sodium storage properties of ultra-thin N and S doped carbon coated FeS2 [J]. Inorganic Chemicals Industry, 2022, 54(6):55-60. | |
12 | 包科杰, 路凌然. 新能源汽车电池负极材料的制备与性能研究[J]. 无机盐工业, 2021, 53(3):54-59. |
BAO Kejie, LU Lingran. Study on preparation and performance of negative electrode materials for batteries of new energy vehicl-es[J]. Inorganic Chemicals Industry, 2021, 53(3):54-59. | |
13 | 李凡群, 赵星星. 钠离子电池负极材料的研究现状[J]. 电池, 2017, 47(2):120-122. |
LI Fanqun, ZHAO Xingxing. Research status quo of anode materials for sodium ion battery[J]. Battery Bimonthly, 2017, 47(2):120-122. | |
14 | 朱子翼, 张英杰, 董鹏, 等. 高性能钠离子电池负极材料的研究进展[J]. 化工进展, 2019, 38(5):2222-2232. |
ZHU Ziyi, ZHANG Yingjie, DONG Peng, et al. Research progress of anode materials for high performance sodium-ion batteries[J]. Chemical Industry and Engineering Progress, 2019, 38(5):2222-2232. | |
15 | 党荣彬, 陆雅翔, 容晓晖, 等. 钠离子电池关键材料研究及工程化探索进展[J]. 科学通报, 2022, 67(30):3546-3564. |
DANG Rongbin, LU Yaxiang, RONG Xiaohui, et al. Research progress of key materials and engineering exploration for Na-ion batteries[J]. Chinese Science Bulletin, 2022, 67(30):3546-3564. | |
16 |
SENGUTTUVAN P, ROUSSE G, SEZNEC V, et al. Na2Ti3O7:Lowest voltage ever reported oxide insertion electrode for sodium ion batteries[J]. Chemistry of Materials, 2011, 23(18):4109-4111.
doi: 10.1021/cm202076g |
17 |
RUDOLA A, SARAVANAN K, DEVARAJ S, et al. Na2Ti6O13:A potential anode for grid-storage sodium-ion batteries[J]. Chemical Communications, 2013, 49(67):7451-7453.
doi: 10.1039/c3cc44381g |
18 | SHIRPOUR M, CABANA J, DOEFF M. New materials based on a layered sodium titanate for dual electrochemical Na and Li intercalation systems[J]. Energy & Environmental Science, 2013, 6(8):2538-2547. |
19 |
CECH O, VANÝSEK P, CHLADIL L, et al. Mixed sodium titanate as an anode for a sodium-ion battery[J]. ECS Transactions, 2016, 74(1):331-337.
doi: 10.1149/07401.0331ecst |
20 |
WU Chunjin, HUA Weibo, ZHANG Zheng, et al. Design and synthesis of layered Na2Ti3O7 and tunnel Na2Ti6O13 hybrid structures with enhanced electrochemical behavior for sodium-ion batteri- es[J]. Advanced Science, 2018, 5(9):1800519.
doi: 10.1002/advs.v5.9 |
21 |
HWANG J, CAHYADI H S, CHANG W, et al. Uniform and ultrathin carbon-layer coated layered Na2Ti3O7 and tunnel Na2Ti6O13 hybrid with enhanced electrochemical performance for anodes in sodium ion batteries[J]. The Journal of Supercritical Fluids, 2019, 148:116-129.
doi: 10.1016/j.supflu.2019.03.006 |
22 |
CHANDEL S, LEE S, LEE S, et al. Hierarchically nanorod structured Na2Ti6O13/Na2Ti3O7 nanocomposite as a superior anode for high-performance sodium ion battery[J]. Journal of Electroanalytical Chemistry, 2020, 877:114747.
doi: 10.1016/j.jelechem.2020.114747 |
23 |
HO C K, LI C Y V, CHAN K Y. Scalable template-free synthesis of Na2Ti3O7/Na2Ti6O13 nanorods with composition tunable for synergistic performance in sodium-ion batteries[J]. Industrial & Engineering Chemistry Research, 2016, 55(38):10065-10072.
doi: 10.1021/acs.iecr.6b01867 |
24 |
BHARDWAJ H S, RAMIREDDY T, PRADEEP A, et al. Understanding the cyclic(In)stability and the effects of presence of a stable conducting network on the electrochemical performances of Na2Ti3O7 [J]. ChemElectroChem, 2018, 5(8):1219-1229.
doi: 10.1002/celc.v5.8 |
25 |
PIFFET C, VERTRUYEN B, HATERT F, et al. High temperature X-ray diffraction study of the formation of Na2Ti3O7 from a mixture of sodium carbonate and titanium oxide[J]. Journal of Energy Chemistry, 2022, 65:210-218.
doi: 10.1016/j.jechem.2021.05.050 |
26 |
ZARRABEITIA M, CASTILLO-MARTÍNEZ E, LÓPEZ DEL AMO J M, et al. Identification of the critical synthesis parameters for enhanced cycling stability of Na-ion anode material Na2Ti3O7 [J]. Acta Materialia, 2016, 104:125-130.
doi: 10.1016/j.actamat.2015.11.033 |
27 |
CAO Yang, YE Qi, WANG Fanfan, et al. A new triclinic phase Na2Ti3O7 anode for sodium-ion battery[J]. Advanced Functional Materials, 2020, 30(39):2003733.
doi: 10.1002/adfm.v30.39 |
28 |
PAN Jun, WANG Nana, Dan LÜ, et al. Layered structure Na2Ti3O7 as a promising anode material for sodium-ion batteri-es[J]. Advanced Energy and Sustainability Research, 2021, 2(6):2000095.
doi: 10.1002/aesr.v2.6 |
29 |
吴乾鑫, 刘磊, 孙晋蒙, 等. 磺酸基修饰石墨烯复合材料的储钠性能研究[J]. 材料工程, 2022, 50(4):36-43.
doi: 10.11868/j.issn.1001-4381.2020.001197 |
WU Qianxin, LIU Lei, SUN Jinmeng, et al. Sodium ions storage performance of PSS-rGO composites[J]. Journal of Materials Engineering, 2022, 50(4):36-43. | |
30 |
CHEN Fuyu, YUAN Jing, ZHOU Minquan, et al. Compressible neuron-like 3D few-layered MoS2/N-doped graphene foam as freestanding and binder-free electrodes for high-performance lithium-ion batteries[J]. ACS Applied Energy Materials, 2022, 5(6):7249-7259.
doi: 10.1021/acsaem.2c00796 |
31 | 郑钧昊, 吴源基, 殷咏诗, 等. 高性能氮掺杂中空碳纳米盒的制备及其在钠离子负极中的应用[J]. 材料研究与应用, 2022, 16(5):804-811. |
ZHENG Junhao, WU Yuanji, YIN Yongshi, et al. Preparation of high performance nitrogen doped hollow carbon box and their application in sodium anode[J]. Materials Research and Application, 2022, 16(5):804-811. |
