磷矿在磷酸中的浸出行为

doi:10.19964/j.issn.1006-4990.2022-0103

摘要/Abstract

摘要：

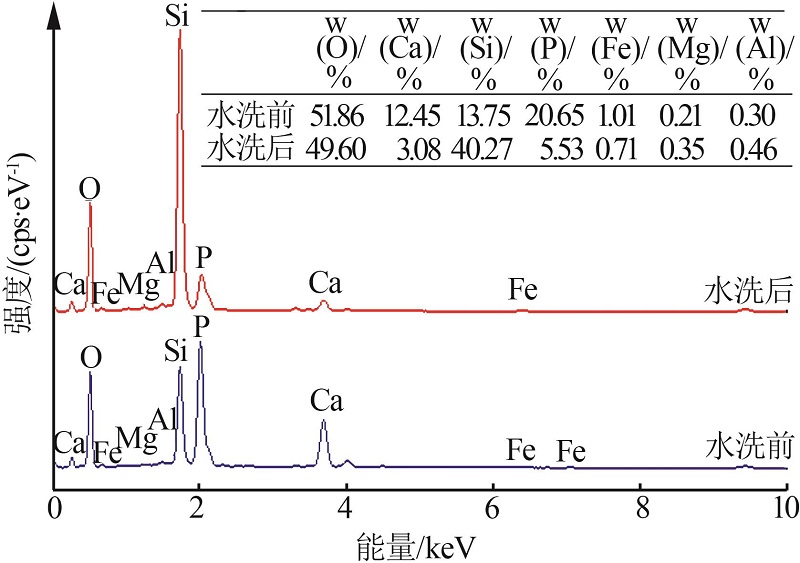

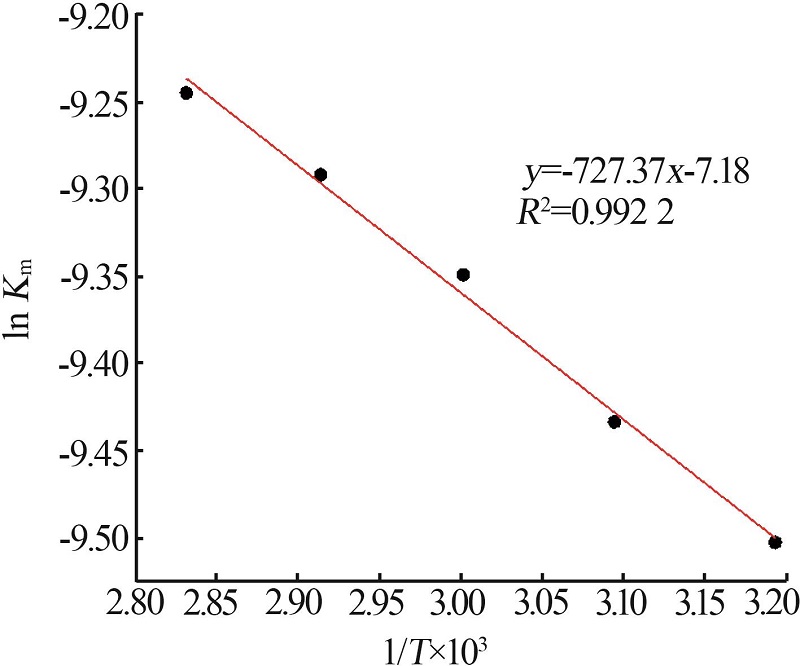

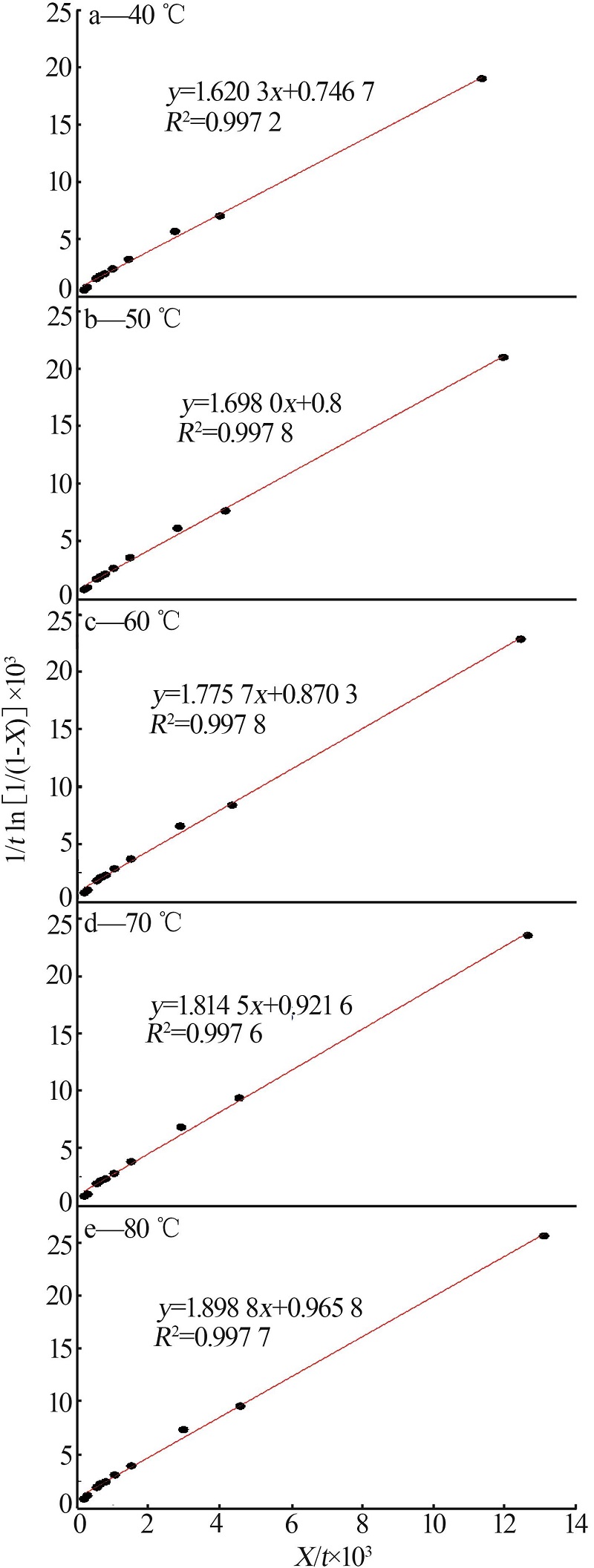

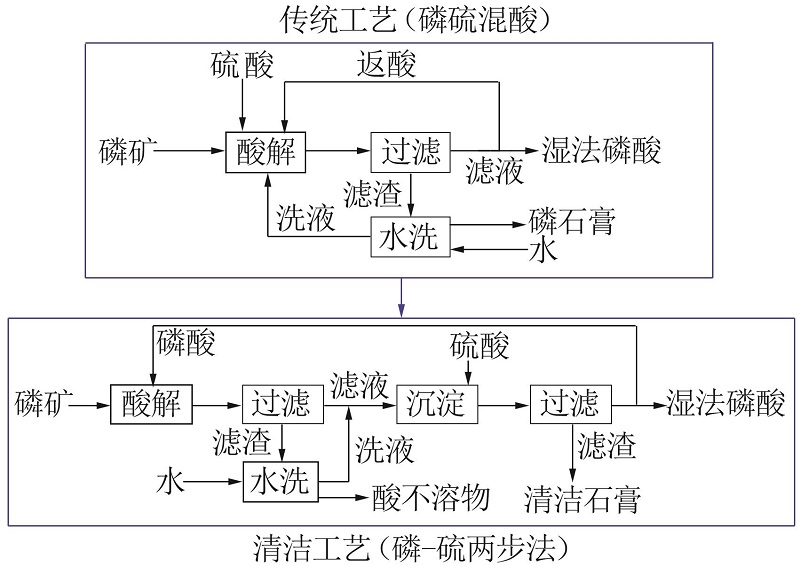

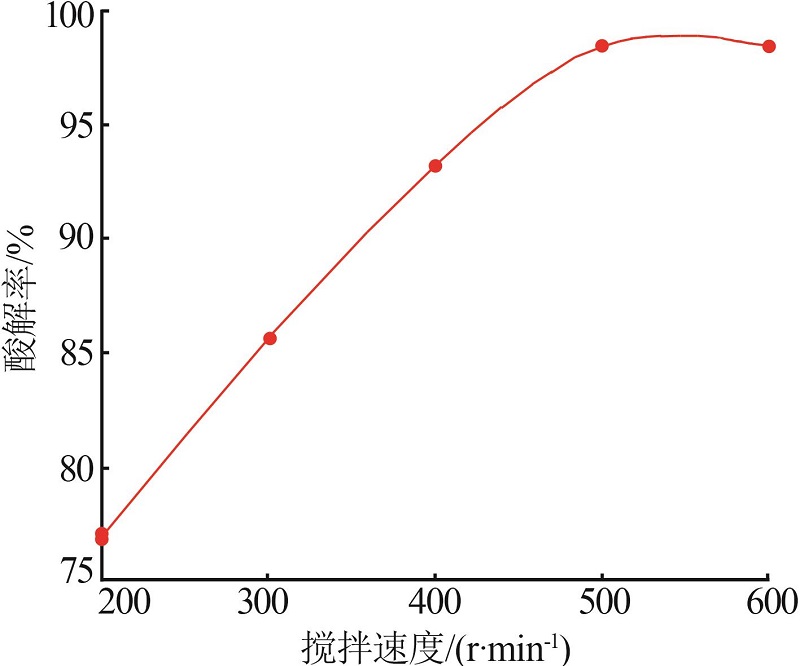

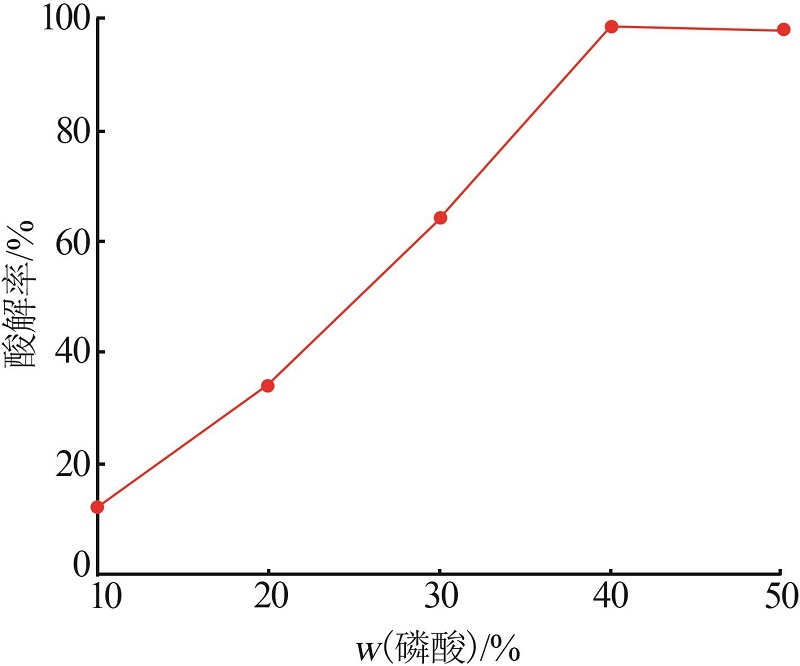

为改进湿法磷酸生产工艺,提高副产石膏的品质,缓解湿法磷酸中固体副产物磷石膏带来的环保压力,进行了磷-硫两步法酸解磷矿制磷酸的研究。着重对贵阳某磷矿在磷酸中的浸出行为进行研究。结果表明,磷矿粒度小于75 μm、搅拌速度为500 r/min、反应温度为70 ℃、五氧化二磷质量分数为40%、反应时间为60 min时,磷矿分解率达到98.5%。德罗兹多夫动力学经验模型能够较好地描述40%五氧化二磷中磷矿反应速率的变化规律,且阻缓系数较大,表观活化能为6.048 kJ/mol,表明40%五氧化二磷中磷酸分解磷矿的反应速率受扩散控制。酸解渣SEM和EDS分析表明反应产物磷酸二氢钙结晶析出是影响扩散的主要因素。

关键词: 磷矿, 湿法磷酸, 磷酸二氢钙, 动力学

Abstract:

In order to improve the production process of wet-process phosphoric acid,improve the quality of by-product phosphogypsum,and relieve the environmental pressure caused by the solid by-products in the wet-process phosphoric acid,the research on phosphorus-sulfur two-step decomposition of phosphate ore to produce phosphoric acid was conducted.The leaching behavior of a phosphate ore in GuiYang in phosphoric acid was especially studied.The results showed that when the particle size of phosphate ore was less than 75 μm,the stirring speed was 500 r/min,the reaction temperature was 70 ℃,the w（P₂O₅） was 40% and the reaction time was 60 min,the decomposition rate of phosphate ore reached 98.5%.The decomposition rate of phosphate ore in 40% P₂O₅ could be described by the Drozdov kinetic empirical model well.The reaction retardation coefficient was large,and the apparent activation energy of the reaction was 6.048 kJ/mol.It was shown that the decomposition of phosphate ore by 40% P₂O₅ was controlled by diffusion.SEM and EDS analysis of the residues showed that the crystallization of calcium dihydrogen phosphate was the main factor affecting the diffusion.

Key words: phosphate ore, wet phosphoric acid, calcium dihydrogen phosphate, kinetics

中图分类号:

TQ126.3

郑寒笑,吕莉,唐盛伟,何燕君,张涛. 磷矿在磷酸中的浸出行为[J]. 无机盐工业, 2022, 54(10): 96-101.

ZHENG Hanxiao,LÜ Li,TANG Shengwei,HE Yanjun,ZHANG Tao. Leaching behavior of phosphate ore in phosphoric acid[J]. Inorganic Chemicals Industry, 2022, 54(10): 96-101.

图/表 11

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 19

[1]	LV Li, ZHENG Dongyao, TANG Shengwei, et al.Phosphate ore particles dissolution kinetics in hydrochloric acid based on a structure-related segmented model[J].Powder Technology, 2021, 392: 141-149.
[2]	廖杭, 吕莉, 唐盛伟, 等. 盐酸法制磷酸中氯化钙废水的除氟工艺[J].工业水处理, 2021, 41(11): 89-93.
	LIAO Hang, Li LÜ, TANG Shengwei, et al.Defluorination process of calcium chloride wastewater from phosphoric acid production by hydrochloric acid method[J].Industrial Water Treatment, 2021, 41(11): 89-93.
[3]	郑东钥, 唐盛伟, 吕莉.盐酸分解高硅混合型胶磷矿工艺研究[J].无机盐工业, 2021, 53(2): 81-83, 104.
	ZHENG Dongyao, TANG Shengwei, Li LÜ.Study on process of hydrochloric acid leaching high silicon mixed phosphate ore[J].Inorganic Chemicals Industry, 2021, 53(2): 81-83, 104.
[4]	何燕君, 郑寒笑, 吕莉, 等. 低品位混合型磷矿的碳热还原工艺[J].无机盐工业, 2021, 53(11): 95-99.
	HE Yanjun, ZHENG Hanxiao, Li LÜ, et al.Carbothermal reduction process of low-grade mixed phosphate ore[J].Inorganic Che-Industry micals, 2021, 53(11): 95-99.
[5]	ZHANG P.Comprehensive recovery and sustainable development of phosphate resources[J].Procedia Engineering, 2014, 83: 37-51.
[6]	LASSIS M, MIZANE A, DADDA N, et al.Dissolution of Djebel Onk phosphate ore using sulfuric acid[J].Environmental Nanotechnology,Monitoring & Management, 2015, 4: 12-16.
[7]	ANTAR K, JEMAL M.Kinetics and thermodynamics of the attack of a phosphate ore by acid solutions at different temperatures[J].Thermochimica Acta, 2008, 474(1/2): 32-35.
[8]	CANUT M M C, JACOMINO V M F, BRÅTVEIT K, et al.Microstructural analyses of phosphogypsum generated by Brazilian fertilizer industries[J].Materials Characterization, 2008, 59(4): 365-373.
[9]	TAYIBI H, CHOURA M, LÓPEZ F A, et al.Environmental impact and management of phosphogypsum[J].Journal of Environmental Management, 2009, 90(8): 2377-2386.
[10]	AL-FARISS T F, ARAFAT Y, EL-ALEEM F A ABD, et al.Investigating sodium sulphate as a phosphate depressant in acidic media[J].Separation and Purification Technology, 2014, 124: 163-169.
[11]	曾亚平, 党亚固, 费德君.制备高品质磷石膏的湿法磷酸新工艺的开发[J].化工进展, 2015, 34(S1): 167-172.
	ZENG Yaping, DANG Yagu, FEI Dejun.Development of the new wet phosphoric process of preparing high-quality phosphogyps-um[J].Chemical Industry and Engineering Progress, 2015, 34(S1): 167-172.
[12]	SERDYUK V V, PANOV V P, TERESHCHENKO L Y, et al.Mechanism of the dissolution of apatite by phosphoric acid in the presence of electrolytes[J].Journal of Applied Chemistry of the Ussr, 1982, 55(10): 2004-2008.
[13]	HUFFMAN E O, CATE W E, DEMING M E, et al.Solubility of phosphates,rates of solution of calcium phosphates in phosphoric acid solutions[J].Journal of Agricultural and Food Chemistry, 1957, 5(4): 266-275.
[14]	SIKDAR S K,ORE F, MOORE J H.Crystallization of calcium sulfate hemihydrate in reagent-grade phosphoric acid[J].Industrial Mineral Technology, 1980, 9: 133-137.
[15]	ECONOMOU E D, VAIMAAKIS T C, PAPAMICHAEL E M.The kinctics of dissolution of the carbonate minerals of phosphate ores using dilute acetic acid solutions:The case of pH range from 3.96 to 6.40[J].Journal of Colloid and Interface Science, 2002, 24(1): 133-141.
[16]	SIETSE V D S, MESZAROS Y, MARCHEE W G J, et al.The digestion of phosphate ore in phosphoric acid[J].Industrial & Engineering Chemistry Research, 1987, 26(12): 2501-2505.
[17]	严永华, 刘期崇, 夏代宽, 等. 磷酸分解磷矿石的动力学[J].高校化学工程学报, 1998, 12(3): 265-270.
	YAN Yonghua, LIU Qichong, XIA Daikuan, et al.Reaction kinetics of phosphate ore in phosphoric acid[J].Journal of Chemical Engineering of Chinese Universities, 1998, 12(3): 265-270.
[18]	周海, 杨三可, 解田.磷酸分解磷矿的动力学及影响因素研究[J].应用化工, 2021, 50(6): 1472-1477.
	ZHOU Hai, YANG Sanke, XIE Tian.Study on the dissolution kinetics of phosphate ore in phosphoric acid and its influencing factors[J].Applied Chemical Industry, 2021, 50(6): 1472-1477.
[19]	谢晨光, 唐盛伟, 王辛龙, 等. Ca（H₂PO₄）₂-H₃PO₄-H₂O体系的相平衡过程研究[J].无机盐工业, 2019, 51(2): 26-29.
	XIE Chenguang, TANG Shengwei, WANG Xinlong, et al.Study on phase equilibrium of Ca（H₂PO₄）₂-H₃PO₄-H₂O system[J].Inorganic Chemicals Industry, 2019, 51(2): 26-29.

成分	质量分数/%	成分	质量分数/%
P₂O₅	36.48	MgO	0.86
CaO	51.28	Fe₂O₃	0.72
F	2.56	酸不溶物	7.08
Al₂O₃	1.02
