粉煤灰提铝残渣制备4A分子筛及Cu（Ⅱ）吸附研究

doi:10.19964/j.issn.1006-4990.2024-0096

摘要/Abstract

摘要：

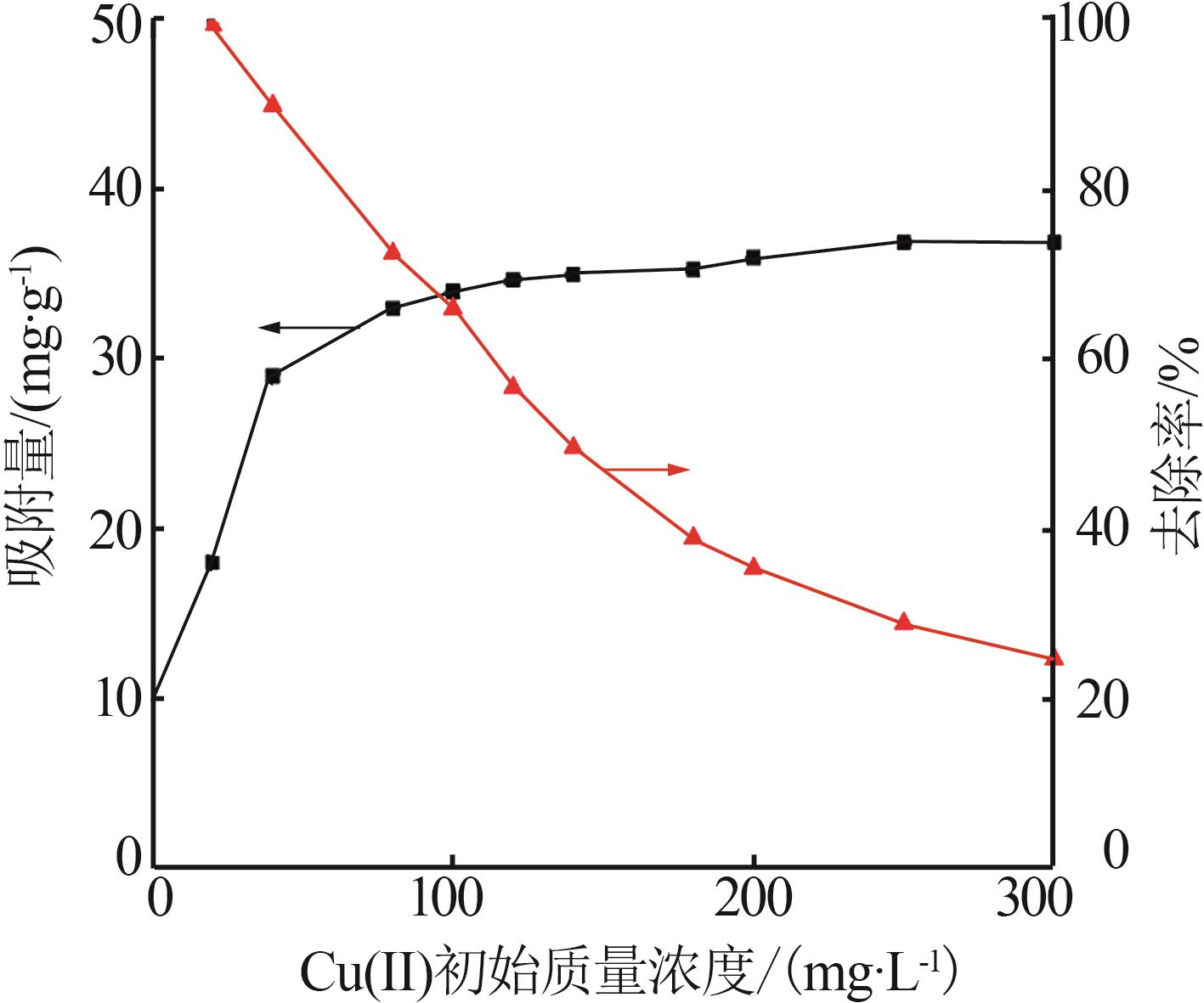

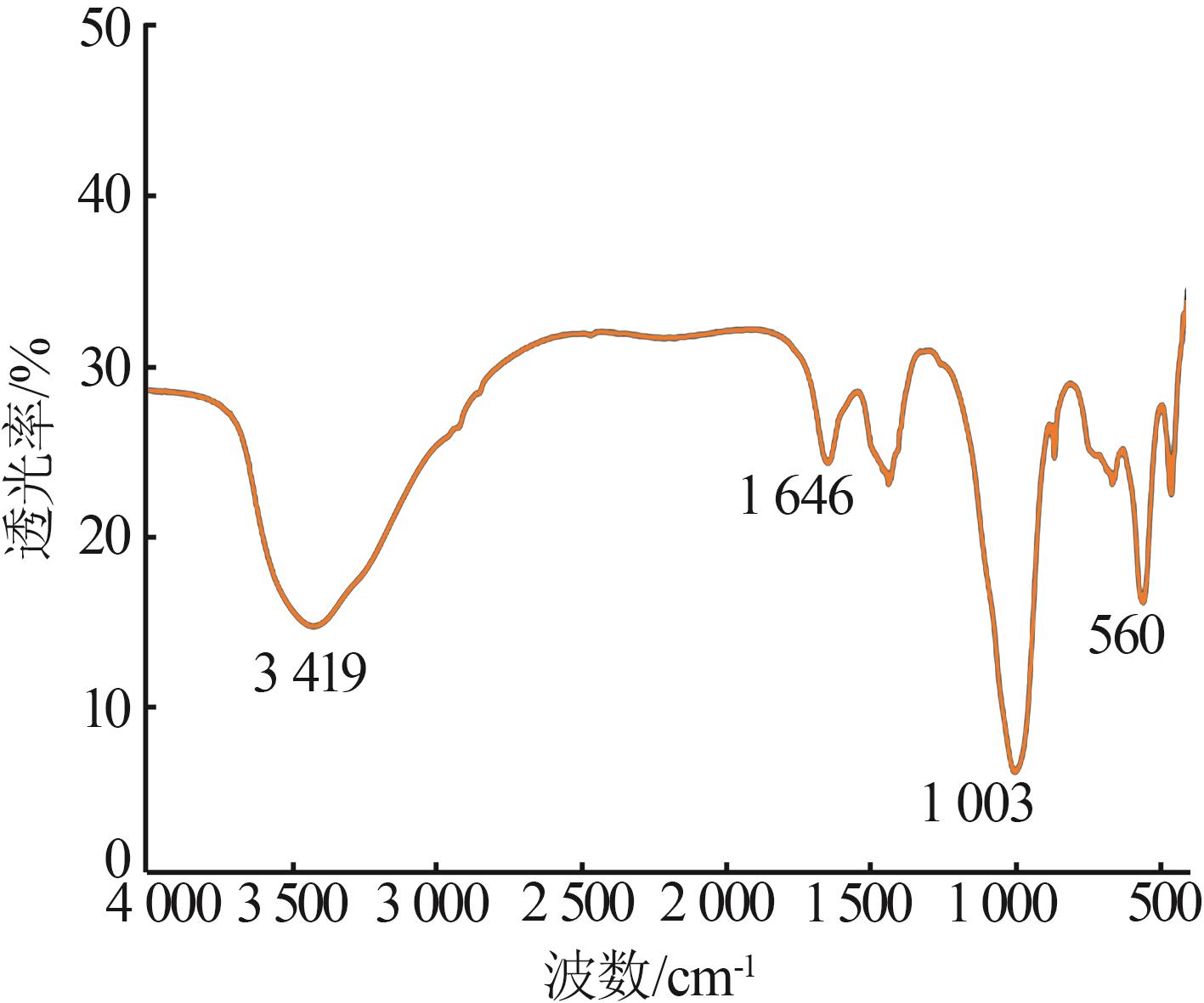

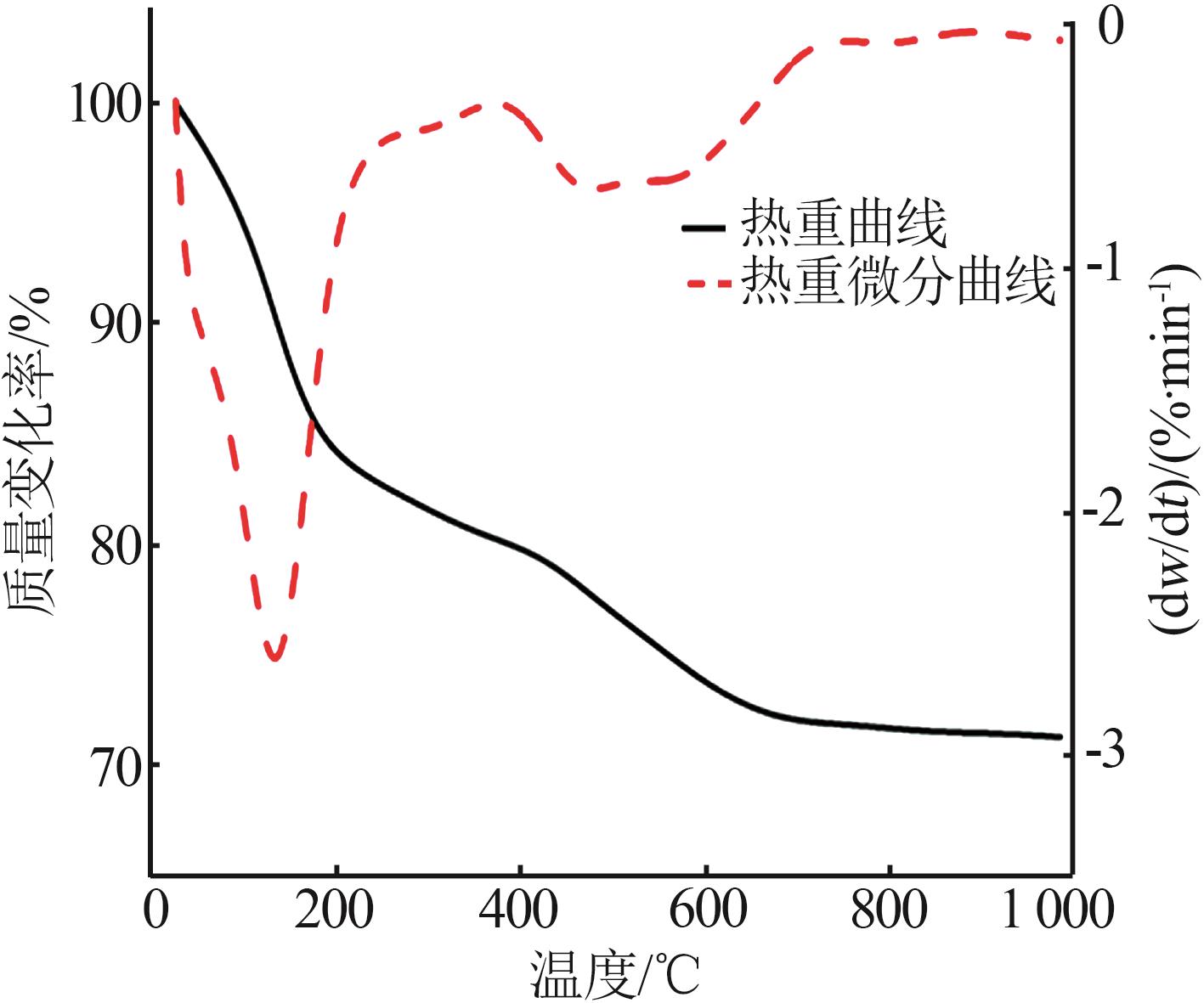

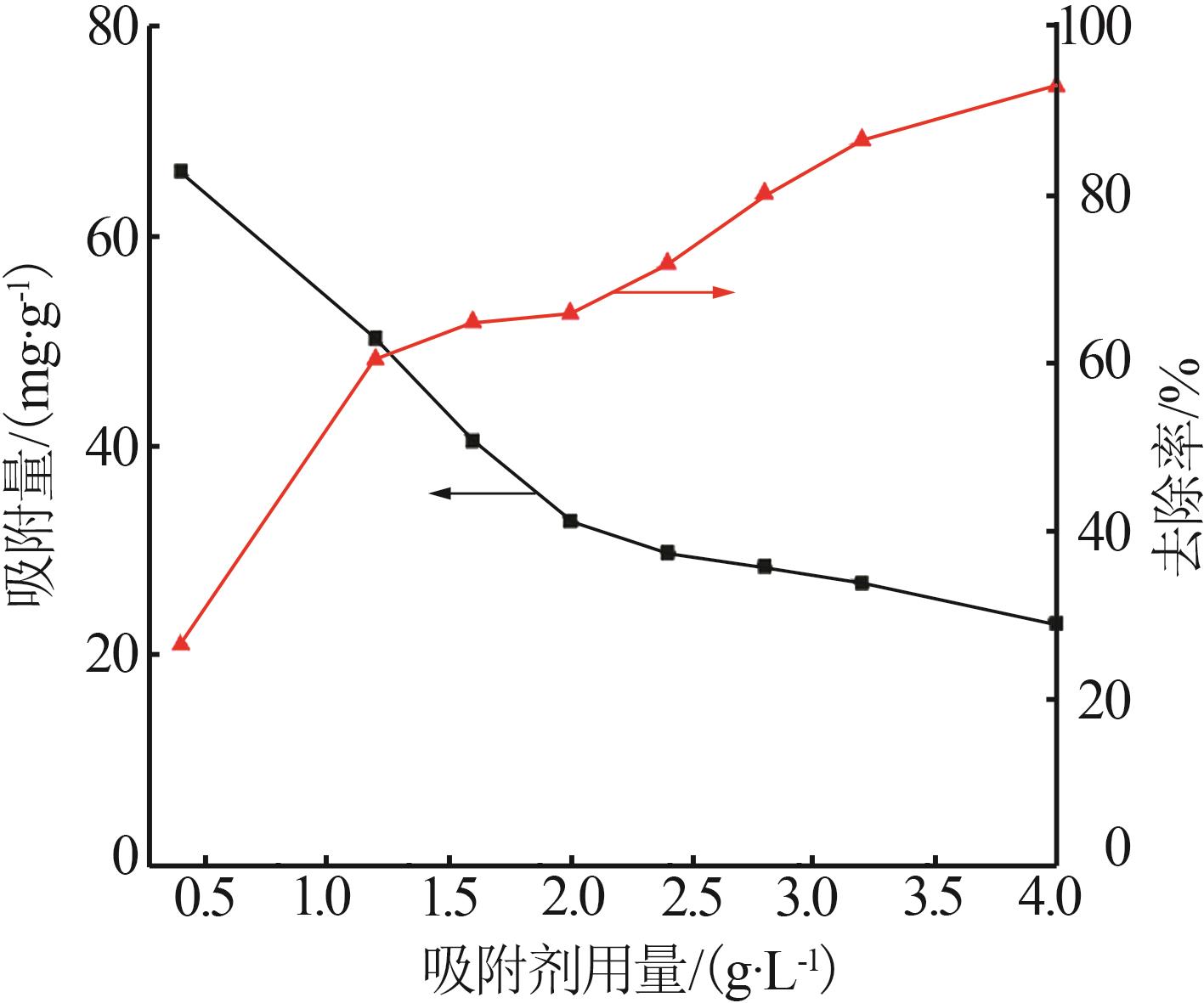

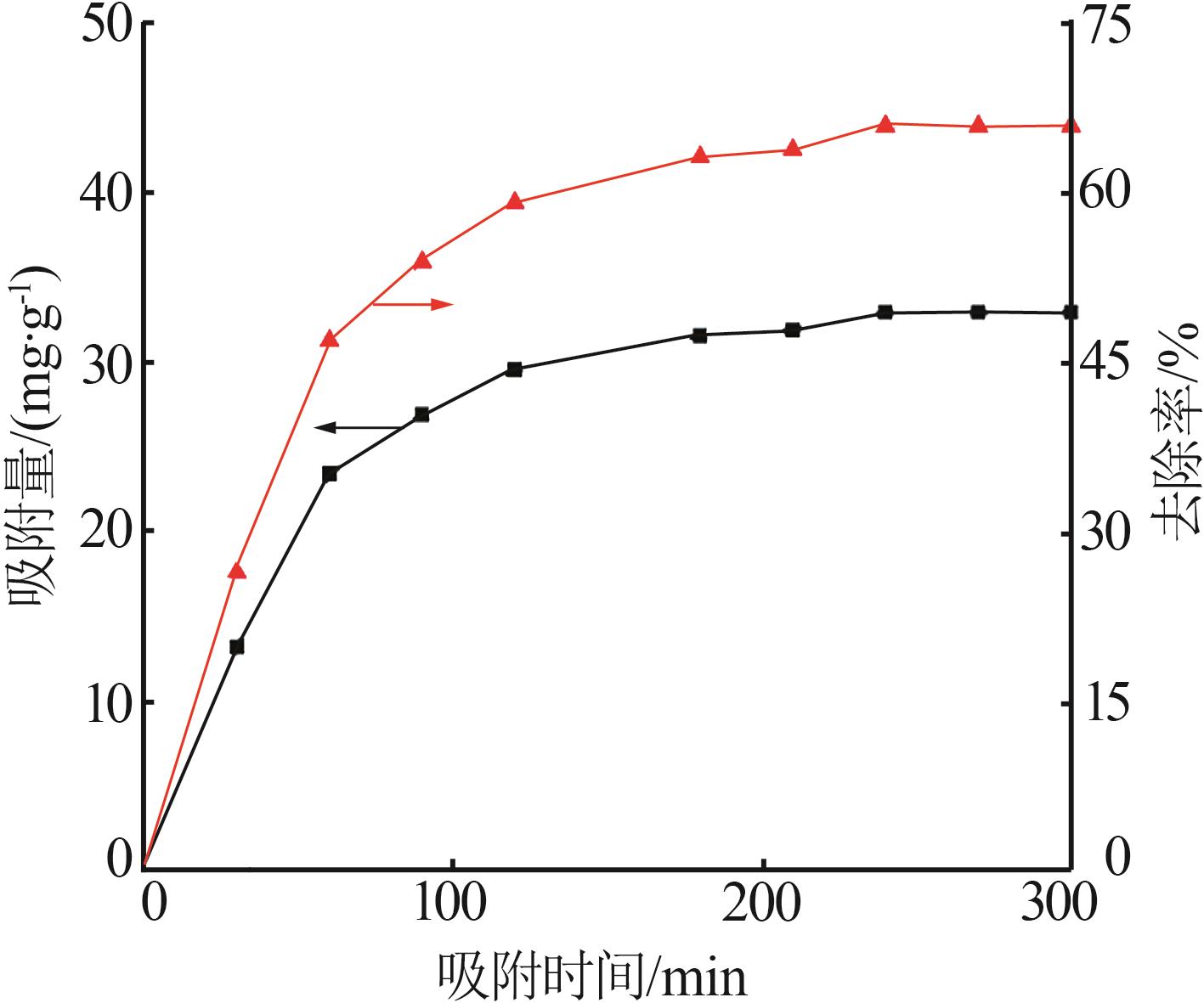

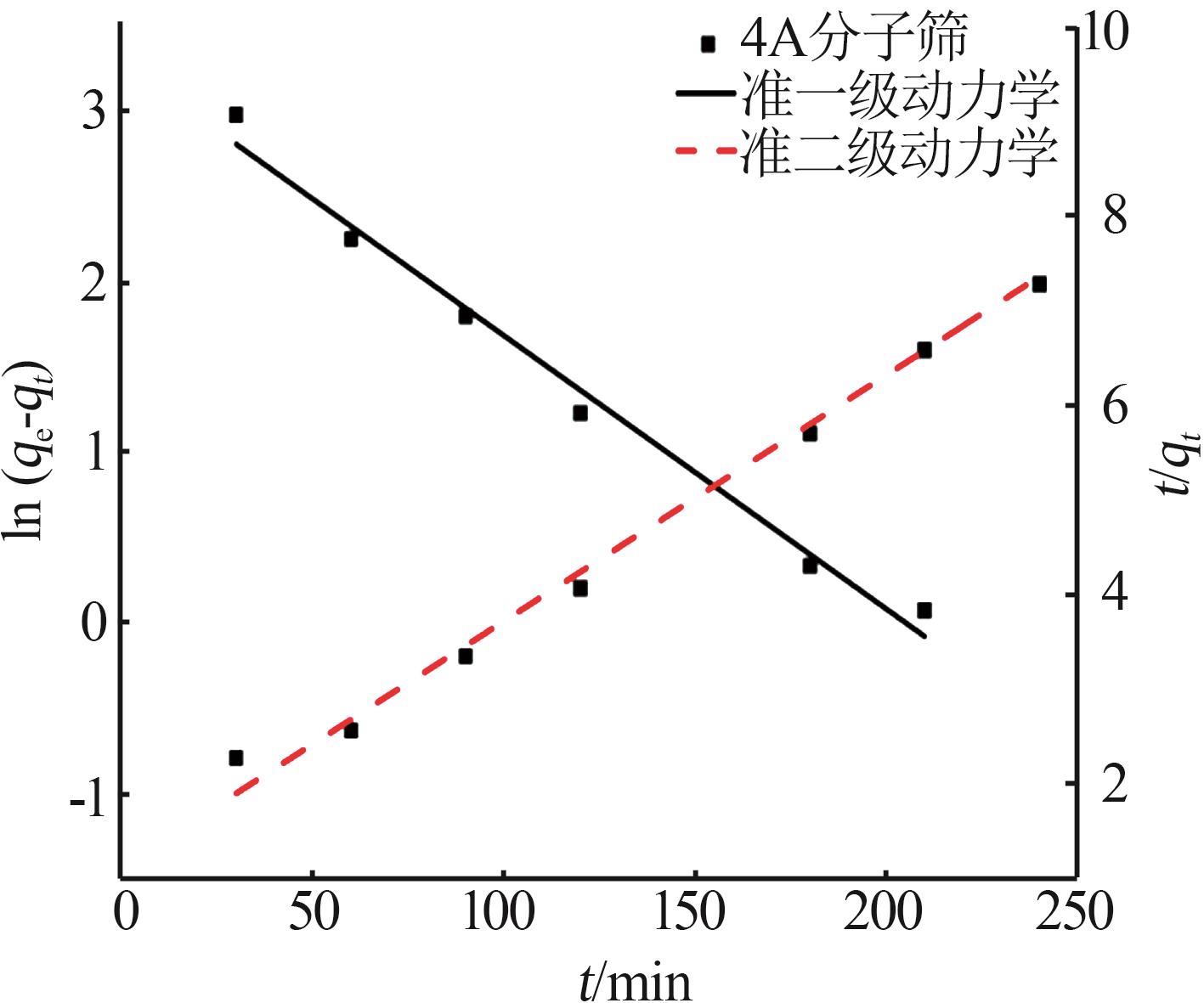

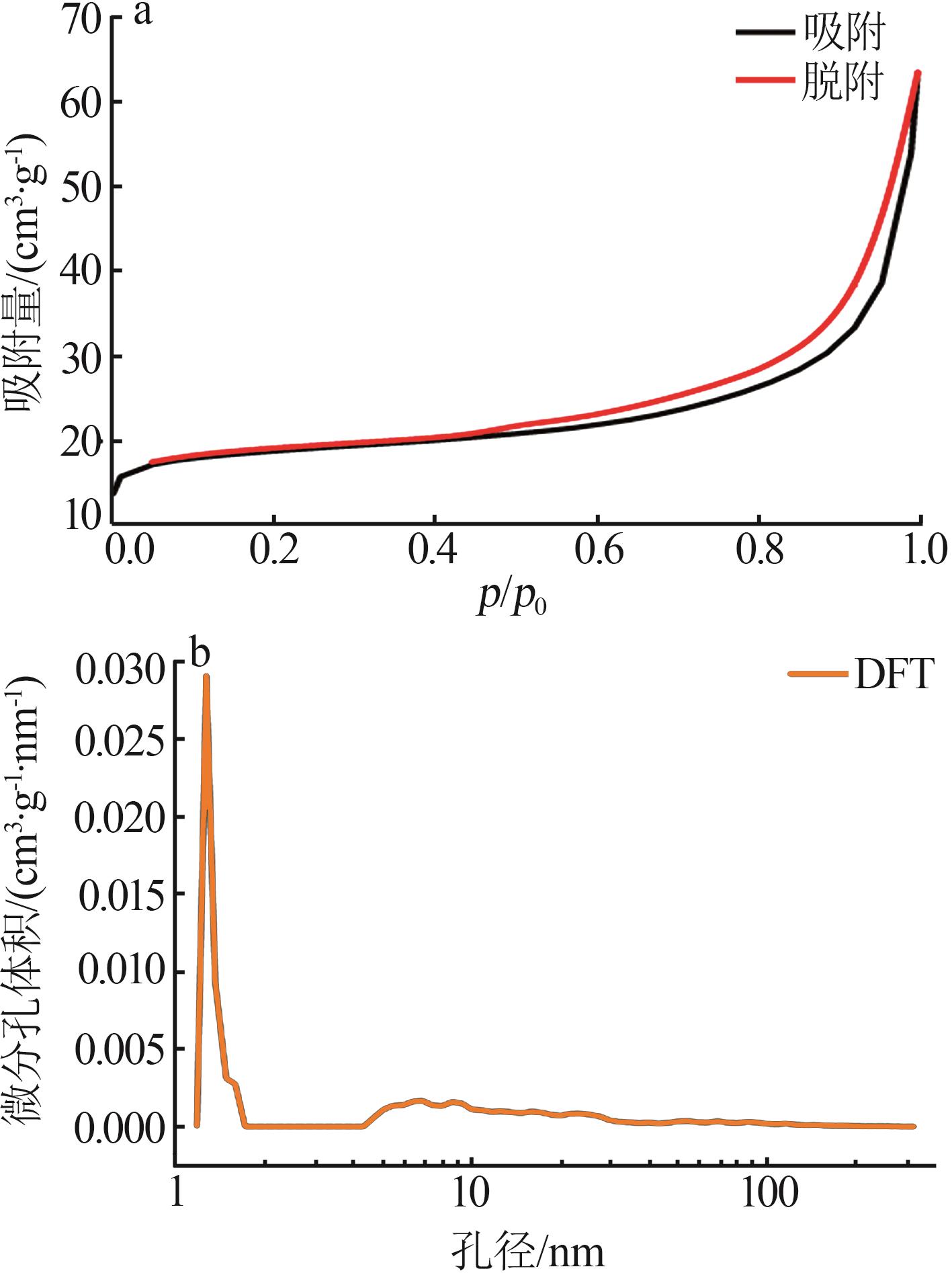

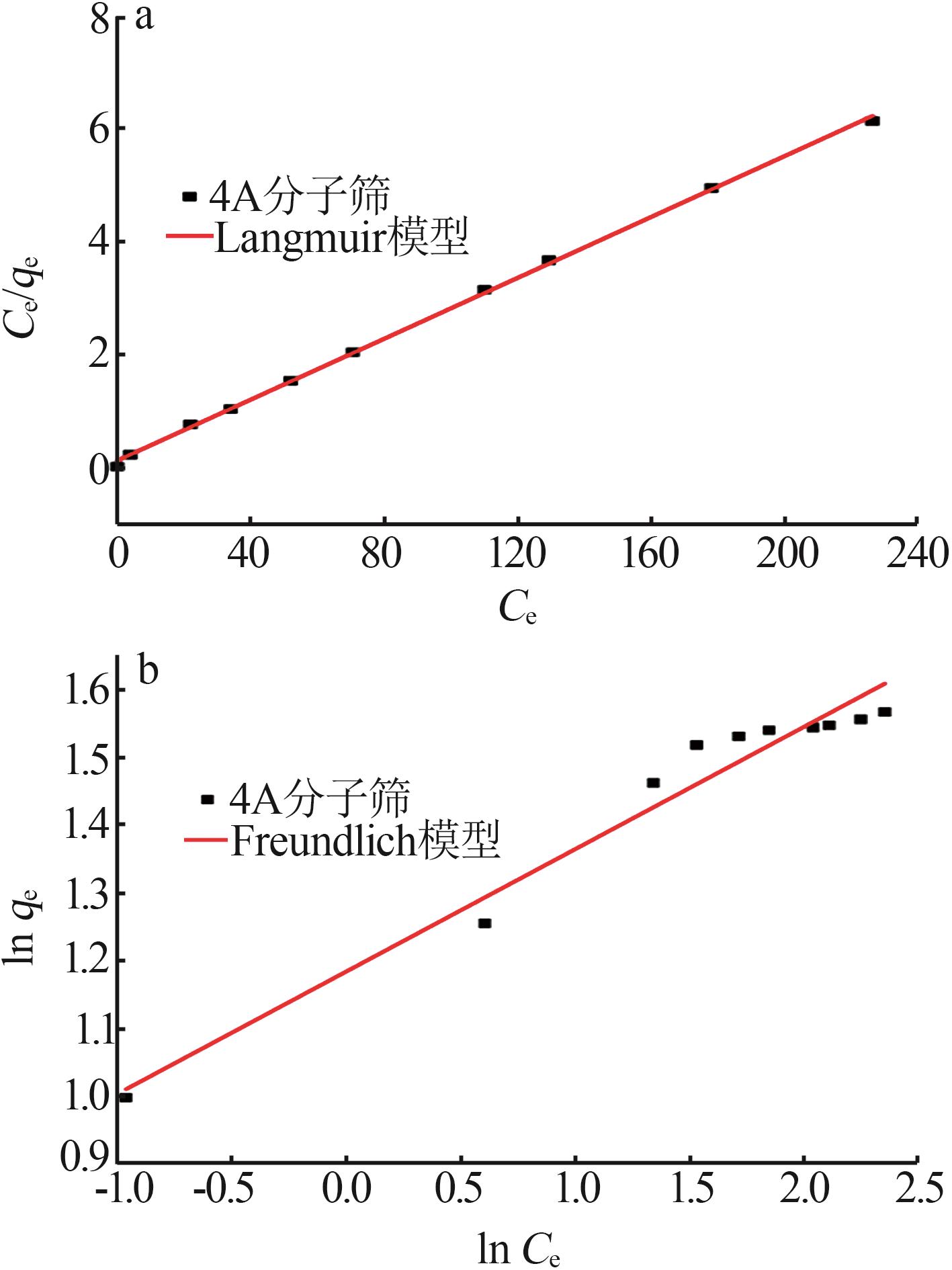

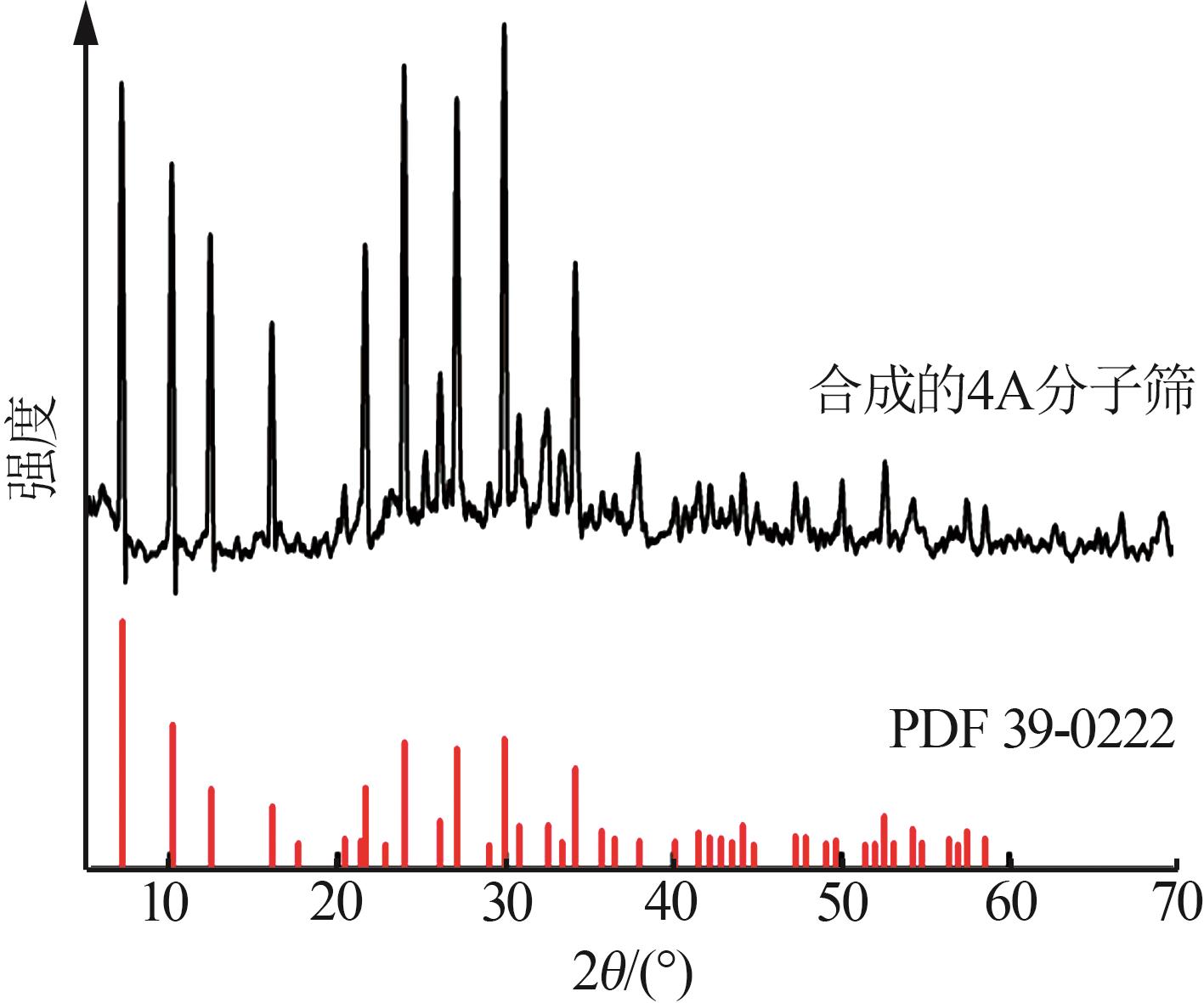

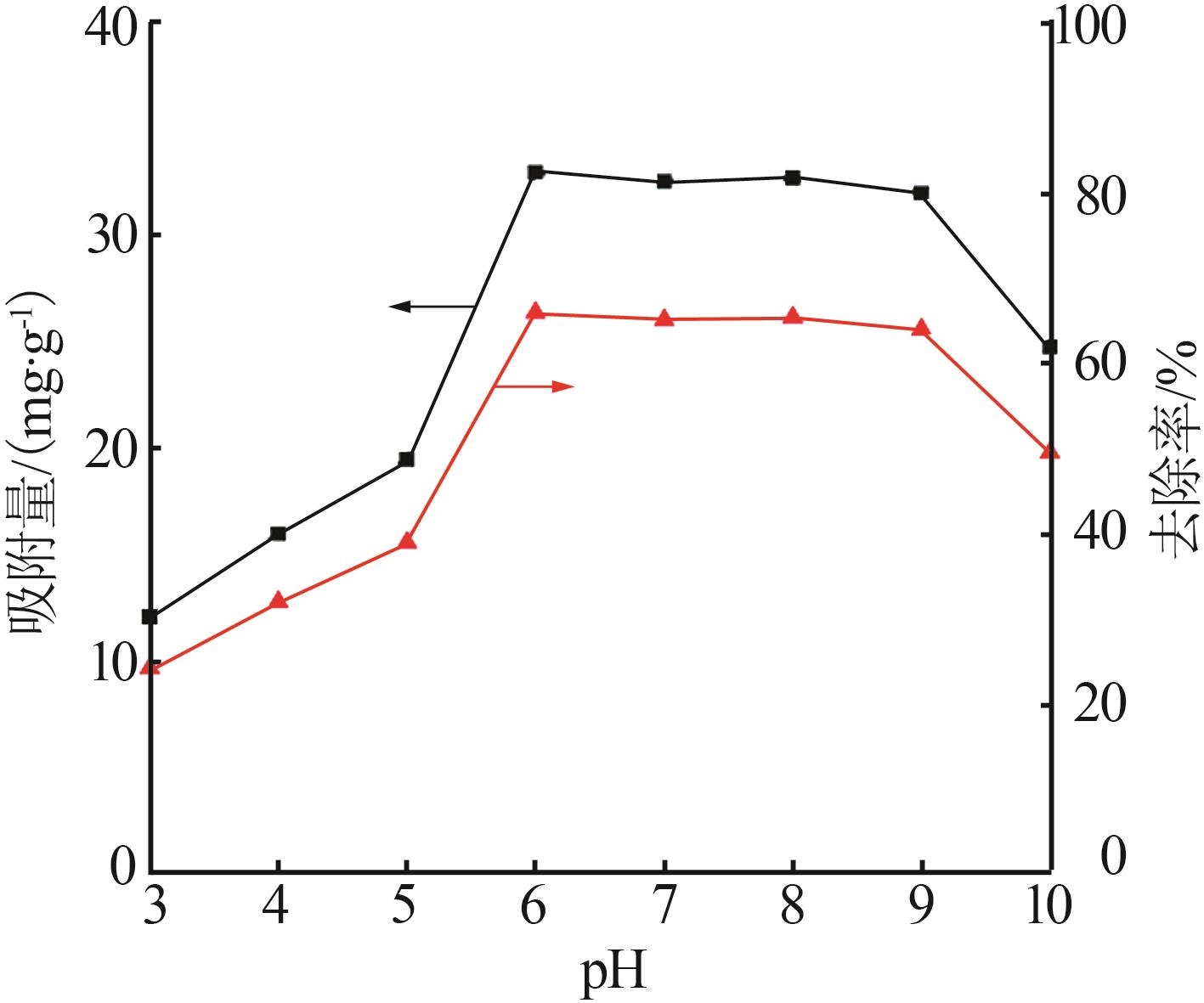

4A分子筛由于其优异的阳离子交换能力，成为处理重金属废水优良的吸附材料。为了达到以废治废的目的，以粉煤灰酸法提铝残渣为原料制备地质聚合物，再经水热原位转化合成体型化4A分子筛。采用XRD、FT-IR、SEM、BET、TGA等手段对4A沸石进行表征，探讨吸附时间、Cu（Ⅱ）初始浓度、吸附剂用量及溶液pH对其吸附性能的影响，并结合动力学方程和吸附等温线模型对其吸附过程进行研究。结果表明，所合成的4A分子筛孔隙发达且微孔含量较多，总比表面积为71.85 m²/g，其中微孔比表面积为53.91 m²/g，微孔孔径主要集中在1.3 nm左右。体型化4A分子筛吸附Cu（Ⅱ）的最佳条件为吸附时间为240 min、Cu（Ⅱ）初始质量浓度为100 mg/L、吸附剂用量为2.0 g/L、溶液pH为6~9，此时吸附量为32.97 mg/g，Cu（Ⅱ）的去除率可达65.93%。吸附过程符合准二级动力学模型，以化学吸附为主。Langmuir模型拟合效果较好，表明Cu（Ⅱ）在合成4A沸石上的吸附过程为单分子层吸附，且拟合得到的Cu（Ⅱ）的最大吸附量为37.05 mg/g。

关键词: 粉煤灰提铝残渣, 体型化4A分子筛, Cu（Ⅱ）吸附, 准二级动力学模型, Langmuir模型

Abstract:

The 4A zeolite has become an excellent adsorption material for the treatment of heavy metal wastewater，due to its good cation⁃exchange ability.In order to achieve the goal of“using waste treat waste”，the geopolymer was prepared from the aluminum extraction residue by fly ash，and then the shaped 4A zeolite was synthesized by hydrothermal in⁃situ conversion.The 4A zeolite was characterized by XRD，FT-IR，SEM，BET，TGA.The effects of adsorption time，initial concentration of Cu（Ⅱ），amount of adsorbent and pH value of solution on its adsorption properties were investigated，and the adsorption process was studied by combining the kinetic equation and adsorption isotherm model.The results showed that the synthesized 4A zeolite had developed pores and more micropores.The total specific surface area was 71.85 m²/g，of which the specific surface area of micropores was 53.91 m²/g，and the micropores were mainly concentrated in about 1.3 nm.The optimal conditions for adsorption of Cu（Ⅱ） by the shaped 4A zeolite were as follows：the adsorption time was 240 min，the initial concentration of Cu（Ⅱ） was 100 mg/L，the amount of adsorbent was 2.0 g/L，and pH was 6~9，the adsorption capacity could achieve 32.97 mg/g，and the removal efficiency of Cu（Ⅱ） was 65.93%.The adsorption process conformed to the pseudo⁃second order kinetic model，which was mainly chemisorption.Langmuir model had better fitting effect，indicating that the adsorption process of Cu（Ⅱ） on synthetic 4A zeolite was monolayer absorption，and the maximum adsorption capacity of Cu（Ⅱ） obtained by fitting was 37.05 mg/g.

Key words: aluminum extraction residue by fly ash, shaped 4A zeolite, Cu（Ⅱ）^adsorption, pseudo?second order kinetics equation, Langmuir model

中图分类号:

TQ131.21

赵世永, 肖雨辰, 马清清, 杨珍妮, 王纪镇, 樊晓萍. 粉煤灰提铝残渣制备4A分子筛及Cu（Ⅱ）吸附研究[J]. 无机盐工业, 2024, 56(10): 127-134.

ZHAO Shiyong, XIAO Yuchen, MA Qingqing, YANG Zhenni, WANG Jizhen, FAN Xiaoping. Study on adsorption of Cu（Ⅱ） on 4A zeolite synthesized by aluminum extraction residue by fly ash[J]. Inorganic Chemicals Industry, 2024, 56(10): 127-134.

图/表 14

图1

图2

图3

图4

表1

图5

图6

图7

图8

图9

图10

表2

图11

表3

参考文献 40

1	刘丽，范世锁，梅杨璐.生物炭对废水中铜离子吸附的研究进展：改性方法与吸附机制［J］.化学试剂，2023，45（5）：66-76.
	LIU Li， FAN Shisuo， MEI Yanglu.Copper ion removal from wastewater by biochar：Modification method and adsorption mechani⁃sm［J］.Chemical Reagents，2023，45（5）：66-76.
2	石永杰.二硫化钼纳米微粒去除水中铜、铅离子的研究［D］.合肥：合肥学院，2021.
	SHI Yongjie.Study on removal of copper and lead ions from water by molybdenum disulfide nanoparticles［D］.Hefei：Hefei University，2021.
3	张晨阳，余恒，岳彤，等.电镀含铜废水处理技术研究进展［J］.中南大学学报（自然科学版），2022，53（7）：2426-2438.
	ZHANG Chenyang， YU Heng， YUE Tong，et al.Research progress of copper electroplating wastewater treatment technology［J］.Journal of Central South University（Science and Technology），2022，53（7）：2426-2438.
4	彭瑶，胡政宇，肖鹏，等.紫球藻对沼液废水中氨氮、铜离子及抗生素磺胺二甲嘧啶的处理效果［J］.生态与农村环境学报，2020，36（9）：1185-1191.
	PENG Yao， HU Zhengyu， XIAO Peng，et al.Effect of ammonia nitrogen，copper and antibiotics sulfadimidine in swine wastewater on the growth of porphyridium cruentum［J］.Journal of Ecology and Rural Environment，2020，36（9）：1185-1191.
5	樊小磊，詹作泰，高柏，等.重金属废水处理技术研究进展［J］.中国有色冶金，2023，52（4）：112-127.
	FAN Xiaolei， ZHAN Zuotai， GAO Bai，et al.Treatment technology and principle of heavy metal wastewater［J］.China Nonferrous Metallurgy，2023，52（4）：112-127.
6	ZHAO Meihua， XU Ying， ZHANG Chaosheng，et al.New trends in removing heavy metals from wastewater［J］.Applied Microbiology and Biotechnology，2016，100（15）：6509-6518.
7	RAVINDIRAN G， RAJAMANICKAM S， RAMALINGAM M，et al.Conversion of seaweed waste to biochar for the removal of heavy metal ions from aqueous solution：A sustainable method to address eutrophication problem in water bodies［J］.Environmental Research，2024，241：117551.
8	SHAFIQ M， ALAZBA A A， AMIN M T.Adsorption of divalent copper ions from synthetic wastewater using layered double hydroxides（NiZnFe） and its composites with banana biochar and carbon nanotubes［J］.Water，Air，& Soil Pollution，2020，231（7）：346.
9	LIU Yan， CHEN Qin， SINGH R P.Low⁃cost RSAC and adsorption characteristics in the removal of copper ions from wastewater［J］.Applied Sciences，2022，12（11）：5612.
10	KRSTIC V， UROŠEVIC T， PEŠOVSKI B.A review on adsorbents for treatment of water and wastewaters containing copper ions［J］.Chemical Engineering Science，2018，192：273-287.
11	邹萍.粉煤灰水热合成法制备4A型分子筛研究进展［J］.矿产综合利用，2020（3）：33-39.
	ZOU Ping.Research development of 4A zeolite preparation from coal fly ash by hydrothermal synthesis method［J］.Multipurpose Utilization of Mineral Resources，2020（3）：33-39.
12	董宏，潘爱芳，何廷树，等.准格尔矿区粉煤灰提铝残渣的理化性质研究［J］.西安建筑科技大学学报（自然科学版），2010，42（1）：132-136.
	DONG Hong， PAN Aifang， HE Tingshu，et al.Study on physico⁃chemical properties of the fly ash residue after the extraction of alumina in the Zhungeer Coalfield［J］.Journal of Xi′an University of Architecture & Technology（Natural Science Edition），2010，42（1）：132-136.
13	崔家新，王连勇，李尧，等.水淬渣-粉煤灰基4A沸石的制备及性能表征［J］.无机盐工业，2022，54（4）：135-140.
	CUI Jiaxin， WANG Lianyong， LI Yao，et al.Preparation and properties characterization of water quenching slag⁃fly ash based 4A zeolite［J］.Inorganic Chemicals Industry，2022，54（4）：135-140.
14	PAPA E， MINELLI M， MARCHIONI M C，et al.Metakaolin⁃based geopolymer⁃zeolite NaA composites as CO₂ adsorbents［J］.Applied Clay Science，2023，237：106900.
15	李巧云，贺艳.粉煤灰基地质聚合物微球吸附水中铜（Ⅱ）的研究［J］.无机盐工业，2022，54（12）：113-118.
	LI Qiaoyun， HE Yan.Study on adsorption of Cu²⁺in water by fly ash⁃based geopolymer microspheres［J］.Inorganic Chemicals Industry，2022，54（12）：113-118.
16	仇秀梅.粉煤灰基地质聚合物固封重金属及原位转化分子筛的研究［D］.武汉：中国地质大学，2015.
	QIU Xiumei.Study on heavy metal immobilization and in⁃situ conversion of molecular sieve by fly ash⁃based geopolymer［D］.Wuhan：China University of Geosciences，2015.
17	刘耀东，叶翠平，韩丽媛，等.赤泥合成4A分子筛及吸附去除水中Cu²⁺和Mn²⁺的机理［J］.化工环保，2023，43（6）：813-820.
	LIU Yaodong， YE Cuiping， HAN Liyuan，et al.Synthesis of 4A zeolite from red mud and mechanism of adsorption removal of Cu²⁺and Mn²⁺from water［J］.Environmental Protection of Chemical Industry，2023，43（6）：813-820.
18	ZAVAREH S， FARROKHZAD Z， DARVISHI F.Modification of zeolite 4A for use as an adsorbent for glyphosate and as an antibacterial agent for water［J］.Ecotoxicology and Environmental Safety，2018，155：1-8.
19	范先媛，谢升昌，刘红，等.4A分子筛去除水中Pb²⁺、Cd²⁺、Zn²⁺、Cu²⁺性能和机理［J］.环境科学与技术，2019，42（5）：46-52.
	FAN Xianyuan， XIE Shengchang， LIU Hong，et al.Performances and mechanism for Pb²⁺，Cd²⁺，Zn²⁺ and Cu²⁺ removal from aqueous solution by 4A-molecular sieve［J］.Environmental Science & Technology，2019，42（5）：46-52.
20	IQBAL A， SATTAR H， HAIDER R，et al.Synthesis and characterization of pure phase zeolite 4A from coal fly ash［J］.Journal of Cleaner Production，2019，219：258-267.
21	WANG Peng， SUN Qi， ZHANG Yujiao，et al.Hydrothermal synthesis of zeolite NaA from Kaolin［J］.Functional Materials Letters，2019，12（5）：1950075.
22	贾敏，池君洲，王永旺，等.粉煤灰酸法提取氧化铝的残渣制备4A分子筛［J］.矿产保护与利用，2017（1）：77-83.
	JIA Min， CHI Junzhou， WANG Yongwang，et al.Prepartion 4A-zeolite with acid insoluble ash residue of alumina extraction from fly ash［J］.Conservation and Utilization of Mineral Resources，2017（1）：77-83.
23	杨林，李贺军，曹建新.酸溶粉煤灰残渣制备4A分子筛［J］.武汉理工大学学报，2012，34（9）：31-35.
	YANG Lin， LI Hejun， CAO Jianxin.Preparation of 4A molecular sieve from acid insoluble ash residue［J］.Journal of Wuhan University of Technology，2012，34（9）：31-35.
24	白彪坤，孟岳，陈叔平.4A分子筛的吸附性能与孔结构研究［J］.硅酸盐通报，2020，39（10）：3367-3372.
	BAI Biaokun， MENG Yue， CHEN Shuping.Adsorption performance and pore structure of 4A molecular sieve［J］.Bulletin of the Chinese Ceramic Society，2020，39（10）：3367-3372.
25	韩杨.粉煤灰副产物合成4A分子筛及对氨氮废水的吸附研究［D］.长春：吉林建筑大学，2018.
	HAN Yang.Synthesis of 4A molecular sieve from fly ash byproduct and its adsorption on ammonia nitrogen wastewater［D］.Changchun：Jilin Jianzhu University，2018.
26	陈雷，韩杨，席北斗，等.粉煤灰提铝中间产物合成4A分子筛对氨氮的吸附行为研究［J］.环境科学学报，2018，38（3）：993-1000.
	CHEN Lei， HAN Yang， XI Beidou，et al.Adsorption of ammonium with 4A zeolite synthesized by using byproducts duringalumina extraction from fly ash［J］.Acta Scientiae Circumstantiae，2018，38（3）：993-1000.
27	FENG Jing， GAO Mingming， ZHANG Zhiqiang，et al.Fabrication of mesoporous magnesium oxide nanosheets using magnesium powder and their excellent adsorption of Ni（Ⅱ）［J］.Journal of Colloid and Interface Science，2018，510：69-76.
28	LIU Dengchao， DENG Shubo， VAKILI M，et al.Fast and high adsorption of Ni（Ⅱ） on vermiculite⁃based nanoscale hydrated zirconium oxides［J］.Chemical Engineering Journal，2019，360：1150-1157.
29	HE Xinping， YAO Bing， XIA Yang，et al.Coal fly ash derived zeolite for highly efficient removal of Ni²⁺ inwaste water［J］.Powder Technology，2020，367：40-46.
30	ATES A， AKGÜL G.Modification of natural zeolite with NaOH for removal of manganese in drinking water［J］.Powder Technology，2016，287：285-291.
31	ALJERF L.High⁃efficiency extraction of bromocresol purple dye and heavy metals as chromium from industrial effluent by adsorption onto a modified surface of zeolite：Kinetics and equilibrium study［J］.Journal of Environmental Management，2018，225：120-132.
32	胡敏.脱水污泥—核桃壳吸附剂制备及其对Cu²⁺的吸附特性［D］.西安：西安建筑科技大学，2019.
	HU Min.Preparation of dewatered sludge-walnut shell adsorbent and its adsorption characteristics for Cu²⁺ ［D］.Xi′an：Xi′an University of Architecture and Technology，2019.
33	IBRAHIM A H， Xianjun LYU， ELDEEB A B.Synthesized zeolite based on Egyptian boiler ash residue and Kaolin for the effective removal of heavy metal ions from industrial wastewater［J］.Nanomaterials，2023，13（6）：1091.
34	WANG Yifan， LUO Min， XU Fang，et al.Conversion of volcanic tephra to zeolites for calcium ion cross⁃linked alginate⁃zeolite composites for enhanced aqueous removal of Cu（Ⅱ） ions［J］.Water，Air，& Soil Pollution，2015，226（9）：286.
35	BAO Weiwei， LIU Lu， ZOU Haifeng，et al.Removal of Cu²⁺ from aqueous solutions using Na-A zeolite from oil shale ash［J］.Chinese Journal of Chemical Engineering，2013，21（9）：974-982.
36	SHEHZAD H， FAROOQI Z H， AHMED E，et al.Effective biosorption of Cu（Ⅱ） using hybrid biocomposite based on N-male⁃ated chitosan/calcium alginate/titania：Equilibrium sorption，kinetic and thermodynamic studies［J］.International Journal of Biological Macromolecules，2022，216：676-685.
37	KHEZAMI L， MODWI A， TAHA K K，et al.Mesoporous Zr-G-C₃N₄ sorbent as an exceptional Cu（Ⅱ） ion adsorbent in aquatic solution：Equilibrium，kinetics，and mechanisms study［J］.Water，2023，15（6）：1202.
38	FU Fenglian， WANG Qi.Removal of heavy metal ions from wastewaters：A review［J］.Journal of Environmental Management，2011， 92（3）：407-418.
39	LANGMUIR I.The adsorption of gases on plane surfaces of glass，mica and platinum［J］.Journal of the American Chemical Society，1918，40（9）：1361-1403.
40	NAZERDEYLAMI S， ZARE-DORABEI R.Simultaneous adsorption of Hg²⁺，Cd²⁺ and Cu²⁺ ions from aqueous solution with mesoporous silica/DZ and conditions optimise with experimental design：Kinetic and isothermal studies［J］.Micro & Nano Letters，2019，14（8）：823-827.

[1]	刘新龙, 杨振宇, 郝赫, 刘姝昕, 武晨阳, 王兴利, 马清清. 粉煤灰提铝残渣制备体型化4A分子筛的研究[J]. 无机盐工业, 2025, 57(3): 78-85.
[2]	杜艳霞,郭昭华,王永旺,陈东. 粉煤灰提铝残渣低温碱溶过程工艺研究[J]. 无机盐工业, 2019, 51(8): 69-72.
