铁锗合金负极的限域封装及锂离子存储性能

doi:10.19964/j.issn.1006-4990.2021-0591

摘要/Abstract

摘要：

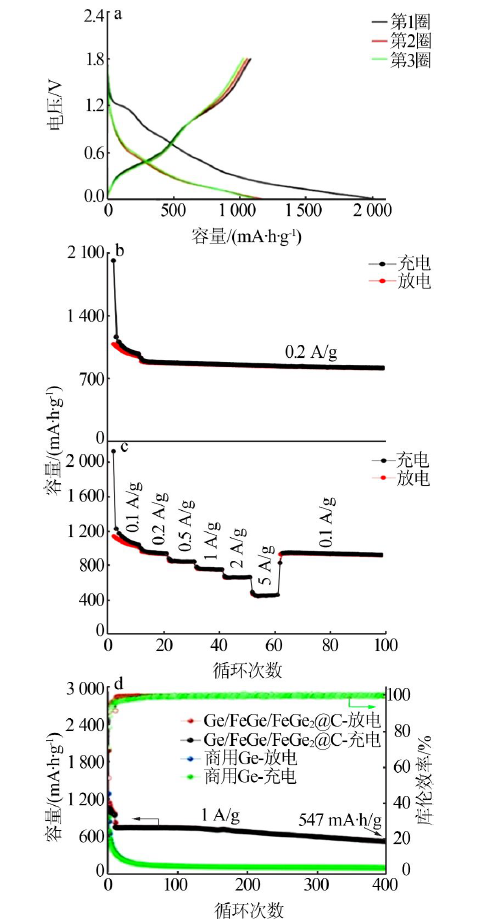

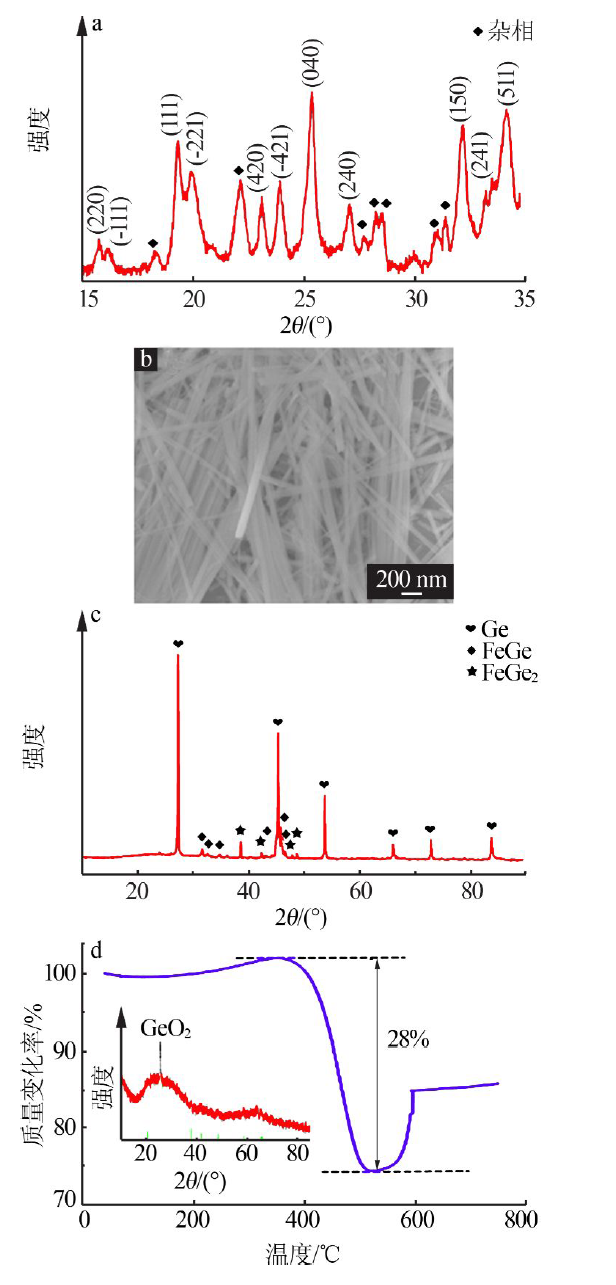

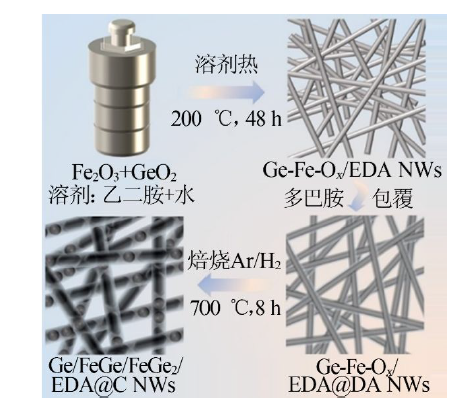

锂离子电池商用负极石墨由于低的理论比容量（372 mA·h/g）无法满足日益增长的高能量密度需求。锗负极材料凭借更高的理论比容量（约为1 600 mA·h/g）被认为是一种很有前途的材料。但锗基负极材料在充放电过程中存在巨大的体积变化,使得其电化学性能差。因此,设计并制备了一种独特的锗基复合材料,该材料的合成首先采用溶剂热法制备有机-无机杂化Ge-Fe-O_x/EDA纳米线,接着进行多巴胺包覆,随后通过高温焙烧在内部原位生成FeGe/FeGe₂合金相和表面形成碳包覆,从而制得了限域封装的Ge/FeGe/FeGe₂@C纳米线铁锗合金负极。这种独特的结构有效提升锗负极材料的导电性和抑制体积变化,因此复合材料展现出优异的倍率性能（当电流密度为5 A/g时,放电比容量为450 mA·h/g）和良好的长循环稳定性（在电流密度为1 A/g条件下循环400圈后,放电比容量为547 mA·h/g）。

关键词: 锂离子电池, 锗基负极, 纳米线, 包覆, 限域封装

Abstract:

Commercial graphite anodes for lithium-ion batteries can’t meet the increasing demand for high energy density due to their low theoretical specific capacity（372 mA·h/g ）.The Ge anode material is considered a promising material due to its higher theoretical specific capacity （about 1 600 mA·h/g）.Unfortunately,the Ge anode material has a huge volume change during the charge and discharge process,exhibiting poor electrochemical performance.Therefore,a unique Ge-based composite anode was rationally designed and prepared.First,the organic-inorganic hybrid Ge-Fe-O_x/EDA nanowires were prepared by solvothermal method and then coated with dopamine.Subsequently,FeGe/FeGe₂ alloy phase was formed in situ and carbon coating was formed on the surface by high-temperature roasting,so as to prepare the encapsulated Ge/FeGe/FeGe₂@C nanowire irongermanium alloy anode.The unique structure effectively improved the conductivity of the Ge-based anode material and suppressed the volume change,so it exhibited excellent rate performance（the discharge capacity was 450 mA·h/g at the current density of 5 A/g） and excellent long cycle stability（achieving a high discharge capacity of 547 mA·h/g at 1 A/g after 400 cycles）.

Key words: lithium-ion batteries, Ge-based anode, nanowires, coating, nanoconfined encapsulation

中图分类号:

TQ131.11

李方坤,王心怡,许希军,巫艺文,杨焱,刘军. 铁锗合金负极的限域封装及锂离子存储性能[J]. 无机盐工业, 2022, 54(4): 88-93.

LI Fangkun,WANG Xinyi,XU Xijun,WU Yiwen,YANG Yan,LIU Jun. Nanoconfined encapsulation of iron-germanium alloy anode and its lithium ion storage performance[J]. Inorganic Chemicals Industry, 2022, 54(4): 88-93.

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 22

[1]	SHEN J, XU X, LIU J, et al. Unraveling the catalytic activity of Febased compounds toward Li₂S_x in Li-S chemical system from d-p bands[J]. Advanced Energy Materials, 2021, 11(26).Doi: 10.1002/aenm.202100673. doi: 10.1002/aenm.202100673
[2]	LI F, LIU Z, SHEN J, et al. A nanorod-like Ni-rich layered cathode with enhanced Li⁺ diffusion pathways for high-performance lithium-ion batteries[J]. Journal of Materials Chemistry A, 2021, 9(5):2830-2839. doi: 10.1039/D0TA10608A
[3]	ZHANG N, SUN C, HUANG Y, et al. Tuning electrolyte enables microsized Sn as an advanced anode for Li-ion batteries[J]. Journal of Materials Chemistry A, 2021, 9(3):1812-1821. doi: 10.1039/D0TA10861H
[4]	XU X, SHEN J, LI F, et al. Fe₃O₄@C nanotubes grown on carbon fabric as a free-standing anode for high-performance Li-ion batteries[J]. Chemistry-A European Journal, 2020, 26(64):14708-14714. doi: 10.1002/chem.202002938
[5]	JUNG S C, KIM H-J, KANG Y-J, et al. Advantages of Ge anode for Na-ion batteries:Ge vs.Si and Sn[J]. Journal of Alloys and Compounds, 2016, 688:158-163. doi: 10.1016/j.jallcom.2016.07.201
[6]	HE Y, JIANG L, CHEN T, et al. Progressive growth of the solid-electrolyte interphase towards the Si anode interior causes capacity fading[J]. Nature Nanotechnology, 2021.Doi: 10.1038/s41565-02100947-8. doi: 10.1038/s41565-02100947-8
[7]	SENG K H, PARK M H, GUO Z P, et al. Self-assembled germanium/ carbon nanostructures as high-power anode material for the lithiumion battery[J]. Angewandte Chemie International Edition, 2012, 51(23):5657-5661. doi: 10.1002/anie.201201488
[8]	RAHMAN M M, SULTANA I, YANG T, et al. Lithium germinate (Li₂GeO₃):A high-performance anode material for lithium-ion batteries[J]. Angewandte Chemie International Edition, 2016, 55(52):16059-16063. doi: 10.1002/anie.201609343
[9]	SHIN J H, PARK D H, LEE W J, et al. Coffee waste-derived one-step synjournal of a composite structure with Ge nanoparticles surrounded by amorphous carbon for Li-ion batteries[J]. Journal of Alloys and Compounds, 2022, 889.Doi: 10.1016/j.jallcom.2021.161685. doi: 10.1016/j.jallcom.2021.161685
[10]	CHAN C K, ZHANG X F, CUI Y. High capacity Li ion battery anodes using Ge nanowires[J]. Nano Letters, 2008, 8(1):307-309. doi: 10.1021/nl0727157
[11]	CHOCKLA A M, KLAVETTER K C, MULLINS C B, et al. Solutiongrown germanium nanowire anodes for lithium-ion batteries[J]. ACS Applied Materials & Interfaces, 2012, 4(9):4658-4664.
[12]	GAVRILIN I M, KUDRYASHOVA Y O, KUZ′MINA A A, et al. High-rate and low-temperature performance of germanium nanowires anode for lithium-ion batteries[J]. Journal of Electroanalytical Chemistry, 2021, 888.Doi: 10.1016/j.jelechem.2021.115209. doi: 10.1016/j.jelechem.2021.115209
[13]	LIU J, SONG K, ZHU C, et al. Ge/C nanowires as high-capacity and long-life anode materials for Li-ion batteries[J]. ACS Nano, 2014, 8(7):7051-7059. doi: 10.1021/nn501945f
[14]	WANG B, JIN J, WEN Z. In situ synjournal of core-shell structured Ge@NC hybrids as high performance anode material for lithiumion batteries[J]. Chemical Engineering Journal, 2019, 360:1301-1309. doi: 10.1016/j.cej.2018.09.113
[15]	CHEN Y, MA L, SHEN X, et al. In-situ synjournal of Ge/reduced graphene oxide composites as ultrahigh rate anode for lithium-ion battery[J]. Journal of Alloys and Compounds, 2019, 801:90-98. doi: 10.1016/j.jallcom.2019.06.074
[16]	WANG X, XU X, LIU J, et al. Facile synjournal of peapod-like Cu₃Ge/Ge@C as a high-capacity and long-life anode for Li-ion batteries[J]. Chemistry-A European Journal, 2019, 25(49):11486-11493. doi: 10.1002/chem.201901629
[17]	MAO E, FU L, LIU W, et al. Encapsulating hetero-Cu₃Ge/Ge into nitrogen-doped carbon matrix for advanced lithium storage[J]. Journal of Alloys and Compounds, 2021, 850.Doi: 10.1016/j.jallcom.2020.156815. doi: 10.1016/j.jallcom.2020.156815
[18]	ZHONG X, HUAN H, LIU X, et al. Facile synjournal of porous germanium-iron bimetal oxide nanowires as anode materials for lithium-ion batteries[J]. Nano Research, 2018, 11(7):3702-3709. doi: 10.1007/s12274-017-1938-z
[19]	GAO Q, CHEN P, ZHANG Y, et al. Synjournal and characterization of organic-inorganic hybrid GeO_x/ethylenediamine nanowires[J]. Advanced Materials, 2008, 20(10):1837-1842. doi: 10.1002/adma.200701646
[20]	YU L, ZOU R, ZHANG Z, et al. A Zn₂GeO₄-ethylenediamine hybrid nanoribbon membrane as a recyclable adsorbent for the highly efficient removal of heavy metals from contaminated water[J]. Chemical Communications, 2011, 47(38):10719-10721. doi: 10.1039/c1cc14159g
[21]	WEI D, ZENG S, LI H, et al. Multiphase Ge-based Ge/FeGe/FeGe₂/C composite anode for high performance lithium ion batteries[J]. Electrochimica Acta, 2017, 253:522-529. doi: 10.1016/j.electacta.2017.09.105
[22]	ZHANG C, LIN Z, YANG Z, et al. Hierarchically designed germanium microcubes with high initial coulombic efficiency toward highly reversible lithium storage[J]. Chemistry of Materials, 2015, 27(6):2189-2194. doi: 10.1021/acs.chemmater.5b00218
