动力型磷酸铁锂正极材料改性的研究进展

doi:10.19964/j.issn.1006-4990.2022-0604

摘要/Abstract

摘要：

针对改性磷酸铁锂（LiFePO₄）材料作为锂离子电池正极材料的近期研究进行了综述。LiFePO₄虽然以其稳定性好、安全性好、环境友好而被认为是最具有发展前景的动力锂离子电池正极材料，但固有的电子电导率和锂离子扩散系数低下导致其电化学性能较差。针对提高其电化学性能的改性研究进行综述，分析了元素掺杂、表面碳包覆、颗粒纳米化和材料复合化4种改性策略对LiFePO₄电化学性能的影响，讨论了这4种改性策略的优缺点。分析表明，4种改性策略有效改善了锂离子扩散动力学和电子电导率，但是表面碳包覆和颗粒纳米化会降低材料的振实密度，导致能量密度低。最后，指出解决现存问题的研究方向，即开发电池性与电容性共存的改性策略将是一个可行方法。

关键词: 磷酸铁锂, 元素掺杂, 表面碳包覆, 颗粒纳米化, 材料复合化

Abstract:

The recent research on modified lithium iron phosphate（LiFePO₄） materials as lithium-ion electronic cathode materials was reviewed.Although LiFePO₄ were considered to be the most promising cathode materials for lithium-ion power batteries due to their good stability，high safety and environmental friendliness，their inherent low electronic conductivity and lithium-ion diffusion coefficient deteriorated their electrochemical performance.The study on modification to improve their electrochemical performance was reviewed in this paper.The effects of four modification strategies including elemental doping，surface carbon coating，particle nanosizing and materials compositing on the electrochemical performance of LiFePO₄were analyzed.Then，the advantages and disadvantages of these four modification strategies were discussed.The analysis showed that the four modification strategies could effectively improve the Li-ion diffusion kinetics and electronic conductivity，but the surface carbon coating and particle nanosizing would conversely reduce the tap density of the materials，resulting in low energy density.Finally，the research direction to solve the existing problems was proposed that it would be a feasible method to develop a modification strategy with coexistence of battery and capacitive properties.

Key words: lithium iron phosphate, elemental doping, surface carbon coating, particle nanosizing, materials compositing

中图分类号:

TQ138.1

潘晓晓, 庄树新, 孙雨晴, 孙高星, 任艳, 蒋声育. 动力型磷酸铁锂正极材料改性的研究进展[J]. 无机盐工业, 2023, 55(6): 18-26.

PAN Xiaoxiao, ZHUANG Shuxin, SUN Yuqing, SUN Gaoxing, REN Yan, JIANG Shengyu. Research progress of modified-LiFePO₄ as cathode materials for lithium ion batteries[J]. Inorganic Chemicals Industry, 2023, 55(6): 18-26.

图/表 7

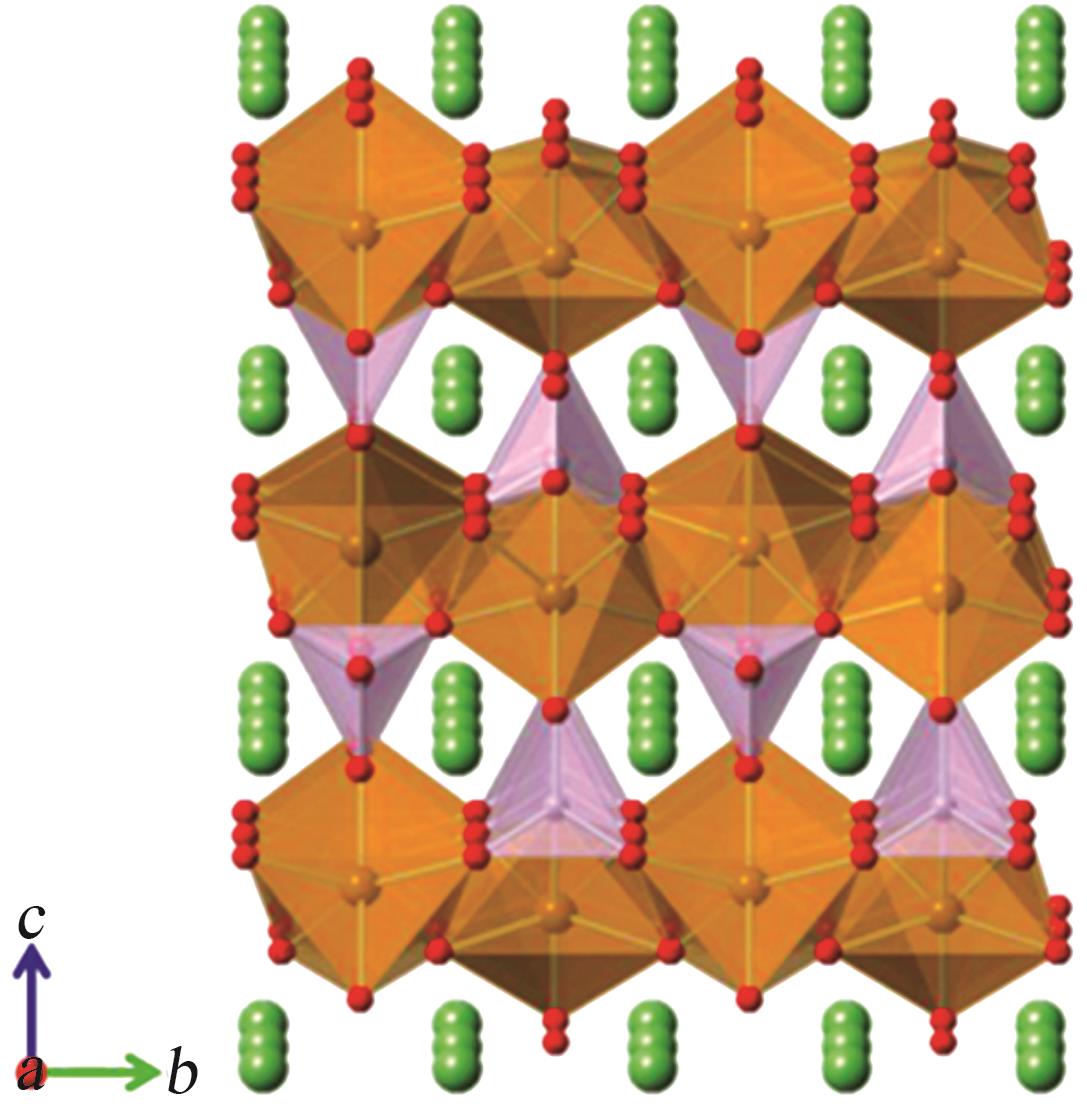

图1

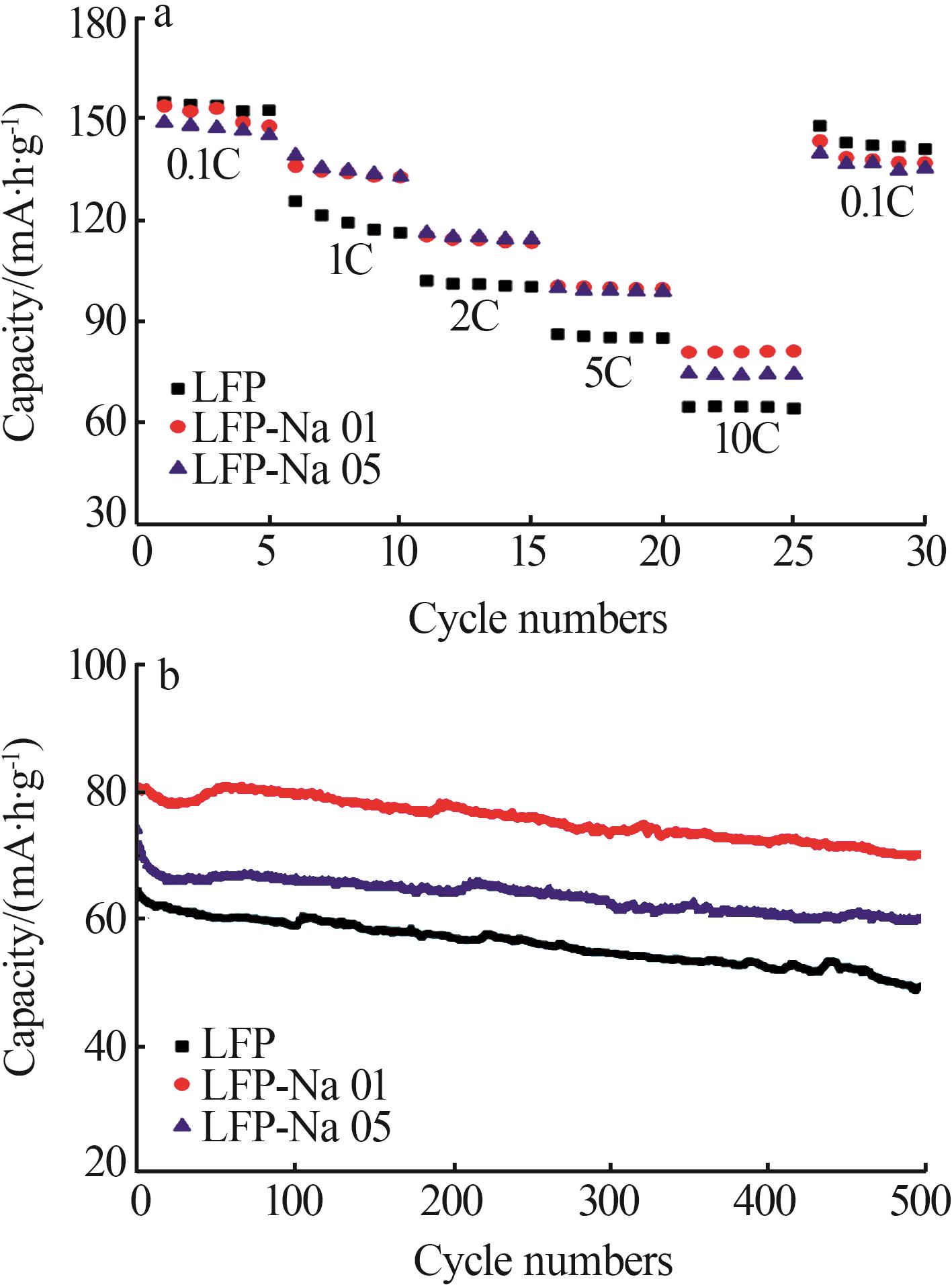

图2

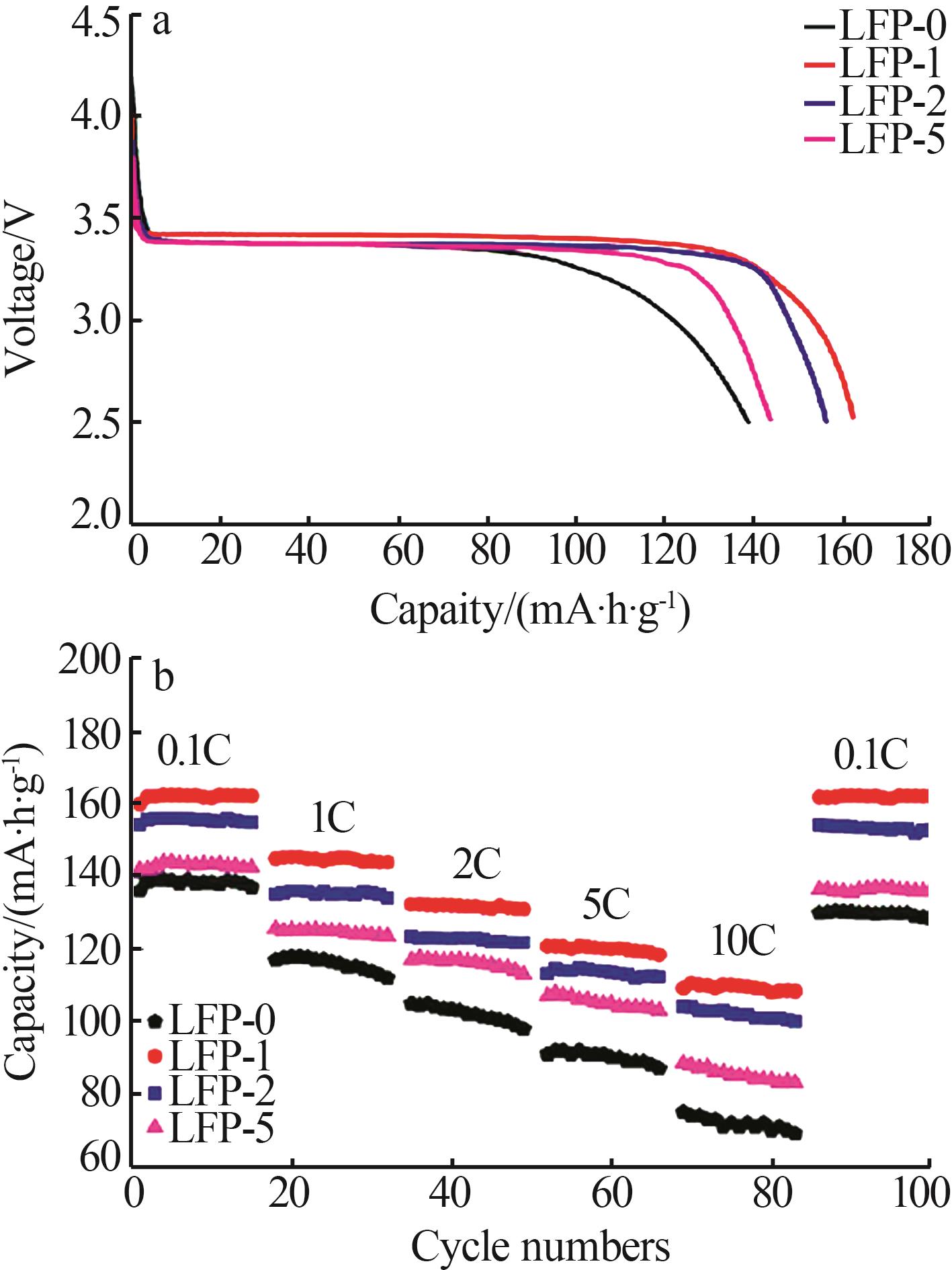

图3

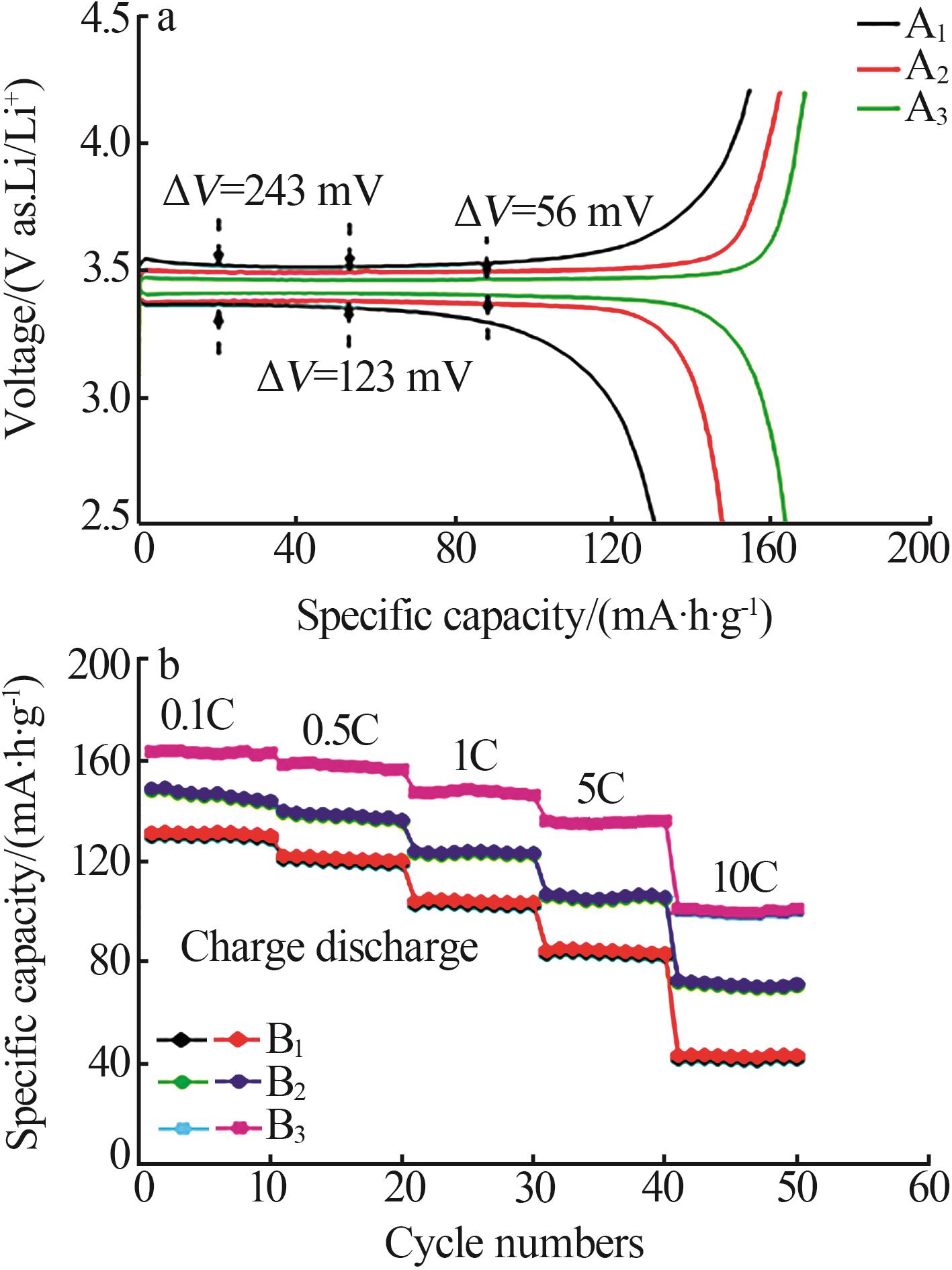

图4

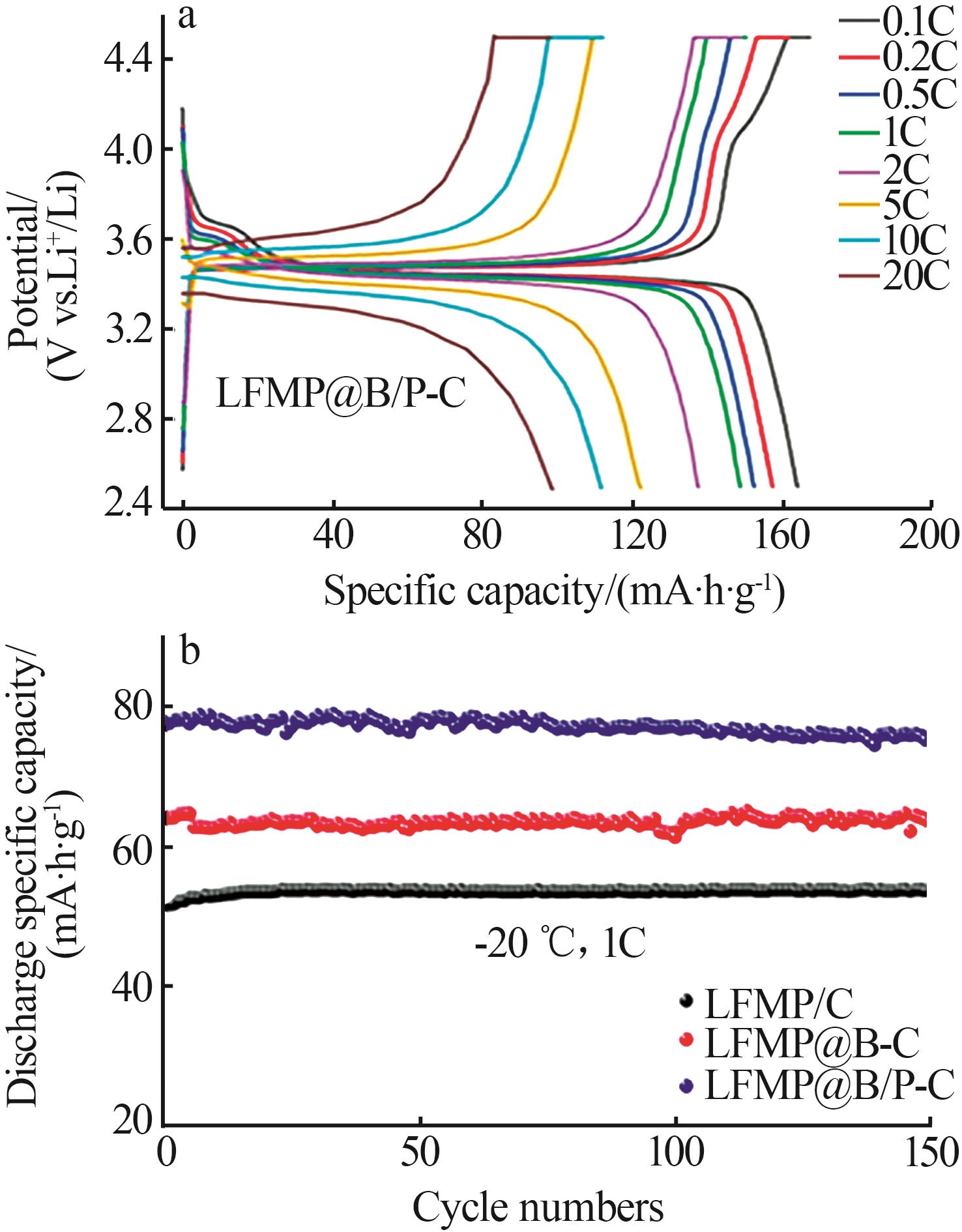

图5

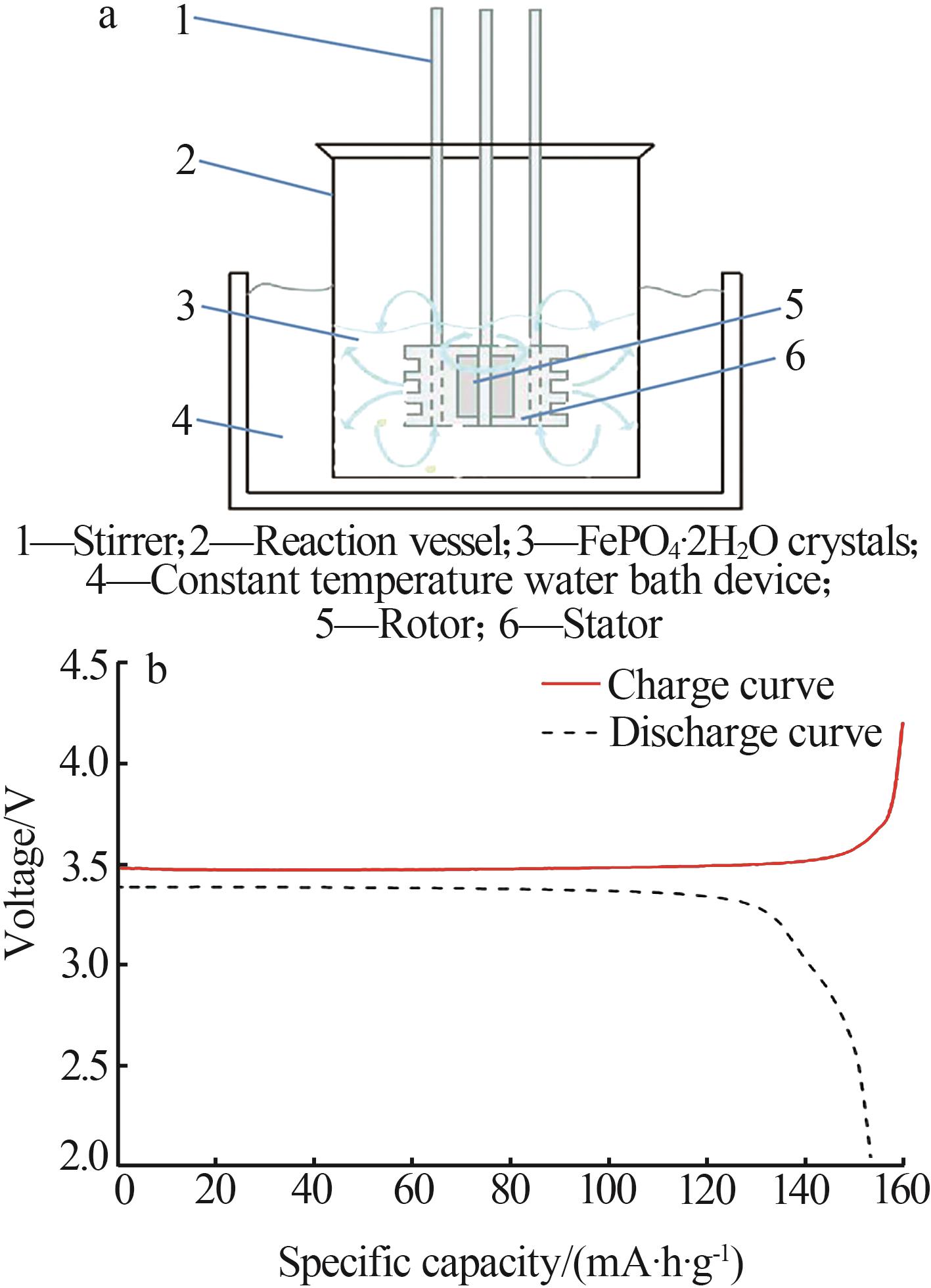

图6

表1

参考文献 65

1	PADHI A K， NANJUNDASWAMY K S， GOODENOUGH J B.Phospho-olivines as positive-electrode materials for rechargeable lithium batteries［J］.Journal of the Electrochemical Society，1997，144（4）：1188-1194.
2	王甲泰，赵段，马莲花，等.锂离子电池正极材料磷酸铁锂的研究进展［J］.无机盐工业，2020，52（4）：18-22.
	WANG Jiatai， ZHAO Duan， MA Lianhua，et al.Research progress of LiFePO₄ cathode materials for Li-ion battery［J］.Inorganic Chemicals Industry，2020，52（4）：18-22.
3	张婷，林森，于建国.磷酸铁锂正极材料的制备及性能强化研究进展［J］.无机盐工业，2021，53（6）：31-40.
	ZHANG Ting， LIN Sen， YU Jianguo.Research progress in synthesis and performance enhancement of LiFePO₄ cathode materials［J］.Inorganic Chemicals Industry，2021，53（6）：31-40.
4	LI Haoyu， YE Hua， SUN Mingcang，et al.Process for recycle of spent lithium iron phosphate battery via a selective leaching-precipitation method［J］.Journal of Central South University，2020，27（11）：3239-3248.
5	YAN Zhixiong， HUANG Dequan， FAN Xiaoping，et al.Fluorine-doped carbon coated LiFePO_3.938F_0.062 composites as cathode materials for high-performance lithium-ion batteries［J］.Frontiers in Materials，2020，6：341.
6	RISSOULI K， BENKHOUJA K， RAMOS-BARRADO J R，et al.Electrical conductivity in lithium orthophosphates［J］.Materials Science and Engineering：B，2003，98（3）：185-189.
7	PROSINI P P， LISI M， ZANE D，et al.Determination of the chemical diffusion coefficient of lithium in LiFePO₄ ［J］.Solid State Ionics，2002，148（1/2）：45-51.
8	ZHANG Baofeng， XU Youlong， WANG Jie，et al.Electrochemical performance of LiFePO₄/graphene composites at low temperature affected by preparation technology［J］.Electrochimica Acta，2021，368：137575.
9	LIU Bingqiu， ZHANG Qi， LI Yiqian，et al.Realizing complete solid-solution reaction to achieve temperature independent LiFePO₄ for high rate and low temperature Li-ion batteries［J］.CCS Chemistry，2022：1-22.
10	ZHANG Yin， ALARCO J A， NERKAR J Y，et al.Observation of preferential cation doping on the surface of LiFePO₄ particles and its effect on properties［J］.ACS Applied Energy Materials，2020，3（9）：9158-9167.
11	WANG Hongqiang， LAI Anjie， HUANG Dequan，et al.Y-F co-doping behavior of LiFePO₄/C nanocomposites for high-rate lithi-um-ion batteries［J］.New Journal of Chemistry，2021，45（12）：5695-5703.
12	LI Lingjun， LI Xinhai， WANG Zhixing，et al.Stable cycle-life properties of Ti-doped LiFePO₄ compounds synthesized by co-precipitation and normal temperature reduction method［J］.Journal of Physics and Chemistry of Solids，2009，70（1）：238-242.
13	HSIEH C T， CHEN I L， CHEN Weiyu，et al.Synthesis of iron phosphate powders by chemical precipitation route for high-power lithium iron phosphate cathodes［J］.Electrochimica Acta，2012，83：202-208.
14	LIU Yukang， ZHANG Hao， HUANG Zheng，et al.Understanding the influence of nanocarbon conducting modes on the rate performance of LiFePO₄ cathodes in lithium-ion batteries［J］.Journal of Alloys and Compounds，2022，905：164205.
15	XI Yuming， LU Yangcheng.Toward uniform in situ carbon coating on nano-LiFePO₄ via a solid-state reaction［J］.Industrial & Engineering Chemistry Research，2020，59（30）：13549-13555.
16	CHEN C， LIU G B， WANG Y，et al.Preparation and electrochemical properties of LiFePO₄/C nanocomposite using FePO₄·2H₂O nanoparticles by introduction of Fe₃（PO₄）₂·8H₂O at low cost［J］.Electrochimica Acta，2013，113：464-469.
17	HUANG Xiaopeng， YAO Yaochun， LIANG Feng，et al.Concentration-controlled morphology of LiFePO₄ crystals with an exposed（100） facet and their enhanced performance for use in lithium-ion batteries［J］.Journal of Alloys and Compounds，2018，743：763-772.
18	ZHANG Jiafeng， SHEN Chao， ZHANG Bao，et al.Synthesis and performances of 2LiFePO₄·Li₃V₂（PO₄）₃/C cathode materials via spray drying method with double carbon sources［J］.Journal of Power Sources，2014，267：227-234.
19	MEDVEDEVA A E， PECHEN L S， MAKHONINA E V，et al.Synthesis and electrochemical properties of lithium-ion battery cathode materials based on LiFePO₄-LiMn₂O₄ and LiFePO₄-LiNi_0.82Co_0.18O₂ composites［J］.Russian Journal of Inorganic Che- mistry，2019，64（7）：829-840.
20	LIN Hao， WEN Yanwei， ZHANG Chenxi，et al.A GGA+U study of lithium diffusion in vanadium doped LiFePO₄ ［J］.Solid State Communications，2012，152（12）：999-1003.
21	KULKA A， BRAUN A， HUANG T W，et al.Evidence for Al doping in lithium sublattice of LiFePO₄ ［J］.Solid State Ionics，2015，270：33-38.
22	HUANG Wenquan， CHENG Qing， QIN Xue.Effect of Li excess content and Ti dopants on electrochemical properties of LiFePO₄ prepared by thermal reduction method［J］.Russian Journal of Electrochemistry，2010，46（3）：359-362.
23	SHU Hongbo， WANG Xianyou， WEN Weicheng，et al.Effective enhancement of electrochemical properties for LiFePO₄/C cathode materials by Na and Ti co-doping［J］.Electrochimica Acta，2013，89：479-487.
24	LI Xuetian， SHAO Zhongbao， LIU Kuiren，et al.Enhancement of Nb-doping on the properties of LiFePO₄/C prepared via a high-temperature ball milling-based method［J］.Journal of Solid State Electrochemistry，2019，23（2）：465-473.
25	LIU Yan， QIN Wenchao， ZHANG Dengke，et al.Effect of Na⁺ in situ doping on LiFePO₄/C cathode material for lithium-ion batteries［J］.Progress in Natural Science：Materials International，2021， 31（1）：14-18.
26	HU C W， LEE C H， WU P J.Study on the dynamics of a vanadium doped LiFePO₄ lithium-ion battery using quasi-elastic neutron scattering technique［J］.Journal of the Chinese Chemical Society，2021，68（3）：507-511.
27	NIE X， XIONG J.Electrochemical properties of Mn-doped nanosphere LiFePO₄ ［J］.JOM，2021，73（8）：2525-2530.
28	LIU Y， GU Y J， LUO G，et al.Ni-doped LiFePO₄/C as high-performance cathode composites for Li-ion batteries［J］.Ceramics International，2020，46（10）：14857-14863.
29	LATIF C， FIRDAUSI A， NIHLATUNNUR N，et al.Synchrotron crystal and local structures，microstructure，and electrical characterization of Cu-doped LiFePO₄/C via dissolution method with ironstone as Fe source［J］.Journal of Materials Science：Materials in Electronics，2022，33（22）：17722-17732.
30	SŁAWIŃSKI W A， PLAYFORD H Y， HULL S，et al.Neutron pair distribution function study of FePO₄ and LiFePO₄ ［J］.Chemistry of Materials，2019，31（14）：5024-5034.
31	FREDJ E BEN， ROUSSELOT S， DANIS L，et al.Synthesis and characterization of LiFe_1- _x Mn _x PO₄（x=0.25，0.50，0.75） lithium ion battery cathode synthesized via a melting process［J］.Journal of Energy Storage，2020，27：101116.
32	GONG Shangmin， BAI Xue， LIU Rui，et al.Study on discharge voltage and discharge capacity of LiFe_1- _x Mn _x PO₄ with high Mn content［J］.Journal of Materials Science：Materials in Electronics，2020，31（10）：7742-7752.
33	GAO Yuan， XIONG Kun， ZHANG Haidong，et al.Effect of Ru doping on the properties of LiFePO₄/C cathode materials for lithi-um-ion batteries［J］.ACS Omega，2021，6（22）：14122-14129.
34	OKADA K， KIMURA I， MACHIDA K.High rate capability by sulfur-doping into LiFePO₄ matrix［J］.RSC Advances，2018，8（11）：5848-5853.
35	KUGANATHAN N， CHRONEOS A. Formation，doping，and lithium incorporation in LiFePO₄［J］.AIP Advances，2022，12（4）：045225.
36	LI Xuetian， YU Lina， CUI Yonghui，et al.Enhanced properties of LiFePO₄/C cathode materials co-doped with V and F ions via high-temperature ball milling route［J］.International Journal of Hydrogen Energy，2019，44（50）：27204-27213.
37	CAO He， WEN Lei， GUO Zhenqiang，et al.Application and prospects for using carbon materials to modify lithium iron phosphate materials used at low temperatures［J］.New Carbon Materials，2022，37（1）：46-58.
38	MENG Fanbo， XIONG Xingyu， TAN Liang，et al.Strategies for improving electrochemical reaction kinetics of cathode materials for subzero-temperature Li-ion batteries：A review［J］.Energy Storage Materials，2022，44：390-407.
39	MO Yudi， LIU Junchen， MENG Chao，et al.Stable and ultrafast lithium storage for LiFePO₄/C nanocomposites enabled by instantaneously carbonized acetylenic carbon-rich polymer［J］.Carbon，2019，147：19-26.
40	GONG Chunli， XUE Zhigang， WEN Sheng，et al.Advanced carbon materials/olivine LiFePO₄ composites cathode for lithium ion batteries［J］.Journal of Power Sources，2016，318：93-112.
41	JING Maoxiang， ZHAI Hongai， PI Zhichao，et al.High loading LiFePO₄ on activated carbon fiber cloth as a high capacity cathode for Li-ion battery［J］.Russian Journal of Applied Chemistry，2016，89（7）：1183-1188.
42	CAO Zhaoxia， SANG Min， CHEN Shengnan，et al.in situ constructed（010）-oriented LiFePO₄ nanocrystals/carbon nanofiber hybrid network：Facile synthesis of free-standing cathodes for lithi-um-ion batteries［J］.Electrochimica Acta，2020，333：135538.
43	SANCHEZ J S， XU J， XIA Zhenyuan，et al.Electrophoretic coating of LiFePO₄/Graphene oxide on carbon fibers as cathode electrodes for structural lithium ion batteries［J］.Composites Science and Technology，2021，208：108768.
44	LIU Xinyan， PENG Hongjie， ZHANG Qiang，et al.Hierarchical carbon nanotube/carbon black scaffolds as short- and long-range electron pathways with superior Li-ion storage performance［J］.ACS Sustainable Chemistry & Engineering，2014，2（2）：200-206.
45	ZHANG Jianye， HUANG Zhiyong， HE Chengen，et al.Binary carbon-based additives in LiFePO₄ cathode with favorable lithium storage［J］.Nanotechnology Reviews，2020，9（1）：934-944.
46	LI Wei， GARG A， LE M L P，et al.Electrochemical performance investigation of LiFePO₄/C_0.15- _x （x=0.05，0.1，0.15 CNTs） electrodes at various calcination temperatures：Experimental and Intelligent Modelling approach［J］.Electrochimica Acta，2020，330： 135314.
47	KIM W，RYU W， HAN D，et al.Fabrication of graphene embedded LiFePO₄ using a catalyst assisted self assembly method as a cathode material for high power lithium-ion batteries［J］.ACS Applied Materials & Interfaces，2014，6（7）：4731-4736.
48	GUI Xuchun， ZENG Zhiping， ZHU Yuan，et al.Three-dimensional carbon nanotube sponge-array architectures with high energy dissipation［J］.Advanced Materials，2014，26（8）：1248-1253.
49	XU Yuxi， SHENG Kaixuan， LI Chun，et al.Self-assembled graphene hydrogel via a one-step hydrothermal process［J］.ACS Nano，2010，4（7）：4324-4330.
50	WANG Dawei， LI Feng， LIU Min，et al.3D aperiodic hierarchical porous graphitic carbon material for high-rate electrochemical capacitive energy storage［J］.Angewandte Chemie International Edition，2009，48（9）：1525.
51	Kuanyou TUO， MAO Liping， DING Hao，et al.Boron and phosphorus dual-doped carbon coating improves electrochemical performances of LiFe_0.8Mn_0.2PO₄ cathode materials［J］.ACS Applied Energy Materials，2021，4（8）：8003-8015.
52	LI Yin， WANG Li， ZHANG Keyu，et al.High performance of LiFePO₄ with nitrogen and phosphorus dual-doped carbon layer for lithium-ion batteries［J］.Journal of Alloys and Compounds，2022，890：161617.
53	ZHANG Yong， FENG Hui， WU Xingbing，et al.One-step microwave synthesis and characterization of carbon-modified nanocrystalline LiFePO₄ ［J］.Electrochimica Acta，2009，54（11）：3206-3210.
54	AMRI A， HENDRI Y B， SAPUTRA E，et al.Formation kinetics of sol-gel derived LiFePO₄ olivine analyzed by reliable non-isothermal approach［J］.Ceramics International，2022，48（12）：17729-17737.
55	LIU Youyong， CAO Chuanbao.Enhanced electrochemical performance of nano-sized LiFePO₄/C synthesized by an ultrasonic-assisted co-precipitation method［J］.Electrochimica Acta，2010， 55（16）：4694-4699.
56	WANG Xiaoyan， WEN Lizhi， ZHENG Yi，et al.Effect of FeSO₄ purity on low temperature performance of LiFePO₄/C［J］.Ionics，2020，26（9）：4433-4442.
57	ZHANG Ting， GONG Dongjie， LIN Sen，et al.Effect of pH-de-pendent intermediate on the performance of LiFePO₄/C cathode material［J］.Chemical Engineering Journal，2022，449：137830.
58	LUO Shaohua， HU Dongbei， LIU Huan，et al.Hydrothermal synthesis and characterization of α-Fe₂O₃/C using acid-pickled iron oxide red for Li-ion batteries［J］.Journal of Hazardous Materials，2019，368：714-721.
59	KANAGARAJ A B， CHATURVEDI P， KIM H J，et al.Controllable synthesis of LiFePO₄ microrods and its superior electrochemical performance［J］.Materials Letters，2021，283：128737.
60	RUIZ-JORGE F， BENÍTEZ A， FERNÁNDEZ-GARCÍA S，et al.Effect of fast heating and cooling in the hydrothermal synthesis on LiFePO₄ microparticles［J］.Industrial & Engineering Chemistry Research，2020，59（19）：9318-9327.
61	ALSAMET M A M M， BURGAZ E.Synthesis and characterization of nano-sized LiFePO₄ by using consecutive combination of sol-gel and hydrothermal methods［J］.Electrochimica Acta，2021， 367：137530.
62	MING Xianglan， WANG Ruizi， LI Teng，et al.Preparation of micro-nano-structured FePO₄·2H₂O for LiFePO₄ cathode materials by the turbulent flow cycle method［J］.ACS Omega，2021，6（29）：18957-18963.
63	LIANG Shuquan， CAO Xinxin， WANG Yaping，et al.Uniform 8LiFePO₄·Li₃V₂（PO₄）₃/C nanoflakes for high-performance Li-ion batteries［J］.Nano Energy，2016，22：48-58.
64	ZHANG Yue， ZHANG Zihe， TANG Yakun，et al.LiFePO₄ particles embedded in fast bifunctional conductor rGO&C@Li₃V₂（PO₄）₃ nanosheets as cathodes for high-performance Li-ion hybrid capacitors［J］.Advanced Functional Materials，2019，29（17）：1807895.
65	PI Yuqiang， LUO Gangwei， WANG Peiyao，et al.Material optimization engineering toward xLiFePO₄·yLi₃V₂（PO₄）₃ composites in application-oriented Li-ion batteries［J］.Materials，2022，15（10）：3668.

改性策略	正极材料	锂离子迁移速率/ （cm²·s^-1）	放电容量/ （mA·h·g^-1）	功率密度^a（0.1C）/ （W·kg^-1）	能量密度^b（0.1C）/ （W·h·kg^-1）
元素掺杂^［24］	Li_0.98Nb_0.02FePO₄/C	2.47×10^-14	114.3（10C）	113.28	517.75
元素掺杂^［33］	LFP-1	1.11×10^-11	110.6（10C）	117.64	501.44
元素掺杂^［36］	LFP-VF	2.94×10^-11	124.9（10C）	126.12	519.68
表面碳包覆^［51］	LFMP@B/P-C	1.89×10^-10	97.1（20C）	115.36	502.18
表面碳包覆^［52］	LFP@1	6.40×10^-11	119.7（10C）	120.08	527.68
颗粒纳米化^［16］	b-LiFePO₄/C	7.35×10^-14	113（10C）	106.72	527.00
颗粒纳米化^［17］	LFP/C	8.10×10^-11	140.8（10C）	134.1	544.00
材料复合化^［18］	2LFPLVP-S64	—	123（10C）	129.45	531.36
材料复合化^［65］	5LFVP	—	67（100C）	102.34	413.60
