碳酸钙处理工业废硫酸的硫酸钙结晶与过滤性能研究

doi:10.19964/j.issn.1006-4990.2024-0133

摘要/Abstract

摘要：

中国工业低浓度废硫酸产量巨大，由于回收难度大、成本高，通常采用钙盐中和并转化为工业石膏。然而，工业石膏含水率高，导致石膏中可溶性杂质含量高、处理和利用成本高。硫酸钙晶粒细小、过滤性能差是石膏含水率高的主要原因。探讨了不同钙盐沉淀剂的硫酸钙成核机理及晶体形貌，研究了不同工艺条件下CaCO₃沉淀剂对硫酸钙晶体成核速率、晶粒尺寸和含水率的影响。结果表明，以CaCO₃为沉淀剂，硫酸钙晶体在CaCO₃固体颗粒表面原位生长，成核速率受H⁺浓度和CaCO₃加入量影响。在反应温度为30 ℃、搅拌速率为300 r/min、硫酸质量分数为5%、CaCO₃加入速率为0.45 g/min、pH=2、反应时间为30 min的条件下，得到平均粒径约为20 μm的针状二水硫酸钙，含水率为36.3%。加入质量分数为0.04%的十二烷基硫酸钠（SDS），二水硫酸钙平均粒径达到50 μm，同时宽化生长成片状结构，含水率降低至26.4%。低温、慢速加入CaCO₃沉淀剂，避免硫酸钙晶体爆发式成核是降低石膏含水率的关键，加入SDS助剂可调控石膏形貌、促进晶体生长，进一步提高石膏的过滤性能。

关键词: 工业石膏, 结晶, 过滤性能, 含水率

Abstract:

The output of industrial waste sulfuric acid with low concentration is huge in China.Due to the difficulty and high cost of recovery，it is usually neutralized by calcium salt and converted into industrial gypsum.However，the high content of soluble impurities in gypsum and the high cost of treatment and utilization are caused by the high moisture content of industrial gypsum.The main reason for the high moisture content of gypsum is the fine grain of calcium sulfate and poor filtration quality.In this paper，the nucleation mechanism and crystal morphology of calcium sulfate with different calcium salt precipitants were investigated，and the effect of the nucleation rate，grain size and moisture content of calcium sulfate crystals by the precipitant of CaCO₃ at the different reaction conditions were studied.The results showed that the crystal nucleus of calcium sulfate formed in situ on the surface of calcium carbonate particles，and the nucleation rate was affected by the concentration of H⁺ and the amount of CaCO₃ added.At the conditions of sulfuric acid of 5%，reaction temperature of 30 ℃，stirring rate of 300 r/min，adding rate of CaCO₃ of 0.45 g/min，pH=2 and reaction time of 30 min，the calcium sulfate crystals were acicular structure with an average particle size of 20 μm，which moisture content was 36.3%.Adding w（SDS）=0.04%，the calcium sulfate crystals showed a flake structure，the average particle size was increased to 50 μm and the moisture content was decreased to 26.4%.The key to reduce the moisture content of gypsum was to avoid the rapid formation of calcium sulfate crystal nuclei in large quantities.The nucleation rate of calcium sulfate could be reduced by adding calcium carbonate slowly at low temperature.SDS could regulate the morphology of gypsum，promote the crystal growth，and improve the filtration performance of gypsum.

Key words: industrial gypsum, crystallization, filtration quality, moisture content

中图分类号:

TQ132.32

罗亚, 周容, 吕莉, 杨杰, 唐盛伟, 张涛. 碳酸钙处理工业废硫酸的硫酸钙结晶与过滤性能研究[J]. 无机盐工业, 2024, 56(12): 127-133.

LUO Ya, ZHOU Rong, LÜ Li, YANG Jie, TANG Shengwei, ZHANG Tao. Study on crystallization and filtration properties of calcium sulfate for treating industrial waste sulfuric acid with calcium carbonate[J]. Inorganic Chemicals Industry, 2024, 56(12): 127-133.

图/表 8

图1

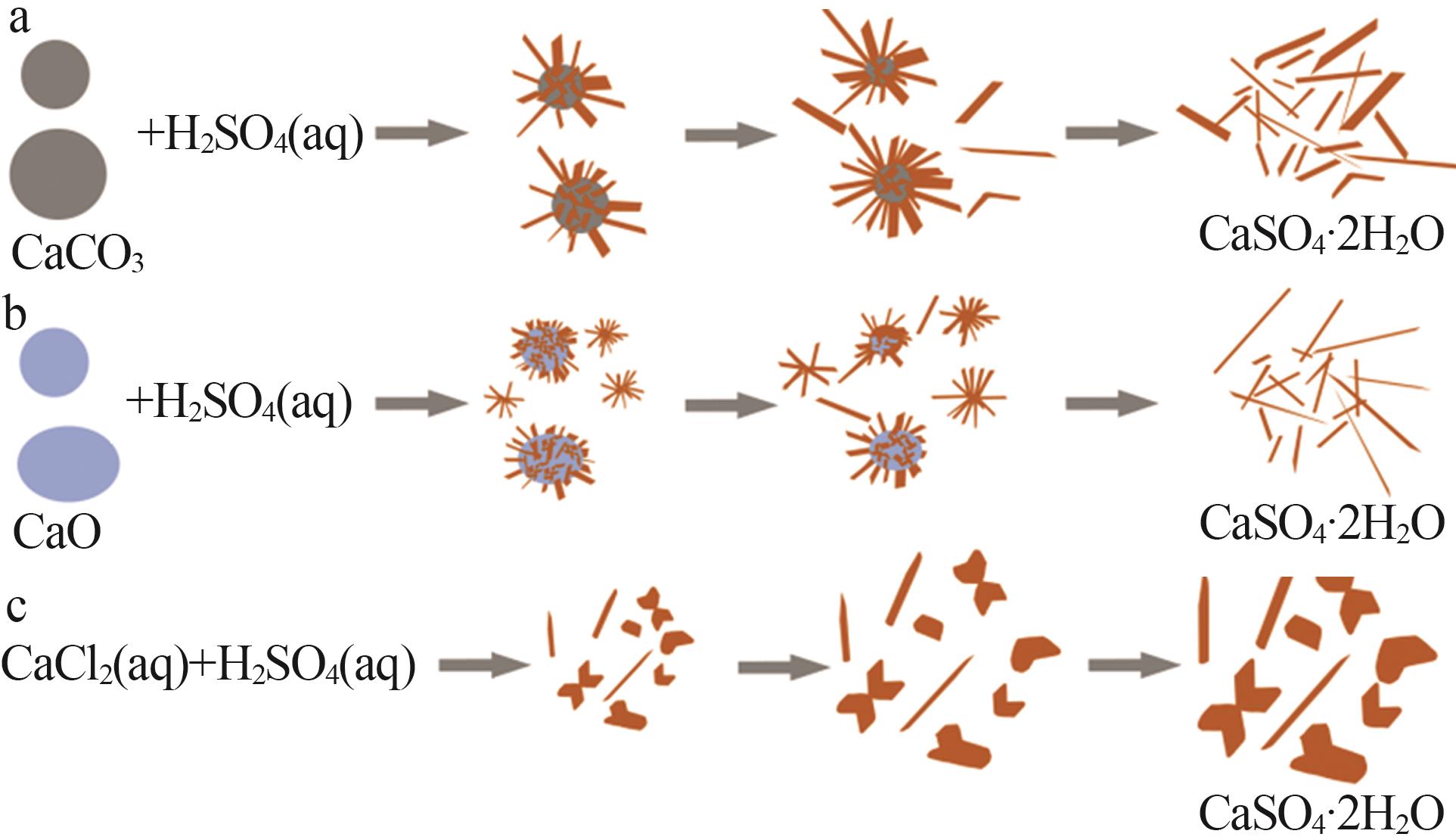

图2

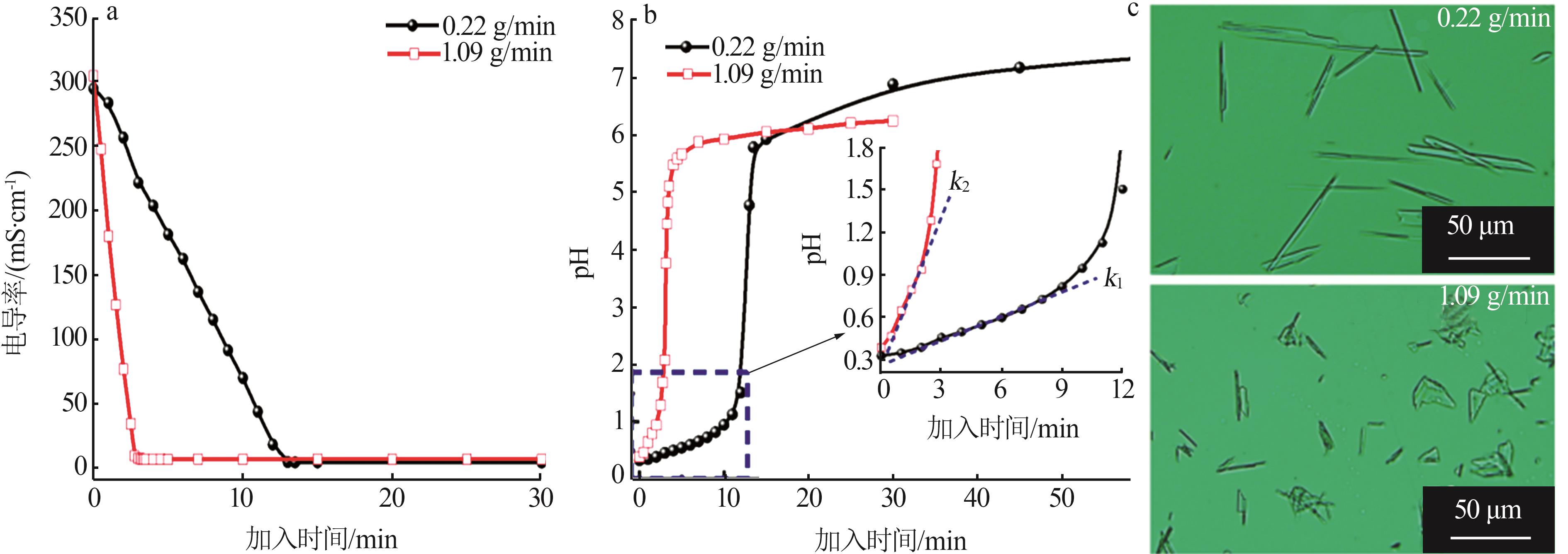

图3

图4

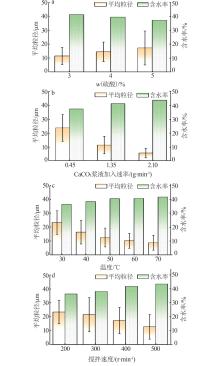

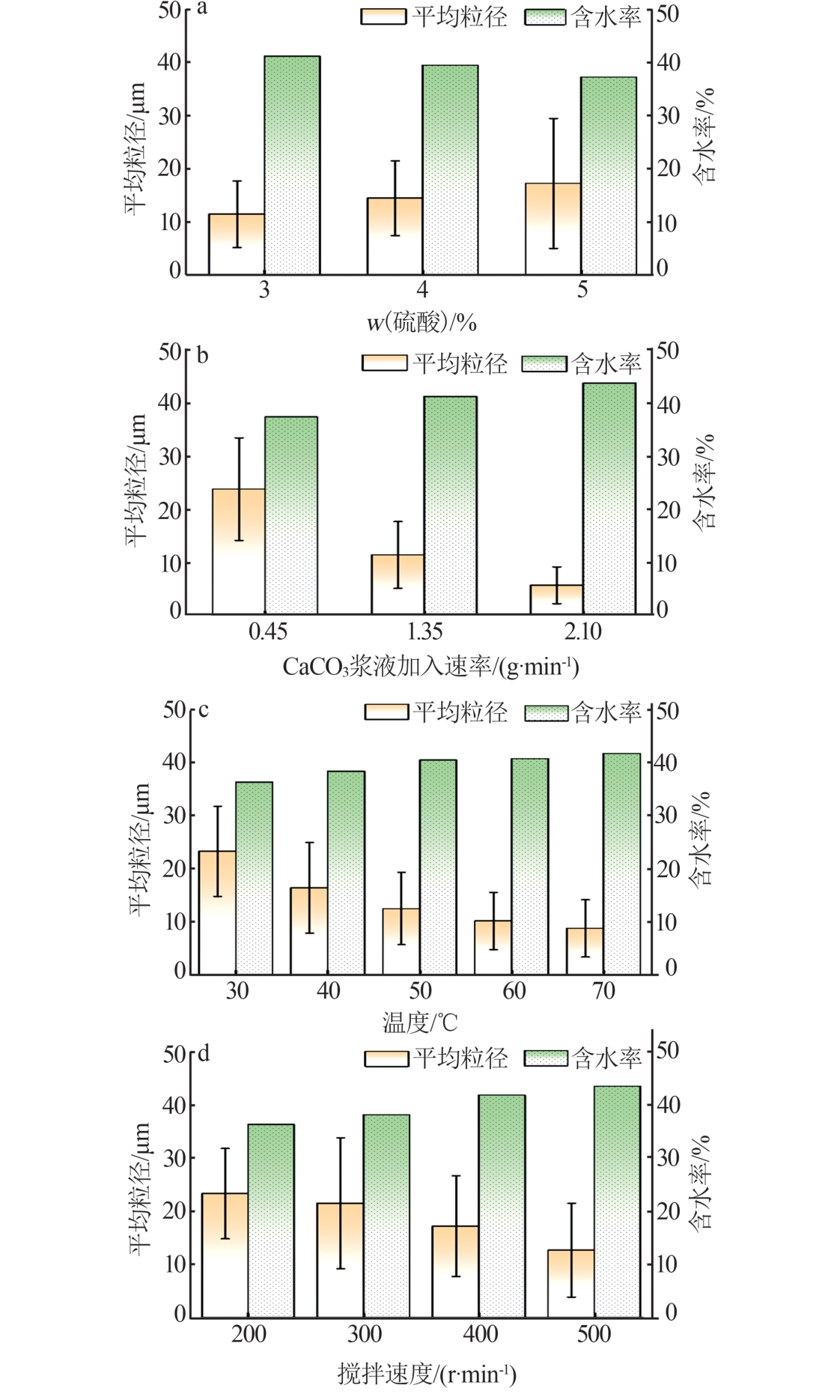

图5

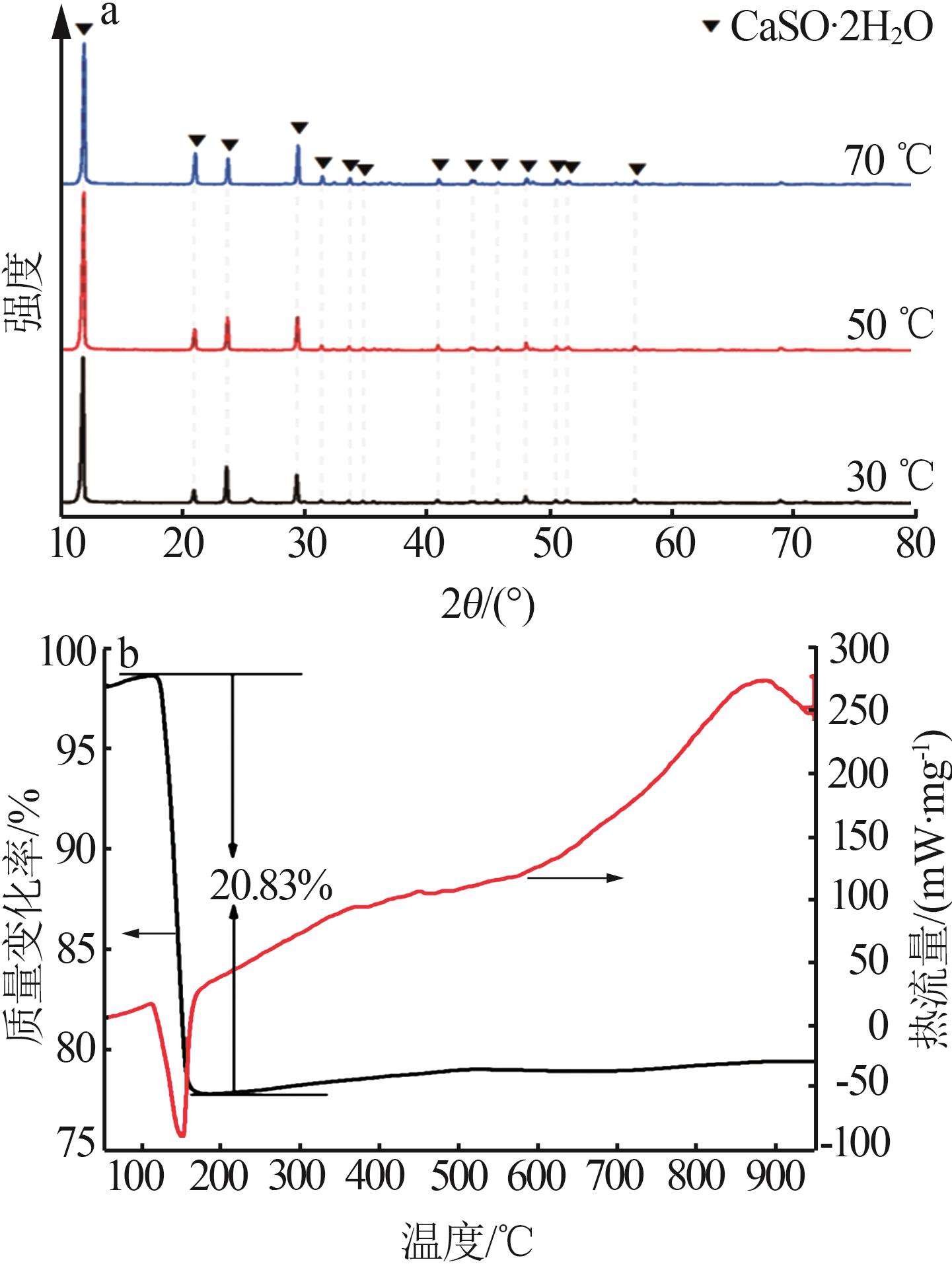

图 6

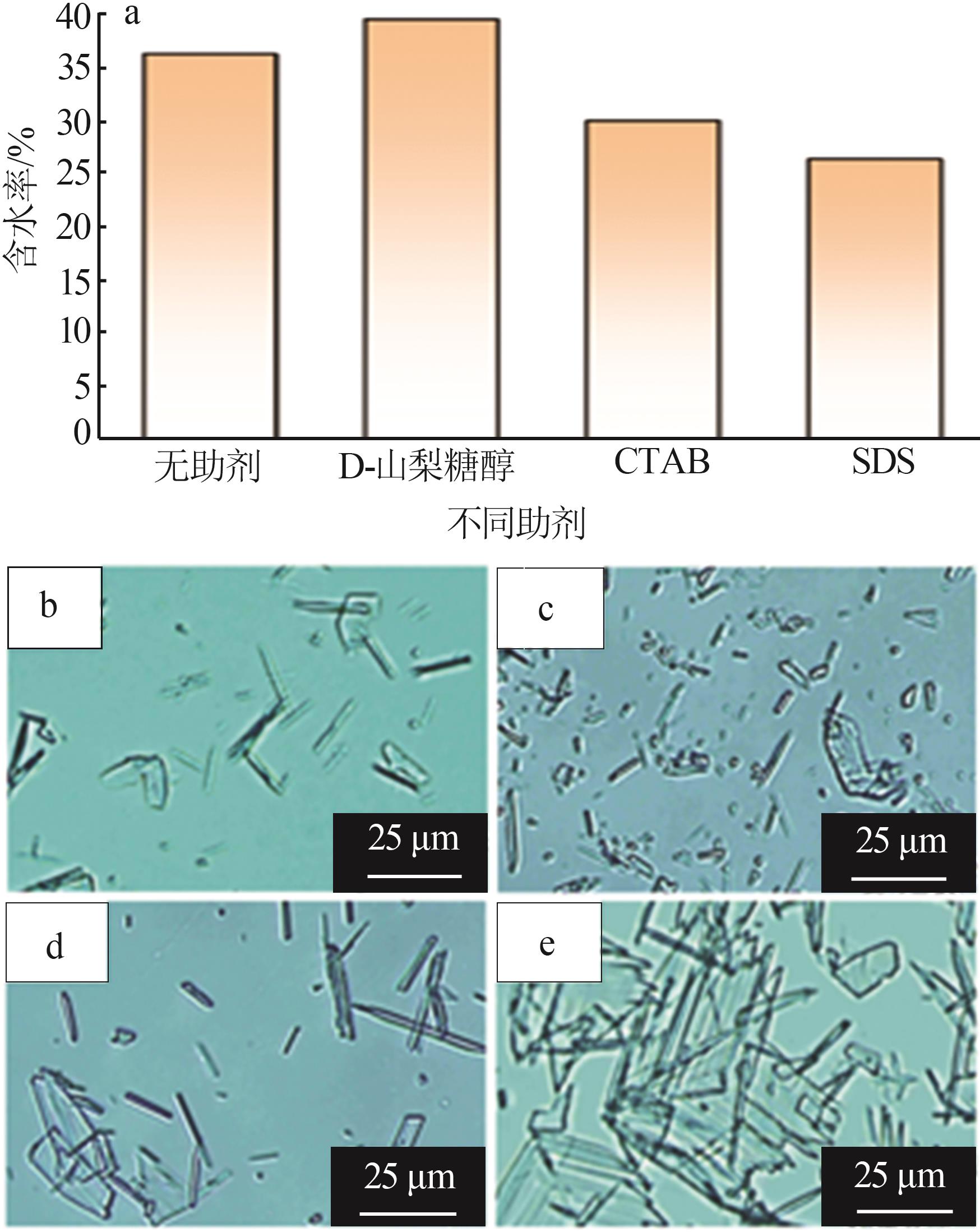

图7

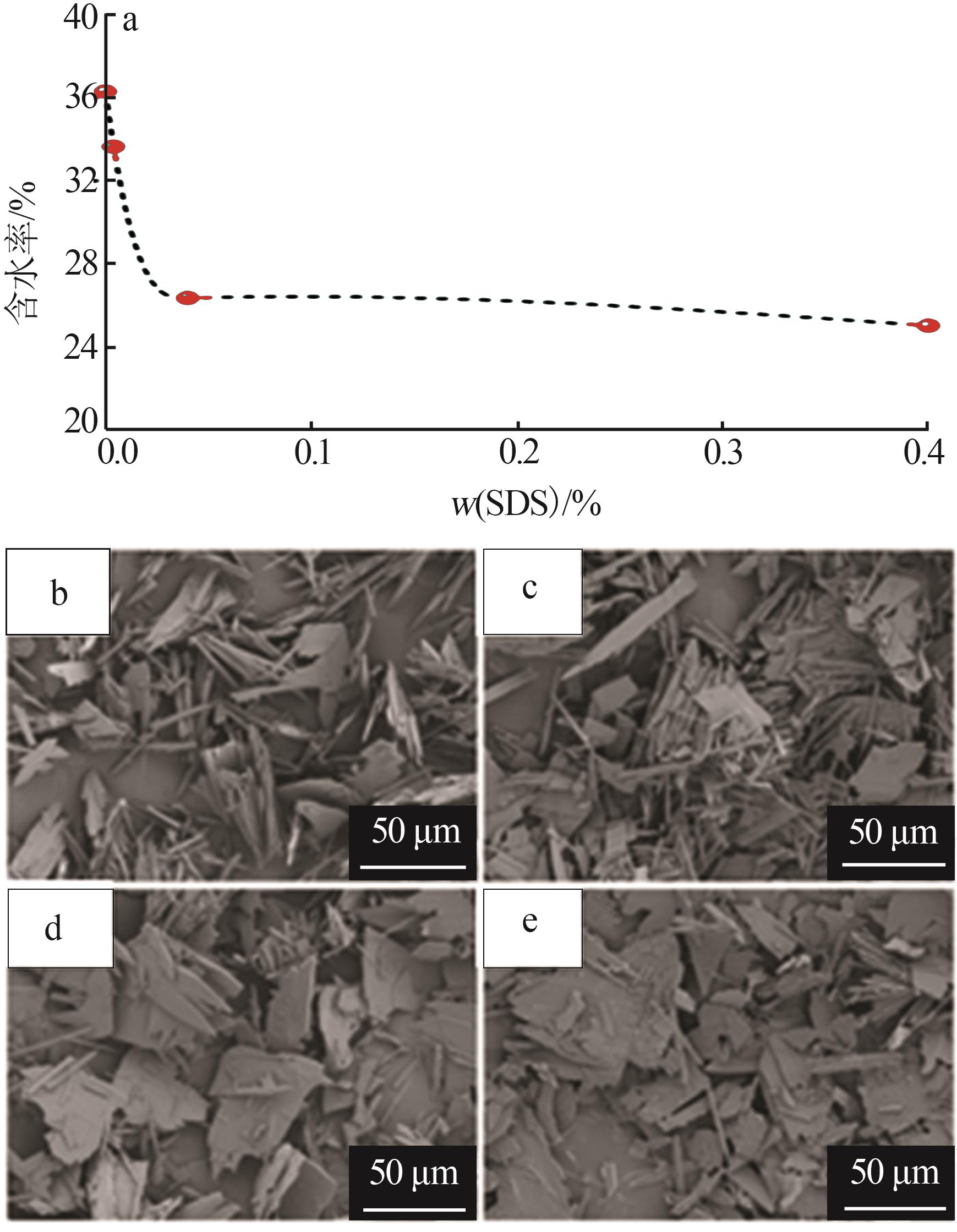

图8

参考文献 19

[1]	孙启，黄松涛，杨丽梅，等.工业废酸中硫酸的萃取分离与回收研究现状［J］.稀有金属，2022，46（5）：652-664.
	SUN Qi， HUANG Songtao， YANG Limei，et al.Separation and recovery of sulfuric acid from industrial spent acid by solvent extraction：A review［J］.Chinese Journal of Rare Metals，2022，46（5）：652-664.
[2]	纪罗军.我国工业废硫酸资源化利用技术进展［J］.硫酸工业，2017（3）：4-10.
	JI Luojun.Technical progress of industrial waste sulphuric acid utilization in China［J］.Sulphuric Acid Industry，2017（3）：4-10.
[3]	周强，李庆，毛三万，等.钛白粉废酸的处理方法与研究［J］.清洗世界，2023，39（1）：63-65.
	ZHOU Qiang， LI Qing， MAO Sanwan，et al.Treatment method and research of titanium dioxide waste acid［J］.Cleaning World，2023，39（1）：63-65.
[4]	RABIZADEH T， STAWSKI T M， MORGAN D J，et al.The effects of inorganic additives on the nucleation and growth kinetics of calcium sulfate dihydrate crystals［J］.Crystal Growth & Design，2017，17（2）：582-589.
[5]	DENG Licong， ZHANG Yifei， CHEN Fangfang，et al.Reactive crystallization of calcium sulfate dihydrate from acidic wastewater and lime［J］.Chinese Journal of Chemical Engineering，2013，32（11）：1303-1312.
[6]	易家祥，谢卫苹，伏天兵.电石渣中和废稀酸制备高强石膏应用分析［J］.环境与发展，2019，31（5）：146-147.
	YI Jiaxiang， XIE Weiping， FU Tianbing.Application analysis of high strength gypsum prepared by neutralizing carbide slag and waste dilute acid［J］.Environment and Development，2019，31（5）：146-147.
[7]	秦颖，刘新庄，桑海风.工业副产石膏在建材领域的资源化利用现状及展望［J］.中国建材科技，2023，32（5）：23-25.
	QIN Ying， LIU Xinzhuang， SANG Haifeng.Current situation and prospect of resource utilization of industrial by-product gypsum in the field of building materials［J］.China Building Materials Science & Technology，2023，32（5）：23-25.
[8]	张彦锋，马永亮，王正源，等.石灰石-石膏法烟气脱硫系统处理废稀硫酸［J］.化工环保，2022，42（1）：114-118.
	ZHANG Yanfeng， MA Yongliang， WANG Zhengyuan，et al.Treatment of spent dilute sulfuric acid in fuel gas desulfurization system by using limestone-gypsum method［J］.Environmental Protection of Chemical Industry，2022，42（1）：114-118.
[9]	JU Jinrong， FENG Yali， LI Haoran，et al.A novel approach for separation and recovery of titanium，scandium，iron from acidic wastewater and red gypsum utilization［J］.Mining，Metallurgy & Exploration，2022，39（3）：1297-1312.
[10]	CHEN Changtao， ZHENG Hanxiao， TANG Shengwei，et al.Study on controlling the dissolution of calcium dihydrogen phosphate using ternary phase diagrams to improve the production process of phosphoric acid［J］.Industrial & Engineering Chemistry Research，2022，61（43）：15970-15979.
[11]	纪罗军，赵红林.从循环经济角度看工业副产石膏的资源化利用［J］.硫酸工业，2021（9）：1-8.
	JI Luojun， ZHAO Honglin.Resource utilization of industrial by-product gypsum from the perspective of circular economy［J］.Sulphuric Acid Industry，2021（9）：1-8.
[12]	邓华，侯硕旻，李中军，等.磷石膏综合利用现状及展望［J］.无机盐工业，2024，56（1）：1-8，22.
	DENG Hua， HOU Shuomin， LI Zhongjun，et al.Current situation and prospect of comprehensive utilization of phosphogypsum［J］.Inorganic Chemicals Industry，2024，56（1）：1-8，22.
[13]	石鑫，杨绍利，马兰.“三石膏” 综合利用现状及其新工艺［J］.现代化工，2020，40（9）：8-13，19.
	SHI Xin， YANG Shaoli， MA Lan.Present situation of comprehensive utilization of “three-gypsum” and new technologies［J］.Modern Chemical Industry，2020，40（9）：8-13，19.
[14]	张艳丽，张宝林，李冬光.二水硫酸钙结晶过程及活化疏松剂对其影响的研究［J］.化工矿物与加工，2004，33（3）：11-13.
	ZHANG Yanli， ZHANG Baolin， LI Dongguang.Study on the crystallization course of dihydrate calcium sulphate and the effect of APA on its crystallization［J］.Industrial Minerals and Processing，2004，33（3）：11-13.
[15]	HUO Xuejian， GUO Lanfeng， LIU Renlong，et al.Role of additives：Modified hemihydrate phosphogypsum morphology and enhanced filtration performance of wet-process phosphoric acid［J］.ACS Omega，2023，8（49）：47295-47303.
[16]	TANG Shuai， JI Yuanhui， GE Kai.Crystallization kinetics and mechanisms of calcium sulfate dihydrate：Experimental investigation and theoretical analysis［J］.Industrial & Engineering Chemistry Research，2020，59（50）：21676-21684.
[17]	GAYEVSKII V R， KOCHMARSKII V Z， GAYEVSKA S G.Nucleation and crystal growth of calcium sulfate dihydrate from aqueous solutions：Speciation of solution components，kinetics of growth，and interfacial tension［J］.Journal of Crystal Growth，2020，548：125844.
[18]	SABNIS S S， BANAKAR V V， GOGATE P R，et al.Reactive crystallization of CaCl₂ and Na₂SO₄ in the presence of acoustic cavitation［J］.Chemical Engineering and Processing - Process Intensification，2022，170：108702.
[19]	崔益顺，付凌杰，李国勇，等.响应曲面法优化工业高钙废水制硫酸钙晶须的工艺［J］.环境工程学报，2015，9（10）：4828-4832.
	CUI Yishun， FU Lingjie， LI Guoyong，et al.Optimization on preparation of calcium sulphate whiskers from high calcium wastewater by using response surface method［J］.Chinese Journal of Environmental Engineering，2015，9（10）：4828-4832.
