锰基钠离子电池正极材料设计及电化学性能研究

doi:10.19964/j.issn.1006-4990.2023-0247

摘要/Abstract

摘要：

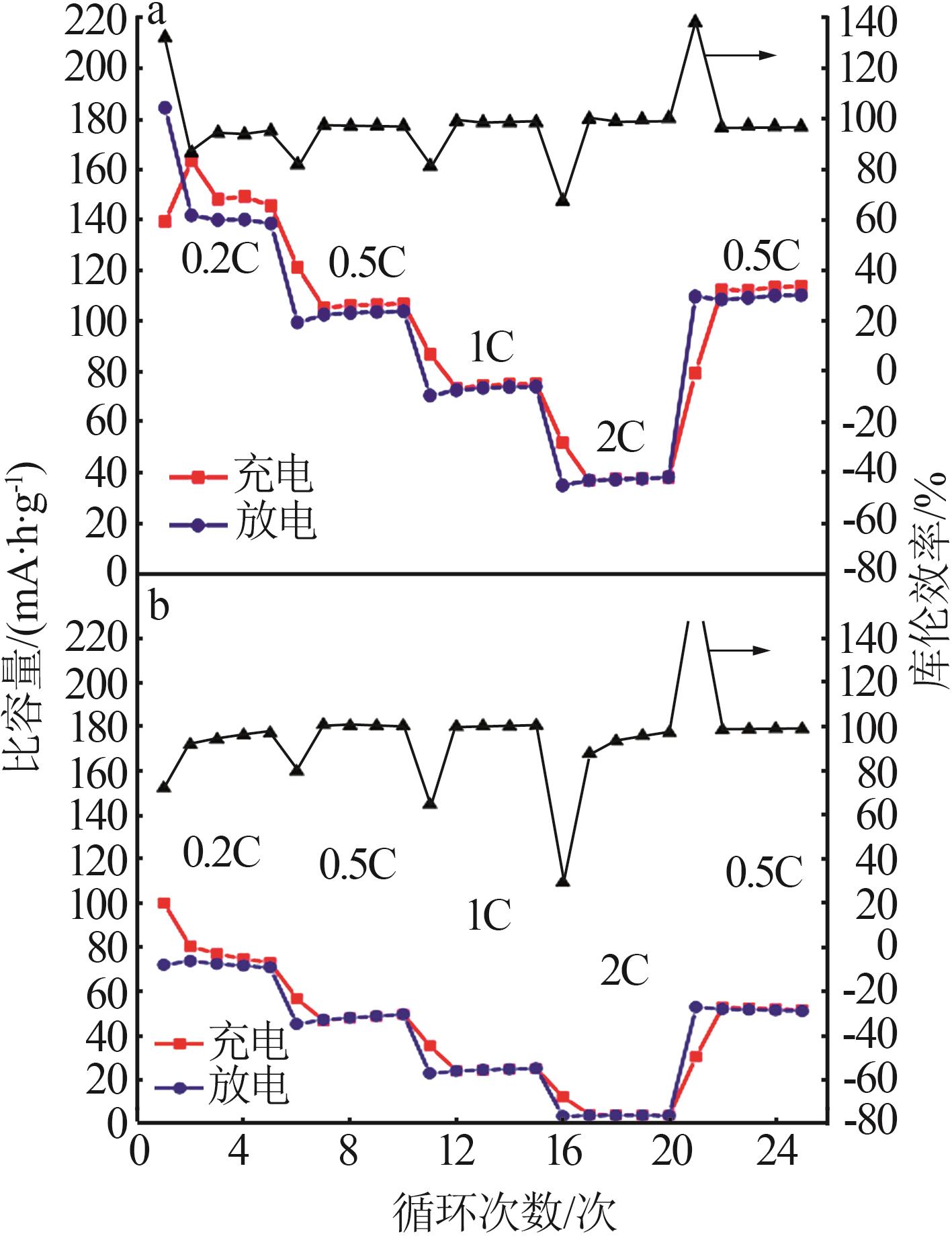

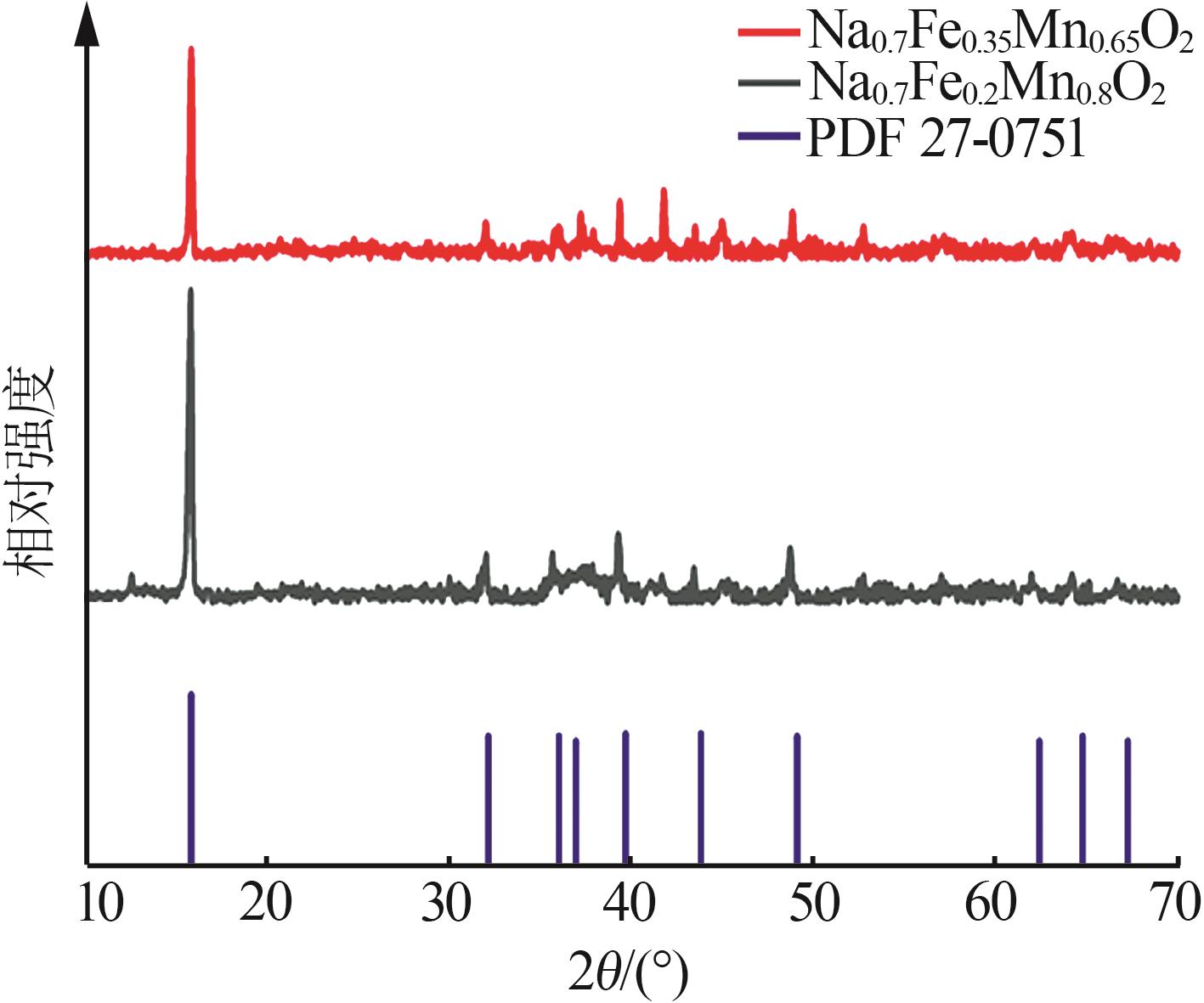

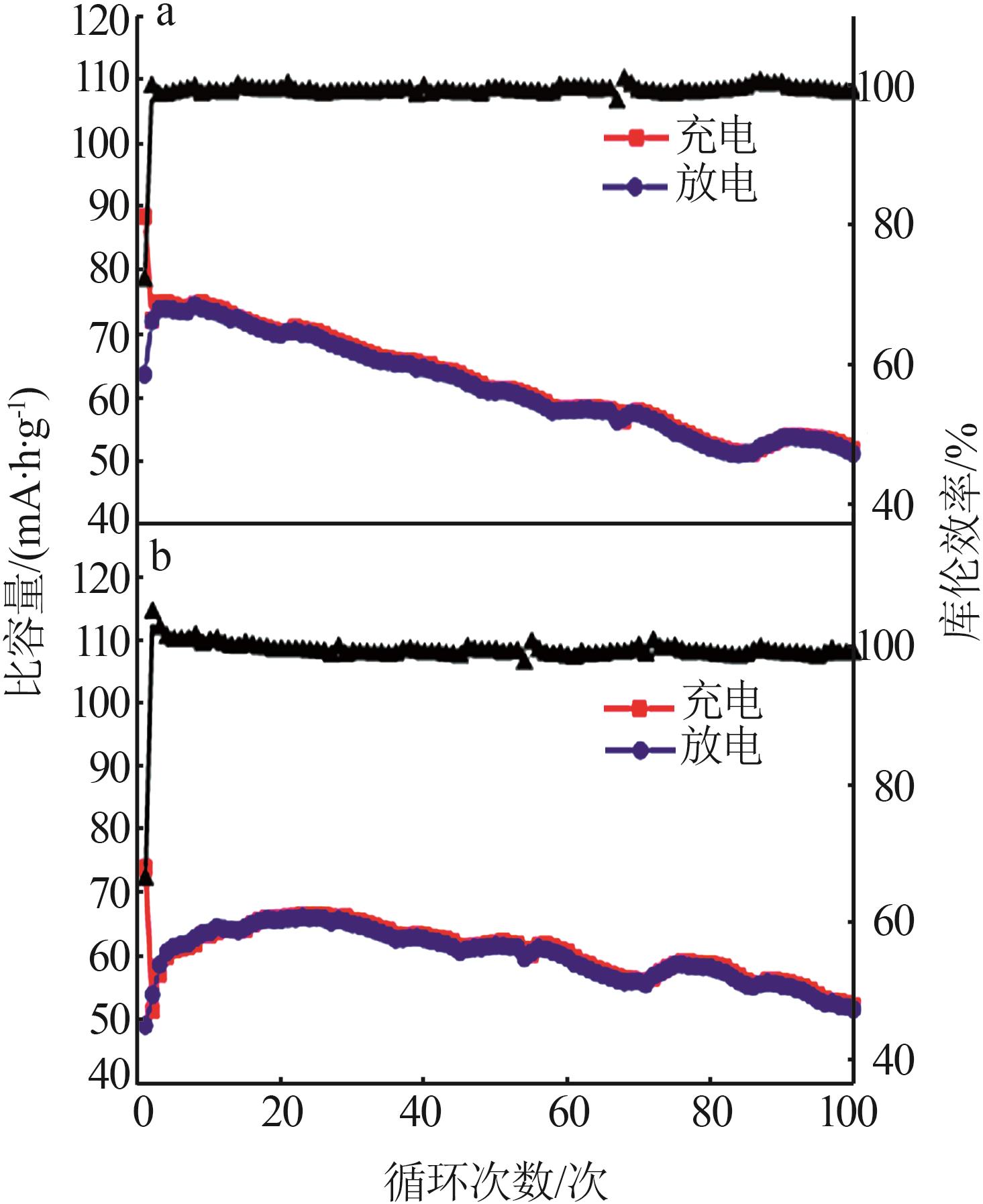

钠离子电池因环境友好、储量丰富等优势，成为锂离子电池的后继者，在储能材料方面有很大的应用潜力。针对钠离子电池锰基正极材料存在结构不稳定、循环稳定性差等问题，采用溶胶-凝胶法制备Na_0.7Fe _x Mn_（1-_x_）O₂（0<x<1）锰基正极材料，考察铁锰物质的量比对Na_0.7Fe _x Mn_（1-_x_）O₂材料微观结构、电化学性能的影响。结果表明：铁的掺杂稳定了材料P2相晶型且增加了钠层间距；合成的两种材料Na_0.7Fe_0.2Mn_0.8O₂和Na_0.7Fe_0.35Mn_0.65O₂在电压范围为2~4 V、放电倍率为0.5C的条件下，首次充/放电比容量分别为88.54、63.73 mA·h/g和74.02、49.01 mA·h/g，循环100次后充/放电比容量分别为51.94、51.36 mA·h/g和52.15、51.59 mA·h/g，循环效率分别为58.01%和69.7%，表现出良好的容量保持和循环性能；在倍率方面，两种材料经过2C大电流充电后，重新循环到0.5C倍率时两种材料的充/放电比容量仍可达113.82、110.25 mA·h/g和51.75、51.11 mA·h/g，两种材料都表现了较好的循环倍率性能，其中Na_0.7Fe_0.2Mn_0.8O₂材料的性能表现得更加优异。

关键词: 锰基, 正极材料：铁掺杂, P2相, 比容量

Abstract:

Sodium ion batteries have become the successor of lithium ion batteries due to their advantages of environmental friendliness and abundant reserves，and have great application potential in energy storage materials.In view of the problems of unstable structure and poor cycle stability of manganese-based cathode materials for sodium ion batteries，Na_0.7Fe _x Mn_（1-_x_）O₂（0<x<1） manganese-based cathode materials were prepared by sol-gel method.The effects of n（Fe）/n（Mn） molar ratio on the microstructure and electrochemical properties of Na_0.7Fe _x Mn_（1-_x_）O₂ materials were investigated.The results showed that the doping of iron stabilized the P2 phase crystal form of the material and increased the sodium layer spacing.The P2-phase layered cathode materials of Na_0.7Fe_0.2Mn_0.8O₂ and Na_0.7Fe_0.35Mn_0.65O₂were synthesized.The synthesized two materials of Na_0.7Fe_0.2Mn_0.8O₂and Na_0.7Fe_0.35Mn_0.65O₂ had charge/discharge specific capacities of 88.54，63.73 mA·h/g and 74.02，49.01 mA·h/g in the first cycle.After 100 cycles，the charge/discharge specific capacities were 51.94，51.36 mA·h/g and 52.15，51.59 mA·h/g，respectively，and the cycle efficiencies were 58.01% and 69.7%，respectively，showing good capacity retention and cycle performance.In terms of rate，the charge and discharge specific capacity of the two materials could still reach 113.82，110.25 mA·h/g and 51.75，51.11 mA·h/g when the two materials were charged at 2C high current and recycled to 0.5C rate.Both materials showed good cycle rate performance.In general，the performance of Na_0.7Fe_0.2Mn_0.8O₂ was more excellent.

Key words: manganese-based, cathode material, iron-doped, P2 phase, specific capacity

中图分类号:

TQ137.12

刘德新, 马腾跃, 安金玲, 刘进荣, 何伟艳. 锰基钠离子电池正极材料设计及电化学性能研究[J]. 无机盐工业, 2024, 56(3): 51-55.

LIU Dexin, MA Tengyue, AN Jinling, LIU Jinrong, HE Weiyan. Study on cathode material design and electrochemical properties of manganese-based sodium ion battery[J]. Inorganic Chemicals Industry, 2024, 56(3): 51-55.

图/表 6

图1

图2

表1

表2

图4

参考文献 19

1	孟晓萌.钠离子电池O3型正极材料NaNi_0.5Mn_0.5O₂的制备与电化学性能研究［D］.太原：太原理工大学，2021.
	MENG Xiaomeng.Preparation and electrochemical performance study of O3-NaNi_0.5Mn_0.5O₂ cathode material for sodium-ion batteries［D］.Taiyuan：Taiyuan University of Technology，2021.
2	XIE Fei， XU Zhen， GUO Zhenyu，et al.Hard carbons for sodium-ion batteries and beyond［J］.Progress in Energy，2020，2（4）：042002.
3	WADIA C， ALBERTUS P， SRINIVASAN V.Resource constraints on the battery energy storage potential for grid and transportation applications［J］.Journal of Power Sources，2011，196（3）：1593-1598.
4	HWANG J Y， MYUNG S T， SUN Y K.Sodium-ion batteries：Present and future［J］.Chemical Society Reviews，2017，46（12）：3529-3614.
5	LI Fang， WEI Zengxi， MANTHIRAM A，et al.Sodium-based batteries：From critical materials to battery systems［J］.Journal of Materials Chemistry A，2019，7（16）：9406-9431.
6	ZHENG Xueying， BOMMIER C， LUO Wei，et al.Sodium metal anodes for room-temperature sodium-ion batteries：Applications，ch-allenges and solutions［J］.Energy Storage Materials，2019，16：6- 23.
7	LARCHER D， TARASCON J M.Towards greener and more sustainable batteries for electrical energy storage［J］.Nature Chemistry，2015，7（1）：19-29.
8	KIM H， KIM H， DING Zhang，et al.Recent progress in electrode materials for sodium-ion batteries［J］.Advanced Energy Materials，2016，6（19）：1600943.
9	SLATER M D， KIM D， LEE E，et al.Sodium-ion batteries［J］.Advanced Functional Materials，2013，23（8）：947-958.
10	JAMESH M I， PRAKASH A S.Advancement of technology towards developing Na-ion batteries［J］.Journal of Power Sources，2018，378：268-300.
11	LI Yunming， LU Yaxiang， ZHAO Chenglong，et al.Recent advances of electrode materials for low-cost sodium-ion batteries towards practical application for grid energy storage［J］.Energy Sto- rage Materials，2017，7：130-151.
12	孙媛媛，李思卿，王成儒，等.钠离子电池层状过渡金属氧化物正极材料的研究进展［J］.稀有金属，2022，46（6）：776- 795.
	SUN Yuanyuan， LI Siqing， WANG Chengru，et al.Research progress of layered transition metal oxide cathode materials for sodium ion batteries［J］.Chinese Journal of Rare Metals，2022， 46（6）：776-795.
13	李丽江，陆楚，苏高琴，等.钠离子电池P2型锰基层状正极材料改性研究进展［J］.化工新型材料，2022，50（9）：16-20.
	LI Lijiang， LU Chu， SU Gaoqin，et al.Research progress on the modification of P2-type Mn-based layered cathode material for SIBs［J］.New Chemical Materials，2022，50（9）：16-20.
14	张彪.基于P2相MnFe系层状金属氧化物制备钠离子电池正极材料及其性能研究［D］.北京：北京化工大学，2019.
	ZHANG Biao.Sythesis and property investigation of cathode materials based on P2 type layer metal oxides for sodium ion batteryes［D］.Beijing：Beijing University of Chemical Technology，2019.
15	XU Xiaodong， CAO Ruiguo， JEONG S，et al.Spindle-like mesoporous α-Fe₂O₃ anode material prepared from MOF template for high-rate lithium batteries［J］.Nano Lett.，2012，12（9）：4988-4991.
16	ZHOU Guangmin， WANG Dawen， LI Feng，et al.Graphene-wrapped Fe₃O₄ anode material with improved reversible capacity and cyclic stability for lithium ion batteries［J］.Chemistry of Materials，2010，22（18）：5306-5313.
17	ZHANG Rui， HUANG Xiaoxiao， WANG Dong，et al.Single-phase mixed transition metal carbonate encapsulated by graphene：facile synthesis and improved lithium storage properties［J］.Advanced Functional Materials，2018，28（10）：1705817.1-1705817.11.
18	SUN Mengfei， CHU Xianfeng， WANG Zhenkang，et al.Rosa roxburghii-like hierarchical hollow sandwich-structure C@Fe₂O₃@C microspheres as second nanomaterialsfor superior lithium storage［J］.Journal of Alloys and Compounds，2020.Doi：10.1016/j.jallcom.2020.157518 .
19	郝一帆.钠离子电池正极材料Na_0.67MnO₂的掺杂改性［D］.呼和浩特：内蒙古大学，2021.
	HAO Yifan.Doping modification of Na_0.67MnO₂ cathode material for sodium-ion batteries［D］.Hohhot：Inner Mongolia University，2021.

样品	a/Å	b/Å	c/Å	V/Å³
Na_0.7MnO_2.05	2.876	2.876	11.12	79.70
Na_0.7Fe_0.2Mn_0.8O₂	2.884	2.883	11.14	80.21
Na_0.7Fe_0.35Mn_0.65O₂	2.871	2.871	11.17	79.76

材料名称	元素	质量分数/%	相对原子质量	物质的量比	归一化
Na_0.7Fe_0.2Mn_0.8O₂	Na	31.47	22.99	1.37	1.23
	Fe	13.82	55.85	0.25	0.22
	Mn	47.56	54.94	0.87	0.78
Na_0.7Fe_0.35Mn_0.65O₂	Na	26.28	22.99	1.14	0.90
	Fe	25.75	55.85	0.46	0.36
	Mn	44.11	22.99	0.80	0.64
