柴油机SCRF催化剂研究现状及展望

doi:10.11962/1006-4990.2020-0164

摘要/Abstract

摘要：

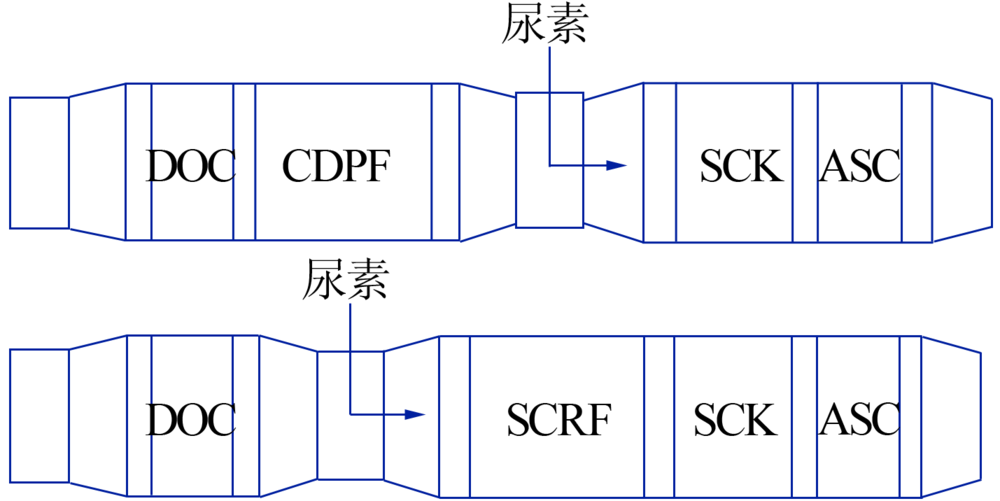

通过分析未来排放法规趋势对后处理系统的影响,得到SCRF系统在低温或冷启动条件下De-NO_x具有的较大优势,将在应对国六b（“国家第六阶段机动车污染物排放标准”）及以上法规发挥重要作用;阐述了SCRF常用几种载体的特征与适用性,指出对载体材质和参数选取需要考虑的因素,认为高空隙的碳化硅、莫来石以及泡沫合金材质的载体具有广泛的应用前景;综述了V/Cu/Fe-SCRF以及分层与混涂涂层技术的研究现状以及各自的特性,得出Cu基分子筛仍是作为SCRF催化剂的首选涂层材料,尤其是Cu-LTA经过老化后,在高温下仍表现出优异的NO_x转化性能;介绍了SCRF建模与仿真的方法及意义,得出SCRF仿真可以较好地用于实际应用的模拟。

关键词: 柴油机, SCRF, 碳烟氧化, NO_x还原, 催化剂

Abstract:

By analyzing the impact of future emission regulations on diesel aftertreatment systems,it was found that the SCRF systems having greater advantages of De-NO_x under low temperature or cold start conditions.It will play an important role in meeting China 6b（China′s stage 6 vehicle emission standards） and above.The characteristics and applicability of several carriers commonly used in SCRF were described,and the factors to be considered for carrier material and parameter selection were pointed out.It was found that the carriers with high-void of SiC,ACM and AF having a broad application prospects.The research status and respective characteristics of V/Cu/Fe-SCRF,layered and mixed coating technologies were summarized,it was confirmed that Cu-based molecular sieves were still the preferred coating material for SCRF catalysts,especially after aging of Cu-LTA.It still showed excellent NO_x conversion performance at high temperature.The method and significance of SCRF modeling and simulation were introduced,and it was confirmed that SCRF simulation can be better used for practical application simulation.

Key words: diesel engine, SCRF, soot oxidation, NO_x reduction, catalysts

中图分类号:

TQ131.21

汪朝强,于飞,常仕英,赖慧龙,马江丽,杨冬霞,张仲春. 柴油机SCRF催化剂研究现状及展望[J]. 无机盐工业, 2021, 53(2): 5-10.

Wang Chaoqiang,Yu Fei,Chang Shiying,Lai Huilong,Ma Jiangli,Yang Dongxia,Zhang Zhongchun. Research status and prospects of diesel SCRF catalysts[J]. Inorganic Chemicals Industry, 2021, 53(2): 5-10.

图/表 2

参考文献 23

[1]	郭静, 李明星. 新能源汽车产业发展环境分析研究[J].科技创新与应用,2019(33):74-75.
[2]	李梦斐. 机车柴油机排放法规的演变及降排技术的应用[J].内燃机与配件,2019(14):55-56.
[3]	帅石金, 刘世宇, 马骁, 等. 重型柴油车满足近零排放法规的技术分析[J]. 汽车安全与节能学报, 2019,10(1):16-31.
[4]	GB 17691—2018 重型柴油车污染物排放限值及测量方法(中国第六阶段)[S].
[5]	付细平, 陈增响, 何伟娇, 等. 轻型柴油车紧凑型后处理筒式封装结构：中国,109882273A[P].2019-06-14.
[6]	张振涛, 李云华, 李敏. SCRF系统特性研究[J]. 内燃机与动力装置, 2017,34(5):66-69.
[7]	Lasitha Cumaranatunge, Andrew Chiffey, Joel Stetina, et al. A Study of the soot combustion efficiency of an SCRF^® catalyst vs a CSF dur-during active regeneration [J]. Emission Control Science and Tech-nology, 2017,3(1):93-104.
[8]	邱松林, 滕勤, 马标. 柴油机选择催化还原过滤器技术研究进展[J]. 小型内燃机与车辆技术, 2016,45(6):84-91.
[9]	杨子龙. 船舶柴油机颗粒物排放法规及控制技术发展[J]. 柴油机, 2016,38(6):1-5.
[10]	Manuel Kleinhenz, Axel Fiedler, Peter Lauer, et al. SCR coated DPF for marine engine applications[J]. Topica in Catalysis, 2019,62(1):282-287.
[11]	刘强, 冯西鹏, 祁晓东. 基于泡沫合金载体的SCRF在双燃料重型柴油机排放控制的试验研究[J].内燃机与配件,2019(9):22-24.
[12]	Watling T C., Lopez Y, Pless J D, et al. Removal of hydrocarbons and particulate matter using a vanadia selective catalytic reduc-tion catalyst:An experimental and modeling study[J]. SAE Inter-national Journal of Engines, 2013,6(2):882-897.
[13]	Lopez-De Jesus Y M, Chigada P I, Watling T C, et al. NO_x and PM reduction from diesel exhaust using vanadia SCRF[J]. SAE International Journal of Engines, 2016,9(2):1247-1257.
[14]	Chigada P I, Ahmadinejad M, Newman A D, et al. Impact of SCR activity on soot regeneration and the converse effects of soot re-generation on SCR activity on a vanadia-SCRF^® [J]. SAE Tech-nical Paper, 2018,1(2):0957-0962.
[15]	Lee J H, Paratore M J, Brown D B. Evaluation of Cu-based SCR/DPF technology for diesel exhaust emission control[J].SAE Inter-national Journal of Fuels and Lubricants, 2009,l(1):96-101.
[16]	Tsukamoto Y, Utaki S, Zhang W, et al. Effects of soot deposition on NO_x purification reaction and mass transfer in a SCR/DPF cataly-st[J]. SAE Technical Paper, 2018,1(2):1703-1707.
[17]	Kim Y J, Kim P S, Kim C H, et al. Deactivation mechanism of Cu/zeolite SCR catalyst under high-temperature rich operation condi-tion[J]. Applied Catalysis,A.General:An International Journal Devoted to Catalytic Science and Its Applications, 2019,569:175-180.
[18]	Ferenc Martinovic, Tahrizi Andana, Fabio Alessandro Deorsola, et al. On-filter Integration of soot oxidation and selective catalytic reduction of NO_x with NH₃ by selective two component catalysts[J]. Catalysis Letters, 2020,150:573-585 .
[19]	Martinovic F, Deorsola F A, S. Pirone B R, Ammonia mediated NO_xSCR and soot oxidation integration for next generation SCR-on-filter application [C].Torino TO,42th Meeting of the Italian Sec-tion of the Combustion Institute, 2019.
[20]	G·斯普利特泽, S·查特杰, R·R·拉贾拉姆, 等. 双功能催化过滤器：中国,103702745A[P].2014-04-02.
[21]	Bensaid S, Balakotaiah V, Luss D. Simulation of NO_x and soot aba-tement with Cu-CHA and Fe-ZSM5 catalysts[J]. AIChE Journal, 2016,63(1), 238-248.
[22]	Trandafılovic L V, Mihai O, Woo J, et al. A kinetic model for SCR coated particulate filters-Effect of ammonia-soot interactionsa[J]. Applied Catalysis B:Environmental, 2018.Doi: 10.1016/j.apcatb.2018.08.076.
[23]	杜翰斌. 柴油机SCRF系统性能影响因素的模拟研究[D]. 大连:大连理工大学, 2019.

材质	特征	适用性
Cd	热容低、流通阻力低、起燃速度快	重型车
SiC	强度高、热容量大、热传导性好、碳载量高	主动再生为主
ACM	高孔隙率、压降低、高机械完整性、负载量大	轻型车
AT	负载量大、压降低	轻型车
AF	比表面积大、热熔低、机械强度高、导热快	均适合
