三维多孔LaFeO3/CeO2/SrTiO3光芬顿和光催化协同脱色亚甲基蓝

doi:10.19964/j.issn.1006-4990.2023-0474

摘要/Abstract

摘要：

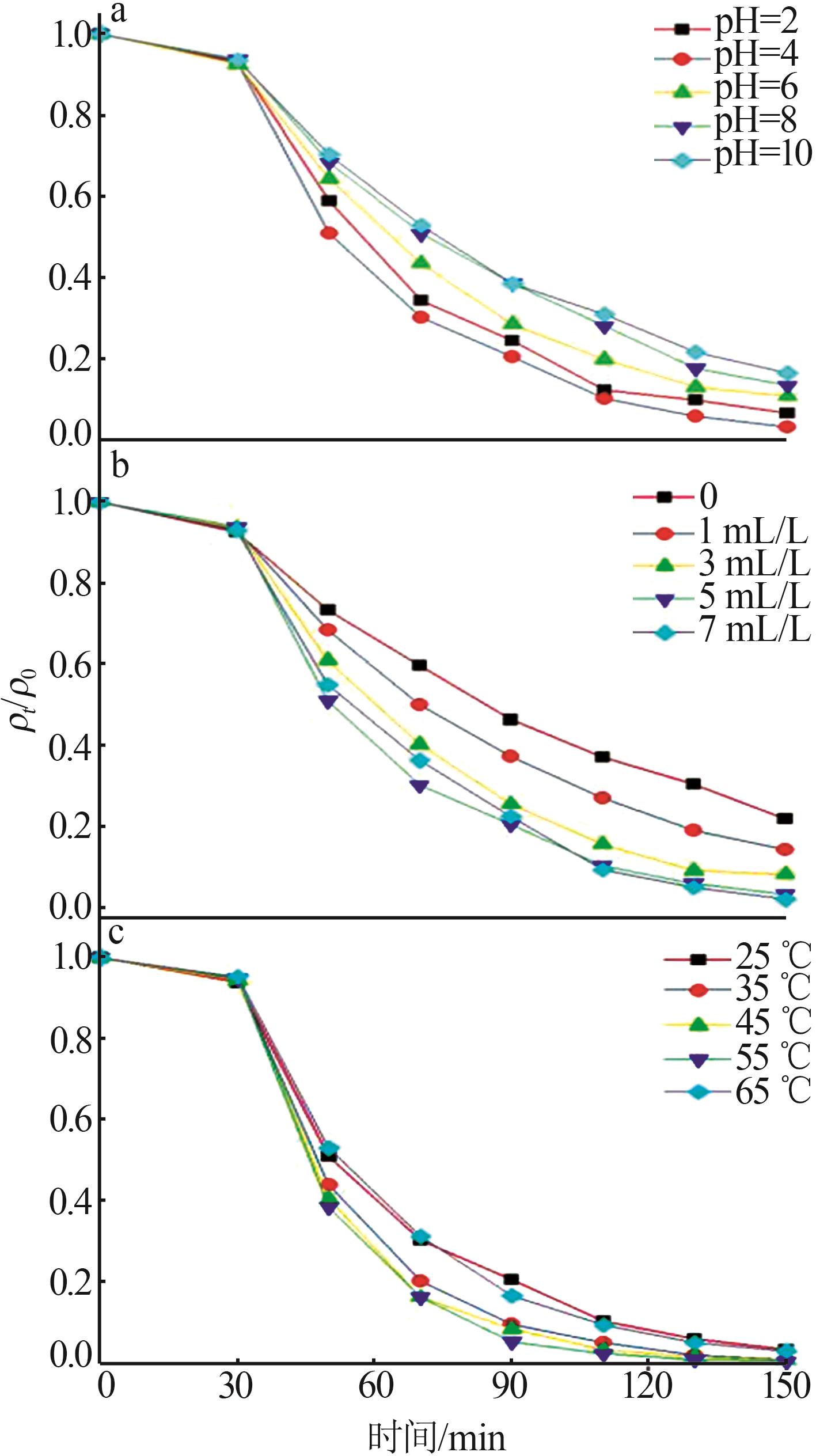

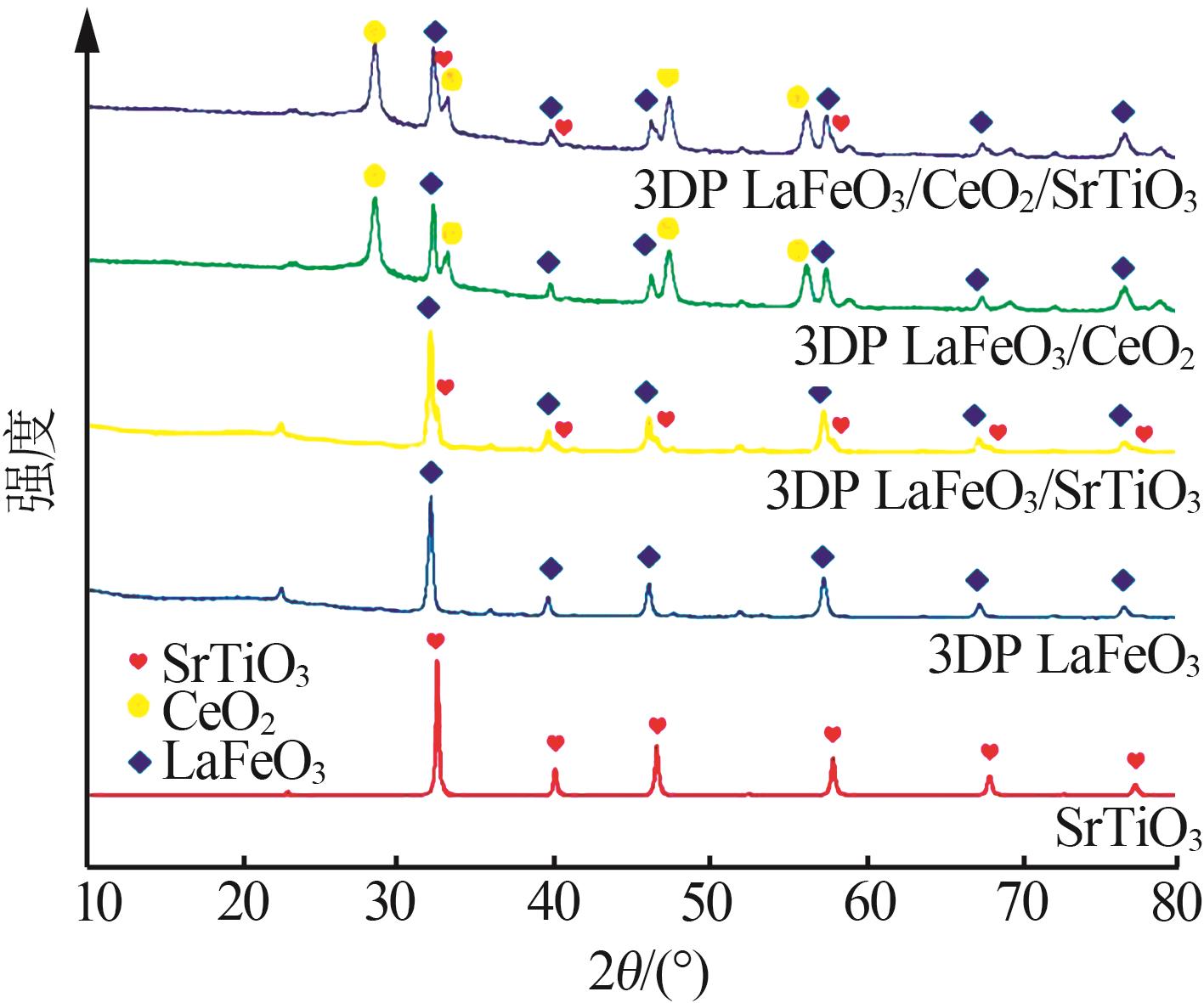

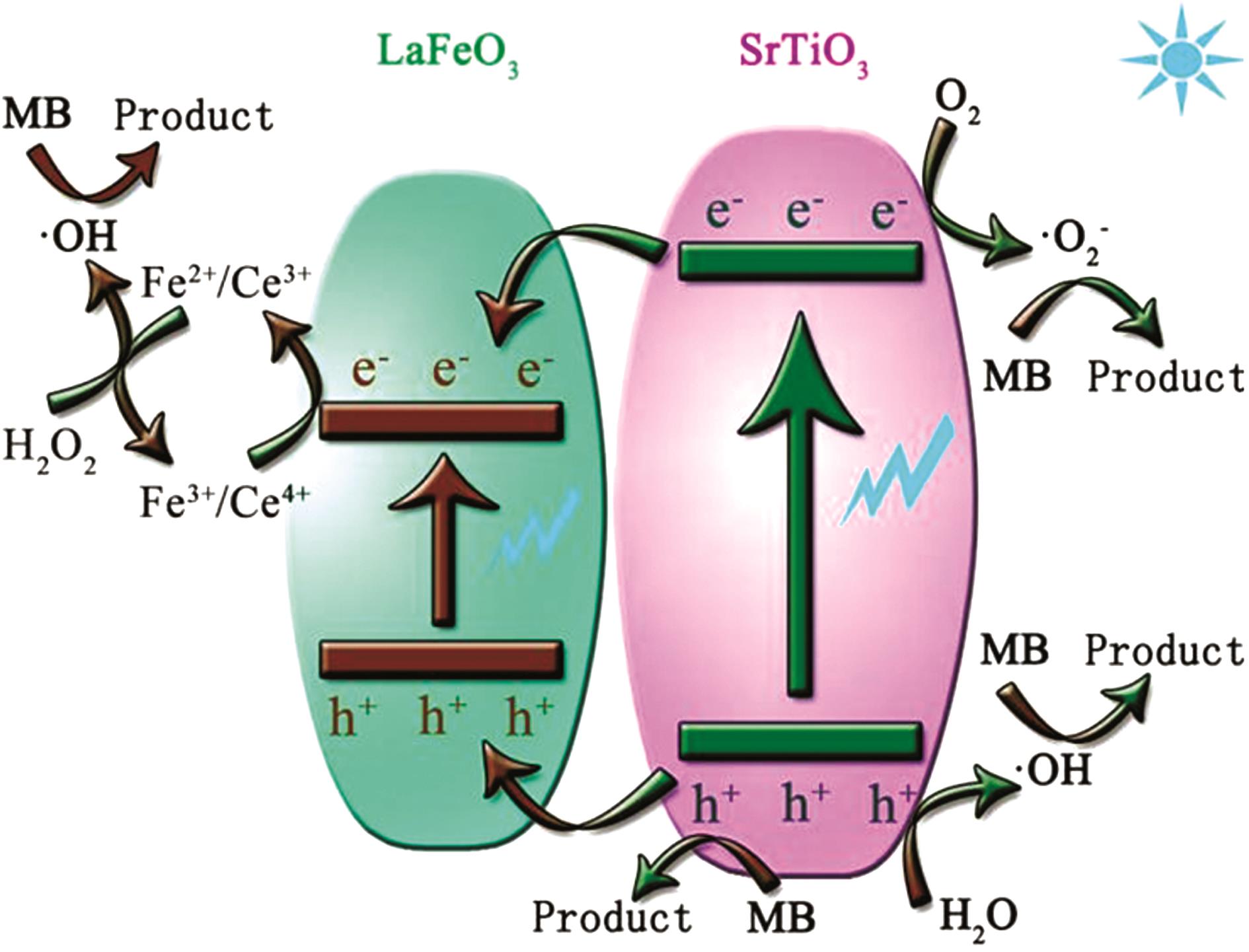

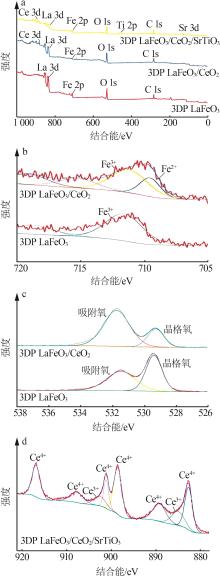

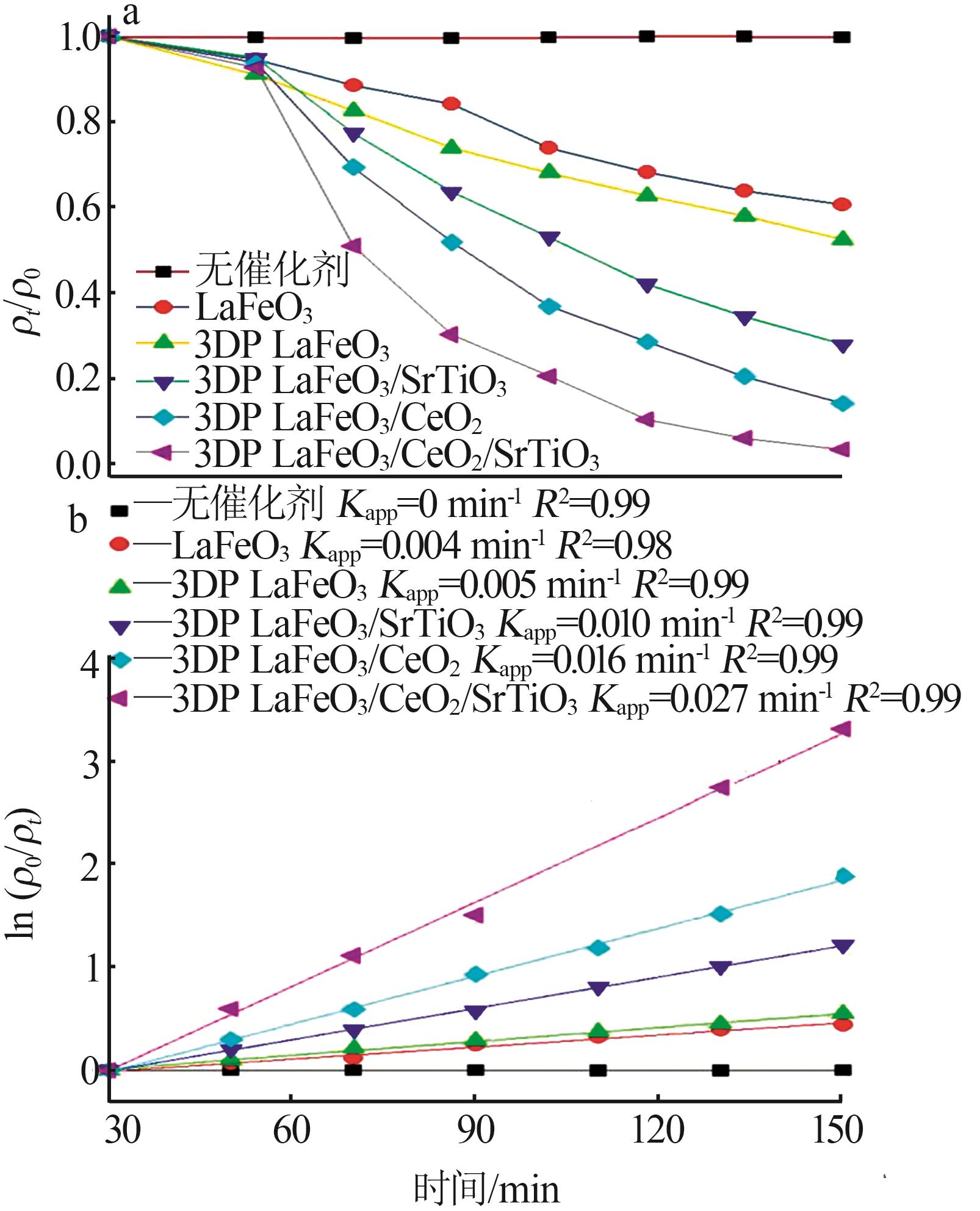

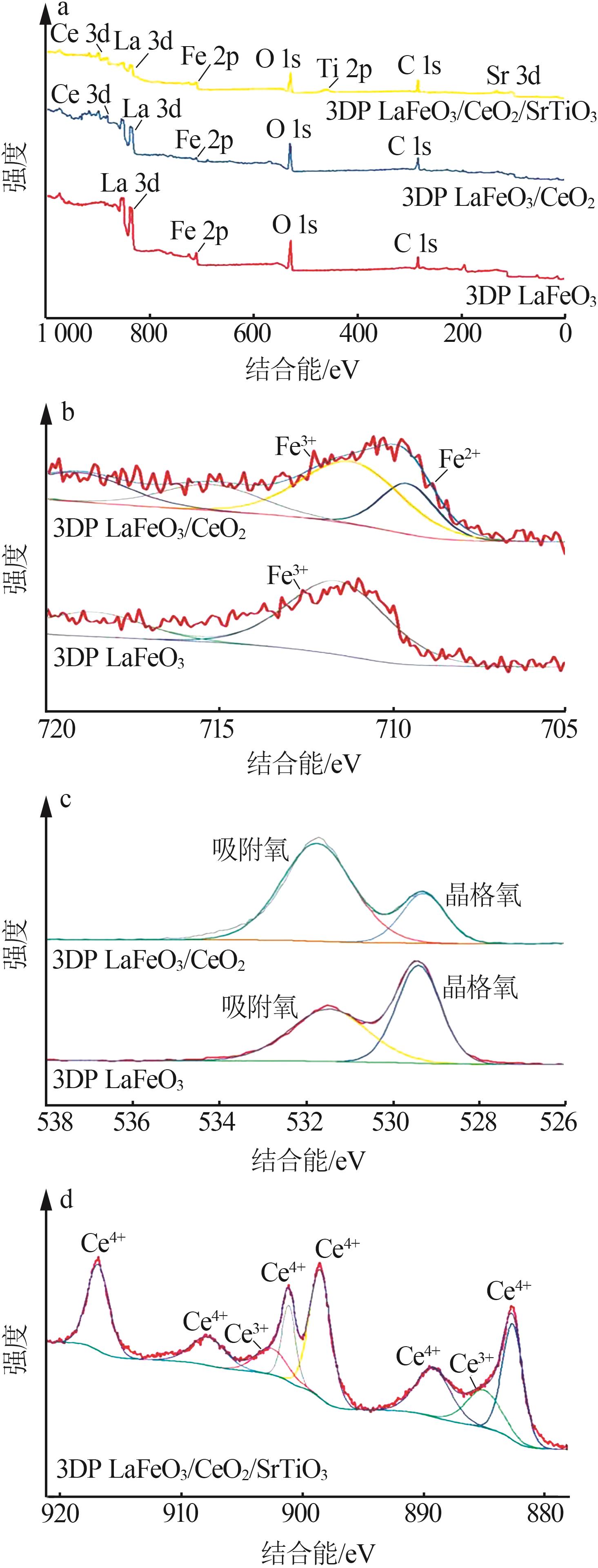

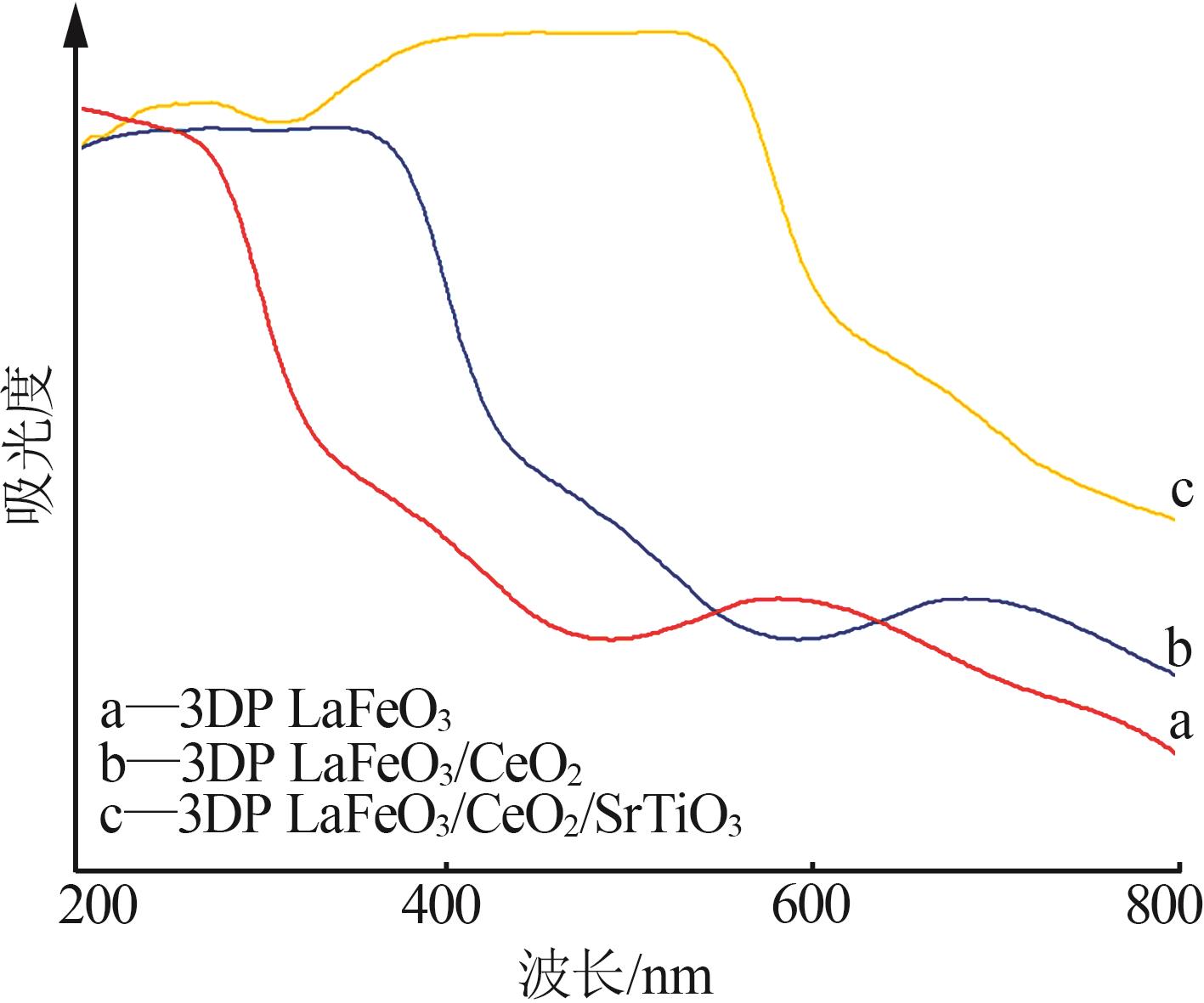

以聚甲基丙烯酸甲酯微球为模板，采用溶胶-凝胶法和化学沉淀法制备三维多孔催化剂3DP LaFeO₃/CeO₂/SrTiO₃。通过X射线衍射仪、扫描电子显微镜、多站式全自动比表面与孔径分析仪、X射线光电子能谱仪和紫外可见分光光度计等仪器对催化剂进行表征，并考察了该催化剂对亚甲基蓝的脱色效果，分析了pH、过氧化氢剂量和温度对脱色效果的影响。结果表明，3DP LaFeO₃/CeO₂/SrTiO₃复合材料被成功合成，呈现多孔结构，具有高的比表面积和光学特性。该催化剂在亚甲基蓝的脱色反应中表现出优异的催化性能，具有宽的pH使用范围，且能有效降低铁泥产量，大大降低二次污染。通过适当升高过氧化氢用量及反应液温度，可以提高催化剂的催化脱色性能，过氧化氢的最佳投加量为5 mL/L，反应液最佳温度为55 ℃。最后，提出了亚甲基蓝脱色的催化机理，在催化剂的光芬顿和光催化协同作用下，实现Fe³⁺/Fe²⁺和Ce⁴⁺/Ce³⁺持续循环和活性物种的产生。

关键词: 三维多孔材料, LaFeO₃/CeO₂/SrTiO₃, 光芬顿, 光催化, 非均相催化剂

Abstract:

The three-dimensional porous catalyst 3DP LaFeO₃/CeO₂/SrTiO₃ was prepared by sol-gel method and chemical precipitation method using polymethyl methacrylate microspheres as template.The catalyst was characterized by instruments such as X-ray diffraction spectrometer，scanning electron microscope，fully automatic surface area and pore size analyzer，X-ray photoelectron spectroscopy，and UV-vis spectrophotometer.The decolorization effect of the catalyst on methylene blue was investigated，and the effects of pH，hydrogen peroxide dosage and temperature on the decolorization effect of the catalyst were analyzed.The research results indicated that the 3DP LaFeO₃/CeO₂/SrTiO₃ composite was successfully synthesized，exhibiting a porous structure，high specific surface area，and optical properties.The catalyst exhibited effective catalytic performance with wide pH range and low iron mud yield in the decolorization reaction of methylene blue under ultraviolet light irradiation.The catalytic decolorization performance of the catalyst was improved by appropriately increasing the amount of hydrogen peroxide and the temperature of the reaction liquid.The optimal dosage of hydrogen peroxide was 5 mL/L and the optimal temperature of the reaction liquid was 55 ℃.Finally，this article proposed a catalytic mechanism for the decolorization of methylene blue.The continuous cycling of Fe³⁺/Fe²⁺ and Ce⁴⁺/Ce³⁺ and the production of active substances were achieved under the synergistic effect of photo-Fenton and photocatalysis of the catalyst.

Key words: three-dimensional porous material, LaFeO₃/CeO₂/SrTiO₃, photo-Fenton, photocatalysis, heterogeneous catalyst

中图分类号:

O643.3

李江朋, 张慧斌. 三维多孔LaFeO₃/CeO₂/SrTiO₃光芬顿和光催化协同脱色亚甲基蓝[J]. 无机盐工业, 2024, 56(5): 141-148.

LI Jiangpeng, ZHANG Huibin. Synergistic degradation of methylene blue by photo-Fenton and photocatalytic with 3D porous LaFeO₃/CeO₂/SrTiO₃[J]. Inorganic Chemicals Industry, 2024, 56(5): 141-148.

图/表 10

图1

图2

表1

图3

图4

图5

图6

表2

图7

图8

参考文献 24

1	YE Yongchun， YANG Hua， ZHANG Haimin，et al.A promising Ag₂CrO₄/LaFeO₃ heterojunction photocatalyst applied to photo-Fenton degradation of RhB［J］.Environmental Technology，2020，41（12）：1486-1503.
2	HUANG Chaowei， HSU S Y， LIN Junhan，et al.Solar-light-driven LaFe _x Ni_1- _x O₃ perovskite oxides for photocatalytic Fenton-like reaction to degrade organic pollutants［J］.Beilstein Journal of Nanotechnology，2022，13：882-895.
3	PRIYADARSHINI M，DAS I， GHANGREKAR M M，et al.Advanced oxidation processes：Performance，advantages，and scale-up of emerging technologies［J］.Journal of Environmental Management，2022，316：115295.
4	赵阁阁，孙婧，张运波，等.高级氧化技术处理印染废水的研究进展［J］.应用化工，2021，50（9）：2550-2554，2558.
	ZHAO Gege， SUN Jing， ZHANG Yunbo，et al.Research progress of advanced oxidation technology in treatment of printing and dyeing wastewater［J］.Applied Chemical Industry，2021，50（9）：2550-2554，2558.
5	QIU Yalu， XING Zipeng， GUO Meijun，et al.Hollow cubic Cu_2- _x S/Fe-POMs/AgVO₃ dual Z-scheme heterojunctions with wide-spectrum response and enhanced photothermal and photocatalytic-Fenton performance［J］.Applied Catalysis B：Environmental，2021，298：120628.
6	王振远，李向阳，李克艳，等.Fe-Bi₂WO₆/TiO₂异质结的构建及其光芬顿反应性能研究［J］.现代化工，2021，41（S1）：183- 188.
	WANG Zhenyuan， LI Xiangyang， LI Keyan，et al.Construction of Fe-Bi₂WO₆/TiO₂ heterojunction and study on its photo-Fenton reaction performance［J］.Modern Chemical Industry，2021，41（S1）：183-188.
7	LU Changyu， WANG Juan， CAO Delu，et al.Synthesis of magnetically recyclable g-C₃N₄/NiFe₂O₄ S-scheme heterojunction photocatalyst with promoted visible-light-response photo-Fenton degradation of tetracycline［J］.Materials Research Bulletin，2023，158：112064.
8	BILGIN SIMSEK E， TUNA Ö， BALTA Z.Construction of stable perovskite-type LaFeO₃ particles on polymeric resin with boosted photocatalytic Fenton-like decaffeination under solar irradiation［J］.Separation and Purification Technology，2020，237：116384.
9	OLADIPO A A， IFEBAJO A O， GAZI M.Magnetic LDH-based CoO/NiFe₂O₄ catalyst with enhanced performance and recyclability for efficient decolorization of azo dye via Fenton-like reactions［J］.Applied Catalysis B：Environmental，2019，243：243-252.
10	YE Runping， LI Qiaohong， GONG Weibo，et al.High-performance of nanostructured Ni/CeO₂ catalyst on CO₂ methanation［J］.Applied Catalysis B：Environmental，2020，268：118474.
11	GHORAI K， PANDA A， BHATTACHARJEE M，et al.Facile synthesis of CuCr₂O₄/CeO₂ nanocomposite：A new Fenton like catalyst with domestic LED light assisted improved photocatalytic activity for the degradation of RhB，MB and MO dyes［J］.Applied Surface Science，2021，536：147604.
12	VENTO-LUJANO E， GONZÁLEZ L A.Defect-induced modification of band structure by the insertion of Ce³⁺ and Ce⁴⁺ in SrTiO₃：A high-performance sunlight-driven photocatalyst［J］.Applied Surface Science，2021，569：151044.
13	LI Zhaoling， XU Jing， AN Yurong，et al.Development of direct Z-schemes 2D/2D Bi₂O₂CO₃/SrTiO₃ photocatalyst with interfacial interaction for photocatalytic CO₂ reduction［J］.Separation and Purification Technology，2023，311：123323.
14	VALIAN M， SOOFIVAND F， YUSUPOV M M，et al.Facile synthesis of SrTiO₃/CoAlMnO₄ nanocomposite：A rechargeable heterojunction photocatalyst with superior hydrogen storage capability［J］.International Journal of Hydrogen Energy，2022，47（74）：31624-31637.
15	李雨遥，李治，王云芸，等.氮掺杂SrTiO₃/TiO₂纳米棒异质结的制备及光催化活性［J］.功能材料，2020，51（1）：1189-1195.
	LI Yuyao， LI Zhi， WANG Yunyun，et al.Preparation of N doped SrTiO₃/TiO₂ nanorods heterojunction and their photocatalystic activity［J］.Journal of Functional Materials，2020，51（1）：1189-1195.
16	LIU Gang， XU Sheng， LI Wenting，et al.Preparation of three-dimensional porous spherical TiO₂@g-C₃N₄ composites and visible light catalytic degradation on organic dyes［J］.Journal of Solid State Chemistry，2023，326：124223.
17	ZHANG Huoli， LI Man， WANG Wei，et al.Designing 3D porous BiOI/Ti₃C₂ nanocomposite as a superior coating photocatalyst for photodegradation RhB and photoreduction Cr（Ⅵ）［J］.Separation and Purification Technology，2021，272（21）：118911.
18	JI Yajun， XIE Yanping， ZHENG Lingyun，et al.Efficient activation of peroxymonosulfate by porous Co-doped LaFeO₃ for organic pollutants degradation in water［J］.Journal of Solid State Chemistry，2021，297：122077.
19	TASHKANDI N Y， ALBUKHARI S M， ISMAIL A A.Mesoporous TiO₂ enhanced by anchoring Mn₃O₄ for highly efficient photocatalyst toward photo-oxidation of ciprofloxacin［J］.Optical Materials，2022，127：112274.
20	ZHANG Shuo， SUN Meng， HEDTKE T，et al.Mechanism of heterogeneous Fenton reaction kinetics enhancement under nanos-cale spatial confinement［J］.Environmental Science & Technology，2020，54（17）：10868-10875.
21	ZHOU Yaohong， XIONG Wanming， JIN Yujing，et al.Catalytic aerobic oxidation of lignin-based vanillyl alcohol under base-free conditions over an efficient and reusable LaFeO₃ perovskite for vanillin production［J］.Green Chemistry，2023，25（3）：1179-1190.
22	YANG Gui， LIANG Yujun， ZHENG Han，et al.A self-circulating cerium-rich CeO_2- _x /Bi₂MoO₆ heterojunction catalyst for boosting photo-Fenton degradation of fluoroquinolone antibiotics［J］.Sepa-ration and Purification Technology，2023，309：123084.
23	郑永杰，卢致瑞，田景芝，等.TiO₂/MOFs的制备及污染物降解现状［J］.精细化工，2021，38（11）：2208-2218.
	ZHENG Yongjie， LU Zhirui， TIAN Jingzhi，et al.Preparation of TiO₂/MOFs and current status of pollutant degradation［J］.Fine Chemicals，2021，38（11）：2208-2218.
24	方嘉声，于光认，陈晓春，等.石墨烯掺杂分子筛负载氧化铁芬顿催化降解苯酚影响因素的研究［J］.环境科学学报，2015，35（11）：3529-3537.
	FANG Jiasheng， YU Guangren， CHEN Xiaochun，et al.The influence factors on the Fenton catalytic degradation of phenol using ironloaded graphene modified molecular sieve catalyst［J］.Acta Scientiae Circumstantiae，2015，35（11）：3529-3537.

初始pH	ρ（Fe）/（mg·L^-1）	初始pH	ρ（Fe）/（mg·L^-1）
2	0.21	8	0.05
4	0.14	10	0.04
6	0.09

[1]	史王芳, 张永胜. 混凝土基非金属硼掺杂富氮氮化碳降解NO _x 性能研究[J]. 无机盐工业, 2025, 57(3): 116-123.
[2]	李子罕, 张佳琦, 李世卓, 李欣雨, 刘少卓, 王一豪, 郝玉翠, 刘剑, 李彦华. CdS/g-C₃N₄复合光催化剂的合成及催化机理研究[J]. 无机盐工业, 2025, 57(3): 124-132.
[3]	孙庆昊, 李克艳, 郭新闻. Pd/ZnIn₂S₄纳米片光催化苯甲醇氧化耦合产氢的研究[J]. 无机盐工业, 2025, 57(1): 113-119.
[4]	刘光明. C₃N₅/NH₂-MIL-125（Ti）改性混凝土砂浆光催化和力学性能研究[J]. 无机盐工业, 2025, 57(1): 120-128.
[5]	张飞刚, 刘中利. CuO/g-C₃N₄复合材料在有机染料降解和超级电容器中的应用研究[J]. 无机盐工业, 2025, 57(1): 129-136.
[6]	石萌轲, 范赵亚, 岳峰, 张硕, 孟阳, 张宏忠. 空气中CO₂电辅助式光催化高选择性转化的研究[J]. 无机盐工业, 2024, 56(9): 154-163.
[7]	孙延龙, 袁广胜, 王红军. 基于钯修饰的介孔TiO₂纳米棒高效光降解四环素的研究[J]. 无机盐工业, 2024, 56(9): 147-153.
[8]	张国强, 戎西林, 肖振芳, 薛自然, 程昊, 冯军, 刘泉, 陆瑶, 黄文艺. 甘蔗渣碳气凝胶负载纳米氧化锌的制备及其光催化性能研究[J]. 无机盐工业, 2024, 56(8): 131-138.
[9]	王雅雯, 王芳芳, 耿司宇, 鞠佳, 陈雷, 陈常东. SrTiO₃-SrWO₄的制备及其光催化性能研究[J]. 无机盐工业, 2024, 56(7): 143-149.
[10]	刘敏, 黄秀, 张理元. S型异质结光催化剂的研究进展[J]. 无机盐工业, 2024, 56(7): 18-27.
[11]	唐贝. ZnO/g-C₃N₄异质结光催化材料的制备及对吡啶的降解[J]. 无机盐工业, 2024, 56(4): 133-142.
[12]	黄佳楠, 陆啸宇, 王觅堂. 钡镧共掺杂对TaON降解亚甲基蓝染料的影响[J]. 无机盐工业, 2024, 56(2): 146-151.
[13]	左广玲, 王明辉, 彭云颖, 杜佳, 叶红勇. 蜂巢状LaVO₄/Bi₂O₃异质结光催化降解盐酸四环素的研究[J]. 无机盐工业, 2024, 56(11): 158-164.
[14]	崔向东, 刘思乐. g-C₃N₅纳米棒光电性能分析及对Cr（Ⅵ）和亚甲基蓝去除的研究[J]. 无机盐工业, 2024, 56(10): 159-168.
[15]	严钰, 周文元, 杨韵斐, 吴俊书, 王金淑, 孙领民. 硅酸铁钠光催化剂的表面调控及光还原除Cr（Ⅵ）性能研究[J]. 无机盐工业, 2024, 56(10): 141-150.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会

三维多孔LaFeO₃/CeO₂/SrTiO₃光芬顿和光催化协同脱色亚甲基蓝

Synergistic degradation of methylene blue by photo-Fenton and photocatalytic with 3D porous LaFeO₃/CeO₂/SrTiO₃

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 10

参考文献 24

相关文章 15

Metrics

本文评价

推荐阅读 0

催化剂	比表面积/（m²·g^-1）
LaFeO₃	5
3DP LaFeO₃	71
3DP LaFeO₃/CeO₂	64
3DP LaFeO₃/CeO₂/SrTiO₃	58
