介孔Cu/MS-1催化羟基化苯酚合成苯二酚

doi:10.11962/1006-4990.2020-0110

摘要/Abstract

摘要：

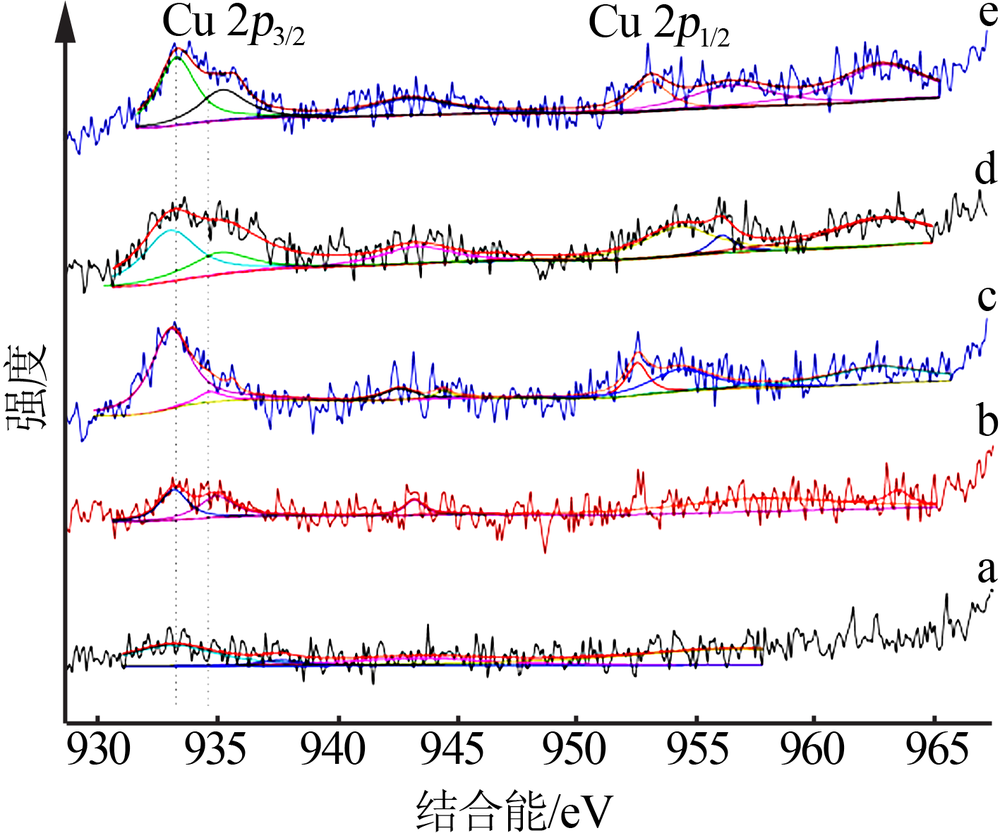

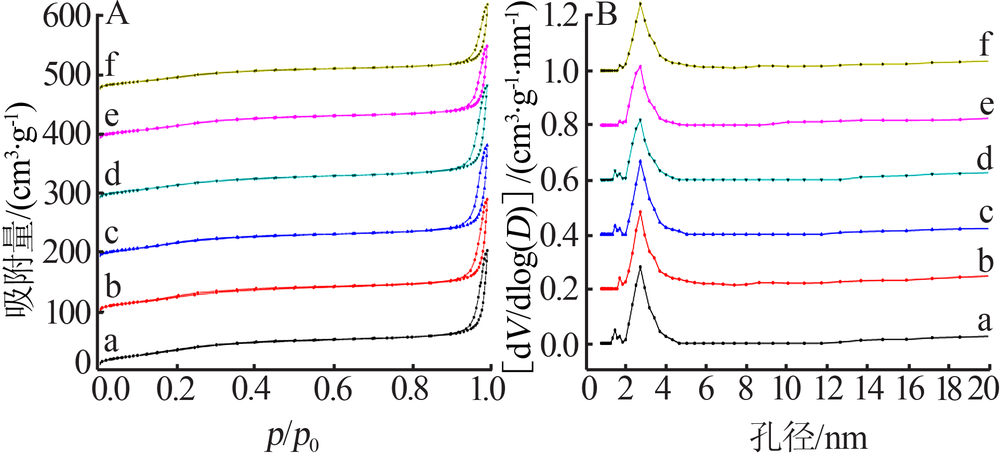

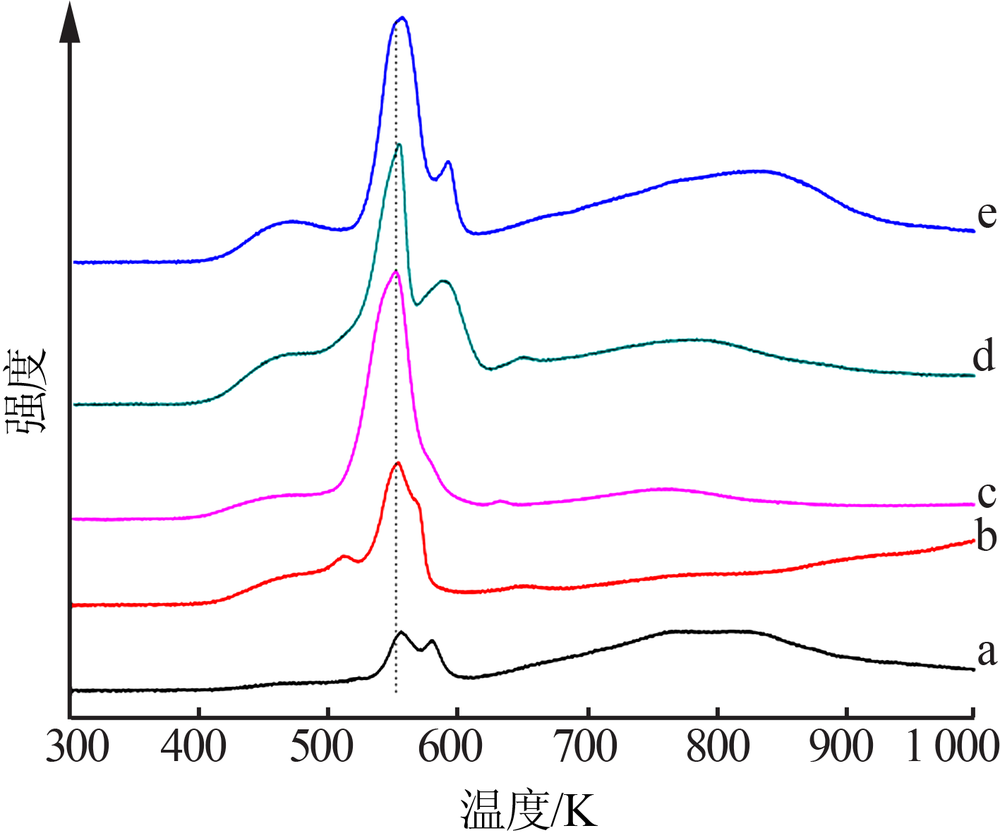

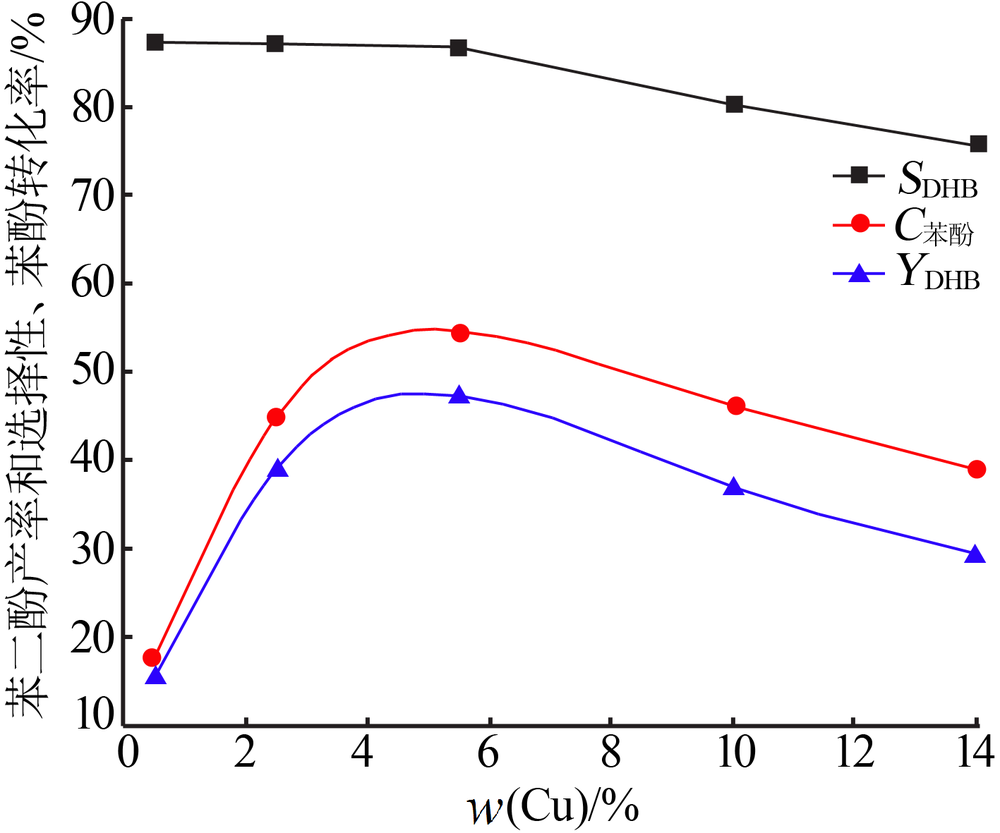

以十六烷基三甲基溴化铵（CTAB）为模板剂,采用溶胶凝胶法合成具有介孔的S-1载体（MS-1）,浸渍法制备Cu/MS-1催化剂,用于以双氧水为氧化剂、苯酚直接羟基化合成苯二酚的反应,运用正交实验法[L₂₅（5⁶）]对反应条件进行优化。使用X射线电子能谱（XPS）、N₂的等温吸附-脱附和 H₂的程序升温还原等方法对催化剂的结构和性能做了表征。结果表明：具有介孔的Cu/MS-1有利于反应物和生成物的快速扩散,催化性能明显优于Cu/S-1;高分散CuO相对质量分数最高的5.5% Cu/MS-1的催化活性最好,在优化条件下,苯二酚的产率达到47.2%,选择性为86.7%。具有介孔和MFI结构的Cu/MS-1稳定性强,重复使用5次后,苯二酚的产率仍达43.2%。

关键词: 苯二酚, CTAB, 催化剂, 苯酚, 双氧水

Abstract:

The mesoporous S-1（MS-1） supporter was synthesized by sol-gel method with cetyltrimethyl-ammonium bromide（CTAB） as template.Cu/MS-1 catalyst was prepared by impregnation method,and then it was used to synthesis dihydroxy-benzenes directly by hydroxylation phenol with H₂O₂ as oxidation.The experimental conditions were optimized by orthogonal experimental[L₂₅（5⁶）].The structure and properties of catalyst were characterized by means of X-ray photoelectron spectro-scopy（XPS）,N₂ adsorption-desorption and H₂ temperature programmed reduction et al.The results showed that Cu/ MS-1 with mesoporous promised to rapid diffusion in pore of reactants and products,and was better catalytic performance than that of Cu/S-1.Under optimal conditions,the 5.5% Cu/MS-1 with the highest relative mass fraction of highly dispersed CuO pos-sessed the best catalytic activity among the catalysts; the yield of dihydroxybenzenes was 47.2% with the selectivity of 86.7%.The catalysts with mesoporous and MFI structure had a good sustainability,and its dihydroxybenzenes yield was 43.2% after recycle 5 times.

Key words: dihydroxybenzenes, CTAB, catalyst, phenol, hydrogen peroxide

中图分类号:

TQ131.21

余天华,黄启朋,司徒成. 介孔Cu/MS-1催化羟基化苯酚合成苯二酚[J]. 无机盐工业, 2021, 53(2): 94-99.

Yu Tianhua,Huang Qipeng,Situ Cheng. Synthesis of dihydroxybenzenes by hydroxylation of phenol over Cu/ MS-1 with mesoporous[J]. Inorganic Chemicals Industry, 2021, 53(2): 94-99.

图/表 10

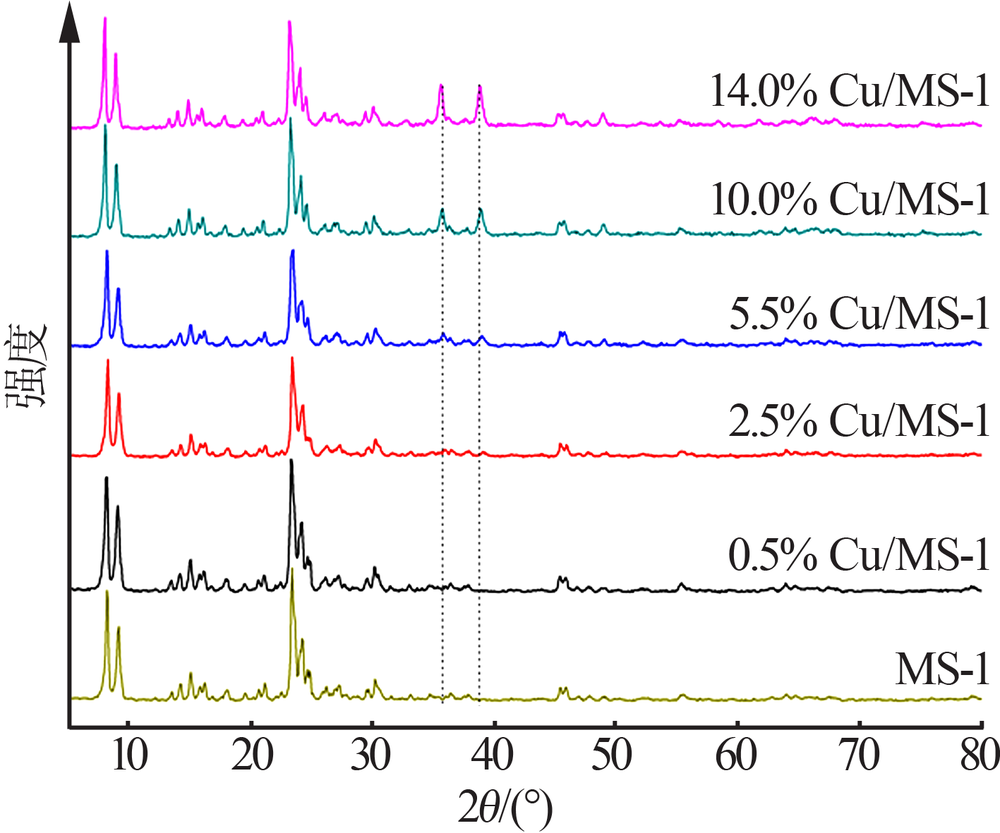

图1

表1

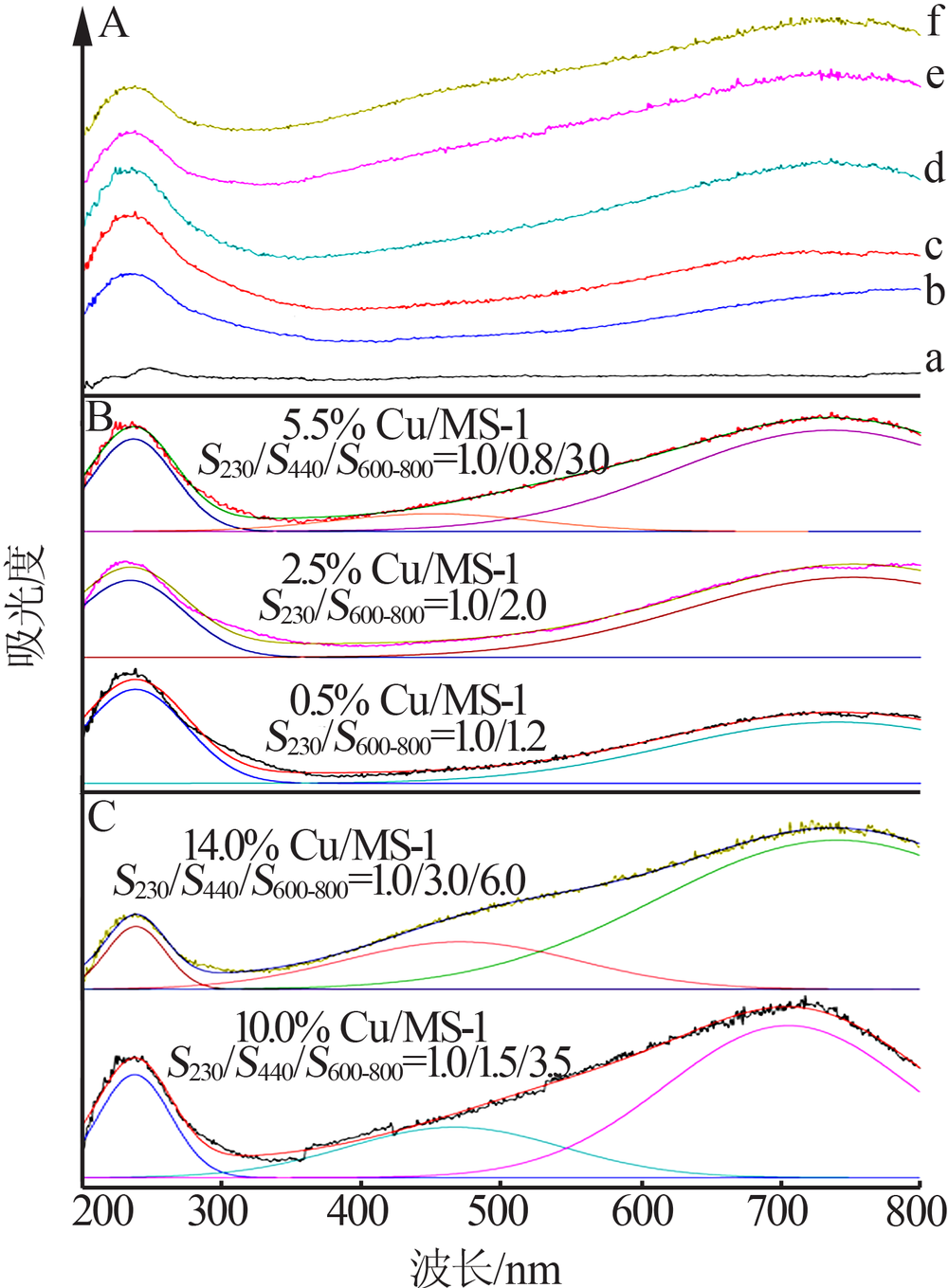

图2

图3

图4

图5

表2

表3

图6

表4

参考文献 26

[1]	Kuzniarska-Biernacka I, Raposo M M M, Batista R M F, et al. Binu-clear furanyl-azine metal complexes encapsulated in NaY zeolite as efficiently heterogeneous catalysts for phenol hydroxylation[J]. Journal of Molecular Structure, 2020,1206:127687-127697.
[2]	Li B, Wu W B, Zhang T Y, et al. Ferrocene particles incorporated into Zr-based metal-organic frameworks for selective phenol hydro-xylation to dihydroxybenzenes[J].RSC Advances,2017(7):38691-38698.
[3]	Liu M X, Wang H, Zhu P Q, et al. Tuning the oxidation state of co-pper in CuMgAl hydrotalcite using partially oxidized MoS₂ for effi-cient hydroxylation of phenol[J]. Catalysis Communications, 2019,129:105752-105754.
[4]	Ivanov D P, Pirutko L V, Panov G I. Effect of steaming on the cataly-tic performance of ZSM-5 zeolite in the selective oxidation of phe-nol by nitrous oxide[J]. Journal of Catalysis, 2014,311:424-432.
[5]	Ivanov D P, Sobolev V I, Pirutko L V, et al. New way of hydroqui-none and catechol synjournal using nitrous oxide as oxidant[J]. Adv-anced Synjournal & Catalysis, 2002,344:986-995.
[6]	Hai L, Zhang T Y, Zhang X, et al, Catalytic hydroxylation of phenol to dihydroxybenzene by Fe(Ⅱ) complex in aqueous phase at am-bient temperature[J]. Catalysis Communications, 2017,101:93-97.
[7]	Tahara S, Nagai S, Hayashi Y, et al. Method for preparing catechol and hydroquinone：US,3920756[P],1975-11-18.
[8]	邵艳秋, 张宇婷, 姜振双, 等. 水解剂氟化铵对Fe-SBA-15结构及催化性能的影响[J]. 无机盐工业, 2019,51(9):97-101.
[9]	Wu G Q, Xiao J H, Zhang L, et al. Copper-modified TS-1 catalyzed hydroxylation of phenol with hydrogen peroxide as the oxidant[J]. RSC Advances, 2016,6:101071-101078.
[10]	Karakhanov E A, Maximov A L, Kardasheva Y S, et al, Copper nanoparticles as active catalysts in hydroxylation of phenol by hydrogen peroxide[J]. Applied Catalysis A:General, 2010,385:62-72.
[11]	Xiao F S, Sun J M, Meng X J, et al. Synjournal and structure of co-pper hydroxyphosphate and its high catalytic activity in hydroxyla-tion of phenol by H₂O₂[J]. Journal of Catalysis, 2001,199:273-281.
[12]	Noreña-Franco L, Hernandez-Perez I, Aguilar-Pliego J, et al. Se-lective hydroxylation of phenol employing Cu-MCM-41 catalys-ts[J]. Catalysis Today, 2002,75:189-195.
[13]	Zhang H L, Tang C J, Lv Y Y, et al. Synjournal,characterization,and catalytic performance of copper-containing SBA-15 in the phenol hydroxylation[J]. Journal of Colloid and Interface Science, 2012,380:16-24.
[14]	Tang H L, Ren Y, Yue B, et al. Cu-incorporated mesoporous ma-terials:Synjournal,characterization and catalytic activity in phenol hydroxylation[J]. Journal of Molecular Catalysis A:Chemical, 2006,260:121-127.
[15]	余天华, 敖厚豫, 黄启鹏, 等. 多级孔钛硅分子筛制备及催化羟基化性能[J]. 无机盐工业, 2019,51(9):102-105.
[16]	Flanigen E M, Bennett J M, Grose R W, et al. Silicalite,a new hy-drophobic crystalline silica molecular sieve[J]. Nature, 1978,271:512-516.
[17]	任宣籼, 宋万仓, 邱宇, 等. 低成本多级孔TS-1的制备及其氧化脱硫性能[J]. 无机盐工业, 2019,51(2):79-83.
[18]	He Z, Lin H, He P, et al. Effect of boric oxide doping on the stabi-lity and activity of a Cu-SiO₂ catalyst for vapor-phase hydrogena-tion of dimethyl oxalate to ethylene glycol[J]. Journal of Catalysis, 2011,277:54-63.
[19]	Yang X Y, Chen L H, Li Y, et al. Hierarchically porous materials:Synjournal strategies and structure design[J]. Chemical Society Re-views, 2017,46(2), 481-558.
[20]	付辉, 李会鹏, 赵华, 等. WO₃-ZSM-5/MCM-41催化剂的合成及其催化氧化脱硫研究[J]. 无机盐工业, 2014,46(7):75-78.
[21]	Hossain K Z, Sayari A. Synjournal of onion-like mesoporous silica from sodium silicate in the presence of α,ω-diamine surfac-tant[J]. Microporous and Mesoporous Materials., 2008,114:387-394.
[22]	Serrano D P, Sanz R, Pizarro P, et al. Hierarchical TS-1 zeolite as an efficient catalyst for oxidative desulphurization of hydrocarbon fractions[J]. Applied Catalysis B:Environmental, 2014,146(3):35-42.
[23]	Xu J Q, Qin Y H, Wang H L, et al. Recent advances in copper-ba-sed zeolite catalysts with low-temperature activity for the selecti-vecatalytic reduction of NO_x with hydrocarbons[J]. New Journal of Chemistry, 2020,44:817-831.
[24]	Wang Y C, Liu Z R, Tan C, et al. High catalytic activity of CuY ca-talysts prepared by high temperature anhydrous interaction for the oxidative carbonylation of methanol[J]. RSC Advances, 2020,10:3293-3300.
[25]	Bawaked S, Narasimharao K. Structural and catalytic properties of copper silicate nanomaterials[J]. Scientific Reports, 2020,10.Doi: 10.1038/s41598-020-57502-z.
[26]	陈魁. 实验设计与分析[M]. 北京: 清华大学出版社, 1995.

样品	比表面积/ （m²·g^-1）	孔体积/ （cm³·g^-1）	平均孔径/ nm
MS-1	420	0.43	2.65
0.5% Cu/MS-1	400	0.42	2.65
2.5% Cu/MS-1	387	0.41	2.66
5.5% Cu/MS-1	375	0.41	2.68
10.0% Cu/MS-1	368	0.38	2.71
14.0% Cu/MS-1	339	0.35	2.73

水平	因素
水平	A 时间/ h	B w（铜）/%	C m（催化剂）/mg	D 温度/K	E n（H₂O₂）/ n（苯酚）	F w（双氧水）/%
1	1.0	0.5	40	303	1.2	10
2	2.0	2.5	50	313	1.4	15
3	3.0	5.5	60	323	1.6	20
4	4.0	10.0	70	333	1.8	25
5	5.0	14.0	80	343	2.0	30

实验编号	因素						苯二酚产率/%
实验编号	A	B	C	D	E	F	苯二酚产率/%
1	1	1	1	1	1	1	5.6
2	1	2	2	2	2	2	15.2
3	1	3	3	3	3	3	26.4
4	1	4	4	4	4	4	19.1
5	1	5	5	5	5	5	8.2
6	2	1	2	3	4	5	20.9
7	2	2	3	4	5	1	10.6
8	2	3	4	5	1	2	15.5
9	2	4	5	1	2	3	10.8
10	2	5	1	2	3	4	13.5
11	3	1	3	5	2	4	11.2
12	3	2	4	1	3	5	16.5
13	3	3	5	2	4	1	14.5
14	3	4	1	3	5	2	9.5
15	3	5	2	4	1	3	20.5
16	4	1	4	2	5	3	24.8
17	4	2	5	3	1	4	35.8
18	4	3	1	4	2	5	43.7
19	4	4	3	5	3	1	6.2
20	4	5	2	1	4	2	9.2
21	5	1	5	4	3	2	15.7
22	5	2	1	5	4	3	5.6
23	5	3	2	1	5	4	20.2
24	5	4	3	2	2	5	17.2
25	5	5	4	3	1	1	9.1
K₁	74.5	78.2	77.9	62.3	86.5	46.0	∑K_i=405.5
K₂	71.3	83.7	86.0	85.2	98.1	65.1
K₃	72.2	120.3	71.6	101.7	78.3	88.1
K₄	119.7	62.8	85.0	109.6	69.3	99.8
K₅	67.8	60.5	85.0	46.7	73.3	106.5
K₁/5	14.9	15.6	15.6	12.5	17.3	9.2
K₂/5	14.3	16.7	17.2	17.0	19.6	13.0
K₃/5	14.4	24.1	14.3	20.3	15.7	17.6
K₄/5	23.9	12.6	17.0	21.9	13.9	20.0
K₅/5	13.6	12.1	17.0	9.3	14.7	21.3
R	10.3	12.0	3.1	12.6	5.7	12.1

催化剂重复使用次数	苯二酚产率/ %	苯二酚选择性/%	w（铜）/ %
0	47.2	86.7	5.24
1	44.6	86.3	5.20
2	43.8	86.8	5.18
3	43.4	87.0	5.16
4	43.2	86.6	5.15
