Ba 2+和In 3+共掺杂硅酸镧固体电解质的制备及性能

doi:10.11962/1006-4990.2019-0116

摘要/Abstract

摘要：

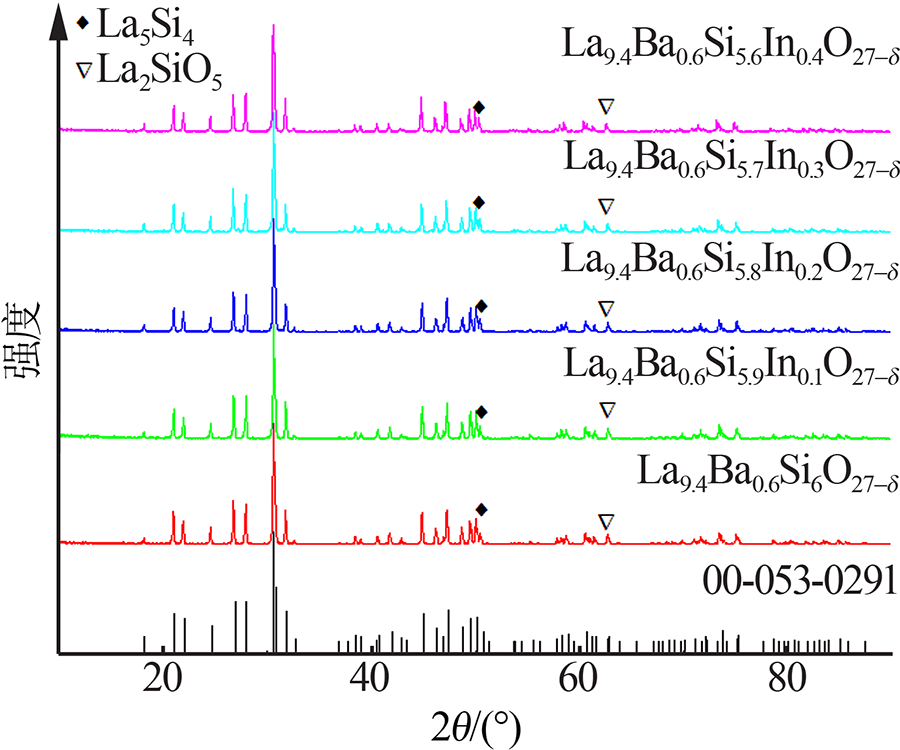

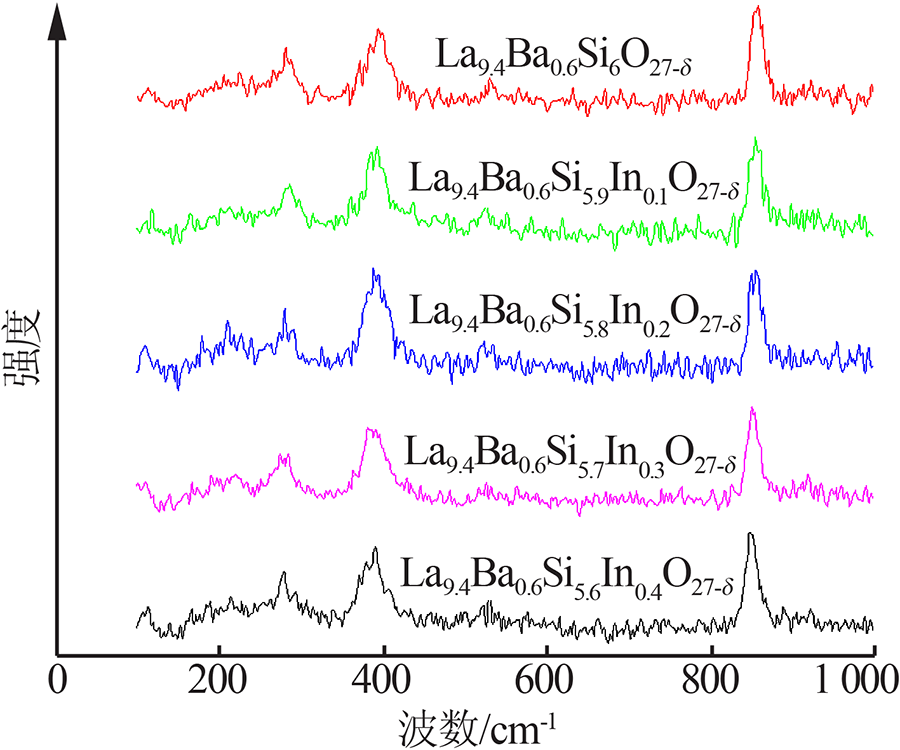

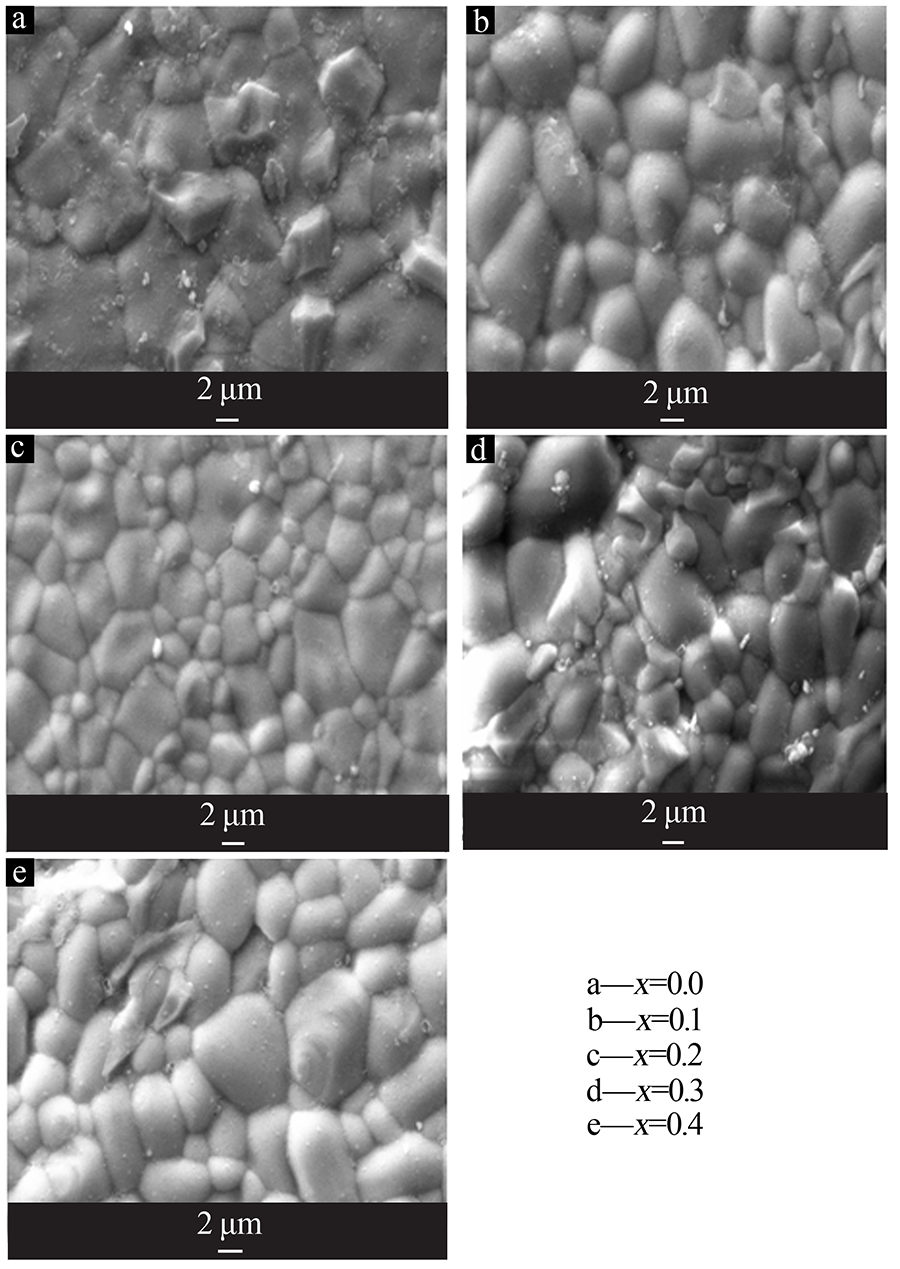

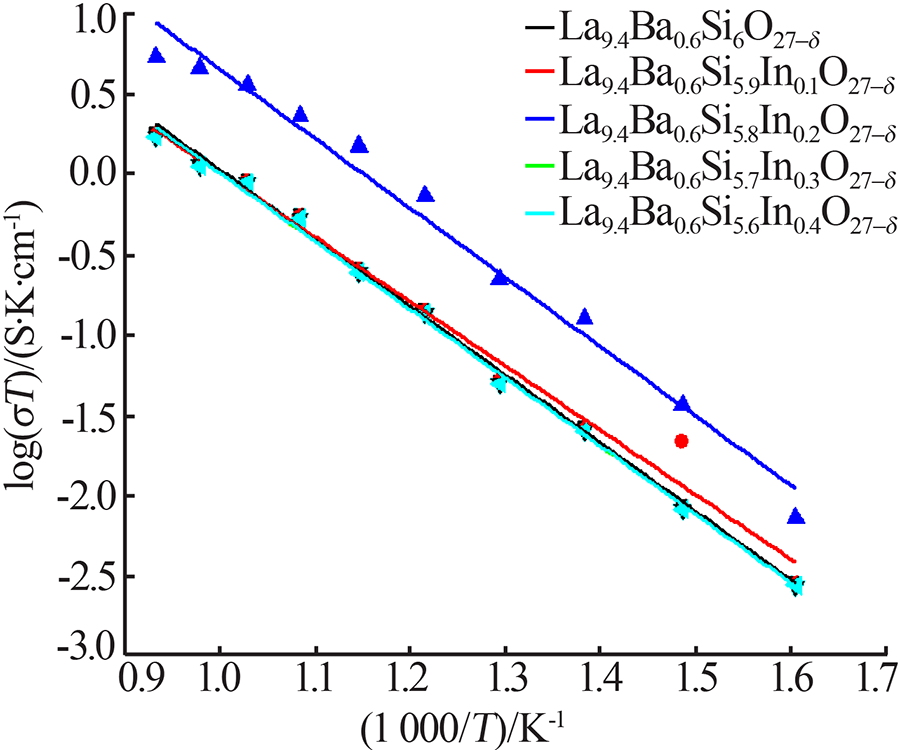

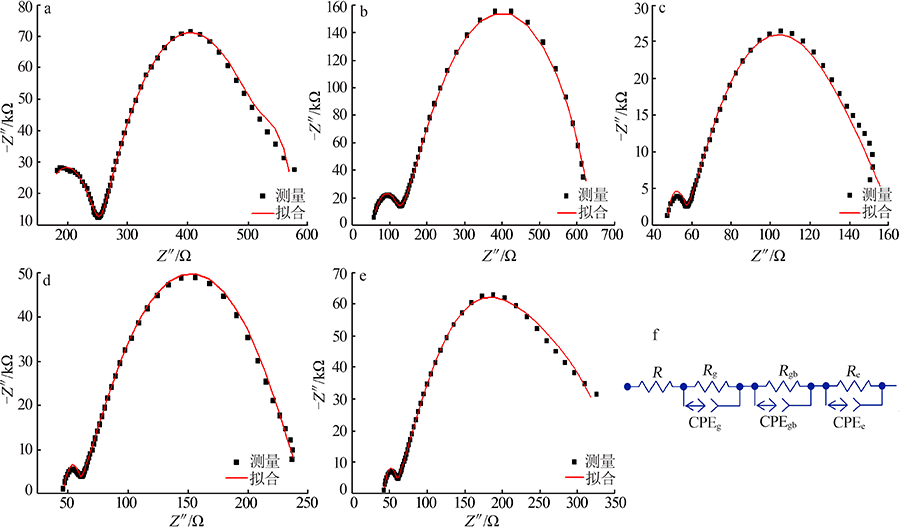

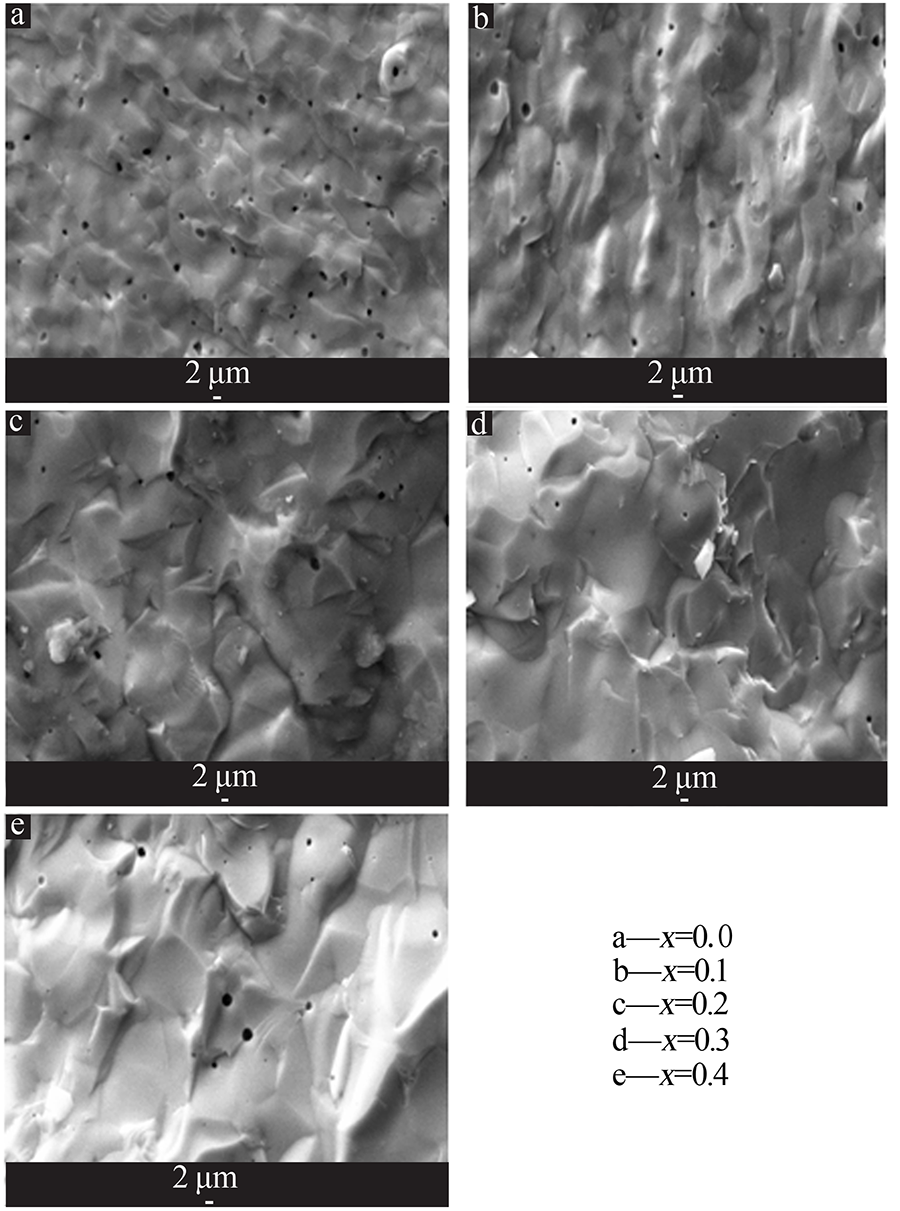

采用高温固相法制备磷灰石型硅酸镧陶瓷La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ（x=0,0.1,0.2,0.3,0.4）。采用XRD、SEM和拉曼光谱等测试分析手段表征了La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ固体电解质掺杂体系的相组成和微观形貌特征;采用交流阻抗谱测试研究了La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ掺杂体系在不同温度下的电导率变化规律。研究发现,所有La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ陶瓷试样的结晶度良好且均具有氧基磷灰石结构;仅在La位掺杂Ba ²⁺时,La_9.4Ba_0.6Si₆O_27-_δ试样晶粒形貌不规则,In ³⁺掺杂后晶粒呈等轴状均匀生长。各个试样的总电导率与测试温度之间符合Arrhenius关系。In ³⁺最佳掺杂量x为0.2,此时La_9.4Ba_0.6Si_5.8In_0.2O_27-_δ陶瓷具有最高的电导率,其电导率（1 073 K）、活化能和指前因子分别为5.08×10 ^-3 S/cm、0.86 eV和2.91×10 ¹¹ S·K/cm。

关键词: 磷灰石型硅酸镧, 共掺杂, 电导率, 高温固相法

Abstract:

Apatite-type lanthanum silicate ceramic La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ（x=0,0.1,0.2,0.3,0.4） were synthesized by the high-temperature solid-phase reaction method.The phase composition and microstructure characteristics of the La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ solid electrolyte doped system were characterized by XRD,SEM and Raman spectrum.The change law of conductivity at different temperatures of La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ were studied by AC impedance spectroscopy test.It was found that all the ceramic samples of La_9.4Ba_0.6Si_6-_xIn_xO_27-_δ had good crystallinity and oxygen radicals apatite structure.The grain shape of La_9.4Ba_0.6Si₆O_27-_δ sample only doping Ba ²⁺ in La was irregular.The grain of the samples grew evenly in uniform axis after doped by In ³⁺.There was Arrhenius behavior between total conductivity of all samples and test temperatures.The optimal doping amount x of In ³⁺ was 0.2.La_9.4Ba_0.6Si_5.8In_0.2O_27-_δ ceramic had the highest conductivity.The conductivity（1 073 K）,activation energy and former factors were 5.08×10 ^-3 S/cm,0.86 eV and 2.91×10 ¹¹ S·K/cm,respectively.

Key words: apatite-type lanthanum silicate, co-doped, conductivity, high temperature solid phase method

中图分类号:

TQ133.3

赵艳琴,闫书山,王岭,曹吉林. Ba ²⁺和In ³⁺共掺杂硅酸镧固体电解质的制备及性能[J]. 无机盐工业, 2020, 52(1): 49-53.

Zhao Yanqin,Yan Shushan,Wang Ling,Cao Jilin. Preparation and performance of Ba ²⁺ and In ³⁺ co-doped lanthanum oxyapatite solid electrolyte[J]. Inorganic Chemicals Industry, 2020, 52(1): 49-53.

图/表 8

图1

表1

图2

图3

图4

图5

图6

表2

参考文献 16

[1]	韩炳旭, 王岭, 戴磊 , 等. 磷灰石型硅酸镧基氧离子导体研究进展[J]. 功能材料, 2013,44(S1):21-27.
[2]	田立朋, 任志华 . 磷灰石结构硅酸镧氧离子导体的研究进展[J]. 材料导报, 2012,26(z1):216-219.
[3]	Zhang Lan, He Hongquan, Wu Hongwei , et al. Synjournal and characterization of doped La₉ASi₆O_26.5(A=Ca、Sr、Ba) oxyapatite electrolyte by a water-based gel-casting route[J]. International Journal of Hydrogen Energy, 2011,36(11):6862-6874.
[4]	Xiang Jun, Liu Zhanguo, Ouyang Jiahu , et al. Synjournal,structure and electrical properties of rare-earth doped apatite-type lanthanum silicates[J]. Electrochemical Acta, 2012,65:251-256.
[5]	Yuan Wenhui, Shen Rongping, Li Li . Synjournal and conductivity of oxyapatite ionic conductor La₁₀-_xV_x(SiO₄)₆O₃+_x[J]. Chinese Journal of Chemical Engineering, 2010,18(2):328-332.
[6]	Feng Yadi, Dai Lei, Meng Wei , et al. Microstructure and electrical conductivity of alkaline elements doped apatite-type La₁₀Si₆O₂₇ electrolytes[J]. Ceramics International, 2017,43(1):289-295.
[7]	Xiang Jun, Liu Zhanguo, Ouyang Jiahu , et al. Synjournal and electrical conductivity of La₁₀Si_5.5B_0.5O₂₇+_δ(B=In,Si,Sn,Nb) ceramics[J]. Solid State Ionics, 2012,220:7-11.
[8]	Yin G C, Yin H, Wang X , et al. Mg doping effect on high-pressure behaviors of apatite-type lanthanum silicate[J]. J.Alloys Comp., 2014,611:24-29.
[9]	Shi Q, Lu L, Jin H , et al. Electrical properties and thermal expansion of cobalt doped apatite-type lanthanum silicates based electrolytes for IT-SOFC[J]. Mater.Res.Bull., 2012,47:719-723.
[10]	Cao X G, Jiang S P . Sinterability and conductivity of barium doped aluminium lanthanum oxyapatite La_9.5Ba_0.5Si_5.5Al_0.5O_26.5 electrolyte of solid oxide fuel cells[J]. J.Alloys Comp., 2012,523:127-133.
[11]	Cao X G, Jiang S P . Effect of Sr and Al or Fe co-doping on the sinterability and conductivity of lanthanum silicate oxyapatite electrolytes for solid oxide fuel cells[J]. Int.J.Hydrogen Energy, 2014,39:19093-19101.
[12]	Cao X G, Jiang S P, Li Y Y . Synjournal and characterization of calcium and iron co-doped lanthanum silicate oxyapatites by sol-gel process for solid oxide fuel cells[J]. J.Power Sources, 2015,293:806-814.
[13]	Dai Lei, Han Wen, Li Yuehua , et al. Synjournal and characterization of Al ³+ and M (M =W ⁶+,In ³+,Nb ⁵+,Mg ²+) co-doped lanthanum silicate oxy-apatite electrolytes [J]. International Journal of Hydrogen Energy, 2016,41(26):11340-11350.
[14]	Nojiri Y, Tanase S, Iwasa M , et al. Ionic conductivity of apatite-type solid electrolyte material,La₁₀-_xBa_xSi₆O₂₇-_x_/2(x=0-1),and its fuel cell performance[J]. J.Power Sources, 2010,195:4059-4064.
[15]	相珺 . 阳离子掺杂氧基磷灰石型硅酸镧的组织结构与电学性能[D]. 哈尔滨:哈尔滨工业大学, 2013.
[16]	周勇华, 方莹, 李镇 , 等. 铁位掺杂对磷酸铁锂电化学性能的影响[J]. 无机盐工业, 2014,46(3):75-78.

固体电解质	a/nm	b/nm	c/nm	V/nm³
La₁₀Si₆O_27-_δ	0.9709	0.9709	0.7176	0.585
La_9.4Ba_0.6Si₆O_27-_δ	0.9748	0.9748	0.7233	0.595
La_9.4Ba_0.6Si_5.9In_0.1O_27-_δ	0.9729	0.9729	0.7229	0.592
La_9.4Ba_0.6Si_5.8In_0.2O_27-_δ	0.9733	0.9733	0.7237	0.593
La_9.4Ba_0.6Si_5.7In_0.3O_27-_δ	0.9735	0.9735	0.7244	0.594
La_9.4Ba_0.6Si_5.6In_0.4O_27-_δ	0.9738	0.9738	0.7249	0.595

电解质	电导率σ/ （S·cm^-1）	活化能 E/eV	指前因子 σ₀/（S·K·cm^-1）
La₁₀Si_5.8In_0.2O_27-_δ	1.54×10^-3	0.83	6.45×10⁹
La_9.4Ba_0.6Si₆O_27-_δ	1.17×10^-3	0.84	7.28×10⁹
La_9.4Ba_0.6Si_5.9In_0.1O_27-_δ	1.66×10^-3	0.80	1.80×10⁹
La_9.4Ba_0.6Si_5.8In_0.2O_27-_δ	5.08×10^-3	0.86	2.91×10¹¹
La_9.4Ba_0.6Si_5.7In_0.3O_27-_δ	1.62×10^-3	0.84	6.66×10⁹
La_9.4Ba_0.6Si_5.6In_0.4O_27-_δ	1.62×10^-3	0.84	6.67×10⁹
