纳米ScSZ基电解质中低温导电性研究进展

doi:10.19964/j.issn.1006-4990.2020-0369

摘要/Abstract

摘要：

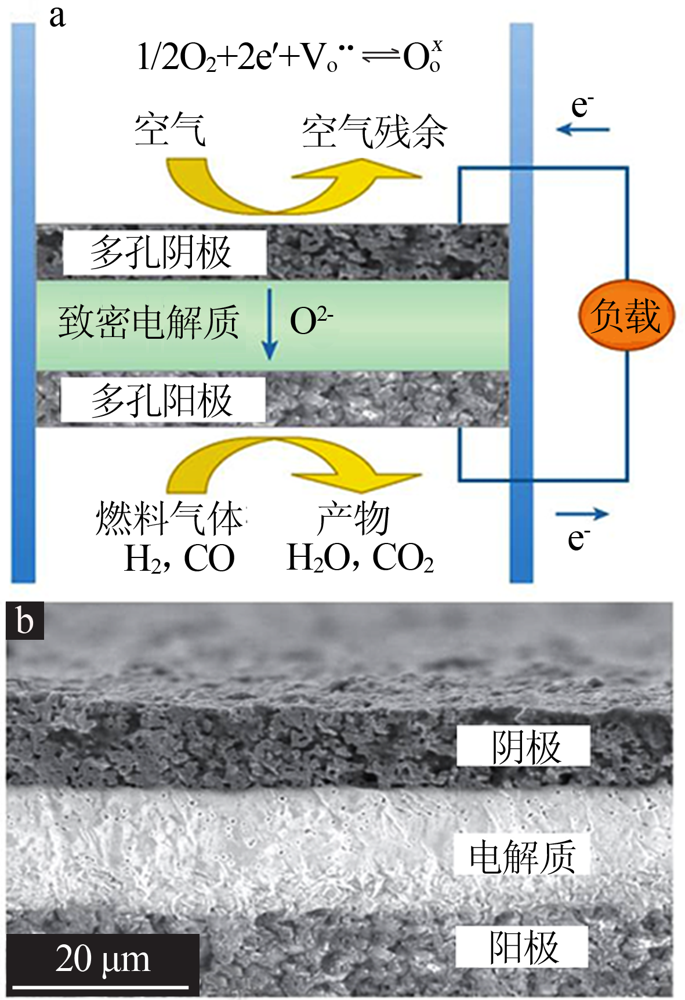

固体氧化物燃料电池（SOFC）适用于多种燃料气体,高效清洁,是最有前景的燃料电池之一。氧化钪（Sc₂O₃）掺杂二氧化锆（ZrO₂）系列（ScSZ）使氧化锆基电解质表现出优异的离子导电性。ScSZ基电解质晶粒纳米化呈现出了很好的电学性能而得到广泛深入的研究。但是ScSZ基电解质在中低温下会发生相变,产生低导电性的菱形相而影响其离子电导率。系统总结了单元或二元氧化物掺杂ScSZ电解质在中低温下的物相、晶体结构及电导率。多元氧化物复合掺杂ScSZ可有效防止在中低温下发生相变、稳定立方相ScSZ。采用不同方法制备纳米ScSZ基电解质,可很好地提高电解质的电导率。提出了ScSZ系列在中低温范围内（600~800 ℃）的发展方向：优化掺杂成分和掺杂量提高晶粒晶界电导率,使用不同工艺制备纳米电解质或不同制备方法制备新型结构电解质材料。

关键词: 精炼镁渣, 破碎风选, 镁珠, ScSZ基电解质, 氧化钪, 二氧化锆, 电导率

Abstract:

Solid oxide fuel cell（SOFC） is one of the most promising fuel cells,which is efficient and clean and suitable for a variety of fuel gases.Sc₂O₃ doped ZrO₂（ScSZ） series（including single or binary oxides doped ScSZ） makes zirconia-based electrolyte shows excellent ionic conductivity.The nano-crystallization of ScSZ-based electrolyte has been widely studied due to its excellent electrical properties.However,ScSZ-based electrolyte will undergo phase transition at medium and low tem-perature,resulting in rhombic phase with low conductivity,which affects its ionic conductivity.ScSZ electrolytes doped with single or binary oxides were systematically summarized.The results showed that multi-oxides doped ScSZ could effectively pre-vent from phase transformation at medium and low temperatures,stabilize cubic ScSZ.Nano-crystallization ScSZ based elec-trolytes prepared by different methods could improve the ionic conductivity very well.The development direction of ScSZ se-ries in medium and low temperature（600~800 ℃） was proposed：the conductivity of grain and grain boundary could be im-proved through optimizing the doped composition,nano-crystallization and electrolyte materials with novel structures could be prepared by different preparation methods and parameters.

Key words: refined magnesium slag, crushing and winnowing, magnesium beads, ScSZ-based electrolyte, Sc₂O₃, ZrO₂, conductivity

中图分类号:

梁天权,郭燕,陈锡勇,詹峰,张修海,曾建民. 纳米ScSZ基电解质中低温导电性研究进展[J]. 无机盐工业, 2021, 53(6): 87-94.

Liang Tianquan,Guo Yan,Chen Xiyong,Zhan Feng,Zhang Xiuhai,Zeng Jianmin. Research progress of conductivity of nano ScSZ-based electrolyte at medium and low temperature[J]. Inorganic Chemicals Industry, 2021, 53(6): 87-94.

图/表 9

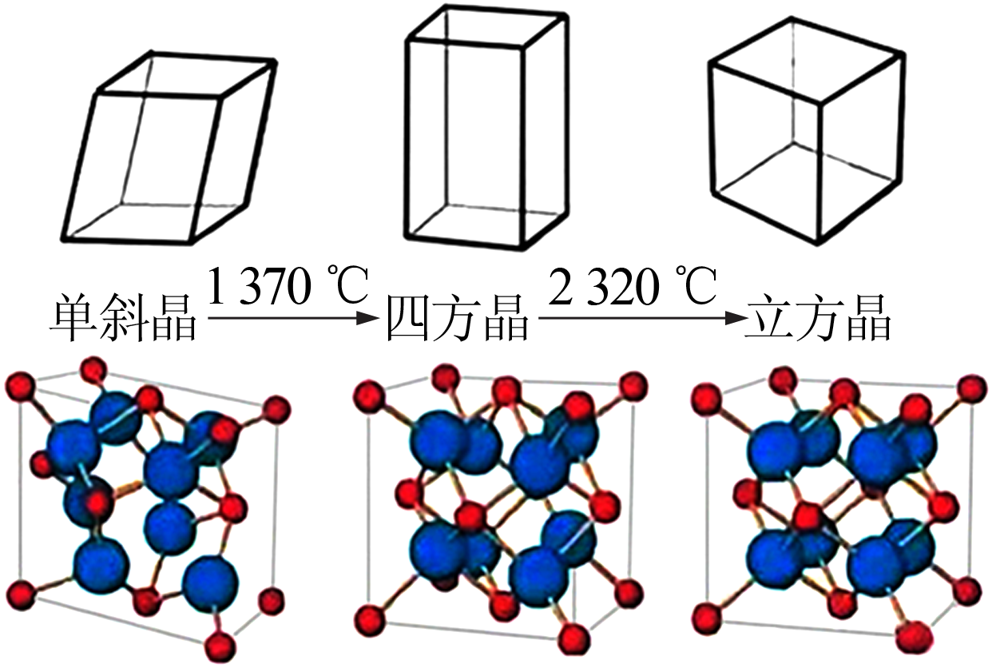

图1

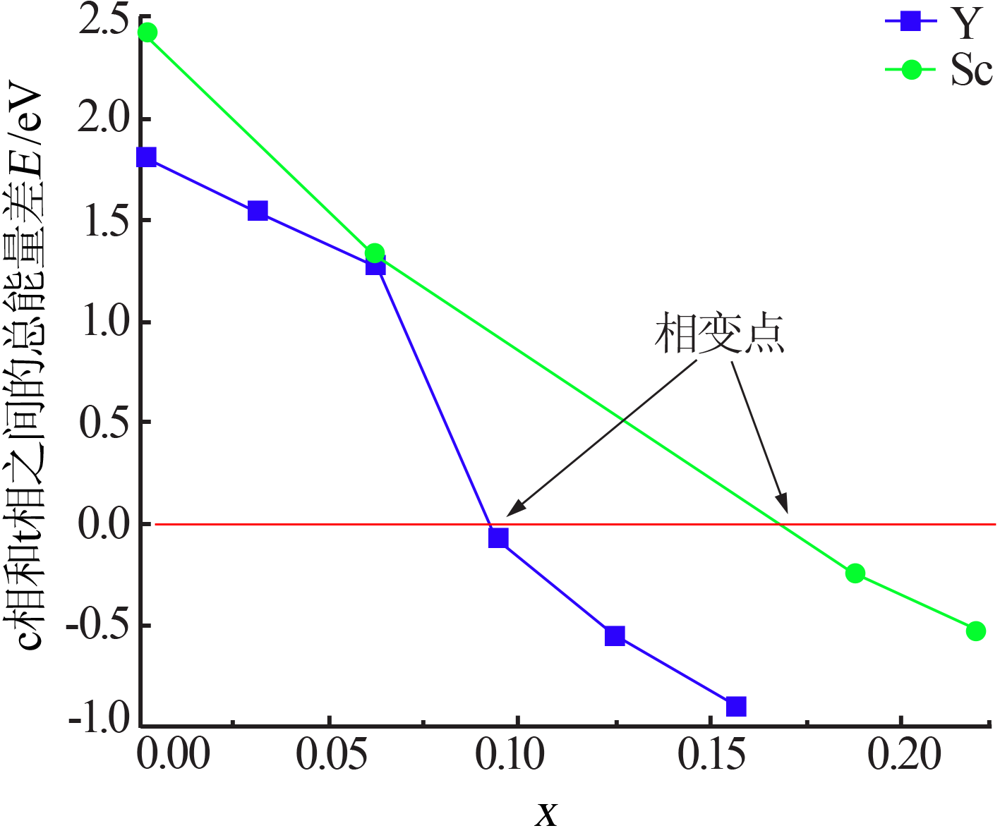

图2

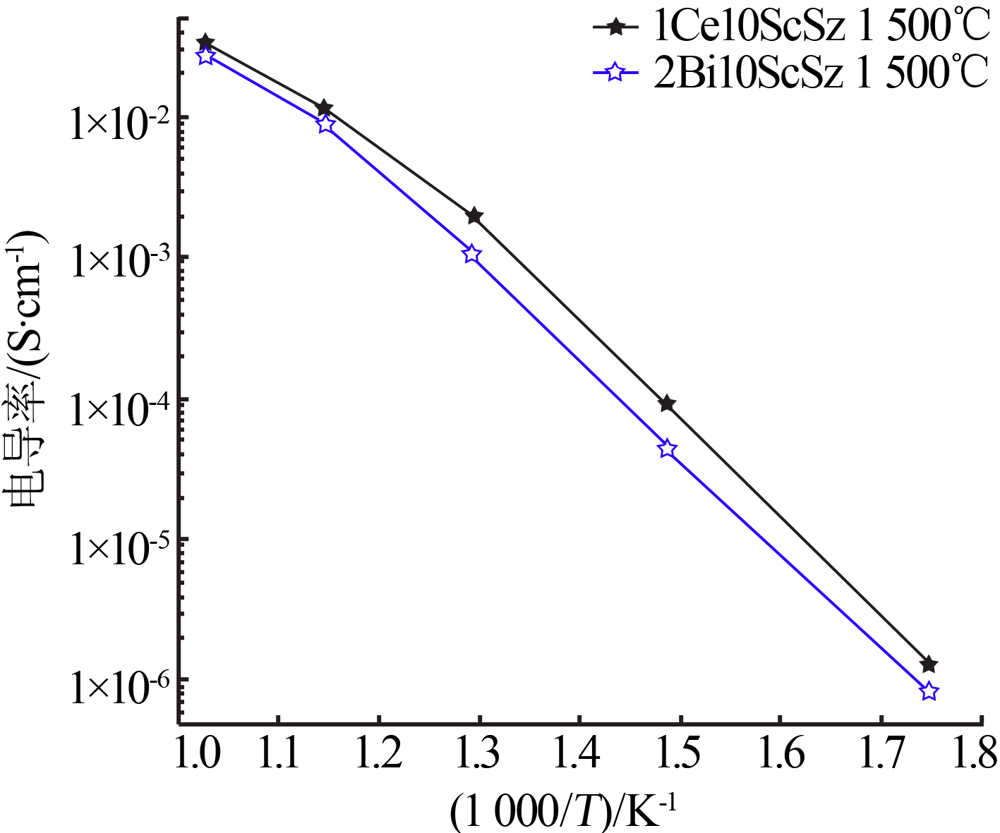

图3

表1

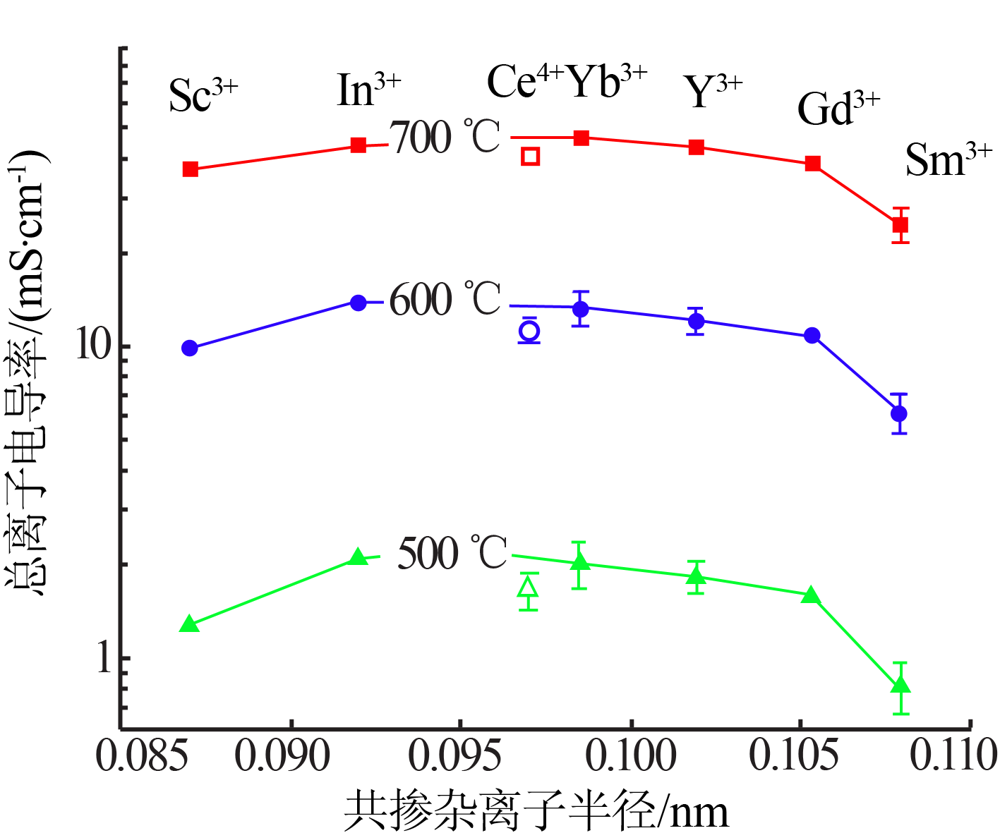

图4

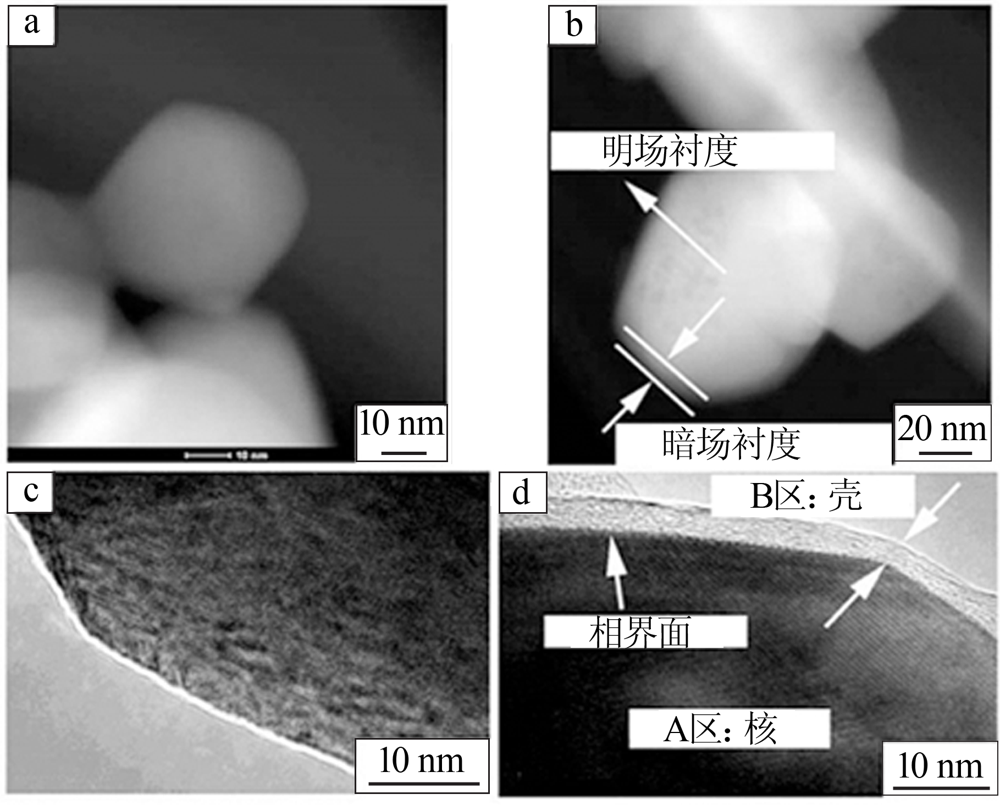

图5

表2

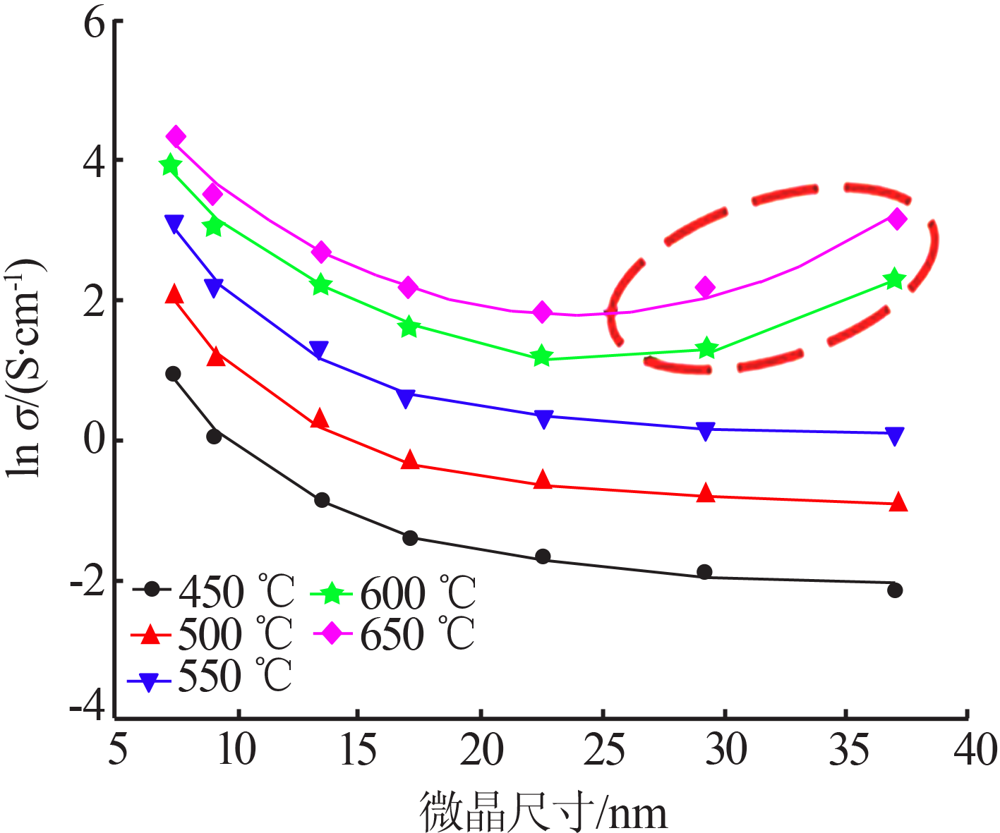

图6

图7

参考文献 61

[1]	吴雨泽, 王宇旸, 范红途. 固体氧化物燃料电池(SOFC)系统的研究现状[J]. 能源研究与利用, 2019(1):40-46.
[2]	Ivers-Tiffee E, Weber A, Herbstritt D. Materials and technologies for SOFC-components[J]. Journal of the European Ceramic Society, 2001,21(10):1805-1811.
[3]	Raharjo J, Ali S A M, Arjasa O P, et al. Synjournal and characteriza-tion of uniform-sized cubic ytterbium scandium co-doped zirconium oxide(1Yb10ScSZ) nanoparticles by using basic amino acid as or-ganic precursor[J]. International Journal of Hydrogen Energy, 2017,42(14):9274-9283.
[4]	Mohammadreza D, Muhamad A M Y, Noordin M Y. Investigation of three steps of hot corrosion process in Y₂O₃ stabilized ZrO₂ coatings including nano zones[J]. Rare Earths, 2014,32(10):989-1002.
[5]	Lu X, Zhao J, Wang X. Bi₂O₃ nanoporous filmfabricated by anodic oxidation and its photoelectrochemical performance[J]. Solid State Electrochem, 2013,17(4):1215-1219.
[6]	Patakangas J, Ma Y, Jing Y. Review and analysis of characterization methods and ionic conductivities for lowtemperature solid oxide fuel cells(LT-SOFC)[J]. Power Sources, 2014,263:315-331.
[7]	Rajeswari K, Suresh M B, Chakravarty D, et al. Effect of nano-grain size on the ionic conductivity of spark plasma sintered 8YSZ elec-trolyte[J]. International Journal of Hydrogen Energy, 2012,37(1):511-517.
[8]	Jiang H, Guo R, Ren J. Effects of ZnO additive on sinterability and electrochemical performances of 8YSZ electrolyte[J]. Journal of the Chinese Ceramic society, 2010,33(8):1434-1439.
[9]	Tiunova O V, Khabas T A, Bredikhin S I, et al. Zirconia-based solid electrolyte obtained by tape casting[J]. Inorganic Materials:App-lied Research, 2016,7(2):278-284.
[10]	Souza J P, Grosso R L, Muccillo R, et al. Phase composition and io-nic conductivity of zirconia stabilized with scandia and europia[J]. Materials Letters, 2018,229:53-56.
[11]	Ng C K, Ramesh S, Tan C Y, et al. Microwave sintering of ceria-do-ped scandia stabilized zirconia as electrolyte for solid oxide fuel cell[J]. International Journal of Hydrogen Energy, 2016,41(32):14184-14190.
[12]	Kumar A, Jaiswal A, Sanbui M, et al. Scandia stabilized zirconia-ceria solid electrolyte (xSc1CeSZ,5<x<11) for IT-SOFCs:Struc-ture and conductivity studies[J]. Scripta Materialia, 2016,121:10-13.
[13]	Fabbri E, Pergolesi D, Traversa E. Electrode materials:A challenge for the exploitation of protonic solid oxide fuel cells[J]. Science and Technology of Advanced Materials, 2010,11(4):044301-044309.
[14]	Lakshmi V V, Bauri R, Gandhi A S, et al. Synjournal and characte-rization of nanocrystalline ScSZ electrolyte for SOFCs[J]. Interna-tional Journal of Hydrogen Energy, 2011,36(22):14936-14942.
[15]	Xue Q, Huang X, Wang L, et al. Computational and experimental investigations of defect interaction and ionic conductivity in doped zirconia[J]. Physical Review Applied, 2018,10(1).Doi: 10.1103/PhysRevApplied.10.014032.
[16]	Tan J, Su Y, Tang H, et al. Effect of calcined parameters on micro-structure and electrical conductivity of 10Sc1CeSZ[J]. Journal of Alloys and Compounds, 2016,686:394-398.
[17]	Chen X, Zhou M, Shi J, et al. Microstructure and electrical conduc-tivity of A-site fully stoichiometric Na_0.5+_xBi_0.5-_xTiO₃-_δ with different Na/Bi ratios[J]. Ceramics International, 2019,45(9):11438-11447.
[18]	徐高峰. 氧化锆纳米粉体的制备及稳定性研究[D]. 郑州:郑州大学, 2017.
[19]	Raza M, Cornil D, Cornil J, et al. Oxygen vacancy stabilized zirco-nia (OVSZ):a joint experimental and theoretical study[J]. Scri-pta Materialia, 2016,124:26-29.
[20]	Chen C, Liang T, Guo Y, et al. Effect of scandia content on the hot corrosion behavior of Sc₂O₃ and Y₂O₃ co-doped ZrO₂ in Na₂SO₄+ V₂O₅ molten salts at 1 000 ℃[J]. Corrosion Science, 2019,158. Doi: 10.1016/j.corsci.2019.108094.
[21]	Borik M A, Bredikhin S I, Kulebyakin A V, et al. Melt growth,st-ructure and properties of(ZrO₂)₁-_x(Sc₂O₃) _x solid solution crystals (x=0.035-0.11)[J]. Journal of Crystal Growth, 2016,443:54-61.
[22]	Gao Z, MognI L V, Miller E C, et al. A perspective on low-tempera-ture solid oxide fuel cells[J]. Energy & Environmental Science, 2016,9(5):1602-1644.
[23]	Brodnikovska I, Korsunska N, Khomenkova L, et al. Grains,grain boundaries and total ionic conductivity of 10Sc1CeSZ and 8YSZ solid electrolytes affected by crystalline structure and dopant co-ntent[J]. Materials Today:Proceedings, 2019(6):79-85.
[24]	Fini D, Badwal S P S, Giddey S, et al. Evaluation of Sc₂O₃-CeO₂- ZrO₂ electrolyte-based tubular fuel cells using activated charcoal and hydrogen fuels[J]. Electrochimica Acta, 2018,259:143-150.
[25]	Jais A A, Ali S A M, Anwar M, et al. Enhanced ionic conductivity of scandia-ceria-stabilized-zirconia(10Sc1CeSZ) electrolyte synt-hesized by the microwave-assisted glycine nitrate process[J]. Ce-ramics International, 2017,43(11):8119-8125.
[26]	Tan J, Su Y, Tang H, et al. Effect of calcined parameters on micro-structure and electrical conductivity of 10Sc1CeSZ[J]. Journal of Alloys and Compounds, 2016,686:394-398.
[27]	Liu M, He C R, Wang W G, et al. Synjournal and characterization of 10Sc1CeSZ powders prepared by a solid-liquid method for electro-lyte-supported solid oxide fuel cells[J]. Ceramics International, 2014,40(4):5441-5446.
[28]	Liu M, He C, Wang J, et al. Investigation of (CeO₂)_x(Sc₂O₃)_(0.11-x)(ZrO₂)_0.89(x=0.01~0.10) electrolyte materi-als for intermediate-temperature solid oxide fuel cell[J]. Journal of Alloys and Compounds, 2010,502(2):319-323.
[29]	Abbas H A, Argirusis C, Kilo M, et al. Preparation and conductivity of ternary scandia-stabilised zirconia[J]. Solid State Ionics, 2011,184(1):6-9.
[30]	Wang Z, Cheng M, Bi Z, et al. Structure and impedance of ZrO₂ do-ped with Sc₂O₃ and CeO₂[J]. Materials Letters, 2015,59(19/20):2579-2582.
[31]	刘丽伟. Bi₂O₃/YSZ和Bi₂O₃/YBSZ电解质的合成制备和表征[D]. 杭州:浙江大学, 2016.
[32]	Bai B, Sammes N M, Smirnova A L. Physical and electrochemical characterization of Bi₂O₃-doped scandia stabilized zirconia[J]. Journal of Power Sources, 2008,176(1):76-81.
[33]	Hirano M, Oda T, Ukai K, et al. Suppression of rhombohedral-phase appearance and low-temperature sintering of scandia-doped cubic-zirconia[J]. Journal of the American Ceramic Society, 2002,85(5):1336-1338.
[34]	Hirano M, Oda T, Ukai K, et al. Effect of Bi₂O₃ additives in Sc sta-bilized zirconia electrolyte on a stability of crystal phase and elec-trolyte properties[J]. Solid State Ionics, 2003,158(3/4):215-223.
[35]	Sarat S, Sammes N, Smirnova A. Bismuth oxide doped scandia-sta-bilized zirconia electrolyte for the intermediate temperature solid oxide fuel cells[J]. Journal of Power Sources, 2006,160(2):892-896.
[36]	Bai B, Mcphee W A, Smirnova A, et al. A comparison and charac-terization of CeO₂-doped and Bi₂O₃-doped scandia stabilized zi-rconia as IT-SOFC electrolytes[J]. ECS Transactions, 2007,7(1):2213-2221.
[37]	Agarkov D A, Borik M A, Bredikhin S I, et al. Transport properties of single crystals of solid electrolytes based on ZrO₂-Sc₂O₃ co-do-ped by scandia,yttria,ytterbia and ceria[J]. Chemical Probhems, 2019,2(17):235-245.
[38]	Omar S, Najib W B, Chen W, et al. Electrical conductivity of 10 mol % Sc₂O₃-1 mol % M₂O₃-ZrO₂ ceramics[J]. Journal of the American Ceramic Society, 2012,95(6):1965-1972.
[39]	Jeon H J, Kim K J, Kim M Y, et al. Fabrication and electrochemical characterization of SOFC single cell with 6Yb4ScSZ electrolyte po-wder by tape-casting and co-sintering[J]. Journal of the Ceramic Society of Japan, 2015,123(1436):229-234.
[40]	Yuan F, Wang J, Miao H, et al. Investigation of the crystal structure and ionic conductivity in the ternary system(Yb₂O₃)_x-(Sc₂O₃)_(0.11-_x)- (ZrO₂)_0.89(x=0~0.11)[J]. Journal of Alloys and Compounds, 2013,549:200-205.
[41]	Alfeche D M, Cervera R B. Highly conducting Sc and Y co-doped ZrO₂ thin film solid electrolyte on a porous Ni/YSZ electrode pre-pared via simple drop-coating method[J]. Ceramics International, 2020,46(8):10561-10567.
[42]	Accardo G, Agli G D, Frattini D, et al. Electrical behaviour and mi-crostructural characterization of magnesia co-doped ScSZ nanopo-wders synthesized by urea co-precipitation[J]. Chemical Engineer-ing Transactions, 2017,57:1345-1350.
[43]	Kumar A, Singh R P, Singh S, et al. Phase stability and ionic con-ductivity of cubic xNb₂O₅-(11-x)Sc₂O₃-ZrO₂(0≤x≤4)[J]. Jour-nal of Alloys and Compounds, 2017,703:643-651.
[44]	Pastor M, Prasad A, Biswas K, et al. Microstructural and impedance study of nanocrystalline lanthana-doped scandia-stabilized zirco-nia[J]. Journal of Nanoparticle Research, 2012,14(8):1-11.
[45]	Choi Y, Lee S, Wackerl J, et al. Fabrication of scandia-stabilized zirconia electrolyte with a porous and dense composite layer for so-lid oxide fuel cells[J]. Ceramics International, 2012,38:5485-5488.
[46]	Omar S, Najib W B, Bonanos N. Conductivity ageing studies on 1M10ScSZ(M ₄⁺=Ce,Hf)[J]. Solid State Ionics, 2011,189(1):100-106.
[47]	Guo X. Roles of alumina in zirconia for functional applications[J]. Journal of the American Ceramic Society, 2003,86(11):1867-1873.
[48]	Lybye D, Liu Y L. A study of complex effects of alumina addition on conductivity of stabilised zirconia[J]. Journal of the European Ceramic Society, 2006,26(4/5):599-604.
[49]	Guo C X, Wang J X, He C R. et al. Effect of alumina on the proper-ties of ceria and scandia co-doped zirconia for electrolyte-suppo-rted SOFC[J]. Ceramics International, 2013,39(8):9575-9582.
[50]	Feighery A J, Irvine J T S. Effect of Alumina additions upon elec-trical properties of 8mol% yttria-stabilised zirconia[J]. Solid State Ionics, 1999,121(1/2/3/4):209-216.
[51]	Lv Z, Guo R, Yao P, et al. Effects of Al₂O₃ and/or CaO on properties of yttria stabilized zirconia electrolyte doped with multi-elemen-ts[J]. Materials & Design, 2007,28(4):1399-1403.
[52]	Agarkov D A, Borik M A, Bredikhin S I, et al. Structure and trans-port properties of zirconia crystals co-doped by scandia,ceria and yttria[J]. Journal of Materiomics. 2019,5(2):273-279.
[53]	Lv Z G, Yao P, Guo R S, et al. Study on zirconia solid electrolytes doped by complex additives[J]. Materials Science and Engineer-ing:A, 2007,458(1/2):355-360.
[54]	Knoner G, Reimann K, Rower R, et al. Enhanced oxygen diffusivity in interfaces of nanocrystalline ZrO₂·Y₂O₃[J]. Proceedings of the National Academy of Sciences, 2003,100(7):3870-3873.
[55]	Garcia-Barriocanal J, Rivera-Calzada A, Varela M, et al. Colossal ionic conductivity at interfaces of epitaxial ZrO₂:Y₂O₃/SrTiO₃ heterostructures[J]. Science, 2008,321(5889):676-680.
[56]	程浩. 纳米氧化锆粉体抗团聚老化性的研究[D]. 武汉:湖北工业大学, 2009.
[57]	Xue Q N, Huang X W, Zhang H, et al. Synjournal and characteriza-tion of high ionic conductivity ScSZ core/shell nanocomposites[J]. Journal of Rare Earths, 2017,35(6):567-573.
[58]	Kazlauskas S, Kazakevicius E, Kezionis A. et al. Electrical proper-ties of scandia and ceria-stabilized zirconia ceramics[J]. Solid State Ionics, 2017,310:143-147.
[59]	Hongmin A O, Xiangsheng L I U, Zhang H, et al. Preparation of ac-andia stabilized zirconia powder using microwave-hydrothermal method[J]. Journal of Rare Earths, 2015,33(7):746-751.
[60]	Yao L, Liu W, Ou G, et al. Phase stability and high conductivity of ScSZ nanofibers:Effect of the crystallite size[J]. Journal of Mate-rials Chemistry A, 2015,3(20):10795-10800.
[61]	Cho G Y, Lee Y H, Hong S W, et al. High-performance thin film solid oxide fuel cells with scandia-stabilized zirconia(ScSZ) thin film electrolyte[J]. International Journal of Hydrogen Energy, 2015,40(45):15704-15708.

电解质	制备方法	测试温度/℃	电导率/ （S·cm^-1）
1Ce10ScSZ^[23]	固相合成：1 400 ℃烧结	600	0.046（高纯度） 0.033（低纯度）
1Ce10ScSZ^[24]	1 500 ℃烧结2 h,平均粒径为5.9 μm	800	0.140
1Ce10ScSZ^[25]	甘氨酸-硝酸盐法（MW- GNP）：微波中固溶燃烧合成,700 ℃煅烧2 h,1 300 ℃ 烧结5 h	500~ 800	0.033~ 0.184
1Ce9ScSZ^[12]	固相合成：1 335 ℃煅烧 6 h,1 550 ℃烧结10 h	700 600	0.032 0.018 8
1Ce10ScSZ^[26]	水热法：800 ℃煅烧2 h, 1 400 ℃烧结2 h,平均粒径为20.2 nm	800	0.131
1Ce10ScSZ^[11]	微波烧结法：在微波炉中1 335 ℃烧结15 min	800	0.280
1Ce10ScSZ^[27]	新型固液方法（SLM）： 1 000 ℃煅烧2 h,1 550 ℃煅烧5 h	800	0.140
1Ce10ScSZ^[28]	化学共沉淀法：1 500 ℃烧结5 h	800	0.040
1Ce10ScSZ^[29]	溶胶-凝胶法：600 ℃煅烧24 h,1 500 ℃烧结5 h	600	0.011 4
1Ce10ScSZ^[30]	沉淀-共沸蒸馏法：1 600 ℃ 烧结	800	0.084

电解质	制备方法	测试温度/℃	电导率/ （S·cm^-1）
4Y4ScSZ^[41]	溶胶凝胶-滴涂沉积法：1 000 ℃煅烧6 h,平均直径为144 nm,活化能为0.73 eV	700	0.120
1Eu10ScSZ^[10]	固相合成法：降低β→c转变温度,室温下为立方相	500	0.002
3Mg9ScSZ^[42]	尿素共沉淀合成法：1 200 ℃长时间处理不发生相变, 1 600 ℃ 3 h不影响致密性,相对密度约为97%	700 800	0.028 0.073
1Nb10ScSZ^[43]	固相合成法：1 300 ℃煅烧6 h,1 550 ℃烧结10 h,在650 ℃时比11ScSZ高80%	650 700	0.018 8 0.031 8
3LaScSZ^[44]	化学共沉淀法：800 ℃煅烧5 h, 1 550 ℃烧结6 h,室温下稳定立方相,晶粒为20~30 nm,晶界阻抗降低	500~ 660	0.021~ 0.024
1Mn10ScSZ^[45]	USP（超声喷雾热解）法：1 400 ℃煅烧10 h	800	0.112
1Hf10ScSZ^[46]	固相合成法：1 550 ℃烧结5 h	600	0.008 8
