氨法浸出锌冶金渣尘提锌工艺及动力学研究

doi:10.11962/1006-4990.2019-0643

摘要/Abstract

摘要：

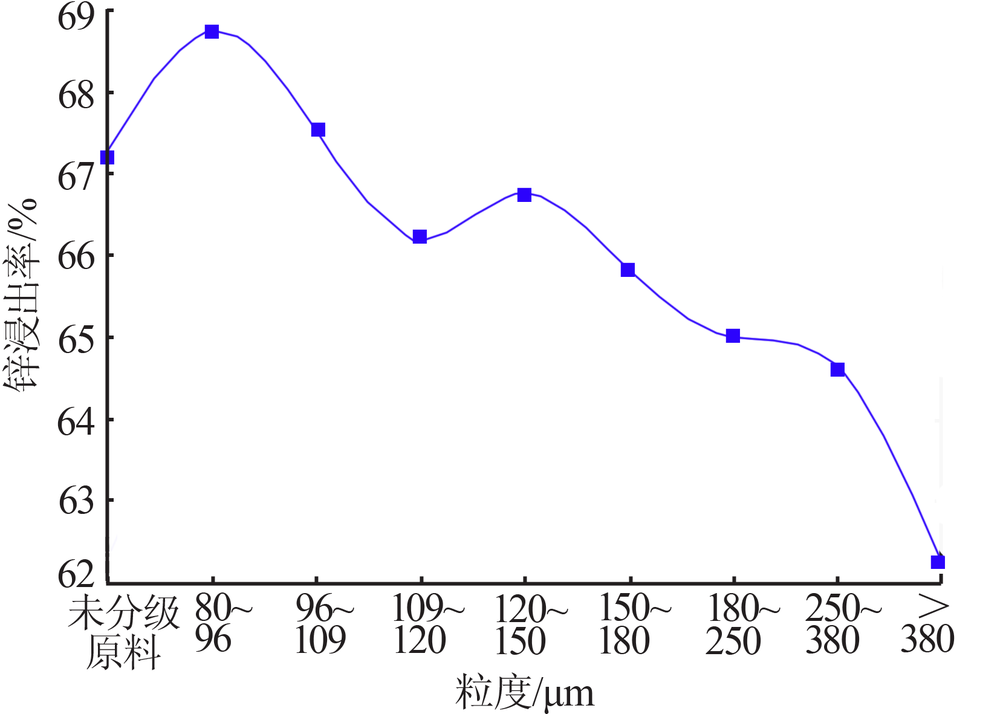

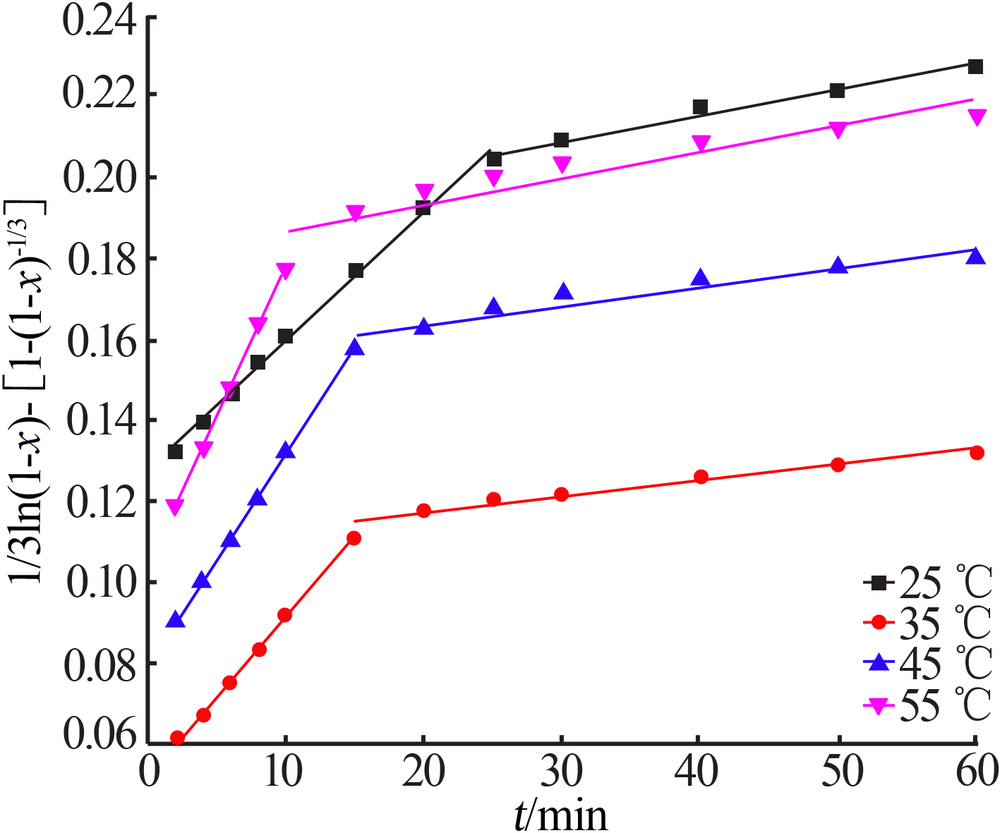

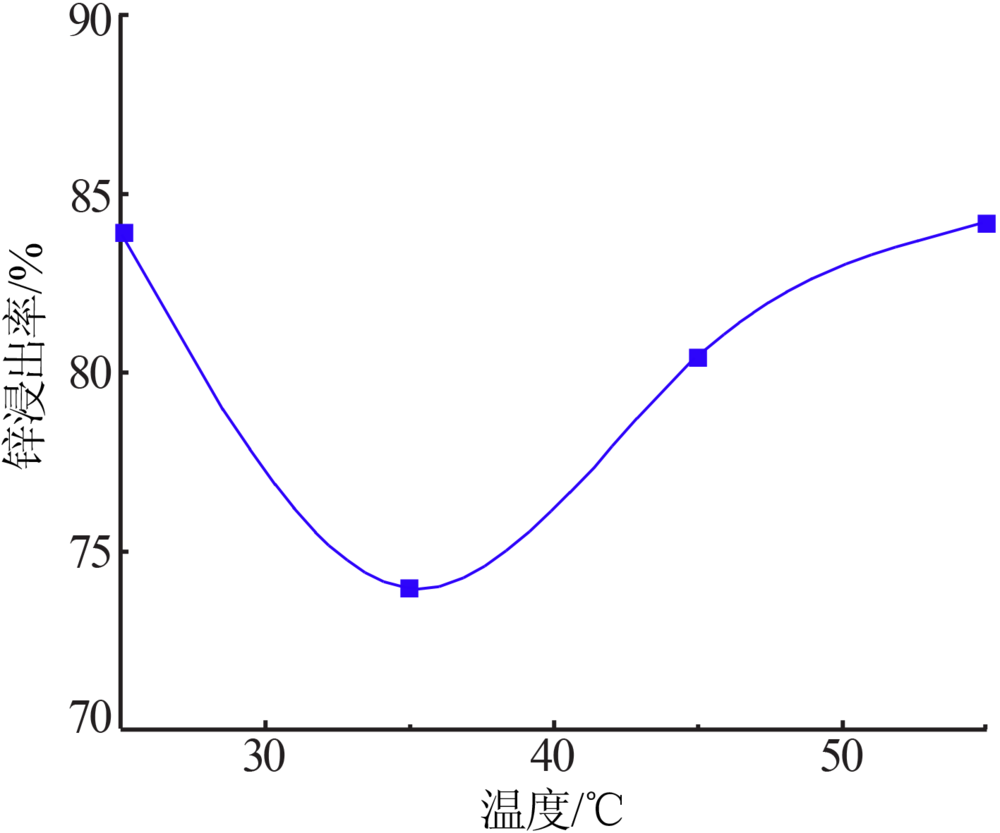

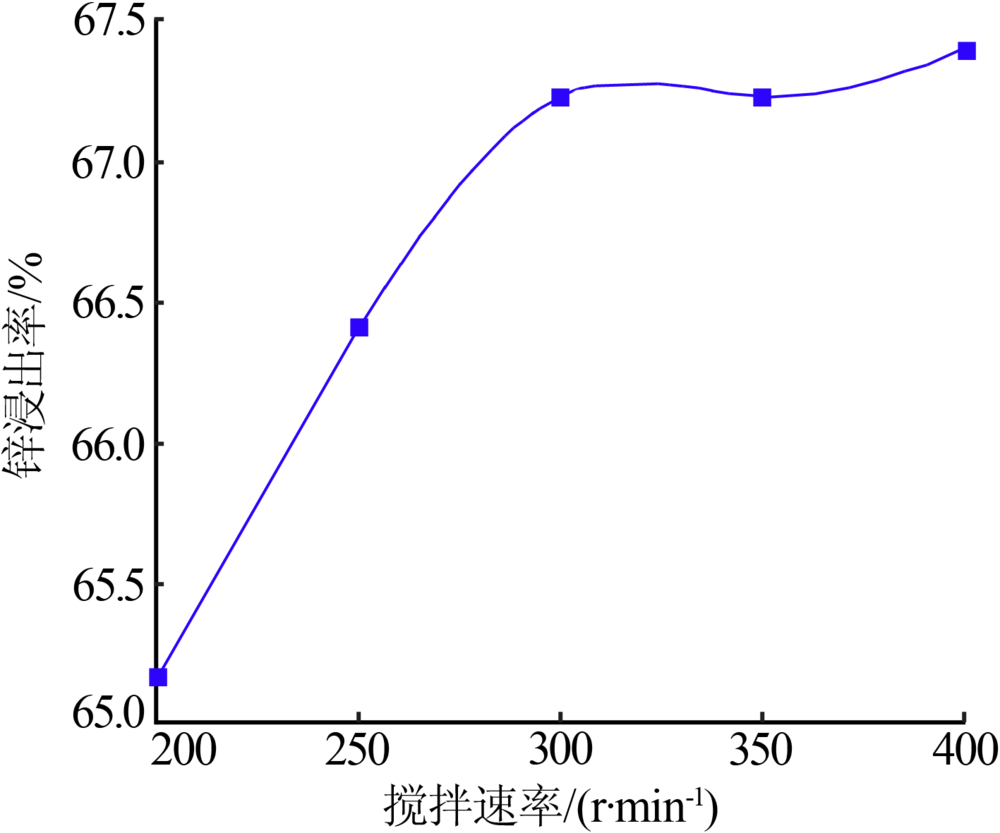

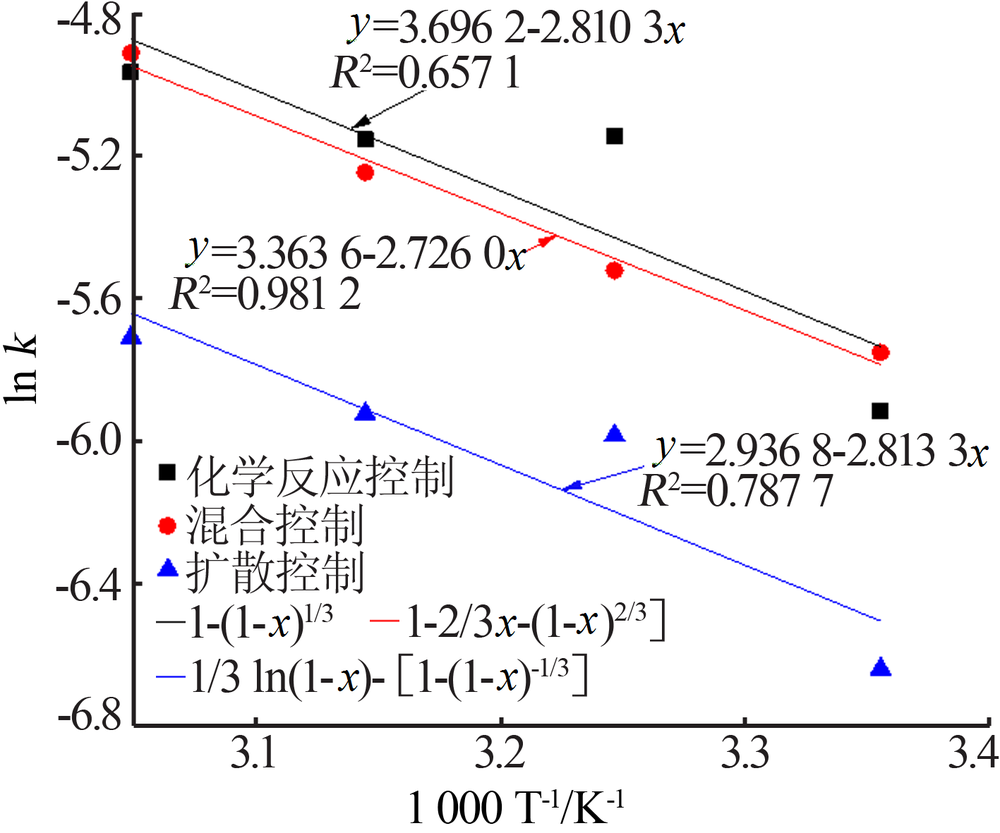

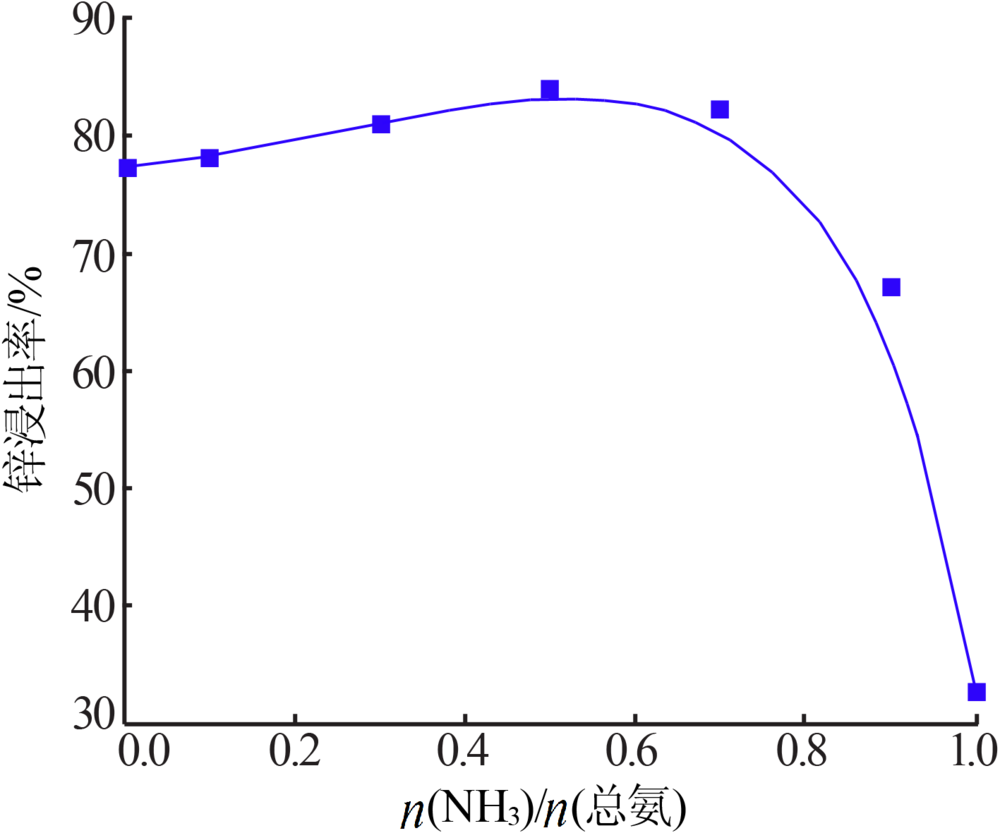

锌冶金渣尘作为一种重要的锌二次资源,来源广、储量大、具有较高的综合回收利用价值。以NH₃-CH₃COONH₄-H₂O为浸出体系,考察粒度、反应时间、搅拌速度、液固比、总氨浓度、NH₃与NH₄⁺物质的量比和温度对锌浸出率的影响,结果表明：控制浸出温度为25 ℃、总氨浓度为5 mol/L、液固体积质量比为5 mL/g、n（NH₃）/n（NH₄⁺）=1:1、搅拌速度为300 r/min、浸出时间为60 min,在此条件下锌的浸出率可达84%。含锌冶金渣尘浸出动力学分析显示,浸出反应表观活化能为22.66 kJ/mol,锌浸出过程的浸出速率受固体膜层扩散及界面化学反应共同控制,并获得了浸出锌的动力学速率方程。

关键词: 锌, 冶金渣尘, 氨法浸出

Abstract:

Zinc metallurgical slag and dust is an important secondary resource,it has the advantages of wide source,large re-serves and high comprehensive recycling value.The influence of particle size,reaction time,stirring speed,liquid-solid ratio,total ammonia concentration,amount-of-substance ratio of NH₃ to NH₄⁺ and temperature on the zinc leaching rate were investi-gated in NH₃-CH₃COONH₄-H₂O system.The results showed that the control leaching temperature of 25 ℃,total ammonia co-ncentration of 5 mol/L,liquid-solid volume-mass ratio of 5 mL/g,amount-of-substance ratio of n（NH₃）/n（NH₄⁺）=1:1,stirring speed of 300 r/min and leaching time for 60 min,then the zinc leaching rate reached 84%.The leaching kinetic analysis of metallurgical slag and dust indicated that the apparent activation energy of the reaction was 22.66 kJ/mol.The leaching rate of zinc was controlled by both solid film diffusion and interfacial chemical reaction,and the kinetic rate equation of zinc leaching was obtained.

Key words: zinc, metallurgical slag and dust, ammonia leaching

中图分类号:

TQ132.41

马爱元,郑雪梅,李松. 氨法浸出锌冶金渣尘提锌工艺及动力学研究[J]. 无机盐工业, 2020, 52(11): 69-74.

Ma Aiyuan,Zheng Xuemei,Li Song. Study on leaching process and kinetics of zinc extraction from metallurgical slag and dust with ammonia[J]. Inorganic Chemicals Industry, 2020, 52(11): 69-74.

图/表 18

表1

表2

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图 11

图 12

图 13

图14

图15

图16

参考文献 20

[1]	刘红召, 杨卉芃, 冯安生. 全球锌矿资源分布及开发利用[J].矿产保护与利用, 2017(1):113-118.
[2]	孙传尧, 宋振国, 朱阳戈, 等. 中国铜铝铅锌矿产资源开发利用现状及安全供应战略研究[J].中国工程科学, 2019(1):133-139.
[3]	宋凯伟, 李佳磊, 蔡锦鹏, 等. 典型氧化铜铅锌矿物浮选的表面硫化研究进展[J]. 化工进展, 2018,37(9):341-351.
[4]	周英伟, 高波. 热镀锌渣回收利用工艺研究进展[J]. 表面技术, 2017,46(10):91-98.
[5]	Tang Lei, Tang Chaobo, Xiao Jin, et al. A cleaner process for lead re-covery from lead-containing hazardous solid waste and zinc leaching residue via reducing-matting smelting[J]. Journal of Cleaner Produc-tion, 2019,241.Doi: 10.1016/j.jclepro.2019.118328 .
[6]	罗龙海, 闫艳梅, 袁建伟, 等. 废旧锌锰电池中锰和锌在硫酸/草酸溶液中的浸出行为[J]. 湿法冶金, 2019,38(6):469-472.
[7]	Pan D A, Lia L L, Tian X, et al. A review on lead slag generation,characteristics,and utilization[J]. Resources,Conservation & Re-cycling, 2019,146:140-155.
[8]	田伟军. 用氨配合法从含锌废催化剂中回收锌[J]. 无机盐工业, 2016,48(2):55-58.
[9]	Meng L, Zhong Y W, Guo L, et al. Recovery of Cu and Zn from waste printed circuit boards using super-gravity separation[J]. Waste Ma-nagement, 2018,78:559-565.
[10]	牛永胜, 程亮, 李银丽, 等. 浸锌渣-高杂氧化锌铅锌回收工艺研究[J]. 甘肃冶金, 2019,47(4):16-18.
[11]	王冬斌, 梁精龙, 李慧, 等. 冶金含锌粉尘中回收氧化锌的工艺综述[J]. 中国有色冶金, 2018,47(6):46-50.
[12]	雷华志, 杨光灿, 李雨耕, 等. 从锌渣中直接热力回收金属锌的工艺研究[J]. 云南冶金, 2018,47(4):63-66.
[13]	王超, 郭宇峰, 杨凌志, 等. 含锌渣尘中有价金属回收利用现状与研究进展[J]. 金属矿山, 2019,48(3):27-35.
[14]	Sethurajan M, Huguenot D, Jain R, et al. Leaching and selective zinc recovery from acidic leachates of zinc metallurgical leach re-sidues[J]. Journal of Hazardous Materials, 2016,324:71-82. doi: 10.1016/j.jhazmat.2016.01.028 pmid: 26832075
[15]	Fattahi A, Rashchi F, Abkhoshk E. Reductive leaching of zinc,co-balt and manganese from zinc plant residue[J]. Hydrometallurgy, 2016,161:185-192.
[16]	Ashtari P, Pourghahramani P. Selective mechanochemical alkaline leaching of zinc from zinc plant residue[J]. Hydrometallurgy, 2015,156:165-172.
[17]	Steer J M, Griffiths A J. Investigation of carboxylic acids and non-aqueous solvents for the selective leaching of zinc from blast furnace dust slurry[J]. Hydrometallurgy, 2013,140:34-41.
[18]	刘智勇. 氧化锌矿物在氨-铵盐-水体系中的浸出机理[D]. 长沙:中南大学, 2012.
[19]	Rao S, Yang T Z, Zhang D C, et al. Leaching of low grade zinc oxide ores in NH₄Cl-NH₃,solutions with nitrilotriacetic acid as complexing agents[J]. Hydrometallurgy, 2015,158:101-106.
[20]	Popescu I A, Varga T, Egedy A, et al. Kinetic models based on an-alysis of the dissolution of copper,zinc and brass from WEEE in a sodium persulfate environment[J]. Computers & Chemical Engin-eering, 2015,83:214-220.

w（Zn）/%	w（Fe）/%	w（C）/%	w（Pb）/%	w（S）/%	w（Si）/%
24.74	21.66	9.14	1.13	1.39	2.66
w（Al₂O₃） /%	w（Mg） /%	w（CaO） /%	w（In）/ （g·t^-1）	w（Cl）/ %	w（Bi）/ %
2.22	1.14	4.10	354	2.94	0.97

粒度/ μm	质量分数/%	w（Zn）/ %	粒度/ μm	质量分数/%	w（Zn）/ %
未分级原料	100.00	24.74	120~150	36.21	24.33
>380	6.54	23.24	109~120	11.18	24.74
250~380	8.60	24.20	96~109	17.94	24.14
180~250	8.17	24.70	<96	5.68	23.33
150~180	5.69	24.64
