纳米磷酸锌的可控合成

doi:10.11962/1006-4990.2018-0524

摘要/Abstract

摘要：

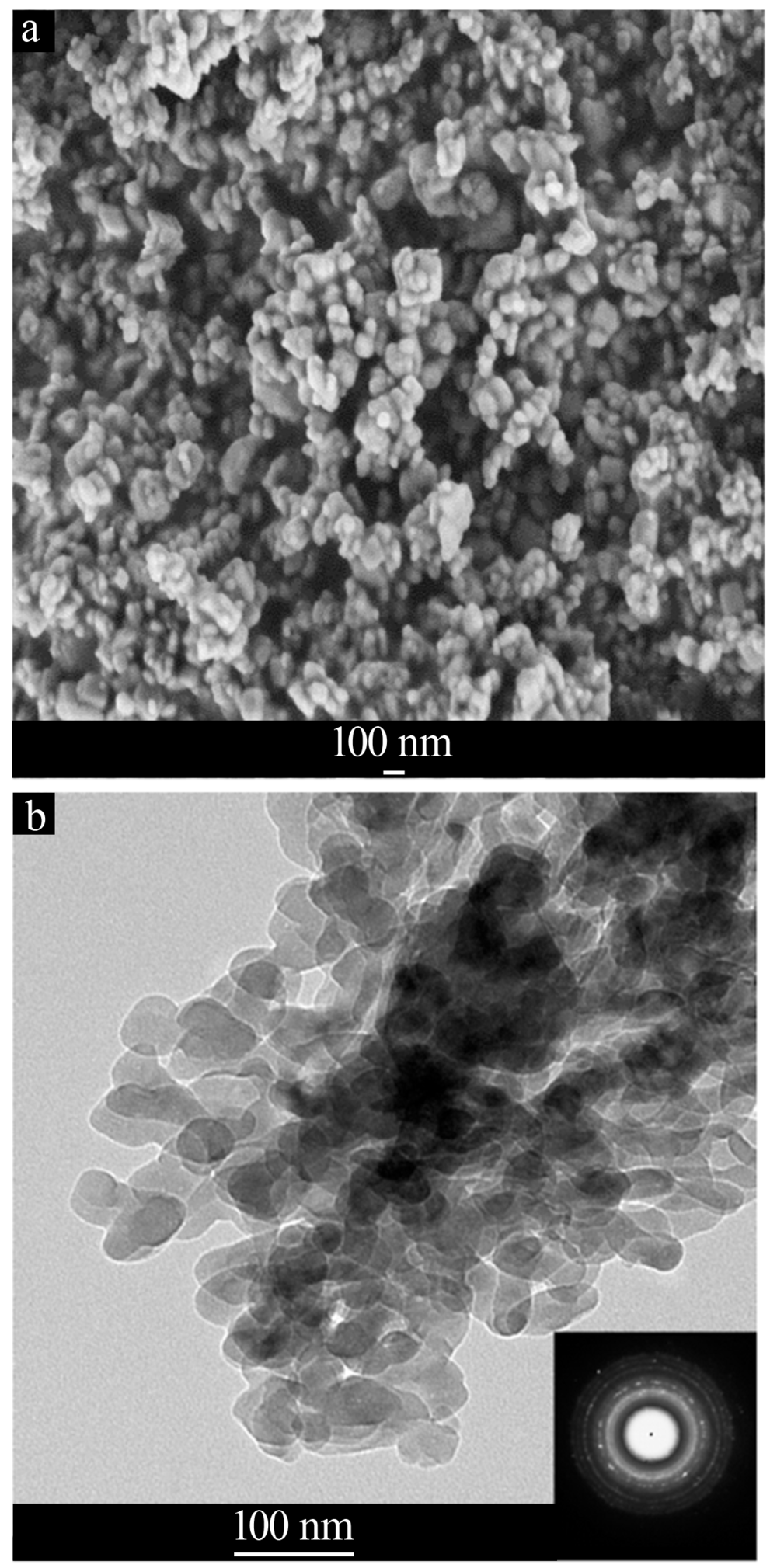

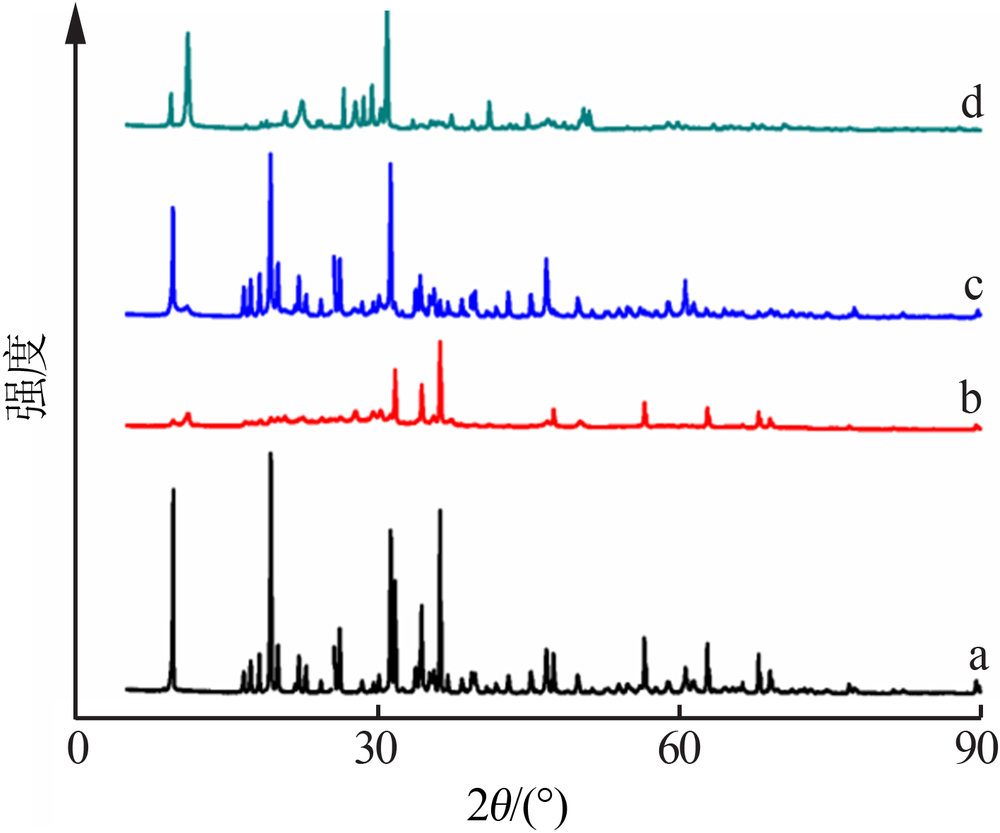

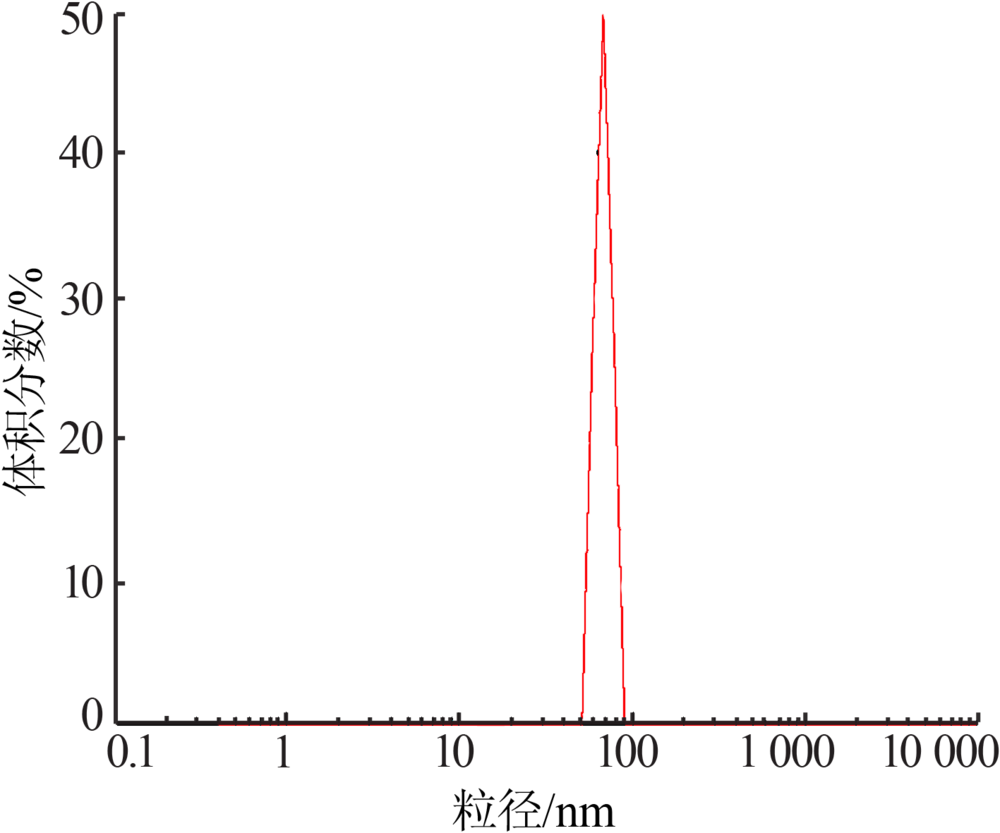

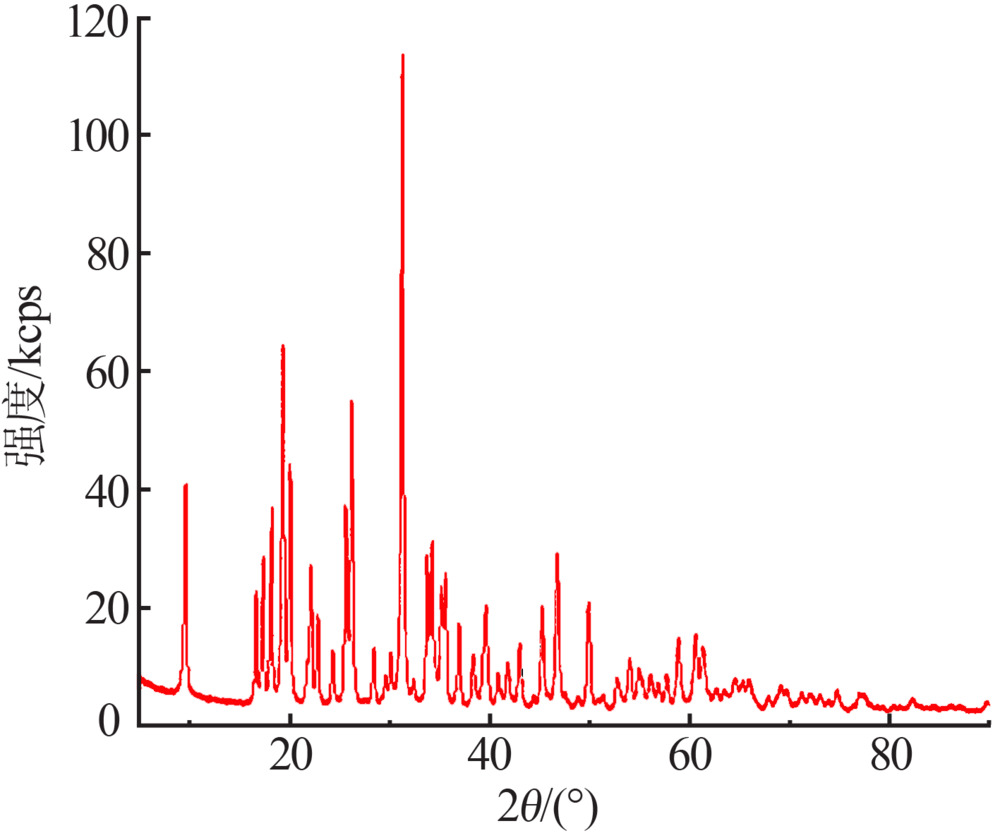

在氧化锌、磷酸固-液反应体系中,以研磨反应代替搅拌反应,辅助表面活性剂对磷酸锌的颗粒尺寸进行可控合成,考察了研磨介质、磨球比例、球料比、固液比、表面活性剂等工艺条件对磷酸锌粒径分布、形貌及团聚状况的影响,并采用SEM、XRD、粒度分布和TEM对纳米磷酸锌做了表征。结果表明,表面活性剂CTAB浓度为9×10^-4 mol/L、研磨时间为3 h、锆球为研磨介质、球料质量比为150:1、Φ10 mm与Φ6 mm磨球质量比为1:4、转速为200 r/min、固液比[氧化锌和（磷酸+表面活性剂）的质量比]为1:1时,可以制备粒径分布为59~79 nm、平均粒径为68 nm、无团聚的粒状纳米磷酸锌。

关键词: 磷酸锌, 纳米颗粒, 可控合成

Abstract:

Particle size of zinc phosphate was controlled-synthetized by grinding reaction instead of stirring reaction and assisted surfactant in the solid-liquid reaction system between zinc oxide and phosphoric acid.The effects of grinding medium,grinding ball ratio,ball-to-material ratio,solid-liquid ratio and surfactant on the particle size distribution,morphology and agglomeration of zinc phosphate were investigated.Nano zinc phosphate was characterized by SEM,XRD,particle size distribution and TEM.Results showed that the non-aggregation granular nanometer zinc phosphate with particle size distribution between 59~79 nm and average particle size of 68 nm could be prepared under the technological conditions as follows:c（CTAB）=9×10^-4mol/L,grinding time was 3 h,zirconium ball as grinding medium,mass ratio of ball to material was 150:1,grinding ball mass ratio of Φ10 mm and Φ6 mm was 1:4,rotating speed was 200 r/min and solid-liquid ratio[mass ratio of zinc oxide to（phosphoric acid+surfactant）] was 1:1.

Key words: zinc phosphate, nano-particle, controlled-synthesis

中图分类号:

TQ126.35

陈心怡,黄云龙,袁爱群,黄增尉,韦冬萍,马少妹. 纳米磷酸锌的可控合成[J]. 无机盐工业, 2019, 51(8): 20-24.

Chen Xinyi,Huang Yunlong,Yuan Aiqun,Huang Zengwei,Wei Dongping,Ma Shaomei. Controlled-synthesis of nanometer zinc phosphate[J]. Inorganic Chemicals Industry, 2019, 51(8): 20-24.

图/表 15

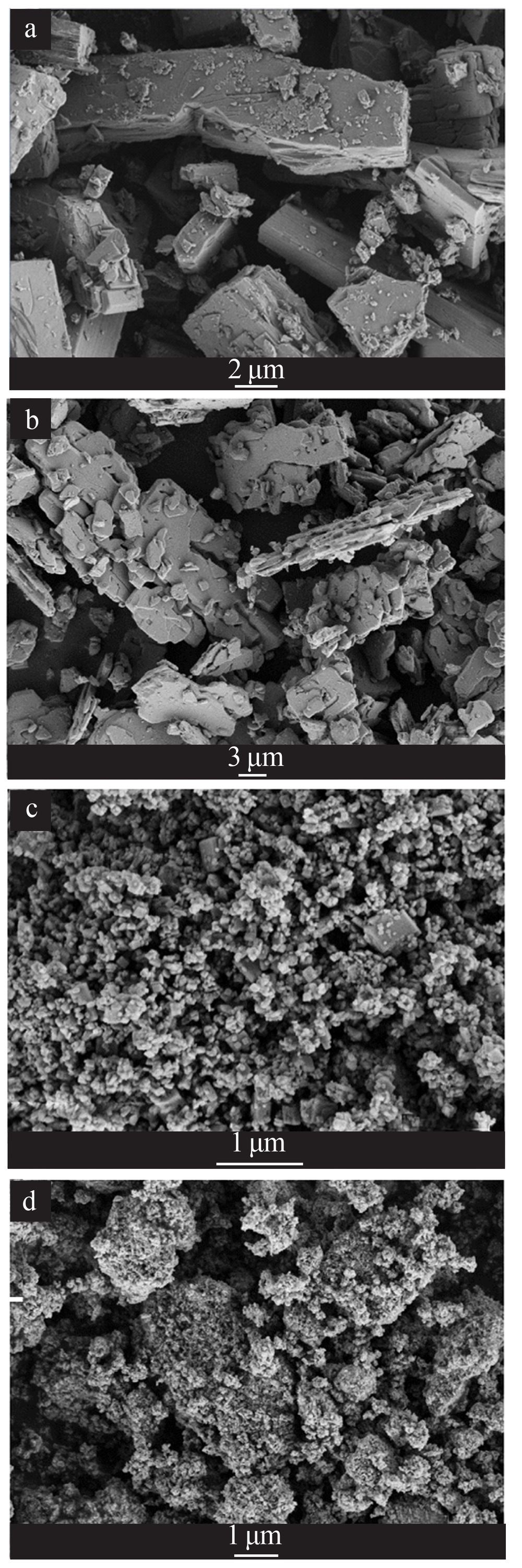

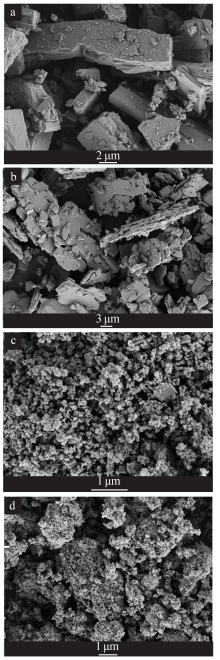

图1

图2

表1

表2

表3

表4

表5

表6

表7

表8

表9

图3

图4

图5

图6

参考文献 17

[1]	朱骥良, 吴申年 . 颜料工艺学[M].第2版. 北京: 化学工业出版社, 2002: 325-327.
[2]	Beinencourt M, Collazo A, Izquierdo M , et al. Characterisation of barrier properties of organic paints:The zinc phosphate effectiveness[J]. Progress in Organic Coatings, 2003,46(5):97-106.
[3]	Czarnecka B, Limanowska-Shaw H, Nicholson J W . Ion-release,dissolution and buffering by zinc phosphate dental cements[J]. Journal of Materials Science:Materials in Medicine, 2003,14(7):601-604.
[4]	Herschke L, Rottstegge J, Lieberwirth I , et al. Zinc phosphate as versatile material for potential biomedical applications Part Ⅰ[J]. Journal of Materials Science:Materials in Medicine, 2006,17(1):81-94.
[5]	Herschke L, Rottstegge J, Lieberwirth I , et al. Zinc phosphate as versatile material for potential biomedical applications Part Ⅱ[J]. Journal of Materials Science:Materials in Medicine, 2006,17(1):95-104.
[6]	Lipat′ev A S, Vetchinnikov M P, Shakhgil′dyan G Y , et al. Controlling the optical characteristics of laser-induced microstructures in zinc phosphate glass containing silver[J]. Glass Ceram., 2018,74(11/12):385-388.
[7]	袁爱群, 白丽娟, 宋宝玲 , 等. ZnO-P₂O₅-H₂O反应体系磷酸锌颜料的防锈活性研究[J]. 涂料工业, 2005,35(9):16-18.
[8]	Pawlig O, Trettin R . Synjournal and characterization of α-hopeite Zn₃(PO₄)₂·4H₂O[J]. Materiala Research Bulletin, 1999,34(12/13):1959-1966.
[9]	朱琼霞, 杨富国, 诸道葆 . 快速均匀沉淀法制备磷酸锌纳米微粒[J]. 安徽化工, 2001,2(27):15-16.
[10]	Samadi-Maybodi A, Nejad-Darzi S K H . Shape-selective producion of zinc phosphate in aqueous and nonaqueous media using(2-hydroxyethyl) trimethylammonium hydroxide-assisted sonoche-mical route[J]. Journal of the Iranian Chemical Society, 2012,9(4):431-439. doi: 10.1007/s13738-011-0053-4
[11]	Zhao Jianling, Wang Xixin, Sun Yongai , et al. Preparation and formation mechanism of microporous spheric zinc phosphate[J]. Journal of Solid State Electrochemistry, 2011,15(9):1861-1865. doi: 10.1007/s10008-010-1202-x
[12]	宋宝玲, 廖森, 袁爱群 . 纳米磷酸锌颜料的合成及其数据挖掘技术[J]. 涂料工业, 2005,35(2):34-36.
[13]	邹洪涛, 唐文华, 刘吉平 , 等. 低热固相化学反应法合成磷酸锌微米晶棒[J]. 化工矿物与加工, 2006,35(5):19-22.
[14]	袁爱群, 白丽娟, 宋宝玲 , 等. 球形超细磷酸锌晶体的合成与表征[J]. 涂料工业, 2005,35(6):16-18 .
[15]	廖森, 宋宝玲, 吴文伟 , 等. 数据挖掘技术在磷酸锌纳米晶合成中的应用[J]. 有色金属工程, 2005,57(1):30-38.
[16]	袁爱群, 周泽广, 白丽娟 , 等. 机械力化学湿法一步制备表面修饰磷酸锌微粉[J]. 无机盐工业, 2006,38(6):24-26.
[17]	袁爱群, 黄增尉, 邓光辉 , 等. 磷酸锌水合物的光谱性质及热稳定性[J]. 光谱学与光谱分析, 2006,26(8):1564-1567.

磨球类型	粒度分布	平均粒径	形貌,团聚程度
玛瑙球	142~712 nm, 4.8~6.4 μm	1.5 μm	块状+粒状,无团聚
锆球	531 nm~1.1 μm	728 nm	粒状,无团聚

磨球类型	粒度分布	平均粒径	形貌,团聚程度
玛瑙球	396 nm~1.7μm,3.1~6.4 μm	1.4 μm	块状+粒状,微团聚
锆球	59~79 nm	68 nm	粒状,微团聚

磨球质量比	粒度分布	平均粒径	形貌,团聚程度
1:2	915 nm~1.5 μm	1.15 μm	块状+粒状,团聚明显
1:4	59 ~79 nm	68 nm	粒状,无团聚
1:6	531~825 nm	642 nm	块状+粒状,团聚明显
1:0.5:0.5	615 nm~1.1 μm	883 nm	块状+粒状,微团聚
1:1:1	295~459 nm	376 nm	块状+粒状,团聚明显
1:2:4	459~712 nm	578 nm	块状+粒状,团聚明显

球料质量比	粒度分布/nm	平均粒径/nm	形貌,团聚程度
50:1	68~106, 531~1 100	803	块状+粒状,微团聚
100:1	459~712	565	块状+粒状,微团聚
150:1	59~79	68	粒状,无团聚
300:1	122~220	159	粒状,微团聚

固液比	粒度分布/nm	平均粒径/nm	形貌,团聚程度
1:0.5	531~1 010	681	粒状+块状,微团聚
1:1	59~79	68	粒状,无团聚
1:1.5	615~1 100	754	粒状+块状,团聚
