利用磷化渣制备电池级磷酸铁

doi:10.11962/1006-4990.2019-0583

摘要/Abstract

摘要：

以含锌磷化渣为原料,先用氢氧化钠浸取制得磷酸钠溶液,再采用萃取法去除该溶液中的微量锌,在净化液中加入六水合氯化铁反应制得磷酸铁产品。实验结果表明：采用氢氧化钠浸取磷化渣,能有效地去除磷化渣中的金属离子,获得含微量锌的磷酸钠溶液,磷酸根的浸取率可达93.97%,磷酸根的总利用率可达78.31%;采用双硫腙与P204萃取剂对该溶液进行萃取,其双萃取剂混合萃锌效果明显优于它们相应的单种萃取剂萃锌效果。在有机相与水相体积比=1∶5时,锌的单级萃取率可达55.39%,产品磷酸铁中锌含量低于30.0 μg/g。研究表明,采用氢氧化钠浸取和双硫腙与P204双萃取剂除杂的方法,可有效回收含锌磷化渣中的磷酸根并制备出电池级磷酸铁。

关键词: 含锌磷化渣, 磷酸铁, 双硫腙, P204

Abstract:

Using zinc-containing phosphating slag as raw material,firstly use NaOH leaching to obtain Na₃PO₄ solution,then remove the trace amount of zinc in the solution by extraction method and add FeCl₃·6H₂O to the purified liquid to obtain iron phosphate product.The experimental results showed that NaOH leaching can effectively remove the metal ions in the phosphate ing slag and then obtain the Na₃PO₄ solution containing a trace amount of zinc.The leaching rate of the phosphate can reach 93.97% and the total utilization rate can reach 78.31%.The dithizone and P204 extractants were used to extract the solution.The zinc extraction effect of double extractant was significantly better than their corresponding single extractant effect.When O∶A=1∶5,the extraction rate of zinc was up to 55.39% and the content of zinc in the product iron phosphate was less than 30.0 μg/g.Research showed that the use of NaOH leaching and dithizone and P204 double extractant impurity removal method can effectively recover the phosphate in the zinc-containing phosphating slag and prepare battery-grade iron phosphate.

Key words: zinc-containing phosphating slag, iron phosphate, dithizone, P204

中图分类号:

TQ126.35

欧小菊,柴琪,李正科,王威燕,杨运泉. 利用磷化渣制备电池级磷酸铁[J]. 无机盐工业, 2020, 52(10): 135-139.

Ou Xiaoju,Chai Qi,Li Zhengke,Wang Weiyan,Yang Yunquan. Preparation of battery grade iron phosphate from phosphating slag[J]. Inorganic Chemicals Industry, 2020, 52(10): 135-139.

图/表 11

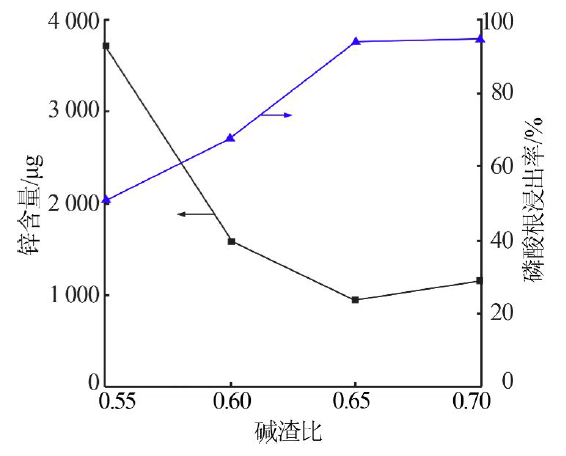

图1

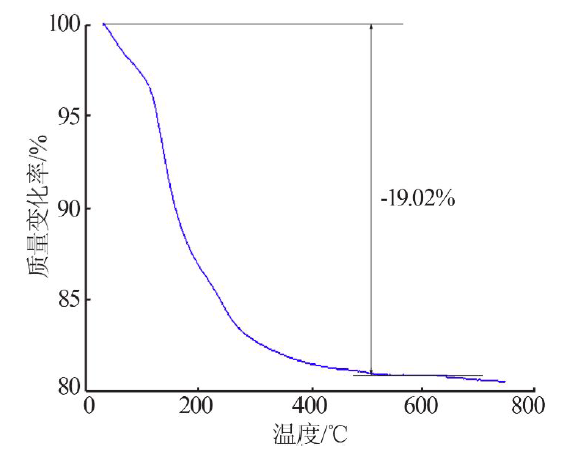

图2

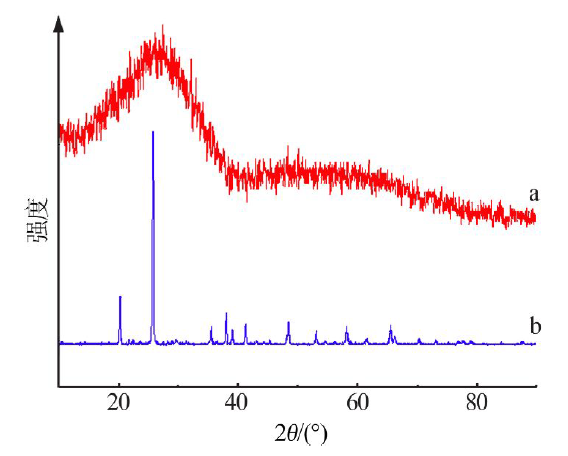

图3

表1

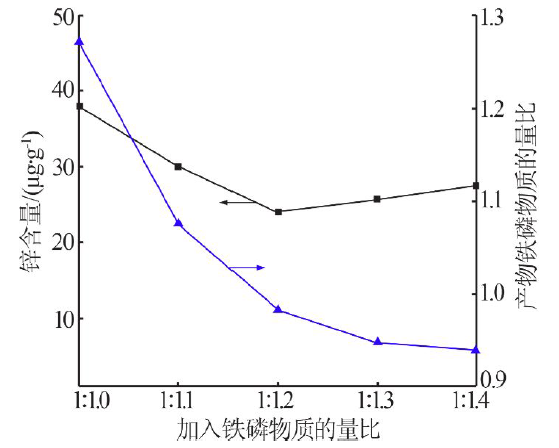

图4

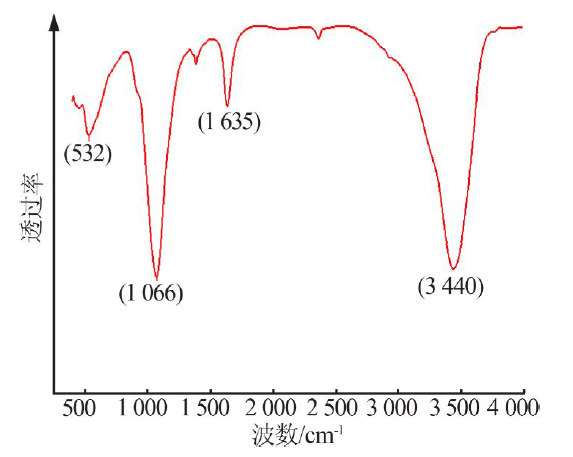

图5

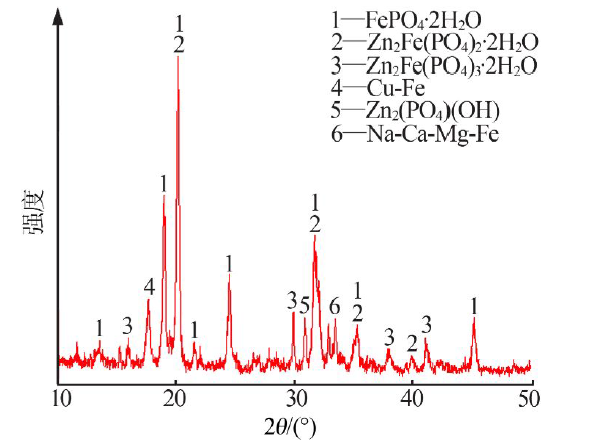

图6

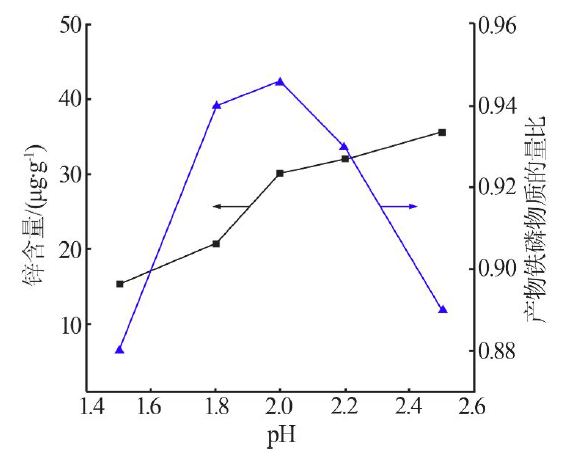

图7

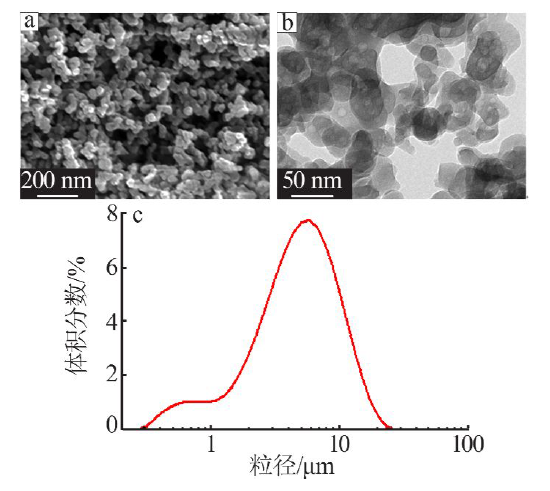

图8

图9

表2

参考文献 20

[1]	张圣麟, 李红玲, 郑洪河, 等. 低温锌系磷化促进剂研究[J]. 涂料工业, 2005,35(9):60-61.
[2]	武晓燕, 黄继承, 郎庆成, 等. 磷化渣资源化研究进展与展望[J]. 再生资源与循环经济, 2015(8):38-41.
[3]	范洪强, 李淑英. 固废磷化渣的排放现状及资源化研究进展[J]. 现代化工, 2007,27(s1):97-99.
[4]	范洪强, 李淑英, 焦扬. 固废磷化渣制备复合防锈颜料的研究[J]. 装备环境工程, 2008,5(2):83-86.
[5]	Chiang Y M, Meethong N, Kao Y H. Reply to comment on“aliovalent substitutions in olivine lithium iron phosphate and impact on structure and properties”[J]. Advanced Functional Materials, 2010, 19(7):1060-1070. doi: 10.1002/adfm.202000639 pmid: 32802013
[6]	冯国彪, 邓宏. 锂离子电池正极材料磷酸铁锂研究进展[J]. 无机盐工业, 2011,43(3):14-17.
[7]	Shao J, Li X, Wei J, et al. Synjournal of iron phosphate and their composites for lithium/sodium ion batteries[J]. Advanced Sustainable Systems, 2018,2(8/9):1700154.
[8]	Jugovic D, Uskokovic D. A review of recent developments in the synjournal procedures of lithium iron phosphate powders[J]. Journal of Power Sources, 2009,190(2):538-544.
[9]	Zhu Y, Tang S, Shi H, et al. Synjournal of FePO₄·xH₂O for fabricating submicrometer structured LiFePO₄/C by a co-precipitation method[J]. Synjournal of FePO₄·xH₂O for fabricating 2014,40(2):2685-2690.
[10]	Peng C L, Shen C, Zhang B, et al. Effect of solution concentration on FePO₄·2H₂O precursor and performance of LiFePO₄[J]. Journal of Central South University, 2010,41(5):1668-1673.
[11]	Okawa H, Yabuki J, Kawamura Y, et al. Synjournal of FePO₄ cathode material for lithium ion batteries by asonochemical method[J]. Materials Research Bulletin, 2008,43(5):1203-1208.
[12]	Srinivasan V, Newman J. Discharge model for the lithium iron-phosphate electrode[J]. Journal of the Electrochemical Society, 2004,151(10):A1517-A1529.
[13]	熊新宇, 熊天庆, 宋倩倩, 等. 金属表面处理磷化渣综合利用技术[J]. 冶金动力, 2015(2):43-45.
[14]	范洪强, 李淑英, 蔡子达. 利用磷化渣配制复合磷化液[J]. 化工环保, 2008,28(2):165-168.
[15]	马福波, 陈文兴, 田娟. 利用磷化废渣生产磷酸三钙技术[J]. 无机盐工业, 2015,47(9):60-61.
[16]	崔国星, 严赤美, 张启卫. 溶剂萃取法分离锌锰金属离子的实验研究[J]. 无机盐工业, 2008,40(9):20-23.
[17]	Jiang D, Zhang X, Lu S, et al. Research on process of preparation and performance of iron phosphate as precusor of lithium iron phosphate[J]. Rare Metals, 2011,30(1):52-54.
[18]	Fu W, Fang Z, Hong W, et al. Effects of Ce+Gd on the structural features and thermal stability of iron-boron-phosphate glasses[J]. Materials Chemistry & Physics, 2017,201:170-179.
[19]	Mahboobi E, Yourdkhani A, Poursalehi R. Liquid phase deposition of iron phosphate thin films[J]. CrystEngComm, 2018,20(35):10.1039/C8CE00632F. doi: 10.1039/C5CE01202C pmid: 26306076
[20]	Zhu Y M, Ruan Z W, Tang S Z, et al. Research status in preparation of FePO₄:a review[J]. Ionics, 2014,20(11):1501-1510.

有机相	相比	锌萃取率/%	乳化情况
1.2 g/L双硫腙+CHCl₃	1∶3	40.43	不乳化
体积分数10%P204+CHCl₃	1∶3	1.79	有机相微乳化
1.2 g/L双硫腙+体积分数 10%P204+CHCl₃	1∶3	68.55	不乳化
1.2 g/L双硫腙+体积分数 10%P204+CHCl₃	1∶5	55.39	不乳化

序号	产品名称	耗（产）量/ （t·a^-1）	单价/ （元·t^-1）	产值/ 万元	备注
1	氢氧化钠	560	4 000	-224.00	原料
2	磷酸	240	5 350	-128.40	原料
3	三氯甲烷	8	2 200	-1.76	原料
4	双硫腙	0.009 6	1 200 000	-1.15	原料
5	P204	0.78	50 000	-3.90	原料
6	六水合氯化铁	1 440	2 400	-345.60	原料
7	磷酸铁	870	20 000	+1 740.00	产品
8	氧化铁	328	2 500	+82.00	副产品
年综合效益				+1 117.19
