磷酸氢钙结晶聚结过程及主要影响杂质的探究

doi:10.11962/1006-4990.2020-0107

Abstract

Abstract:

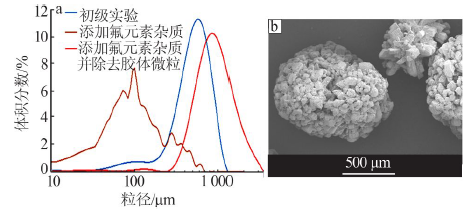

Agglomeration phenomenon often occurs in the reaction crystallization process,which is one of the main factors af-fecting the particle size,morphology and other properties of the product.Focusing on the agglomeration phenomenon of calci-um hydrogen phosphate,the process steps of agglomeration were analyzed,and the main impurities that hinder the agglomera-tion in industrial production were explored.The results showed that large,uniform and stable calcium hydrogen phosphate particles were obtained by using pure dilute phosphoric acid as raw material.The large-size aggregates undergone three key growth steps: single crystals agglomeration,small-size cluster crystals agglomeration and large-size cluster spherical crystal morphology formation.The colloidal particles containing fluorine in crystallization mother solution blocked the second step of agglomeration and became the most important factor to prevent agglomeration.Exploring the technological method of rationally utilizing the agglomeration phenomenon will open up a new way to solve the problems of difficult filtration and high drying cost in the industrial production of feed-grade calcium hydrogen phosphate.

Key words: large-size particles of calcium hydrogen phosphate, agglomeration, colloidal particles containing fluorine, crystallization

CLC Number:

TQ132.32

Cao Weiwen,Li Jun,Chen Ming,Yu Yinrong,Liao Xiaoting. Study on agglomeration process during crystallization of calcium hydrogen phosphate and its main affecting impurity thereof[J]. Inorganic Chemicals Industry, 2021, 53(1): 50-53.

Figures/Tables 8

References 10

[1]	王守庆. 饲料级磷酸氢钙生产工艺方法综述[J]. 潍坊教育学院学报, 2004(1):32-34.
[2]	段利中, 黄国虎. 饲料级磷酸氢钙生产工艺的研究进展[J]. 饲料工业, 2013(5):12-15.
[3]	李自炜, 周萌, 吴宁兰, 等. 全球饲料磷酸盐生产技术与发展趋势[J]. 无机盐工业, 2016,48(4):6-12.
[4]	周琼波, 龚丽, 韩增辉, 等. 湿法磷酸多级中和制备饲料磷酸氢钙研究[J]. 无机盐工业, 2018,50(5):47-49.
[5]	寇晓倩, 刘潇, 黄娇妹, 等. 饲料级磷酸氢钙中和工艺探讨[J]. 无机盐工业, 2015,47(9):46-49.
[6]	黄康胜, 周贵云. 饲料级磷酸氢钙结晶习性研究[J].磷肥与复肥, 2005(2):18-20.
[7]	尹继广. 磷酸-碳酸钙法制备大颗粒食品级磷酸氢钙新工艺[J].现代化工, 2006(S1):271-272.
[8]	李红, 李军, 王国平, 等. DTB结晶器制备盐酸法饲料磷酸氢钙[C]// 中国化学会. 中国化学会第28届学术年会论文集, 2012.
[9]	张鑫, 钟本和, 孙玉柱. 生产饲料级磷酸氢钙的新工艺[J]. 现代化工, 2015,35(1):158-159.
[10]	张鑫, 钟本和, 孙玉柱, 等. 饲料级磷酸氢钙结晶过程中团聚的研究[J]. 无机盐工业, 2015,47(5):38-40.

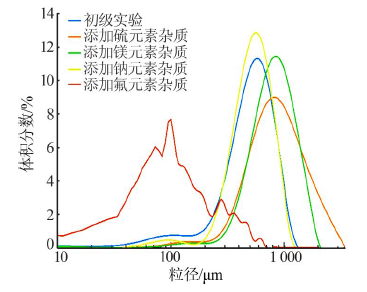

实验序号	w（SO₄^2-）	w（Mg²⁺）	w（Na⁺）	w（F^-）
初级实验	极微量	60.0	6.9	3.0
2	624.3	—	—	—
3	—	2 218.9	—	—
4	—	—	934.7	—
5	—	—	—	84.5
