生石灰湿法消化制备高比表面积氢氧化钙及结构表征

doi:10.19964/j.issn.1006-4990.2024-0110

摘要/Abstract

摘要：

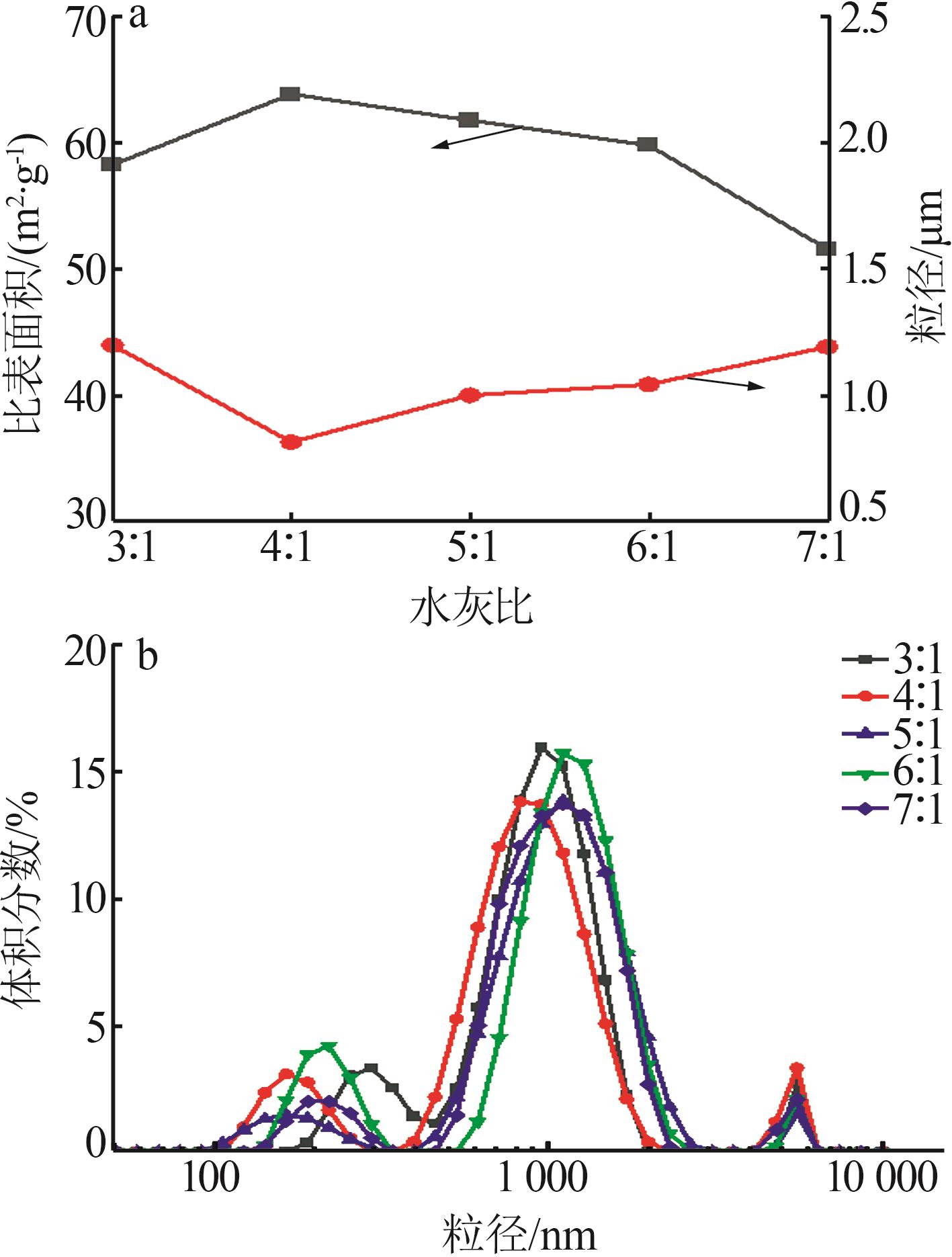

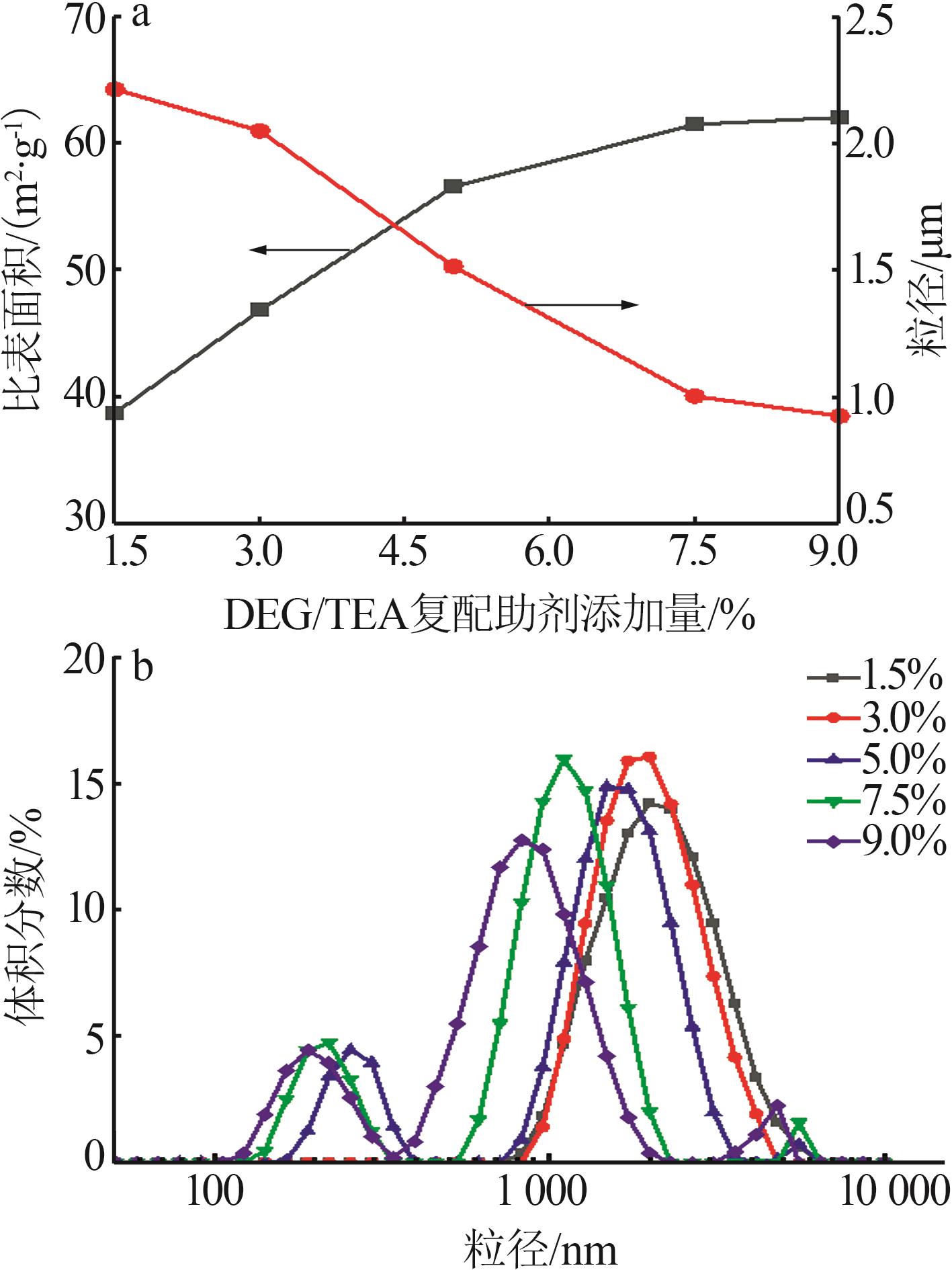

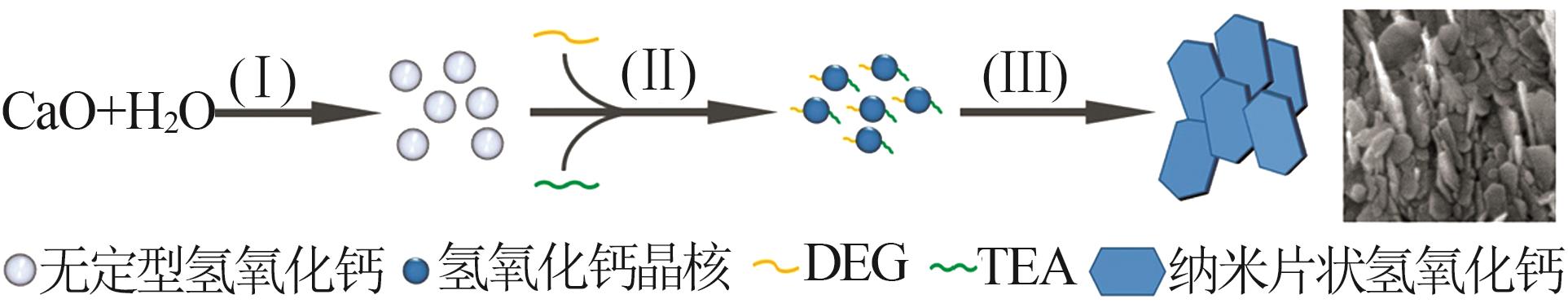

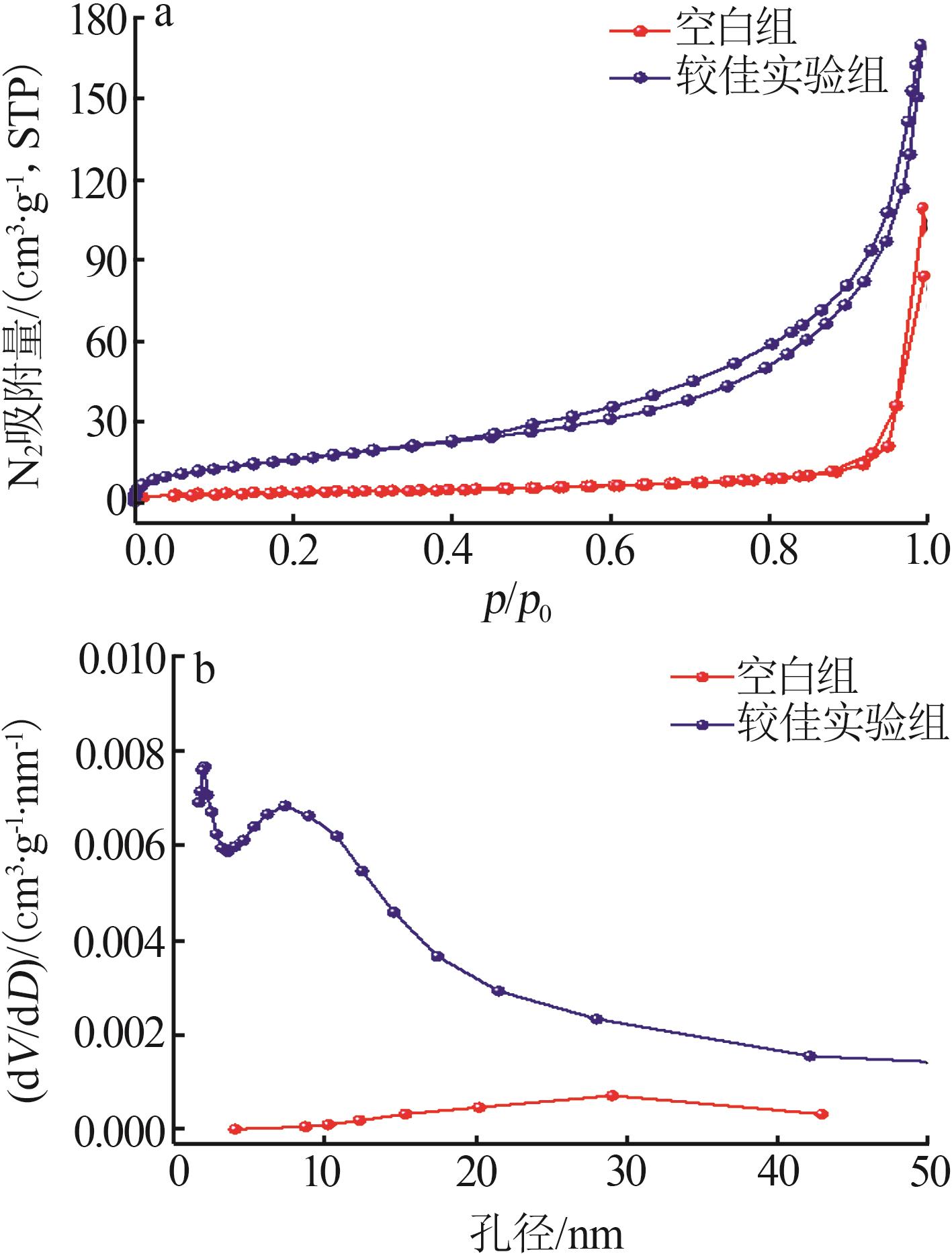

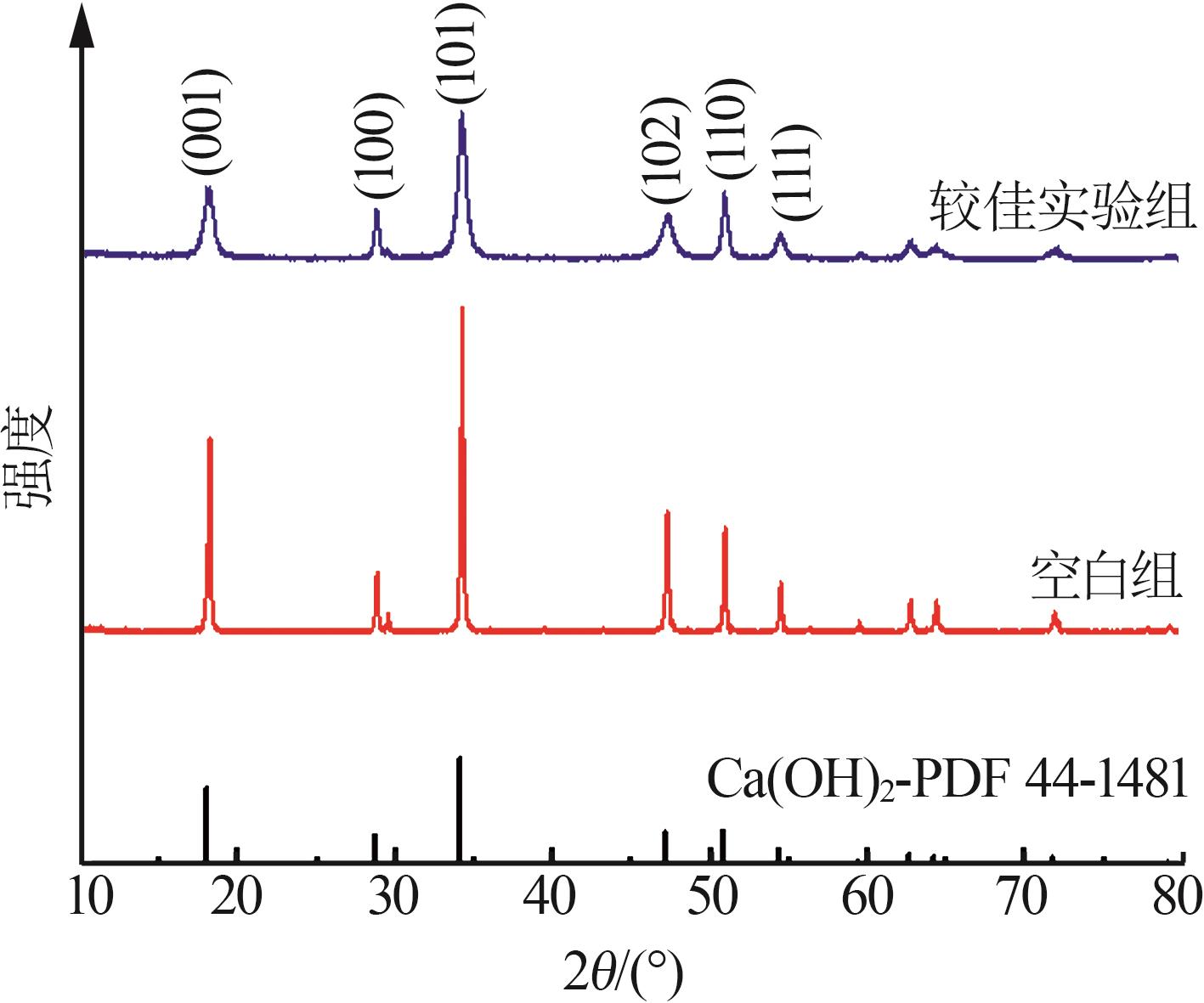

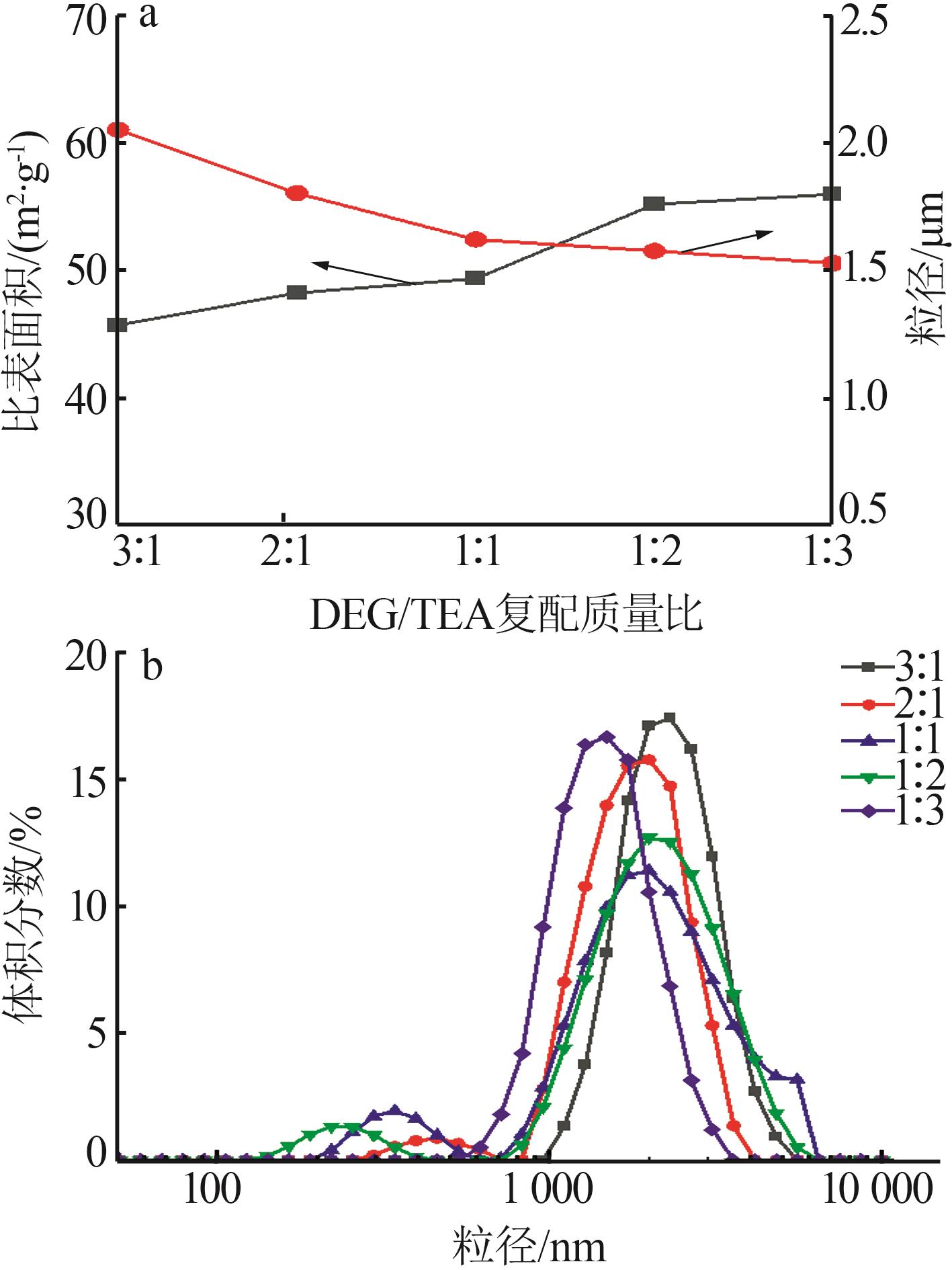

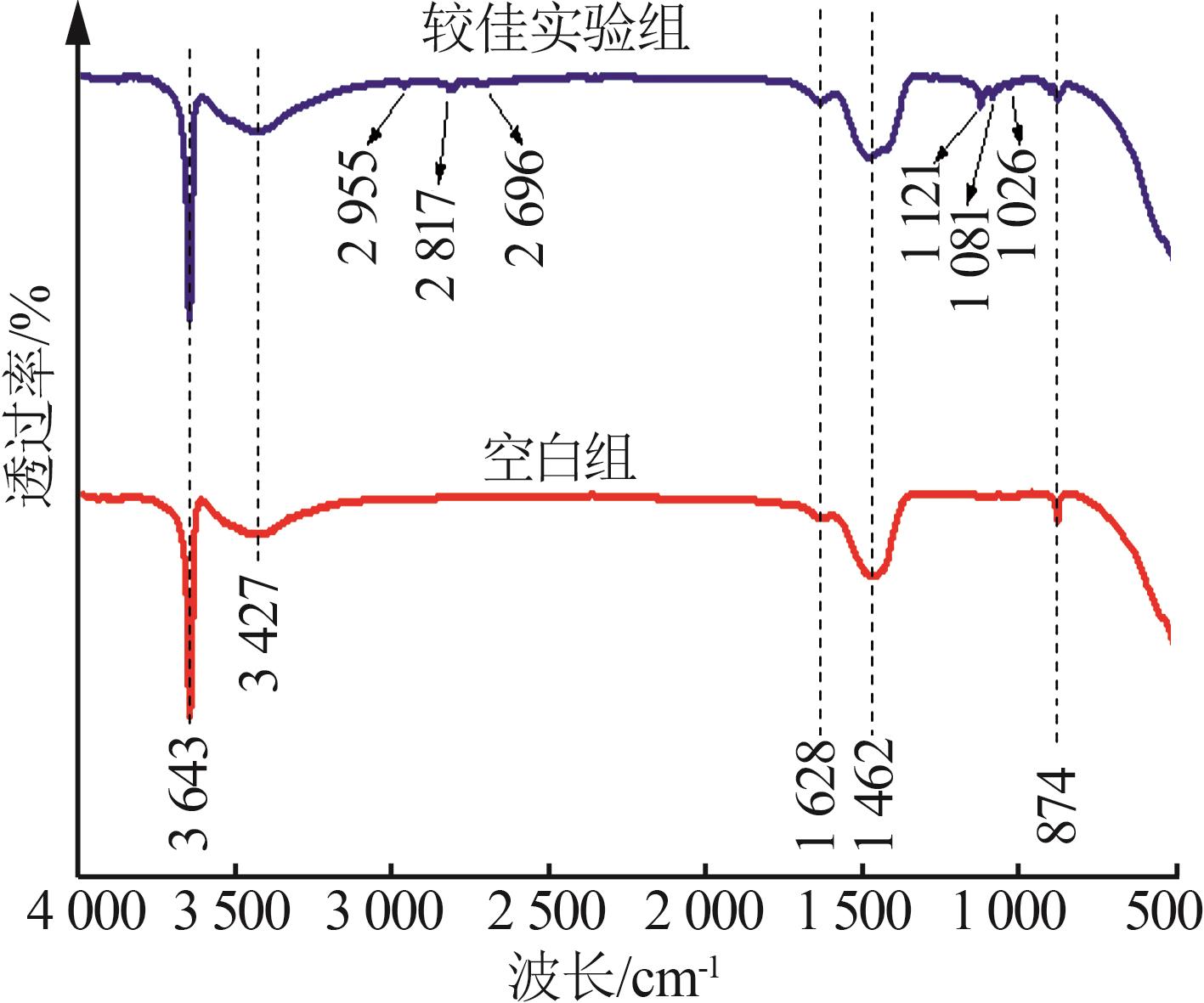

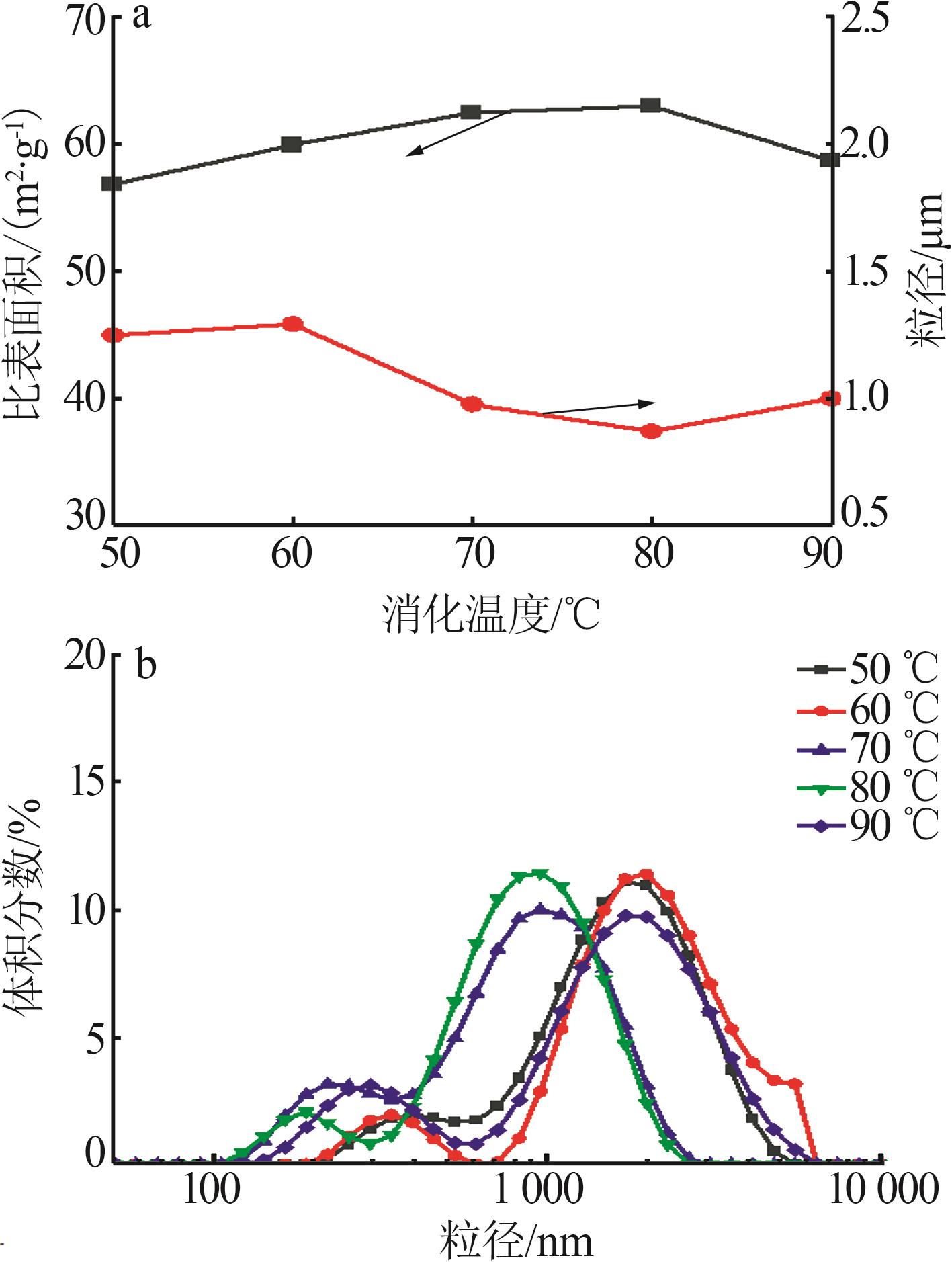

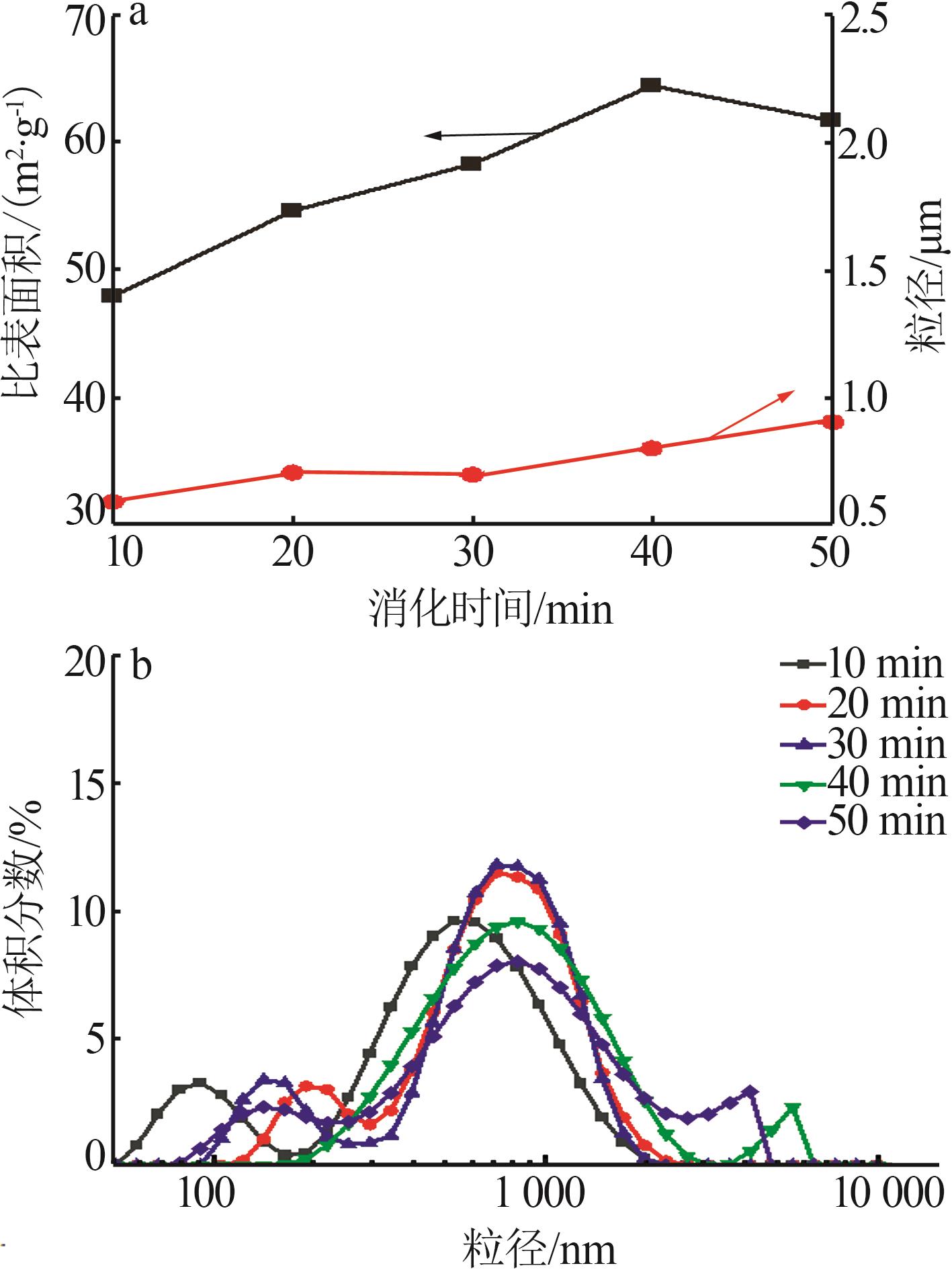

高比表面积氢氧化钙可以提升其在烟气脱硫过程中的反应效率。采用工业级生石灰为原料湿法消化制备高比表面积氢氧化钙，以二甘醇（DEG）和三乙醇胺（TEA）作为复配消化助剂（DEG/TEA），考察了DEG/TEA复配质量比、DEG/TEA复配助剂添加量、消化温度、水灰比、消化时间和生石灰活性度对氢氧化钙比表面积及粒径的影响；利用比表面积分析仪、纳米粒度仪、扫描电镜、X射线衍射仪及红外光谱仪对氢氧化钙进行表征分析。结果表明，较佳的湿法消化反应条件：DEG/TEA复配质量比1∶2、DEG/TEA复配助剂添加量7.5%（质量分数）、消化温度为70 ℃、水灰质量比为4∶1、消化时间为40 min，所制备的氢氧化钙比表面积为64.44 m²/g，总孔容积为0.265 cm³/g，平均粒径为0.800 μm，其微观形貌为纳米片状层层堆叠而成的团聚体，且具有发达的狭缝孔结构。研究发现，同样消化条件下，生石灰活性度越高，所制得的氢氧化钙比表面积越大。最后，提出了高比表面积氢氧化钙可能的形成机理。

关键词: 氢氧化钙, 比表面积, 粒径, 消化反应, 生石灰

Abstract:

High specific surface area calcium hydroxide can improve its reaction efficiency in the flue gas desulfurization process.Industrial quicklime was used as raw material to prepare high specific surface area calcium hydroxide by wet digestion.Diethylene glycol（DEG） and triethanolamine（TEA） were used as compound digestion additives（DEG/TEA），and the effects of DEG/TEA compound mass ratio，DEG/TEA compound additive amount，digestion temperature，water-to-lime ratio，digestion time and quicklime activity on the specific surface area and particle size of calcium hydroxide were investigated.Calcium hydroxide was characterized and analyzed by specific surface area analyzer，nano particle analyzer，scanning electron microscope，X-ray diffraction，and infrared spectroscopy.The findings indicated that the optimized wet digestion reaction conditions were as follows：DEG/TEA compound mass ratio of 1∶2，DEG/TEA compound additive amount of 7.5%（mass fraction），digestion temperature of 70 ℃，water-to-lime ratio of 4∶1，digestion time of 40 min.The specific surface area of the prepared calcium hydroxide was 64.44 m²/g，the total pore volume was 0.265 cm³/g，and the average particle size was 0.800 μm.Its micro-morphology was agglomerates formed by layer-by-layer stacking of nano-flakes，with well-developed slit pore structure.The research results revealed that the higher the activity of quicklime，the greater the specific surface area of calcium hydroxide produced under the same digestion conditions.Finally，the possible formation mechanism for high specific surface area calcium hydroxide was proposed.

Key words: calcium hydroxide, specific surface area, particle size, digestion process, quicklime

中图分类号:

TQ132.32

王杰, 赵旭波, 汤勇, 覃玲意, 陈小鹏, 廖丹葵, 童张法, 王琳琳. 生石灰湿法消化制备高比表面积氢氧化钙及结构表征[J]. 无机盐工业, 2024, 56(12): 104-112.

WANG Jie, ZHAO Xubo, TANG Yong, QIN Lingyi, CHEN Xiaopeng, LIAO Dankui, TONG Zhangfa, WANG Linlin. Preparation and structural characterization of high specific surface area calcium hydroxide by wet digestion of quicklime[J]. Inorganic Chemicals Industry, 2024, 56(12): 104-112.

图/表 13

表1

图1

图2

图3

图4

图5

表2

图6

表3

图7

图8

图9

图10

参考文献 32

[1]	DÖLLE K， RÖHLEN P.Determination of the feasibility of a renewed approach to the mechanical cleaning stage in wastewater treatment plant：A laboratory study［J］.Asian Journal of Advanced Research and Reports，2023，17（9）：126-134.
[2]	HONG J， ZOU X， QIN Z，et al.Effect of CO₂ on the desulfurization of sintering flue gas with hydrated lime［J］.Materials（Basel，Switzerland），2022，16（1）：303.
[3]	OTSUKA Y， KONO H， KIKUCHI M.Mechanochemical synthesis of cerium chlorapatite from a mixture of cerium chloride heptahydrate，dicalcium phosphate dihydrate，and calcium hydroxide for biomedical application［J］.Bio-Medical Materials and Engineering，2024，35（1）：77-85.
[4]	HE Kejia， TANG Zuozhou， SONG Qiang，et al.Process analysis of SO₃ removal by Ca（OH）₂ particles from flue gas［J］.Chemical Engineering Science，2022，247：117054.
[5]	HE Kejia， SONG Qiang， YAN Zhennan，et al.Study on competitive absorption of SO₃ and SO₂ by calcium hydroxide［J］.Fuel，2019，242：355-361.
[6]	HAN Y， HWANG G， KIM D，et al.Porous Ca-based bead sorbents for simultaneous removal of SO₂，fine particulate matters，and heavy metals from pilot plant sewage sludge incineration［J］.Journal of Hazardous Materials，2015，283：44-52.
[7]	王鑫，韦明，刘琨.特种氢氧化钙的制备技术与应用进展［J］.现代化工，2023，43（12）：26-30.
	WANG Xin， WEI Ming， LIU Kun.Progress in preparation technology and application of special kinds of calcium hydroxide［J］.Modern Chemical Industry，2023，43（12）：26-30.
[8]	SHIN H G， KIM H， KIM Y N，et al.Preparation and characterization of high surface area calcium hydroxide sorbent for SO₂ removal［J］.Current Applied Physics，2009，9（3）：S276-S279.
[9]	郝志飞，张印民，张永锋，等.湿法改性制备高比表面积氢氧化钙及表征［J］.无机盐工业，2015，47（12）：19-21.
	HAO Zhifei， ZHANG Yinmin， ZHANG Yongfeng，et al.Wet modified preparation and characterization of calcium hydroxide with high specific surface area［J］.Inorganic Chemicals Industry，2015，47（12）：19-21.
[10]	刘越，郑强，邢佳斌，等.石灰石干法制备高性能氢氧化钙的工艺及应用研究［J］.无机盐工业，2023，55（10）：42-49，85.
	LIU Yue， ZHENG Qiang， XING Jiabin，et al.Study on process and application of high-performance calcium hydroxide prepared by dry digestion from limestone［J］.Inorganic Chemicals Industry，2023，55（10）：42-49，85.
[11]	熊爽，严金生，周洲，等.生石灰消化反应条件对氢氧化钙特性影响［J］.无机盐工业，2023，55（12）：50-58.
	XIONG Shuang， YAN Jinsheng， ZHOU Zhou，et al.Effect of reaction conditions of quicklime digestion on properties of calcium hydroxide［J］.Inorganic Chemicals Industry，2023，55（12）：50- 58.
[12]	DONG Yanhui， ZHANG Dan， LI Daguang，et al.Control of ostwald ripening［J］.Science China Materials，2023，66（3）：1249-1255.
[13]	陈奇，廖丹葵，张庆年，等.电导率法快捷高效测定生石灰活性度［J］.无机盐工业，2023，55（9）：114-120.
	CHEN Qi， LIAO Dankui， ZHANG Qingnian，et al.Fast and efficient determination of quicklime activity by conductivity meth-od［J］.Inorganic Chemicals Industry，2023，55（9）：114-120.
[14]	夏铁玉，张辉，周明顺，等.生石灰高温性能检测方法及其应用［J］.烧结球团，2018，43（3）：24-27，42.
	XIA Tieyu， ZHANG Hui， ZHOU Mingshun，et al.Testing method of high temperature performance of quick lime and its application［J］.Sintering and Pelletizing，2018，43（3）：24-27，42.
[15]	徐荣声，孟泽，冯倩，等.氯化锌-水蒸气协同活化玉米芯制活性炭的研究［J］.无机盐工业，2023，55（12）：119-127.
	XU Rongsheng， MENG Ze， FENG Qian，et al.Study on preparation of activated carbon from corn cob by zinc chloride and water vapor［J］.Inorganic Chemicals Industry，2023，55（12）：119-127.
[16]	YASEEN M， ULLAH S， AHMAD W，et al.Fabrication of Zn and Mn loaded activated carbon derived from corn cobs for the adsorptive desulfurization of model and real fuel oils［J］.Fuel，2021，284：119102.
[17]	THOMMES M， KANEKO K， NEIMARK A V，et al.Physisorption of gases，with special reference to the evaluation of surface area and pore size distribution（IUPAC Technical Report）［J］.Pure and Applied Chemistry，2015，87（9/10）：1051-1069.
[18]	RODRIGUEZ-NAVARRO C， BURGOS-CARA A， DI LORENZO F，et al.Nonclassical crystallization of calcium hydroxide via amorphous precursors and the role of additives［J］.Crystal Growth & Design，2020，20（7）：4418-4432.
[19]	MISHRA R K， FLATT R J， HEINZ H.Force field for tricalcium silicate and insight into nanoscale properties：Cleavage，initial hydration，and adsorption of organic molecules［J］.The Journal of Physical Chemistry C，2013，117（20）：10417-10432.
[20]	NALET C， NONAT A.Ionic complexation and adsorption of small organic molecules on calcium silicate hydrate：Relation with their retarding effect on the hydration of C₃S［J］.Cement and Concrete Research，2016，89：97-108.
[21]	ZHANG Yanrong， KONG Xiangming， LU Zichen，et al.Influence of triethanolamine on the hydration product of portlandite in cement paste and the mechanism［J］.Cement and Concrete Research，2016，87：64-76.
[22]	郭思瑶，赵通林，郑思侬，等.胺-醇复配捕收剂对铁矿反浮选脱硅的影响［J/OL］.矿产综合利用，1-10［2024-04-23］.https：//link.cnki.net/urlid/51.1251.TD.20231117.1631.023.
	GUO Siyao， ZHAO Tonglin， ZHENG Sinong，et al.Effect of amine-alcohol complex trapping agent on desilication of iron ore by reverse flotation［J/OL］.Multipurpose Utilization of Mineral Resources，1-10［2024-04-23］.https：//link.cnki.net/urlid/51.1251.TD.20231117.1631.023.
[23]	CHAUDHARI O， BIERNACKI J J， NORTHRUP S.Effect of carboxylic and hydroxycarboxylic acids on cement hydration：Experimental and molecular modeling study［J］.Journal of Materials Science，2017，52（24）：13719-13735.
[24]	NAVRÁTILOVÁ E， TIHLAŘÍKOVÁ E， NEDĚLA V，et al.Effect of the preparation of lime putties on their properties［J］.Scientific Reports，2017，7（1）：17260.
[25]	MOHD DAUD F D， VIGNESH K， SREEKANTAN S，et al.Ca（OH）₂ nano-pods：Investigation on the effect of solvent ratio on morphology and CO₂ adsorption capacity［J］.RSC Advances，2016，6（42）：36031-36038.
[26]	周婧琦，黄琴，秦令祥，等.山药淀粉与燕麦β-葡聚糖共混体系理化及消化性能研究［J］.食品工业科技，2022，43（18）：114-121.
	ZHOU Jingqi， HUANG Qin， QIN Lingxiang，et al.Physicochemical and digestive properties of yam starch/oat β-glucan blends［J］.Science and Technology of Food Industry，2022，43（18）：114- 121.
[27]	汤勇，唐名德，焦妍惠，等.加压碳酸化法制备片状纳米碳酸钙及其表征［J］.材料导报，2023，37（17）：130-136.
	TANG Yong， TANG Mingde， JIAO Yanhui，et al.Preparation and characterization of flake-like nano calcium carbonate by pressurized carbonation［J］.Materials Reports，2023，37（17）：130-136.
[28]	RODRIGUEZ-NAVARRO C， VETTORI I， RUIZ-AGUDO E.Kinetics and mechanism of calcium hydroxide conversion into calcium alkoxides：Implications in heritage conservation using nanolimes［J］.Langmuir，2016，32（20）：5183-5194.
[29]	WANG Jian， KONG Xiangming， YIN Jianhao，et al.Impacts of two alkanolamines on crystallization and morphology of calcium hydroxide［J］.Cement and Concrete Research，2020，138：106250.
[30]	周刚，杨思奥，王凯丽，等.TEPA改性Cu-BTC@SiO₂复合气凝胶制备及其捕集CO₂特性研究［J/OL］.煤炭科学技术，1-12［2024-04-23］.https：//link.cnki.net/urlid/11.2402.TD.20230928.1544.002.
	ZHOU Gang， YANG Siao， WANG Kaili，et al.TEPA modification Cu-BTC@SiO₂ Preparation of composite aerogel and its CO₂ capture characteristics ［J/OL］.Coal Science and Technology，1-12［2024-04-23］.https：//link.cnki.net/urlid/11.2402.TD.20230928.1544.002.
[31]	ZHU Jinmeng， ZHANG Peiyao， DING Jinghan，et al.Nano Ca（OH）₂：A review on synthesis，properties and applications［J］.Journal of Cultural Heritage，2021，50：25-42.
[32]	HARUTYUNYAN V S.Adsorption energy of stoichiometric molecules and surface energy at morphologically important facets of a Ca（OH）₂ crystal［J］.Materials Chemistry and Physics，2012，134（1）：200-213.

样品	w（CaO）	w（MgO）	w（SiO₂）	w（Al₂O₃）	w（Fe₂O₃）	w（其他）
S1	98.90	0.61	0.21	0.10	0.06	0.12
S2	96.43	1.12	0.96	0.62	0.35	0.52
S3	93.36	3.02	1.71	0.79	0.41	0.71
S4	91.92	3.24	2.11	1.16	0.64	0.93

样品	原料生石灰活性度/mL	产物氢氧化钙比表面积/（m²·g^-1）
S1	408	64.44
S2	357	56.59
S3	300	45.65
S4	210	20.77
