钛盐混凝剂深度去除乳化油的性能及机理研究

doi:10.19964/j.issn.1006-4990.2024-0162

摘要/Abstract

摘要：

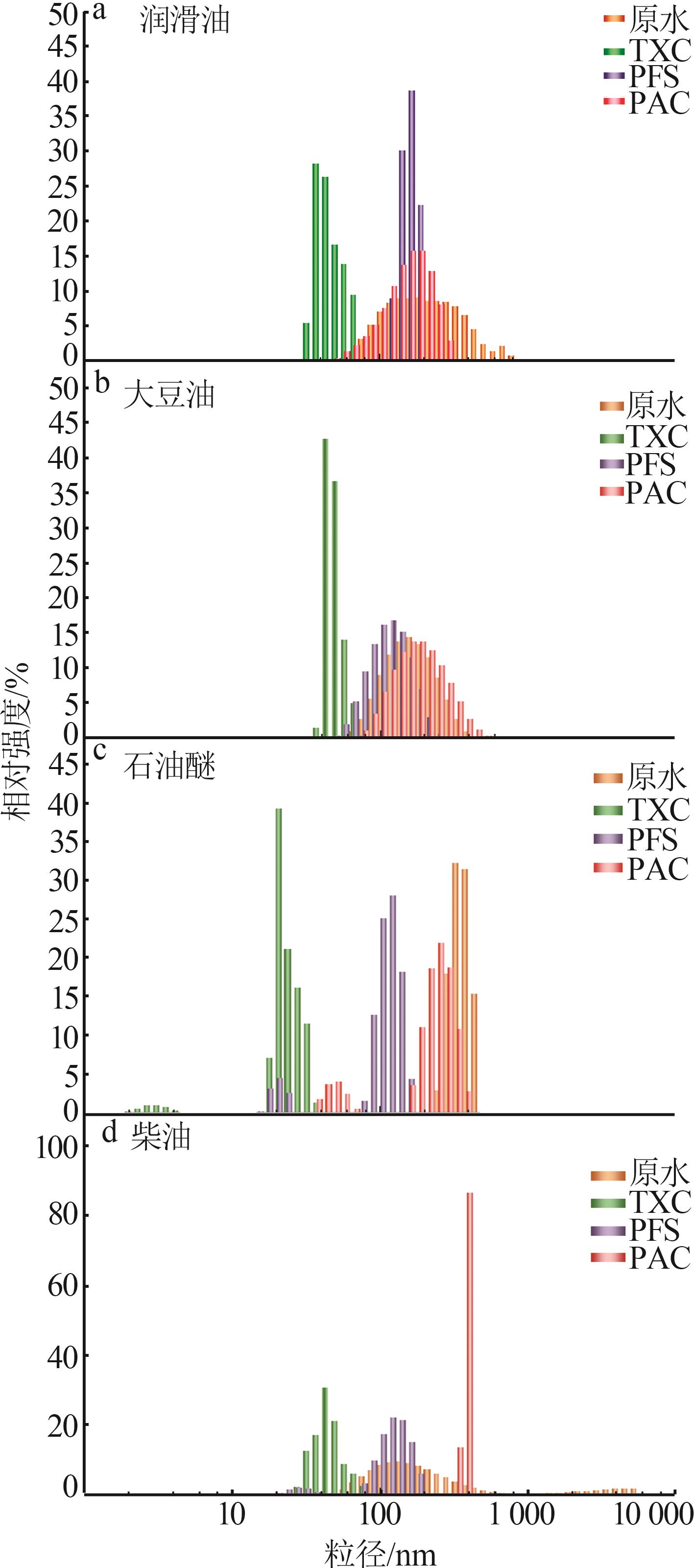

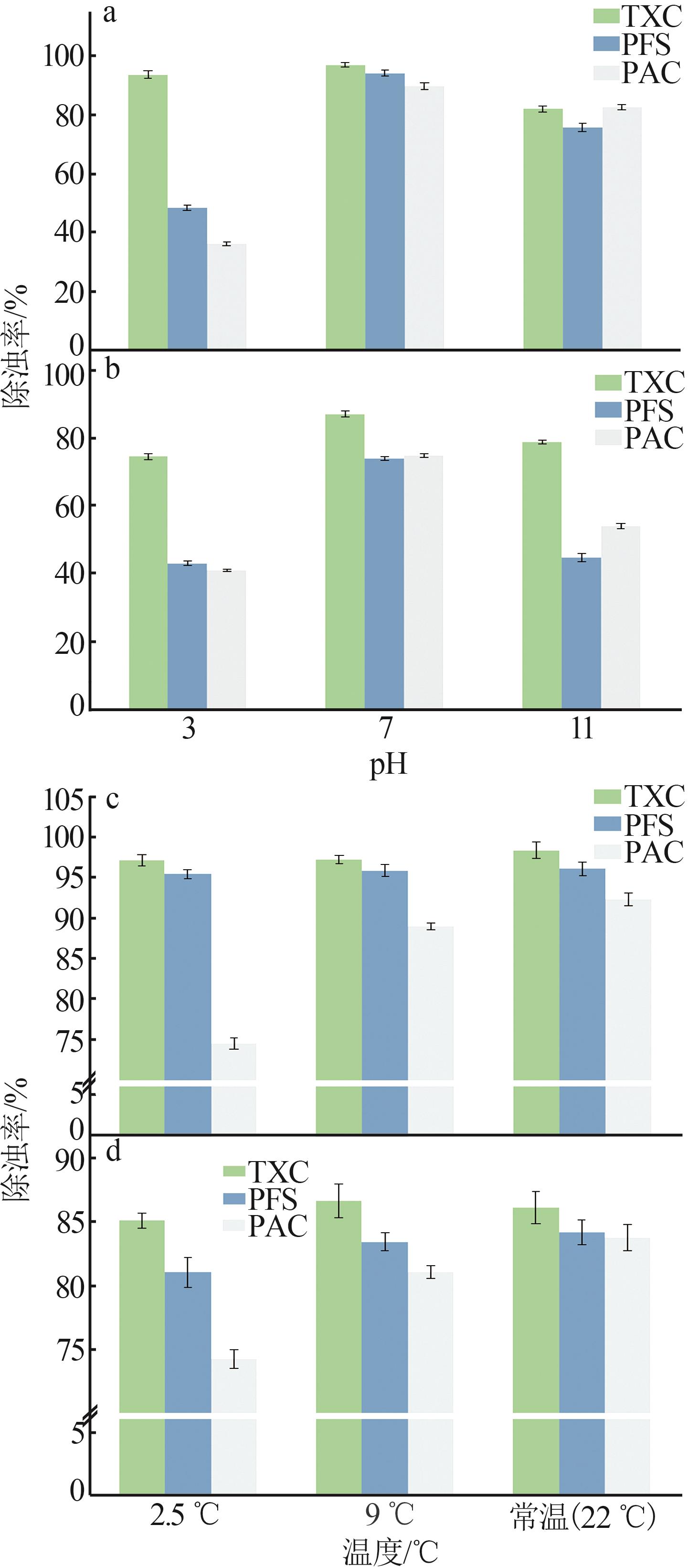

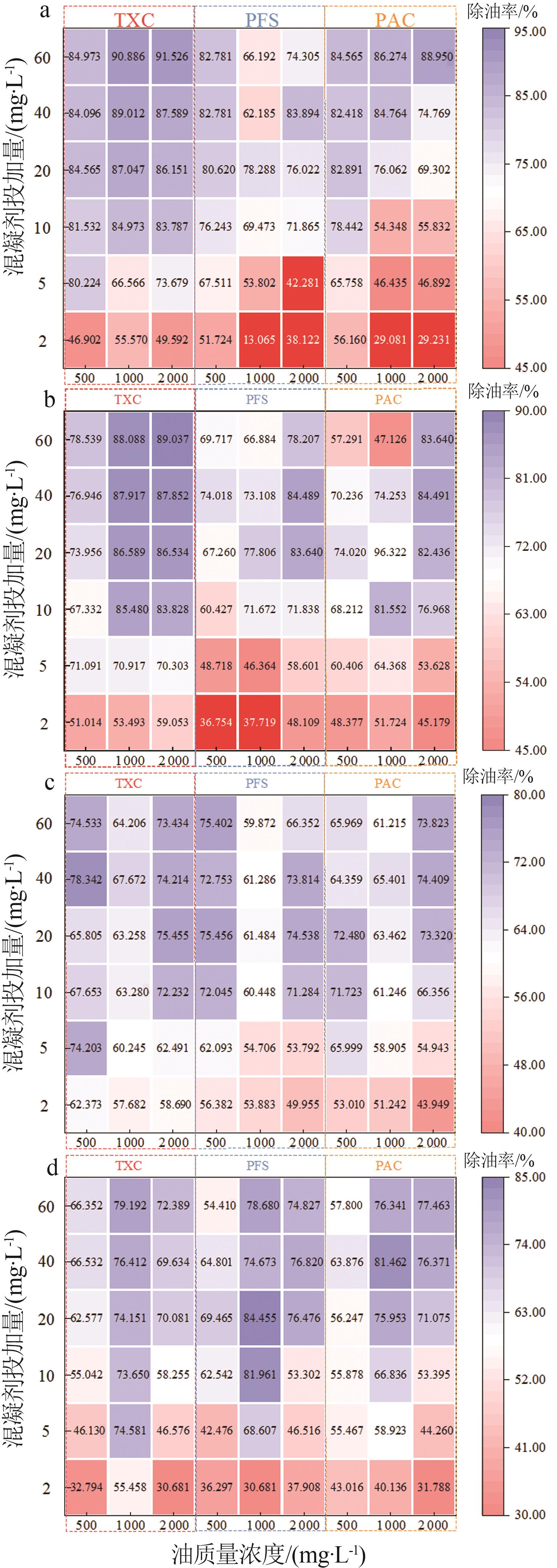

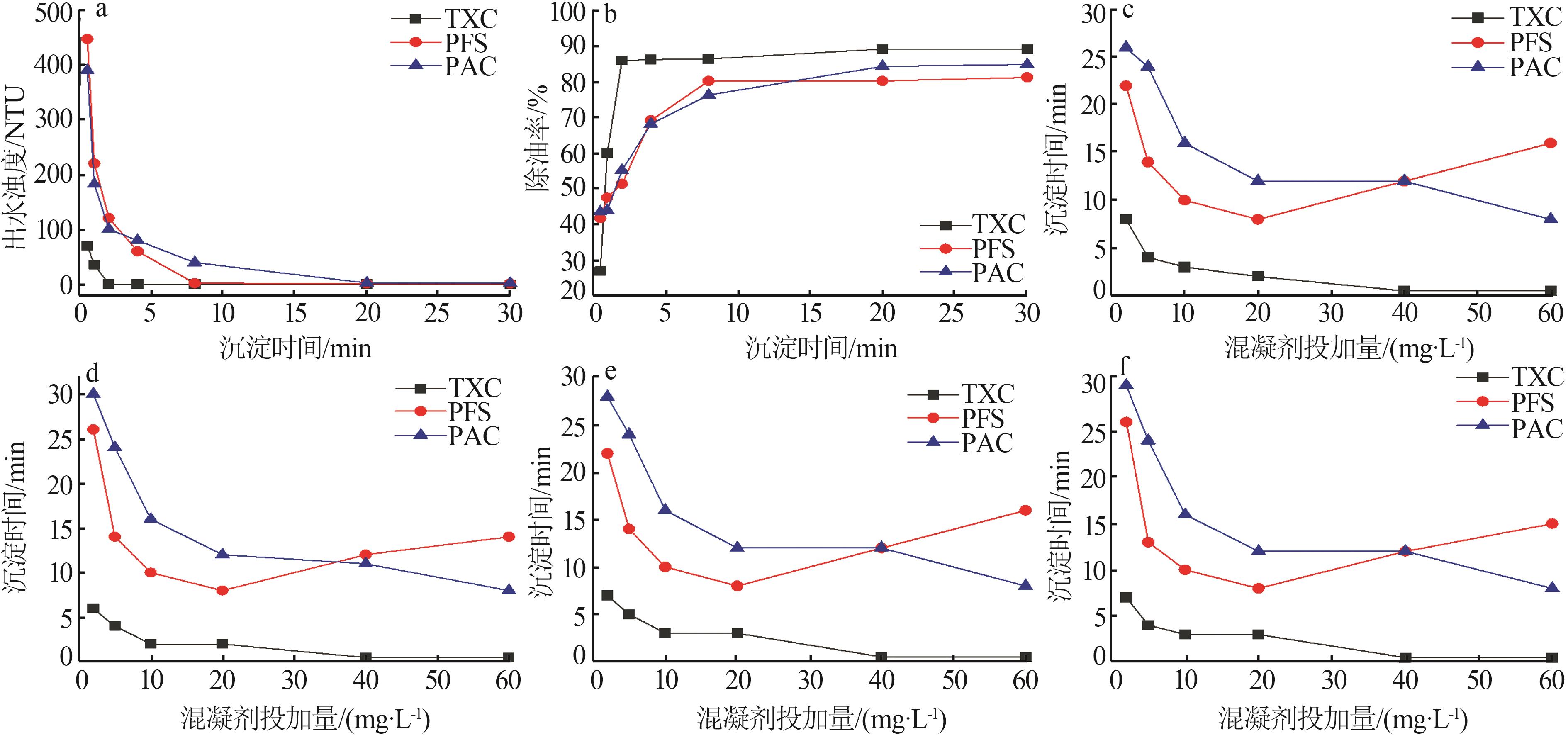

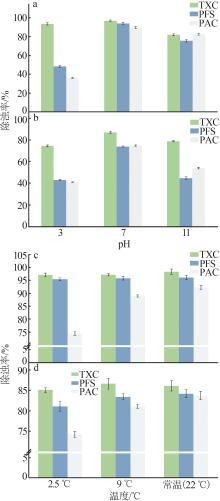

含油废水中乳化油因其粒径小、稳定性高等特点较难去除，使得废水处理难度加大。混凝法在乳化油处理中应用广泛，但传统的铁、铝盐混凝剂存在产生的絮体小、生成速度慢、难以实现油水快速分离的问题，导致深度除油效果不佳。新型钛盐混凝剂因混凝性能突出有望解决铁铝盐混凝剂应用问题。以润滑油、大豆油、石油醚和柴油4种模拟乳化油水为处理对象，选用聚合硫酸铁（PFS）和聚氯化铝（PAC）为对照，评价钛凝胶混凝剂（TXC）处理含油废水的可行性。结果表明，TXC对乳化油废水具有优于PFS和PAC的混凝效果。以润滑油模拟废水为例，在初始pH范围为3~11、投加量为1~60 mg/L和含油量为500~2 000 mg/L条件下，TXC的除油率最高可达91.526%，优于PFS和PAC。经TXC混凝后出水浊度均小于1 NTU，且油的粒径最小，表明TXC具有深度除油的应用潜力。絮体表征结果表明，TXC主要通过网捕卷扫作用除油，得益于其大尺寸的网状水解物，TXC絮体更易于去除小粒径油滴。该研究结果为含油特别是乳化油废水的处理提供新的思路。

关键词: 乳化油, 混凝, 除油, 粒径, 钛混凝剂

Abstract:

Emulsified oil is more difficult to be removed because of its small particle size and difficult to be agglomerated.Coagulation is widely used in the treatment of emulsified oil.However，the traditional iron and aluminum salt coagulants produce small flocs and have slow generation rate，which make it difficult to realize the rapid separation of oil and water，resulting in poor deep oil removal effect.The new titanium salt coagulant is expected to solve the application problem of iron aluminum salt coagulant due to its outstanding coagulation performance.In this paper，a new type of titanium gel coagulant（TXC） for the treatment of oily wastewater was evaluated by using four kinds of simulated emulsified oil water，such as lubricating oil，soybean oil，petroleum ether and diesel oil，and choosing polyferric sulfate（PFS） and polyaluminum chloride（PAC） as the control.The results showed that TXC had better coagulation effect on emulsified oil wastewater than PFS and PAC.Taking lubricating oil as an example，in the initial pH range of 3~11，dosage of 1~60 mg/L and oil content of 500~2 000 mg/L，the oil removal rate of TXC was up to 91.526%.It was better than PFS and PAC.The turbidity of the oil-bearing wastewater after TXC coagulation was less than 1 NTU，and the particle size of the oil was the smallest，which indicated that TXC had the application potential of deep oil removal.The results of floc characterization showed that TXC mainly removed oil by net sweeping，and because of its large floc size，it was easier to remove small particle size oil droplets.The research results provided new ideas for the treatment of oily wastewater，especially emulsified oil wastewater.

Key words: emulsified oil, coagulation, oil removal, particle size, titanium coagulant

中图分类号:

X703

黄天寅, 孙凌, 赵勤政, 陈新, 宋孝杰, 吴兵党. 钛盐混凝剂深度去除乳化油的性能及机理研究[J]. 无机盐工业, 2025, 57(2): 68-75.

HUANG Tianyin, SUN Ling, ZHAO Qinzheng, CHEN Xin, SONG Xiaojie, WU Bingdang. Study on performance and mechanism of titanium salt coagulant for treatment of oily wastewater[J]. Inorganic Chemicals Industry, 2025, 57(2): 68-75.

图/表 8

表1

图1

图2

图3

图4

图5

图6

图7

参考文献 28

1	TAN Jiatong， HU Haili， VAHAJI S，et al.Effects of drag-reducing polymers on the flow patterns，pressure gradients，and drag-reducing rates of horizontal oil-water flows［J］.International Journal of Multiphase Flow，2022，153：104136.
2	ZHAO Chuanliang， ZHOU Junyuan， YAN Yi，et al.Application of coagulation/flocculation in oily wastewater treatment：A review［J］.Science of the Total Environment，2021，765：142795.
3	ADETUNJI A I， OLANIRAN A O.Treatment of industrial oily wastewater by advanced technologies：A review［J］.Applied Water Science，2021，11（6）：98.
4	GAO Junkai， WANG Jiaqi， CAI Miaomiao，et al.Advanced superhydrophobic and multifunctional nanocellulose aerogels for oil/water separation：A review［J］.Carbohydrate Polymers，2023，300：120242.
5	ZHANG Jingya， ZHANG Feng， FANG Wangxi，et al.Membrane wettability manipulation via mixed-dimensional heterostructured surface towards highly efficient oil-in-water emulsion separation［J］.Journal of Membrane Science，2023，672：121472.
6	SAMUEL O， OTHMAN M H D， KAMALUDIN R，et al.Treatment of oily wastewater using photocatalytic membrane reactors：A critical review［J］.Journal of Environmental Chemical Engineering，2022，10（6）：108539.
7	MA Jiangya， WU Genyu， ZHANG Rui，et al.Emulsified oil removal from steel rolling oily wastewater by using magnetic chitosan-based flocculants：Flocculation performance，mechanism，and the effect of hydrophobic monomer ratio［J］.Separation and Purification Technology，2023，304：122329.
8	KUMAR N， MANDAL A.Thermodynamic and physicochemical properties evaluation for formation and characterization of oil-in-water nanoemulsion［J］.Journal of Molecular Liquids，2018，266：147-159.
9	刘丽冰，王希，杨承刚，等.铝系混凝剂优势形态分析及其混凝特性［J］.环境科学学报，2020，40（12）：4249-4262.
	LIU Libing， WANG Xi， YANG Chenggang，et al.The analysis of dominant species in aluminous coagulants and their coagulation properties［J］.Acta Scientiae Circumstantiae，2020，40（12）：4249-4262.
10	赵志萍，丁立辉.聚氯化铝过滤性能的影响因素研究［J］.无机盐工业，2014，46（4）：49-52.
	ZHAO Zhiping， DING Lihui.Study on influence factors of PAC filtration performance［J］.Inorganic Chemicals Industry，2014，46（4）：49-52.
11	王晓萌，王鑫，杨明辉，等.铝、铁、钛3种金属盐基混凝剂调理污泥的性能比较［J］.环境科学，2018，39（5）：2274-2282.
	WANG Xiaomeng， WANG Xin， YANG Minghui，et al.Sludge conditioning performance of polyaluminum，polyferric，and titanium xerogel coagulants［J］.Environmental Science，2018，39（5）：2274-2282.
12	LIU Hongsheng， DAI Kun， DENG Jinjun，et al.Synthesis of antibacterial polyaluminium silicate sulfate/sepiolitenano composite coagulant for oilfield sewage treatment［J］.Journal of Cleaner Production，2022，379：134385.
13	郑怀礼，高亚丽，蔡璐微，等.聚合氯化铝混凝剂研究与发展状况［J］.无机盐工业，2015，47（2）：1-5.
	ZHENG Huaili， GAO Yali， CAI Luwei，et al.Research and development status of poly aluminum chloride coagulant［J］.Inorganic Chemicals Industry，2015，47（2）：1-5.
14	PAN L L， CHEN Y， CHEN D，et al.Oil removal in tight-emulsified petroleum waste water by flocculation［J］.IOP Conference Series：Materials Science and Engineering，2018，392：042005.
15	SHEN Xue， GAO Baoyu， GUO Kangying，et al.PAC-PDMDAAC pretreatment of typical natural organic matter mixtures：Ultrafiltration membrane fouling control and mechanisms［J］.Science of the Total Environment，2019，694：133816.
16	王彩霞，张伟军，王东升，等.钛盐混凝剂调理对活性污泥絮体理化性质的影响作用机制［J］.环境科学，2016，37（6）：2243-2251.
	WANG Caixia， ZHANG Weijun， WANG Dongsheng，et al.Influencing mechanism of titanium salt coagulant chemical conditioning on the physical and chemical properties of activated sludge flocs［J］.Environmental Science，2016，37（6）：2243-2251.
17	WU Lingmin， GAO Yixiang， XU Xiaofei，et al.Excellent coagulation performance of polysilicate aluminum ferric for treating oily wastewater from Daqing gasfield：Responses to polymer properties and coagulation mechanism［J］.Journal of Environmental Management，2024，356：120642.
18	吴兵党，潘莹露，赵勤政，等.新型聚镧混凝剂的制备及其在低温低浊水中的深度除磷性能［J］.无机盐工业，2024，56（2）：127-135.
	WU Bingdang， PAN Yinglu， ZHAO Qinzheng，et al.Preparation of novel lanthanum coagulants and their deep phosphorus removal properties in low temperature and turbidity water［J］.Inorganic Chemicals Industry，2024，56（2）：127-135.
19	KAJJUMBA G W， MARTI E J.A review of the application of cerium and lanthanum in phosphorus removal during wastewater treatment：Characteristics，mechanism，and recovery［J］.Chemosphere，2022，309：136462.
20	甘永海，吴兵党，厉豪杰，等.新型钛混凝剂的制备及应用评估［J］.无机盐工业，2020，52（9）：1-5.
	GAN Yonghai， WU Bingdang， LI Haojie，et al.Preparation and application evaluation of a novel titanium coagulant［J］.Inorganic Chemicals Industry，2020，52（9）：1-5.
21	高燕.低浓度含油废水的处理［D］.四川：西南科技大学，2018.
	GAO Yan.The separation of low concentrated oily wastewater［D］.Sichuan：Southwest University of Science and Technology，2018.
22	杨卓帆.新型钛系絮凝剂在无机污染物处理中的应用及混凝机理初步研究［D］.武汉：武汉工程大学，2019.
	YANG Zhuofan.Application of new titanium flocculants in treatment of inorganic pollutants and preliminary study on coagulation mechanism［D］.Wuhan：Wuhan Institute of Technology，2019.
23	WANG Xiaomeng， LI Minghui， SONG Xiaojie，et al.Preparation and evaluation of titanium-based xerogel as a promising coagulant for water/wastewater treatment［J］.Environmental Science & Technology，2016，50（17）：9619-9626.
24	WANG Hao， YU Linqian， CHEN Sangni，et al.Coagulation enhanced high-rate contact-stabilization process for pretreatment of municipal wastewater：Simultaneous organic capture and phosphorus removal［J］.Separation and Purification Technology，2022，298：121669.
25	高宝玉，黄鑫，姚广平，等.钛盐混凝剂的研究进展［J］.山东大学学报（工学版），2020，50（1）：109-114.
	GAO Baoyu， HUANG Xin， YAO Guangping，et al.Review of developments in titanium-based coagulants［J］.Journal of Shandong University（Engineering Science），2020，50（1）：109-114.
26	GUO Kangying， WANG Zhining， PAN Jingwen，et al.Highly efficient Al-Ti gel as a coagulant for surface water treatment：Insights into the hydrolysate transformation and coagulation mechanism［J］.Water Research，2022，221：118826.
27	HUANG Wenguang， WANG Xinzhu， ZHANG Wentao，et al.Intraligand charge transfer boosts visible-light-driven generation of singlet oxygen by metal-organic frameworks［J］.Applied Catalysis B：Environmental，2020，273：119087.
28	CHEN Weiming， ZHUO Xiaocun， HE Chen，et al.Molecular investigation into the transformation of dissolved organic matter in mature landfill leachate during treatment in a combined membrane bioreactor-reverse osmosis process［J］.Journal of Hazardous Materials，2020，397：122759.

	初始含油量/（mg·L^-1）	初始浊度/NTU	初始pH
润滑油	500	20.9	6.76
	1 000	36.2	6.64
	2 000	79.5	5.84
大豆油	500	23.9	7.49
	1 000	34.8	7.19
	2 000	55.4	6.64
石油醚	500	25.1	7.81
	1 000	58.4	7.46
	2 000	112.3	7.24
柴油	500	38.2	8.06
	1 000	70.6	7.62
	2 000	142.8	7.12
