胺功能化氧化石墨烯对水泥基复合材料性能的影响

doi:10.19964/j.issn.1006-4990.2022-0312

摘要/Abstract

摘要：

氧化石墨烯（GO）在水泥浆料中的团聚会影响其对水泥复合材料的力学增强作用。为了解决氧化石墨烯在水泥浆料中的分散性问题，用三乙醇胺（TEOA）通过化学法对氧化石墨烯进行胺功能化（TEOA-GO），并制备了氧化石墨烯水泥基复合材料（GO/C）和胺功能化氧化石墨烯水泥基复合材料（TEOA-GO/C）。分别采用X射线衍射（XRD）、扫描电子显微镜（SEM）、傅里叶红外光谱（FT-IR）等手段对样品结构进行表征。结果表明:与氧化石墨烯相比，胺功能化氧化石墨烯在氢氧化钙溶液中的分散性更好；水泥基复合材料的力学性能测定结果显示，当掺杂0.03%（质量分数）的胺功能化氧化石墨烯时，水泥基复合材料28 d抗折强度最大为7.96 MPa，相较于空白样和氧化石墨烯水泥基复合材料分别提高了15.3%和5.43%；当掺杂0.05%（质量分数）胺功能化氧化石墨烯时，水泥基复合材料28 d抗压强度最大为74.14 MPa，相较于空白样和氧化石墨烯水泥基复合材料分别提高了40.68%和11.99%；扫描电镜表征结果进一步表明，加入胺功能化氧化石墨烯，有利于提高水泥的水化程度，阻碍裂缝的扩展，提高水泥的力学性能。

关键词: 三乙醇胺, 氧化石墨烯, 水泥, 团聚

Abstract:

Agglomeration of graphene oxide（GO） in cementitious solutions affects the mechanical enhancement of cement composite.In order to solve the problem of dispersibility of GO in the cement paste，GO was chemically functionalized with triethanolamine（TEOA-GO），then the GO cement-based composites（GO/C） and TEOA-GO cement-based composites（TEOA-GO/C） were prepared.The structure and surface morphology of sample were characterized by X-ray diffraction（XRD），scanning electron microscope（SEM），fourier transform infrared spectrometer（FTIR）.The results indicated that TEOA-GO had better dispersibility in Ca（OH）₂ solution than GO.The results of mechanical strength showed that 0.03%TEOA-GO was doped into the composites，the 28 d flexural strength of TEOA-GO/C were 7.96 MPa，which were increased by 15.3% and 5.43%，respectively，compared to the control and GO/C.When it was doped with 0.05% TEOA-GO，the 28 d compressive strength of TEOA-GO/C was 74.14 MPa，which was 40.68% and 11.99% higher than that of the control and GO/C，respectively.SEM results further showed that the addition of TEOA-GO was beneficial to improve the hydration degree of cement，hindered the expansion of cracks and enhanced the mechanical properties of cement.

Key words: triethanolamine, graphene oxide, cement, agglomeration

中图分类号:

TU599

赵丽平, 王飞. 胺功能化氧化石墨烯对水泥基复合材料性能的影响[J]. 无机盐工业, 2023, 55(3): 66-70.

ZHAO Liping, WANG Fei. Effect of amine-functionalized graphene oxide on mechanical properties of cement composites[J]. Inorganic Chemicals Industry, 2023, 55(3): 66-70.

图/表 8

表1

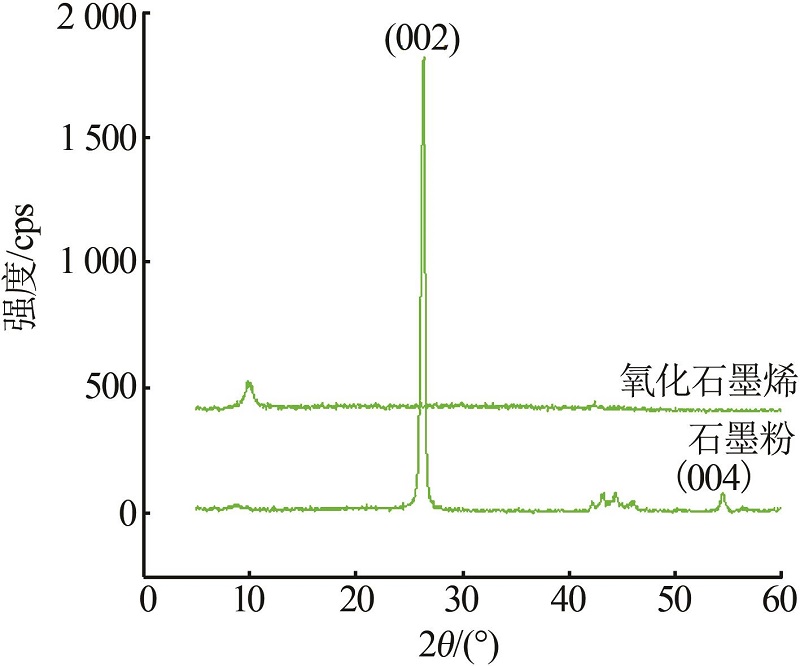

图1

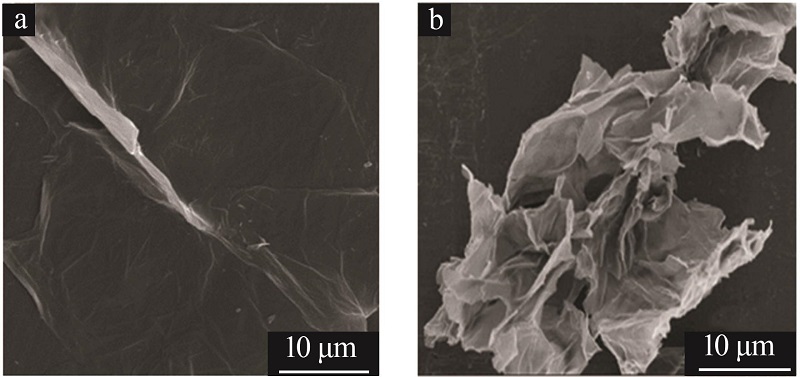

图2

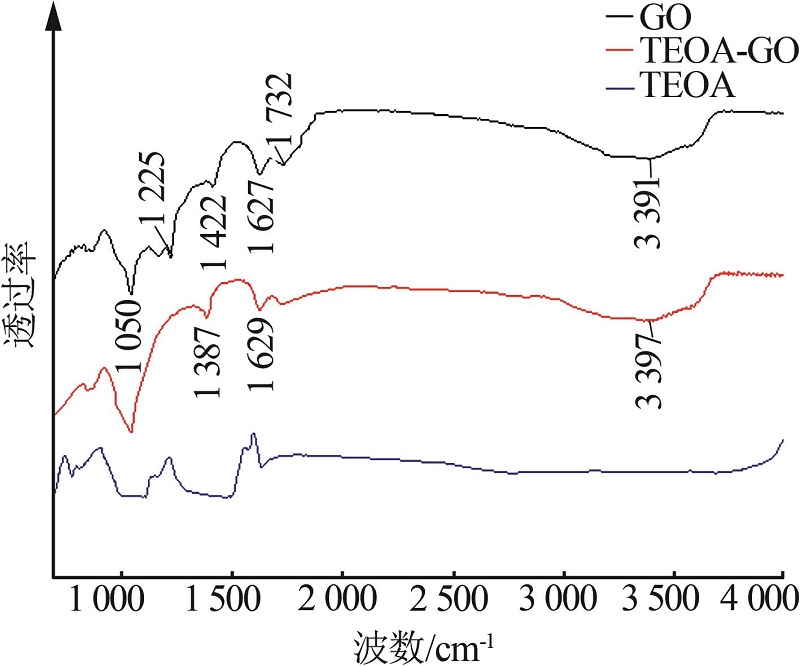

图3

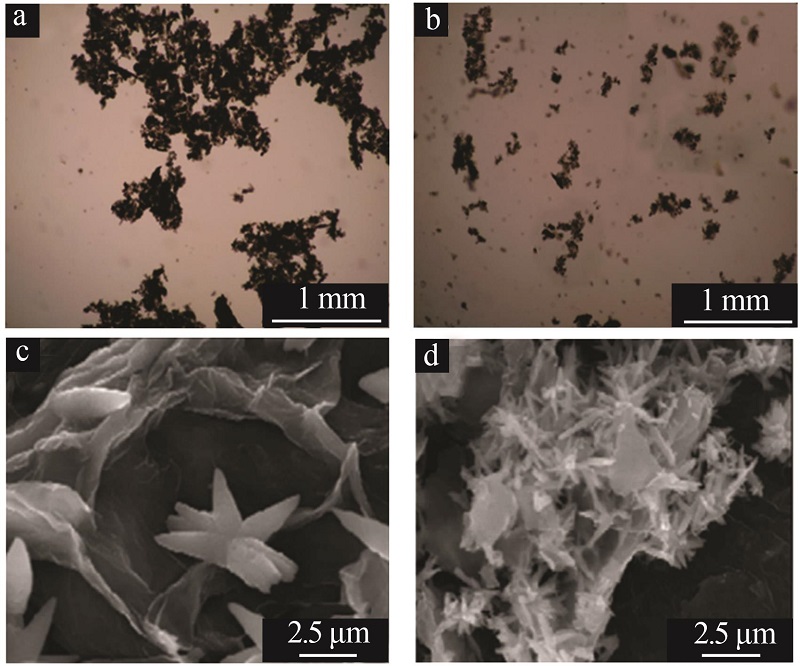

图4

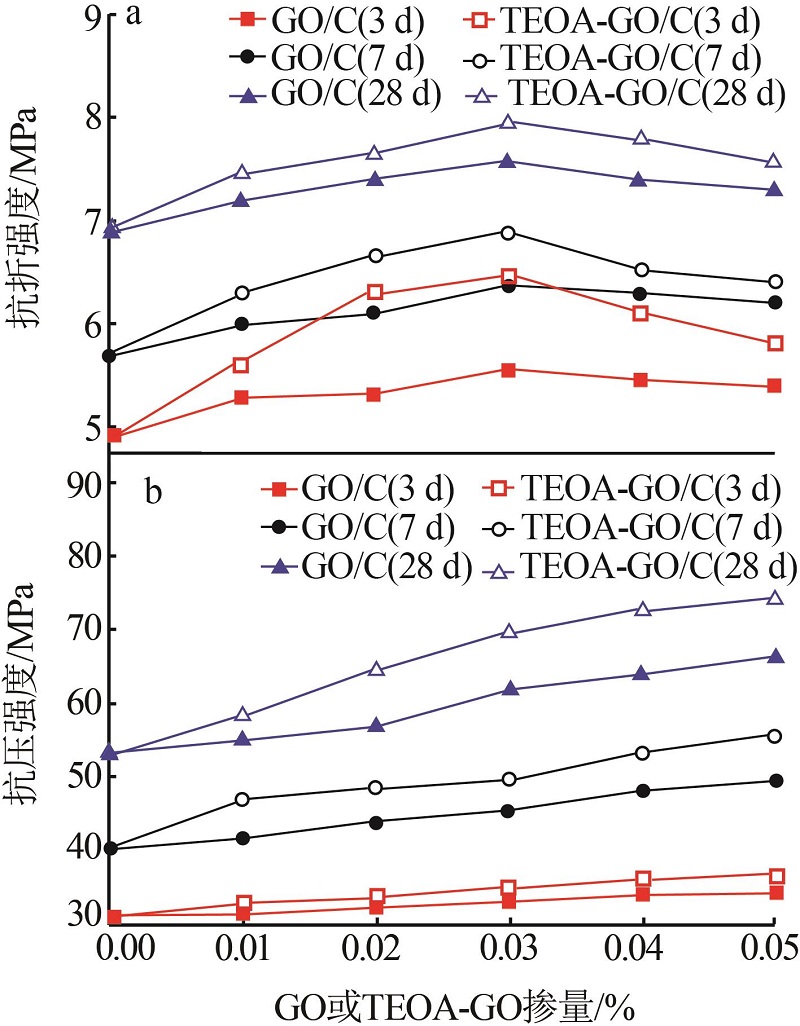

图5

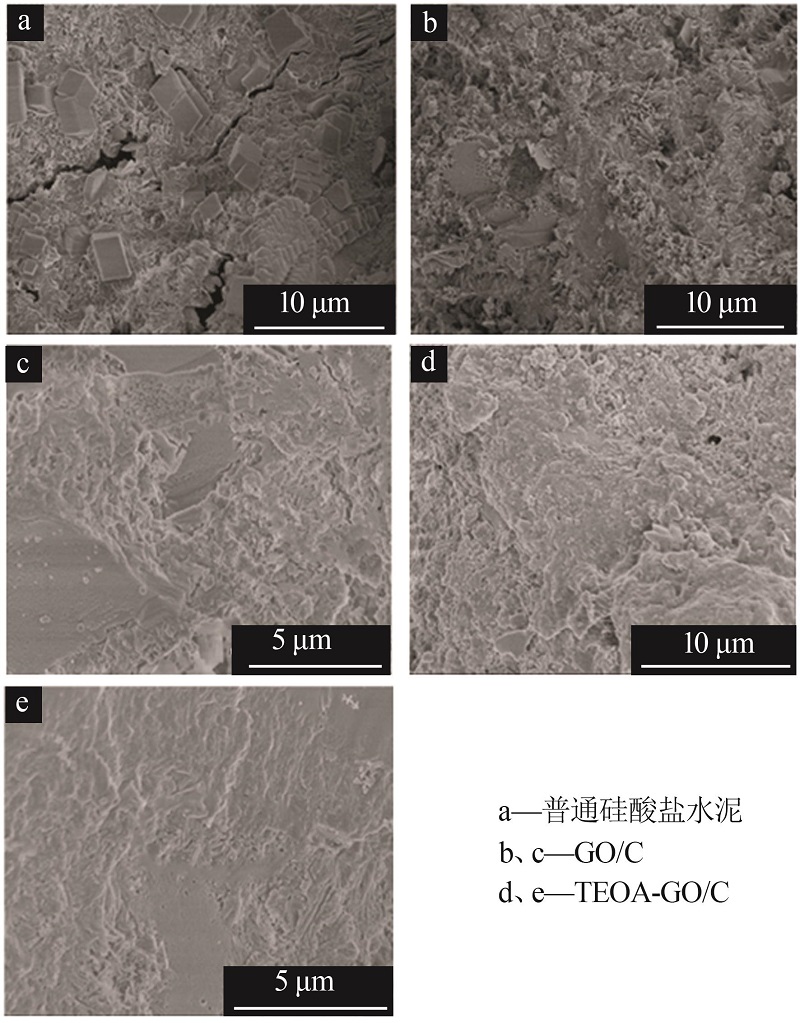

图6

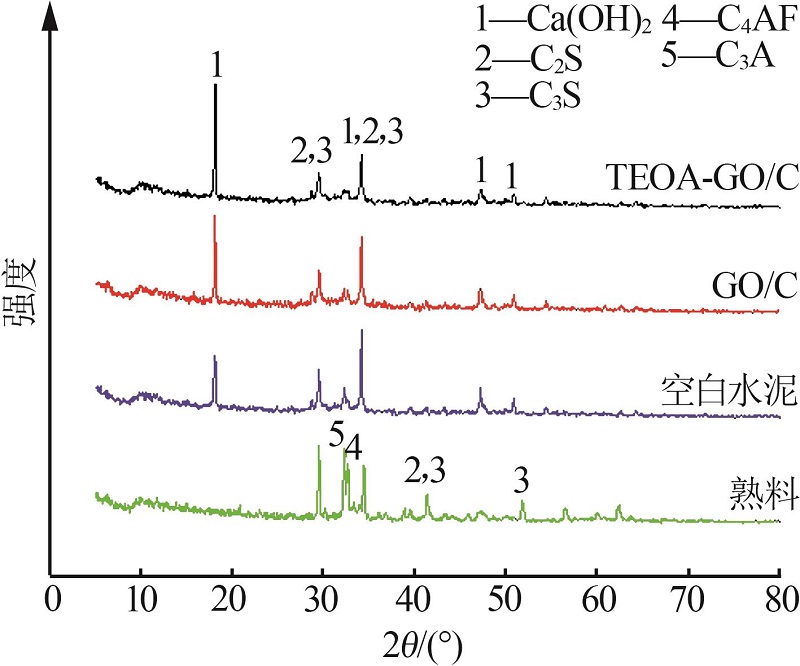

图7

参考文献 17

1	潘毅，蔡联亨，郭瑞，等.碳纤维增强复合网格-聚合物水泥砂浆加固RC梁抗剪性能试验研究[J].建筑结构学报，2020，41（4）:110-118.
	PAN Yi， CAI Lianheng， GUO Rui，et al.Experimental study on shear performance of RC beams strengthened with CFRP grid-PCM[J].Journal of Building Structures，2020，41（4）:110-118.
2	秦煜，阮鹏臻，唐元鑫，等.碳纳米管水泥基复合材料导电特性影响因素研究进展[J].硅酸盐学报，2021，49（2）:411-419.
	QIN Yu， RUAN Pengzhen， TANG Yuanxin，et al.Research progress on influencing factors on electrical conductive properties of carbon nanotubes-reinforced cement based composite materials[J].Journal of the Chinese Ceramic Society，2021，49（2）:411-419.
3	周琼，杜少林，谢英豪.锂电池回收再生石墨增强水泥性能研究[J].无机盐工业，2020，52（11）:64-68.
	ZHOU Qiong， DU Shaolin， XIE Yinghao.Study on properties of lithium battery recycled graphite reinforced cement[J].Inorganic Chemicals Industry，2020，52（11）:64-68.
4	HOU Dongshuai， YANG Tiejun， TANG Jinhui，et al.Reactive force-field molecular dynamics study on graphene oxide reinforced cement composite:Functional group de-protonation，interfacial bonding and strengthening mechanism[J].Physical Chemistry Chemical Physics:PCCP，2018，20（13）:8773-8789.
5	ZHAI Shengtian， PANG Bo， LIU Guojian，et al.Investigation on preparation and multifunctionality of reduced graphene oxide cement mortar[J].Construction and Building Materials，2021，275.Doi:10.1016/j.conbuildmat.2020.122119.
6	GUO Rongxin， SUO Yuxia， XIA Haiting，et al.Study of piezoresistive behavior of smart cement filled with graphene oxide[J].Nanomaterials:Basel，Switzerland，2021，11（1）.Doi:10.3390/nano11010206.
7	PARK S， LEE K S， BOZOKLU G，et al.Graphene oxide papers modified by divalent ions-enhancing mechanical properties via chemical cross-linking[J].ACS Nano，2008，2（3）:572-578.
8	AMINI K， GHASEMI A， SOLEIMANI AMIRI S，et al.The synergic effects of metakaolin and polycarboxylate-ether on dispersion of graphene oxide in cementitious environments and macro-level properties of graphene oxide modified cement composites[J].Construction and Building Materials，2021，270.Doi:10.1016/j.conbuildmat.2020.121462.
9	LI Xiangyu， KORAYEM A H， LI Chenyang，et al.Incorporation of graphene oxide and silica fume into cement paste:A study of dispersion and compressive strength[J].Construction and Building Materials，2016，123:327-335.
10	WANG Chenglong， SUN Jianlin， GE Chenglin，et al.Enhanced lubrication performance of triethanolamine functionalized reduced graphene oxide on the cold-rolled surface of strips[J].Surface and Interface Analysis，2021，53（9）:762-772.
11	ZHANG Xin， JIN Pengrui， XU Daliang，et al.Triethanolamine modification produces ultra-permeable nanofiltration membrane with enhanced removal efficiency of heavy metal ions[J].Journal of Membrane Science，2022，644.Doi:10.1016/j.memsci.2021.120127.
12	ZHANG Yanrong， KONG Xiangming， LU Zichen，et al.Influence of triethanolamine on the hydration product of portlandite in cement paste and the mechanism[J].Cement and Concrete Research，2016，87:64-76.
13	CUI Peng， LEE J， HWANG E，et al.One-pot reduction of graphene oxide at subzero temperatures[J].Chemical Communications:Cambridge，England，2011，47（45）:12370-12372.
14	LIU Gonggang， GUI Shan， ZHOU Hao，et al.A strong adsorbent for Cu²⁺:Graphene oxide modified with triethanolamine[J].Dalton Transactions（Cambridge，England: 2003），2014，43（19）:6977-6980.
15	HU Miaomiao， GUO Jintang， LI Pengpeng，et al.Micromechanical recovery of waste cement via efficient rehydration under the effect of Tris（2-hydroxyethyl） amine-Graphene Oxide（TEA-GO）[J].Construction and Building Materials，2018，188:470-479.
16	CUI Hongzhi， YAN Xiantong， TANG Luping，et al.Possible pitfall in sample preparation for SEM analysis-A discussion of the paper“Fabrication of polycarboxylate/graphene oxide nanosheet composites by copolymerization for reinforcing and toughening cement composites”by Lv et al[J].Cement and Concrete Composites，2017，77:81-85.
17	HORSZCZARUK E， MIJOWSKA E， KALENCZUK R J，et al.Nanocomposite of cement/graphene oxide-Impact on hydration kinetics and Young′s modulus[J].Construction and Building Materials，2015，78:234-242.

项目	化学成分质量分数/%							LOI
项目	CaO	SiO₂	Al₂O₃	MgO	Fe₂O₃	SO₃	K₂O	LOI
水泥	60.33	23.24	6.16	1.36	4.41	0.35	—	0.56

[1]	张瑞君, 陈国良, 宋春草, 朱亚飞. 氧化石墨烯对再生砂超高性能混凝土力学及抗氯离子渗透性能的影响[J]. 无机盐工业, 2024, 56(8): 54-59.
[2]	程子扬, 陈国夫. 纳米SiO₂-水泥复合胶凝材料早期水化动力学研究[J]. 无机盐工业, 2024, 56(7): 80-87.
[3]	屠艳平, 白登显, 程书凯, 谢俊杰, 黄志良, 陈国夫. 矿粉和生石灰高温改性对磷石膏水泥基材料性能影响[J]. 无机盐工业, 2024, 56(6): 94-101.
[4]	李永恒, 米晓彤, 张培培. 全结晶纳米ZSM-5分子筛团聚体的合成及在甲苯甲基化中的应用[J]. 无机盐工业, 2024, 56(5): 135-140.
[5]	李珂珂, 薛江伟, 王露威, 管学茂. 镁铝水滑石对高铁低钙硅酸盐水泥性能的影响[J]. 无机盐工业, 2024, 56(4): 57-63.
[6]	成春春, 李玉龙, 张志强, 左硕, 覃冬兰, 周娜, 王佳琴. 以碳酸钾为原料制备碳酸锂晶体团聚现象及调控方法的研究[J]. 无机盐工业, 2024, 56(10): 47-54.
[7]	许丽, 张强. 铁尾矿粉水泥基材料的性能实验研究[J]. 无机盐工业, 2023, 55(6): 116-123.
[8]	米晓彤, 李孝国, 常洋, 张永坤, 李永恒, 曹辉, 侯章贵. 晶种和模板剂协同构建纳米ZSM-5团聚体[J]. 无机盐工业, 2023, 55(6): 130-135.
[9]	李波, 廖碧海. 功能化氧化石墨烯的制备及其在硅酸盐水泥中的应用[J]. 无机盐工业, 2023, 55(6): 57-62.
[10]	MURZATAEV Asan, 肖诗豪, 付汝松, 安红芳, 孔德文, 王玲玲. 基于正交试验的泡沫脱硫石膏基复合材料性能研究[J]. 无机盐工业, 2023, 55(4): 92-96.
[11]	李鹏, 王立坤, 孟秋燕. α-半水石膏对水泥砂浆性能的影响与水化机理研究[J]. 无机盐工业, 2023, 55(3): 98-103.
[12]	崔香梅, 潘彤彤, 罗清龙, 边富璇, 叶秀深. 氨基醇改性GO/CNTs复合气凝胶的制备及对盐湖卤水硼的吸附[J]. 无机盐工业, 2023, 55(12): 59-65.
[13]	杜长青, 王章轩, 仝腾, 刘骁繁, 刘亮. 硅灰/氧化石墨烯在水泥硬化浆体中的分散性研究[J]. 无机盐工业, 2023, 55(11): 115-120.
[14]	张雁茹, 任常在, 宋占龙, 朱建军, 赵保峰, 谢洪璋, 王振江, 祁晓乐. 生物质电厂灰渣替代水泥掺合料的性能研究[J]. 无机盐工业, 2023, 55(10): 128-135.
[15]	雷鸣,朱含钰,刘子龙,陈国蓬,袁俊生. 重金属在水泥窑协同处置的净浆硬化体中的分布及形态[J]. 无机盐工业, 2022, 54(8): 107-113.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
