银掺杂二氧化钛/活性炭复合材料的制备及其光催化性能研究

doi:10.19964/j.issn.1006-4990.2021-0239

摘要/Abstract

摘要：

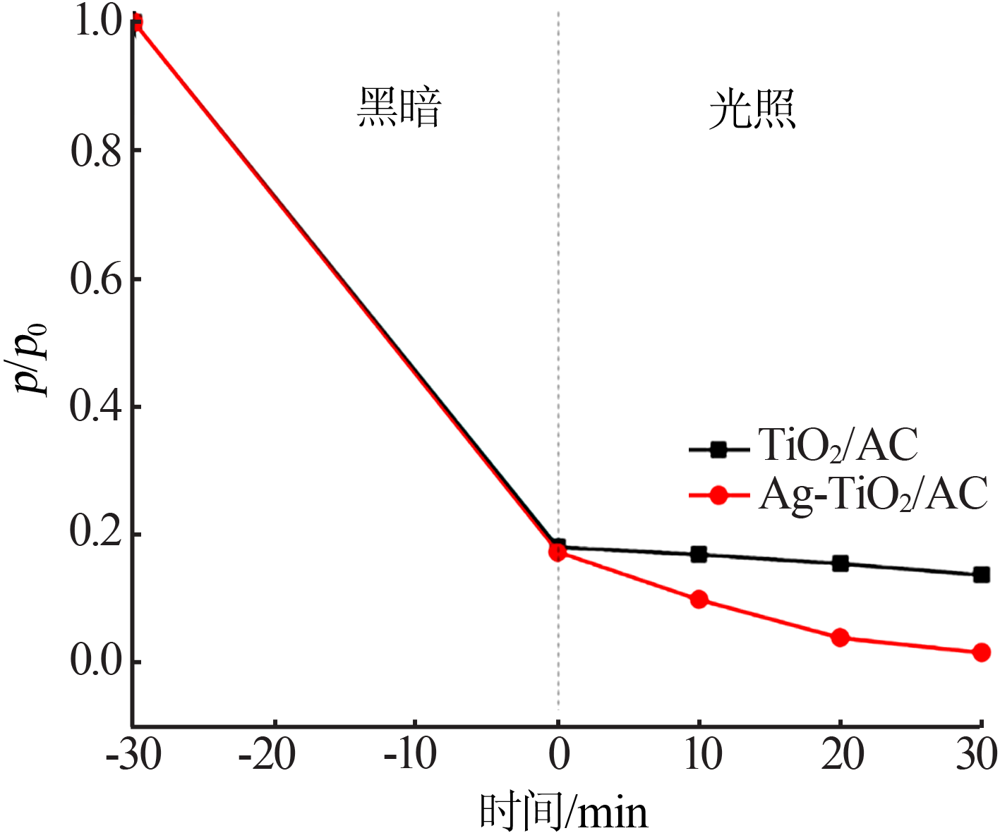

为提高二氧化钛/活性炭（AC）复合材料对可见光的利用率,基于溶胶-凝胶法制备了银掺杂的二氧化钛/活性炭复合光催化剂。利用一系列测试方法对光催化剂进行了表征,通过亚甲基蓝（MB）和Cr（Ⅵ）废水的降解效果研究了其光催化活性。结果表明,掺杂银的材料,吸附性能和可见光下的光催化性能均得到提升。在材料投加量为400 mg/L情况下,银-二氧化钛/AC复合光催化剂在30 min内对10 mg/L MB溶液的降解率达到98.55%,在60 min内对20 mg/L MB溶液、10 mg/L Cr（Ⅵ）溶液的降解率分别达到76.92%和53.90%;与未掺杂的材料相比,降解率分别提升了14%、47%、137%。这是由于Ag纳米颗粒可以有效地俘获价带电子,减少电子空穴的复合,从而提高了光催化效果。

关键词: 银掺杂, 二氧化钛, 活性炭, 可见光, 光催化

Abstract:

To improve the visible light utilization of TiO₂/activated carbon composite material,Ag-doped TiO₂/ activated car-bon composite photocatalyst was prepared based on the sol-gel method.A series of analysis methods were used to characterize the photocatalyst,and its photocatalytic activity was studied through the degradation effect of methylene blue and Cr（Ⅵ）wastewater.The results showed that the Ag-doped material had improved adsorption performance and photocatalytic perfor-mance under visible light.When the material dosage was 400 mg/L,the degradation rate of 10 mg/L MB solution by Ag-TiO₂/AC composite photocatalyst was 98.55% within 30 min,and the degradation rates of 20 mg/L MB solution and 10 mg/L Cr（Ⅵ）solution reached 76.92% and 53.90% within 60 min respectively.Compared with the undoped materials,the degradation rates increased by 14%,47% and 137%,respectively.This was because Ag nanoparticles could effectively capture valence electrons and reduce the recombination of electrons and holes,thus improving the photocatalytic effect.

Key words: silver doped, TiO₂, activated carbon, visible light, photocatalyst

中图分类号:

TQ131.2

付勇,徐文奇,赵强,冉瑞泉,李军,金央. 银掺杂二氧化钛/活性炭复合材料的制备及其光催化性能研究[J]. 无机盐工业, 2022, 54(2): 117-122.

FU Yong,XU Wenqi,ZHAO Qiang,RAN Ruiquan,LI Jun,JIN Yang. Study on preparation of silver-doped titanium dioxide/activated carbon composite material and its photocatalytic performance[J]. Inorganic Chemicals Industry, 2022, 54(2): 117-122.

图/表 11

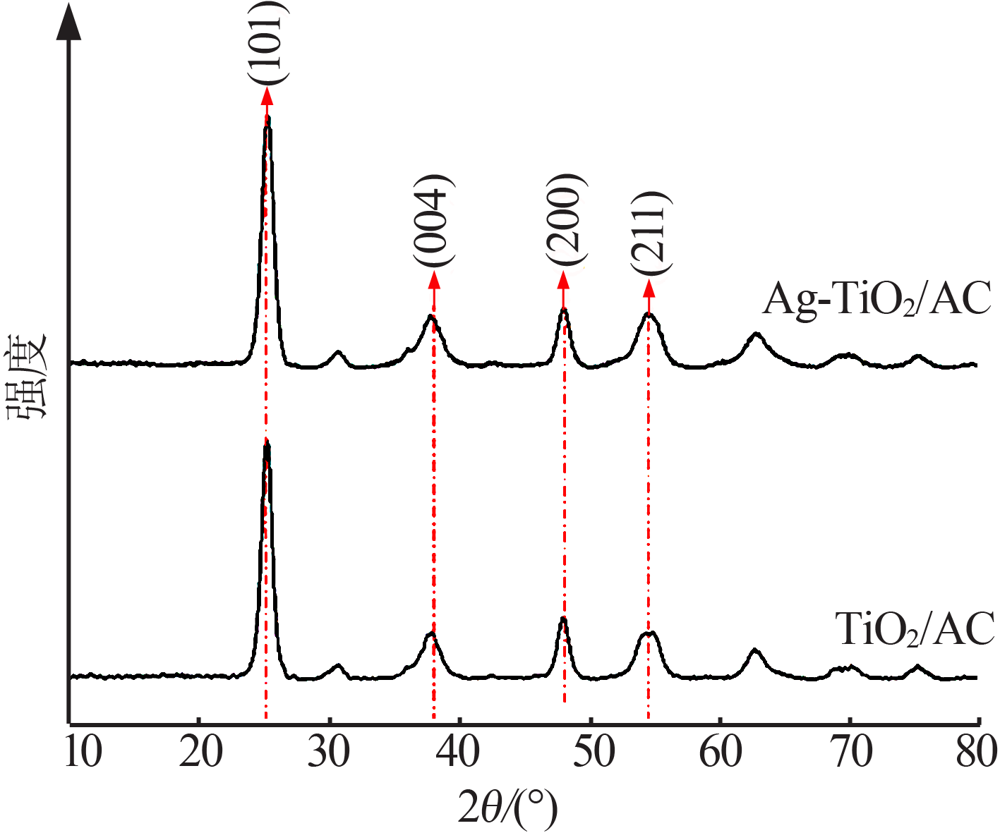

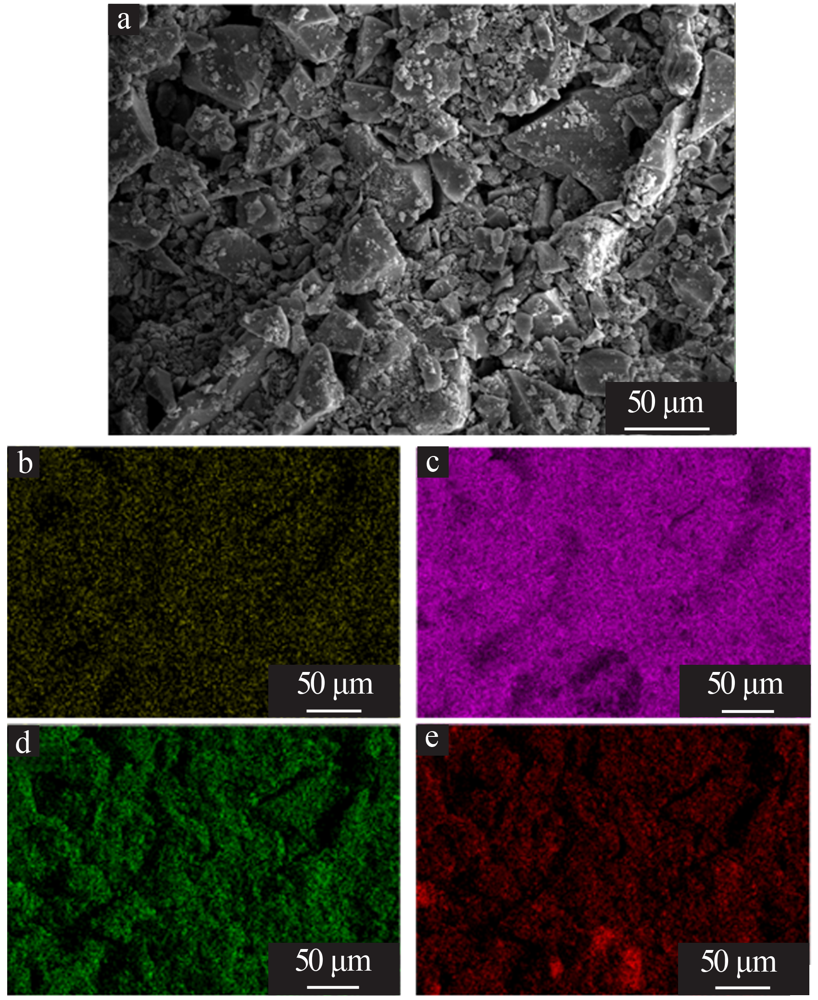

图1

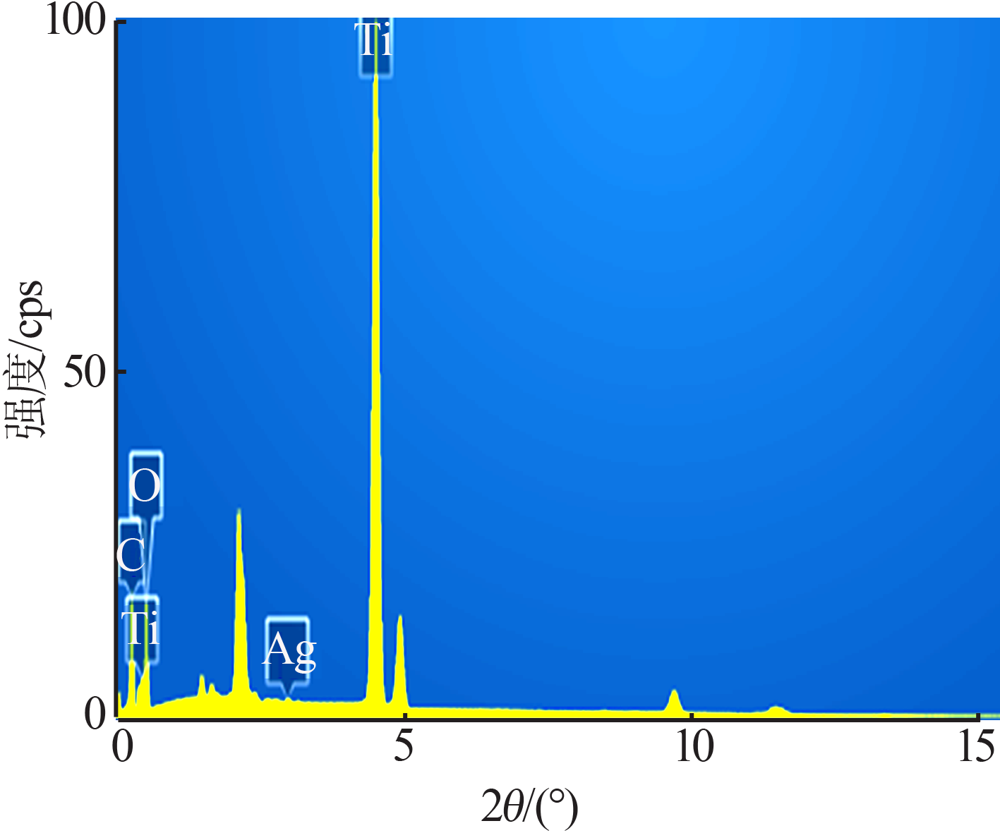

图2

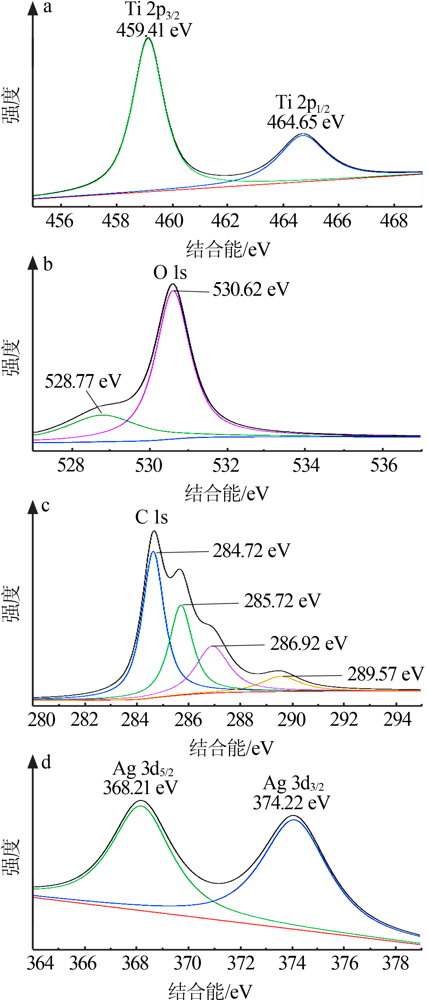

图3

图4

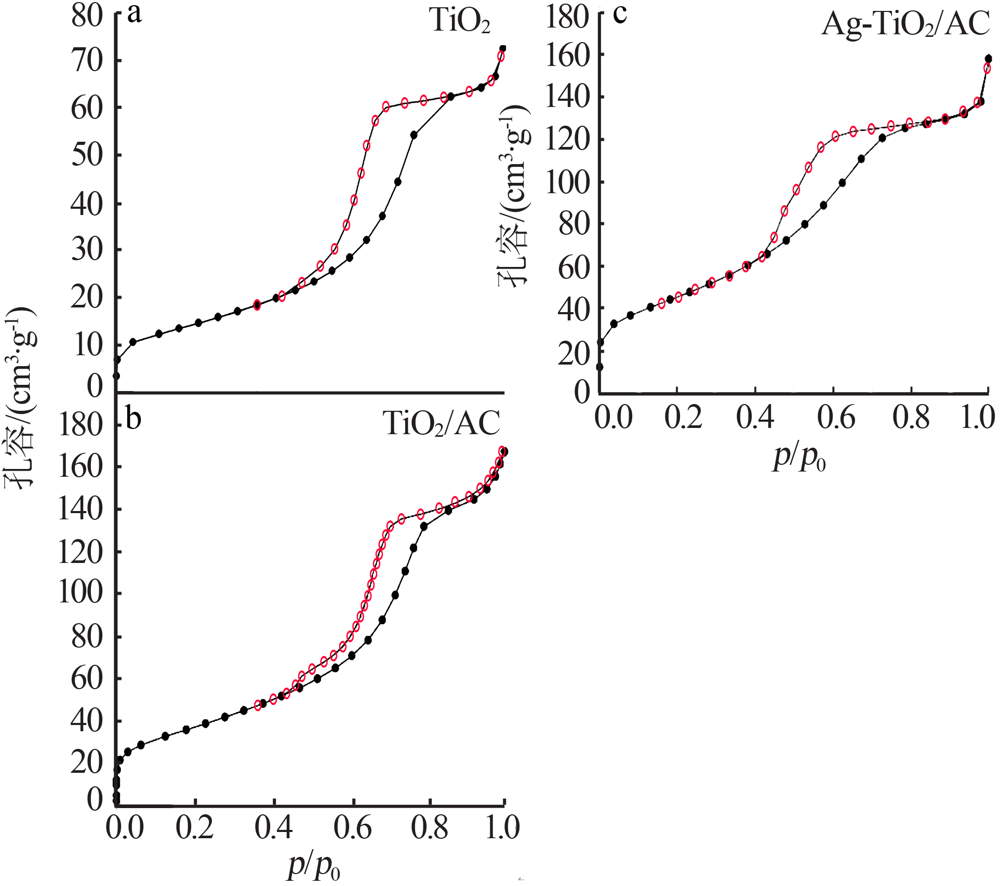

图5

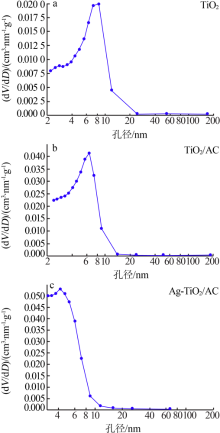

图6

表1

图7

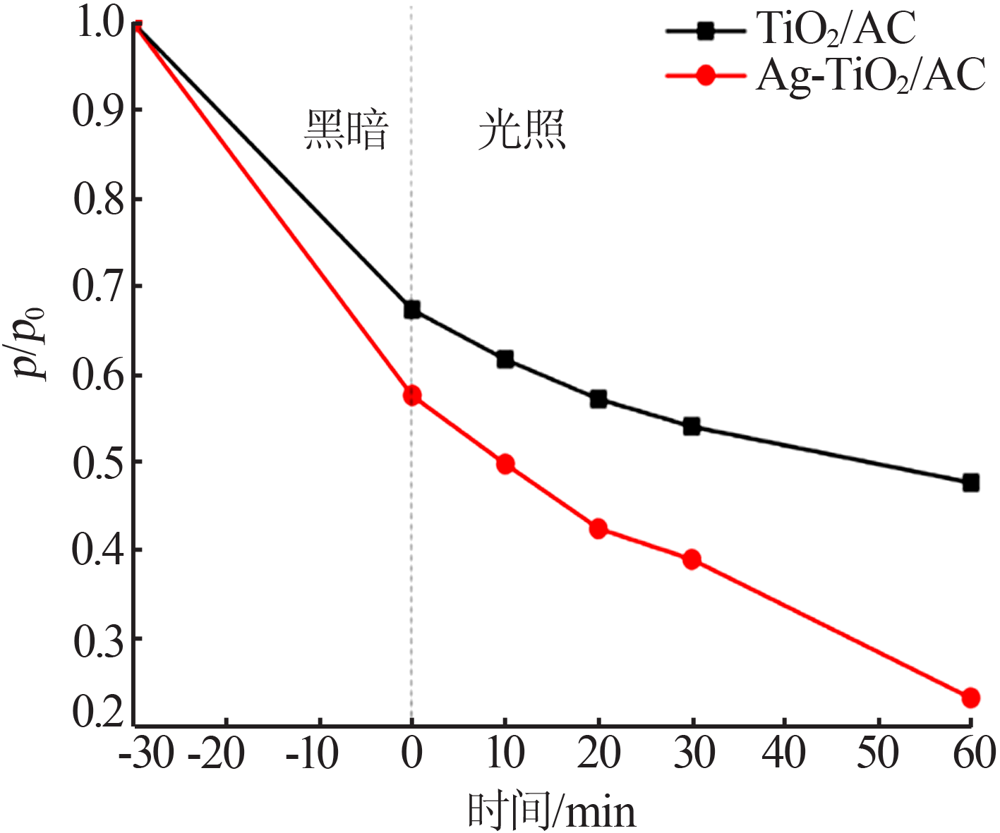

图8

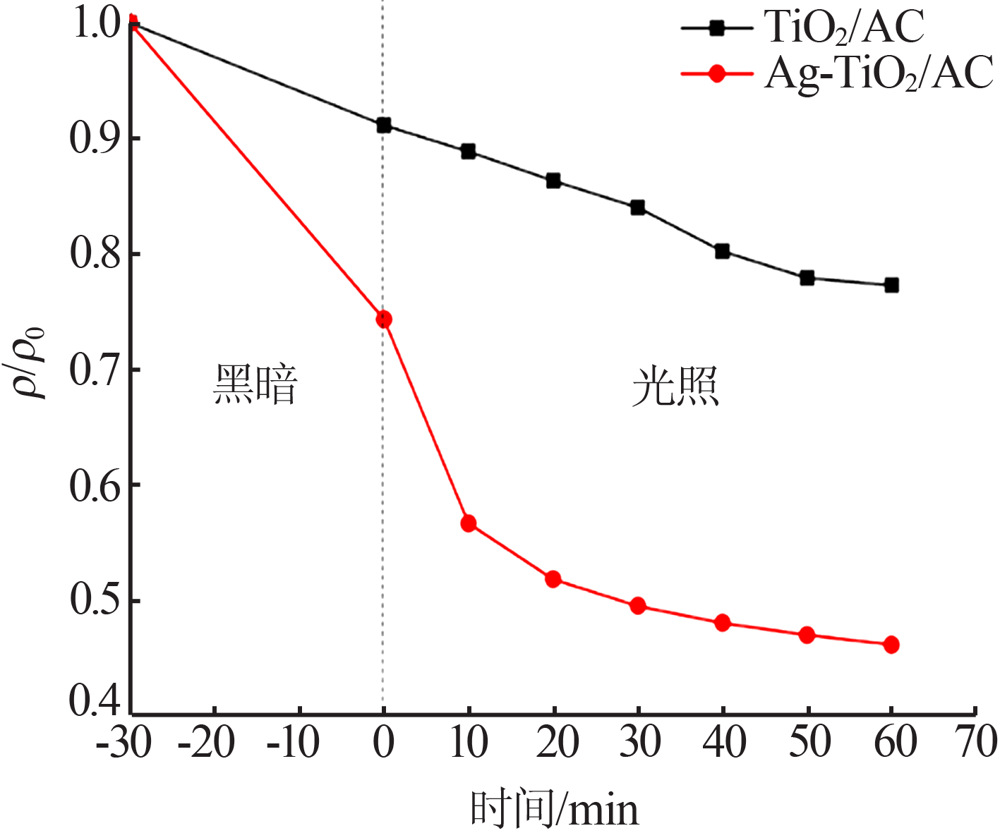

图9

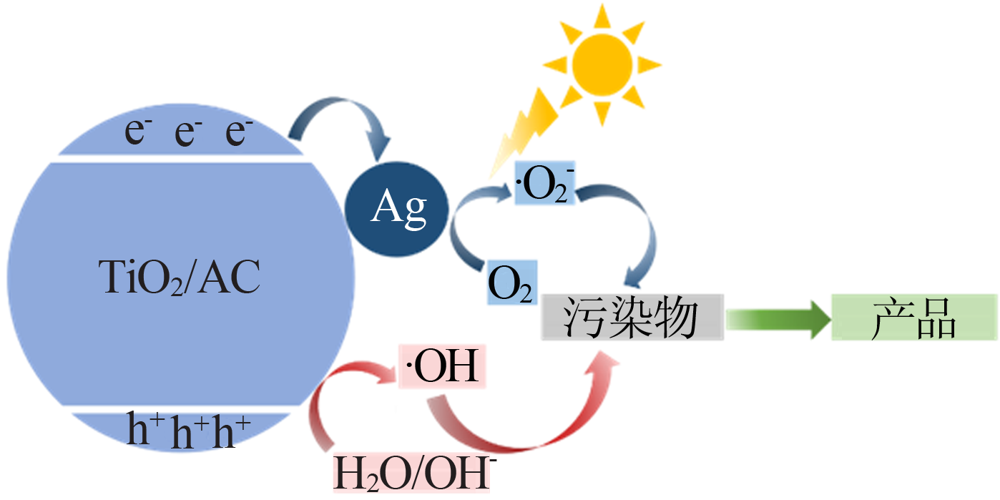

图10

参考文献 18

[1]	SHU Y, XU Y, HUANG H, et al. Catalytic oxidation of VOCs over Mn/TiO₂/activated carbon under 185 nm VUV irradiation[J]. Chemo-sphere, 2018, 208:550-558.
[2]	LI M, LU B, KE Q, et al. Synergetic effect between adsorption and photodegradation on nanostructured TiO₂/activated carbon fiber felt porous composites for toluene removal[J]. Journal of Hazardous Materials, 2017, 333:88-98.
[3]	LI Y, LI T, SONG X, et al. Enhanced adsorption-photocatalytic re-duction removal for Cr(Ⅵ) based on functionalized TiO₂ with hydro-philic monomers by pre-radiation induced grafting-ring opening method[J]. Applied Surface Science, 2020, 514.Doi: 10.1016/j.apsusc.2020.145789.
[4]	王春平. Ce/N共掺杂TiO₂/精制硅藻土光催化材料的制备及降解应用研究[D]. 沈阳:辽宁大学, 2020.
[5]	XU W Q, JIN Y, REN Y S, et al. Synergy mechanism for TiO₂/activated carbon composite material:Photocatalytic degradation of methylene blue solution[J]. Canadian Journal of Chemical Engineering, 2021.Doi: 10.1002/cjce.24097.
[6]	SAKTHIVEL S, SHANKAR M V, PALANICHAMY M, et al. Enha-ncement of photocatalytic activity by metal deposition：Characterisa-tion and photonic efficiency of Pt,Au and Pd deposited on TiO₂ catalyst[J]. Water Research, 2004, 38:3001-3008.
[7]	SEERY M K, GEORGE R, FLORIS P, et al. Silver doped titanium dioxide nanomaterials for enhanced visible light photocatalysis[J]. Journal of Photochemistry and Photobiology A:Chemistry, 2007, 189:258-263.
[8]	YAVARI N, TAVAKOLI O, PARNIAN M J. Efficient photocatalytic degradation of phenol by Ag-doped TiO₂ nanocomposite photoca-talysts under visible light irradiation in a three-phase fluidized bed reactor[J]. Chemical Papers, 2021, 75:3181-3196.
[9]	YANG J, LUO X. Ag-doped TiO₂ immobilized cellulose-derived car- bonbeads:One-Pot preparation,photocatalytic degradation perfro-manceand mechanism of ceftriaxone sodium[J]. Applied Surface Science, 2021, 542.Doi: 10.1016/j.apsusc.2020.148724.
[10]	TEKIN D, TEKIN T, KIZILTAS H. Synjournal and characterization of TiO₂ and Ag/TiO₂ thin-film photocatalysts and their efficiency in the photocatalytic degradation kinetics of Orange G dyestuff[J]. Desalination and Water Treatment, 2020, 198:376-385.
[11]	MATOS J, FIERRO V, MONTAÑA R, et al. High surface area mic-roporous carbons as photoreactors for the catalytic photodegradation of methylene blue under UV-vis irradiation[J]. Applied Catalysis A:General, 2016, 517:1-11.
[12]	ZHANG H, BANFIELD J F. Understanding polymorphic phase tra-nsformation behavior during growth of nanocrystalline aggregates:Insights from TiO₂[J]. Journal of Physical Chemistry B, 2000, 104(15):3481-3487.
[13]	ATOUT H, BOUGUETTOUCHA A, CHEBLI D, et al. Integration of adsorption and photocatalytic degradation of methylene blue using TiO₂ supported on granular activated carbon[J]. Arabian Jo-urnal for Science and Engineering, 2017, 42:1475-1486.
[14]	MUNIANDY L, ADAM F, MOHAMED A R, et al. Carbon modified anatase TiO₂ for the rapid photo degradation of methylene blue:A comparative study[J], Surfaces and Interfaces, 2016, 5:19-29.
[15]	BABUA B, KOUTAVARAPUA R, SHIMA J, et al. Enhanced solar-light-driven photocatalytic and photoelectrochemical properties of zinc tungsten oxide nanorods anchored on bismuth tungsten oxide nanoflakes[J]. Chemophere, 2020, 268.Doi: 10.1016/j.chemosp-sphere.2020.129346.
[16]	ZHAO Z, WANG Y, XU J, et al. AgCl-loaded mesoporous anatase TiO₂ with large specific surface area for enhancing photocataly-sis[J]. Applied Surface Science, 2015, 351:416-424.
[17]	QIAN S, PU S, ZHANG Y, et al. New insights on the enhanced non-hy-droxyl radical contribution under copper promoted TiO₂/GO for the photodegradation of tetracycline hydrochloride[J]. Journal of Environmental Sciences, 2021, 100:99-109.
[18]	SAHOOA C, GUPTAA A K. Photocatalytic degradation of methyl blue by silver iondoped titania:Identification of degradation pro-ducts by GC-MS and IC analysis[J]. Journal of Environmental Sci-ience and Health,Part A, 2015, 50:1333-1341.

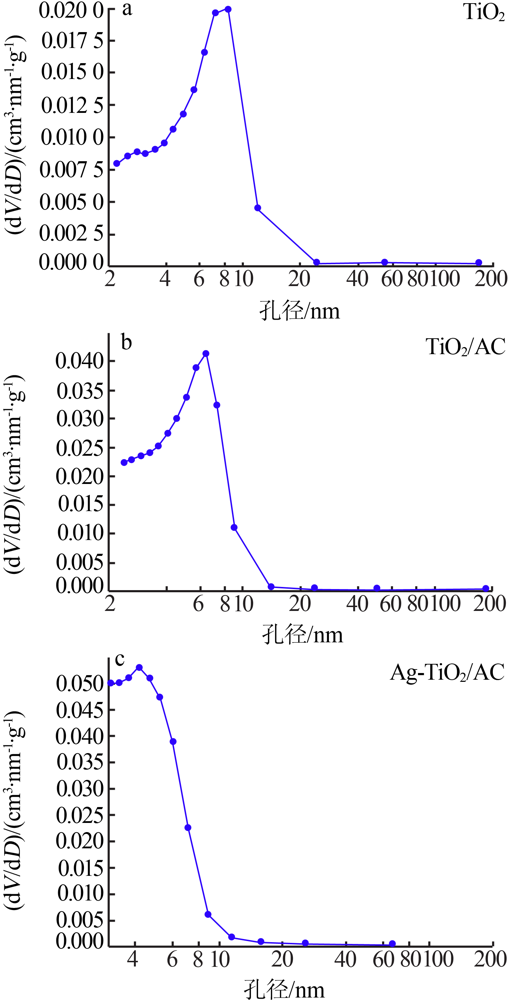

样品	比表面积/ （m²·g^-1）	总孔容/ （cm³·g^-1）	平均孔径/ nm
TiO₂	50.641 3	0.112 2	4.43
TiO₂/AC	133.669 2	0.259 6	3.88
Ag-TiO₂/AC	164.897 4	0.245 2	2.97

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
