无机盐工业 ›› 2025, Vol. 57 ›› Issue (1): 129-136.doi: 10.19964/j.issn.1006-4990.2024-0210

• 催化材料 • 上一篇

CuO/g-C3N4复合材料在有机染料降解和超级电容器中的应用研究

张飞刚1(), 刘中利2

  1. 1.洛阳文化旅游职业学院,河南 洛阳 471000
    2.哈尔滨工业大学,黑龙江 哈尔滨 150090
  • 收稿日期:2024-04-12 出版日期:2025-01-10 发布日期:2025-01-24
  • 作者简介:张飞刚(1977— ),硕士,研究员,主要研究方向为材料化学和物理化学;E-mail:zhangfeigang1977@163.com
  • 基金资助:
    河南省高等学校重点科研项目(18A140024)

Study on application of CuO/g-C3N4 composites in organic dye degradation and supercapacitors

ZHANG Feigang1(), LIU Zhongli2

  1. 1.Luoyang Vocational College of Culture and Tourist,Luoyang 471000,China
    2.Harbin Institute of Technology,Harbin 150090,China
  • Received:2024-04-12 Published:2025-01-10 Online:2025-01-24

摘要:

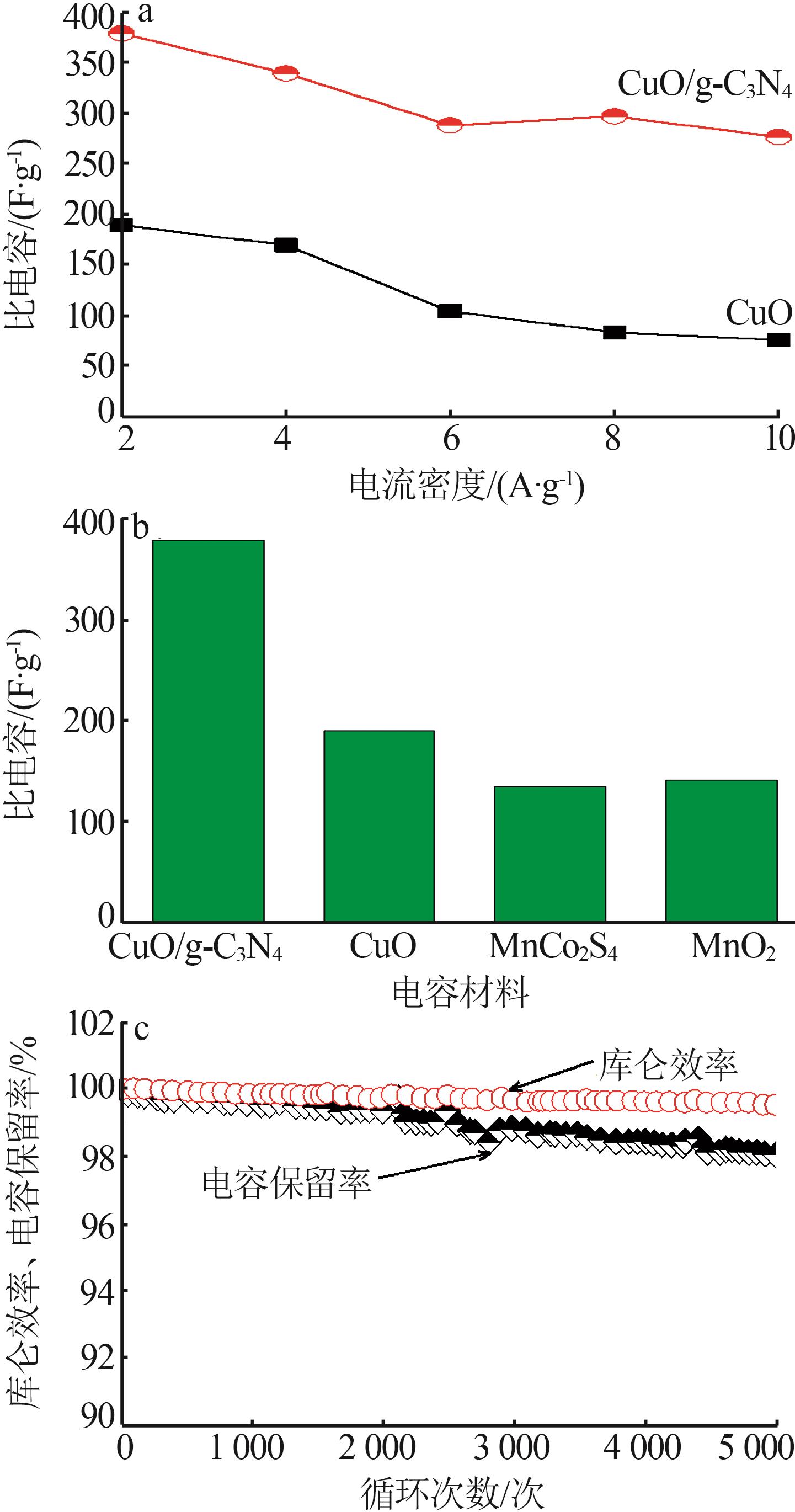

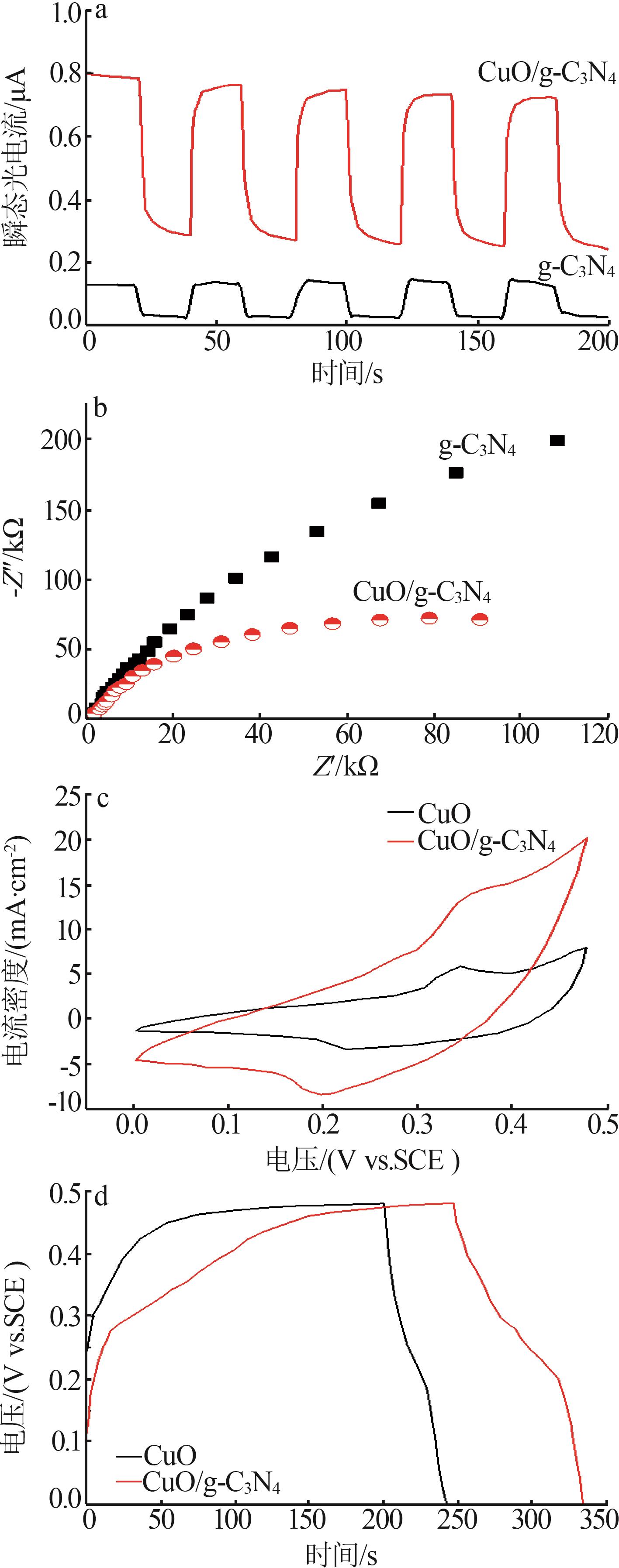

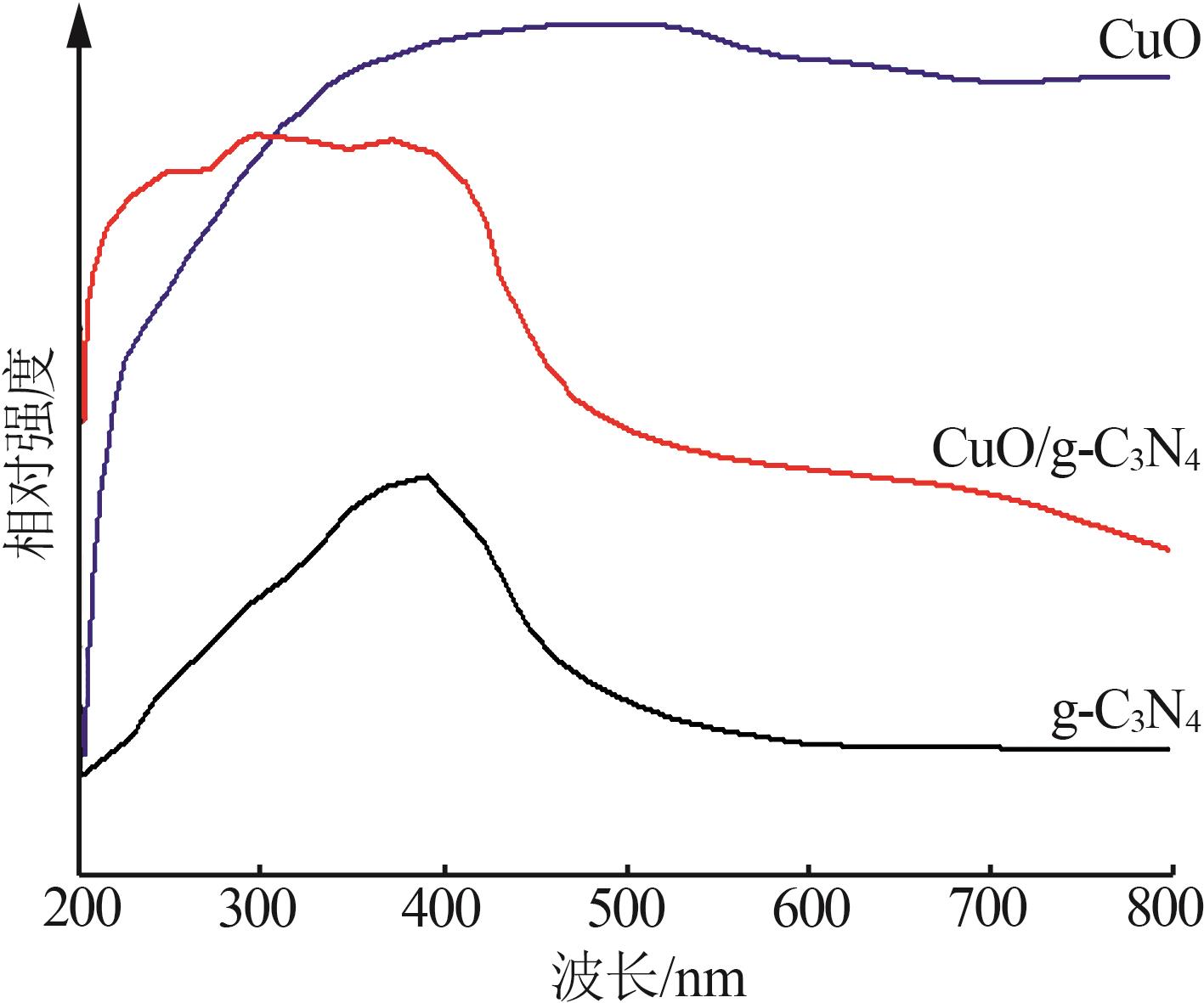

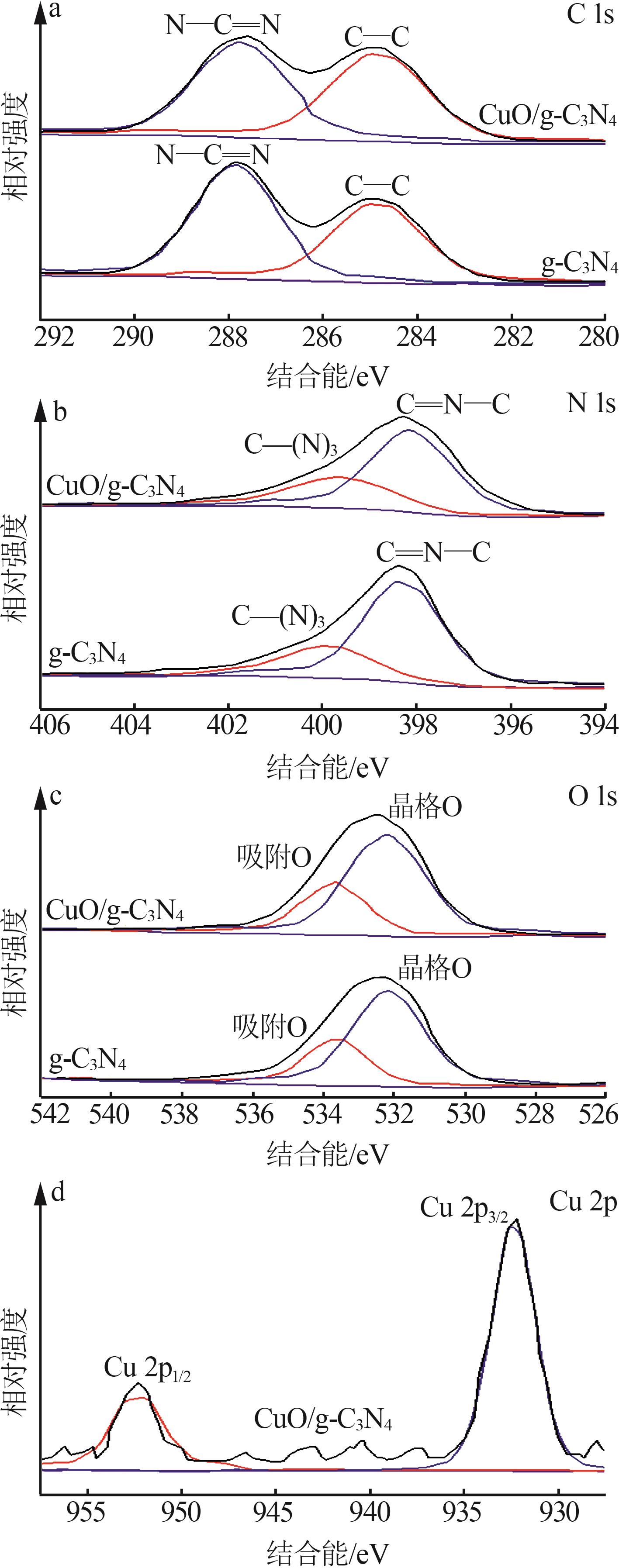

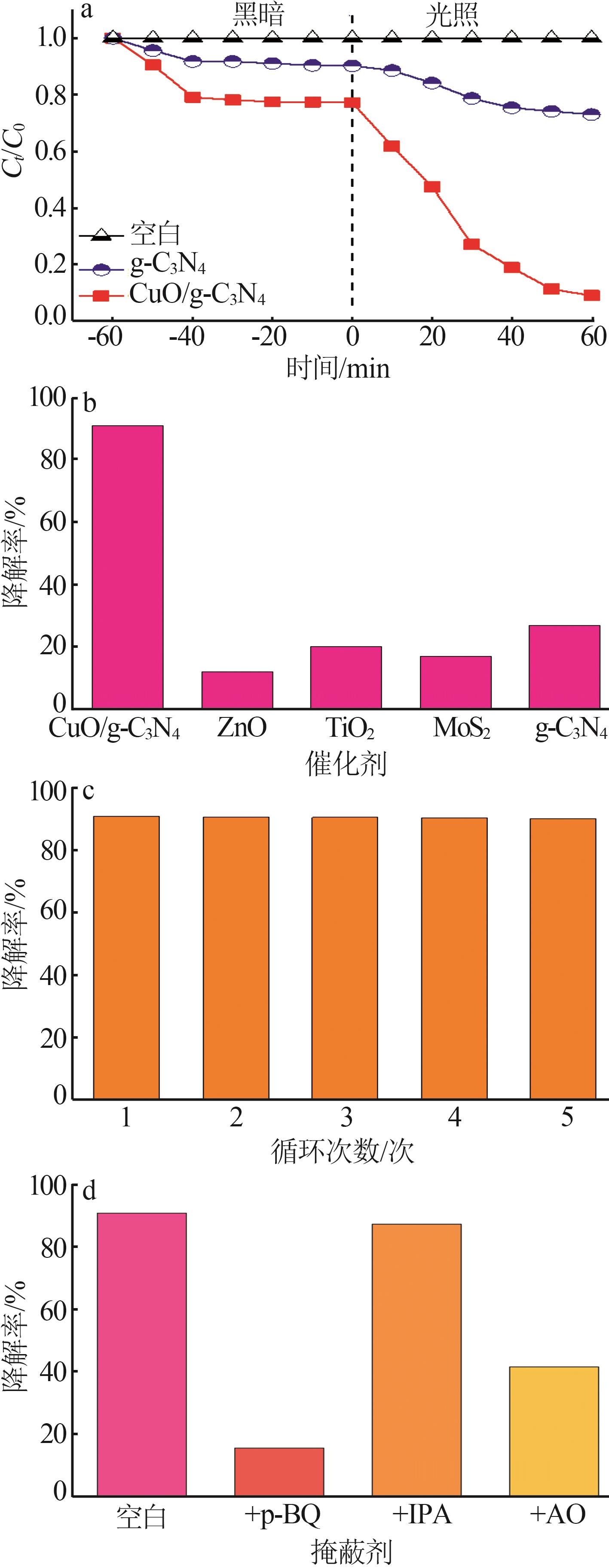

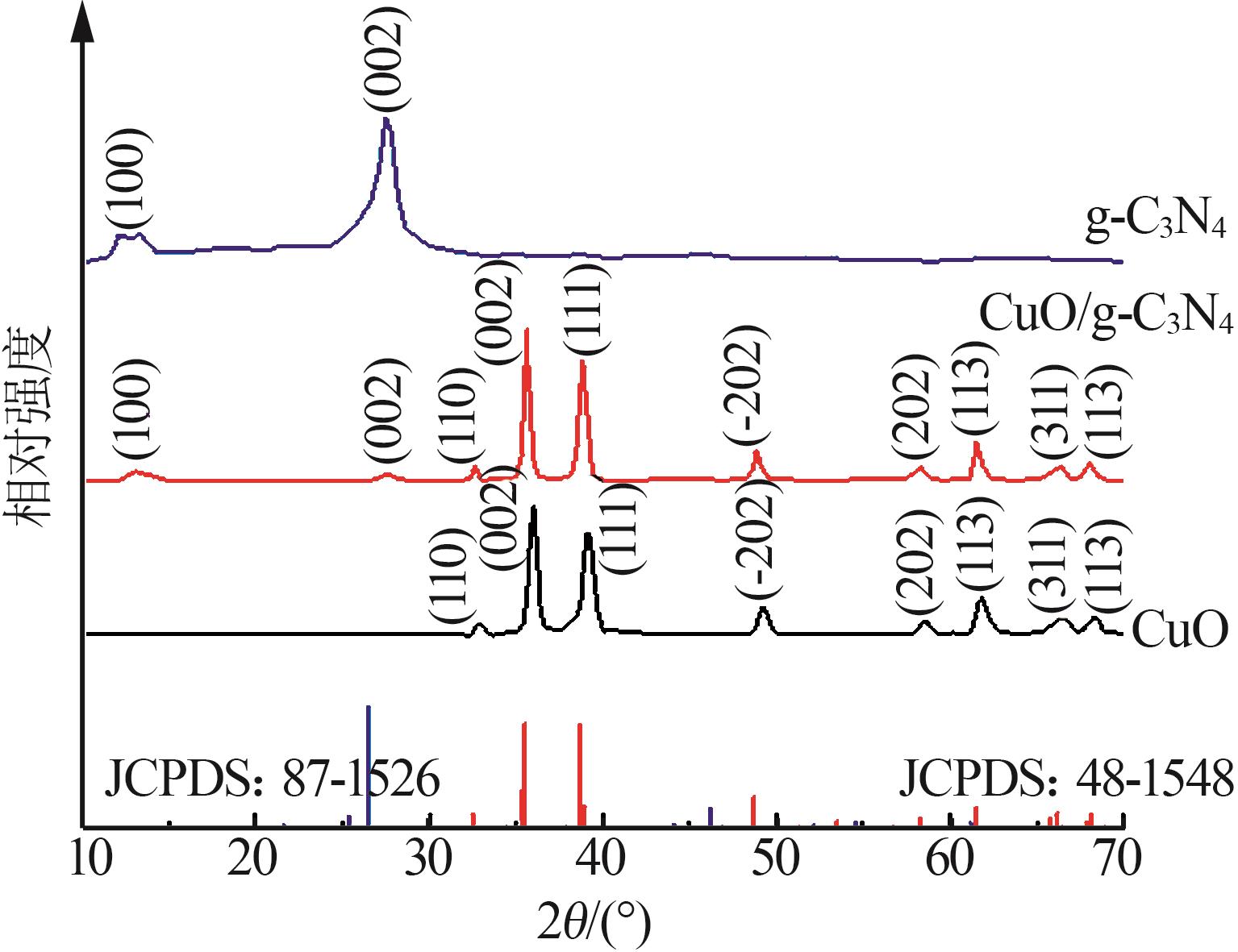

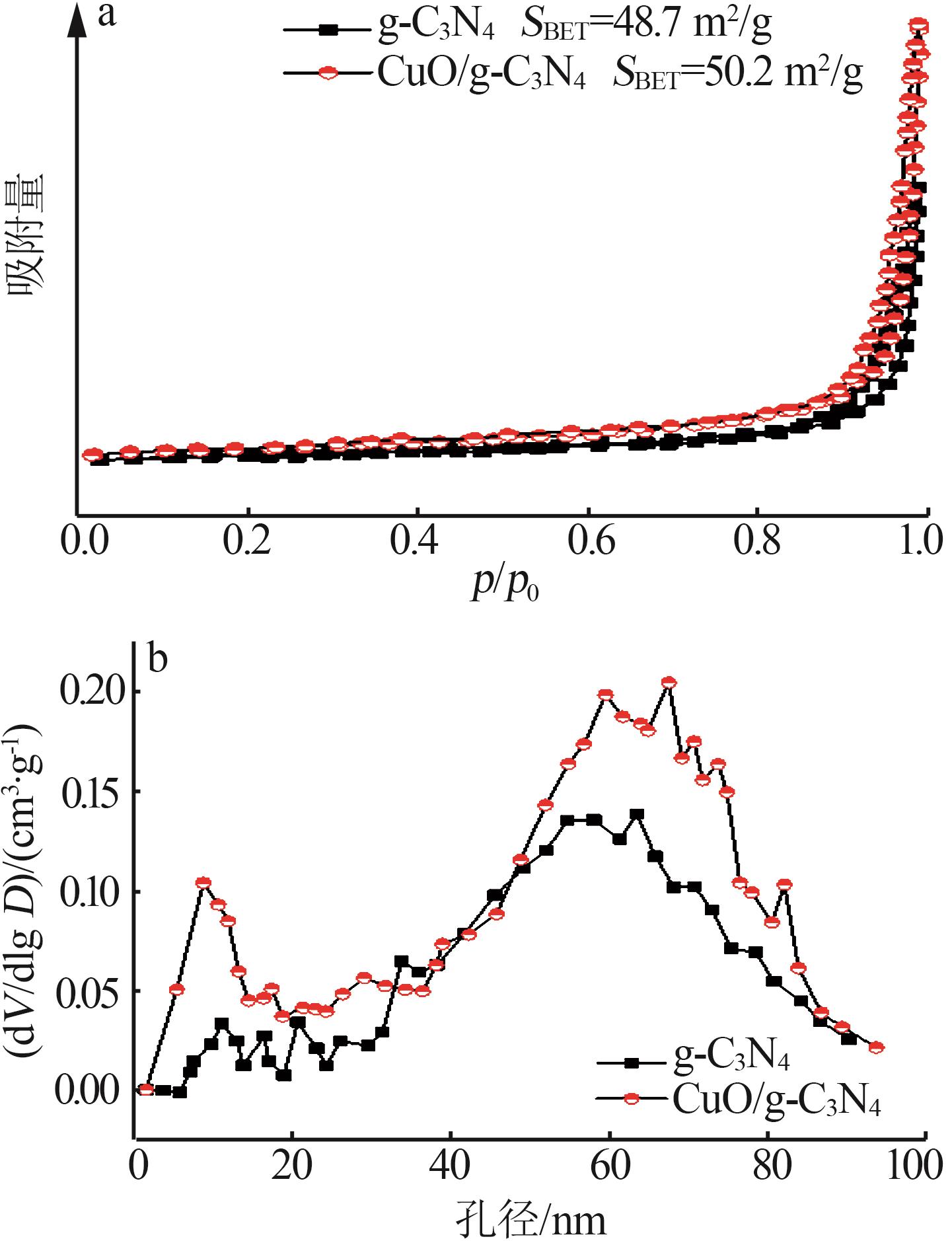

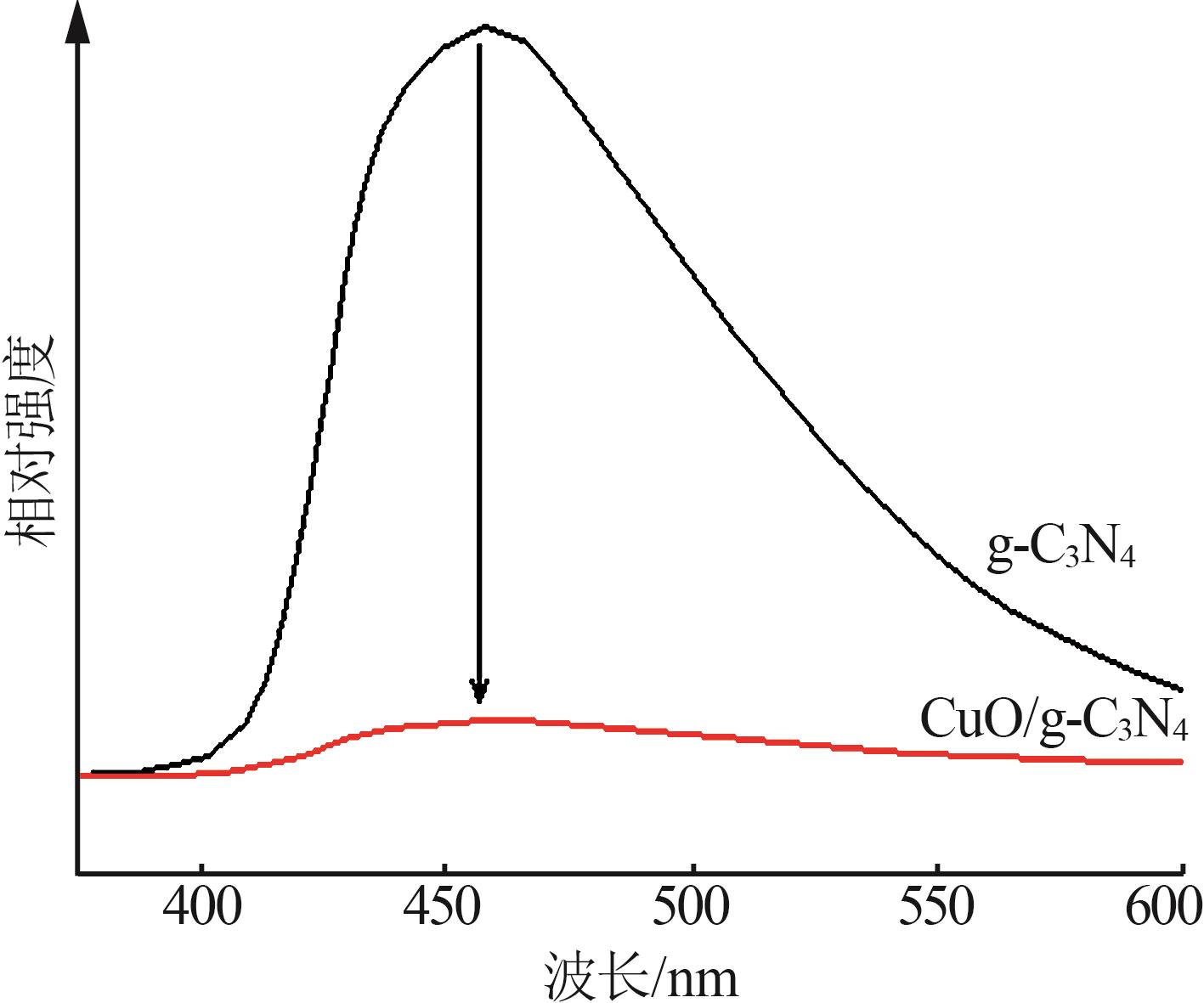

采用固态热分解法制备了CuO/g-C3N4复合材料,通过X射线衍射(XRD)、N2吸附-脱附(BET)、紫外可见漫反射光谱(UV-vis DRS)、X射线光电子能谱(XPS)、稳态荧光光谱(PL)、瞬态光电流(TPC)、电化学交流阻抗(EIS)、电容电压特性(CV)和晶界电容特性(GCD)等表征技术对CuO/g-C3N4复合材料进行了全面系统的表征,应用于有机染料亚甲基蓝(MB)降解和超级电容器电极材料。CuO和g-C3N4复合后光谱范围显著拓宽,实现了光生载流子的高效分离,界面/表面电阻降低,使得电荷转移更加高效,这都得益于异质结的成功构建。CuO/g-C3N4投加量为25 mg、MB染料溶液初始质量浓度为50 mg/L、暗吸附60 min和可见光(λ>420 nm)照射60 min时,MB的降解率为90.97%,循环使用5次后MB的降解率为90.28%,表现出优异的光催化活性和稳定性。CuO/g-C3N4复合材料作为超级电容器阳极材料,电流密度为2 A/g时的最大比电容为379.79 F/g,电流密度为10 A/g、循环使用5 000次电极材料的电容保留率和库仑效率分别为98.06%和99.54%,是一种超级电容器的理想电极材料。

关键词: CuO/g-C3N4, 异质结, 超级电容器, 光催化降解, 复合材料, 亚甲基蓝

Abstract:

CuO/g-C3N4 composites were prepared by solid-state thermal decomposition method.The CuO/g-C3N4 composites were characterized by X-ray diffraction(XRD),N2 adsorption-desorption(BET),ultraviolet-visible diffuse reflectance spectroscopy(UV-vis DRS),X-ray photoelectron spectroscopy(XPS),steady-state fluorescence spectroscopy(PL),transient photocurrent(TPC),electrochemical impedance spectroscopy(EIS),capacitance voltage characteristics(CV) and grain boundary capacitance characteristics(GCD).It was applied to the degradation of organic dye methylene blue(MB) and supercapacitor electrode materials.After the combination of CuO and g-C3N4,the spectral range was significantly broadened,the efficient separation of photogenerated carriers was realized,the interface/surface resistance was reduced,and the charge transfer was more efficient,which was due to the successful construction of heterojunction.When the dosage of CuO/g-C3N4 was 25 mg,the initial concentration of MB dye solution was 50 mg/L,the degradation rate of MB was 90.97% after dark adsorption for 60 min and visible light(λ>420 nm) irradiation for 60 min.The degradation rate of MB was still 90.28% after 5 cycles,showing excellent photocatalytic activity and stability.CuO/g-C3N4 composite was used as the anode material of supercapacitor.The maximum specific capacitance of CuO/g-C3N4 composite was 379.79 F/g at the current intensity of 2 A/g.The capacitance retention rate and Coulomb efficiency of the electrode material were 98.06% and 99.54%,respectively,when the current intensity was 10 A/g and the electrode material was recycled 5 000 times.It was an ideal electrode material for supercapacitors.

Key words: CuO/g-C3N4, heterojunction, supercapacitor, photocatalytic degradation, composite materials, methylene blue
