粉煤灰的活性激发与机理研究进展

doi:10.19964/j.issn.1006-4990.2020-0612

摘要/Abstract

摘要：

粉煤灰是燃煤电厂中煤粉燃烧后的固体废弃物,其日益累积不但会占用大量土地资源,还会破坏原有的自然环境,造成严重污染,近年来粉煤灰的处理和资源化利用受到广泛关注。激发粉煤灰的潜在活性是提高粉煤灰综合利用率的关键。对粉煤灰的物理活性和化学活性来源进行了介绍,并对粉煤灰活性的物理激发、水热激发及化学激发技术与激发机理进行了综述,为后续粉煤灰的活化研究和大规模利用提供了参考。不同手段均能激发粉煤灰活性,但采用单一手段激发时存在活化成本高、激发程度低等问题。未来粉煤灰激发技术将朝着多种手段并用的方向发展。

关键词: 粉煤灰, 活性来源, 激发技术, 激发机理, 化学激发

Abstract:

Fly ash is the solid waste after the combustion of pulverized coal in coal-fired power plants.Its increasing accumu-lation not only occupies a large amount of land resources,but also destroys the original natural environment and causes seri-ous pollution.In recent years,the treatment and resource utilization of fly ash has received widespread attention. Improving the comprehensive utilization of fly ash is the key to stimulate the potential activity of fly ash.The physical activity and chemi-cal activity sources of fly ash were introduced,and the physical activation,hydrothermal activation and chemical activation technology and activation mechanism of fly ash activity were reviewed,which provided reference for the subsequent activation research and large-scale utilization of fly ash.The fly ash could be activated by using various methods,however,when selected the sole activation method,it needed high investment and suffered low activation degree.In the future,fly ash excitation tech-nology would develop in the direction of multiple means.

Key words: fly ash, activity source, activation technology, activation mechanism, chemical activation

中图分类号:

TQ536.4

马鹏传,李兴,温振宇,孟凡会,李忠. 粉煤灰的活性激发与机理研究进展[J]. 无机盐工业, 2021, 53(10): 28-35.

Ma Pengchuan,Li Xing,Wen Zhenyu,Meng Fanhui,Li Zhong. Research progress on activation and mechanism of fly ash[J]. Inorganic Chemicals Industry, 2021, 53(10): 28-35.

图/表 10

表1

表2

图1

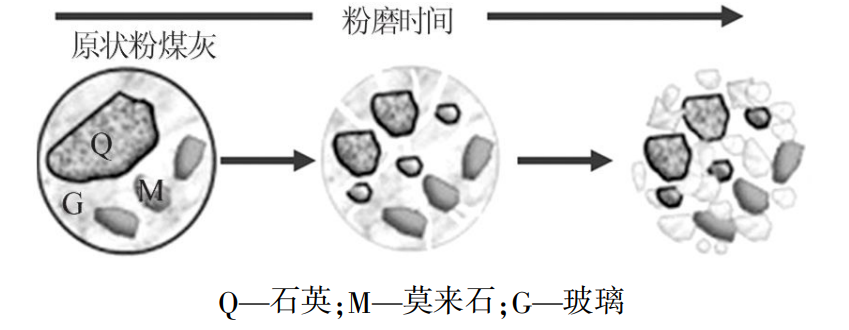

图2

图3

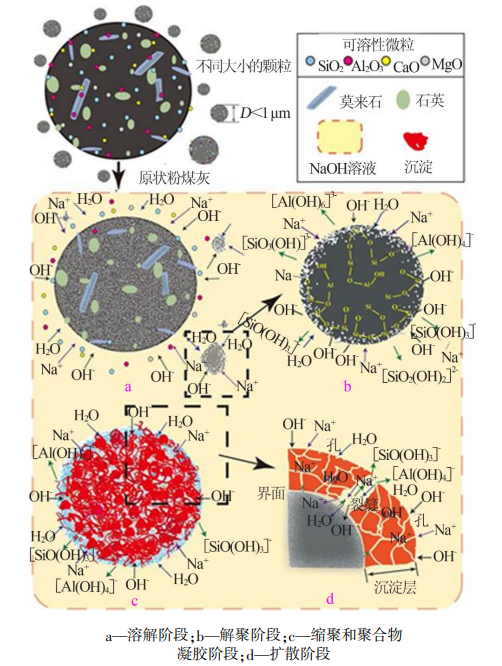

图4

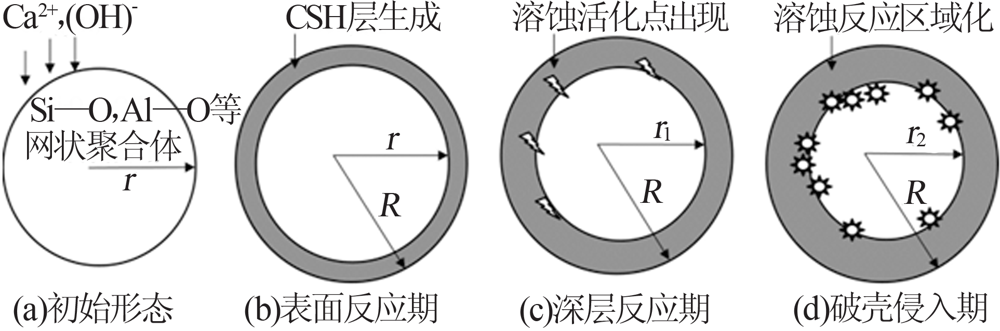

图5

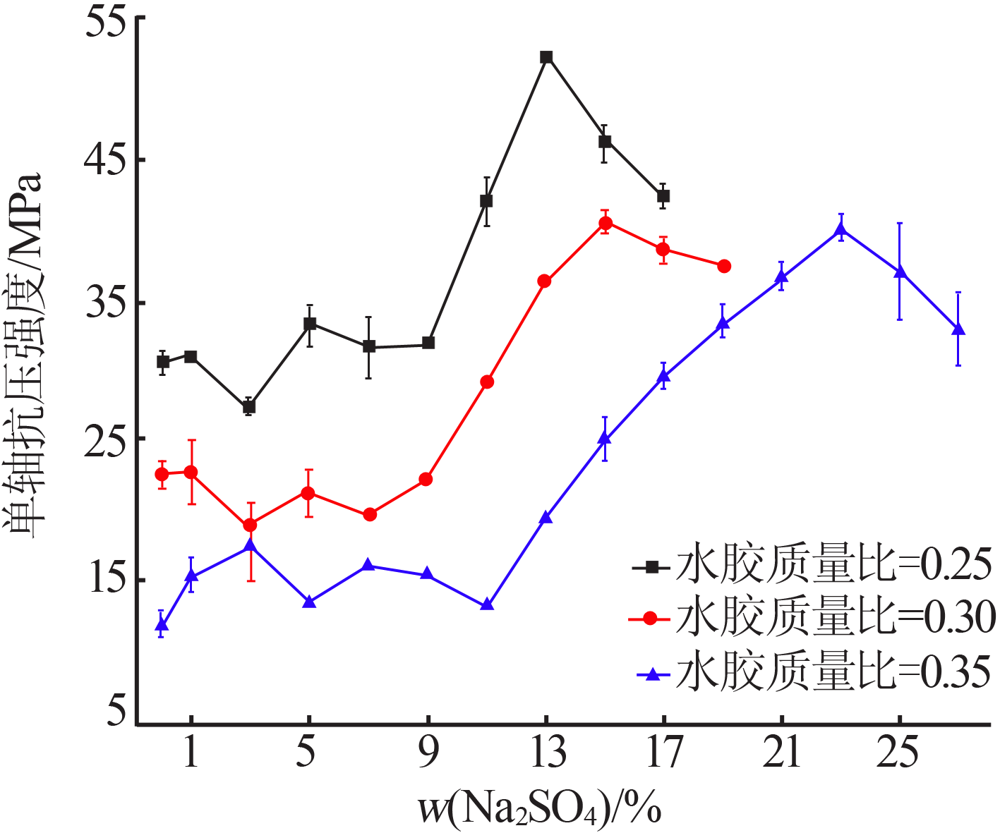

图6

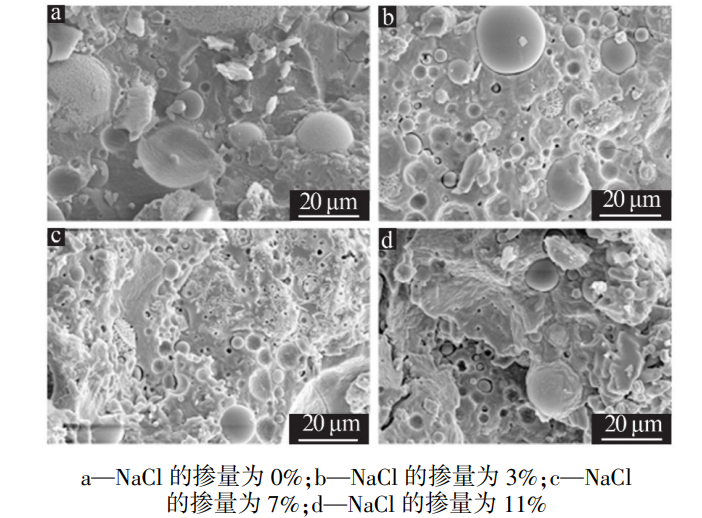

图7

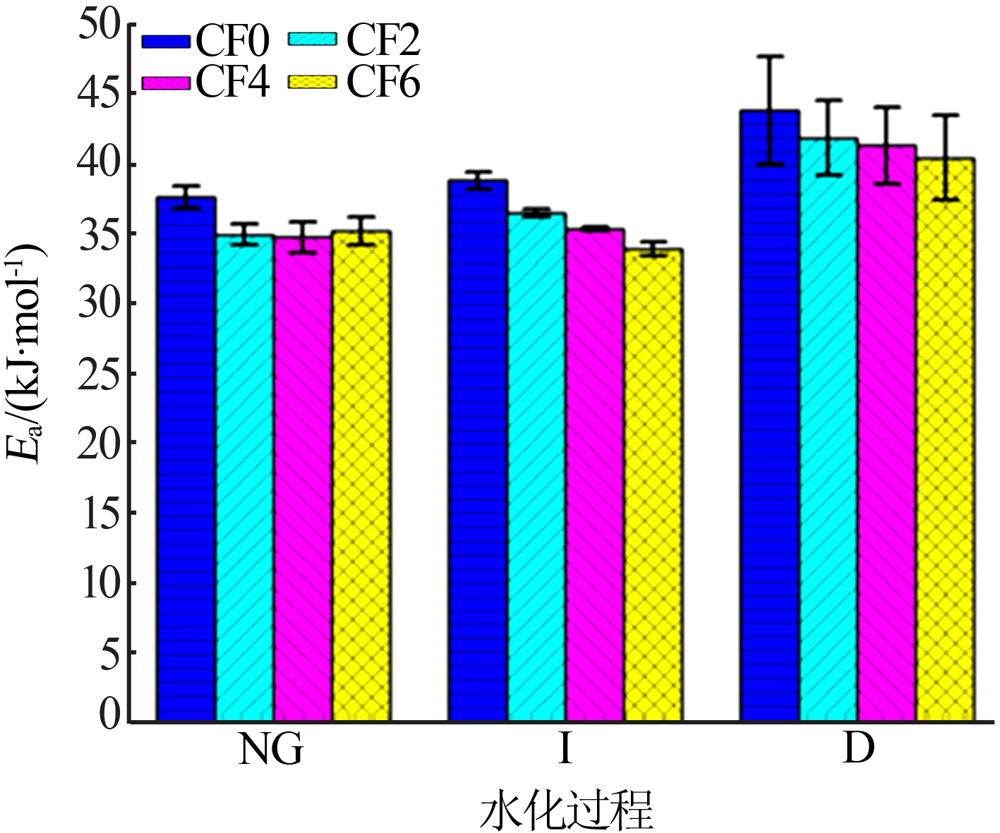

表3

参考文献 54

[1]	徐涛, 兰海平, 杨超, 等. 粉煤灰物理化学性质对比分析研究[J]. 无机盐工业, 2018, 50(7):65-68.
[2]	Ding J, Ma S H, Shen S, et al. Research and industrialization progre-ss of recovering alumina from fly ash:A concise review[J]. Waste Management, 2017, 60(11):375-387.
[3]	姜龙. 燃煤电厂粉煤灰综合利用现状及发展建议[J]. 洁净煤技术, 2020, 26(4):31-39.
[4]	Wang N N, Sun X Y, Zhao Q, et al. Leachability and adverse effects of coal fly ash:A review[J]. Journal of Hazardous Materials, 2020, 396(1).Doi: 10.1016/j.jhazmat.2020.122725.
[5]	Yao Z T, Ji X S, Sarker P K, et al. A comprehensive review on the-applications of coal fly ash[J]. Earth-Science Reviews, 2015, 141(1):105-121.
[6]	Tauanov Z, Azat S, Baibatyrova A. A mini-review on coal fly ash pro-perties,utilization and synjournal of zeolites[J]. International Journal of Coal Preparation and Utilization, 2020, 40(10).Doi: 10.1080/19392699.2020.1788545.
[7]	Dar M I, Green I D, Naikoo M I, et al. Assessment of biotransfer and bioaccumulation of cadmium lead and zinc from fly ash amended soil in mustard-aphid-beetle food chain[J]. Science of the Total En-vironment, 2017,584- 585(1):1221-1229.
[8]	Shi Y, Jiang K X, Zhang T A. Cleaner extraction of alumina from coal fly ash:Baking-electrolysis method[J]. Fuel, 2020, 273(2).Doi: 10.1016/j.fuel.2020.117697.
[9]	肖翠微. 粉煤灰在水处理领域的应用进展[J]. 洁净煤技术, 2016, 22(4):45-51,67.
[10]	张祥成, 孟永彪. 浅析中国粉煤灰的综合利用现状[J]. 无机盐工业, 2020, 52(2):1-5.
[11]	周茗如, 孙耀峰, 乔宏霞. 不同品质粉煤灰在砂浆中减水效应及强度规律的研究[J]. 粉煤灰综合利用, 2011, 25(1):15-17,21.
[12]	李辉, 曹敏丽, 张伟, 等. 大掺量超细粉煤灰高强混凝土研究[J]. 硅酸盐通报, 2014, 33(5):1028-1034.
[13]	Cho Y K, Jung S H, Choi Y C. Effects of chemical composition of fly ash on compressive strength of fly ash cement mortar[J]. Cons-truction and Building Materials, 2019, 204(2):255-264.
[14]	Chen X M, Gao J M, Yan Y, et al. Investigation of expansion pro-perties of cement paste with circulating fluidized bed fly ash[J]. Construction and Building Materials, 2017, 157(2):1154-1162.
[15]	Akshata G P, Shanmugharaj A M, Anandhan S. Interparticle intera-ctions and lacunarity of mechano-chemically activated fly ash[J]. Powder Technology, 2014, 272(1):241-249.
[16]	Chen Z L, Lu S Y, Tang M H, et al. Mechanical activation of fly ash from MSWI for utilization in cementitious materials[J]. Waste Ma-nagement, 2019, 88(4):182-190.
[17]	Sanjay K, Mucsi G, Feerenc K, et al. Mechanical activation of fly ash and its influence on micro and nano-structural behaviour of re-sulting geopolymers[J]. Advanced Powder Technology, 2017, 28(3):805-813.
[18]	Patil A G, Anandhan S. Influence of planetary ball milling parame-ters on the mechano-chemical activation of fly ash[J]. Powder Te-chnology, 2015, 281(1):151-158.
[19]	Craig S L. A tour of force[J]. Nature, 2012, 487(7406):176-177.
[20]	Mucsi G. Mechanical activation of power station fly ash by grinding-A review[J]. Epitoanyag-Journal of Silicate Based and Composite Materials, 2016, 68(2):56-61.
[21]	Kumar S, Kumar R. Mechanical activation of fly ash:Effect on reac-tion,structure and properties of resulting geopolymer[J]. Ceramics International, 2011, 37(2):533-541.
[22]	Du Y T, Wang H F, Wang Z C, et al. Mineralogical and active me-chanical excitation characteristics of filled fly ash cementitious materials[J]. Journal of Wuhan University of Technology-Mater.Sci.Ed., 2017, 32(2):413-416.
[23]	罗忠涛, 马保国, 李相国, 等. 水热碱性环境下粉煤灰水化进程研究[J]. 中国矿业大学学报, 2010, 66(2):275-278.
[24]	Ma L J, Feng Y, Zhang M, et al. Mechanism study on green high-efficiency hydrothermal activation of fly ash and its application prospect[J]. Journal of Cleaner Production, 2020, 275(1).Doi: 10.1016/j.jclepro.2020.122977.
[25]	Hemalatha T, Ramaswamy A. A review on fly ash characteristics-Towards promoting high volume utilization in developing sustaina-ble concrete[J]. Journal of Cleaner Production, 2017, 147(1):546-559.
[26]	Zhang J B, Li S P, Li H Q, et al. Acid activation for pre-desilicated high-alumina fly ash[J]. Fuel Processing Technology, 2016, 151(1):64-71.
[27]	Losey D J, Sihvonen S K, Veghte D P. et al. Acidic processing of fly ash:Chemical characterization,morphology,and immersion freez-ing[J]. Environmental Science:Processes & Impacts, 2018, 20(11):1581-1592.
[28]	赵海君, 严云, 胡志华. 低钙粉煤灰活性激发技术的研究[J]. 水泥工程, 2008, 39(3):8-11.
[29]	于继寿, 李仁福, 隋成飞, 等. 酸碱激活粉煤灰的研究[J]. 粉煤灰综合利用, 2000, 14(2):26-27.
[30]	Yin B, Kang T H, Kang J T, et al. Analysis of active ion-leaching behavior and the reaction mechanism during alkali activation of low-calcium fly ash[J]. International Journal of Concrete Structures and Materials, 2018, 12(1).Doi: 10.1186/s40069-018-0282-3.
[31]	Velandia D F, Lynsdale C J, Provis J L. et al. Evaluation of activated high volume fly ash systems using Na₂SO₄,lime and quicklime in mortars with high loss on ignition fly ashes[J]. Construction and Building Materials, 2016, 128:248-255.
[32]	杨晓凤, 彭龙贵, 张再勇. 强碱激发剂对高掺量粉煤灰水化活性的影响及表征[J]. 化工新型材料, 2011, 39(A1):100-103.
[33]	Duxson P, Fernández-Jiménez A, Provis J L, et al. Geopolymer technology:The current state of the art[J]. Journal of Materials Sci-ence, 2006, 42(9):2917-2933.
[34]	王敏, 吴勇生, 李如燕, 等. 碱激发剂对铸造粉尘-粉煤灰基地质聚合物抗压强度的影响[J]. 硅酸盐通报, 2013, 34(6):1037-1042.
[35]	Bignozzi M C, Manzi S, Natali M E, et al. Room temperature alkali activation of fly ash:The effect of Na₂O/SiO₂ ratio[J]. Construction and Building Materials, 2014, 69(2):262-270.
[36]	Dakhane A, Tweedley S, Kailas S, et al. Mechanical and microstruc-tural characterization of alkali sulfate activated high volume fly ash binders[J]. Materials & Design, 2017, 122(1):236-246.
[37]	Nguyen H A. Utilization of commercial sulfate to modify early per-formance of high volume fly ash based binder[J]. Journal of Build-ing Engineering, 2018, 19(1):429-433.
[38]	Sivapullaiah P V, Baig M A A. Gypsum treated fly ash as a liner for waste disposal facilities[J]. Waste Management, 2011, 31(2):359-369.
[39]	柯国军, 杨晓峰, 彭红, 等. 化学激发粉煤灰活性机理研究进展[J]. 煤炭学报, 2005, 30(3):366-370.
[40]	王智, 郑洪伟, 钱觉时, 等. 硫酸盐对粉煤灰活性激发的比较[J]. 粉煤灰综合利用, 1999, 13(3):15-18.
[41]	Venkatarama Reddy B V, Gourav K. Strength of lime-fly ash com-pacts using different curing techniques and gypsum additive[J]. Materials and Structures, 2011, 44(10):1793-1808.
[42]	Lv Q F, Wang Z S, Gu L Y, et al. Effect of sodium sulfate on stren-gth and microstructure of alkali-activated fly ash based geopoly-mer[J]. Journal of Central South University, 2020, 27(6):1691-1702.
[43]	Jeon D, Yum W S, Jeong Y, et al. Properties of quicklime(CaO)-activated Class F fly ash with the use of CaCl₂[J]. Cement and Co-ncrete Research, 2018, 111(1):147-156.
[44]	Li C, Zhu H B, Wu M X, et al. Pozzolanic reaction of fly ash modi-fied by fluidized bed reactor-vapor deposition[J]. Cement and Co-ncrete Research, 2017, 92(1):98-109.
[45]	Saldanha R B, Scheuermann Filho H C, Ribeiro J L D, et al. Mode-lling the influence of density,curing time,amounts of lime and so-dium chloride on the durability of compacted geopolymers mono-lithic walls[J]. Construction and Building Materials, 2017, 136(1):65-72.
[46]	王复生, 朱元娜, 张磊. 氯化钠对粉煤灰硅酸盐混合水泥活性激发能力和结合方式的试验研究[J]. 硅酸盐通报, 2009, 30(1):31-37.
[47]	吕擎峰, 王子帅, 陈臆, 等. 氯化钠对碱激发地聚物强度影响机理研究[J]. 功能材料, 2020, 51(2):73-77,98.
[48]	兰明章, 侯伟芳, 王亚丽. 醇胺对掺粉煤灰水泥基材料性能的影响[J]. 混凝土, 2015, 37(8):95-97.
[49]	Chen X, Zhu G R, Zhou M K, et al. Effect of organic polymers on the properties of slag-based geopolymers[J]. Construction and Buil-ding Materials, 2018, 167(2):216-224.
[50]	杨萌, 孙正, 周卫兵, 等. 醇胺类助磨剂对粉煤灰水泥水化硬化过程的影响[J]. 水泥, 2011, 38(12):3-6.
[51]	汤青青, 张丽娟, 孙国文, 等. 三乙醇胺-氢氧化钙对大掺量粉煤灰水泥胶凝体系早期活性激发[J]. 硅酸盐通报, 2018, 37(9):2737-2742.
[52]	Heinz D, Göbel M, Hilbig H, et al. Effect of TEA on fly ash solubili-ty and early age strength of mortar[J]. Cement and Concrete Rese-arch, 2010, 40(3):392-397.
[53]	He J H, Long G C, Ma C, et al. Effect of triethanolamine on hydra-tion kinetics of cement-fly ash system at elevated curing tempera-ture[J]. ACS Sustainable Chemistry & Engineering, 2020, 8(27).Doi: 10.1021/acssuschemeng.0c01763.
[54]	Sun G W, Tang Q Q, Zhang J J, et al. Early activation of high volu-me fly ash by ternary activator and its activation mechanism[J]. Journal of Environmental Management, 2020, 267(1).Doi: 10.1016/j.jenvman.2020.110638.

品种	减水率/%
品种	0%	5%	15%	25%	30%	35%	45%	55%	65%
FA1	0	4.6	7.7	9.2	11.5	12.5	14.9	15.6	15.4
FA2	0	1.6	2.4	4.8	6.4	8.0	11.2	12.6	11.0
FA3	0	0.8	1.6	2.2	3.9	4.6	6.2	5.4	3.8
FA4	0	0.7	1.1	2.0	2.8	2.8	1.1	0.5	—

原料	w （SiO₂）	w （Al₂O₃）	w （Fe₂O₃）	w （CaO）	w （TiO₂）	w （R₂O）	w （SO₃）
水泥	22.79	4.80	3.51	65.59	0.48	0.63	0.83
粉煤灰	51.07	30.86	5.26	5.75	—	1.92	1.48

激发方法	激发机理	优势	劣势
酸激发	H⁺侵蚀粉煤灰玻璃体表面,释放活性SiO₂、Al₂O₃,进而提高水化反应程度	可单独激发粉煤灰活性,并可通过改变酸类型和强度对粉煤灰进行不同程度的激发	对设备腐蚀性强,目前技术尚未成熟, 仍处于研究阶段
碱激发	通过OH^-使得粉煤灰表面[AlO₄]和[SiO₄]发生解聚,破坏表面结构,释放玻璃体内的活性物质	可单独激发粉煤灰活性;可选用的激发剂种类多,技术较成熟,可大规模使用	激发程度有限,碱过量会引发粉煤灰材料内部发生碱集料反应,进而破坏材料
盐激发	在碱性条件下,Cl^-和SO₄^2-与粉煤灰中的活性物质反应生成胶凝性物质,加速了粉煤灰中活性物质的释放	可解决粉煤灰“先天缺钙”问题,应用成本低,前景广阔	必须与碱配合使用才能激发活性; SO₄^2-或Cl^-过量对粉煤灰材料及其中的钢筋有腐蚀
有机溶剂激发	有机碱溶剂中的孤对电子与粉煤灰中的Fe、Al相发生络合,腐蚀粉煤灰表面,加速释放活性SiO₂、Al₂O₃	对胶凝材料的早期激发效果好,可通过螯合作用减少金属离子对土壤的影响	单一使用时效果差,需配合无机碱才能有效激发粉煤灰活性;原料成本高

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
