探究吸附装置安装位置对多晶硅除硼磷的影响

doi:10.11962/1006-4990.2019-0249

摘要/Abstract

摘要：

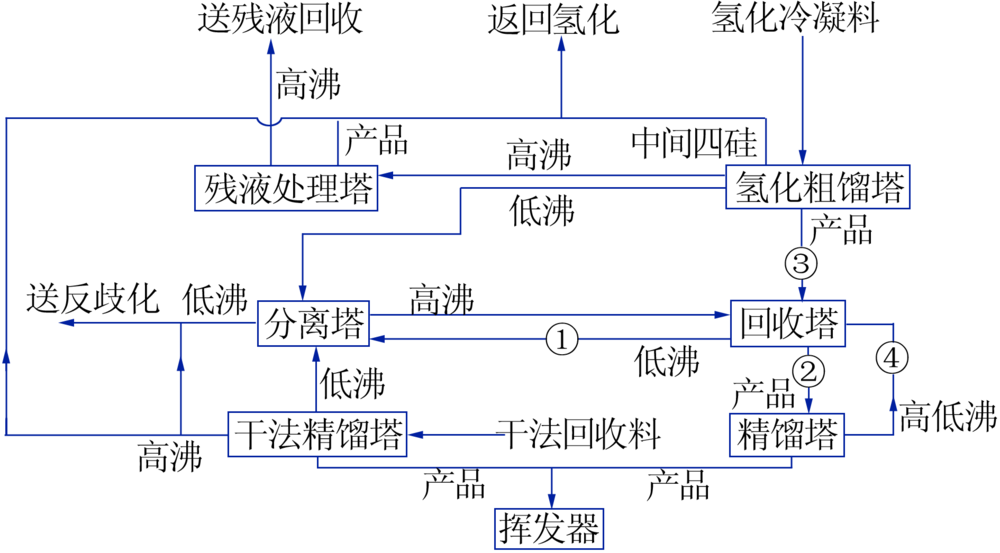

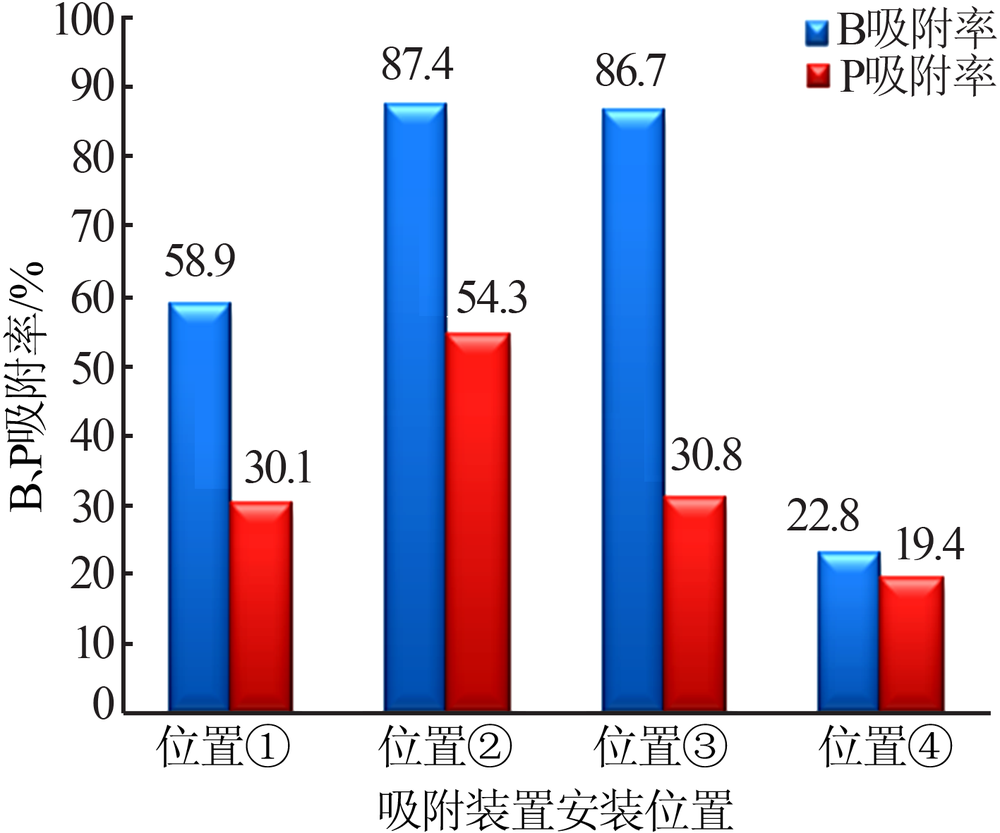

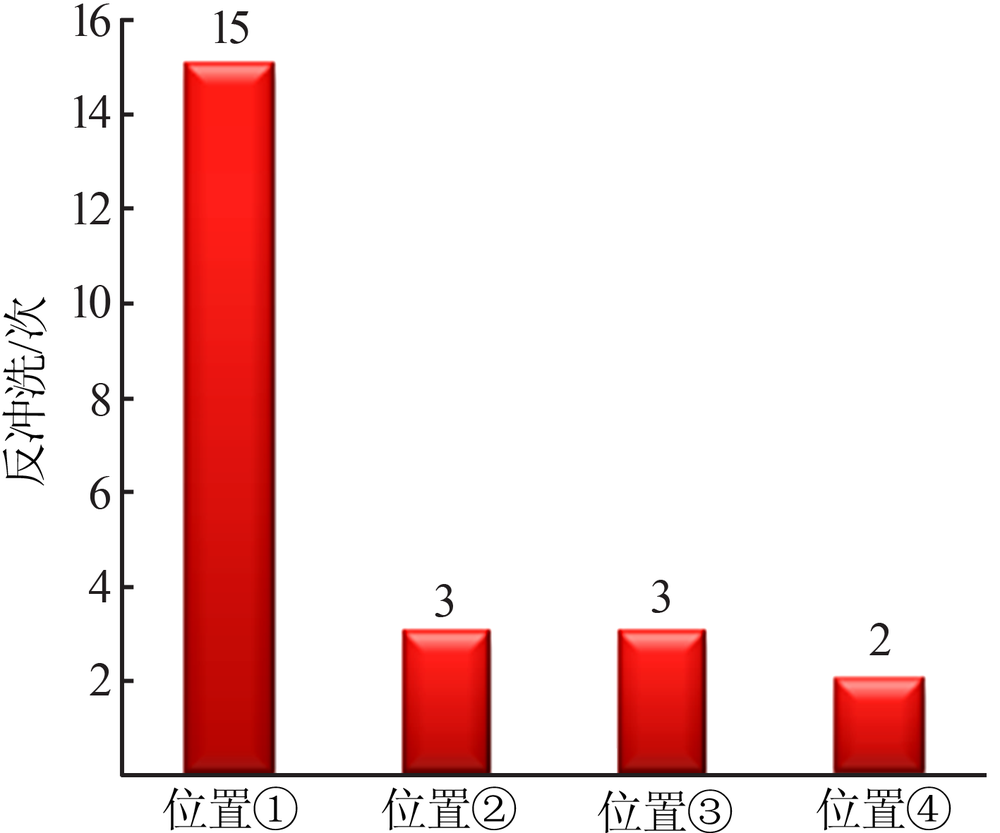

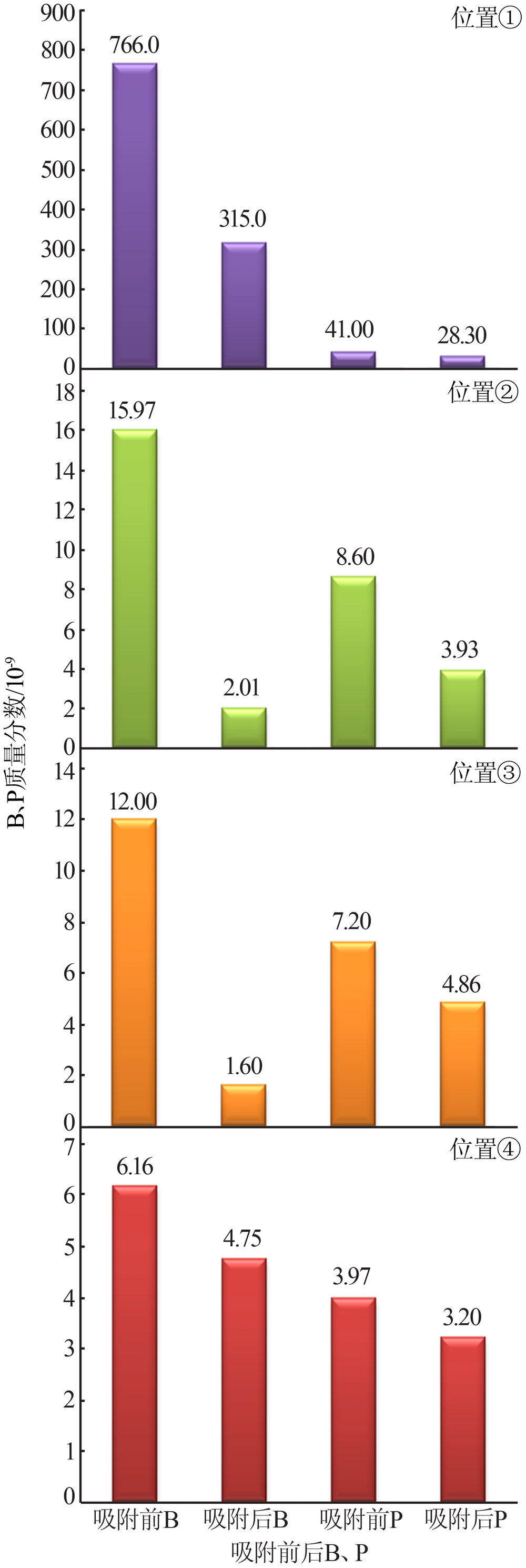

多晶硅生产中最难去除的杂质是硼、磷。为提高吸附装置对硼、磷杂质的吸附效果,降低多晶硅原料氯硅烷中的杂质含量,提升多晶硅的品质,对吸附装置在提纯系统中安装位置的合理性进行了分析研究。对提纯系统中部分物料输送管道进行改造,使不同组分的物料进入相同结构的吸附装置进行吸附。调试吸附装置处于最佳工作状态后,对吸附后物料中硼、磷杂质含量的总和、吸附率以及吸附装置反冲洗频率进行对比分析。实验结果表明,当吸附装置安装在回收塔产品进入精馏塔的中间管道处时,吸附装置对硼、磷杂质的吸附效果最佳,且系统运行稳定。吸附装置在提纯系统中最佳安装位置的确定,提高了吸附装置对硼、磷杂质的吸附效果以及系统运行的稳定性,为多晶硅品质的提升奠定了基础。

关键词: 多晶硅, 氯硅烷, 硼、磷杂质, 吸附, 稳定性

Abstract:

B and P impurtities are the most difficult to remove in polycrystalline silicon production.In order to improve the adsorption effect of the adsorption device for B and P impurities,reduce the impurity content in chlorosilane of polycrystalline silicon raw material and improve the quality of polycrystalline silicon,the rationality of the installation position of the adsorption device in the purification system was analyzed and studied.Through the modification of part of the material pipeline in the purification system,the materials of different components can be absorbed into the same structure of the adsorption device.The adsorption device is in the best working state through debugging.After that,the total impurity content of B and P,adsorption rate and device backwashing frequency after adsorption were compared and analyzed.The results showed that when the adsorption device was installed between the recovery tower and the distillation tower,the adsorption effect was the best,and the adsorption device ran steadily.The determination of the best fit position of the adsorption device in the system improved the adsorption efficiency and stability of the adsorption device,and laid a foundation for the improvement of the quality of polycrystalline silicon.

Key words: polycrystalline silicon, chlorosilane, B and P impurities, adsorption, stability

中图分类号:

TQ127.2

贺玉刚,王芳,孙强,张晓伟,时庆合,付强. 探究吸附装置安装位置对多晶硅除硼磷的影响[J]. 无机盐工业, 2020, 52(3): 72-74.

He Yugang,Wang Fang,Sun Qiang,Zhang Xiaowei,Shi Qinghe,Fu Qiang. Effect of adsorption device position on boron and phosphorus removal in polycrystalline silicon[J]. Inorganic Chemicals Industry, 2020, 52(3): 72-74.

图/表 4

参考文献 20

[1]	郭少平 . 太阳能光伏发电发展现状及前景[J]. 山东工业技术, 2018(16):163.
[2]	塔娜 . 光伏行业现状及前景分析[J]. 企业改革与管理, 2018(22):204-205.
[3]	孙岩 . 光伏发电技术分析及应用探讨[J]. 中国设备工程, 2019(5):168-170.
[4]	卢海波, 朱晓云 . 三氯氢硅除硼工艺研究进展[J]. 材料导报, 2013,27(9):29-32.
[5]	李光明, 刘龙, 栾石林 , 等. 太阳能级多晶硅中B、P 杂质的危害及去除[J]. 太阳能, 2016(8):26-28.
[6]	黄小明, 杨邦美 . 高纯三氯氢硅生产中磷硼杂质的去除[J]. 化工生产与技术, 2012,19(5):55-56,64.
[7]	郎永沛, 储少军, 林俊峰 . 多晶硅中杂质元素B、P的来源分析[J]. 铁合金, 2011,54(5):11-13.
[8]	Liu S, Huang K, Zhu H . Source of boron and phosphorus impurities in the silicon wiresawing slurry and their removal by acid leach-ing[J]. Separation and Purification Technology, 2017,172:113-118.
[9]	石秋玲 . 改良西门子法生产多晶硅中反应精馏除硼的模拟研究[D]. 天津:天津大学, 2012.
[10]	钱浩, 黄国强 . 高效除三氯氢硅中痕量硼、磷工艺研究进展[J]. 化学工业与工程, 2018,35(2):42-48.
[11]	Lawrence P M . Method of removing boron from silicon tetrachlo-ride:US,3403003[P]. 1968-09-24.
[12]	Kray W D, Razzano J S . Purification of silicon halides:US, 4755370[P]. 1988-07-05.
[13]	Pechiney P C . A process for the purification of liquid halosilanes or halogermane:GB, 975000A[P]. 1964-11-11.
[14]	Ghetti G . Processes for the purification of trichlorosilane and silicon tetrachloride：US,7879198[P]. 2011-02-01.
[15]	Darnell R D, Ingle W M . Purification of silicon source materials:US, 4409195[P]. 1983-10-11.
[16]	张新, 王璜, 李强 , 等. 去除三氯氢硅中硼杂质的方法:中国,101913610A[P]. 2010-12-15.
[17]	孙永敏 . 用树脂去除氯硅烷类物料中硼磷离子的方法:中国, 101428804A[P]. 2009-05-13.
[18]	Winfried L, Dietrich S, Johann H , et al. Process for purifying halo-genosilanes:US,4112057A[P]. 1978-09-05.
[19]	姜文正, 毛文君, 曹忠 , 等. 一种去除三氯氢硅中磷硼杂质的工艺:中国,101920961A[P]. 2010-12-22.
[20]	黄国强, 石秋玲, 王红星 , 等. 双塔热耦反应精馏除去氯硅烷体系中硼杂质的方法和装置:中国,102030335A[P]. 2011-04-27.
