PANI/TIO复合材料的制备及其在 聚氨酯涂料中的应用

doi:10.19964/j.issn.1006-4990.2022-0133

摘要/Abstract

摘要：

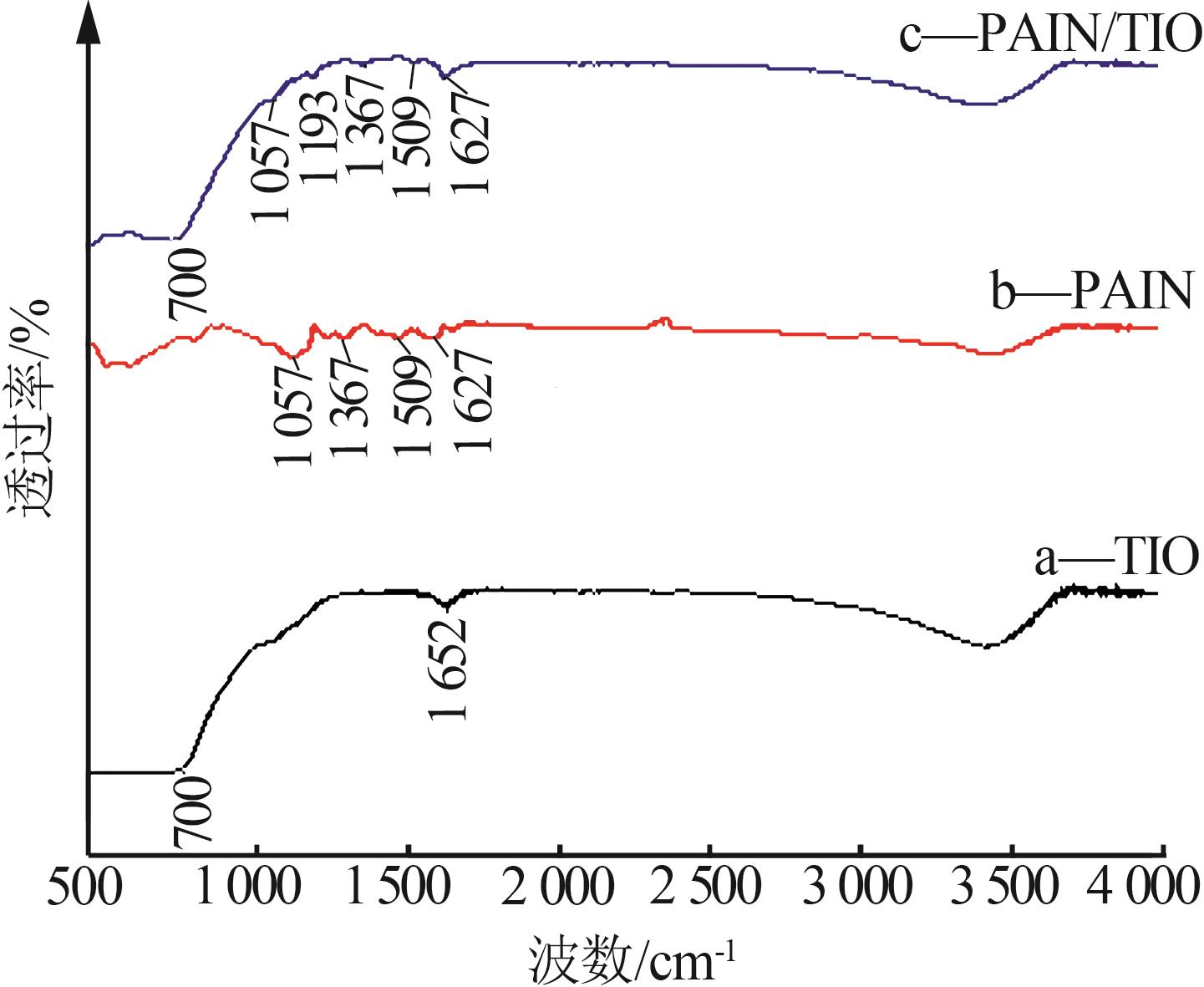

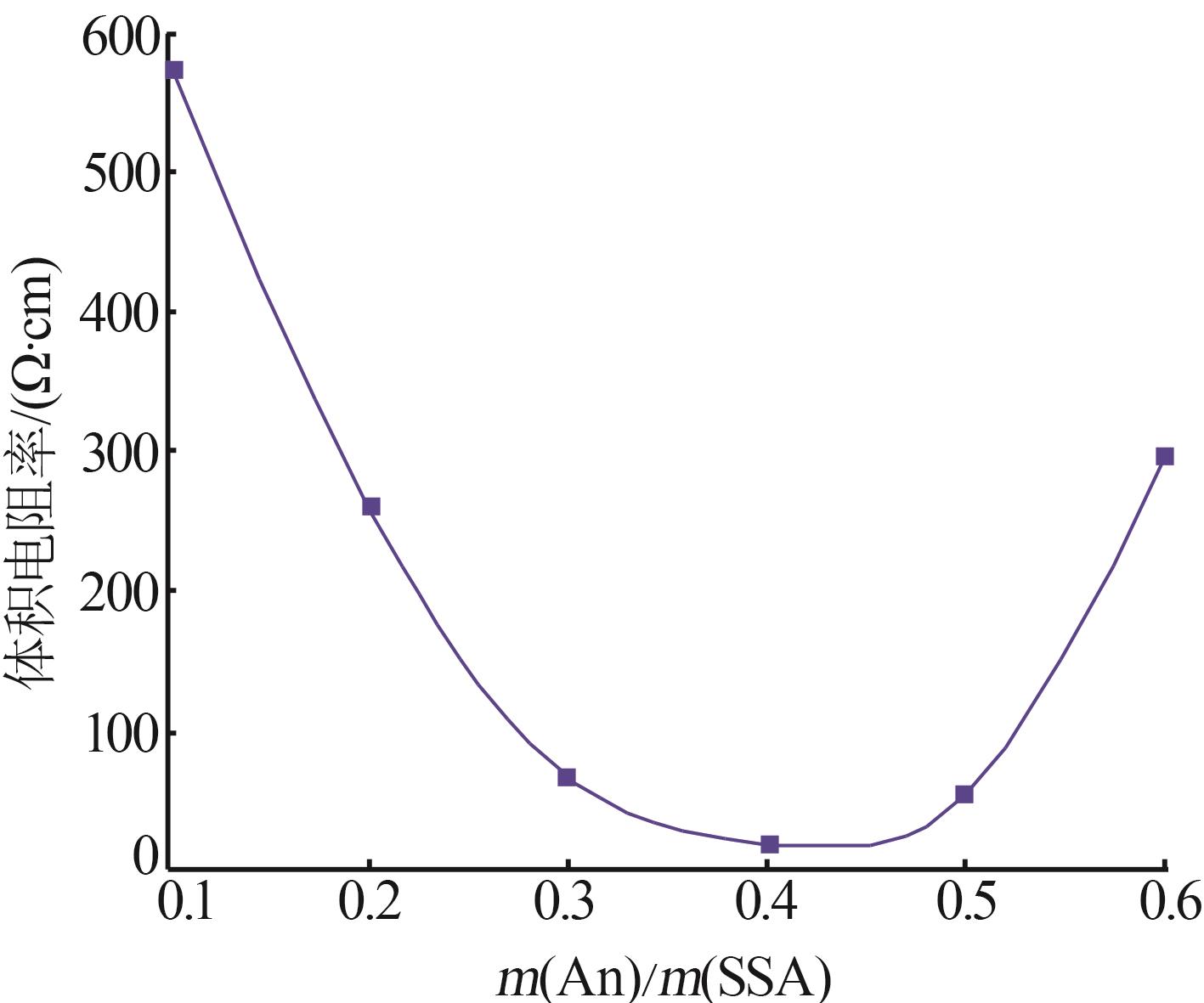

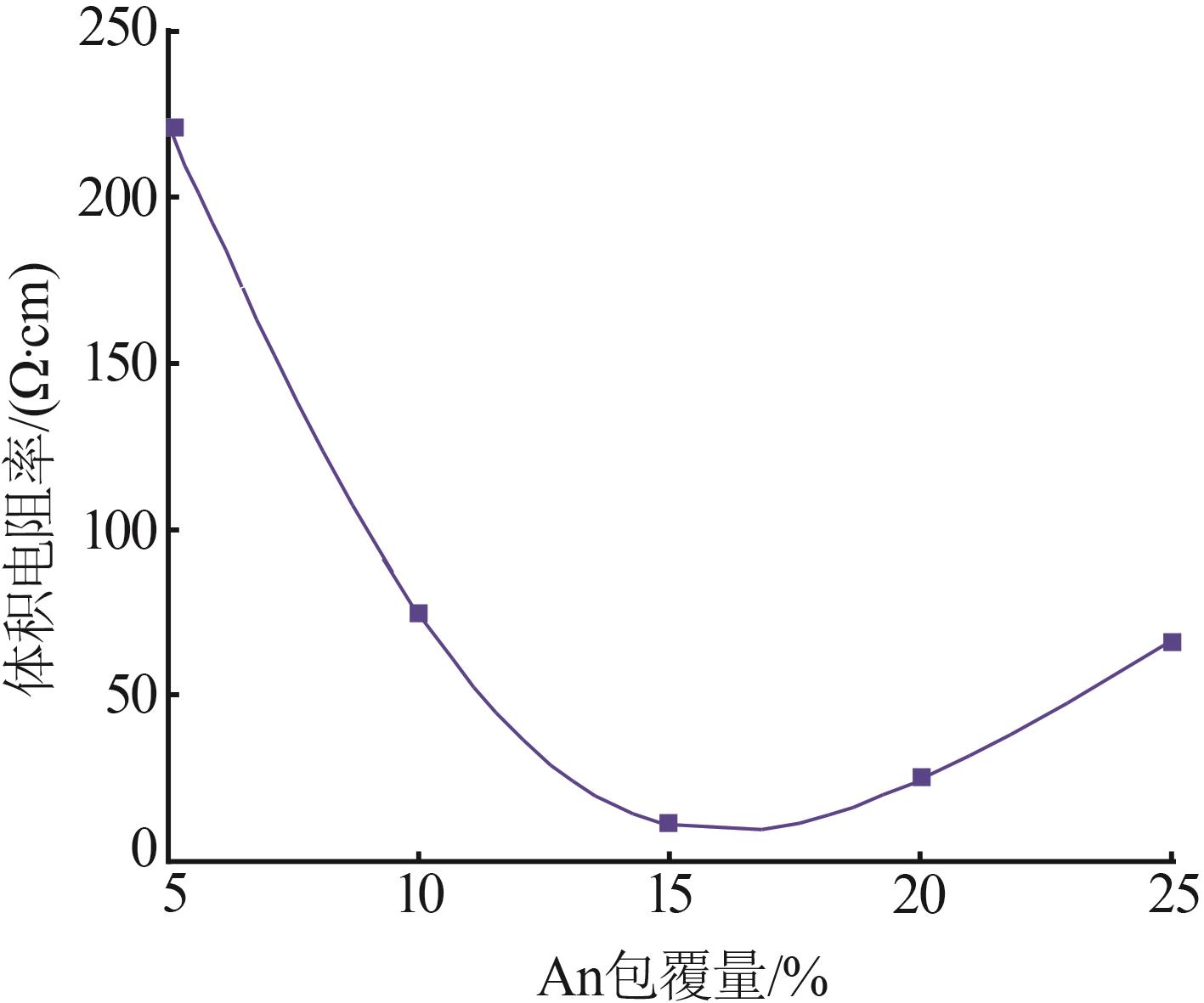

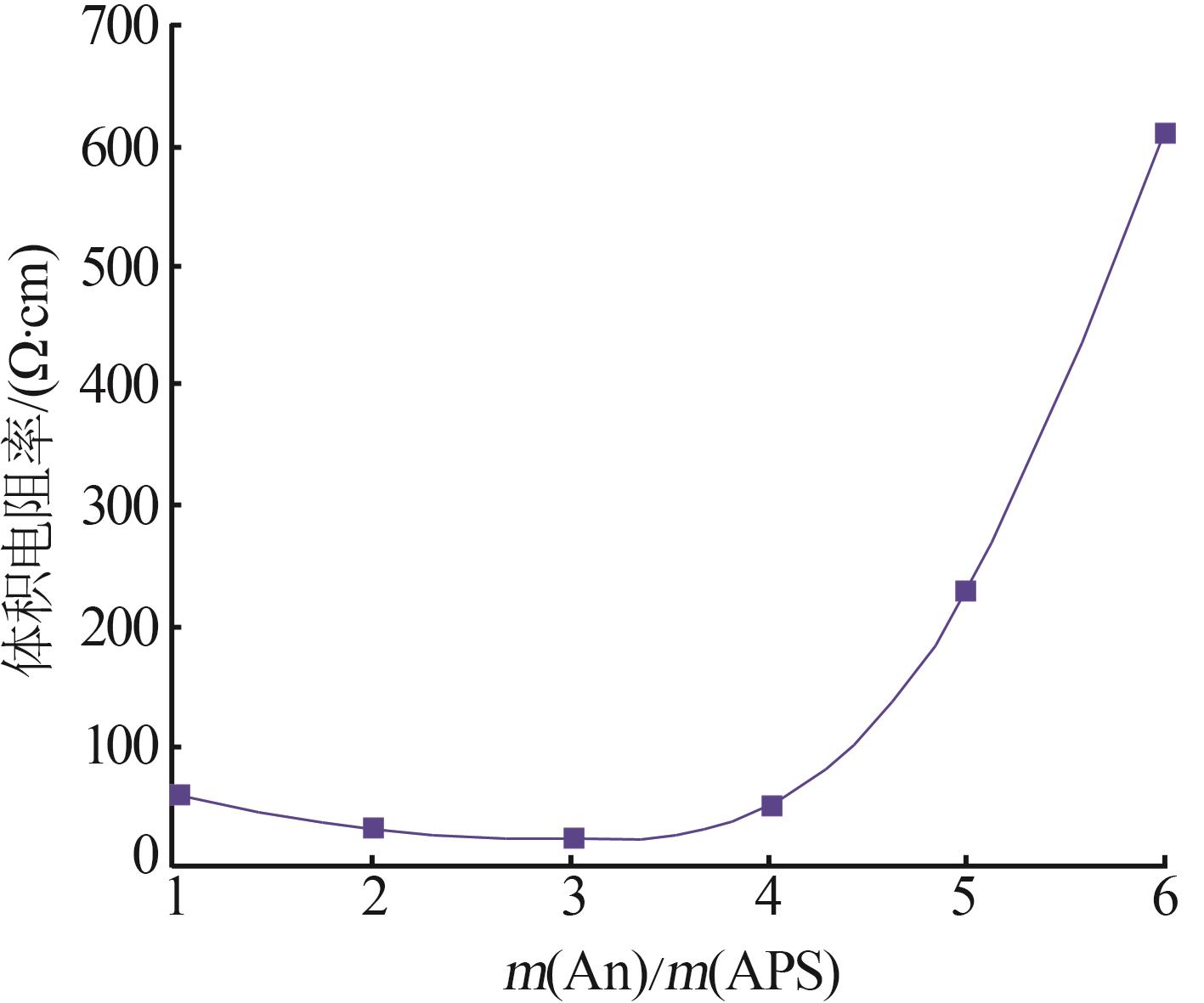

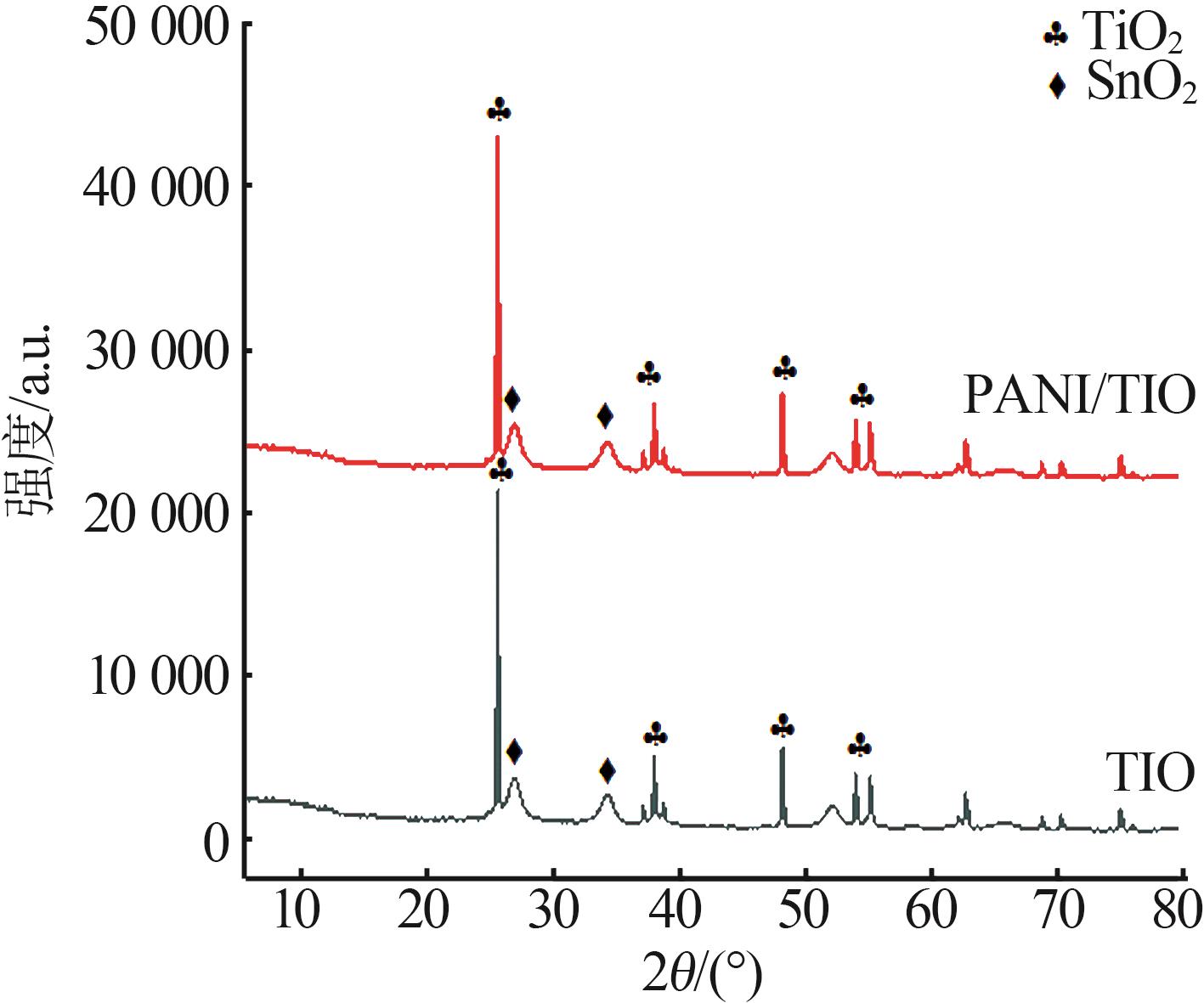

采用原位聚合的方法在锑掺杂氧化锡/氧化钛复合材料（TIO）上包覆一层完整的聚苯胺（PANI）膜，成功制备了PANI/TIO复合材料，将其作为水性聚氨酯涂料的填料，制备了水性聚氨酯导电涂料。利用X射线粉末衍射、透射电镜、红外光谱等分析方法对复合材料进行表征，利用涂层机械性能测试对导电涂料进行了测试。同时得到了制备PANI/TIO三元复合材料的最佳工艺条件：苯胺（An）包覆量为15%、m（An）/m[磺基水杨酸（SSA）]=0.4、m（An）/m[过硫酸铵（APS）]=3。在最佳工艺条件下，得到的PANI/TIO复合材料体积电阻率为15.3 Ω·cm。实验结果表明：当填料比为15%时涂层机械性能最佳，硬度为2B、耐冲击力为50 cm、附着力为1级、涂层表面电阻为3.56×10⁵ Ω/m²，该导电涂料有较好的应用前景。

关键词: 锑掺杂氧化锡/氧化钛复合材料, 涂料, 聚氨酯, 导电, 改性

Abstract:

A complete polyaniline（PANI） film was coated on the antimony-doped tin oxide/titanium oxide composite（TIO） by in-situ polymerization to prepare PANI/TIO composites successfully，and the waterborne polyurethane conductive coating was prepared by using it as the filler of the waterborne polyurethane coating.The composites were characterized by X-ray powder diffraction，transmission electron microscopy，infrared spectroscopy and other analytical methods，and the conductive coatings were tested by coating mechanical properties.At the same time，the optimal process conditions for the preparation of PANI/TIO ternary composites were found as follows：An coating amount of 15%，m（An）∶m（SSA）=0.4，m（An）∶m（APS）=3.The prepared PANI/TIO composites had a volume resistivity of 15.3 Ω·cm.The results showed that when the filler ratio was 15%，the coating had the best mechanical qualities，with hardness of 2B，impact resistance of 50 cm，adhesion of grade 1，and surface resistance of 3.56×10⁵Ω/m².The coating had a wide range of application prospects.

Key words: TIO, coatings, polyurethane, electric conductivity, modification

中图分类号:

TB333

周敏. PANI/TIO复合材料的制备及其在聚氨酯涂料中的应用[J]. 无机盐工业, 2023, 55(1): 112-117.

ZHOU Min. Preparation of PANI/TIO composites and their application in polyurethane coatings[J]. Inorganic Chemicals Industry, 2023, 55(1): 112-117.

图/表 10

图1

图2

图3

图4

图5

图6

图7

表1

表2

表3

参考文献 20

1	VARALAKSHMI R, RAMASWAMY S N, SELVARAJ R. Studies on greener anticorrosive coating to steel rebars with waterborne polyurethane binders[J].Iranian Journal of Science and Technology, Transactions of Civil Engineering，2020, 44（2）：591-602.
2	DACUAN C N, ABELLANA V Y, CANSECO H A R, et al. Hydrophobic polyurethane coating against corrosion of reinforced concrete structures exposed to marine environment[J].Civil Engineering and Architecture, 2021, 9（3）：721-736.
3	ORLOV M A, POLIKARPOVA I A, KALINNIKOV A N. Development and testing of polyurethane coating for protection of gas turbine engine blades[J].Solid State Phenomena, 2021, 316：868- 872.
4	YONG Qiwen, CHANG Jinming, LIU Qi, et al. Matt polyurethane coating：Correlation of surface roughness on measurement length and gloss[J].Polymers, 2020, 12（2）：167-174.
5	SU Shouhua, WANG Juan, LI Chao, et al. Short-branched fluorinated polyurethane coating exhibiting good comprehensive performance and potential UV degradation in leather waterproofing mo- dification[J].Coatings, 2021, 11（4）：395-404.
6	SILVA M V DA, FAJARDO H V, RODRIGUES T S, et al. Synthesis of NiMoO₄ ceramics by proteic sol-gel method and investigation of their catalytic properties in hydrogen production[J].Materials Chemistry and Physics, 2021, 262.Doi：10.1016/j.matchemphys.2021.124301. doi: 10.1016/j.matchemphys.2021.124301
7	SUN Wei, XING Chao, TANG Xiaobo, et al. Comparative study on the degradation of a zinc-rich epoxy primer/acrylic polyurethane coating in different simulated atmospheric solutions[J].Journal of Coatings Technology and Research, 2021, 18（2）：397-413.
8	GOEL V, MANDAL U K. Surface modification of polysulfone ultrafiltration membrane by insitu ferric chloride based redox polymerization of aniline-surface characteristics and flux analyses[J].Korean Journal of Chemical Engineering, 2019, 36（4）：573-583.
9	邹梨花, 杨莉, 孙妍妍, 等. 一种聚苯胺涂层针织物应变传感器的制备方法：中国, 110468588A[P].2019-11-19.
10	GARCÍA RUEDA F C, GONZÁLEZ J T. Electrochemical polymerization of polypyrrole coatings on hard-anodized coatings of the aluminum alloy 2024-T3[J].Electrochimica Acta, 2020, 347.Doi：10.1016/j.electacta.2020.136272. doi: 10.1016/j.electacta.2020.136272
11	MOHANTY S R, MOHANTY S, NAYAK S K, et al. Synthesis and evaluation of novel acrylic and ester-based polyols for transparent polyurethane coating applications[J].Materials Today Co- mmunications, 2021, 27.Doi：10.1016/j.mtcomm.2021.102228. doi: 10.1016/j.mtcomm.2021.102228
12	LUTTMANN A. Are passengers compensated for incurring an airport layover？Estimating the value of layover time in the US airline industry[J].Economics of Transportation, 2019, 17：1-13.
13	LEE Y J， Yunju LA, JEON O S, et al. Effects of boron nitride nanotube content on waterborne polyurethane-acrylate composite coating materials[J].RSC Advances, 2021, 11（21）：12748-12756.
14	HAMLAOUI F Z, NAAR N, SAIB F, et al. Transport and photo-electrochemical properties of PANI-SSA，a novel photocatalyst in hydrogen production upon visible light[J].Journal of Photochemistry and Photobiology A：Chemistry, 2021, 407.Doi：10.1016/j.jphotochem.2020.113062. doi: 10.1016/j.jphotochem.2020.113062
15	YU S P, TAI H J. Sol-gel enhanced polyurethane coating for corrosion protection of 55% Al-Zn alloy-coated steel[J].Journal of Polymer Research, 2021, 28（5）：158-166.
16	杨芊荟, 郝青, 雷建平, 等. 光电子调控的聚苯胺氧化还原反应用于铜离子可视化检测[J].分析化学, 2017, 45（12）：1895-1902.
	YANG Qianhui, HAO Qing, LEI Jianping, et al. Photoelectron-regulated redox reaction of polyaniline for visual detection of trace copper[J].Chinese Journal of Analytical Chemistry, 2017, 45（12）：1895-1902.
17	BAO Bingwei, FAN Ji, WANG Wei, et al. Photochromic cotton fabric prepared by spiropyran-ternimated water polyurethane coating[J].Fibers and Polymers, 2020, 21（4）：733-742.
18	BAI Tao, LV Lei, DU Weiping, et al. Improving the tribological and anticorrosion performance of waterborne polyurethane coating by the synergistic effect between modified graphene oxide and polytetrafluoroethylene[J].Nanomaterials：Basel, Switzerland，2020, 10（1）：137-143.
19	WANG Ruitao, LI Chunxiang, JIANG Zhaohua, et al. Self-assembly of amphiphilic linear-dendritic carbosilane block surfactant for waterborne polyurethane coating[J].Polymers, 2020, 12（6）：1318-1326.
20	CHEN Sining, ZHAO Suijun, MA Haoqi, et al. Research on thermal decomposition characteristics of H foaming agent with different moisture contents[J].Journal of Loss Prevention in the Process Industries, 2020, 66：154-164.

聚苯胺包覆量/%	耐盐雾时间/h	聚苯胺包覆量/%	耐盐雾时间/h
0	>48	10	>120
5	>96	15	>156

添加量/ %	硬度/ B	附着力/ 级	耐冲击力/ cm	表面电阻/ （Ω·m^-2）
6	5	2	30	8.68×10⁹
9	4	2	35	5.68×10⁸
12	4	1	40	6.38×10⁷
15	4	1	45	8.67×10⁶
18	3	2	45	2.86×10⁶
21	3	2	40	9.36×10⁵

添加量/ %	硬度/ B	附着力/ 级	耐冲击力/ cm	表面电阻/ （Ω·m^-2）
6	3	2	35	2.68×10⁹
9	3	1	40	8.36×10⁷
12	2	1	45	1.34×10⁶
15	2	1	50	3.56×10⁵
18	1	2	50	9.57×10⁴
21	1	2	45	8.67×10⁴
