硅改性拟薄水铝石合成SAPO-34分子筛的研究

doi:10.19964/j.issn.1006-4990.2022-0011

摘要/Abstract

摘要：

SAPO-34分子筛常用于甲醇制烯烃（MTO）反应中。以硅酸钠、硝酸铝和氨水为原料采用碱滴酸加料方式制备一种硅改性拟薄水铝石,再以硅改性拟薄水铝石为硅源和铝源、磷酸（H₃PO₄）为磷源、四乙基氢氧化铵（TEAOH）为模板剂采用水热合成法制备SAPO-34分子筛。采用XRD、SEM、FT-IR、NH₃-TPD等表征手段对合成的硅改性拟薄水铝石及SAPO-34分子筛进行表征并对其MTO催化性能进行评价。结果表明,在硅铝物质的量比为0.08~0.5时,硅的引入对合成纯相拟薄水铝石无影响,但硅的引入量对拟薄水铝石的结晶度及形貌有一定影响；在硅铝物质的量比为0.2~0.5时,以硅改性拟薄水铝石为硅源和铝源可以合成纯相SAPO-34分子筛,MTO催化反应甲醇转化率可达99%以上,双烯选择性最高达87%以上,并拥有较高的乙烯选择性。

关键词: 硅改性, 拟薄水铝石, SAPO-34分子筛, MTO

Abstract:

SAPO-34 molecular sieve is often used in methanol to olefin（MTO） reaction.Using sodium silicate,aluminum nitrate and ammonia as raw materials,a silicon modified pseudo boehmite was prepared by alkali dropping to acid feeding method,and then SAPO-34 molecular sieve was prepared by hydrothermal synthesis method with silicon modified pseudo boehmite as silicon source and aluminum source,phosphoric acid（H₃PO₄） as phosphorus source,tetraethyl ammonium hydroxide（TEAOH） as template.The synthesized silica modified pseudo boehmite and SAPO-34 molecular sieve were characterized by XRD,SEM,FT-IR and NH₃-TPD,and their MTO catalytic properties were evaluated.The results showed that when the molar ratio of silicon to aluminum was 0.08~0.5,the introduction of silicon had no effect on the synthesis of pure pseudo boehmite,but the amount of silicon had a certain effect on the crystallinity and morphology of pseudo boehmite.When the amount molar ratio of silicon to aluminum was 0.2~0.5,pure SAPO-34 molecular sieve could be synthesized with silicon modified pseudo boehmite as silicon source and aluminum source.The methanol conversion rate of MTO catalytic reaction could reach more than 99%,the diene selectivity could reach more than 87%,and it had high ethylene selectivity.

Key words: silicone modification, pseudo-boehmite, SAPO-34 molecular sieve, MTO

中图分类号:

TQ127.2

史凯,赵旭,张红智,任轶轩,李晓峰. 硅改性拟薄水铝石合成SAPO-34分子筛的研究[J]. 无机盐工业, 2022, 54(10): 149-154.

SHI Kai,ZHAO Xu,ZHANG Hongzhi,REN Yixuan,LI Xiaofeng. Study on synthesis of SAPO-34 molecular sieve by silicon-modified pseudo-boehmite[J]. Inorganic Chemicals Industry, 2022, 54(10): 149-154.

图/表 8

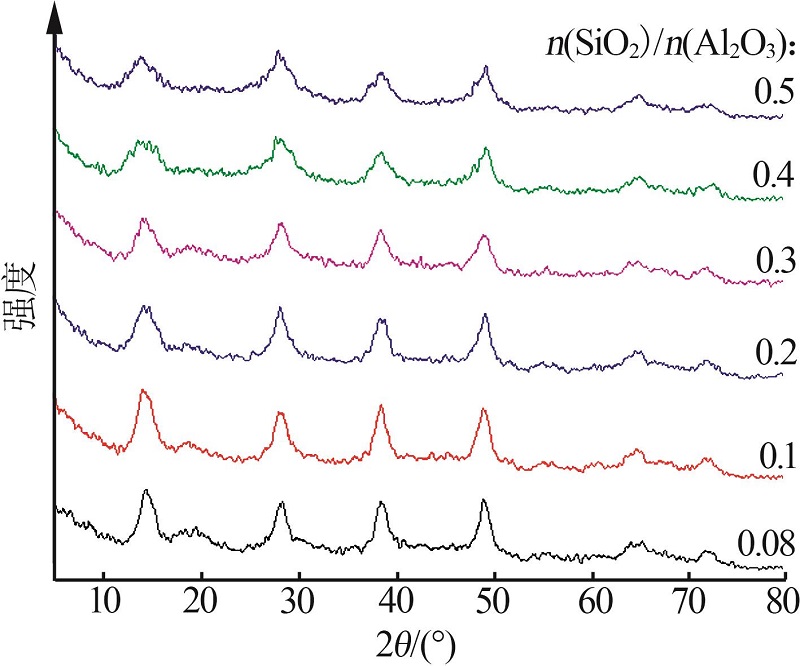

图1

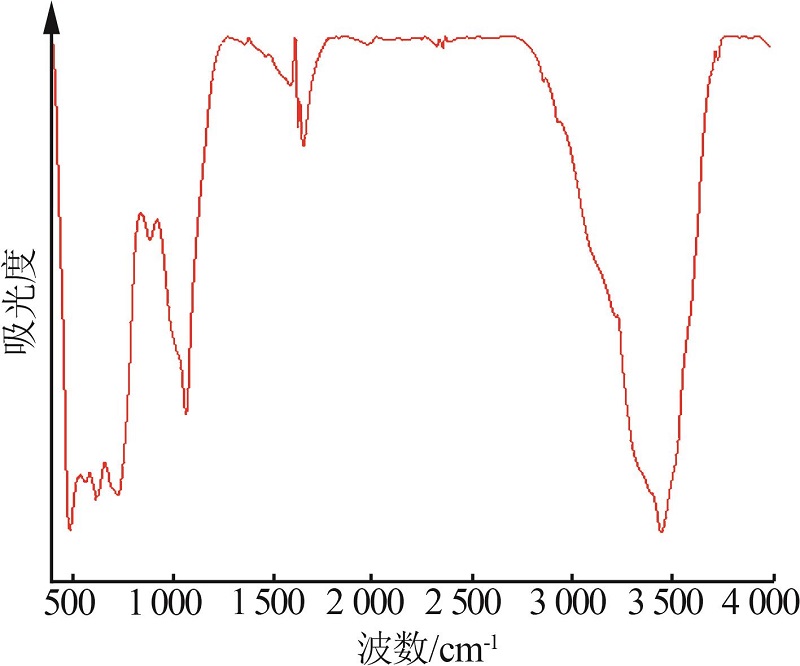

图2

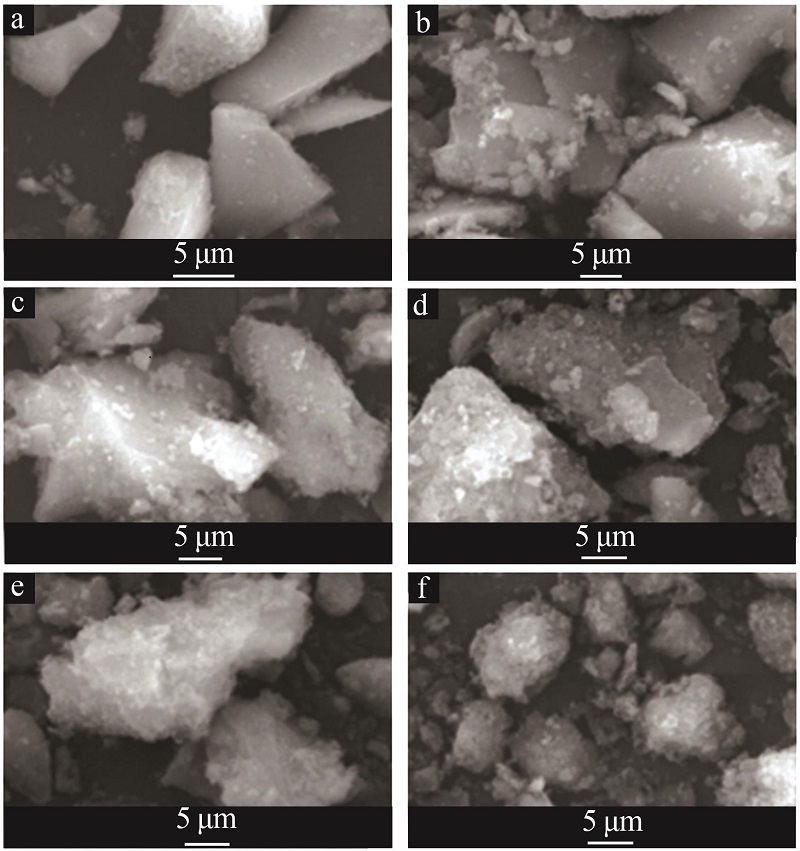

图3

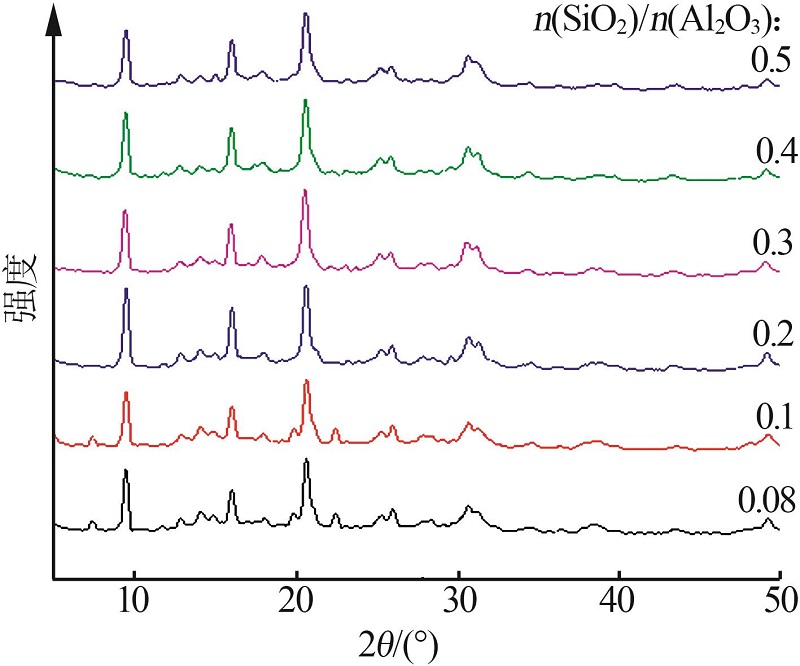

图4

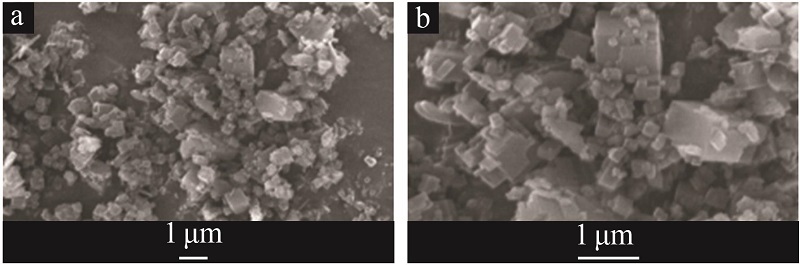

图5

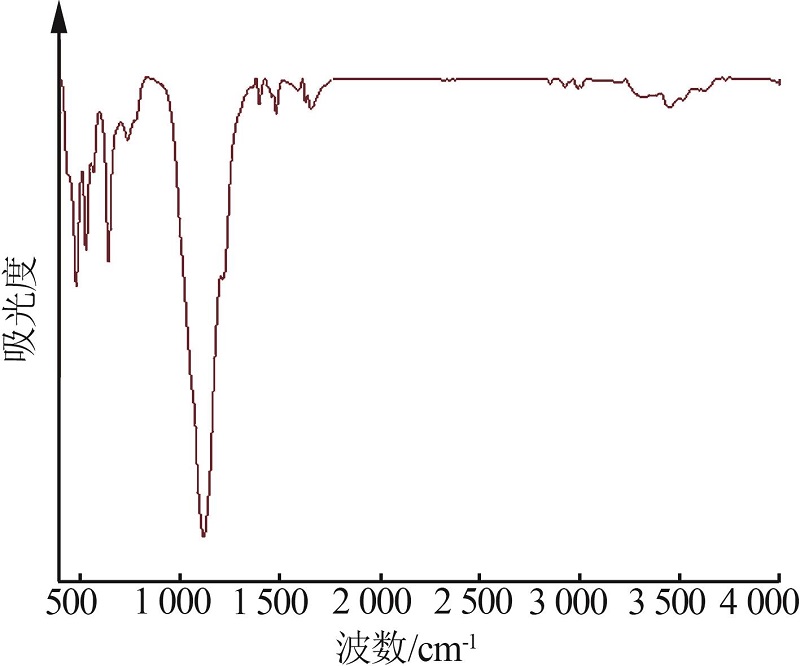

图6

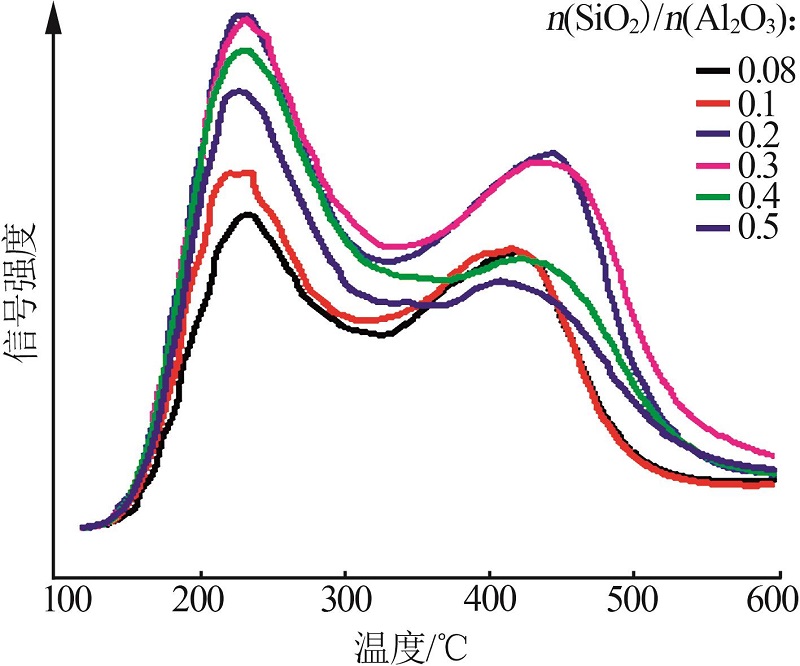

图7

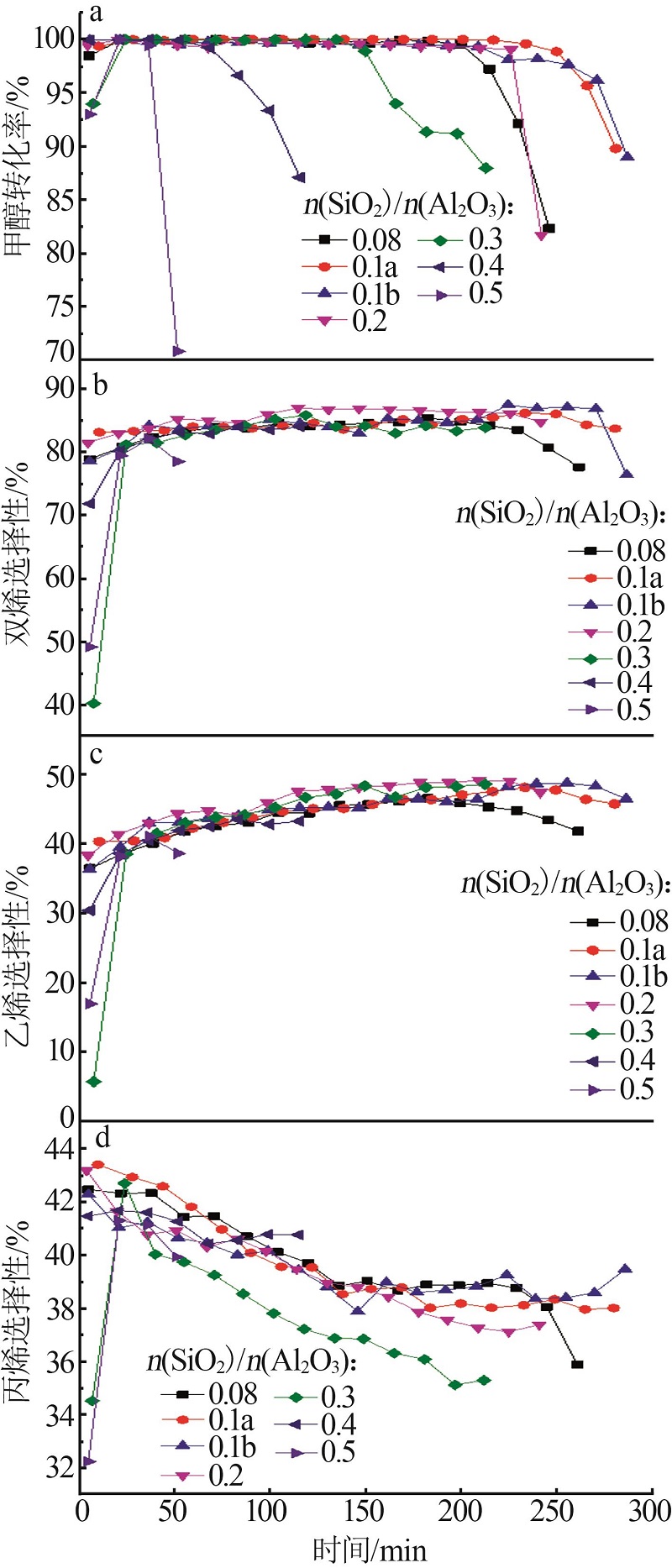

图8

参考文献 18

[1]	CHEN De, MOLJORD K, FUGLERUD T, et al.The effect of crystal size of SAPO-34 on the selectivity and deactivation of the MTO reaction[J].Microporous and Mesoporous Materials, 1999, 29(1/2): 191-203.
[2]	许磊, 杜爱萍, 魏迎旭, 等. 骨架富含Si（4Al）结构的SAPO-34分子筛的合成及其对甲醇制烯烃反应的催化性能[J].催化学报, 2008, 29(8): 727-732.
	XU Lei, DU Aiping, WEI Yingxu, et al.Synthesis of SAPO-34 with rich Si（4Al） coordination environment in the framework and its catalytic performance in methanol-to-olefins reaction[J].Chinese Journal of Catalysis, 2008, 29(8): 727-732.
[3]	XU Lei, DU Aiping, WEI Yingxu, et al.Synthesis of SAPO-34 with only Si（4Al） species:Effect of Si contents on Si incorporation mechanism and Si coordination environment of SAPO-34[J].Microporous and Mesoporous Materials, 2008, 115(3): 332-337.
[4]	崔宇, 王垚, 魏飞.SAPO-34分子筛硅铝比对甲醇制烯烃反应性能及积炭组成的影响[J].化工学报, 2015, 66(8): 2982-2989.
	CUI Yu, WANG Yao, WEI Fei.Effect of Si/Al ratio of SAPO-34 on reactivity and coke composition in methanol to olefins reacti-on[J].CIESC Journal, 2015, 66(8): 2982-2989.
[5]	杨晶铃, 燕溪溪, 刘震, 等. 拟薄水铝石的制备最新进展及其应用[J].上海第二工业大学学报, 2021, 38(3): 189-196.
	YANG Jingling, YAN Xixi, LIU Zhen, et al.Recent progress in preparation and application of pseudo-boehmite[J].Journal of Shanghai Polytechnic University, 2021, 38(3): 189-196.
[6]	梁光华, 狄春雨, 王龙, 等. 不同铝源合成SAPO-34分子筛及其MTO催化性能[J].石油学报:石油加工, 2014, 30(5): 885-890.
	LIANG Guanghua, DI Chunyu, WANG Long, et al.Effect of aluminum sources on the synthesis of SAPO-34 and its catalytic properties for MTO reaction[J].Acta Petrolei Sinica:Petroleum Processing Section, 2014, 30(5): 885-890.
[7]	杨丛林.中和法制备高纯拟薄水铝石工艺研究[J].江苏陶瓷, 2021, 54(5): 28-29, 32.
[8]	张蕾, 武永爱.拟薄水铝石制备技术的研究进展[J].山东化工, 2018, 47(14): 64,69.
[9]	左少卿, 杜晓辉, 熊晓云, 等. 拟薄水铝石制备方法的研究进展[J].应用化工, 2017, 46(9): 1818-1821.
	ZUO Shaoqing, DU Xiaohui, XIONG Xiaoyun, et al.Research progress in preparation of pseudo-boehmite[J].Applied Chemical Industry, 2017, 46(9): 1818-1821.
[10]	夏继平, 李晓云, 李世鹏.不同硅源改性拟薄水铝石的制备及表征[J].无机盐工业, 2017, 49(5): 75-77, 85.
	XIA Jiping, LI Xiaoyun, LI Shipeng.Preparation and characterization of pseudo-boehmite modified with different silicon sourc-es[J].Inorganic Chemicals Industry, 2017, 49(5): 75-77, 85.
[11]	闫涛, 袁程远, 柴军军, 等. 硅改性拟薄水铝石的合成及其在FCC催化剂中的应用[J].石油化工, 2021, 50(11): 1115-1120.
	YAN Tao, YUAN Chengyuan, CHAI Junjun, et al.Synthesis of silica-modified pseudo boehmite and its application in FCC catalyst[J].Petrochemical Technology, 2021, 50(11): 1115-1120.
[12]	郑金玉, 罗一斌, 慕旭宏, 等. 硅改性对工业氧化铝材料结构及裂化性能的影响[J].石油学报:石油加工, 2010, 26(6): 846-851.
	ZHENG Jinyu, LUO Yibin, MU Xuhong, et al.Effects of silica modification on the structure and cracking properties of industrial alumina materials[J].Acta Petrolei Sinica:Petroleum Processing Section, 2010, 26(6): 846-851.
[13]	刘红星, 谢在库, 张成芳, 等. 硅源量和晶化时间对SAPO-34分子筛结构和性能的影响[J].无机化学学报, 2003, 19(3): 240-246.
	LIU Hongxing, XIE Zaiku, ZHANG Chengfang, et al.Effects of silicon source content and crystallization time on the structure and catalytic performance of SAPO-34 molecular sieve[J].Chinese Journal of Inorganic Chemistry, 2003, 19(3): 240-246.
[14]	蒋章, 沈本贤, 赵基钢, 等. SAPO-34分子筛催化氯甲烷制取低碳烯烃及再生性能考察[J].现代化工, 2016, 36(3): 133-136, 138.
	JIANG Zhang, SHEN Benxian, ZHAO Jigang, et al.SAPO-34 molecular sieve catalyst for preparation of light olefins from chloromethane and its regeneration properties[J].Modern Chemical Industry, 2016, 36(3): 133-136, 138.
[15]	王冬梅, 赵德智, 王继锋, 等. 以高岭土为硅源的含硅拟薄水铝石的制备及表征[J].石油炼制与化工, 2015, 46(5): 70-75
	WANG Dongmei, ZHAO Dezhi, WANG Jifeng, et al.Preparation and characterization of silicon-containing pseudo-boehmite[J].Petroleum Processing and Petrochemicals, 2015, 46(5): 70-75.
[16]	REHMAN R U, SONG Qingnan, PENG Li, et al.Hydrophobic modification of SAPO-34 membranes for improvement of stability under wet condition[J].Chinese Journal of Chemical Engineering, 2019, 27(10): 2397-2406.
[17]	陈莎, 刘飞, 罗兰, 等. γ-Al₂O₃/SAPO-34复合催化剂及其对MTO反应的催化性能[J].石油学报:石油加工, 2019, 35(4): 644-652.
	CHEN Sha, LIU Fei, LUO Lan, et al. γ-Al₂O₃/SAPO-34 composite catalyst and its catalytic performance in MTO reaction[J].Acta Petrolei Sinica:Petroleum Processing Section, 2019, 35(4): 644-652.
[18]	薛媛媛, 吴蕊宁, 张伟.甲醇制烯烃催化剂SAPO-34分子筛的研究进展[J].化工管理, 2021(30): 71-72.
	XUE Yuanyuan, WU Ruining, ZHANG Wei.Research progress of SAPO-34 molecular sieve as catalyst for methanol to olefi-ns[J].Chemical Enterprise Management, 2021(30): 71-72.
