石灰-水泥-粉煤灰改性磷石膏对水泥物理性能的影响研究

doi:10.19964/j.issn.1006-4990.2022-0064

摘要/Abstract

摘要：

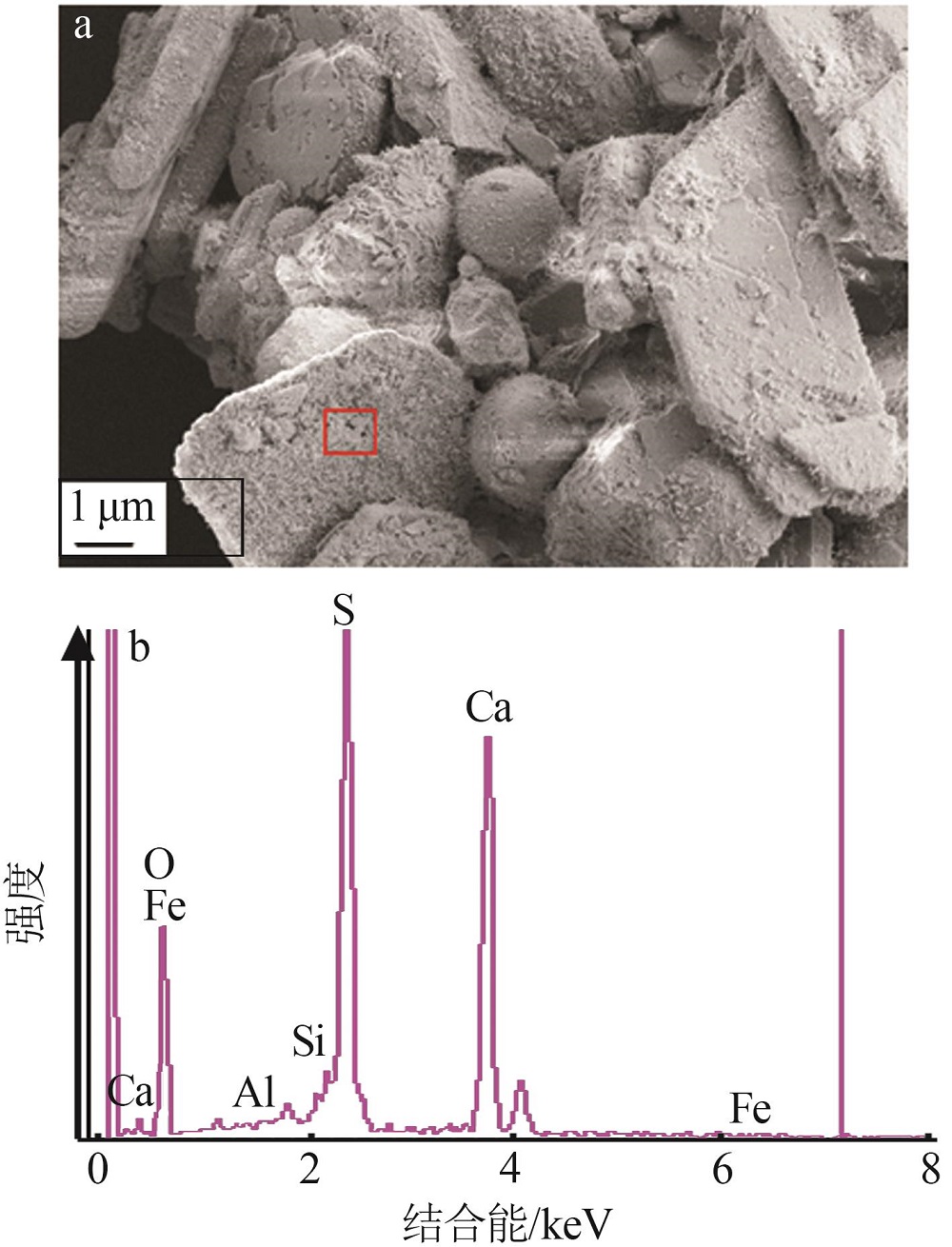

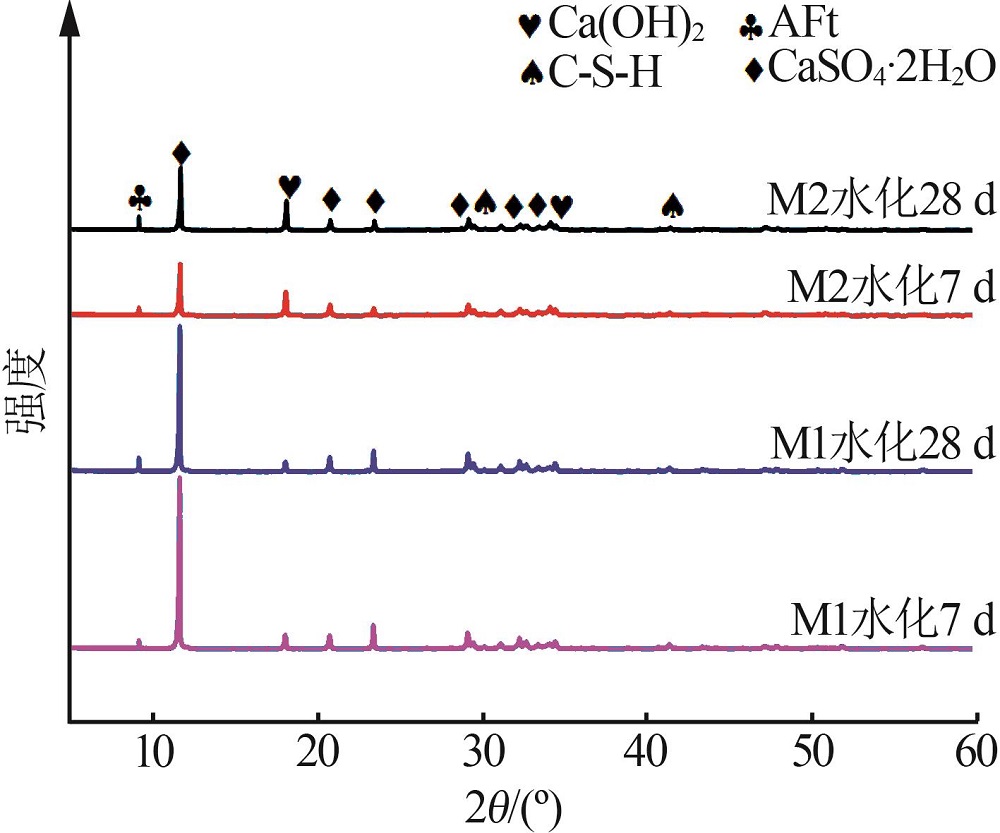

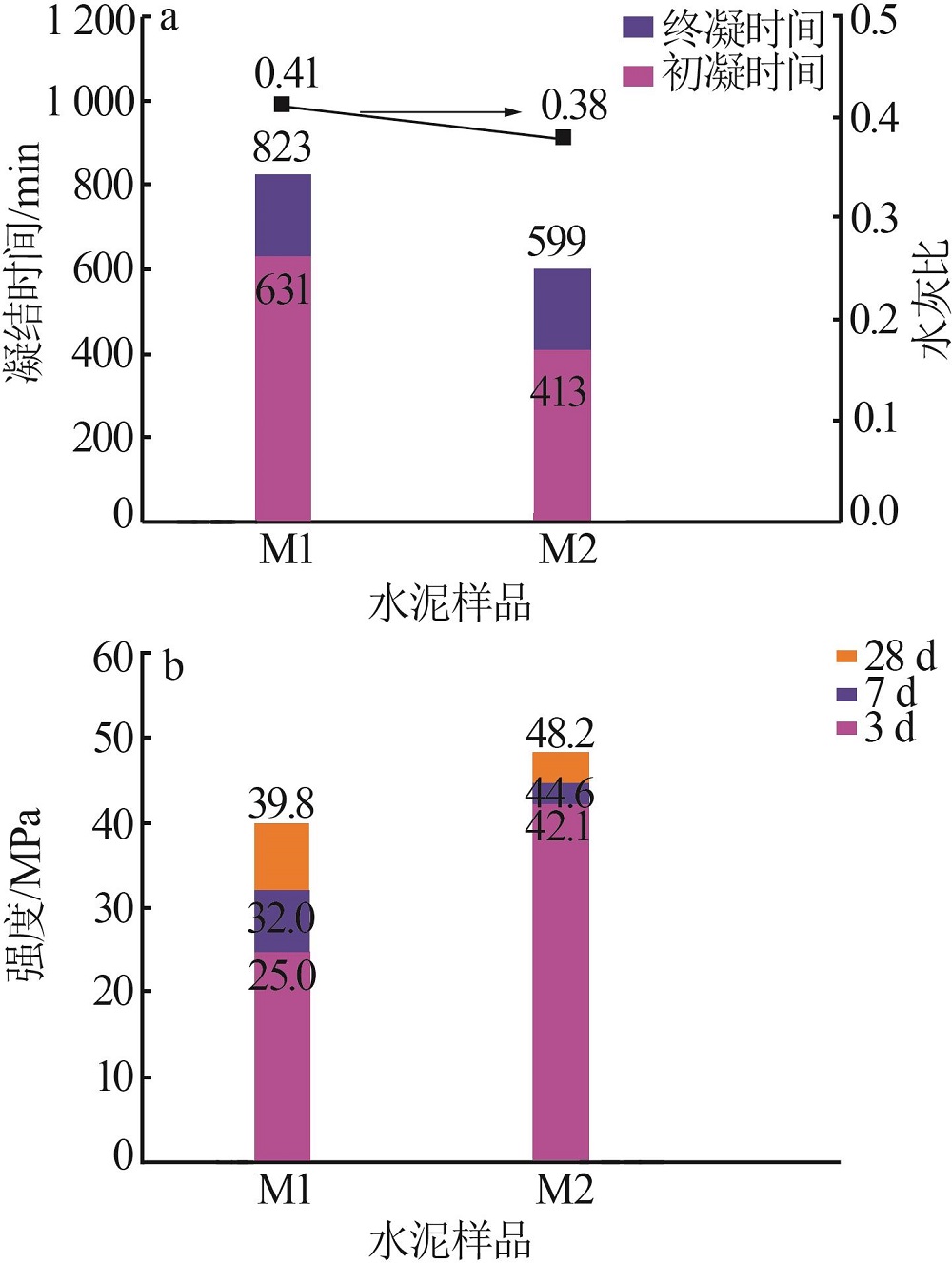

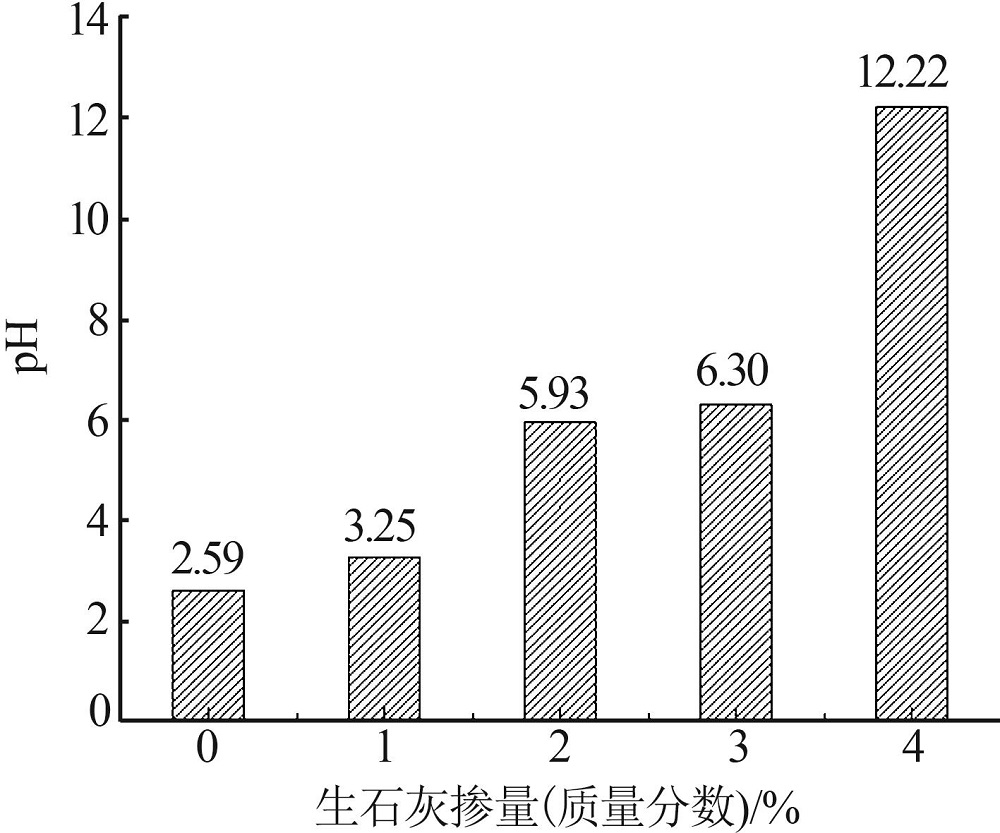

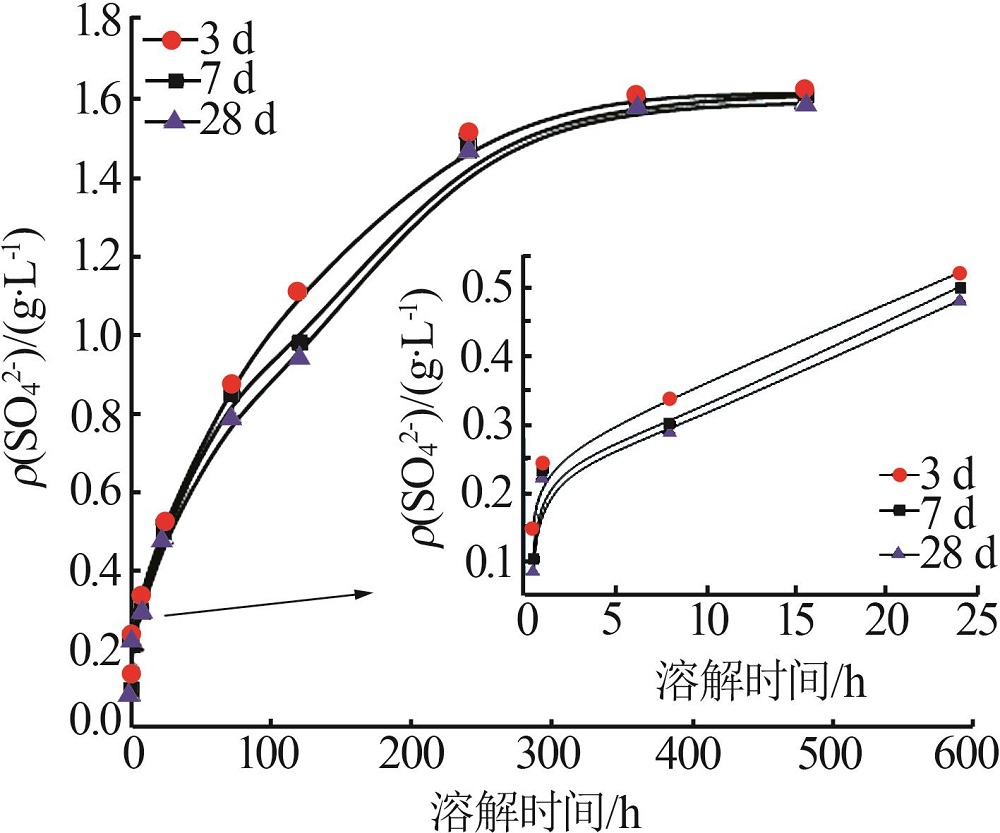

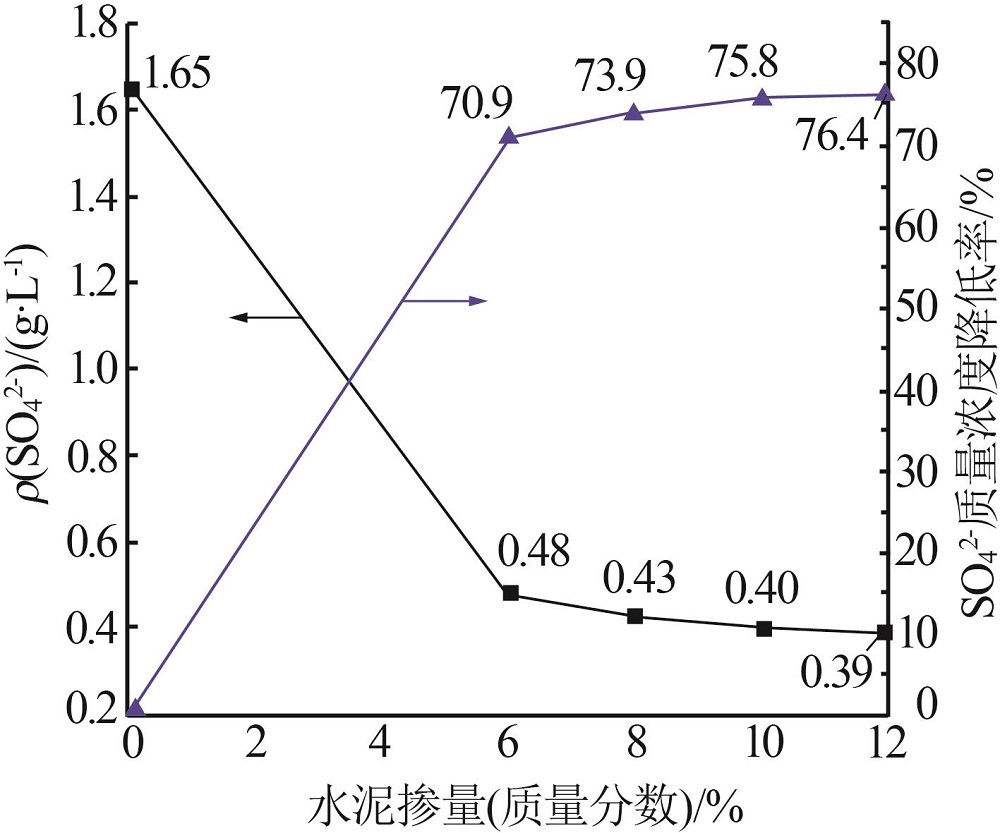

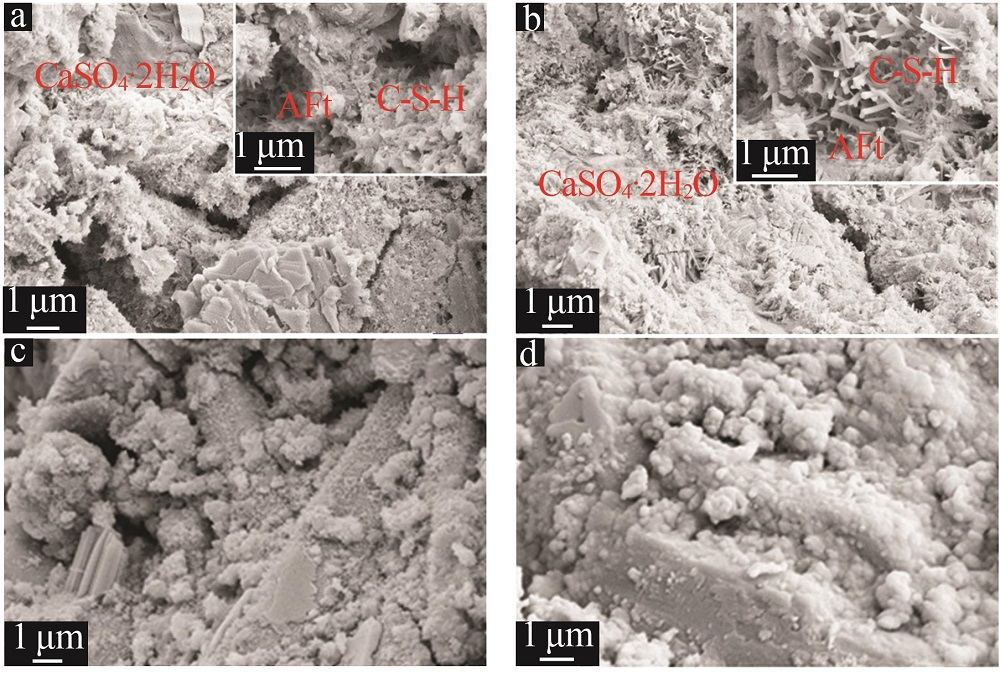

采用石灰、水泥、粉煤灰对磷石膏进行改性处理，测定了改性磷石膏中硫酸根的溶解性能，对比了原状磷石膏与改性磷石膏对水泥物理性能的影响，并结合X射线衍射（XRD）和扫描电镜（SEM）分析了改性前后磷石膏对水泥不同龄期水化产物的影响。结果表明：随着石灰掺量的增加改性磷石膏的pH逐渐增大，当石灰掺量为4%（质量分数）时磷石膏的pH达到12.22，此时磷石膏中的可溶性磷、氟转化成难溶性的磷酸盐、氟化钙；随着水泥和粉煤灰掺量的增加，改性磷石膏的溶解性能呈现降低趋势。当石灰掺量为4%、水泥掺量为10%（质量分数）、粉煤灰掺量为10%（质量分数）时，改性磷石膏经过7 d养护在水中浸泡8 h所得滤液中硫酸根的质量浓度为0.30 g/L，比未改性磷石膏在水中浸泡8 h所得滤液中硫酸根的质量浓度降低了81.8%。与掺加未改性磷石膏的水泥浆体相比，掺加改性磷石膏的水泥浆体的水灰质量比由0.41降低到0.38、初凝时间和终凝时间分别缩短34.6%和27.2%、28 d抗压强度提高21.1%。石灰、水泥、粉煤灰改性处理磷石膏后，生成的水化硅酸钙和钙矾石等水硬性产物包裹在石膏颗粒表面，使硫酸根在水中的溶出速率降低，减少了对水泥中铝酸三钙的影响，使得硬化体内部结构变得致密、力学性能显著提高。

关键词: 磷石膏, 改性处理, 溶解速率, 水泥, 物理性能

Abstract:

Lime，cement and fly ash were used to modify phosphogypsum，the solubility of sulfate in modified phosphogypsum was determined，and the effects of undisturbed phosphogypsum and modified phosphogypsum on the physical properties of cement were compared，and the effects of phosphogypsum on the hydration products of cement at different ages before and after modification were analyzed with X-ray diffraction（XRD） and scanning electron microscopy（SEM）.The results showed that the pH value of modified phosphogypsum gradually was increased with the increase of lime admixture，and when the lime admixture was 4%（mass fraction），the pH of phosphogypsum was 12.22，the soluble phosphorus and fluorine in phosphogypsum were transformed into insoluble phosphorous salts and calcium fluoride.With the increase of cement and fly ash content，the solubility of modified phosphogypsum was decreased.When the lime content was 4%，the cement content was 10%，and the fly ash content was 10%，the mass concentration of sulfate radical in the filtrate obtained by soaking the modified phosphogypsum in water for 8 hours after 7 d of curing was 0.30 g/L，which was 81.8% lower than the mass concentration of sulfate radical in the filtrate obtained by soaking the unmodified phosphogypsum in water for 8 hours.Compared with the cement paste with unmodified phosphogypsum，the water cement mass ratio of the cement paste with modified phosphogypsum was reduced from 0.41 to 0.38，the initial setting time and final setting time were shortened by 34.6% and 27.2% respectively，and the 28 d compressive strength was increased by 21.1%.After the modification of phosphogypsum with lime，cement and fly ash，the generated hydraulic products such as hydrated calcium silicate and ettringite were wrapped on the surface of gypsum particles，which reduced the dissolution rate of sulfate in water，reduced the impact on tricalcium aluminate in cement，and made the internal structure of hardened body become dense，and the mechanical properties were significantly improved.

Key words: phosphogypsum, modification treatment, dissolution rate, cement, physical property

中图分类号:

TQ177.172

桂彬,陈鸿,杨林,王宏杰,曹建新. 石灰-水泥-粉煤灰改性磷石膏对水泥物理性能的影响研究[J]. 无机盐工业, 2022, 54(12): 92-98.

GUI Bin,CHEN Hong,YANG Lin,WANG Hongjie,CAO Jianxin. Effect of phosphogypsum modified by lime-cement-fly ash on physical properties of cement[J]. Inorganic Chemicals Industry, 2022, 54(12): 92-98.

图/表 10

表1

表2

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 15

1	叶学东. 2019年我国磷石膏利用现状及形势分析[J]. 磷肥与复肥, 2020, 35(7)：1-3.
	YE Xuedong. Status and situation analysis of phosphogypsum utilization in China in 2019[J]. Phosphate ＆ Compound Fertilizer, 2020, 35(7)：1-3.
2	王兰兰, 陆田玉, 杨本宏. 固体废弃物磷石膏制备新材料研究进展[J]. 安徽农学通报, 2015, 21(18)：83-86.
	WANG Lanlan, LU Tianyu, YANG Benhong. Progress in new materials prepared from phosphogypsum solid waste[J]. Anhui Agricultural Science Bulletin, 2015, 21(18)：83-86.
3	董泽, 翟延波, 任志威, 等. 磷石膏建材资源化利用研究进展[J]. 无机盐工业, 2022, 54(4)：5-9.
	DONG Ze, ZHAI Yanbo, REN Zhiwei, et al. Research progress on phosphogypsum utilization in building materials[J]. Inorganic Che-Industry micals, 2022, 54(4)：5-9.
4	李永靖, 岳玮琦, 潘铖, 等. 预处理工艺影响磷石膏水泥砂浆性能研究[J]. 非金属矿, 2018, 41(1)：15-17.
	LI Yongjing, YUE Weiqi, PAN Cheng, et al. Study on influence of pretreatment process on phosphogypsum and slag cement[J]. Non-Metallic Mines, 2018, 41(1)：15-17.
5	龚晓强, 刘杰胜, 徐晶云, 等. 石灰改性磷石膏对水泥砂浆性能影响的研究[J]. 武汉轻工大学学报, 2019, 38(1)：51-55, 72.
	GONG Xiaoqiang, LIU Jiesheng, XU Jingyun, et al. Effect of lime-modified phosphogypsum on properties of cement mortar[J]. Journal of Wuhan Polytechnic University, 2019, 38(1)：51-55, 72.
6	NOUHY H EL, KHATTAB E, ZEEDAN S. Behavior of cement pastes and mortar containing phosphogypsum[J]. Key Engineering Materials, 2015, 668: 181-188.
7	孙正. 磷石膏中的磷和氟对硅酸盐水泥水化影响的机理研究[D].武汉：武汉理工大学, 2010.
	SUN Zheng. Study on the effect of phosphorus and fluoride in the phosphogypsum on the hydration of portland cement[D].Wuhan：Wuhan University of Technology, 2010.
8	杨敏. 磷石膏的溶解度研究[J]. 广州化工, 2016, 44(15)：62-63, 72.
	YANG Min. Study on solubility of phosphogypsum[J]. Guangzhou Chemical Industry, 2016, 44(15)：62-63, 72.
9	李年维. 硫酸盐侵蚀中钙矾石的形成机理及硫酸盐侵蚀预防措施[J]. 水利与建筑工程学报, 2011, 9(4)：124-128.
	LI Nianwei. Formation mechanism of ettringite due to sulfate attack and preventive measures against sulfate attack[J]. Journal of Water Resources and Architectural Engineering, 2011, 9(4)：124-128.
10	王辉, 高玉杰, 张艳萍, 等. 磷石膏晶须的表面包覆改性研究[J]. 天津造纸, 2017, 39(2)：2-6.
11	吴佩芝. 湿法磷酸[M].北京：化学工业出版社, 1987.
12	李响, 阿茹罕, 阎培渝. 水泥-粉煤灰复合胶凝材料水化程度的研究[J]. 建筑材料学报, 2010, 13(5)：584-588.
	LI Xiang, ARUHAN, YAN Peiyu. Research on hydration degree of cement-fly ash complex binders[J]. Journal of Building Materials, 2010, 13(5)：584-588.
13	孙道胜, 程星星, 刘开伟, 等. 硫酸盐侵蚀下石膏的形成及破坏机制研究现状[J]. 材料导报, 2018, 32(23)：4135-4141.
	SUN Daosheng, CHENG Xingxing, LIU Kaiwei, et al. Current knowledge of deterioration mechanism of gypsum formation during sulfate attack[J]. Materials Review, 2018, 32(23)：4135-4141.
14	KREPPELT F, WEIBEL M, ZAMPINI D, et al. Influence of solution chemistry on the hydration of polished clinker surfaces：A study of different types of polycarboxylic acid-based admixtures[J]. Cement and Concrete Research, 2002, 32(2)：187-198.
15	GOETZ-NEUNHOEFFER F, NEUBAUER J, SCHWESIG P. Mineralogical characteristics of Ettringites synthesized from solutions and suspensions[J]. Cement and Concrete Research, 2006, 36(1)：65-70.

原料	化学成分质量分数/%
原料	CaO	SiO₂	Al₂O₃	SO₃	Fe₂O₃	MgO	F	P₂O₅	H₂O
磷石膏	29.91	3.11	0.42	41.73	0.83	0.12	0.46	1.81	19.23
水泥	60.72	19.49	5.32	4.47	4.42	2.04	—	—	—
粉煤灰	2.31	48.36	24.39	2.02	12.74	1.02	—	—	—
生石灰	84.28	1.71	0.52	0.27	0.21	0.79	—	—	—

w（生石灰）/%	w（水泥）/%	w（粉煤灰）/%
1~4	—	—
4	6~12	—
4	10	4~10
