自清洁膜材料研究进展

doi:10.19964/j.issn.1006-4990.2021-0514

摘要/Abstract

摘要：

以自清洁材料在光伏行业应用为例,综述了太阳能电池玻璃自清洁常用膜材料纳米二氧化硅和纳米二氧化钛应用发展历程、原理及存在的主要问题;分析了纳米二氧化钛自清洁膜材料难以商业化应用的主要原因;结合笔者相关研究工作,介绍了纳米石墨烯自清洁材料研究开发进展,建议加强纳米石墨烯在光伏、纺织、污水处理等行业的自清洁膜材料的应用研究;认为纳米石墨烯是促进自清洁技术升级换代的黑材料,随着纳米石墨烯复合材料的制备方法和技术不断更新,纳米石墨烯必将被更广泛地应用到自清洁领域中。

关键词: 纳米SiO₂, 纳米TiO₂, 石墨烯, 自清洁膜

Abstract:

Taking the application of self-cleaning materials in the photovoltaic industry as an example,the application development process,principles and main problems of nano-SiO₂ and nano-TiO₂ were summarized,which were commonly used as film materials for self-cleaning of solar cell glasses.And the main reason for the difficulty in commercial application of nanoTiO₂ self-cleaning film materials was analyzed.Combined with the author′s relevant research work,the research and development progress on nano-graphene self-cleaning anti-reflection film materials was introduced,and it was recommended to strengthen the self-cleaning film materials of nano-graphene in photovoltaic,textile,sewage treatment and other industries.It was believed that nano-graphene was the black material that promoted the upgrading of self-cleaning technology.With the continuous updating of preparation methods and technologies of nano-graphene composite materials,nano-graphene would be more widely used in the field of self-cleaning.

Key words: nano-SiO₂, nano-TiO₂, graphene, self-cleaning film

中图分类号:

TQ127.11

张发荣,凡甜甜,郭燕云,李璐,刘炳光,李建生. 自清洁膜材料研究进展[J]. 无机盐工业, 2022, 54(4): 74-80.

ZHANG Farong,FAN Tiantian,GUO Yanyun,LI Lu,LIU Bingguang,LI Jiansheng. Research progress on self-cleaning film materials[J]. Inorganic Chemicals Industry, 2022, 54(4): 74-80.

图/表 3

参考文献 50

[1]	GREEN M A, BREMNER S P. Energy conversion approaches and materials for high-efficiency photovoltaics[J]. Nature Material, 2017, 16(1):23-34. doi: 10.1038/nmat4676
[2]	林昇华, 张景, 艾玲, 等. 光伏玻璃减反射膜的研究进展[J]. 材料导报, 2019, 33(11):3588-3595.
[3]	官燕玲, 张豪, 闫旭洲, 等. 灰尘覆盖对光伏组件性能影响的原位实验研究[J]. 太阳能学报, 2016, 37(8):1944-1950.
[4]	ABASS K I, AL-ZUBAIDI D S M, AL-WAELI A A K. Effect of pollution and dust on PV performance[J]. International Journal of Civil,Mechanical and Energy Science(IJCMES), 2017, 3(4):181-185.
[5]	ME P, JAYAMADHURI T. Effects of dust on the performance of solar panel and improving the performance by using arm controller and gear motor based cleaning method[J]. International Journal of Innovative Science,Engineering & Technology, 2015, 2(9):329-334.
[6]	赵明智, 张旭, 苗一鸣, 等. 沙漠环境沙尘覆盖下的光伏组件输出特性研究[J]. 太阳能学报, 2018, 39(3):744-748.
[7]	SAYYAH A, HORENSTEIN M N, MAZUMDER M K. Energy yield loss caused by dust deposition on photovoltaic panels[J]. Solar Energy, 2014, 107:576-604. doi: 10.1016/j.solener.2014.05.030
[8]	VERMA L K, SAKHUJA M, SON J, et al. Self-cleaning and antireflective packaging glass for solar modules[J]. Renewable Energy, 2011, 36(9):2489-2493. doi: 10.1016/j.renene.2011.02.017
[9]	LIN Y, HE J. Recent progress in antireflection and self-cleaning technology-from surface engineering to functional surfaces[J]. Progress in Materials Science, 2014, 61:94-143. doi: 10.1016/j.pmatsci.2013.12.003
[10]	李建生, 刘炳光, 董学通. 用于提高太阳能电池效率的无机纳米材料的研究进展[J]. 无机盐工业, 2014, 46(9):1-6.
[11]	MOZUMDER M S, MOURAD A H I, PERVEZ H, et al. Recent developments in multifunctional coatings for solar panel applications:A review[J]. Solar Energy Materials and Solar Cells, 2019, 189(11):75-102. doi: 10.1016/j.solmat.2018.09.015
[12]	潘胜. 光伏玻璃防尘性能研究[J]. 太阳能, 2020(4):23-28.
[13]	BAHATTAB M A, ALHOMOUDI I A, ALHUSSAINI M I, et al. Anti-soiling surfaces for PV applications prepared by sol-gel processing:Comparison of laboratory testing and outdoor exposure[J]. Solar Energy Materials and Solae Cells, 2016, 157:422-428.
[14]	HAGER P J, SCHLECHTE J S. Silica coating for enhanced hydrophilicity：US,20130071649[P]. 2013-03-21.
[15]	AZANI A, HALIN D S C, RAZAK K A, et al. Recent graphene oxide/TiO₂ thin film based on self-cleaning application[J]. IOP Conference Series:Materials Science and Engineering, 2019, 572.Doi: 10.1088/1757-899X/572/1/012079. doi: 10.1088/1757-899X/572/1/012079
[16]	李建生, 刘炳光, 王韬, 等. 棒状纳米二氧化硅水溶胶制备和镀膜研究[J]. 无机盐工业, 2016, 48(3):34-38.
[17]	GANGULY P, BYRNE C, BREEN A, et al. Antimicrobial activity of photocatalysts:Fundamentals,mechanisms[J]. Applied Catalysis B:Environmental, 2018, 225:51-75. doi: 10.1016/j.apcatb.2017.11.018
[18]	黄宇, 张静, 刘燕, 等. 光催化薄膜的亲水性及其应用[J]. 地球环境学报, 2018, 9(5):415-433.
[19]	李建生, 刘炳光, 王少杰, 等. 玻璃负载纳米TiO₂/SiO₂ 膜的制备和光催化性能[J]. 工业水处理, 2016, 36(5):60-63.
[20]	李建生, 韩璐, 张发荣, 等. 一种可见光催化的自清洁材料的制备方法:中国,2021109447256[P]. 2021-08-17.
[21]	GARLISI C, TREPCI E, LI X, et al. Multilayer thin film structures for multifunctional glass:Self-cleaning,antireflective and energysaving properties[J]. Applied Energy, 2020, 264.Doi: 10.1016/j.apenergy.2020.114697. doi: 10.1016/j.apenergy.2020.114697
[22]	张发荣, 李建生, 尹浩男, 等. 一种太阳电池玻璃低效减反射膜的增效方法:中国,108110064B[P]. 2019-11-08.
[23]	赵琪, 孙赫阳, 胡子文, 等. 二氧化钛基复合光催化材料的制备及应用进展[J]. 功能材料与器件学报, 2020, 26(2):83-88.
[24]	HIGASHINO S, MIYAKE M, IKENOUE T. Formation of a photocatalytic WO₃ surface layer on electrodeposited Al-W alloy coatings by selective dissolution and heat treatment[J]. Scientific Reports, 2019, 9.Doi: 10.1038/s41598-019-52178-6. doi: 10.1038/s41598-019-52178-6
[25]	SIMON S M, CHANDRAN A, GEORGE G, et al. Development of thick superhydrophilic TiO₂-ZrO₂ transparent coatings realized through the inclusion of poly(methyl methacrylate) and pluronic-F127[J]. ACS Omega, 2018, 3:14924-14932. doi: 10.1021/acsomega.8b01940
[26]	MADKOUR M, SAGHEER F A. Au/ZnS and Ag/ZnS nanoheterostructures as regenerated nanophotocatalysts for photocatalytic degradation of organic dyes[J]. Optical Materials Express, 2017, 7(1):158-169. doi: 10.1364/OME.7.000158
[27]	TALINUNGSANG, UPADHAYA D, KUMAR P, et al. Superhydrophilicity of photocatalytic ZnO/SnO₂ heterostructure for self-cleaning applications[J]. Journal of Sol-Gel Science and Technology, 2019, 92:575-584. doi: 10.1007/s10971-019-05127-8
[28]	RAMADHANI J P, WAHYUNINGSIH S, RAMELAN A H. Improving method of TiO₂-Fe₂O₃ composite materials for self-cleaning glass preparation[J]. Materials Science and Engineering, 2019, 578.Doi: 10.1088/1757-899X/578/1/012029. doi: 10.1088/1757-899X/578/1/012029
[29]	LATTHE S S, SUDHAGAR P, RAVIDHAS C, et al. Self-cleaning and superhydrophobic CuO coating by jet-nebulizer spray pyrolysis technique[J]. CrystEngComm, 2015, 17:2624-2628. doi: 10.1039/C5CE00177C
[30]	GAO X, LIU X X, ZHU Z M, et al. Enhanced visible light photocatalytic performance of CdS sensitized TiO₂ nanorod arrays decorated with Au nanoparticles as electron sinks[J]. Scientific Reports, 2017, 7.Doi: 10.1038/s41598-017-01124-5. doi: 10.1038/s41598-017-01124-5
[31]	NAKAYAMA K, HIRAGA T, ZHU C Y, et al. Facile preparation of self-healing superhydrophobic CeO₂ surface by electrochemical processes[J]. Applied Surface Science, 2017, 423:968-976. doi: 10.1016/j.apsusc.2017.07.012
[32]	BARRECA D, GRI F, GASPAROTTO A, et al. Multi-functional MnO₂ nanomaterials for photoactivated applications by a plasmaassisted fabrication route[J]. Nanoscale, 2019, 11:98-108. doi: 10.1039/C8NR06468G
[33]	HANAEI H, ASSADI M K, SAIDUR R. Highly efficient antireflective and self-cleaning coatings that incorporate carbon nanotubes(CNTs) into solar cells:A review[J]. Renewable and Sustainable Energy Reviews, 2016, 59:620-635. doi: 10.1016/j.rser.2016.01.017
[34]	李建生, 于韶梅, 王欣, 等. 石墨烯制备中的无机氧化剂和无机还原剂[J]. 无机盐工业, 2020, 52(8):6-10.
[35]	李鹏. 技术创新推动光伏行业变革[J]. 太阳能, 2018(4):73-74.
[36]	王子韩. 一种高效自清洁石墨烯涂层太阳能光伏组件及制造方法:中国,104916711B[P]. 2017-07-28.
[37]	孙立涛, 毕恒昌, 万树. 一种制备超疏水、耐磨、导电且具有自清洁功能膜的方法:中国,105482136B[P]. 2017-12-22.
[38]	杨欣, 崔淑杰, 王玉琪, 等. 一种光伏玻璃用功能涂层的制备方法:中国,112374767A[P]. 2021-02-19.
[39]	祖晓冬, 李青超, 李建生, 等. 一种石墨烯掺杂自清洁玻璃镀膜液的制备方法：中国,109385122A[P]2019-02-26.
[40]	王欣, 李仕增, 李建生, 等. 一种石墨烯掺杂玻璃镀膜液及其制备方法：中国,109206017A[P]2019-01-15.
[41]	凡甜甜, 郭燕云, 张发荣, 等. 一种石墨烯改性太阳能电池自清洁减反射玻璃:中国,202110764584X[P]. 2021-07-07.
[42]	祖晓冬, 张发荣, 郭燕云, 等. 一种石墨烯基超疏水自清洁玻璃的制备方法:中国,2021109507505[P]. 2021-08-18.
[43]	POSA V R, ANNAVARAM V, KODURU J R, et al. Preparation of graphene-TiO₂ nanocomposite and photocatalytic degradation of Rhodamine-B under solar light irradiation[J]. J.Exp.Nanosci., 2016, 11:722-736.
[44]	ZABIHI F, YAZDI M R A, ESLAMIAN M. Photocatalytic grapheneTiO₂ thin films fabricated by low-temperature ultrasonic vibrationassisted spin and spray coating in a sol-gel process[J]. Catalysts, 2017, 7.Doi: 10.3390/catal7050136. doi: 10.3390/catal7050136
[45]	VALLEJO W, RUEDA A, URIBE C D. Photocatalytic activity of graphene oxide-TiO₂ thin films sensitized by natural dyes extracted from bactris guineensis[J]. Royal Society Open Science, 2019, 3. Doi: 10.1098/rsos.181824. doi: 10.1098/rsos.181824
[46]	NGUYEN D K V, NGUYEN K D V. Magnetite nanoparticles-TiO₂ nanoparticles-graphene oxide nanocomposite:Synjournal,characterization and photocatalytic degradation for Rhodamine-B dye[J]. AIMS Materials Science, 2020, 7(3):288-301. doi: 10.3934/matersci.2020.3.288
[47]	TIMOUMI A. Reduction band gap energy of TiO₂ assembled with graphene oxide nanosheets[J]. Graphene, 2018, 7:31-38. doi: 10.4236/graphene.2018.74004
[48]	PARK J. Photocatalytic performance of graphene-TiO₂ hybrid nanomaterials under visible light[J]. Korean Inst.Electr.Electron.Mater.Eng.March, 2019, 32(2):161-164.
[49]	DIAA M, HASSABO A G. Self-cleaning properties of cellulosic fabrics:A review[J]. Biointerface Research in Applied Chemistry, 2022, 12(2):1847-1855. doi: 10.33263/BRIAC122.18471855
[50]	WANG P, YAO T, SUN B, et al. A cost-effective method for preparing mechanically stable anti-corrosive superhydrophobic coating based on electrochemically exfoliated graphene[J]. Colloids and Surfaces A:Physicochemical and Engineering Aspects, 2017.Doi: 10.1016/j.colsurfa.2016.11.002. doi: 10.1016/j.colsurfa.2016.11.002

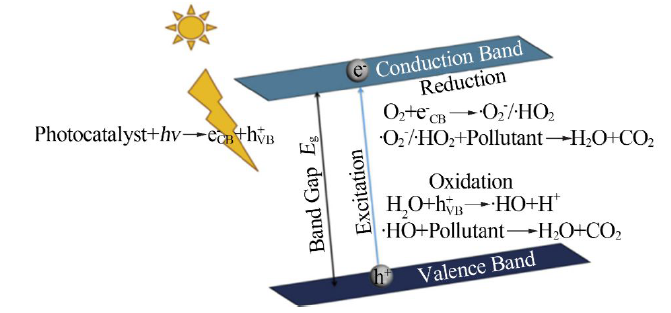

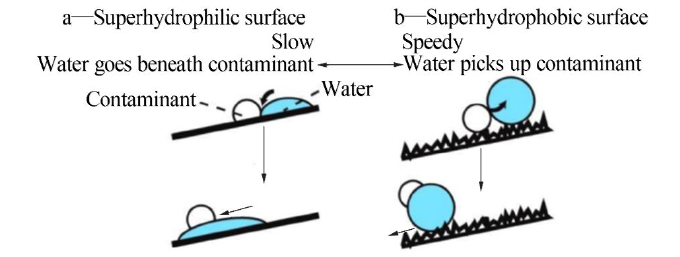

材料	制备方法	禁带宽度/eV	自清洁机制	应用
WO₃^[24]	电沉积Al-W合金,化学溶解铝,表面热处理形成WO₃膜层	2.7	光催化	降解有机物
TiO₂/ZrO₂^[25]	溶胶-凝胶法	ZrO₂：5.0	光催化、亲水性	降解有机物、防尘
ZnS^[26]	自发明方法：一锅法	3.6	光催化	降解有机物
ZnO/SnO₂^[27]	溶胶-凝胶法	SnO₂：3.5	光催化、超亲水性	降解有机物、防尘、防雾
TiO₂/Fe₂O₃^[28]	溶胶-凝胶法	Fe₂O₃：2.2	光催化、亲水性	降解有机物、防尘
CuO^[29]	喷雾热解技术	1.7	超疏水性	防尘
TiO₂/CdS/Au^[30]	—	CdS：2.4	光催化	降解有机物
CeO₂^[31]	溶胶-凝胶法	2.94	超疏水性、亲油性	油水分离
MnO₂^[32]	等离子体增强化学气相沉积	0.25	光致亲水、固相光催化	防雾、自清洁及水净化
