不同温度下察尔汗盐湖卤水元素富集规律研究

doi:10.19964/j.issn.1006-4990.2024-0441

Abstract

Abstract:

Qarhan Salt Lake has abundant resources，but its brine composition is complex and the comprehensive utilization rate of resources needs to be improved.To systematically study the enrichment patterns of elements such as potassium，lithium，rubidium，cesium，etc.，the isothermal evaporation experiments at 0 ℃，15 ℃，and 25 ℃ was conducted based on the climatic characteristics of the Dabson section of the Qarhan Salt Lake.The research results indicated that the crystallization process of brine under different temperature conditions presented a similar crystallization sequence，with the precipitation order being as follows：halite（NaCl），carnallite （KMgCl₃·6H₂O），and bischofite（MgCl₂·6H₂O），occasionally accompanied by a small amount of gypsum（CaSO₄·2H₂O） precipitation during the crystallization process.Temperature had a significant regulatory effect on the enrichment behavior of elements.The precipitation characteristics of major and trace elements were relatively similar at 15 ℃ and 25 ℃，but the crystallization efficiency of most elements was better at 15 ℃，and there was a phenomenon of homogeneity among elements in the same main group.The best enrichment effect could be achieved by evaporating Cs⁺ and Rb⁺ in brine at around 68% at 25 ℃ and Sr²⁺ at around 65% at 15 ℃.The Li⁺，B₂O₃，Br^-，and I^- were more suitable for extraction in brine.This study provided important scientific basis for the gradient development and high-value utilization of Qarhan Salt Lake resources from the perspective of temperature regulation.

Key words: Qarhan Salt Lake, isothermal evaporation, brine, crystallization sequence, trace element

CLC Number:

TS396

WANG Chao, SUN Xiaohong, DING Xiaojiang, ZHOU Youlian, WANG Shuli, WANG Fan, LIU Wanping. Study on enrichment law of elements in brine of Qarhan Salt Lake at different temperatures[J]. Inorganic Chemicals Industry, 2025, 57(8): 65-73.

Figures/Tables 25

Table 1

Table 2

Table 3

Table 4

Table 5

Table 6

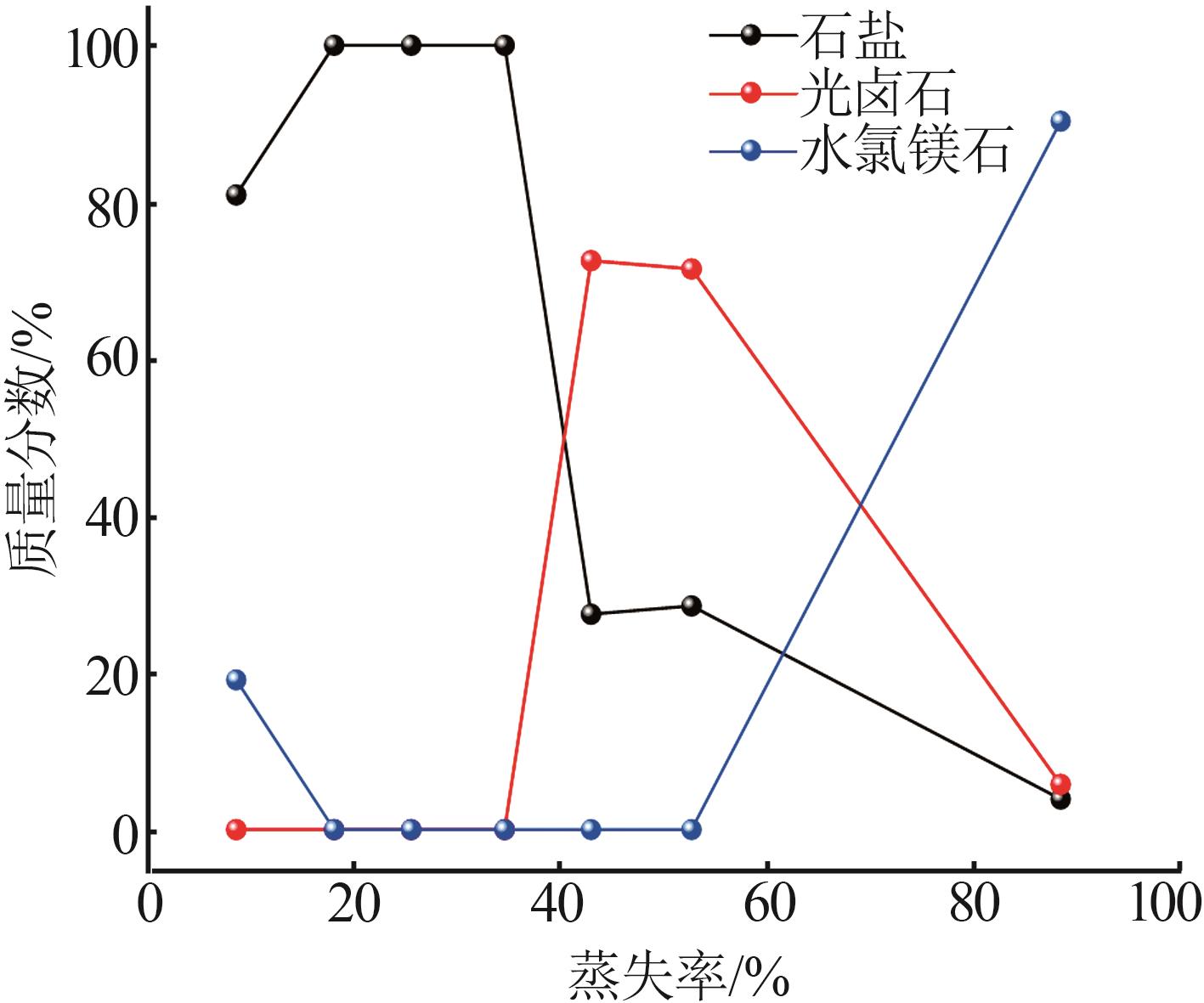

Fig.1

Table 7

Table 8

Table 9

Table 10

Fig.2

Table 11

Table 12

Table 13

Table 14

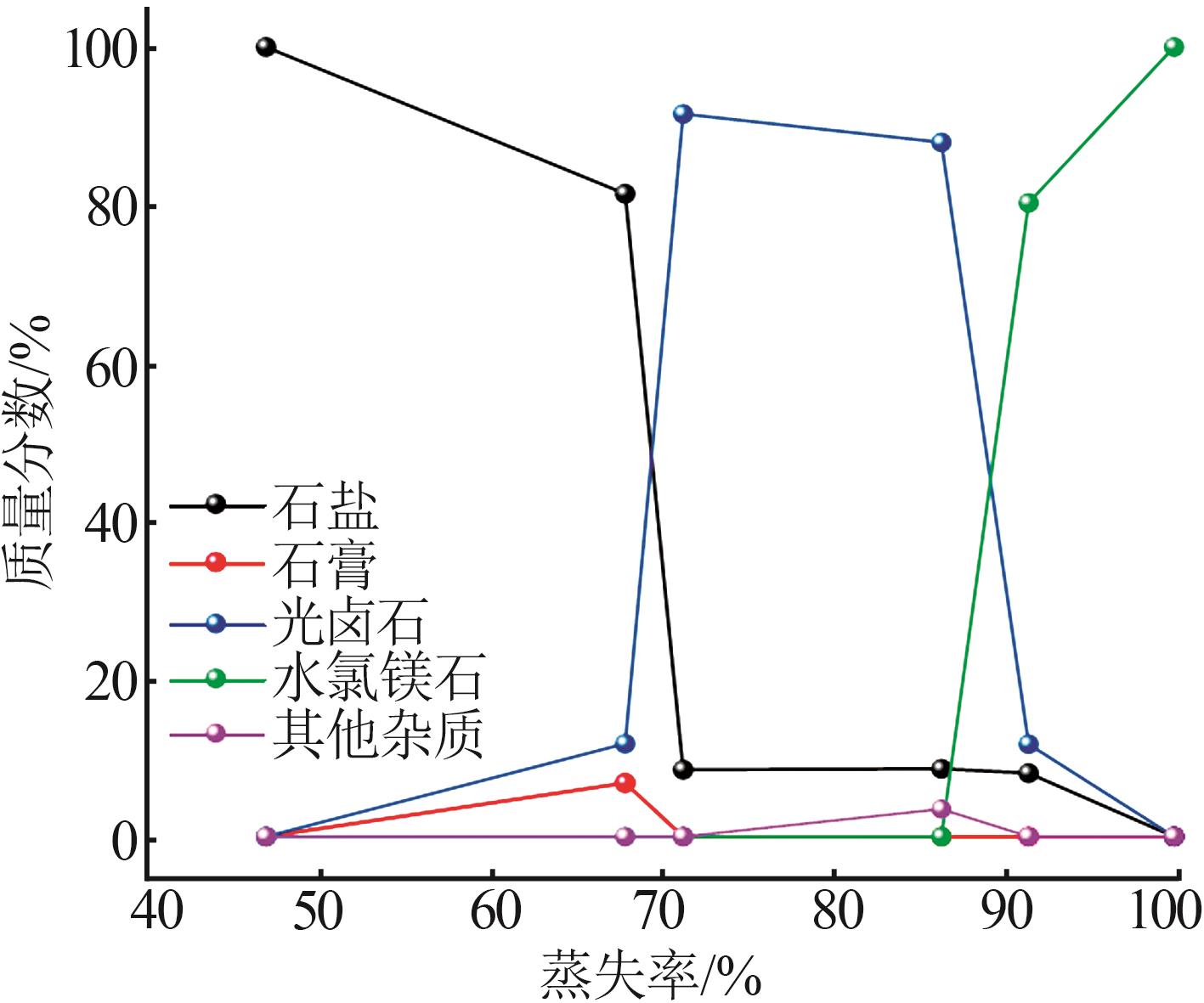

Fig.3

Table 15

Table 16

Table 17

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

References 18

[1]	罗婷，张永庆，郑明贵，等.中国钾盐资源安全评估与预警研究［J］.地球科学进展，2022，37（6）：575-587.
	LUO Ting， ZHANG Yongqing， ZHENG Minggui，et al.Security assessment and early warning of potash resources in China［J］.Advances in Earth Science，2022，37（6）：575-587.
[2]	熊增华，王石军.中国钾资源开发利用技术及产业发展综述［J］.矿产保护与利用，2020，40（6）：1-7.
	XIONG Zenghua， WANG Shijun.Overview of potassium resources exploitation & utilization technology and potash industry development［J］.Conservation and Utilization of Mineral Resources，2020，40（6）：1-7.
[3]	白燕祥，王松博，国爽，等.青海柴达木盆地盐湖资源元素利用及研究现状［J］.盐科学与化工，2023，52（3）：1-6，19.
	BAI Yanxiang， WANG Songbo， GUO Shuang，et al.Utilization and research status of salt lake resources in Qaidam basin，Qinghai［J］.Journal of Salt Science and Chemical Industry，2023，52（3）：1-6，19.
[4]	张苏江，张琳，姜爱玲，等.中国盐湖资源开发利用现状与发展建议［J］.无机盐工业，2022，54（10）：13-21.
	ZHANG Sujiang， ZHANG Lin， JIANG Ailing，et al.Current situation and development suggestions of development and utilization of salt lake resources in China［J］.Inorganic Chemicals Industry，2022，54（10）：13-21.
[5]	乔东慧，王士强，郭亚飞，等.我国盐湖卤水蒸发利用研究进展［J］.世界科技研究与发展，2012，34（2）：223-225，264.
	QIAO Donghui， WANG Shiqiang， GUO Yafei，et al.Progresses on evaporating experiments of salt lake brines in China［J］.World Sci-Tech R&D，2012，34（2）：223-225，264.
[6]	王文祥，李文鹏，刘振英，等.别勒滩低品位钾盐固液转化试验水动力与水化学条件分析［J］.中国矿业，2013，22（7）：114-119.
	WANG Wenxiang， LI Wenpeng， LIU Zhenying，et al.Hydrodynamic and hydrochemical condition analysis of low grade solid potassium liquefy exploitation experiment［J］.China Mining Magazine，2013，22（7）：114-119.
[7]	熊增华，王石军.察尔汗盐湖资源开发利用现状及关键技术进展［J］.化工矿物与加工，2021，50（1）：33-37.
	XIONG Zenghua， WANG Shijun.Status and progress on key technologies for development and utilization of resources in Qarhan salt lake［J］.Industrial Minerals & Processing，2021，50（1）：33-37.
[8]	张宇萌，胡宇飞，王笛，等.察尔汗盐湖别勒滩区段固态锂的赋存状态与分布特征［J］.矿床地质，2023，42（1）：77-89.
	ZHANG Yumeng， HU Yufei， WANG Di，et al.Occurrence state and distribution characteristics of solid lithium in Bieletan section of Qarhan Salt Lake［J］.Mineral Deposits，2023，42（1）：77-89.
[9]	武丽平，袁红战，靳芳.鸭湖构造深部卤水自然蒸发实验研究［J］.无机盐工业，2022，54（11）：71-78.
	WU Liping， YUAN Hongzhan， JIN Fang.Study on natural evaporation experimental of deep brine in Yahu structure［J］.Inorganic Chemicals Industry，2022，54（11）：71-78.
[10]	李志伟，付振海，张志宏，等.察尔汗盐湖卤水蒸发速度影响因素的量化研究［J］.盐湖研究，2022，30（1）：57-67.
	LI Zhiwei， FU Zhenhai， ZHANG Zhihong，et al.Quantification of factors on the evaporation rate of qarhan salt lake brine［J］.Journal of Salt Lake Research，2022，30（1）：57-67.
[11]	曲阳，杜威，闫泽，等.西台吉乃尔盐湖兑卤卤水10℃和30℃蒸发析盐规律［J］.盐科学与化工，2023，52（3）：20-24.
	QU Yang， DU Wei， YAN Ze，et al.The evaporative crystallization rules of salts from mixing brine at 10 ℃ and 30 ℃ in the west taijinar salt lake［J］.Journal of Salt Science and Chemical Industry，2023，52（3）：20-24.
[12]	苏建军，曾英，李陇岗，等.西台吉乃尔盐湖析钾老卤及冻卤25 ℃等温蒸发实验研究［J］.无机盐工业，2022，54（5）：84-89，95.
	SU Jianjun， ZENG Ying， LI Longgang，et al.Study on isothermal evaporation of potassium-extracted old brine and frozen brine in West Taijinar Salt Lake at 25 ℃［J］.Inorganic Chemicals Industry，2022，54（5）：84-89，95.
[13]	张颖慧.察尔汗盐湖晶间卤水等温蒸发试验［J］.化工地质，1985，7（1）：33-36.
	ZHANG Yinghui.Isothermal evaporation test of intercrystalline brine in Chaerhan Salt Lake［J］.Geology of Chemical Minerals，1985，7（1）：33-36.
[14]	唐发满，杨红军，张生鹏，等.一里坪盐湖夏季卤水25 ℃等温蒸发［J］.无机盐工业，2021，53（10）：52-58.
	TANG Faman， YANG Hongjun， ZHANG Shengpeng，et al.Isothermal evaporation of summer brine of yiliping salt lake at 25℃［J］.Inorganic Chemicals Industry，2021，53（10）：52-58.
[15]	杨游胜，姚智豪，赵志星，等.富锂硫酸盐型盐湖卤水蒸发实验研究进展［J］.无机盐工业，2024，56（4）：1-7.
	YANG Yousheng， YAO Zhihao， ZHAO Zhixing，et al.Research progress of lithium-rich sulfate type salt lake brine evaporation experiment［J］.Inorganic Chemicals Industry，2024，56（4）：1-7.
[16]	张西营，朱海霞，朱磊，等.不同时间尺度下气象-水文要素变化对察尔汗盐湖盐田蒸发作用的影响［J］.盐湖研究，2024，32（1）：88-98.
	ZHANG Xiying， ZHU Haixia， ZHU Lei，et al.The variations of meteorological and hydrological factors across different temporal scales and their influences on evaporation within salt ponds of the qarhan salt lake［J］.Journal of Salt Lake Research，2024，32（1）：88-98.
[17]	姜旭，周保华，乜贞.中国盐湖卤水蒸发实验研究进展［J］.无机盐工业，2013，45（6）：1-3，32.
	JIANG Xu， ZHOU Baohua， NIE Zhen.Experimental research progress in evaporation of salt lake brine［J］.Inorganic Chemicals Industry，2013，45（6）：1-3，32.
[18]	李陇岗.玻利维亚Uyuni盐湖卤水25 ℃等温蒸发实验［J］.盐湖研究，2021，29（2）：44-49.
	LI Longgang.Study on the isothermal evaporation of uyuni salt lake brine，Bolivia at 25 ℃［J］.Journal of Salt Lake Research，2021，29（2）：44-49.

编号	蒸失率/ %	各物质的质量浓度/（g·L^-1）
编号	蒸失率/ %	K⁺	Na⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-
Z0-1	0	10.84	39.77	0.98	50.20	215.03	4.56
Z0-2	8.70	11.54	33.74	1.08	55.75	219.11	5.15
Z0-3	18.21	12.90	27.75	1.16	61.05	227.54	5.49
Z0-4	25.70	14.38	21.99	1.20	65.82	235.82	6.30
Z0-5	34.76	16.22	14.67	0.88	73.96	253.22	5.24
Z0-6	43.16	11.25	9.43	0.65	82.91	261.80	5.61
Z0-7	52.92	2.18	3.73	0.33	98.71	293.85	5.79
Z0-8	88.75	0.43	0.01	0.14	123.30	342.03	7.76

编号	蒸失率/%	各物质的质量浓度/（mg·L^-1）							密度/（g·mL^-1）
编号	蒸失率/%	Li⁺	B₂O₃	Rb⁺	Sr²⁺	Cs⁺	Br^-	I^-	密度/（g·mL^-1）
Z0-1	0	90.54	367.62	2.81	29.76	0.03	17.04	0.13	1.224 0
Z0-2	8.70	96.95	354.70	2.81	32.67	0.03	1.03	0.07	1.250 0
Z0-3	18.21	103.10	388.39	3.03	34.43	0.04	24.17	0.20	1.238 6
Z0-4	25.70	113.32	485.46	3.57	36.24	0.03	23.70	0.18	1.250 0
Z0-5	34.76	123.24	561.05	2.94	33.15	0.02	21.10	0.15	1.255 8
Z0-6	43.16	141.07	661.86	1.48	34.65	0.02	28.48	0.20	1.268 1
Z0-7	52.92	174.50	958.77	0.08	27.58	0.01	33.06	0.28	1.290 0
Z0-8	88.75	305.11	1 221.64	0.01	13.53	0.00	49.16	0.44	1.331 0

编号	蒸失率/ %	各物质的质量分数/%
编号	蒸失率/ %	K⁺	Na⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-
Z0-9	8.70	0.38	34.83	0.06	1.53	57.31	0.15
Z0-10	18.21	0.49	32.99	0.06	2.19	55.60	0.22
Z0-11	25.70	0.53	31.98	0.33	2.37	54.49	0.90
Z0-12	34.76	0.59	29.93	1.22	2.54	51.95	3.03
Z0-13	43.16	9.32	8.44	0.24	8.12	43.69	0.69
Z0-14	52.92	9.07	5.26	0.34	8.81	40.50	0.94
Z0-15	88.75	1.12	1.46	0.10	11.75	35.74	0.36

编号	蒸失率/ %	各物质的含量/（μg·g^-1）
编号	蒸失率/ %	Li⁺	B₂O₃	Rb⁺	Sr²⁺	Cs⁺	Br^-	I^-
Z0-9	8.70	24.10	139.00	1.29	8.29	0.03	7.02	0.20
Z0-10	18.21	24.19	103.47	1.03	11.37	0.02	8.07	0.44
Z0-11	25.70	31.25	138.05	1.19	36.17	0.02	9.12	0.49
Z0-12	34.76	34.86	156.16	1.29	148.51	0.02	10.18	0.51
Z0-13	43.16	40.54	157.91	42.54	48.76	0.25	17.28	0.16
Z0-14	52.92	48.21	182.98	15.49	102.74	0.22	19.74	0.17
Z0-15	88.75	45.15	199.50	0.43	55.80	0.03	23.72	0.11

编号	蒸失率/ %	各物质的质量浓度/（g·L^-1）
编号	蒸失率/ %	K⁺	Na⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-
Z15-1	0	10.84	39.77	0.98	50.20	215.03	4.56
Z15-2	15.82	11.74	36.66	1.03	53.98	219.59	4.95
Z15-3	24.17	12.12	32.89	1.07	56.54	222.60	5.22
Z15-4	29.83	12.86	29.66	1.13	59.14	225.77	5.55
Z15-5	34.62	13.37	27.95	1.16	61.29	230.52	5.66
Z15-6	40.93	13.94	24.84	1.17	64.11	234.16	5.78
Z15-7	47.24	14.36	21.95	1.20	68.22	237.97	5.94
Z15-8	53.48	15.79	19.45	0.95	72.09	240.82	5.41
Z15-9	64.66	17.50	13.71	1.04	79.35	258.88	5.98
Z15-10	71.19	17.06	10.26	0.57	85.54	270.73	5.18
Z15-11	75.98	12.78	8.98	0.53	89.04	273.68	5.36
Z15-12	80.48	9.14	7.59	0.52	93.84	277.77	5.63
Z15-13	84.54	5.87	5.96	0.51	97.92	286.79	5.96
Z15-14	88.46	3.40	4.45	0.29	99.81	297.90	5.75
Z15-15	91.73	1.92	3.21	0.20	105.89	313.38	5.96
Z15-16	96.95	0.71	1.67	0.15	113.44	339.30	6.36
Z15-17	97.39	0.63	1.53	0.13	112.59	340.88	6.46
Z15-18	97.75	0.61	1.55	0.11	116.74	339.08	6.70
Z15-19	98.19	0.60	1.55	0.11	116.48	341.31	7.06
Z15-20	98.48	0.61	1.58	0.10	115.90	338.60	7.19
Z15-21	99.06	0.60	1.57	0.10	116.91	342.58	7.87
Z15-22	99.49	0.60	1.49	0.10	118.00	342.58	8.64

National Inorganic Salts Information Center

Inorganic Acid-Base-Salt Committee of CIESC

Study on enrichment law of elements in brine of Qarhan Salt Lake at different temperatures

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 25

References 18

Related Articles 15

Metrics

Comments

Recommended 0

元素（固相）	峰值蒸失率/%	相对含量/（μg·g^-1）
Li⁺	100.00	165.22
B₂O₃	100.00	623.93
Br^-	100.00	42.36
I^-	100.00	0.28
Sr²⁺	64.66	222.17
Sr²⁺	96.95	452.27
Cs⁺	75.98	0.15
Cs⁺	80.48	0.15
Rb⁺	75.98	41.35

元素（固相）	峰值蒸失率/%	相对含量/（μg·g^-1）
Li⁺	71.35	86.80
Li⁺	91.45	107.00
B₂O₃	71.35	311.07
B₂O₃	91.45	392.86
Br^-	71.35	24.80
Br^-	100.00	36.80
I^-	71.35	0.27
I^-	91.45	0.32
Sr²⁺	67.95	166.00
Sr²⁺	86.38	93.50
Cs⁺	86.38	0.26
Rb⁺	71.35	32.90

[1]	ZHANG Lizhen, YI Yuejun, SHI Lijie, ZHANG Xiufeng, MA Yameng, TAN Xiumin. Study on evaporation and salt crystallization law of deep brine containing potassium in Qinghai [J]. Inorganic Chemicals Industry, 2025, 57(8): 35-40.
[2]	YU Xudong, LI Jing, REN Siying, LUO Jun, ZENG Ying. Study on solid-liquid phase equilibrium of Li⁺，K⁺，Ca²⁺//Cl^--H₂O quaternary system at 298.2 K [J]. Inorganic Chemicals Industry, 2025, 57(3): 30-35.
[3]	KONG Lingjie, LI Guangbi, XIE Jiahao, YANG Xinhui, BAI Xiaoqin. Research progress on lithium extraction technology from salt lake brine [J]. Inorganic Chemicals Industry, 2025, 57(1): 14-26.
[4]	CHENG Chunchun, LI Yulong, ZHANG Zhiqiang, LIU Xuejing. Study on dissolution crystallization for extraction of potassium and separation of magnesium and lithium from salt lake brine [J]. Inorganic Chemicals Industry, 2024, 56(6): 34-39.
[5]	YANG Yousheng, YAO Zhihao, ZHAO Zhixing, FENG Xia, ZENG Ying, YU Xudong. Research progress of lithium-rich sulfate type salt lake brine evaporation experiment [J]. Inorganic Chemicals Industry, 2024, 56(4): 1-7.
[6]	SU Xin, LAI Dongmei, ZHOU Yuan, ZHU Xiaping. Study on preparation process of strontium rich functional salt from Zigong underground brine [J]. Inorganic Chemicals Industry, 2024, 56(3): 45-50.
[7]	WEI Jincai, CHEN Jingyuan, SONG Guichun, JIA Jiantuan, GONG Guoli. Study on efficiency of liquefaction mining of solid potassium ore in western Qarhan area of Qarhan Salt Lake [J]. Inorganic Chemicals Industry, 2024, 56(3): 70-79.
[8]	LI Zhiwei, FU Zhenhai, ZHANG Zhihong, LI Shengting. Prediction model of brine evaporation rate based on back-propagation neural network [J]. Inorganic Chemicals Industry, 2024, 56(1): 53-58.
[9]	CHEN Haixia, YAN Hong, SUN Yunlong, MA Guoqiang. Research progress of lithium resource extraction technology [J]. Inorganic Chemicals Industry, 2024, 56(1): 9-22.
[10]	FU Yu, DENG Mi, HUANG Donggen, WAN Jinbao. Research progress of lithium extraction technology from salt lake brine [J]. Inorganic Chemicals Industry, 2023, 55(9): 9-16.
[11]	LU Nana, QIN Yaru, MA Shuqing, WANG Qihui, LIU Bing, SHI Chenglong. Study on extraction of lithium from simulated old brine of salt lake by pyridine ionic liquid system [J]. Inorganic Chemicals Industry, 2023, 55(7): 45-50.
[12]	MA Xue, ZHOU Yuan, HUANG Chao, ZHU Xiaping. Study on preparation process of high purity calcium citrate from Zigong underground yellow brine [J]. Inorganic Chemicals Industry, 2023, 55(4): 60-64.
[13]	CUI Xiangmei, PAN Tongtong, LUO Qinglong, BIAN Fuxuan, YE Xiushen. Preparation of amino alcohol modified GO/CNTs composite aerogel and boron adsorption from salt lake brines [J]. Inorganic Chemicals Industry, 2023, 55(12): 59-65.
[14]	ZHU Ruisong, CAO Jing, LIU Taoran, LI Yingwen, GAO Fei, HU Xuesheng. Research progress of lithium extraction technology and industrialization of unconventional brines in global [J]. Inorganic Chemicals Industry, 2023, 55(11): 1-11.
[15]	LAI Xianrong, CHEN Zhouqin, SUN Hao, YANG Chao. Pilot study on lithium extraction by adsorption from raw brine of magnesium sulfate subtype salt lakes in Tibet [J]. Inorganic Chemicals Industry, 2023, 55(11): 86-92.

编号	蒸失率/%	各物质的质量浓度/（mg·L^-1）							密度/（g·mL^-1）
编号	蒸失率/%	Li⁺	B₂O₃	Rb⁺	Sr²⁺	Cs⁺	Br^-	I^-	密度/（g·mL^-1）
Z15-1	0	90.54	367.62	2.81	29.76	0.03	17.04	0.13	1.224 0
Z15-2	15.82	96.86	379.36	2.97	32.04	0.03	16.35	0.21	1.231 2
Z15-3	24.17	102.09	412.26	3.19	33.68	0.04	17.19	0.22	1.235 1
Z15-4	29.83	102.86	416.73	3.29	34.21	0.04	18.13	0.22	1.237 5
Z15-5	34.62	110.72	444.78	3.44	36.61	0.04	18.98	0.23	1.240 7
Z15-6	40.93	114.46	469.58	3.58	37.44	0.04	20.18	0.24	1.244 6
Z15-7	47.24	121.96	520.33	3.58	38.41	0.05	10.64	0.10	1.250 3
Z15-8	53.48	121.07	516.48	3.56	38.03	0.04	19.33	0.16	1.254 2
Z15-9	64.66	122.84	524.17	3.60	38.79	0.05	22.51	0.17	1.268 9
Z15-10	71.19	129.08	509.31	3.49	31.09	0.05	31.19	0.25	1.276 5
Z15-11	75.98	142.21	573.08	1.86	32.52	0.04	32.31	0.26	1.280 1
Z15-12	80.48	159.17	637.23	0.93	34.28	0.03	33.96	0.27	1.283 5
Z15-13	84.54	165.76	659.14	0.39	33.12	0.02	36.37	0.31	1.291 3
Z15-14	88.46	200.61	873.38	0.16	28.80	0.02	36.46	0.19	1.299 1
Z15-15	91.73	216.07	931.73	0.07	23.32	0.01	38.28	0.22	1.311 1
Z15-16	96.95	239.69	1 032.97	0.03	17.40	0.01	43.93	0.23	1.337 8
Z15-17	97.39	246.16	1 065.28	0.02	16.52	0.01	45.43	0.25	1.338 0
Z15-18	97.75	245.50	998.00	0.02	7.37	0.01	38.50	0.47	1.340 5
Z15-19	98.19	252.80	1 039.20	0.02	6.77	0.01	36.84	0.35	1.341 8
Z15-20	98.48	271.41	1 130.35	0.02	7.65	0.01	41.01	0.39	1.340 9
Z15-21	99.06	294.55	1 209.11	0.02	6.98	0.01	43.35	0.42	1.342 6
Z15-22	99.49	303.46	1 260.70	0.02	6.67	0.01	45.54	0.48	1.341 0

编号	蒸失率/ %	各物质的质量分数/%
编号	蒸失率/ %	K⁺	Na⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-
Z15-23	15.82	0.48	33.75	0.04	1.70	56.19	0.17
Z15-24	24.17	0.52	33.28	0.05	1.91	55.95	0.20
Z15-25	29.83	0.62	32.93	0.06	1.95	55.70	0.22
Z15-26	34.62	0.57	33.15	0.07	1.95	55.82	0.26
Z15-27	40.93	0.75	30.88	0.10	2.55	53.97	0.34
Z15-28	47.24	0.85	29.90	0.30	2.70	53.47	0.82
Z15-29	53.48	0.66	32.13	0.55	2.13	53.97	1.42
Z15-30	64.66	0.69	29.98	1.42	2.26	52.11	0.01
Z15-31	71.19	5.18	15.66	1.04	5.93	44.43	0.02
Z15-32	75.98	9.95	3.63	0.20	8.88	39.43	0.01
Z15-33	80.48	9.55	3.99	0.19	8.76	39.71	0.02
Z15-34	84.54	9.00	4.64	0.25	8.66	39.55	0.02
Z15-35	88.46	9.16	5.96	0.36	8.30	40.82	0.02
Z15-36	91.73	8.46	5.83	0.42	8.69	40.97	0.02
Z15-37	96.95	7.06	8.96	1.02	7.67	41.53	0.02
Z15-38	97.39	0.24	0.47	0.09	13.93	40.57	0.07
Z15-39	97.75	0.09	0.21	0.05	13.23	37.22	0.07
Z15-40	98.19	0.08	0.17	0.04	13.84	39.38	0.06
Z15-41	98.48	0.04	0.20	0.04	13.43	38.77	0.06
Z15-42	99.06	0.06	0.21	0.04	13.00	37.65	0.12
Z15-43	99.49	0.07	0.24	0.04	13.59	39.23	0.12
Z15-44	100.00	0.07	0.17	0.02	13.35	37.70	0.15

编号	蒸失率/ %	各物质的含量/（μg·g^-1）
编号	蒸失率/ %	Li⁺	B₂O₃	Rb⁺	Sr²⁺	Cs⁺	Br^-	I^-
Z15-23	15.82	25.60	130.77	1.20	10.78	0.01	6.48	0.12
Z15-24	24.17	30.20	197.94	1.27	12.34	0.01	7.39	0.11
Z15-25	29.83	27.12	197.50	1.51	13.95	0.02	7.10	0.10
Z15-26	34.62	31.04	188.55	1.45	15.07	0.02	7.58	0.10
Z15-27	40.93	34.16	192.64	1.78	18.12	0.02	10.91	0.10
Z15-28	47.24	35.69	188.45	2.07	38.71	0.02	11.66	0.08
Z15-29	53.48	29.52	150.71	1.55	82.23	0.02	9.63	0.10
Z15-30	64.66	28.83	140.09	1.92	227.17	0.02	9.40	0.08
Z15-31	71.19	46.82	201.86	24.14	181.62	0.08	15.88	0.10
Z15-32	75.98	43.21	184.10	41.35	37.27	0.15	19.53	0.10
Z15-33	80.48	46.83	224.21	25.92	41.28	0.15	19.28	0.11
Z15-34	84.54	51.36	238.62	15.44	70.22	0.14	20.76	0.12
Z15-35	88.46	35.93	186.16	9.80	120.86	0.14	18.62	0.08
Z15-36	91.73	45.68	225.34	5.55	162.24	0.14	21.92	0.16
Z15-37	96.95	41.83	168.33	2.98	452.27	0.14	18.38	0.10
Z15-38	97.39	88.81	335.72	0.23	63.40	0.01	34.30	0.15
Z15-39	97.75	99.40	379.43	0.11	39.01	0.01	35.35	0.19
Z15-40	98.19	84.76	357.90	0.13	27.90	0.01	33.79	0.18
Z15-41	98.48	75.44	319.65	0.15	32.87	0.01	27.98	0.12
Z15-42	99.06	139.80	593.81	0.12	22.80	0.01	35.53	0.24
Z15-43	99.49	124.08	576.44	0.11	26.58	0.01	36.87	0.19
Z15-44	100.00	165.22	623.93	0.21	12.08	0.02	42.36	0.28

编号	蒸失率/ %	各物质的质量浓度/（g·L^-1）
编号	蒸失率/ %	K⁺	Na⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-
Z25-1	0	10.35	43.43	1.02	51.56	217.53	4.76
Z25-2	46.93	16.31	22.07	0.78	68.57	240.72	5.03
Z25-3	67.95	18.61	10.41	0.47	82.94	272.35	5.14
Z25-4	71.35	9.68	7.22	0.42	91.90	281.26	5.50
Z25-5	86.38	1.56	2.66	0.16	109.50	321.03	6.19
Z25-6	91.45	0.66	1.54	0.12	121.72	342.59	8.48
