锌尾矿制备硅酸盐水泥熟料及Zn2+固化研究

doi:10.19964/j.issn.1006-4990.2024-0334

Abstract

Abstract:

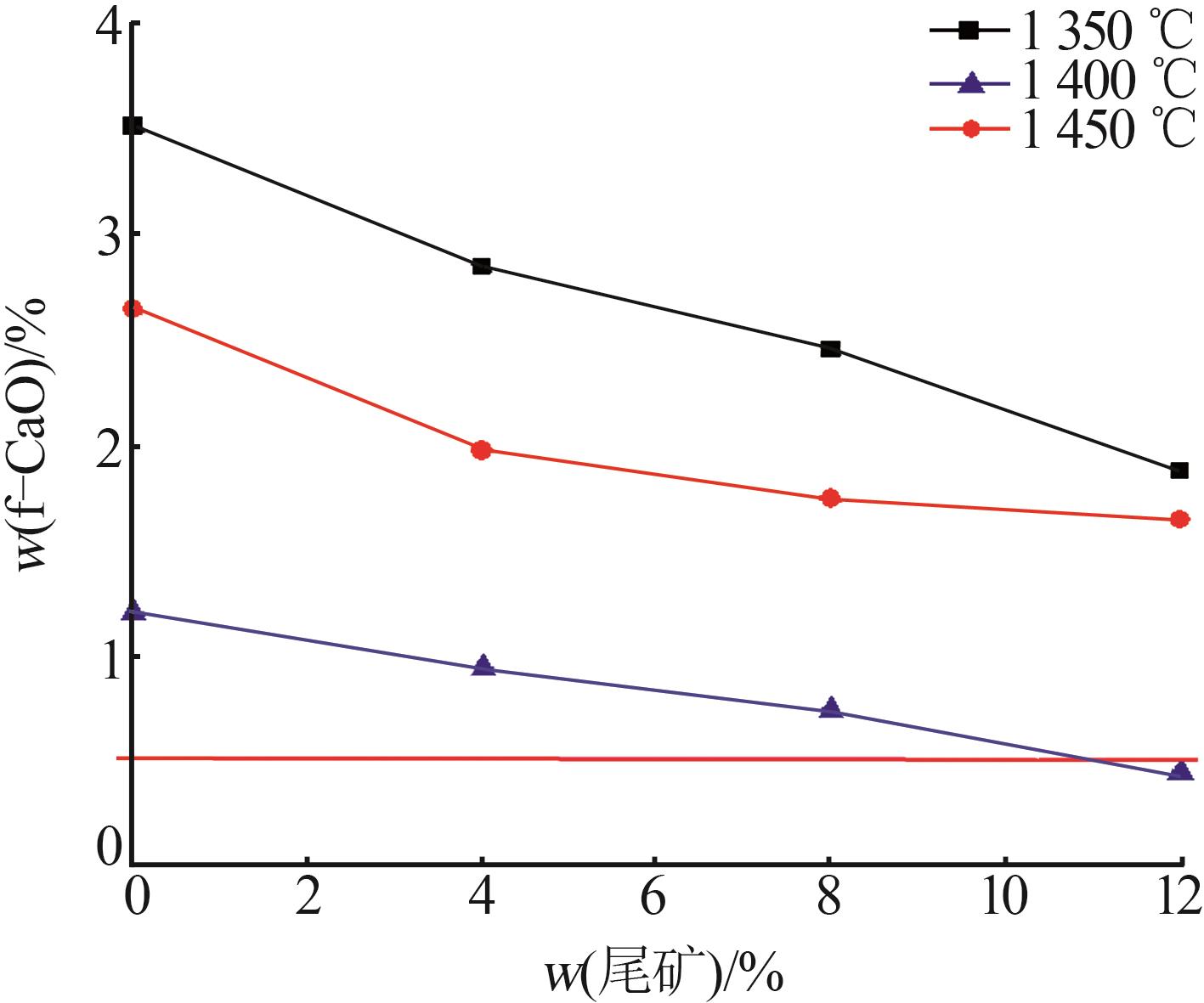

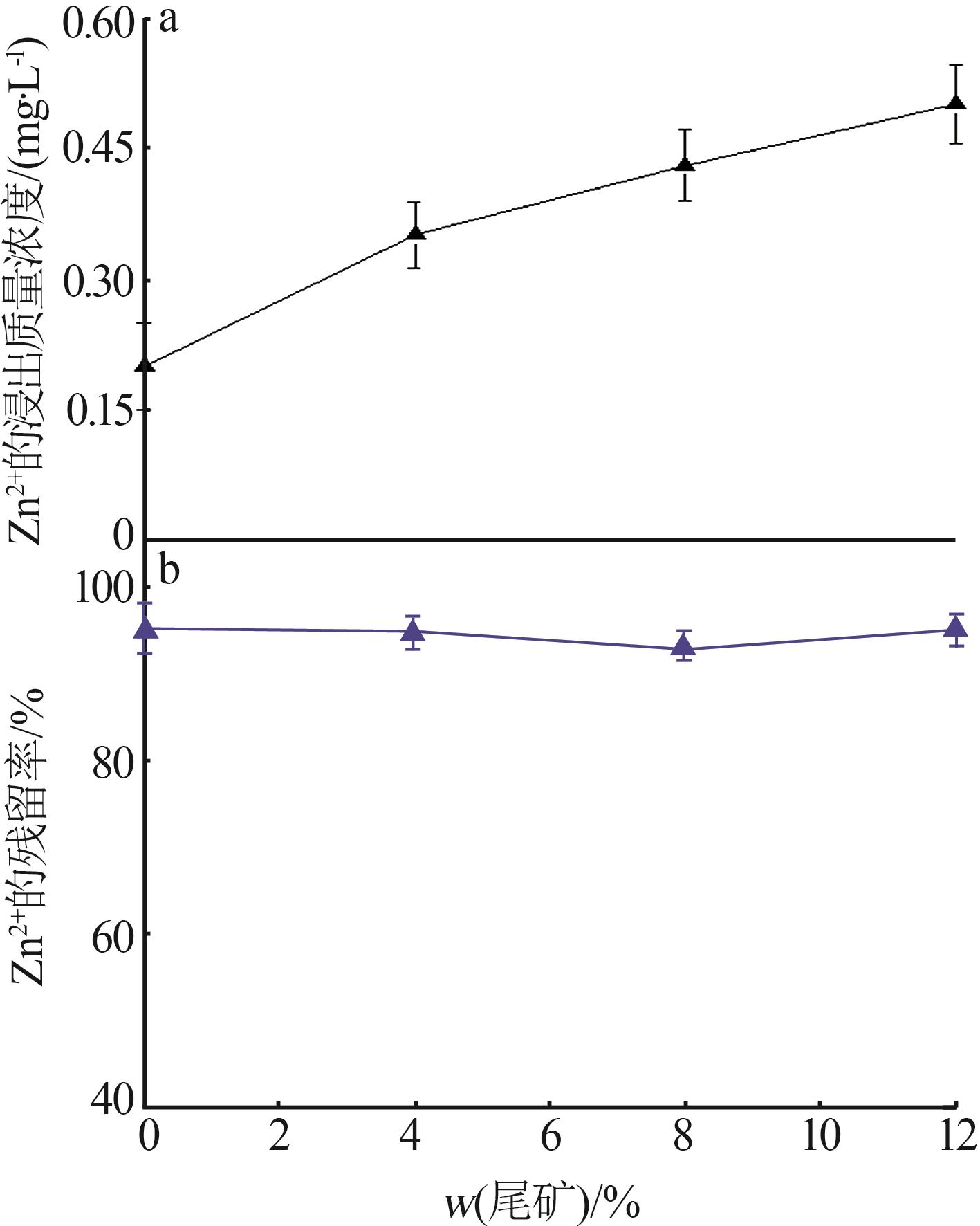

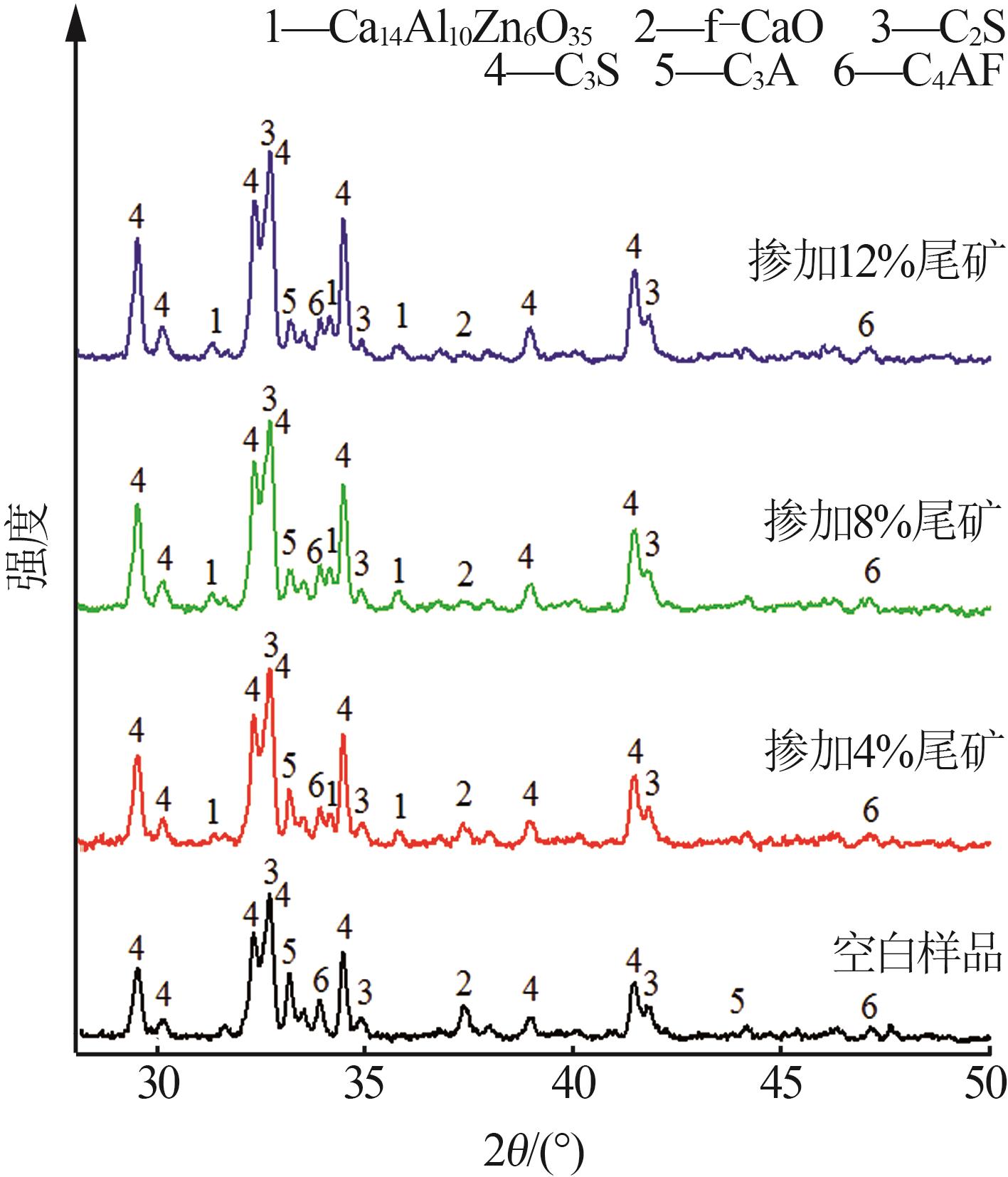

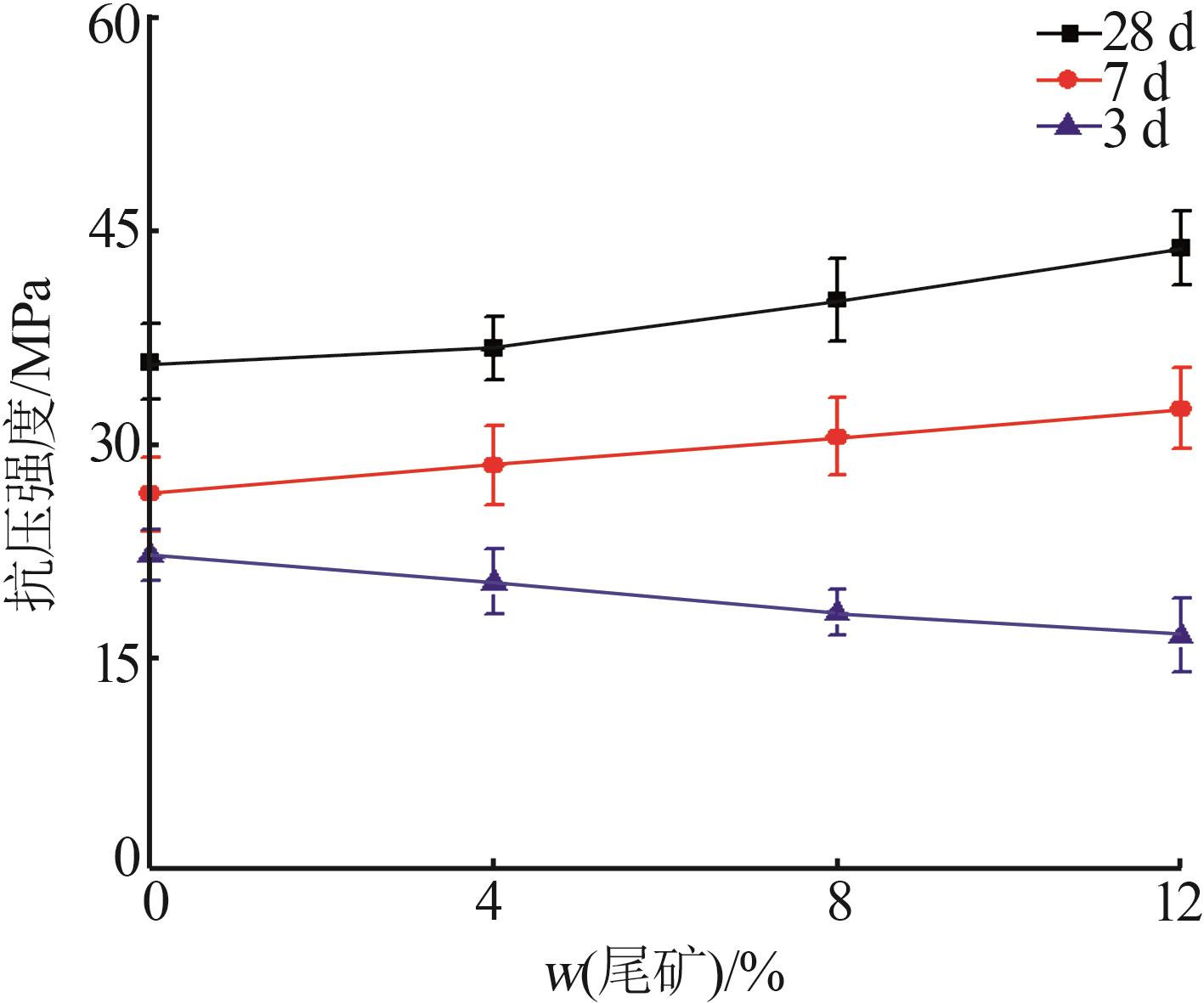

Zinc tailings are harmful industrial wastes.Clean and efficient utilization of zinc tailings not only has important environmental value，but also generates significant economic benefits.In this study，a silicate cement clinker was prepared with sphalerite tailings as additive，and the effect of tailings on the phase composition，microstructure，and hydration performance of clinker was studied.The transfer behavior of Zn²⁺ during the hydration process of clinker was explored.The passivation mechanism of Zn²⁺ leaching activity was also investigated at last.The results showed that the introduction of sphalerite tailings promoted the dissolution of f-CaO into liquid phase，thus accelerating C₃S grain growth.While the synthesis of C₃A phase was prevented after the addition of the sphalerite tailings，because of a reaction occurrence between ZnO and C₃A to generate Ca₁₄Al₁₀Zn₆O₃₅.As a consequence，the 3 d compressive strength of cement slurry was gradually decreased，but the gradual improvements in 7 d and 28 d compressive strengths were present as a function of tailings addition.When 12% sphalerite tailings was introduced.A rubber sand specimen exhibited a 43.49 MPa compressive strength after 28 d curing.The passivation mechanism of Zn²⁺ leaching activity showed that some Zn²⁺ could be solid dissolved in C₃S phase.But most of Zn²⁺ were distributed in the intermediate phase，and it was solidified through the synthesis of anhydrous Ca₁₄Al₁₀Zn₆O₃₅. More over，C₃S containing Zn²⁺ generated hydrated calcium silicate gel after hydration，which could physically wrap the ion and restrain its leaching activity，thus collectively endowing the product with good environmental safety.The research results provided a new approach for the clean and efficient utilization of zinc tailings.

Key words: zinc tailings, cement clinker, Zn²⁺ solidification, composition and microstructure, performance

CLC Number:

TQ132.4

GAO Huafeng, DONG Linlin, LIU Wei. Study on preparation of portland cement clinker from zinc tailings and its Zn²⁺solidification[J]. Inorganic Chemicals Industry, 2025, 57(9): 110-116.

Figures/Tables 12

Table 1

Fig.1

Fig.2

Fig.3

Table 2

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

References 18

[1]	NAYAK A， JENA M S， MANDRE N R.Beneficiation of lead-zinc ores：A review［J］.Mineral Processing and Extractive Metallurgy Review，2022，43（5）：564-583.
[2]	赵文娟.基于铜-铵协同活化的菱锌矿强化硫化浮选理论研究［D］.昆明：昆明理工大学，2022.
	ZHAO Wenjuan.Study on the theory of enhanced sulfide flotation based on Cu-ammonium co-activation of hematite zinc ore［D］.Kunming：Kunming University of Science and Technology，2022.
[3]	冯程，祁忠旭，孙大勇，等.氧化锌矿选矿技术现状与进展［J］.矿业研究与开发，2019，39（9）：105-109.
	FENG Cheng， QI Zhongxu， SUN Dayong，et al.Current status and overview of zinc oxide ore beneficiation technology［J］.Mining Research and Development，2019，39（9）：105-109.
[4]	刘俊峰，易平贵，陈安国.炼铜烟灰生产硫酸锌酸浸条件对锌浸出率的影响［J］.无机盐工业，2000，32（1）：38-39.
	LIU Junfeng， YI Pinggui， CHEN Anguo.The effect of soaking conditions on soaking rate of zinc in the production of zinc sulfate from copper-melting dust［J］.Inorganic Chemicals Industry，2000，32（1）：38-39.
[5]	杨国栋.韦氏炉生产锌氧粉的工艺实践［J］.有色金属（冶炼部分），1992（3）：15-18.
	YANG Guodong.Process practice of producing zinc oxide powder by Webster furnace［J］.Nonferrous Metals，1992（3）：15-18.
[6]	王松，张建彬，申玉芳，等.次氧化锌火法脱氯制备高纯氧化锌的工艺研究［J］.无机盐工业，2023，55（11）：47-52.
	WANG Song， ZHANG Jianbin， SHEN Yufang，et al.Study on preparation process of high-purity zinc oxide by dechlorination of zinc oxide dust［J］.Inorganic Chemicals Industry，2023，55（11）：47-52.
[7]	KAKALI G， PARISSAKIS G， BOURAS D.A study on the burnability and the phase formation of PC clinker containing Cu oxide［J］.Cement and Concrete Research，1996，26（10）：1473-1478.
[8]	徐光亮，卢忠远，钱光人，等.掺ZnO快烧波特兰水泥熟料的易烧性及动力学研究［J］.四川建材学院学报，1992，7（3）：57-63.
	XU Guangliang， LU Zhongyuan， QIAN Guangren，et al.The burnabilitic and dynamic study of Portland cement clinker with ZnO-doped in repid heating-up burning［J］.Journal of Southwest University of Science and Technology，1992，7（3）：57-63.
[9]	董光辉，左武，赵润博，等.水泥窑协同处置生活垃圾焚烧飞灰过程中Pb和Zn的迁移转化特性［J］.环境工程学报，2023，17（1）：250-258.
	DONG Guanghui， ZUO Wu， ZHAO Runbo，et al.Migration and transformation of Pb and Zn during co-processing of municipal solid waste incineration fly ash by cement kiln［J］.Chinese Journal of Environmental Engineering，2023，17（1）：250-258.
[10]	丁新榜.钢渣的胶凝活性与化学溶出特性关系的研究［D］.广州：华南理工大学，2009.
	DING Xinbang.Study on the relationship between gelling activity and chemical dissolution characteristics of steel slag［J］.Guangzhou：South China University of Technology，2009.
[11]	张闪闪，张瀚文，张钊，等.氧化锌矿废渣制备白炭黑的研究［J］.有色矿冶，2023，39（2）：50-53，41.
	ZHANG Shanshan， ZHANG Hanwen， ZHANG Zhao，et al.Preparation of silica from waste residue of zinc oxide ore［J］.Non-Ferrous Mining and Metallurgy，2023，39（2）：50-53，41.
[12]	GINEYS N， AOUAD G， SORRENTINO F，et al.Effect of the clinker composition on the threshold limits for Cu，Sn or Zn［J］.Cement and Concrete Research，2012，42（8）：1088-1093.
[13]	TAKASHIMA S.Systematic dissolution of calcium silicate in commercial Portland cement by organic solution［J］.Cement Association of Japan，1958，5（8）：12-13.
[14]	STEPHAN D， MALEKI H， KNÖFEL D，et al.Influence of Cr，Ni，and Zn on the properties of pure clinker phases Part I.C3S［J］.Cement and Concrete Research，1999，29（4）：545-552.
[15]	田琳.不同预处理模式下垃圾焚烧飞灰水泥窑协同处置中重金属迁移转化规律［D］.北京：北京化工大学，2020.
	TIAN Lin.The migration and transformation patterns of heavy metals in the collaborative disposal of waste incineration fly ash and cement kiln under different pretreatment modes ［D］.Beijing：Beijing University of Chemical Technology，2020.
[16]	QIU Xin， CHEN Weizhong， YUAN Jingqiang，et al.Study on seawater corrosion resistance of calcium sulfoaluminate cement-based novel grouting materials［J］.Materials Letters，2024，366：136509.
[17]	ŻAK R， DEJA J.Spectroscopy study of Zn，Cd，Pb and Cr ions immobilization on C-S-H phase［J］.Spectrochimica Acta Part A：Molecular and Biomolecular Spectroscopy，2015，134：614-620.
[18]	李建陶，曾鸣.生活垃圾焚烧飞灰矿物学特性及重金属分布［J］.环境科学，2018，39（10）：4834-4840.
	LI Jiantao， ZENG Ming.Mineralogy characteristics and heavy metal distribution of MSWI fly ash［J］.Environmental Science，2018，39（10）：4834-4840.

名称	w（SiO₂）	w（Fe₂O₃）	w（Al₂O₃）	w（MgO）	w（CaO）	w（ZnO）	w（PbO）	w（N₂O）	w（K₂O）	烧失量
生料	12.51	2.80	3.56	0.82	43.88	0.20	—	0.16	0.22	35.85
尾矿	17.16	3.03	5.75	2.25	35.29	11.89	2.25	1.89	2.50	17.99

离子	离子半径/nm	离子电场强度/（N·C^-1）
Ca²⁺	0.100	0.36
Zn²⁺	0.075	0.45
