氨基功能化铝麦羟硅钠石吸附Hg2+性能研究

doi:10.11962/1006-4990.2020-0105

摘要/Abstract

摘要：

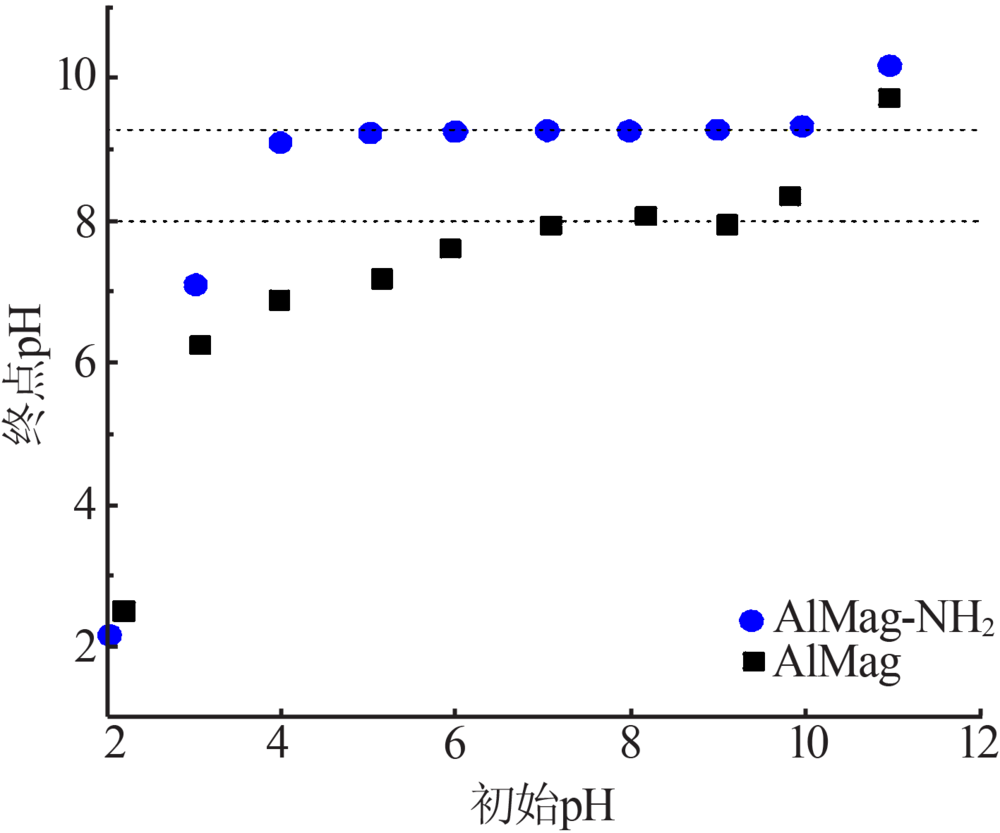

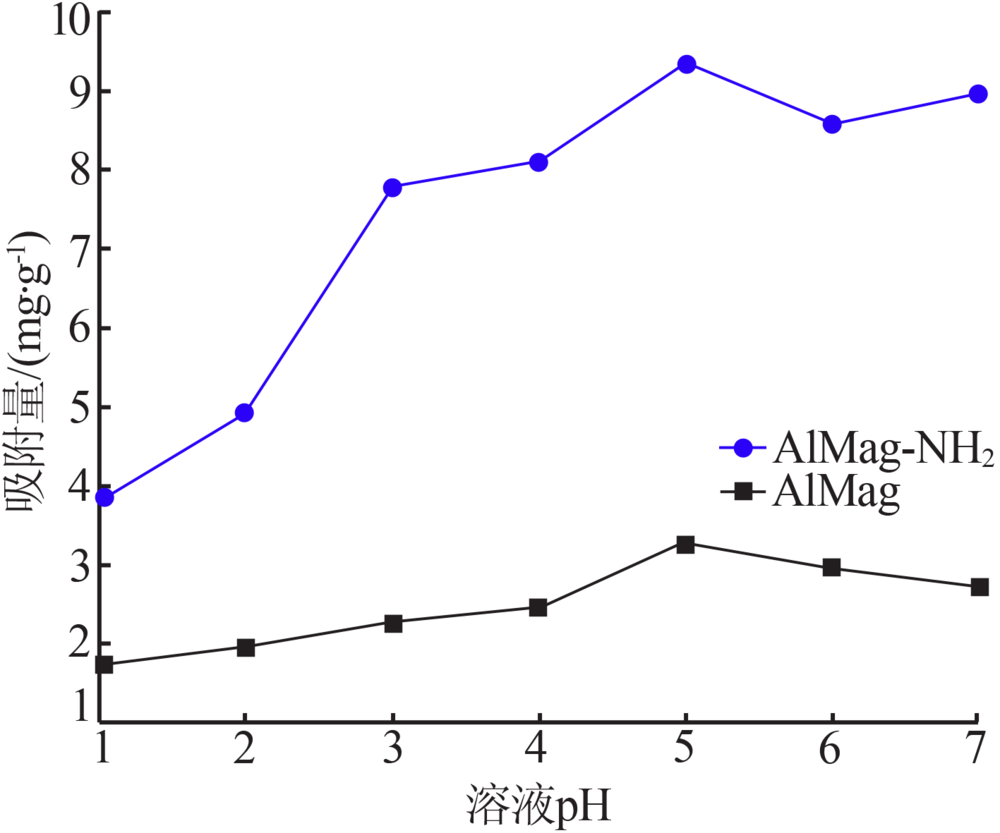

以水热合成的铝麦羟硅钠石（简称AlMag）为基体,以氨丙基三乙氧基硅烷为功能化试剂,制备氨基功能化的新型吸附剂材料AlMag-NH₂,研究氨基改性过程对材料结构的影响及其对水溶液中Hg²⁺的吸附效果。表征结果显示,氨基官能团成功嫁接于AlMag基体上,功能化的AlMag-NH₂由初始的玫瑰花苞形貌变为片层状形貌,层间距和平均孔径增大,比表面积略微减小,pH_PZC升高。优化吸附实验条件,当溶液pH=5.0、吸附时间为360 min、Hg²⁺初始质量浓度为10 mg/L时,AlMag-NH₂的去除率达到88.82%,是相同条件下AlMag去除率的2.4倍。AlMag-NH₂的Hg²⁺饱和吸附量为20.62 mg/g,吸附过程符合准二级动力学和Langmuir模型,该过程主要为化学吸附。

关键词: 铝麦羟硅钠石, 氨基功能化, Hg²⁺, 吸附

Abstract:

A novel amino-functionalized adsorbent material Al-magadiite（abbreviated as AlMag-NH₂） was prepared by hydrothermal synthesis with Al-magadiite（abbreviated as AlMag） as matrix and aminopropyltriethoxysilane as functional reagent.The effect of amino-modification process on the structure of the materials and the adsorption effect of Hg²⁺ in aqueous solution were studied.The characteristic results showed that the amino-functional groups were successfully grafted onto AlMag matrix.The functionalized AlMag-NH₂ changed from the initial rosebud morphology to lamellar morphology.The interlayer spacing and average pore diameter increased,the specific surface area decreased slightly and the pH_pzc increased.The experiment conditions were optimized and obtained as follows：the solution pH=5.0,the absorption time was 360 min and the initial mass concentration of Hg²⁺ was 10 mg/L. Under the same optimized conditions,the removal rate of AlMag-NH₂ reached 88.82% and was 2.4 times than the removal rate of AlMag.The Hg²⁺ saturated adsorption capacity of AlMag-NH₂was 20.62 mg/g.The adsorption process was in accordance with the pseudo second order kinetics and Langmuir model,which was mainly chemical adsorption.

Key words: Al-magadiite, amino-functionalization, Hg²⁺, adsorption

中图分类号:

TQ131.1

汤钦元,安燕,孙琦,郭兴强,黎青青,郭炳琛. 氨基功能化铝麦羟硅钠石吸附Hg²⁺性能研究[J]. 无机盐工业, 2020, 52(8): 40-45.

Tang Qinyuan,An Yan,Sun Qi,Guo Xingqiang,Li Qingqing,Guo Bingchen. Amino-functionalized Al-magadiite for Hg²⁺ adsorption[J]. Inorganic Chemicals Industry, 2020, 52(8): 40-45.

图/表 12

图1

图2

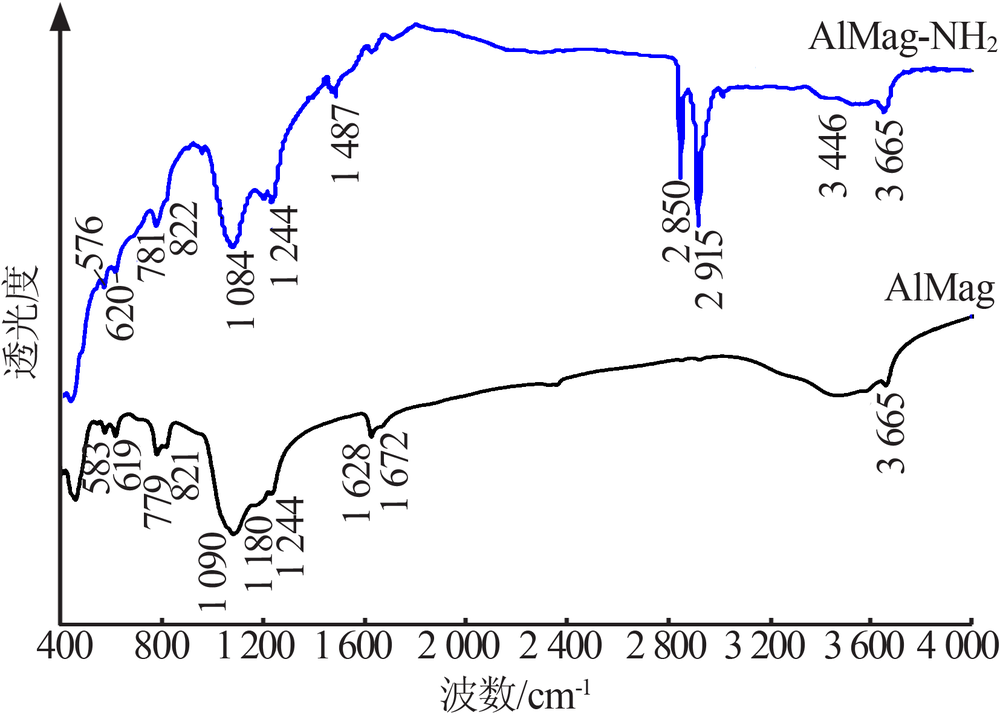

图3

图4

表1

图5

图6

图7

表2

图8

表3

图9

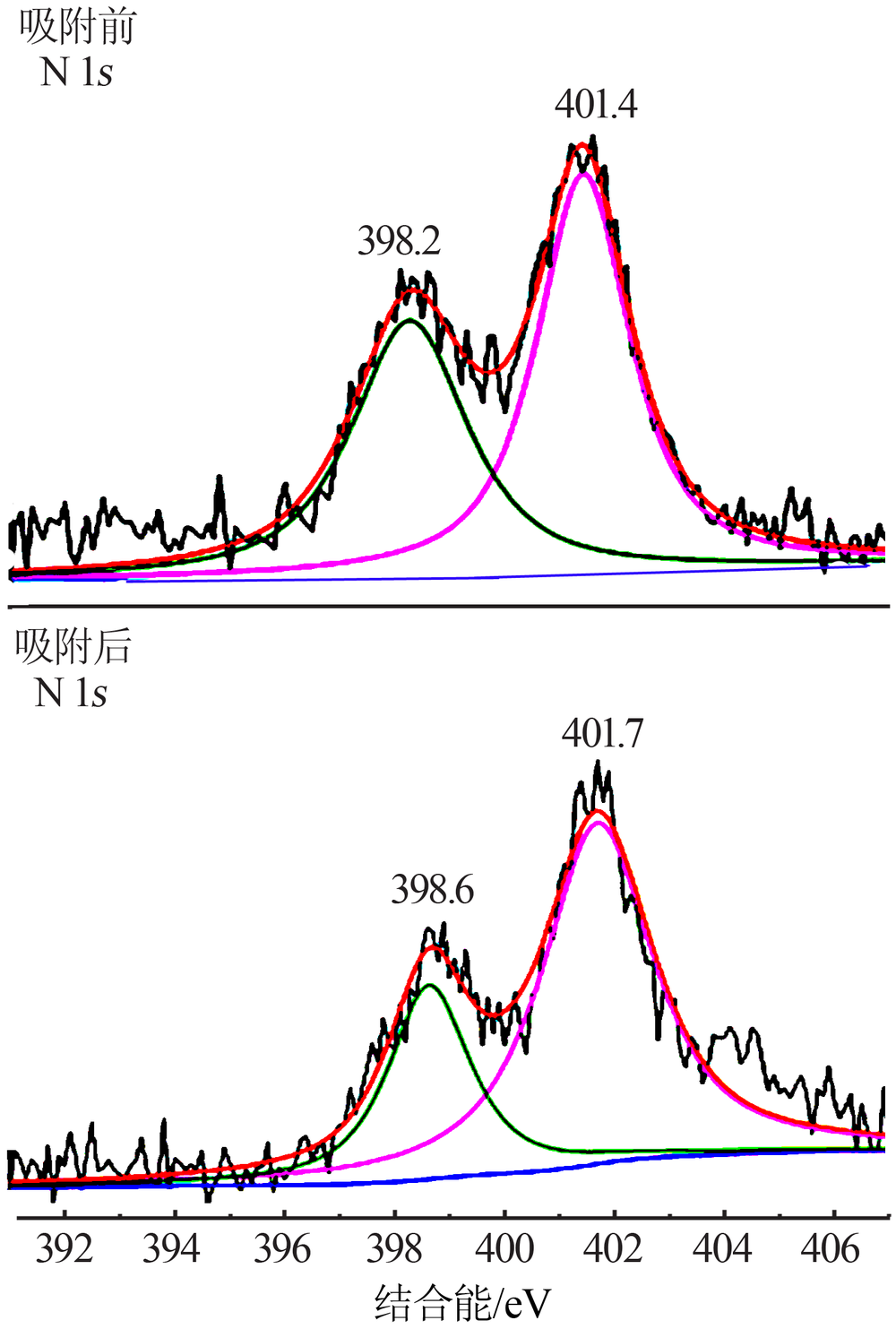

参考文献 20

[1]	Das S, Arnab S, Gautam G, et al. Clay-based nanocomposites as recyclable adsorbent toward Hg(Ⅱ) capture: Experimental and theoretical understanding[J]. ACS Omega, 2018,3:6283-6292.
[2]	Krabbenhoft D P, Sunderland E M. Global change and mercury[J]. Science, 2013,341(6153):1457-1458.
[3]	朱慧霞, 张婷, 韩琮, 等. 钾长石负载二氧化锰对Ni²⁺的吸附性能研究 [J]. 无机盐工业, 2019,52(1):44-48.
[4]	陈济美, 龚关, 赵连强, 等. 膨胀土阳离子交换容量的测定[J]. 岩矿测试, 2000,19(2):152-154.
[5]	Guerra D L, Pinto A A, Souza J A, et al. Kinetic and thermodynamicuranyl(Ⅱ) adsorption process into modified Na-magadiite and Nakanemite[J]. Journal of Hazardous Materials, 2009,166(2/3):1550-1555.
[6]	Benkhatou S, Djelad A, Sassi M, et al. Lead(Ⅱ) removal from aqueous solutions by organic thiourea derivatives intercalated magadiite[J]. Desalination and Water Treatment, 2015,57(20):9383-9395.
[7]	戈明亮, 杜明艺, 王雁武. 介孔材料麦羟硅钠石吸附Pb²⁺的行为及机理 [J]. 硅酸盐学报, 2017,45(1):37-45.
[8]	Ahmed K, Khan A J, Yaminc M, et al. Fabrication of layered Al-silicate magadiites for the removal of reactive dye from textile effluents[J]. Desalination and Water Treatment, 2018,104:159-168.
[9]	Bi Y F, Blanchard J, Lambert J F. Role of the Al source in the synjournal of aluminum magadiite[J]. Applied Surface Science, 2012,57:71-78.
[10]	Kooli F, Mianhui L, Alshahateet S, et al. Characterization and thermal stability properties of intercalated Na-magadiite with cetyltrimethylammonium(C₁₆TMA) surfactants[J]. Journal of Physics and Chemistry of Solids, 2006,67:926-931.
[11]	Isoda K, Kuroda K, Ogawa M. Interlamellar grafting of γ-methacry loxypropylsilyl groups on magadiite and copolymerization with methyl methacrylate[J]. Chemistry of Materials, 2000,12:1702-1707.
[12]	Superti G B, Oliveira E C, Pastore H O. Aluminum magadiite:An acid solid layered material[J]. Chemistry of Materials, 2007,19:4300-4315.
[13]	Park K W, Jung J H, Seo H J, et al. Mesoporous silica-pillared kenyaite and magadiite as catalytic support for partial oxidation of methane[J]. Microporous and Mesoporous Materials, 2009,12:219-225.
[14]	Bourikas K, Vakros J, Kordulis C, et al. Potentiometric mass titrations: experimental and theoretical establishment of a new technique for determining the point of zero charge(pzc) of metal(hydr)oxi-des[J]. Journal of Physical Chemistry B, 2003,107:9441-9451.
[15]	Chandra V, Kim K S. Highly selective adsorption of Hg²⁺ by a polypyrrole-reduced grapheme oxide composite [J]. Chemical Communications, 2011,47(13):3942-3944.
[16]	Xu H, Xu D C, Wang Y F. Natural indices for the chemical hardness/softness of metal cations and ligands[J]. ACS Omega, 2017,2:7185-7193.
[17]	Tran L, Wu P X, Zhu Y J, et al. Comparative study of Hg(Ⅱ) adsorption by thiol-and hydroxyl-containing bifunctional montmorillonite and vermiculite[J]. Applied Surface Science, 2015,356:91-101.
[18]	陈理想, 吴平霄, 杨林, 等. 有机改性蛭石的特性及其对Hg²⁺吸附性能的研究 [J]. 环境科学学报, 2015,35(4):1054-1060.
[19]	Cui H, Qian Y, Li Q, et al.Adsorption of aqueous Hg(Ⅱ) by a polyaniline/attapulgite composite[J].Chemical Engineering Journal, 2012,211/212:216-223.
[20]	Sun J, Chen D, Ge M, et al.Selective adsorption of Hg(Ⅱ) by γ-radiation synthesized silica-graft-vinyl imidazole adsorbent[J]. Journal of Hazardous Materials, 2013,244/245:94-101.

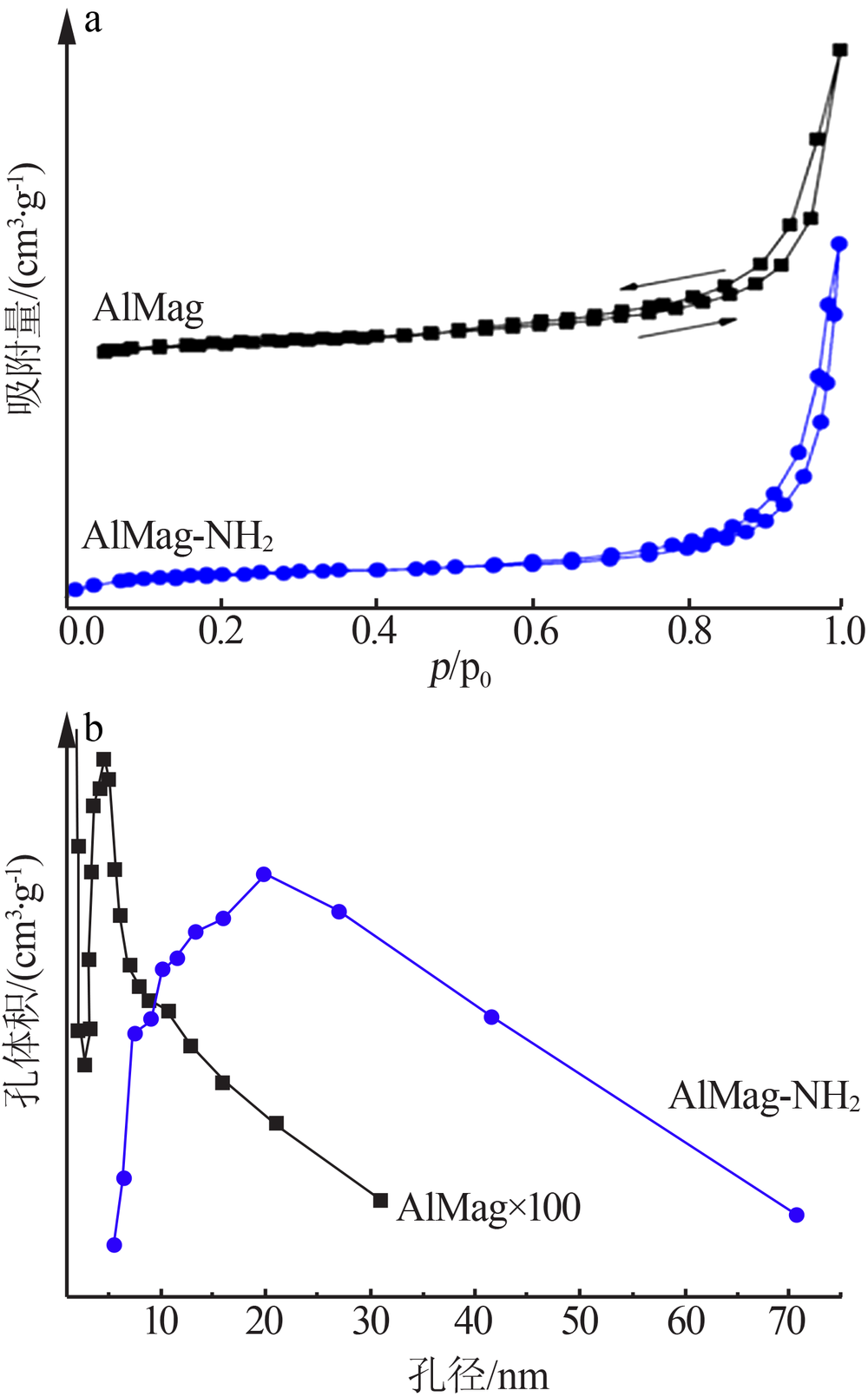

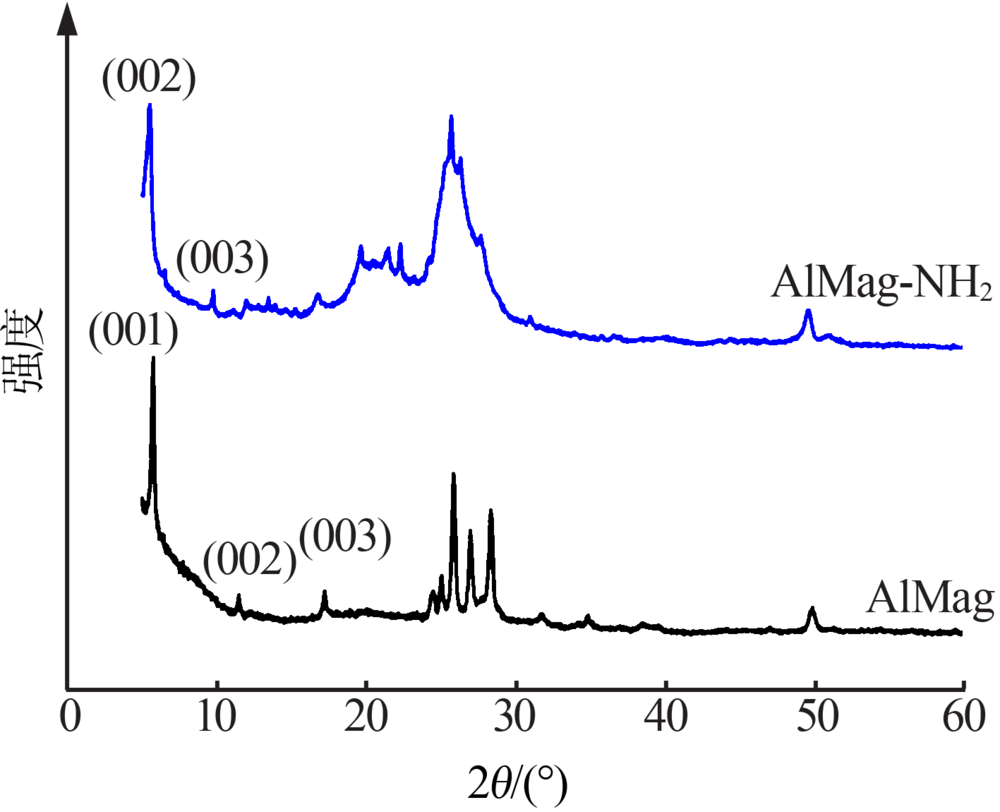

样品	层间距/ nm	比表面积/ （m²·g^-1）	孔体积/ （cm³·g^-1）	孔径/ nm
AlMag	0.44	19.37	0.08	17.04
AlMag-NH₂	2.07	13.25	0.07	25.47

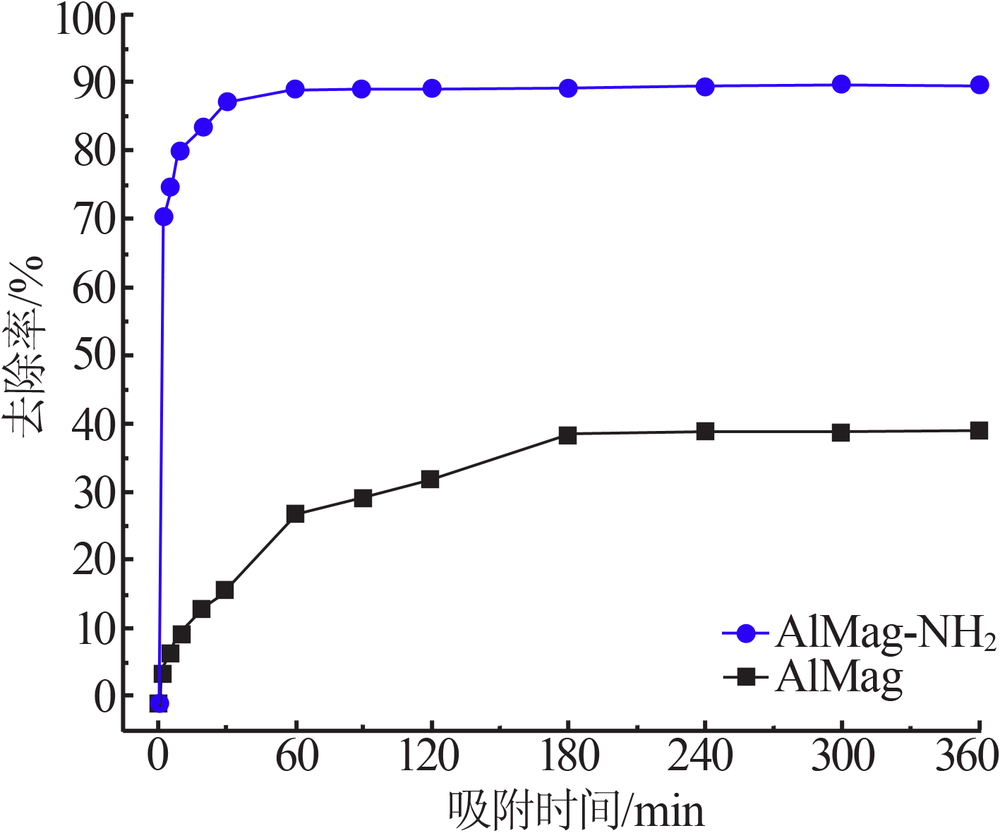

样品	q_e,exp/ （mg·g^-1）	准一级动力学模型			准二级动力学模型
样品	q_e,exp/ （mg·g^-1）	q_e,cal/ （mg·g^-1）	k₁/ min^-1	R²	q_e,cal/ （mg· g^-1）	k₂/ （g·mg^-1·min^-1）	R²
AlMag	3.11	3.21	0.012 1	0.922 0	4.59	0.005 5	0.994 9
AlMag-NH₂	9.36	0.63	0.454 1	0.721 5	9.50	0.109 9	0.999 9

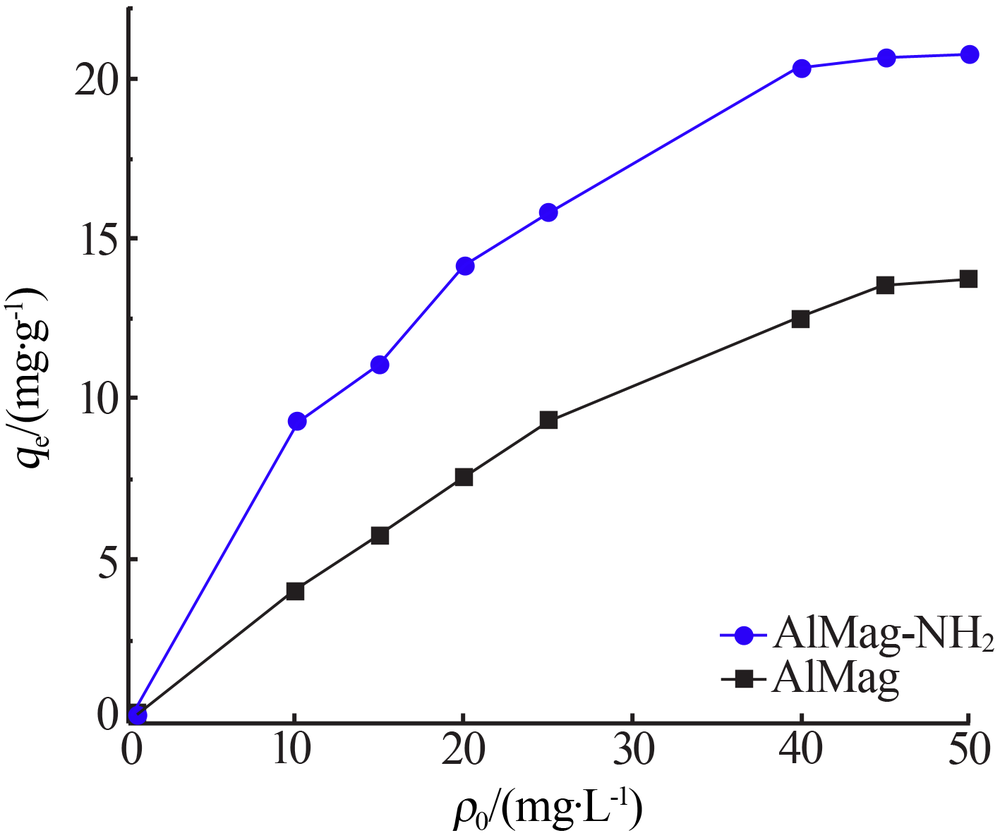

样品	q_e,exp/ （mg·g^-1）	Langmuir方程			Freundlich方程
样品	q_e,exp/ （mg·g^-1）	q_m,cal/ （mg·g^-1）	K_L/ （L·mg^-1）	R²	K_F/ （mg·g^-1）	n_F	R²
AlMag	13.74	28.45	0.03	0.951 4	1.18	1.42	0.970 5
AlMag-NH₂	20.62	23.14	0.29	0.990 5	1.23	3.73	0.955 8

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会

氨基功能化铝麦羟硅钠石吸附Hg²⁺性能研究

Amino-functionalized Al-magadiite for Hg²⁺ adsorption

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 20

相关文章 15

Metrics

本文评价

推荐阅读 0

[1]	王敏锐, 田桂英, 张奥, 葛俊杰, 张蕾, 项军, 唐娜. 铝基锂吸附剂造粒工艺优化及其原卤提锂性能研究[J]. 无机盐工业, 2025, 57(3): 36-42.
[2]	白星星, 李韩飞, 汤勇, 张俊, 朱广凯, 李立硕, 童张法. 纳米碳酸钙掺杂纤维素基水凝胶制备及其对铜离子吸附性能研究[J]. 无机盐工业, 2025, 57(2): 83-91.
[3]	沈晓倩, 周斐, 刘婉晨, 许露, 吴俊书. FeS修饰的水化硅酸钙复合材料制备及其总铬移除性能研究[J]. 无机盐工业, 2025, 57(2): 57-67.
[4]	王萍, 徐荣声, 孙冬, 史小红, 徐炜, 李梅. 氮掺杂生物炭的制备及其对亚甲基蓝的吸附性能研究[J]. 无机盐工业, 2024, 56(9): 117-127.
[5]	宋朝霞, 刘永康, 郭耀坤, 王腾飞. 小麦秸秆生物炭对孔雀石绿吸附性能的研究[J]. 无机盐工业, 2024, 56(9): 128-135.
[6]	熊成荣, 陈彦, 汤淼, 张丰泽, 周天祥, 欧阳瑞丰, 董罡, 施玮, 曾涛, 陈云霞, 苏小丽. 二维蛭石纳米片的制备及其环境吸附功能的研究进展[J]. 无机盐工业, 2024, 56(8): 19-26.
[7]	张帮程, 王立. ZnCl₂活化废旧涤纶基活性炭的制备及吸附性能[J]. 无机盐工业, 2024, 56(7): 126-134.
[8]	张力巾, 吕晴, 陈晓浪, 李清欣, 史鸿钰, 秦军. Ca基LDO复合材料的制备及其对磷酸盐的吸附性能研究[J]. 无机盐工业, 2024, 56(7): 37-45.
[9]	赵闯, 张博宇, 李犇, 靳凤英, 李滨, 孙振海, 郭春垒. 吸附剂对多环芳烃吸附分离技术的研究[J]. 无机盐工业, 2024, 56(7): 61-68.
[10]	刘凯隆, 朱孔义, 郭春垒, 马晓彪, 王宇健, 盛强, 李翔, 王银斌, 靳凤英. 工艺条件对柴油吸附分离重芳烃轻质化反应的影响[J]. 无机盐工业, 2024, 56(6): 139-146.
[11]	祝增虎, 王敏, 彭正军, 贾国凤, 李燕. 氯化锂溶液中钾离子的吸附分离研究[J]. 无机盐工业, 2024, 56(6): 61-66.
[12]	裴晓港, 张鹏, 董珊珊, 葛姗姗, 赵月龙. 羟基磷灰石复合腐植酸及其对Mn（Ⅱ）的去除[J]. 无机盐工业, 2024, 56(5): 70-77.
[13]	徐梦瑶, 张欣, 何琨鹏, 何坚, 蒋炜. 锆钇废料制备氧化钇和磷酸锆吸附剂及其性能评价[J]. 无机盐工业, 2024, 56(3): 116-124.
[14]	李巧云, 黄修行, 韦文业, 陈振. 活性炭协同酸/碱改性粉煤灰对亚甲基蓝的吸附研究[J]. 无机盐工业, 2024, 56(3): 131-136.
[15]	赵闯, 陈自浩, 张博宇, 李犇, 靳凤英, 李滨, 孙振海, 郭春垒. 分子筛吸附剂对不同类型柴油吸附分离性能的研究[J]. 无机盐工业, 2024, 56(3): 80-85.

首 页
