聚磷酸钙镁的制备研究

doi:10.19964/j.issn.1006-4990.2021-0773

摘要/Abstract

摘要：

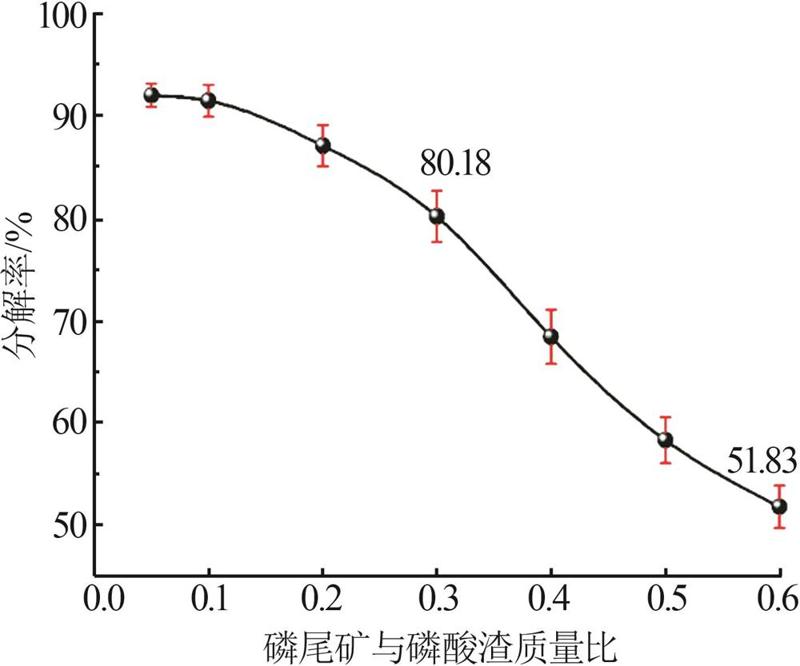

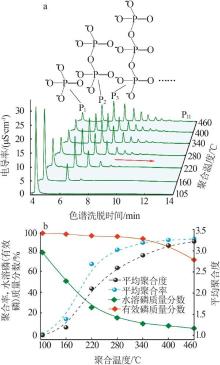

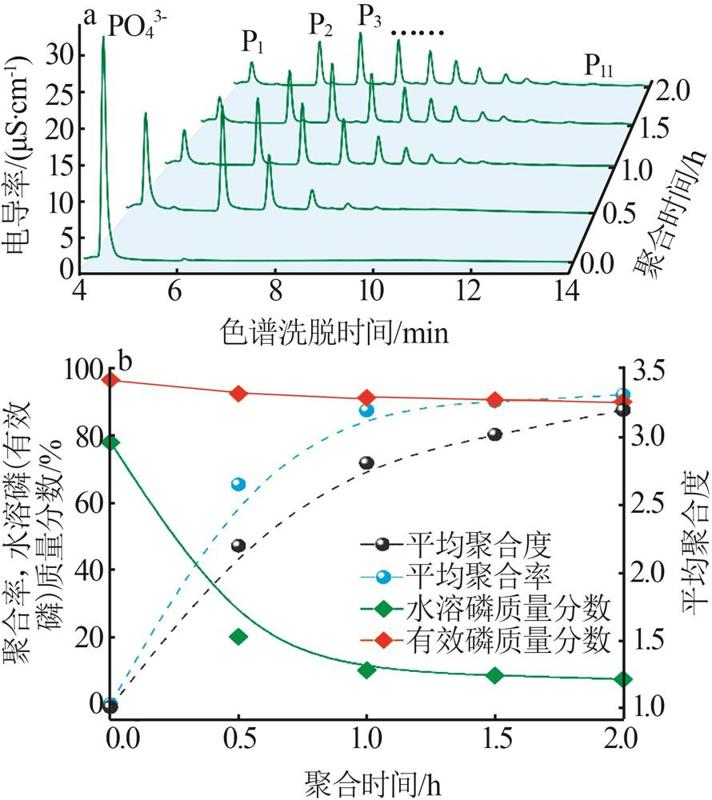

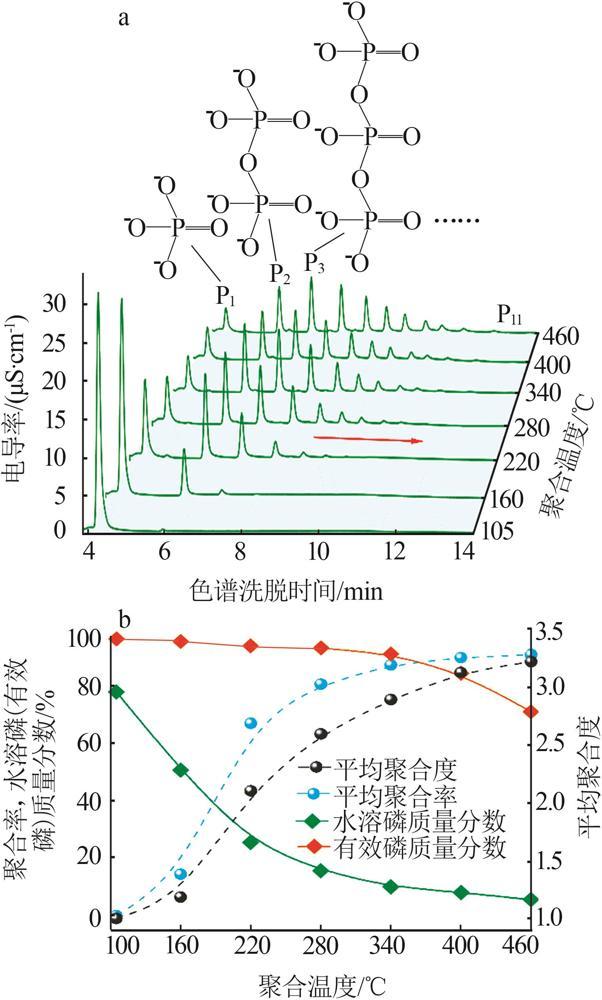

针对湿法磷酸渣和磷尾矿难以利用的问题，提出了一种焙烧湿法磷酸渣和磷尾矿的混合物制备聚磷酸钙镁肥的策略。基于磷尾矿分解率得出磷尾矿与磷酸渣的适宜质量比为0.30，在此条件下磷尾矿的分解率为80.18%。煅烧工艺结果表明，升高温度和延长时间都能促使聚磷酸盐链的增长。在焙烧时间为1 h条件下焙烧温度从105 ℃逐渐升高到460 ℃，聚磷酸钙镁中磷的平均聚合度从1.00逐渐增加至3.23。其中，焙烧温度为340 ℃时，聚磷酸钙镁中磷的聚合率超过85%，但是聚合度还在增加。尽管肥料的水溶性随着聚磷酸盐链的增长而逐渐降低，但是当焙烧温度≤340 ℃时有效磷含量依然大于90%（质量分数）。在340 ℃焙烧1.0~2.0 h后发现，当焙烧时间为1.0 h时，聚磷酸钙镁中磷的聚合率和平均聚合度分别达到87.4%和2.80。通过工艺条件优化，可在聚合度分布水平上实现聚磷酸盐的可控制备，这也开辟了一种构建缓释肥的新方向。在340 ℃聚合1.0 h优选出聚合度为1~10分布的聚磷酸钙镁，表现为多孔的非晶态结构，其中有效磷、钙、镁养分含量超过85%（质量分数），可作为一种新型的多元缓释肥。

关键词: 磷酸渣, 磷尾矿, 聚磷酸钙镁, 聚合度, 资源化利用

Abstract:

In view of the intractable use of wet?process phosphoric?acid slag and phosphate tailing，a strategy was proposed for preparing calcium magnesium polyphosphate fertilizer via calcining wet?process phosphoric?acid slag and phosphate tailing composites.Based on the decomposition ratio of phosphate tailing，the suitable mass ratio of phosphate tailing and wet?process phosphoric?acid slag was 0.30，and the decomposition ratio was 80.18%.The results of calcination process showed that both increasing temperature and prolonging time promoted the growth of polyphosphate chain.The average?degree of polymerization was increased from 1.00 to 3.23 after calcinating at 105~460 ℃ for 1.0 h.Among them，at 340 ℃ the polymerization rate reached 85%，but the polymerization degree was still increasing.Although the water solubility of fertilizer decreased gradually with the increase of polymerization chain，the available phosphorus content was still more than 90% when the temperature did not exceed 340 ℃.After calcination at 340 ℃ for 1.0~2.0 h，it was found that when calcination time was 1.0 h，the polymerization rate and average degree of polymerization reached 87.4% and 2.80，respectively.Optimizing the processing parameters，the polycondensation could be controlled on the level of polymerization degree distribution，which opened a new direction for the construction of slow-release fertilizer.Polyphosphate containing species with polymerization degree from 1 to 10 could be optimized under the calcination of 340 ℃ for 1.0 h，which resulted with amorphous and porous-structure.The available phosphorus，calcium and magnesium were over 85%（mass fraction），which could be used as a new multi?element slow?release fertilizer.

Key words: wet?process phosphoric?acid slag, phosphate tailing, calcium magnesium polyphosphate, degree of polymerization, resource utilization

中图分类号:

TQ442.33

苗林平,许淼,王辛龙,严正娟,许德华,杨晶旭. 聚磷酸钙镁的制备研究[J]. 无机盐工业, 2022, 54(9): 63-68.

MIAO Linping,XU Miao,WANG Xinlong,YAN Zhengjuan,XU Dehua,YANG Jingxu. Study on preparation of calcium magnesium polyphosphate[J]. Inorganic Chemicals Industry, 2022, 54(9): 63-68.

图/表 9

表1

图1

图2

图3

图4

表2

图5

图6

图7

参考文献 18

[1]	JIANG Songyan， HUA Hui， SHENG Hu， et al.Phosphorus footprint in China over the 1961-2050 period:Historical perspective and future prospect[J].Science of the Total Environment，2019，650:687-695.
[2]	LIANG Haijun， ZHANG P， JIN Zhen， et al.Rare earth and phosphorus leaching from a flotation tailings of Florida phosphate ro⁃ ck[J].Minerals，2018，8（9）.Doi:10.3390/min8090416. doi: 10.3390/min8090416.
[3]	傅英.简述磷酸渣酸资源化利用技术研究[J].山东化工，2017，46（5）:151，154.
[4]	YANG Jingxu， KONG Xingjian， XU Dehua， et al.Evolution of the polydispersity of ammonium polyphosphate in a reactive extrusion process:Polycondensation mechanism and kinetics[J].Chemical Engineering Journal，2019，359:1453-1462.
[5]	WANG Xuewei， GAO Yanju， HU Baowei， et al.Comparison of the hydrolysis characteristics of three polyphosphates and their effects on soil phosphorus and micronutrient availability[J].Soil Use and Management，2019，35（4）:664-674.
[6]	凌浩瀚，王辛龙，许德华，等.不同聚合度水溶性聚磷酸铵螯合镁离子的研究[J].无机盐工业，2019，51（12）:20-22，34.
	LING Haohan， WANG Xinlong， XU Dehua， et al.Effect of water⁃soluble ammonium polyphosphate with different degree of polymerization on chelation of magnesium ion[J].Inorganic Chemicals Industry，2019，51（12）:20-22，34.
[7]	郑建国，于南树，刘永秀，等.磷酸活化磷尾矿制取聚合态钙镁磷肥的工艺条件研究[J].无机盐工业，2020，52（2）:43-46.
	ZHENG Jianguo， YU Nanshu， LIU Yongxiu， et al.Study on technological conditions of polymeric calcium magnesium phosphate fertilizer from phosphoric acid activated phosphate tailings[J].Inorganic Chemicals Industry，2020，52（2）:43-46.
[8]	CHANDRA P K， GHOSH K， VARADACHARI C.A new slow⁃releasing iron fertilizer[J].Chemical Engineering Journal，2009，155（1/2）:451-456.
[9]	尹伟，黄进，解田，等.磷酸高效分解磷矿实验研究[J].无机盐工业，2020，52（9）:34-36.
	YIN Wei， HUANG Jin， XIE Tian， et al.Experimental study on high efficiency decomposition of phosphate rock by phosphoric acid[J].Inorganic Chemicals Industry，2020，52（9）:34-36.
[10]	邵一鑫，张泽强，黄朝德，等.工业磷酸分解磷矿影响因素及副产物性质研究[J].无机盐工业，2019，51（6）:49-52.
	SHAO Yixin， ZHANG Zeqiang， HUANG Chaode， et al.Research on influencing factors of industrial phosphoric acid decomposing phosphate rock and properties of by⁃products[J].Inorganic Che⁃micals Industry，2019，51（6）:49-52.
[11]	YANG Jingxu， XIE Wenji， KONG Xingjian， et al.Reactive extrusion of ammonium polyphosphate in a twin-screw extruder:Polydispersity improvement[J].Chemical Engineering and Processing:Process Intensification，2018，133:58-65.
[12]	XIE Wenji， WANG Xinlong， LI Yongsheng， et al.Simultaneous determination of various phosphates in water⁃soluble ammonium polyphosphate[J].Chromatographia，2019，82（11）:1687-1695.
[13]	郑君花，王修俊，冯廷萃，等.利用磷尾矿生产含磷有机肥料的固体发酵研究[J].广东农业科学，2014，41（14）:61-65，79.
	ZHENG Junhua， WANG Xiujun， FENG Tingcui， et al.Study on solid⁃state fermentation of producing phosphorus⁃containingorga⁃
	nic fertilizer using phosphate tailings[J].Guangdong Agricultural Sciences，2014，41（14）:61-65，79.
[14]	WALTER G， VOGEL J， HOPPE U， et al.Structural study of magnesium polyphosphate glasses[J].Journal of Non-Crystalline Solids，2003，320（1/2/3）:210-222.
[15]	吴航，张丽芳，白威，等.聚合温度对聚磷酸钙聚合度及结构的影响[J].无机材料学报，2012，27（2）:174-178.
	WU Hang， ZHANG Lifang， BAI Wei， et al.Effect of polymerization temperature on polymerization degree and structure of calcium polyphosphate[J].Journal of Inorganic Materials，2012，27（2）:174-178.
[16]	CHEN Fangping， WANG Kai， LIU Changsheng.Crystalline structure and its effects on the degradation of linear calcium polyphosphate bone substitute[J].Applied Surface Science，2008，255（2）:270-272.
[17]	吕孝福，许德华，张志业，等.磷酸二氢铵-磷酸氢二铵-聚磷酸铵-水四元体系相平衡的实验与计算[J].过程工程学报，2021，21（1）:64-70.
	Xiaofu LÜ， XU Dehua， ZHANG Zhiye， et al.Experiment and calculation for phase equilibria in quaternary system of ammonium dihydrogen phosphate⁃diammonium hydrogen phosphate⁃ammonium polyphosphate⁃water[J].The Chinese Journal of Process Engineering，2021，21（1）:64-70.
[18]	WEEKS JR J J， HETTIARACHCHI G M.A review of the latest in phosphorus fertilizer technology:Possibilities and pragmatism[J].Journal of Environmental Quality，2019，48（5）:1300-1313.

原料	主要成分质量分数/%
原料	P₂O₅	CaO	MgO	SiO₂	Fe₂O₃	Al₂O₃	SO₃	CO₂	SO₄^2-	F
磷尾矿	7.41	32.99	15.35	6.36	0.70	0.57	1.53	31.64	—	0.87
磷酸渣	34.63	2.37	1.34	1.75	0.83	1.48	—	—	5.76	2.98

组成	w（P₂O₅）/%	w（CaO）/%	w（MgO）/%
总养分	52.15	17.12	8.24
水溶养分	5.26	4.96	1.35
有效养分	47.56	14.79	7.31
有效养分占总养分比例	91.21	86.38	88.71
