高效环保脱硫剂的制备及性能研究

doi:10.19964/j.issn.1006-4990.2021-0321

摘要/Abstract

摘要：

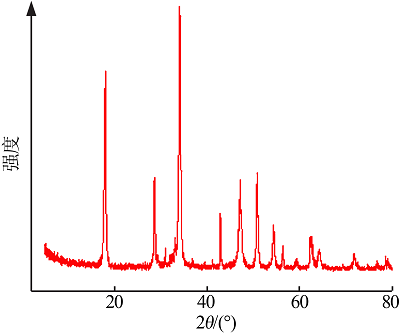

随着国家环保法规的升级,对烟气中二氧化硫排放浓度的限制越来越严格。传统干法脱硫剂的脱硫效率较低,因此提高干法脱硫剂的脱硫效率十分有意义。以氢氧化钙、稀土金属和碱土金属为原料制备了高效环保脱硫剂。通过X射线荧光光谱（XRF）、热重分析（TG）、扫描电镜（SEM）和透射电镜（TEM）等对3种氢氧化钙样品（A、B、C）进行了表征。表征结果表明：3种氢氧化钙的元素组成、氢氧化钙含量相近;氢氧化钙B的晶粒较大,表面六角棱状片层堆叠更为有序、紧密。自制高效环保脱硫剂脱硫后的X射线衍射（XRD）表征结果表明,稀土金属和碱土金属对氢氧化钙脱硫具有促进作用。脱硫实验结果表明：氢氧化钙B的脱硫效果较优;氢氧化钙B、稀土金属、碱土金属的质量比为95:2:3时,活性组分具有最佳的催化脱硫效果。自制的高效环保脱硫剂的脱硫性能优于市售产品,具有良好的市场前景。

关键词: 高效环保, 脱硫, 氢氧化钙

Abstract:

With the upgrading of national environmental protection regulation,the restriction on the emission concentration of sulfur dioxide in flue gas is becoming more and more strict.The desulfurization efficiency of traditional dry desulfurizer is low.Therefore,it is of great significance to improve the desulfurization efficiency of dry desulfurizer.Calcium hydroxide,rare earth metals and alkaline earth metals were used as raw materials to prepare efficient environmental protection desulfurizer.Three kinds of calcium hydroxide（A,B and C） were characterized by X-ray fluorescence spectroscopy（XRF）,thermogravi-metric analysis（TG）,scanning electron microscopy（SEM） and transmission electron microscopy（TEM）.The results showed that the element composition and calcium hydroxide content of the three kinds of calcium hydroxide were similar.The grain size of calcium hydroxide B was larger,and the stacking of hexagonal lamellae on the surface was more orderly and compact.The rare earth metals and alkaline earth metals could promote the desulfurization of calcium hydroxide.The results of desulfu-rization experiment showed that the desulfurization effect of calcium hydroxide B was better.When the mass ratio of calcium hydroxide B,rare earth metals and alkaline earth metals was 95:2:3,the active component had the best catalytic desulfuriza-tion effect.The desulfurization performance of self-made high efficiency and environmental protection desulfurizer was better than that of market products,which had a good market prospect.

Key words: high efficiency and environmental protection, desulfurization, calcium hydroxide

中图分类号:

TQ132.32

苏少龙,曲晓龙,孙彦民,钟读乐,南军,郝子全. 高效环保脱硫剂的制备及性能研究[J]. 无机盐工业, 2022, 54(3): 77-81.

SU Shaolong,QU Xiaolong,SUN Yanmin,ZHONG Dule,NAN Jun,HAO Ziquan. Study on preparation and performance of high efficient and environmental friendly desulfurizer[J]. Inorganic Chemicals Industry, 2022, 54(3): 77-81.

图/表 10

表1

图1

表2

图2

图3

图4

图5

表3

表4

表5

参考文献 16

[1]	李天喜. 新型催化干法脱硫技术的试验与应用[J]. 河北冶金, 2019,增刊(1):96-99.
[2]	苏清发, 陈永瑞, BOB Jewell, 等. 超细干法脱硫灰在水泥混凝土中的应用研究[J]. 新型建筑材料, 2019, 46(12):1-4,54.
[3]	王俊杰, 李艳玲, 房晶瑞. 水泥窑干法脱硫技术的新突破[J]. 水泥, 2019(8):46-49.
[4]	于斌, 王爱, 孙洪斌, 等. 循环流化床半干法脱硫装置烟道流场模拟优化[J]. 洁净煤技术, 2020, 26(3):75-81.
[5]	朱顺冬, 周冠辰, 古俊飞, 等. 半干法脱硫针刺复合滤料的性能研究[J]. 河南工程学院学报:自然科学版, 2019, 31(2):27-31.
[6]	胡海龙, 胡潘辉. 电石渣制粉在锅炉炉外半干法脱硫中的应用[J]. 大氨肥, 2019, 42(4):287-288.
[7]	LI Y, QI H Y, YOU C F, et al. Kinetic model of CaO/fly ash sorbent for flue gas desulphurization at moderate temperature[J]. Fuel, 2007, 86(5/6):785-792. doi: 10.1016/j.fuel.2006.09.011
[8]	李晨朗, 冀秉强, 宋蔷, 等. 湿法脱硫喷淋除尘过程的数值模拟[J]. 中国电机工程学报, 2019, 39(4):1070-1078.
[9]	马双忱, 别璇, 孙尧, 等. 湿法脱硫烟气水回收技术研究进展[J]. 洁净煤技术, 2019, 25(1):64-70.
[10]	马双忱, 周权, 曹建宗, 等. 湿法脱硫系统动态过程建模与仿真[J]. 化工学报, 2020, 71(8):3741-3751.
[11]	CÓRDOBA P. Status of flue gas desulphurization(FGD) systems from coal-fired power plants:Overview of the physic-chemical con-trol processes of wet limestone FGDs[J]. Fuel, 2015, 144:274-286. doi: 10.1016/j.fuel.2014.12.065
[12]	MEIJ R, WINKEL B T. The emissions and environmental impact of PM10 and trace elements from a modern coal-fired power plant equipped with ESP and wet FGD[J]. Fuel Processing Technology, 2004, 85(6):641-656. doi: 10.1016/j.fuproc.2003.11.012
[13]	肖亚. 石质文物用纳米氢氧化钙粉体制备及其在云冈石窟的应用[D]. 哈尔滨:哈尔滨工业大学, 2012.
[14]	李春花, 王华, 胡建杭, 等. Fe₂O₃强化CaO粉末中温烟气脱硫的研究[J]. 应用化工, 2006, 35(2):92-95.
[15]	张世超, 魏建森, 潘敏子. 单分子层二氧化铈脱硫机理研究[J]. 上海环境科学, 1998, 17(2):30-32.
[16]	路八智, 李燕梅, 魏占鸿, 等. 氧化镁法烟气脱硫特性及运行情况综述[J]. 环境污染与防治, 2018, 40(3):345-348.

氢氧化钙	主要元素组成及含量（以氧化物质量分数计）/%
氢氧化钙	CaO	Na₂O	MgO	Al₂O₃	SiO₂
A	72.1	0.192	0.622	0.649	1.590
B	73.2	0.393	0.623	0.095	0.167
C	72.4	0.592	0.623	0.645	0.184

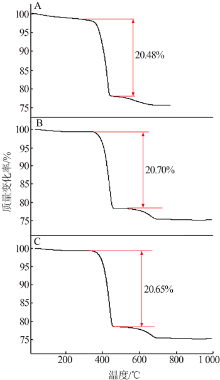

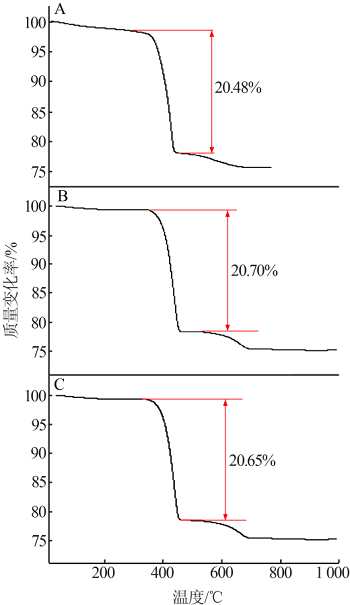

氢氧化钙	w（失水）/%	w（氢氧化钙）/%	w（氧化钙）/%
A	20.48	84.2	63.72
B	20.70	85.1	64.40
C	20.65	84.9	64.25

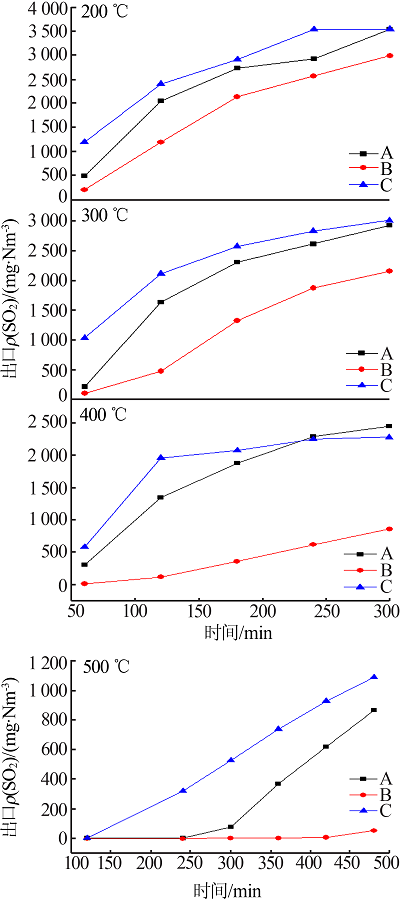

温度/ ℃	60 min出口ρ（SO₂）/（mg·Nm^-3）			300 min出口ρ（SO₂）/（mg·Nm^-3）
温度/ ℃	A	B	C	A	B	C
200	500.0	214.3	1 205.2	3 542.8	2 994.3	3 548.6
300	300.0	105.7	1 042.8	2 940.0	2 162.8	3 022.8
400	214.3	5.7	580.0	2 451.0	857.1	2 282.8
500	0.0	0.0	0.0	80.0	2.8	528.6

编号	脱硫剂各组分质量分数/%			脱硫率/ %
编号	氢氧化钙B	稀土金属	碱土金属	脱硫率/ %
1	100	0	0	86.4
2	95	1	4	94.8
3	95	2	3	98.8
4	95	3	2	97.6
5	95	4	1	95.8
6	90	2	8	94.2
7	90	4	6	97.4
8	90	6	4	96.2
9	90	8	2	95.6

脱硫剂	脱硫率/%
北京某厂条形脱硫剂	93.2
山东某厂条形脱硫剂	88.7
自制脱硫剂	98.8
