铬铁渣制备抗收缩超高性能混凝土及其微观结构研究

doi:10.19964/j.issn.1006-4990.2024-0601

Abstract

Abstract:

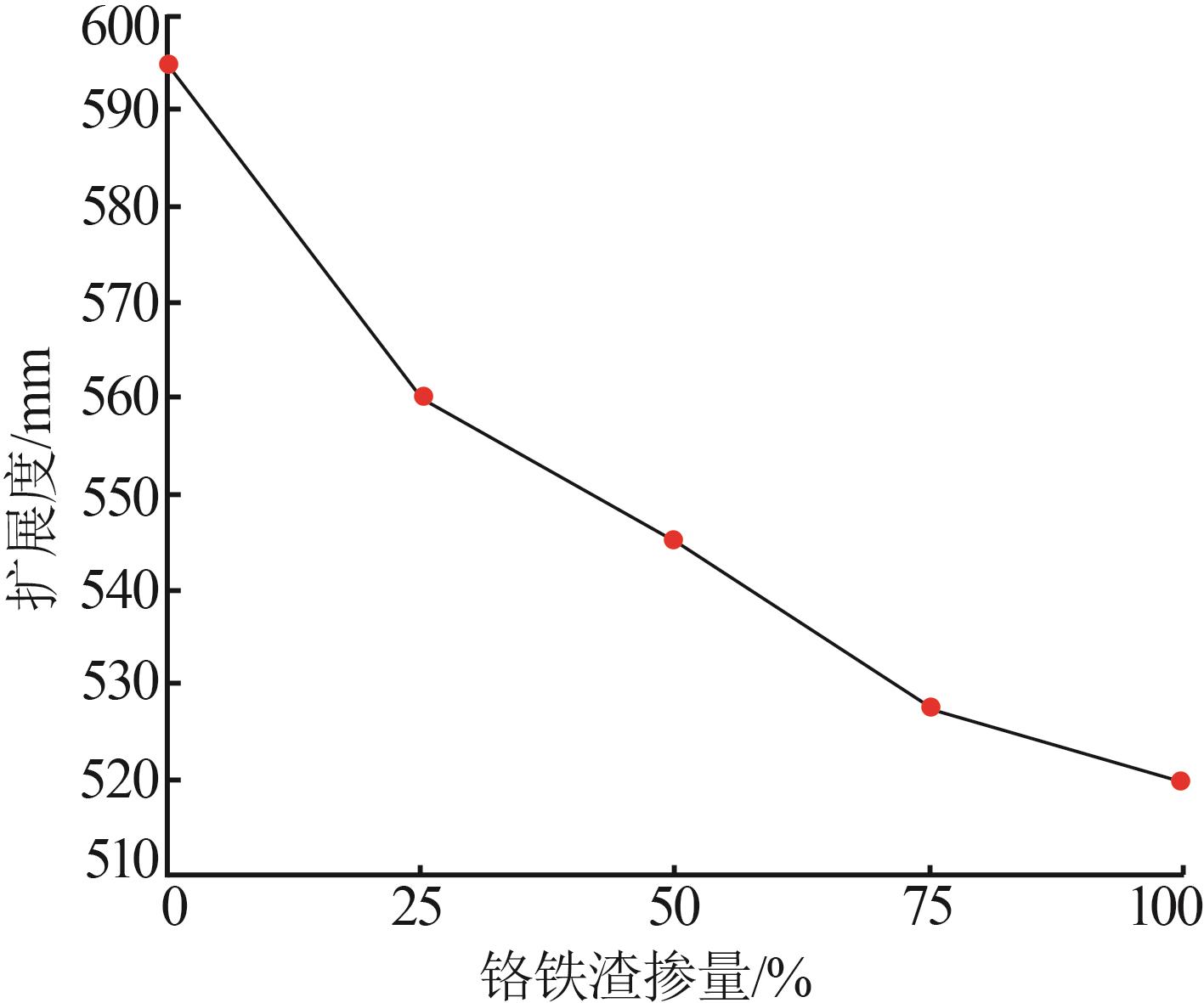

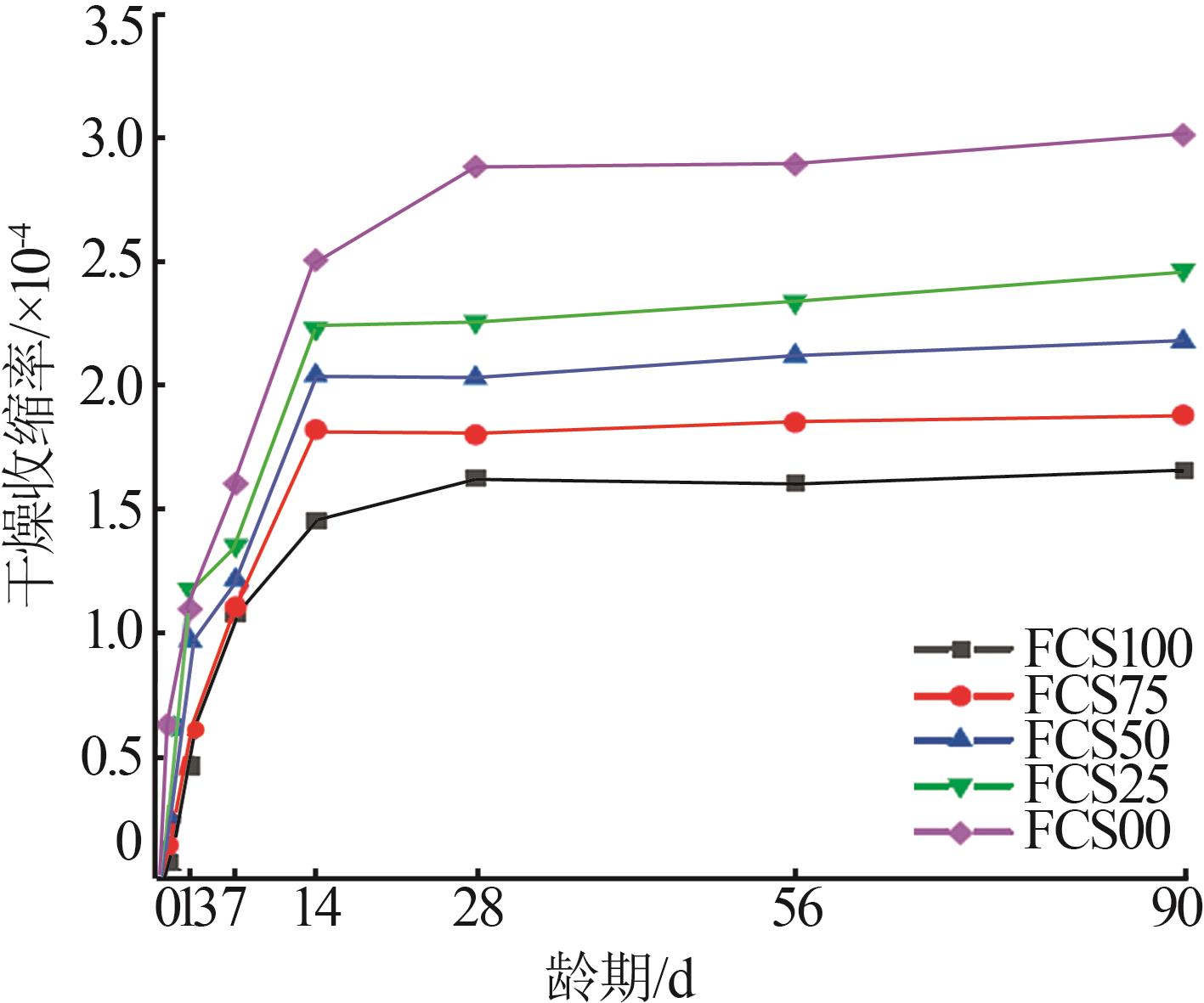

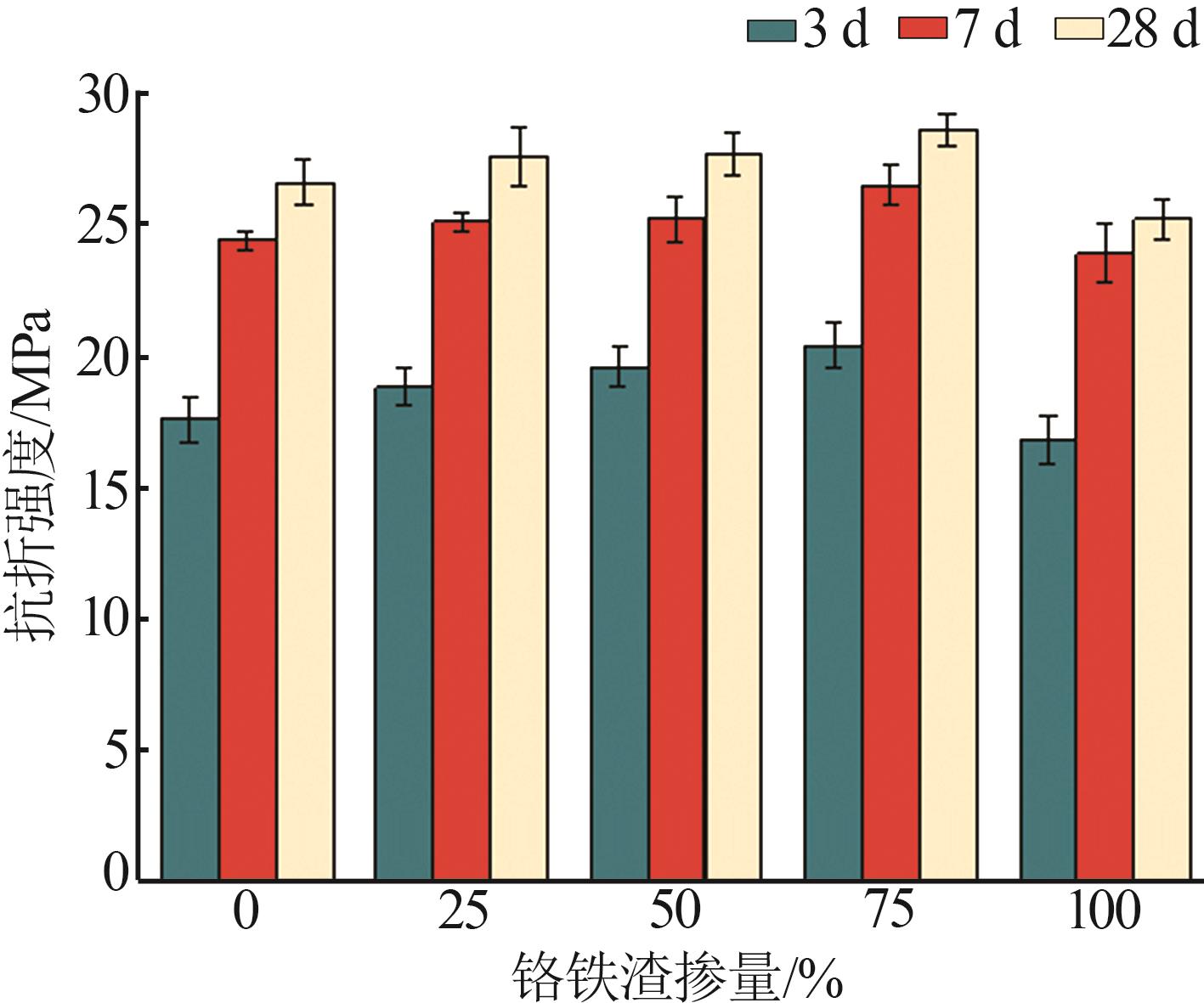

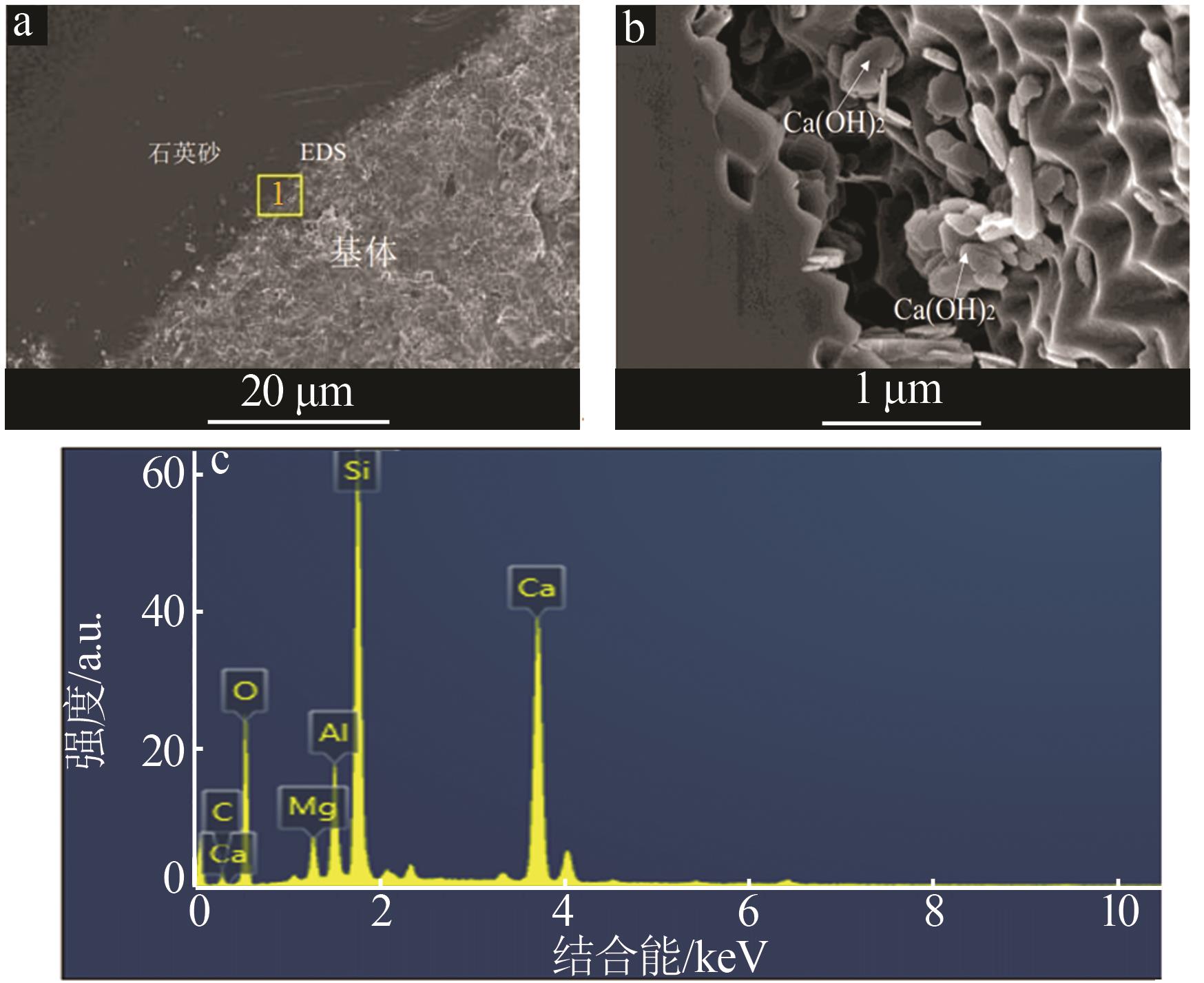

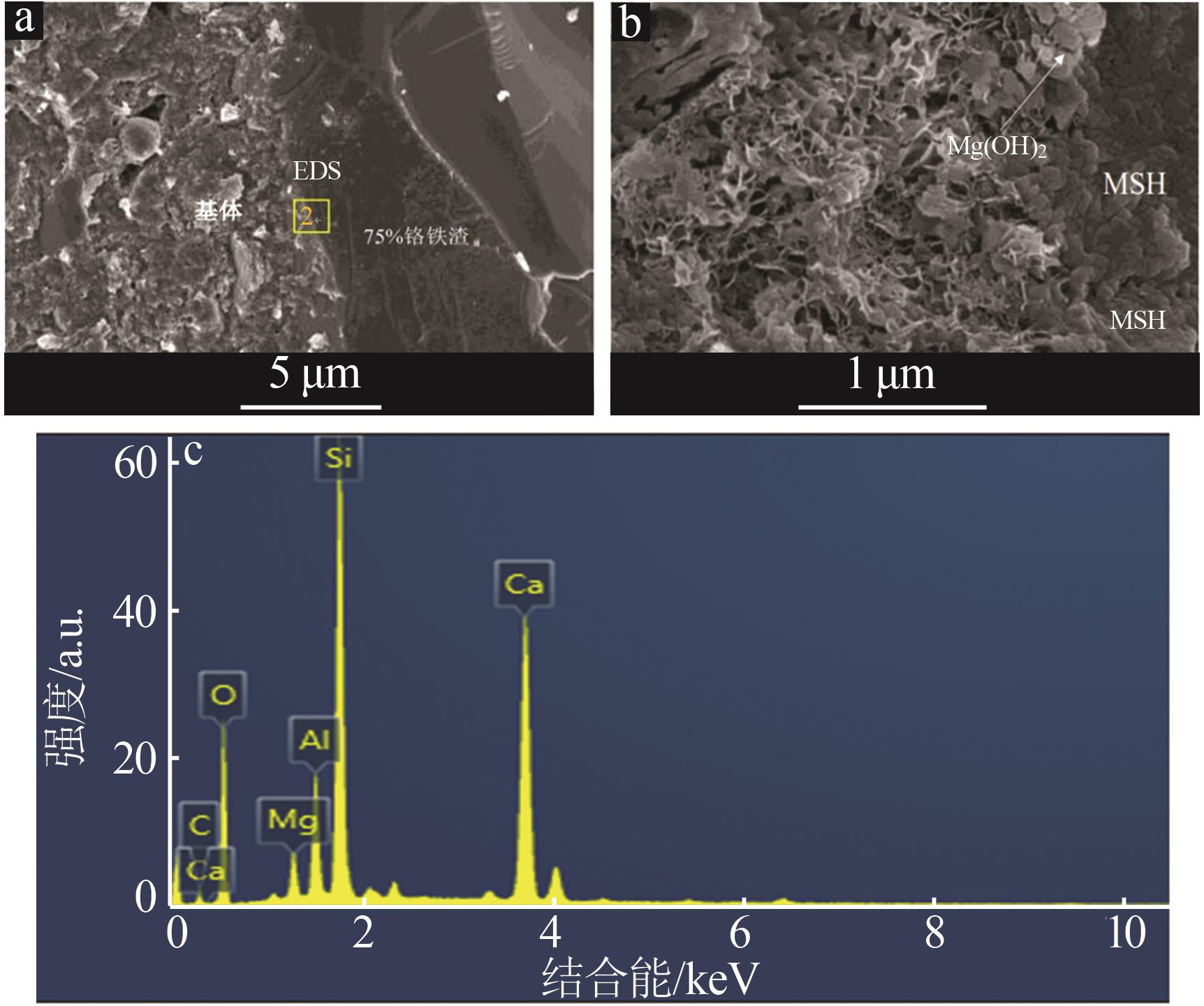

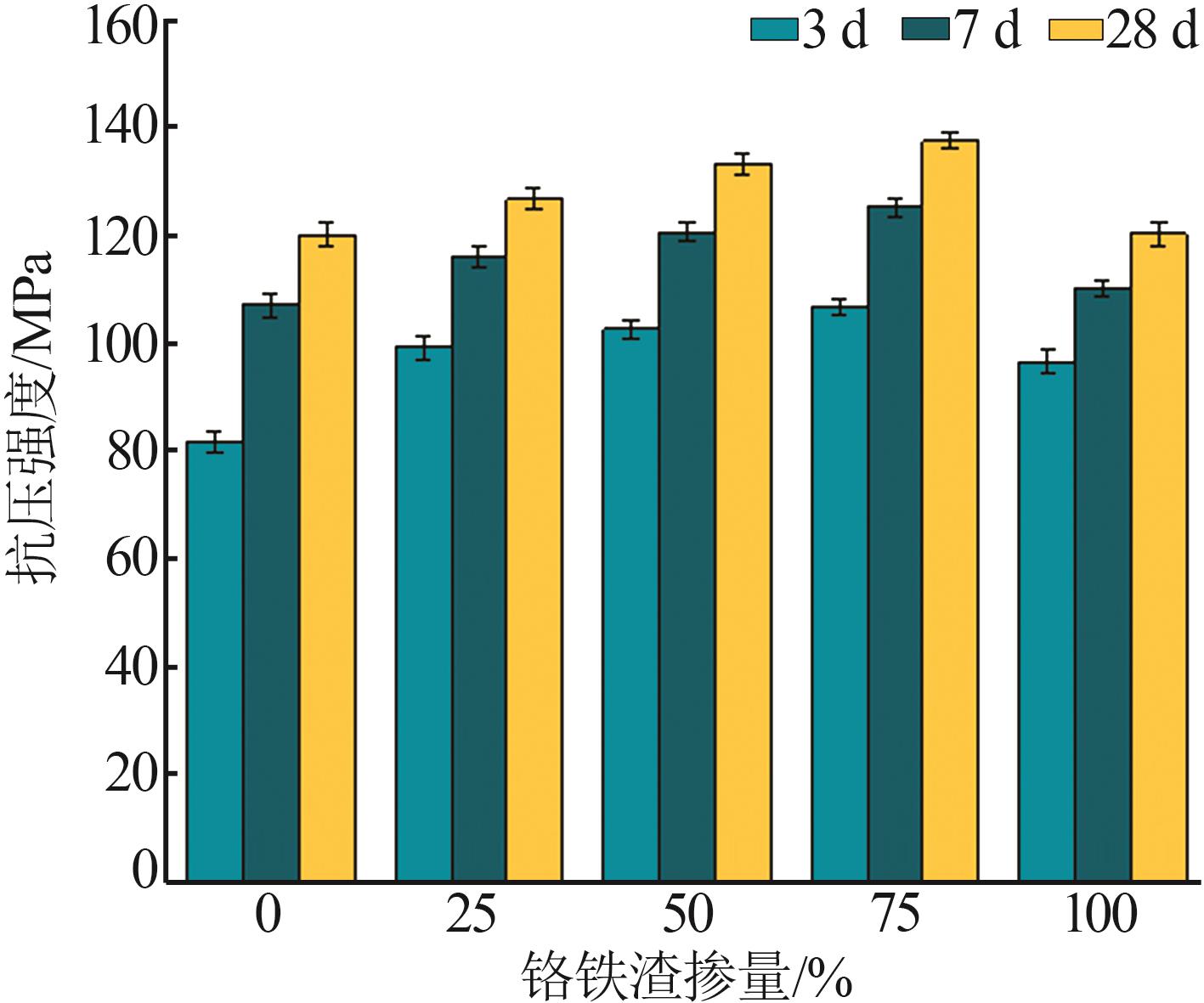

Ferrochrome slag micropowder and ferrochrome slag aggregate were used to prepare ferrochrome slag ultra-high-performance concrete（FCS-UHPC） by replacing part of the cement and quartz sand，which helped to make up for the lack of natural aggregates and reduce the cost of UHPC as well as the carbon emissions of the production process.In this experiment，FCS-UHPC with different amounts of ferrochrome slag substitution（0~100%） were prepared，and the working performance test，mechanical performance test and shrinkage performance test were also carried out，and its microstructure was analyzed by scanning electron microscope SEM and EDS energy spectroscopy test.The results showed that the ductility of FCS-UHP was decreased with the increase of the replacement rate of ferrochromium slag aggregate.When the replacement rate of ferrochromium slag aggregate was 75%，the mechanical properties of FCS75 were the best in 28 d and its compressive and flexural strengths reached 137.6 MPa and 28.6 MPa.In addition，the concrete had the densest internal microstructure，and there were hydrated products of magnesium in the matrix，which produced magnesium hydroxide（MH） and hydrated magnesium silicate gel （MSH）.Moreover，when the replacement rate of ferrochrome slag aggregate was 100%，the self-shrinkage and drying shrinkage of FCS100 were the lowest，which were 4.13×10^-4 and 1.65×10^-4，respectively，and were reduced by 46.2% and 45.4%，respectively，compared with the baseline group，which indicated that ferrochrome slag aggregate could significantly improve the self-shrinkage and drying shrinkage of UHPC.

Key words: ferrochrome slag, ultra-high performance concrete, shrinkage properties, mechanical properties, microstructure

CLC Number:

TQ136.1

HANG Meiyan, SONG Hongbin, LIU Jiaqi. Study on preparation of shrinkage-resistant ultra-high performance concrete from ferrochrome slag and its microstructure[J]. Inorganic Chemicals Industry, 2025, 57(12): 92-98.

Figures/Tables 15

Table 1

Table 2

Fig.1

Fig.2

Table 3

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Table 4

Fig.8

Fig.9

Fig.10

Fig.11

References 17

[1]	XU Wenxiang， JIA Mingkun， GUO Weiqi，et al.GPU-based discrete element model of realistic non-convex aggregates：Mesosco-pic insights into ITZ volume fraction and diffusivity of concrete［J］.Cement and Concrete Research，2023，164：107048.
[2]	ZHANG Chaoyang， ZHANG Shangfeng， YU Jianwei，et al.Water absorption behavior of hydrophobized concrete using silane emulsion as admixture［J］.Cement and Concrete Research，2022，154：106738.
[3]	PRADHAN S， TIWARI B R， KUMAR S，et al.Comparative LCA of recycled and natural aggregate concrete using Particle Packing Method and conventional method of design mix［J］.Journal of Cleaner Production，2019，228：679-691.
[4]	PANDA C R， MISHRA K K， PANDA K C，et al.Environmental and technical assessment of ferrochrome slag as concrete aggregate material［J］.Construction and Building Materials，2013，49：262-271.
[5]	DASH M K， PATRO S K.Effects of water cooled ferrochrome slag as fine aggregate on the properties of concrete［J］.Construction and Building Materials，2018，177：457-466.
[6]	ISSA FARES A， SOHEL K MD ABU， AL-JABRI K，et al.Influence of ferrochrome slag as coarse and fine aggregates on thermal and strength properties of concrete at high temperatures［J］.Construction and Building Materials，2023，400：132807.
[7]	杭美艳，彭雅娟，路兰，等.基于铬铁渣骨料与水泥浆体界面结构的改性研究与机理分析［J］.无机盐工业，2020，52（12）：75-79，108.
	HANG Meiyan， PENG Yajuan， LU Lan，et al.Modification study and mechanism analysis on interface structure between ferrochromium slag aggregate and cement paste［J］.Inorganic Chemicals Industry，2020，52（12）：75-79，108.
[8]	王杰朝.铬铁渣混凝土的制备及其抗硫酸盐侵蚀性能研究［D］.包头：内蒙古科技大学，2023.
	WANG Jiezhao.Research on preparation of ferrochrome slag concrete and its sulfate attack resistance ［D］.Baotou：Inner Mongolia University of Science and Technology，2023.
[9]	DONG Enlai， YU Rui， FAN Dingqiang，et al.Absorption-desorption process of internal curing water in ultra-high performance concrete（UHPC） incorporating pumice：From relaxation theory to dynamic migration model［J］.Cement and Concrete Composites，2022，133：104659.
[10]	WANG Xinpeng， YU Rui， SONG Qiulei，et al.Optimized design of ultra-high performance concrete（UHPC） with a high wet packing density［J］.Cement and Concrete Research，2019，126：105921.
[11]	ZHU Yuanyuan， RONG Zhidan， JIAO Maopeng，et al.Valorization and enhancement mechanism of ferrochrome slag as aggregate for manufacturing ultra-high performance concrete（UHPC）［J］.Cement and Concrete Composites，2023，144：105298.
[12]	ZAIN M F M， MAHMUD H B， ILHAM A，et al.Prediction of splitting tensile strength of high-performance concrete［J］.Cement and Concrete Research，2002，32（8）：1251-1258.
[13]	杭美艳，程腾，曲树强，等.风积砂和铬铁渣对UHPC收缩性能的影响［J］.混凝土，2023（6）：1-5.
	HANG Meiyan， CHENG Teng， QU Shuqiang，et al.Research on the shrinkage performance of UHPC by aeolian sand and ferrochrome slag［J］.Concrete，2023（6）：1-5.
[14]	张云升，张国荣，李司晨.超高性能水泥基复合材料早期自收缩特性研究［J］.建筑材料学报，2014，17（1）：19-23.
	ZHANG Yunsheng， ZHANG Guorong， LI Sichen.Study on early autogenous shrinkage of ultra-high performance cementitous composite［J］.Journal of Building Materials，2014，17（1）：19-23.
[15]	MANIGANDAN N， PONMALAR V.M5 investigation on ternary binder incorporated with ferrochrome slag aggregate in concre- te［J］.Applied Nanoscience，2022，12（12）：3925-3944.
[16]	MANIGANDAN N， PONMALAR V.M100 concrete probing on quinary cementitious matrix incorporated with industrial ferrochrome slag sand［J］.Construction and Building Materials，2024，420：135478.
[17]	ZHANG Tingting， VANDEPERRE L J， CHEESEMAN C R.Formation of magnesium silicate hydrate（M-S-H） cement pastes using sodium hexametaphosphate［J］.Cement and Concrete Research，2014，65：8-14.

化学成分	w （CaO）/%	w （SiO₂）/%	w （Al₂O₃）/%	w （Fe₂O₃）/%	w （MgO）/%	w （SO₃）/%	w （Cr₂O₃）/%	w （损失量）/%	比表面积/ （m²·g^-1）	28 d活性指数/%
P·O52.5水泥	52.52	28.60	9.67	3.86	2.08	2.38	0	0.89	0.414
铬铁渣微粉	3.87	33.01	23.48	3.74	25.80	0.96	8.06	1.08	0.515	76
偏高岭土	0.14	55.08	43.11	0.78	0.16	0	0	0.73	0.765	106
硅灰	0.26	89.87	1.65	2.52	3.17	0	0	2.53	22.205	114

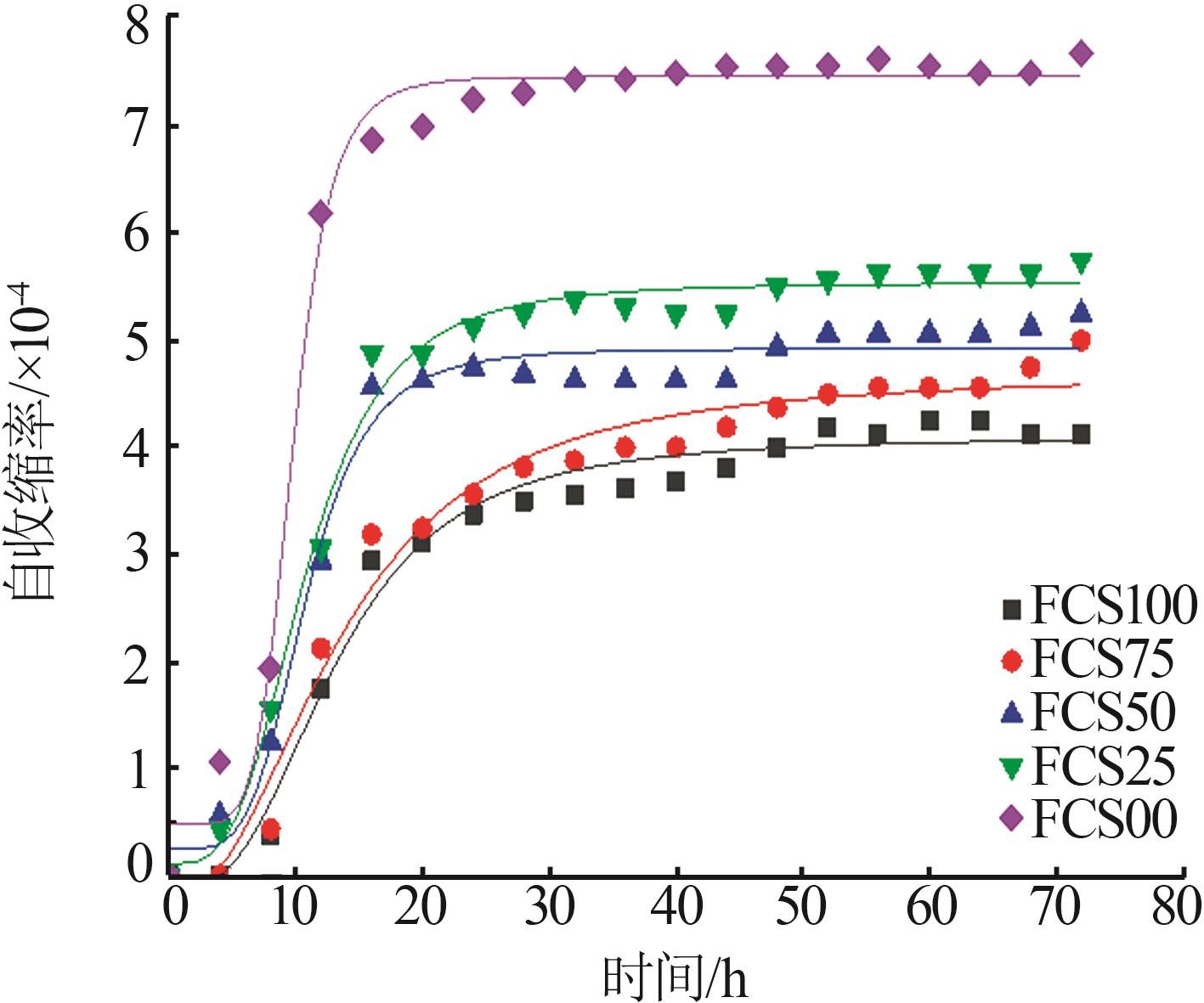

组别	a/×10^-6	b/×10^-6	x₀/h	p	R²
FCS00	48.49	746.34	9.74	6.27	0.990
FCS25	11.47	554.16	10.79	3.40	0.991
FCS50	24.73	492.29	10.81	4.42	0.982
FCS75	-21.25	468.67	13.55	2.28	0.977
FCS100	-14.08	409.93	13.16	2.84	0.984
