硅酸铁钠光催化剂的表面调控及光还原除Cr（Ⅵ）性能研究

doi:10.19964/j.issn.1006-4990.2024-0104

摘要/Abstract

摘要：

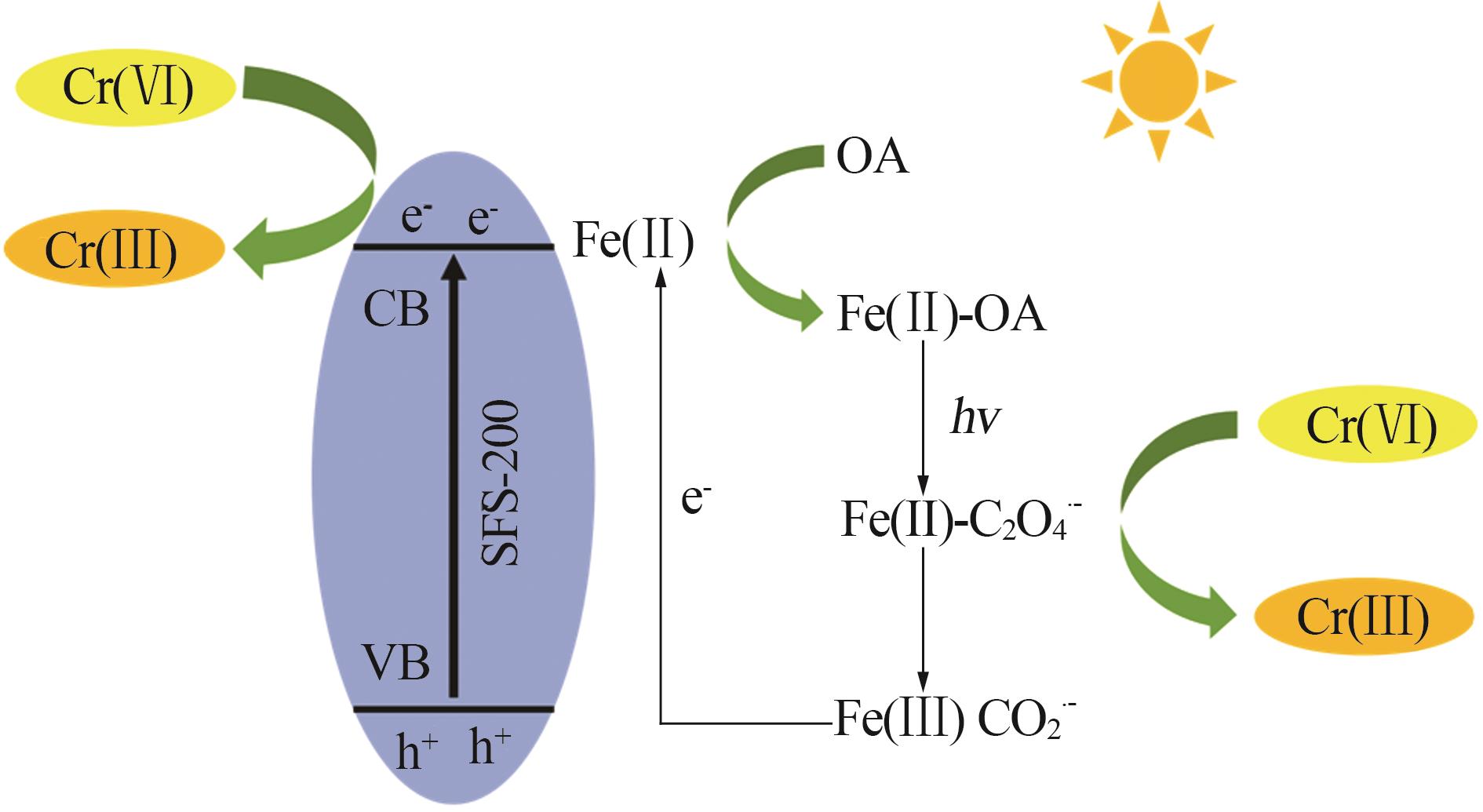

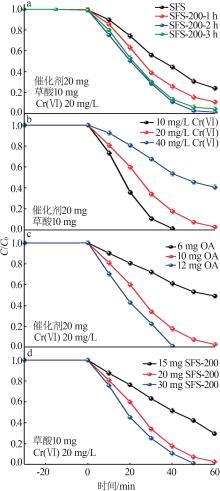

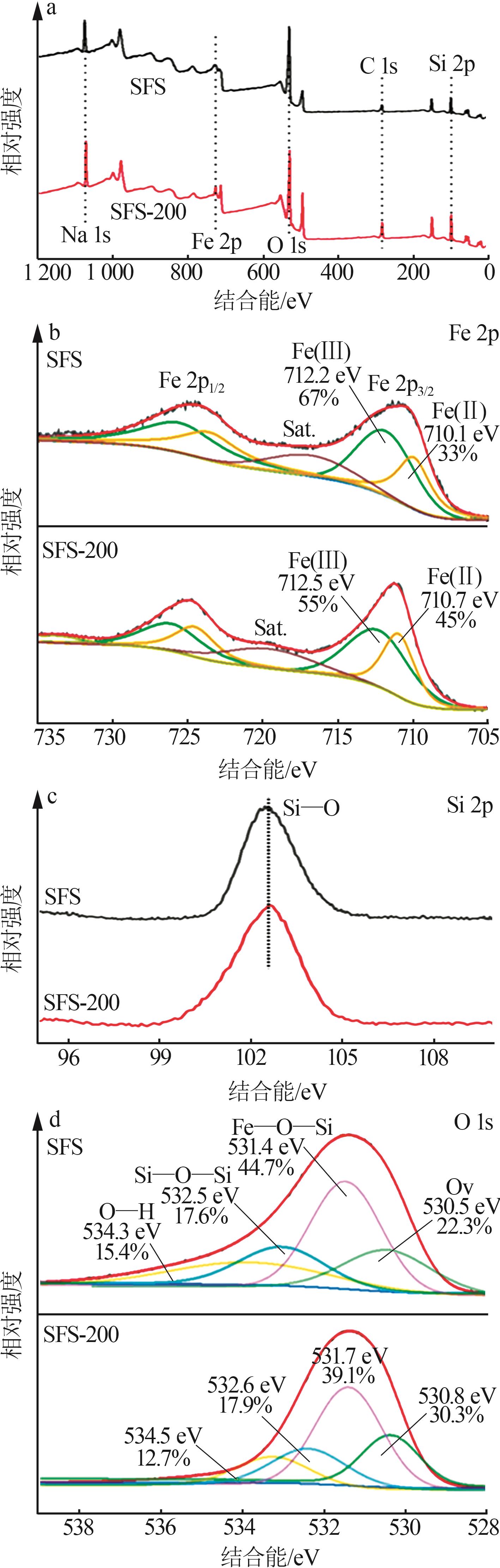

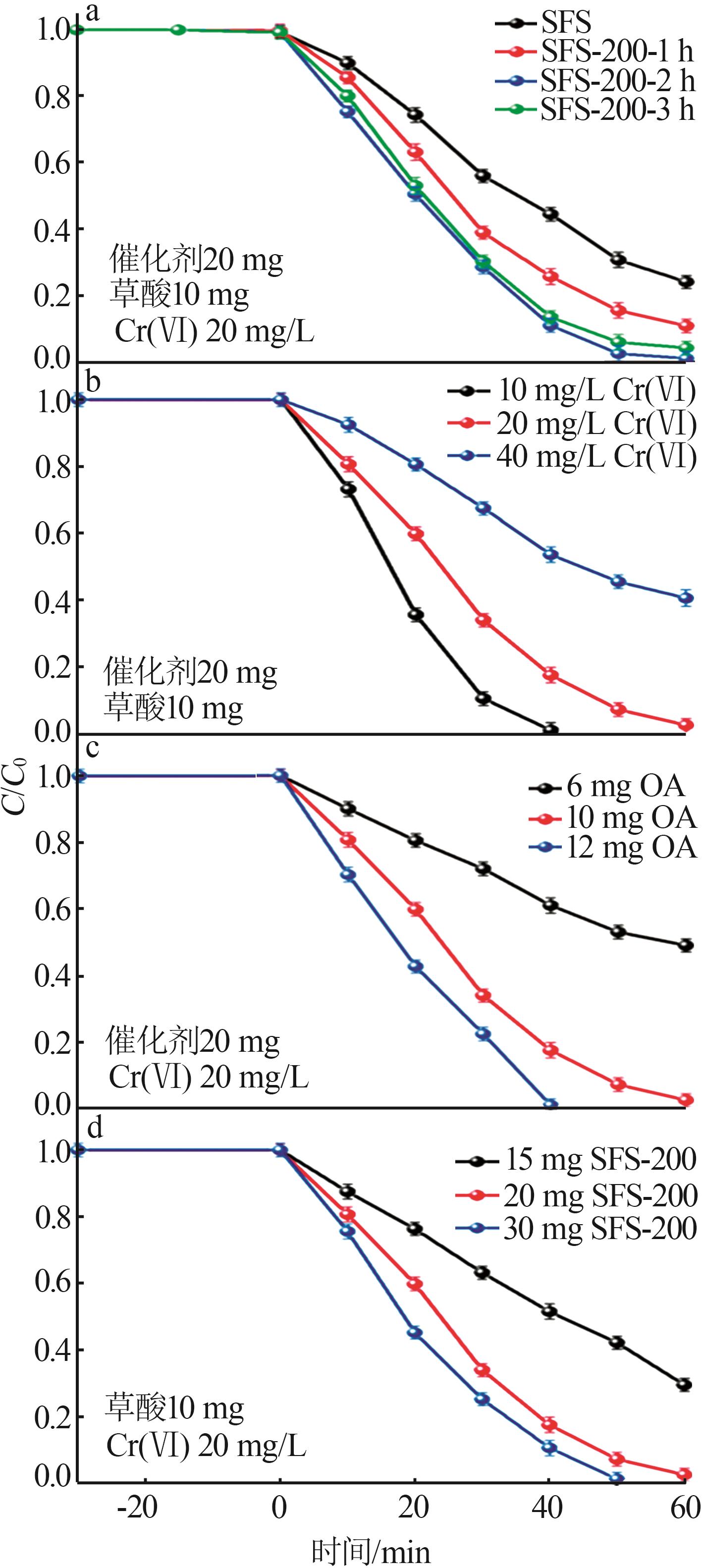

绿色、价廉、稳定的硅酸盐类光催化剂是当前研究热点之一。硅酸铁钠（NaFeSi₂O₆，SFS）是一种链式硅酸盐，组成元素简单，能够吸收可见光，因而受到人们的关注。首先通过水热方法合成原始SFS粉末，而后经热还原过程调控SFS表面的微结构与Fe（Ⅲ）/Fe（Ⅱ）比率，制备出最优的改性SFS用于Cr（Ⅵ）还原。研究发现，经过200 ℃热还原之后的SFS-200，比表面积增大了43%、孔体积增大到0.081 cm³/g、Fe（Ⅱ）占比从33%提高到45%，显著提高了其对Cr（Ⅵ）的催化还原活性。同时，探究了SFS-200催化剂用量、还原时间、草酸助剂用量、Cr（Ⅵ）浓度等因素对催化性能的影响。分析发现，催化体系中Fe（Ⅱ）-C₂O₄^•-是主要活性物质，维持Fe（Ⅲ）-Fe（Ⅱ）的化学循环以增强SFS-200的Cr（Ⅵ）高效光还原去除能力。该研究提供了一条制备高性能硅酸铁钠光催化剂用于Cr（Ⅵ）污水净化的有效途径，具有较大的应用潜力。

关键词: 硅酸铁钠, 光催化, Cr（Ⅵ）

Abstract:

Silicate⁃based catalysts have become the focus of current research because of their green，low⁃cost and stable characteristics.Sodium ferric silicate（NaFeSi₂O₆，SFS） is a chain silicate with simple composition and ability to absorb visible light，which has attracted people's attention.Firstly，the original SFS powder was synthesized by hydrothermal method，and then the microstructure and Fe（Ⅲ）/Fe（Ⅱ） ratio of the SFS surface were regulated by thermal reduction process to prepare the optimal modified SFS for Cr（Ⅵ） reduction.It was found that after thermal reduction at 200 ℃，the specific surface area of SFS-200 was increased by 43%，the pore volume was increased to 0.081 cm³/g，and the proportion of Fe（Ⅱ） was increased from 33% to 45%，significantly improving its catalytic reduction activity towards Cr（Ⅵ）.Meanwhile，the effects of SFS-200 catalyst dosage，reduction time，oxalic acid promoter dosage，Cr（Ⅵ） concentration，and other factors on catalytic performance were investigated.It was found that Fe（Ⅱ）-C₂O₄^•- was the main active substance in the catalytic system，maintaining the chemical cycle of Fe（Ⅲ）-Fe（Ⅱ） to enhance the efficient photo reduction removal ability of Cr（Ⅵ） by SFS-200.This study provided an effective way to prepare high⁃performance sodium ferric silicate photocatalyst for Cr（Ⅵ） wastewater purification，which had great potential for application.

Key words: sodium ferric silicate, photocatalysis, Cr（Ⅵ）

中图分类号:

TQ136.11

严钰, 周文元, 杨韵斐, 吴俊书, 王金淑, 孙领民. 硅酸铁钠光催化剂的表面调控及光还原除Cr（Ⅵ）性能研究[J]. 无机盐工业, 2024, 56(10): 141-150.

YAN Yu, ZHOU Wenyuan, YANG Yunfei, WU Junshu, WANG Jinshu, SUN Lingmin. Study on surface regulation of sodium ferric silicate photocatalyst and its enhanced Cr（Ⅵ） photoreduction properties[J]. Inorganic Chemicals Industry, 2024, 56(10): 141-150.

图/表 9

图1

图2

表1

图3

图4

图5

图6

图7

图8

参考文献 29

1	LI Jiahao， XIA Chenggong， CHENG Rong，et al.Passivation of multiple heavy metals in lead⁃zinc tailings facilitated by straw biochar⁃loaded N-doped carbon aerogel nanoparticles：Mechanisms and microbial community evolution［J］.The Science of the Total Environment，2022，803：149866.
2	WU Bingdang， ZHANG Li， WEI Shijie，et al.Reduction of chromate with UV/diacetyl for the final effluent to be below the discharge limit［J］.Journal of Hazardous Materials，2020，389：121841.
3	ZHU Pengfei， WU Xiaolong， XIAO Xingyang，et al.Construction of Bi₁₂O₁₇Cl₂/ZnO-CN Z-scheme photocatalyst with ZIF-8 as precursor to remove antibiotics and Cr（Ⅵ） under visible light：Optimization，mechanism and degradation path［J］.Journal of Alloys and Compounds，2023，966：171513.
4	CHEN Dongjie， CHENG Yanling， ZHOU Nan，et al.Photocatalytic degradation of organic pollutants using TiO₂-based photocatalysts：A review［J］.Journal of Cleaner Production，2020，268：121725.
5	WANG Chen， LIU Haiyan， WANG Guifang，et al.Photocatalytic removal of metronidazole and Cr（Ⅵ） by a novel Zn₃In₂S₆/Bi₂O₃ S-scheme heterojunction：Performance，mechanism insight and toxicity assessment［J］.Chemical Engineering Journal，2022，450：138167.
6	ZHAO Yitao， LI Le， ZUO Yuanjie，et al.Reduced graphene oxide supported ZnO/CdS heterojunction enhances photocatalytic remo⁃val efficiency of hexavalent chromium from aqueous solution［J］.Chemosphere，2022，286（Pt 3）：131738.
7	LI Kexin， HUANG Ziai， ZHU Suiyi，et al.Removal of Cr（Ⅵ） from water by a biochar⁃coupled g-C₃N₄ nanosheets composite and performance of a recycled photocatalyst in single and combined pollution systems［J］.Applied Catalysis B：Environmental，2019，243：386-396.
8	XU Meng， WU Junshu， WANG Jinshu，et al.The integration of triazine⁃based porous organic polymer with bio⁃waste poplar catkin as water⁃floatable photocatalyst［J］.Applied Surface Science，2022，581：152409.
9	SUN Lingmin， WU Junshu， WANG Jinshu，et al. In-situ constructing nanostructured magnesium ferrite on steel slag for Cr（Ⅵ） photoreduction［J］.Journal of Hazardous Materials，2022，422：126951.
10	SUN Jie， CAO Fengming， ZHANG Ling，et al.The low⁃cost and high⁃efficient photoreduction of Cr（Ⅵ） by oxalic acid synergized with the iron⁃loaded rice straw［J］.Journal of Molecular Liquids，2022，351：118552.
11	HE Heng， LI Yongli， WANG Jinshu，et al.Tunable Fe-deficiency modified sodium ferric silicate for improving photo⁃Fenton⁃like activity［J］.Chemical Engineering Journal，2022，450：138141.
12	WANG Longyang， ZHANG Kejie， QIAN Jianying，et al.S-schemeMOF-on-MOF heterojunctions for enhanced photo⁃Fenton Cr（Ⅵ）reduction and antibacterial effects［J］.Chemosphere，2023，344：140277.
13	WEN Jiaxin， FU Wenyang， DING Shihu，et al.Pyrogallic acid modified nanoscale zero⁃valent iron efficiently removed Cr（Ⅵ） by improving adsorption and electron selectivity［J］.Chemical Engineering Journal，2022，443：136510.
14	CHEN Yongjun， MA Rui， PU Xunchi，et al.The characterization of a novel magnetic biochar derived from sulfate⁃reducing sludge and its application for aqueous Cr（Ⅵ） removal through synergistic effects of adsorption and chemical reduction［J］.Chemosphere，2022，308（Pt 1）：136258.
15	YAN Yu， WU Junshu， WANG Jinshu，et al.Rationally engineering magadiite heavy metal adsorbent for p-nitrophenol hydrogenation reduction［J］.Applied Clay Science，2023，245：107143.
16	LI Shijie， WANG Chunchun， LIU Yanping，et al.S-scheme MIL-101（Fe） octahedrons modified Bi₂WO₆ microspheres for photocatalytic decontamination of Cr（Ⅵ） and tetracycline hydrochloride：Synergistic insights，reaction pathways，and toxicity analy⁃sis［J］.Chemical Engineering Journal，2023，455：140943.
17	ZHOU Shiliang， ZEIER W G， KEMEI M C，et al.Hydrothermal preparation and magnetic properties of NaFeSi₂O₆：Nanowires vs bulk samples［J］.Inorganic Chemistry，2014，53（23）：12396-12401.
18	LIU Huanhuan， TIAN Kunfei， NING Jiqiang，et al.One⁃step solvothermal formation of Pt nanoparticles decorated Pt²⁺-dopedα-Fe₂O₃ nanoplates with enhanced photocatalytic O₂ evolution［J］.ACS Catalysis，2019，9（2）：1211-1219.
19	IBRAHIM I， KALTZOGLOU A， ATHANASEKOU C，et al.Magnetically separable TiO₂/CoFe₂O₄/Ag nanocomposites for the photocatalytic reduction of hexavalent chromium pollutant under UV and artificial solar light［J］.Chemical Engineering Journal，2020，381：122730.
20	KATABATHINI N， MAKSOD I H A EL， MOKHTAR M.Cu，Fe and Mn oxides intercalated SiO₂ pillared magadiite and ilerite catalysts for NO decomposition［J］.Applied Catalysis A：General，2021，616：118100.
21	Zengqiang CI， YUE Yanxue， XIAO Jingting，et al.Spectroscopic and modeling investigation of U（Ⅵ） removal mechanism on nanoscale zero⁃valent iron/clay composites［J］.Journal of Colloid and Interface Science，2023，630：395-403.
22	BAO Chaosheng， WANG Hu， WANG Caiyun，et al.Cooperation of oxygen vacancy and FeⅢ/FeⅡ sites in H₂-reduced Fe-MIL-101 for enhanced Fenton⁃like degradation of organic pollutan⁃ts［J］.Journal of Hazardous Materials，2023，441：129922.
23	LIU Zishuai， HUANG Jing， ZHANG Yimin，et al.Separation and recovery of iron impurities from a complex oxalic acid solution containing vanadium by K₃Fe（C₂O₄）₃·3H₂O crystallization［J］.Separation and Purification Technology，2020，232：115970.
24	WU Junshu， WANG Jinshu， DU Yucheng，et al.Chemically controlled growth of porous CeO₂ nanotubes for Cr（Ⅵ） photoreduction［J］.Applied Catalysis B：Environmental，2015，174-175：435-444.
25	LEI Dashi， XUE Juanqin， PENG Xiangyu，et al.Oxalate enhanced synergistic removal of chromium（Ⅵ） and arsenic（Ⅲ） over ZnFe₂O₄/g-C₃N₄：Z-scheme charge transfer pathway and photo⁃Fenton like reaction［J］.Applied Catalysis B：Environmental，2021，282：119578.
26	JIANG Bo， GONG Yifan， GAO Jianan，et al.The reduction of Cr（Ⅵ） to Cr（Ⅲ） mediated by environmentally relevant carboxylic acids：State⁃of⁃the⁃art and perspectives［J］.Journal of Hazardous Materials，2019，365：205-226.
27	NIU Weiya， SUN Jie， ZHANG Ling，et al.The enhanced removal of highly toxic Cr（Ⅵ） by the synergy of uniform fiber ball loaded with Fe（OH）₃ and oxalate acid［J］.Chemosphere，2021，262：127806.
28	KRETSCHMER I， SENN A M， MEICHTRY J M，et al.Photocatalytic reduction of Cr（Ⅵ） on hematite nanoparticles in the presence of oxalate and citrate［J］.Applied Catalysis B：Environmental，2019，242：218-226.
29	ZHANG Ling， SUN Jie， NIU Weiya，et al.The synergetic role of rice straw in enhancing the process of Cr（Ⅵ） photoreduction by oxalic acid［J］.Environmental Pollution，2020，265（Pt A）：115013.

样品	原子数分数/%				Fe与Na原子比	Si与O原子比
样品	Fe	Na	Si	O	Fe与Na原子比	Si与O原子比
SFS	7.76	8.11	19.06	65.08	0.957	0.293
SFS-200	8.43	9.11	18.72	63.74	0.925	0.294
