钒酸铋晶面调控制备及其降解四环素类抗生素性能研究

doi:10.19964/j.issn.1006-4990.2021-0091

摘要/Abstract

摘要：

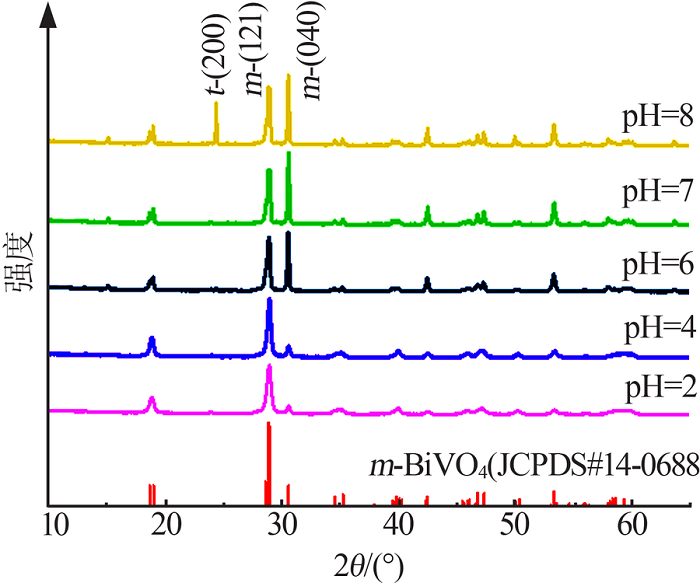

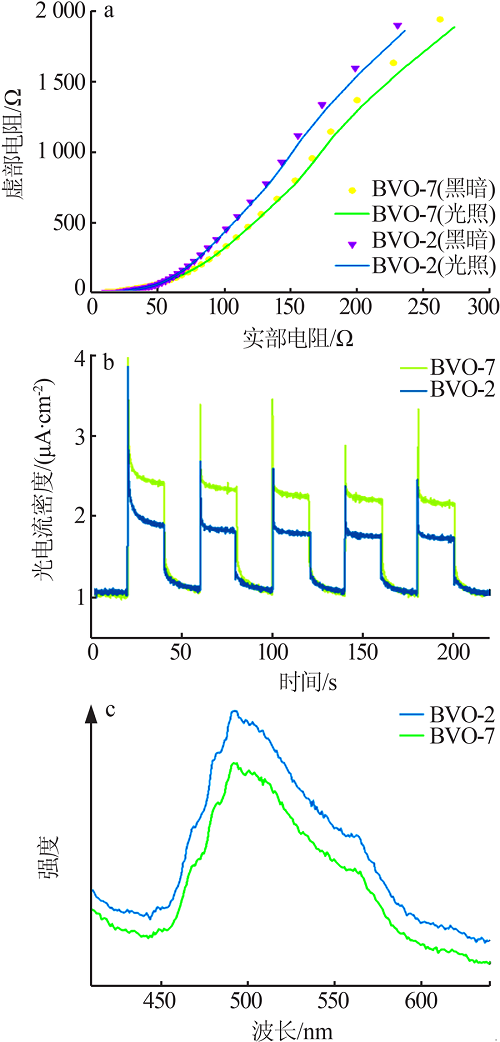

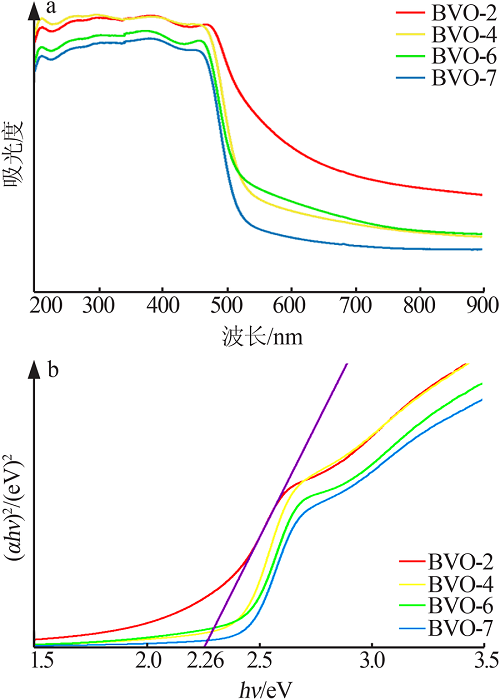

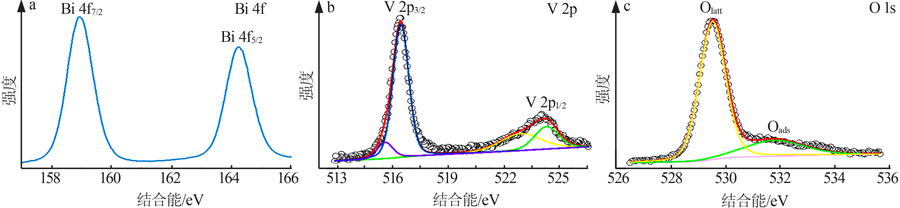

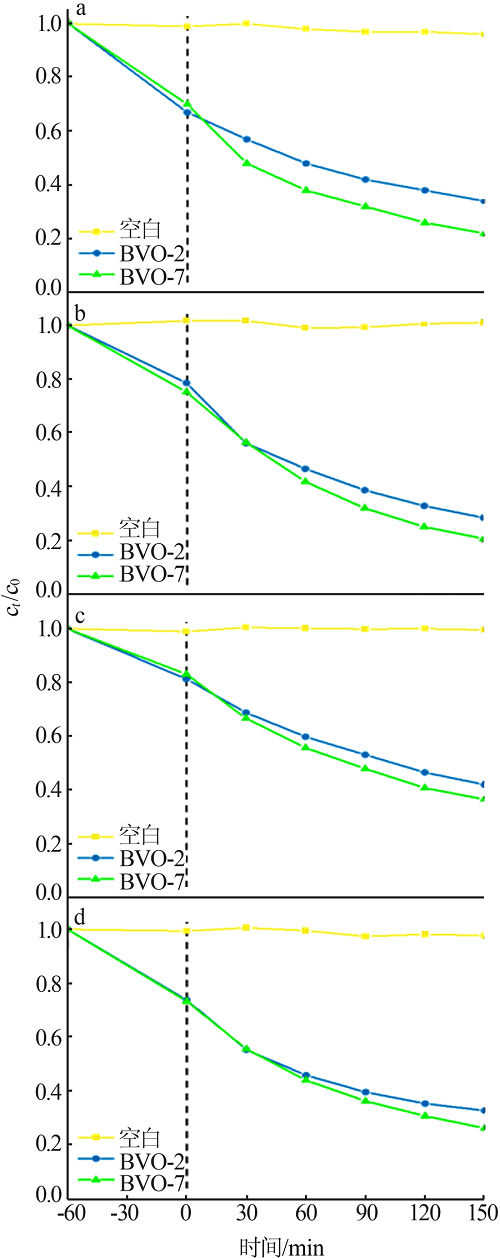

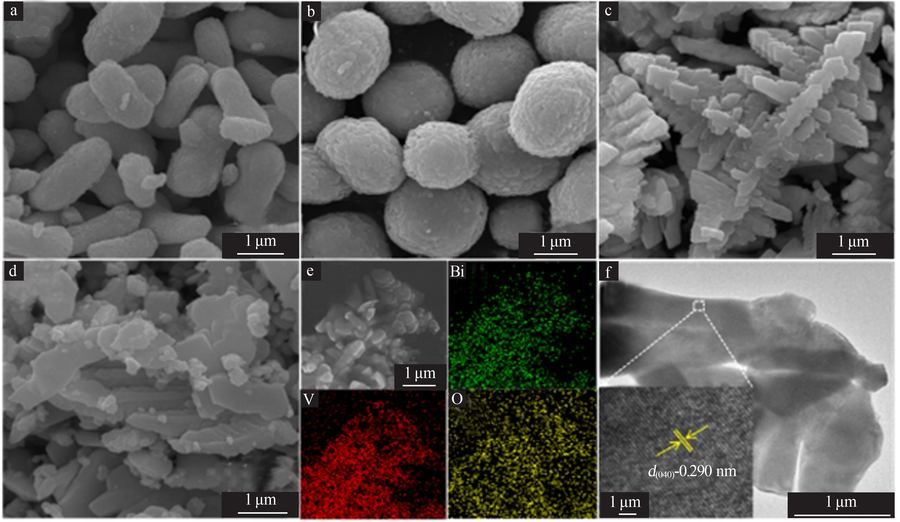

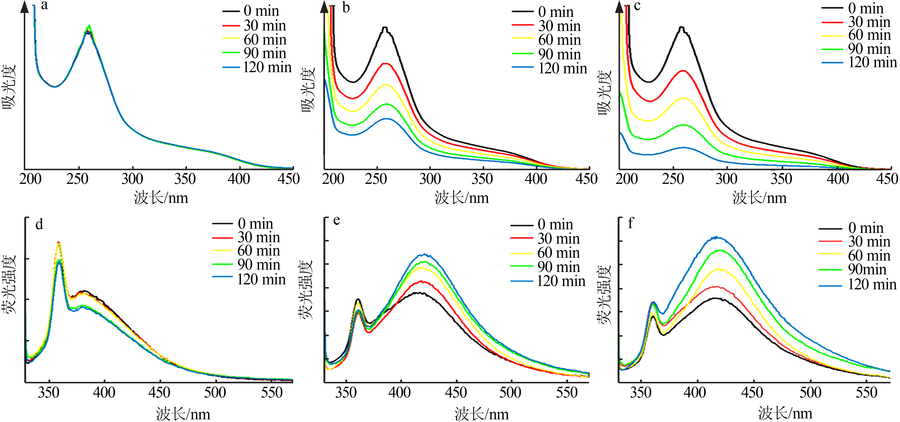

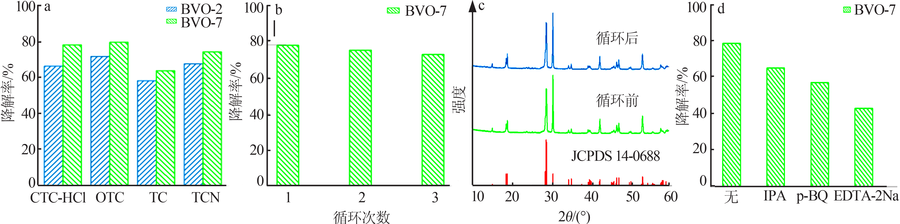

采用溶剂热法合成了单斜白钨矿型钒酸铋（m-BiVO₄）催化材料,采用XRD、BET、SEM、TEM等对其进行了表征。研究发现m-BiVO₄的形貌和晶面可以通过反应溶液的pH进行调控,在pH=7条件下制备出了具有（010）晶面择优暴露的m-BiVO₄（BVO-010）。以盐酸金霉素（CTC-HCl）、土霉素（OTC）、四环素（TC）和盐酸四环素（TCN）溶液为目标污染物,评价了制备材料的光催化降解性能。结果发现,与主要暴露热力学稳定的（-121）面的m-BiVO₄（BVO-121）相比,BVO-010的降解性能明显提高,光照150 min后对CTC-HCl、OTC、TC和TCN的降解率分别为77.9%、79.2%、63.6%和73.9%,可用于处理含抗生素类药物的污水。

关键词: BiVO₄, 晶面调控, 光催化, 四环素类抗生素

Abstract:

The monoclinic scheelite bismuth vanadate（m-BiVO₄） catalytic material was synthesized by a solvothermal method and characterized by XRD,BET,SEM,TEM,etc.It was found that the morphology and crystal facet of BiVO₄ could be con-trolled by the pH value of the reaction solution,and m-BiVO₄ with preferentially exposed（010） facet（BVO-010） was pre-pared at pH=7.With chlortetracycline hydrochloride（CTC-HCl）,oxytetracycline（OTC）,tetracycline（TC） and tetracycline hydrochloride（TCN） solutions as target pollutants,the degradation performance of the samples was evaluated.It was disclosed that compared to m-BiVO₄ that mainly exposed the thermodynamically more stable（-121） facets（BVO-121）,BVO-010 ex-hibited more outstanding photocatalytic performance,and the degradation rates of CTC-HCl,OTC,TC,and TCN were 77.9%,79.2%,63.6%,and 73.9%,respectively after 150 min illumination,which was expected to treat wastewater containing antibiotic drugs.

Key words: BiVO₄, crystal facet regulation, photocatalysis, tetracycline antibiotics

中图分类号:

TQ135.11

史苏琦,张守臣,张迪嘉,宁桂玲,叶俊伟. 钒酸铋晶面调控制备及其降解四环素类抗生素性能研究[J]. 无机盐工业, 2021, 53(11): 114-121.

SHI Suqi,ZHANG Shouchen,ZHANG Dijia,NING Guiling,YE Junwei. Study on crystal facet regulation of bismuth vanadate and its degradation properties of tetracycline antibiotics[J]. Inorganic Chemicals Industry, 2021, 53(11): 114-121.

图/表 9

图1

表1

图2

图3

图4

图5

图6

图7

图8

参考文献 31

[1]	JIANG L, HU X, YIN D, et al. Occurrence,distribution and seasonal variation of antibiotics in the Huangpu River,Shanghai,China[J]. Chemosphere, 2011, 82(6):822-828.
[2]	TIAN J, ZHAO Z, KUMAR A, et al. Recent progress in design,syn-journal,and applications of one-dimensional TiO₂ nanostructured sur-face heterostructures:A review[J]. Chemical Society Reviews, 2014, 43(20):6920-6937.
[3]	KUDO A, MISEKI Y. Heterogeneous photocatalyst materials for wa-ter splitting[J]. Chemical Society Reviews, 2009, 38(1):253-278.
[4]	LI Y, SUN Z, ZHU S, et al. Fabrication of BiVO₄ nanoplates with ac-tive facets on graphene sheets for visible-light photocatalyst[J]. Carbon, 2015, 94:599-606.
[5]	赵国升, 李玉鑫, 牛思宇, 等. {010}择优取向BiVO₄亚微米片的制备及其光催化活性研究[J]. 硅酸盐通报, 2014, 33(8):2011-2015.
[6]	冯飞, 李书文, 汪铁林, 等. 片状铋/钒酸铋复合催化剂的制备及其光催化性能[J]. 无机盐工业, 2021, 53(1):107-112.
[7]	LIN Y, LU C, WEI C. Microstructure and photocatalytic performance of BiVO₄ prepared by hydrothermal method[J]. Journal of Alloys and Compounds, 2019, 781:56-63.
[8]	DONG L, GUO S, ZHU S, et al. Sunlight responsive BiVO₄ photoca-talyst:Effects of pH on L-cysteine-assisted hydrothermal treatment and enhanced degradation of ofloxacin[J]. Catalysis Communica-tions, 2011, 16(1):250-254.
[9]	YE L, LI L, GUO L, et al. Facile synjournal and photocatalytic perfor-mance of BiVO₄ with controllable pumpkin-like microstructure[J]. Materials Letters, 2018, 211:171-174.
[10]	CHAHKANDI M, ZARGAZI M. New water based EPD thin BiVO₄ film:Effective photocatalytic degradation of amoxicillin antibio-tic[J]. Journal of Hazardous Materials, 2020, 389.Doi: 10.1016/j.jhazmat.2019.121850.
[11]	郑小燕, 徐后涛, 王丽卿, 等. 水产养殖业抗生素新型污染物防控关键技术研究成果[J]. 净水技术, 2020, 39(11):55-58.
[12]	朱颖, 张蕾, 张寒冰, 等. BiVO₄光催化去除废水中的四环素和环丙沙星[J]. 分子科学学报, 2020, 36(1):41-48
[13]	LIU W, ZHAO G, AN M, et al. Solvothermal synjournal of nanostruc-tured BiVO₄ with highly exposed (010) facets and enhanced sun-light-driven photocatalytic properties[J]. Applied Surface Science, 2015, 357:1053-1063.
[14]	YANG J, WANG D, ZHOU X, et al. A theoretical study on the me-chanism of photocatalytic oxygen evolution on BiVO₄ in aqueous solution[J]. Chemistry—A European Journal, 2013, 19(4):1320-1326.
[15]	LI R, ZHANG F, WANG D, et al. Spatial separation of photogen-erated electrons and holes among{010} and{110} crystal facets of BiVO₄[J]. Nature Communications, 2013, 4(1):1432.
[16]	TAN H L, WEN X, AMAL R, et al. BiVO₄ {010} and {110} relative exposure extent:Governing factor of surface charge population and photocatalytic activity[J]. Journal of Physical Chemistry Letters, 2016, 7(7):1400-1405.
[17]	WANG D, JIANG H, ZONG X, et al. Crystal facet dependence of water oxidation on BiVO₄ sheets under visible light irradiation[J]. Chemistry—A European Journal, 2011, 17(4):1275-1282.
[18]	THALLURI S M, MARTINEZ SUAREZ C, HERNÁNDEZ S, et al. Elucidation of important parameters of BiVO₄ responsible for pho-to-catalytic O₂ evolution and insights about the rate of the cataly-tic process[J]. Chemical Engineering Journal, 2014, 245:124-132.
[19]	ZHANG L, CHEN D, JIAO X. Monoclinic structured BiVO₄ nano-sheets:Hydrothermal preparation,formation mechanism,and colo-ristic and photocatalytic properties[J]. The Journal of Physical Chemistry B, 2006, 110(6):2668-2673.
[20]	THALLURI S M, HERNÁNDEZ S, BENSAID S, et al. Green-sy-nthesized W-and Mo-doped BiVO₄ oriented along the{040} facet with enhanced activity for the sun-driven water oxidation[J]. App-lied Catalysis B:Environmental, 2016, 180:630-636.
[21]	THALLURI S M, HUSSAIN M, SARACCO G, et al. Green-synthe-sized BiVO₄ oriented along{040} facets for visible-light-driven et-hylene degradation[J]. Industrial & Engineering Chemistry Rese-arch, 2014, 53(7):2640-2646.
[22]	ZHAO G, LIU W, LI J, et al. Facile synjournal of hierarchically st-ructured BiVO₄ oriented along(010) facets with different morpho-logies and their photocatalytic properties[J]. Applied Surface Sci-ence, 2016, 390:531-539.
[23]	XI G, YE J. Synjournal of bismuth vanadate nanoplates with expo-sed {001} facets and enhanced visible-light photocatalytic proper-ties[J]. Chemical Communications, 2010, 46(11):1893.
[24]	CHEN L, WANG J, MENG D, et al. The pH-controlled {040} facets orientation of BiVO₄ photocatalysts with different morphologies for enhanced visible light photocatalytic performance[J]. Materials Letters, 2016, 162:150-153.
[25]	GUO L, LI J, LEI N, et al. Morphological evolution and enhanced photoelectrochemical performance of V⁴⁺ self-doped,[010]oriented BiVO₄ for water splitting[J]. Journal of Alloys and Compounds, 2019, 771:914-923.
[26]	CHEN L, WANG J X, MENG D W. Enhanced photocatalytic acti-vity of hierarchically structured BiVO₄ oriented along {040} facets with different morphologies[J]. Materials Letters, 2015, 147:1-3.
[27]	ZHAO G, WEI L, YAN H, et al. Nanostructured shuriken-like BiVO₄ with preferentially exposed {010} facets:Preparation,formation me-chanism,and enhanced photocatalytic performance[J]. Dalton Tr-ansactions, 2018, 47(4):1325-1336.
[28]	SHANG M, WANG W, REN J, et al. A novel BiVO₄ hierarchical nanostructure:Controllable synjournal,growth mechanism,and app-lication in photocatalysis[J]. CrystEngComm, 2010, 12(6):1754-1758.
[29]	VO T G, KAO C C, KUO J L, et al. Unveiling the crystallographic facet dependence of the photoelectrochemical glycerol oxidation on bismuth vanadate[J]. Applied Catalysis B:Environmental, 2020, 278.Doi: 10.1016/j.apcatb.2020.119303.
[30]	MADHUSUDAN P, RAN J, ZHANG J, et al. Novel urea assisted hy-drothermal synjournal of hierarchical BiVO₄/Bi₂O₂CO₃ nanocompo-sites with enhanced visible-light photocatalytic activity[J]. Applied Catalysis B:Environmental, 2011, 110:286-295.
[31]	SERPONE N. Is the band gap of pristine TiO₂ narrowed by anion-and cation-doping of titanium dioxide in second-generation photo-catalysts?[J]. The Journal of Physical Chemistry B, 2006, 110(48):24287-24293.

样品	I_（040）/ I_（-121）	晶胞参数						晶胞体积/（nm³）	晶粒尺寸/ nm
样品	I_（040）/ I_（-121）	a	b	c	α	β	γ	晶胞体积/（nm³）	晶粒尺寸/ nm
BVO-2	0.17	5.149	11.705	5.136	90	89.97	90	0.310	32.5
BVO-4	0.18	5.173	11.700	5.111	90	90.11	90	0.309	25.0
BVO-6	1.31	5.195	11.712	5.106	90	90.33	90	0.311	70.8
BVO-7	1.40	5.195	11.701	5.097	90	90.39	90	0.310	98.1

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
