锂离子电池正极材料铌掺杂LiNiO2 的制备与电化学性能

doi:10.19964/j.issn.1006-4990.2022-0270

摘要/Abstract

摘要：

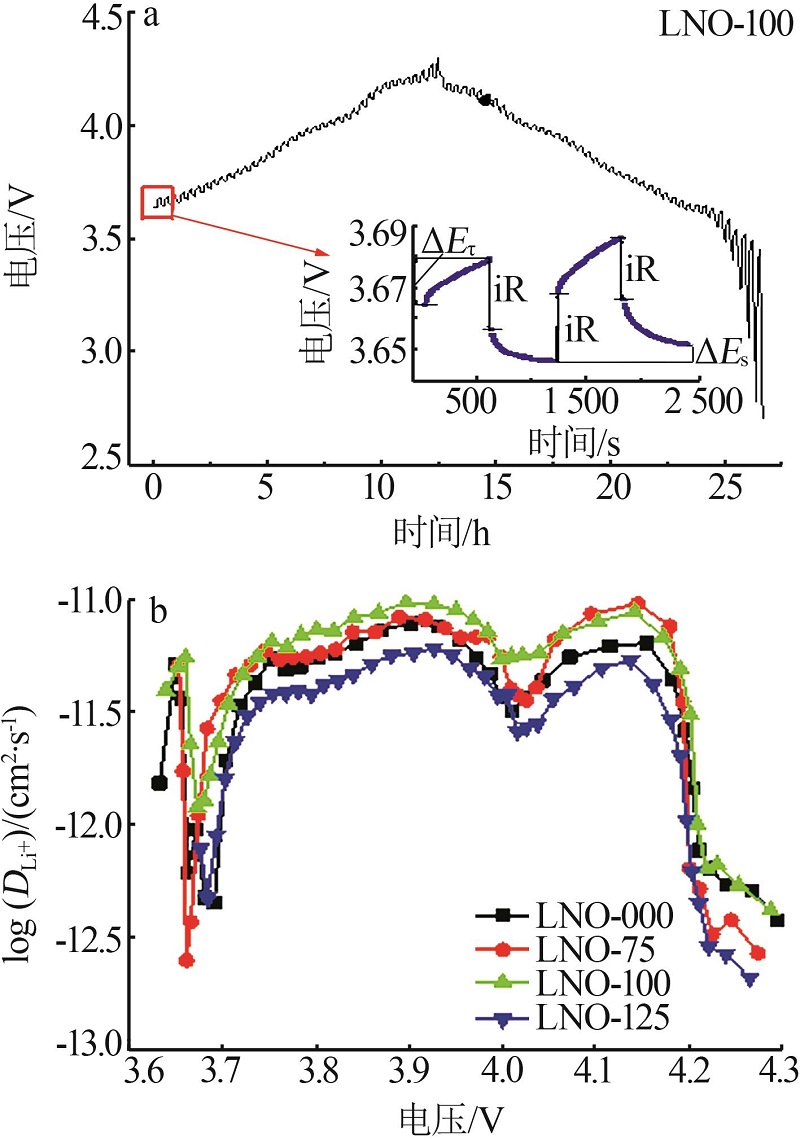

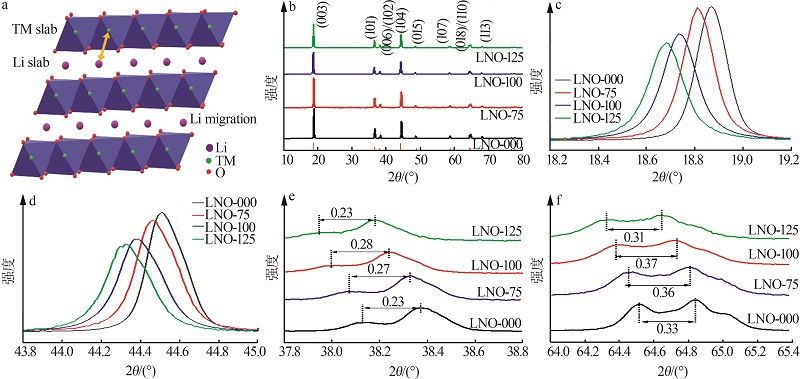

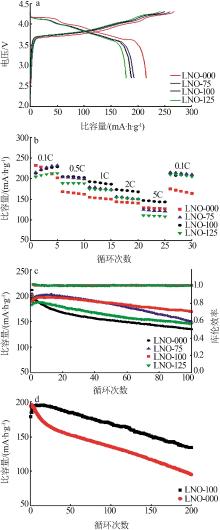

为了提高LiNiO₂的电化学性能，用固相反应法制备了铌掺杂LiNiO₂材料，并用X射线衍射（XRD）分析、恒电流滴定技术（GITT）、电化学阻抗谱（EIS）等方法研究铌掺杂量对LiNiO₂的结构和性能的影响。结果表明适量的铌（Nb）掺杂可以提高LiNiO₂层状结构的有序程度，降低Li⁺/Ni²⁺混合程度，降低电荷转移阻抗，提高活性材料中锂离子的扩散系数。其中LiNi_0.99Nb_0.01O₂在0.5C循环100次的容量保持率为91.4%，5C时放电比容量为143 mA·h/g。而未掺杂铌的LiNiO₂在相同条件下的容量保持率和比容量仅为69.2%和127 mA·h/g。结果说明铌掺杂能够有效提高LiNiO₂的电化学性能。

关键词: 锂离子电池, 正极材料, LiNiO₂, 掺杂

Abstract:

In order to improve the performance of LiNiO₂，Nb-doped LiNiO₂was prepared by a solid-state reaction method.The effects of the amount of Nb-doping on the structure and performance of LiNiO₂ were investigated by X-ray diffraction analysis（XRD），galvanostatic titration（GITT），electrochemical impedance spectroscopy（EIS） and other methods.Nb-doping could effectively improve the order degree of the layered structure，reduce Li⁺/Ni²⁺ mixing，reduce the charge transfer impedance，and increase the diffusion coefficient of Li⁺ in the active materials.Therefore，LiNi_0.99Nb_0.01O₂ exhibited higher capacity retention（91.4% after 100 cycles at 0.5C） and better rate capability（143 mA·h/g at 5C）.As a comparison，the data of bare LiNiO₂ was 69.2% and 127 mA·h/g under the same conditions.These results further demonstrated that Nb-doping with a strong Nb—O bond，high valence stat，and larger ionic radius could effectively improve the performance of LiNiO₂.

Key words: lithium-ion batteries, cathode material, LiNiO₂, doping

中图分类号:

TM912.9

黄丽颖,陆冬楚,宁玉雪,胡婷婷,陈晴,黄国欣,苏静,文衍宣. 锂离子电池正极材料铌掺杂LiNiO₂的制备与电化学性能[J]. 无机盐工业, 2022, 54(11): 52-58.

HUANG Liying,LU Dongchu,NING Yuxue,HU Tingting,CHEN Qing,HUANG Guoxin,SU Jing,WEN Yanxuan. Preparation and electrochemical performance of Nb-doped LiNiO₂ cathode material for lithium-ion batteries[J]. Inorganic Chemicals Industry, 2022, 54(11): 52-58.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

表1

参考文献 24

1	况新亮,刘垂祥,熊朋.锂离子电池产业分析及市场展望[J].无机盐工业,2022,54(8):12-19，32.
	KUANG Xinliang, LIU Chuixiang, XIONG Peng.Industry analysis and market prospect of lithium ion battery[J].Inorganic Chemicals Industry,2022,54(8):12-19，32.
2	陈港欣,孙现众,张熊,等.高功率锂离子电池研究进展[J].工程科学学报,2022,44(4):612-624.
	CHEN Gangxin, SUN Xianzhong, ZHANG Xiong, et al.Progress of high-power lithium-ion batteries[J].Chinese Journal of Engineering,2022,44(4):612-624.
3	栗志展,秦金磊,梁嘉宁,等.高镍三元层状锂离子电池正极材料：研究进展、挑战及改善策略[J].储能科学与技术,2021.Doi:10.19799/j.cnki.2095-4239.2021.0595. doi: 10.19799/j.cnki.2095-4239.2021.0595
	LI Zhizhan, QIN Jinlei, LIANG Jianing, et al.High-nickel ternary layered cathode materials for lithium-ion batteries：Research progress，challenges and improvement strategies[J].Energy Storage Sci-ence and Technology,2021.Doi:10.19799/j.cnki.2095-4239.2021.0595. doi: 10.19799/j.cnki.2095-4239.2021.0595
4	谢元,李俊华,王佳,等.锂离子电池三元正极材料的研究进展[J].无机盐工业,2018,50(7):18-22.
	XIE Yuan, LI Junhua, WANG Jia, et al.Research progress in ternary cathode material of lithium ion batteries[J].Inorganic Chemicals Industry,2018,50(7):18-22.
5	VORONINA N, SUN Y K, MYUNG S T.Co-free layered cathode materials for high energy density lithium-ion batteries[J].ACS Energy Letters,2020,5(6):1814-1824.
6	WANG Lifan, WANG Jingyue, WANG Leiying, et al.A critical review on nickel-based cathodes in rechargeable batteries[J].International Journal of Minerals，Metallurgy and Materials,2022,29(5):925-941.
7	BIANCHINI M, ROCA-AYATS M, HARTMANN P, et al.There and back again：The journey of LiNiO₂ as a cathode active material[J].Angewandte Chemie International Edition,2019,58(31):10434-10458.
8	OH P， YUN J, PARK S, et al.Recent advances and prospects of atomic substitution on layered positive materials for lithium-ion battery[J].Advanced Energy Materials,2021,11(15).Doi:10.1002/aenm.202003197. doi: 10.1002/aenm.202003197
9	CAO Haishang, DU Fanghui, ADKINS J, et al.Al-doping induced superior lithium ion storage capability of LiNiO₂ spheres[J].Ceramics International,2020,46(12):20050-20060.
10	KONG Xiangze, LI Donglin, FEDOROVSKAYA E O, et al.New insights in Al-doping effects on the LiNiO₂ positive electrode material by a sol-gel method[J].International Journal of Energy Research,2021,45(7):10489-10499.
11	KONG Xiangze, LI Donglin, LAHTINEN K, et al.Effect of copper-doping on LiNiO₂ positive electrode for lithium-ion batteries[J].Journal of the Electrochemical Society,2020,167(14).Doi:10.1149/1945-7111/abc8c1. doi: 10.1149/1945-7111/abc8c1
12	CHEN Yongxiang, LI Yunjiao, TANG Shuyun, et al.Enhanced electrochemical properties of the Cd-modified LiNi_0.6Co_0.2Mn_0.2O₂ cathode materials at high cut-off voltage[J].Journal of Power Sources,2018,395: 403-413.
13	TIAN Feng, ZHANG Yongzheng, LIU Zhongzhu, et al.Investigation of structure and cycling performance of Nb⁵⁺ doped high-nickel ternary cathode materials[J].Solid State Ionics,2021,359.Doi:10.1016/j.ssi.2020.115520. doi: 10.1016/j.ssi.2020.115520
14	YOON C S, KIM U H, PARK G T, et al.Self-passivation of a LiNiO₂ cathode for a lithium-ion battery through Zr doping[J].ACS Energy Letters,2018,3(7):1634-1639.
15	LV Congjie, YANG Jing, PENG Yi, et al.1D Nb-doped LiNi_1/3Co_1/3Mn_1/3O₂ nanostructures as excellent cathodes for Li-ion battery[J].Electrochimica Acta,2019,297: 258-266.
16	XIN Fengxia, ZHOU Hui, ZONG Yanxu, et al.What is the role of Nb in nickel-rich layered oxide cathodes for lithium-ion batteries？[J].ACS Energy Letters,2021,21: 1377-1382.
17	LEVARTOVSKY Y, CHAKRABORTY A, KUNNIKURUVAN S, et al.Enhancement of structural，electrochemical，and thermal properties of high-energy density Ni-rich LiNi_0.85Co_0.1Mn_0.05O₂ cathode materials for Li-ion batteries by niobium doping[J].ACS Applied Materials & Interfaces,2021,13(29):34145-34156.
18	CHU Binbin, YOU Longzhen, LI Guangxin, et al.Revealing the role of W-doping in enhancing the electrochemical performance of the LiNi_0.6Co_0.2Mn_0.2O₂ cathode at 4.5 V[J].ACS Applied Materials & Interfaces,2021,13(6):7308-7316.
19	CHEN Tao, LI Xiang, WANG Hao, et al.The effect of gradient boracic polyanion-doping on structure，morphology，and cycling performance of Ni-rich LiNi_0.8Co_0.15Al_0.05O₂ cathode material[J].Journal of Power Sources,2018,374: 1-11.
20	WU Jiefan, LIU Hongguang, YE Xuehai, et al.Effect of Nb doping on electrochemical properties of LiNi_1/3Co_1/3Mn_1/3O₂ at high cut-off voltage for lithium-ion battery[J].Journal of Alloys and Compounds,2015,644: 223-227.
21	胡康,周友元,陈威,等.铌掺杂对LiNi_0.8Co_0.1Mn_0.1O₂正极材料结构和电化学性能的影响[J].矿冶工程,2019,39(3):110-112，118.
	HU Kang, ZHOU Youyuan, CHEN Wei, et al.Influence of Nb-doping on the electrochemical characteristics and structure of LiNi_0.8Co_0.1Mn_0.1O₂ [J].Mining and Metallurgical Engineering,2019,39(3):110-112，118.
22	LEI Yike, AI Jinjin, YANG Shuai, et al.Nb-doping in LiNi_0.8Co_0.1Mn_0.1O₂ cathode material：Effect on the cycling stability and voltage decay at high rates[J].Journal of the Taiwan Institute of Chemical Engineers,2019,97: 255-263.
23	ZHANG Qianru, WANG Ruo, ZHANG Tesen, et al.Improving electrochemical performance and thermal stability of LiNi_0.8Co_0.1Mn_0.1O₂ via a concentration gradient Nb doping[J].Ionics,2020,26(12):5971-5979.
24	GABERŠČEK M.Understanding Li-based battery materials via electrochemical impedance spectroscopy[J].Nature Communications,2021,12.Doi:10.1038/s41467-021-26894-5. doi: 10.1038/s41467-021-26894-5

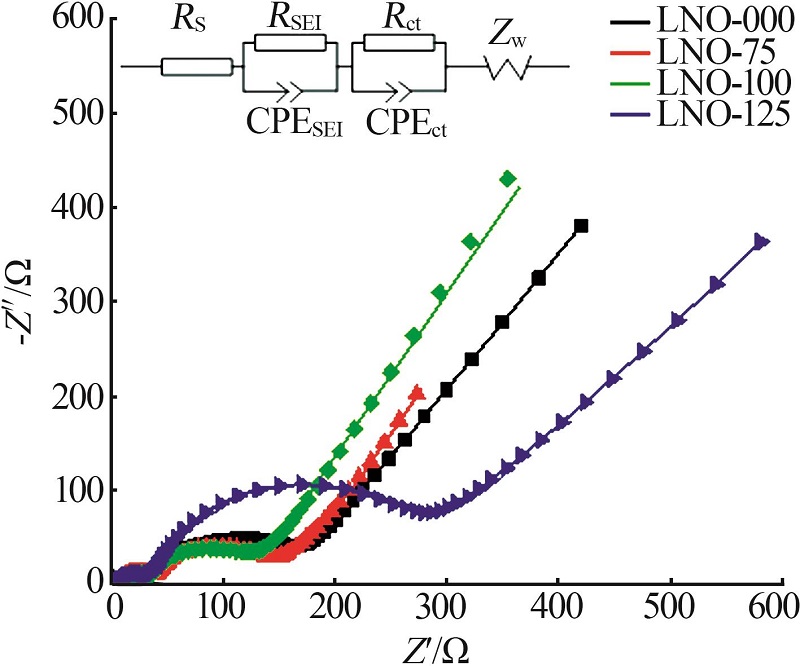

样品	R_S/Ω	R_SEI/Ω	R_ct/Ω	S_qr
LNO-000	1.6	36.8	117.8	0.117 8
LNO-75	0.6	28.7	110.1	0.134 5
LNO-100	1.1	32.9	87.1	0.109 2
LNO-125	1.2	29.1	230.8	0.934 7
