锡掺杂溴铅铯钙钛矿纳米晶的合成、结构及发光性能

肖勇(), 贾雅梅, 关登, 周超洋, 汪晓勇, 彭红兵, 崔祥水(), 徐玉松

  1. 江苏科技大学冶金与材料工程学院,江苏张家港 215600
  • 收稿日期:2022-08-26 出版日期:2023-06-10 发布日期:2023-06-14
  • 通讯作者: 崔祥水,男,博士,主要研究方向为光电功能材料与器件;E-mail:xscui@just.edu.cn
  • 作者简介:肖勇(1997— ),男,硕士,主要研究方向为金属卤化物钙钛矿纳米晶的合成和发光性能;E-mail:xyjust@163.com
  • 基金资助:
    国家自然科学基金(11904140);江苏省自然科学基金(bk2020997)

Synthesis,structure and luminescent performance of Sn2+-doped CsPbBr3 perovskite nanocrystals

XIAO Yong(), JIA Yamei, GUAN Deng, ZHOU Chaoyang, WANG Xiaoyong, PENG Hongbing, CUI Xiangshui(), XU Yusong

  1. Jiangsu University of Science and Technology School of Metallurgy and Materials Engineering,Zhangjiagang 215600,China
  • Received:2022-08-26 Published:2023-06-10 Online:2023-06-14

摘要:

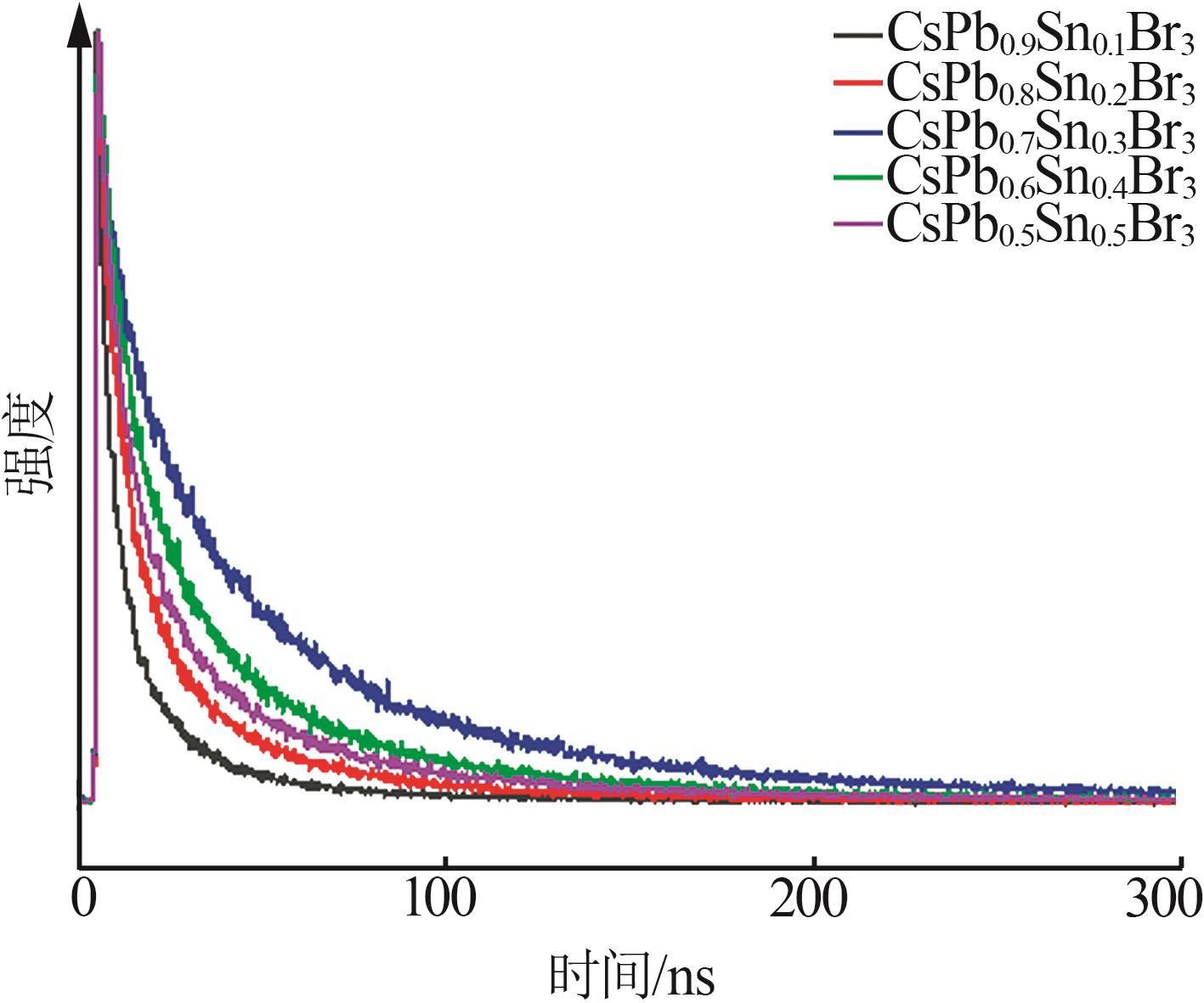

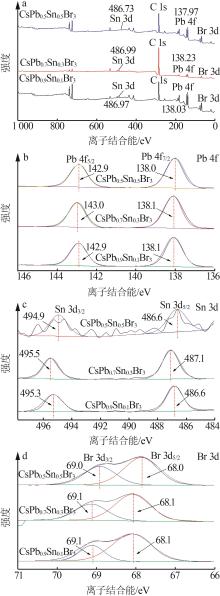

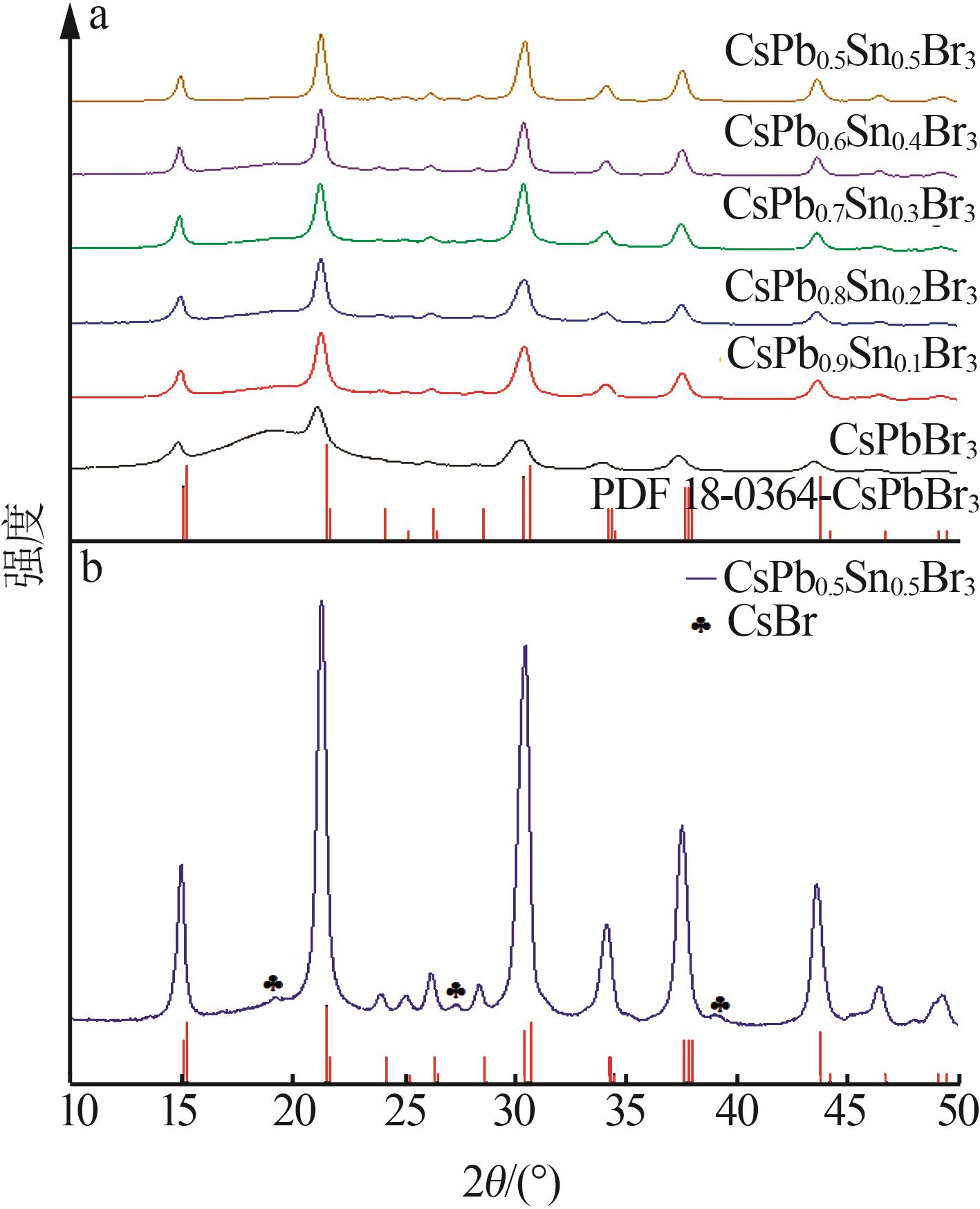

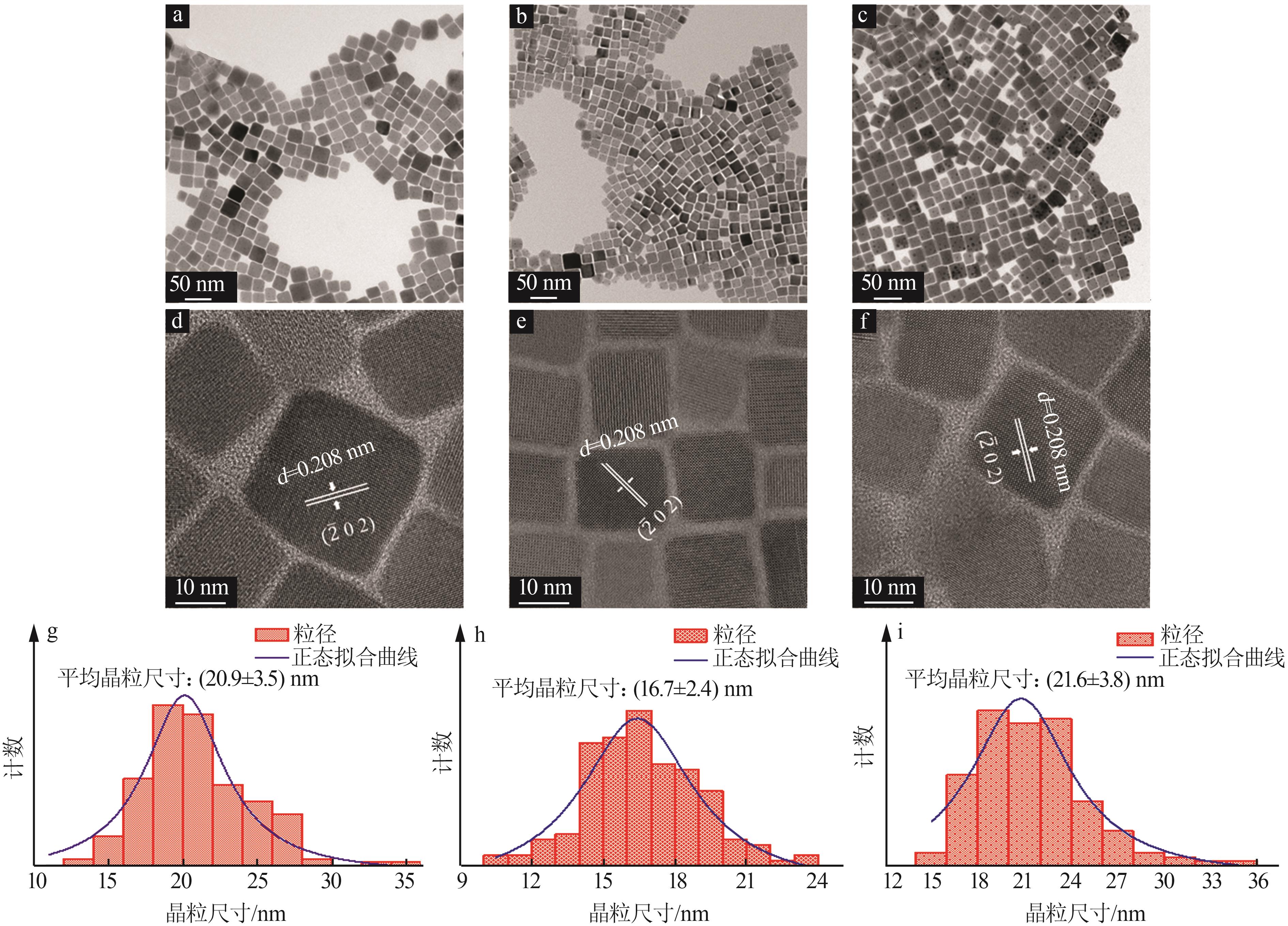

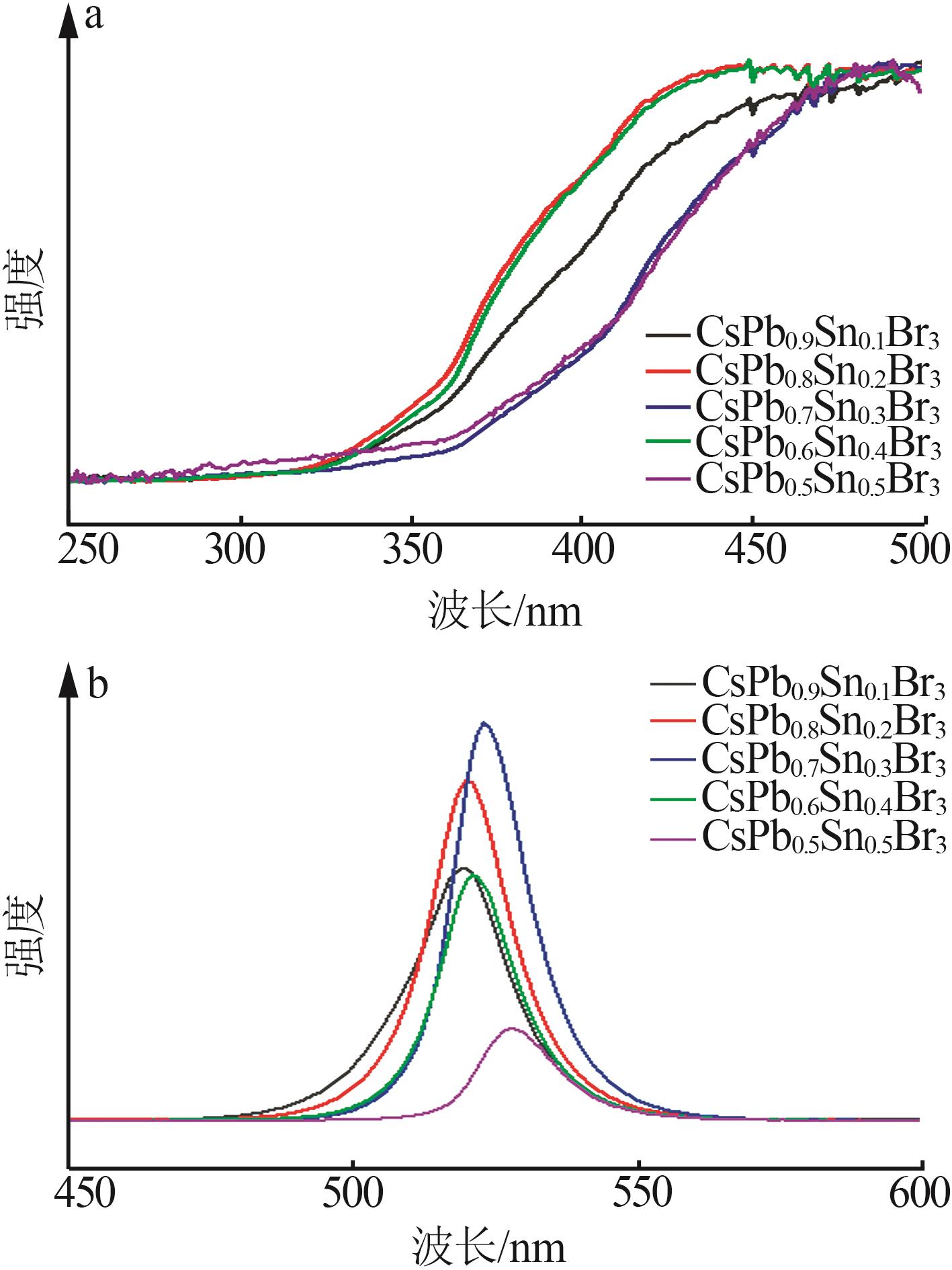

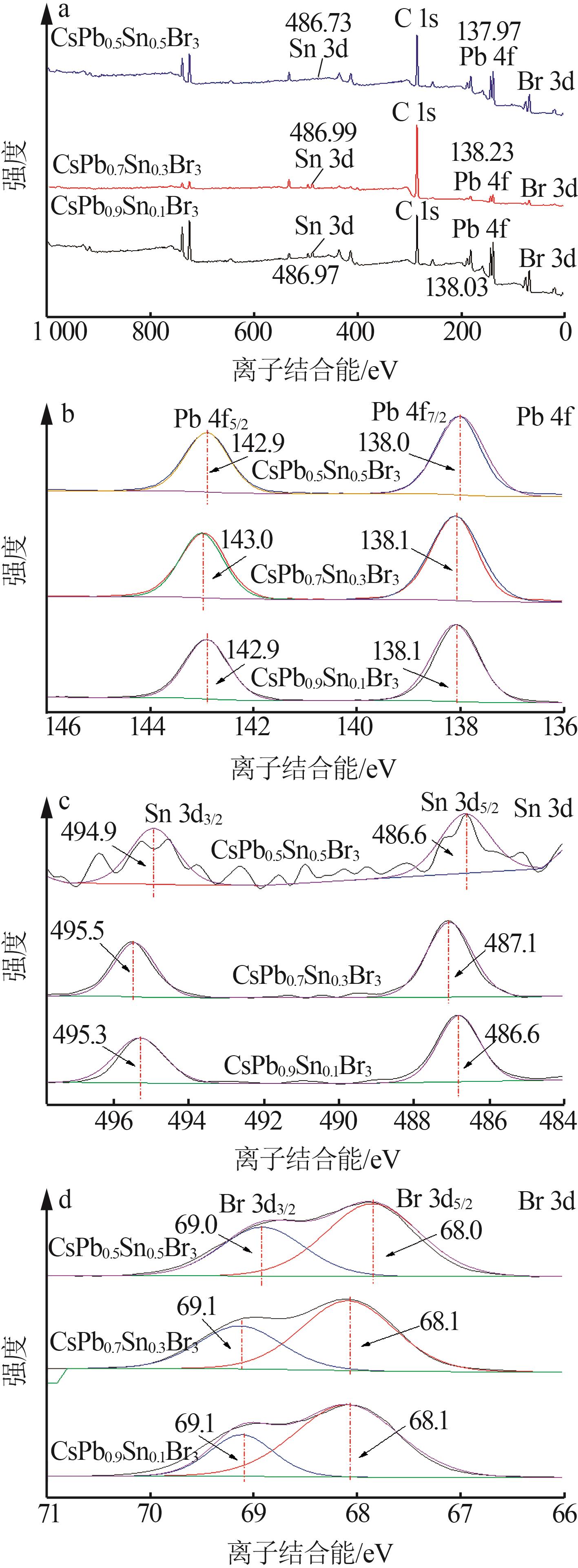

为了降低CsPbBr3钙钛矿纳米晶的Pb2+毒性,同时优化Sn2+掺杂CsPbBr3纳米晶的发光性能,采用热注入法合成了Sn2+掺杂的CsPb1-x Sn x Br3纳米晶(x=0.1、0.2、0.3、0.4和0.5),使用X射线衍射仪(XRD)、透射电子显微镜(TEM)、X射线光电子能谱(XPS)和荧光光谱仪(PL)对所合成纳米晶的物相结构、微观形貌及发光性能进行表征。结果表明,纳米晶中掺杂的Sn元素以Sn2+和Sn4+形式存在,且含有Pb2+阳离子空位,当x=0.3时,Sn元素实际掺杂物质的量分数高达43.91%。x=0.1~0.4时,纳米晶为纯单斜相钙钛矿结构,尺寸约16~20 nm,立方块形貌较均匀。Sn2+掺杂调控了CsPb1-x Sn x Br3纳米晶的光谱性能,当x=0.3时,CsPb0.7Sn0.3Br3纳米晶荧光发射峰位于523 nm,半峰宽最窄达15 nm,荧光寿命长达86.3 ns,荧光强度最强,是一种具有应用潜力的绿光半导体材料。

关键词: Sn2+掺杂, CsPb1-x Sn x Br3纳米晶, 单斜相钙钛矿, 发光性能

Abstract:

In order to reduce the Pb2+ toxicity of CsPbBr3 perovskite nanocrystals and optimize the luminescent performance of Sn2-doped CsPbBr3 nanocrystals,Sn2+-doped CsPb1-x Sn x Br3 nanocrystals(x=0.1,0.2,0.3,0.4 and 0.5) were synthesized by hot-injection method. The phase structure,microstructure and luminescent performance of the synthesized nanocrystals were characterized by X-ray diffractometer(XRD),transmission electron microscope(TEM),X-ray photoelectron spectroscopy(XPS),and photoluminescence spectrometer(PL).The results showed that CsPb1-x Sn x Br3 nanocrystals existed in the form of Sn2+ and Sn4+ ions,and contained Pb2+ cation vacancies. When x=0.3,the actual molar doping concentration of Sn element was as high as 43.91%. When x=0.1~0.4,the nanocrystals structure was pure monoclinic perovskite,the size was about 16~20 nm,and the square shape was uniform.The spectral properties of CsPb1-x Sn x Br3 nanocrystals were regulated by Sn2+-doped. When x=0.3,the fluorescence emission peak of CsPb1-x Sn x Br3 nanocrystals was located at 523 nm,the full width at half maxima(FWHM) was 15 nm,the fluorescence lifetime was as long as 86.3 ns,and the fluorescence intensity was the strongest,which were a kind of excellent green-light emitted semiconductor materials with potential application.

Key words: Sn2+-doped, CsPb1-x Sn x Br3 nanocrystals, monoclinic perovskite, luminescent performance
