焙烧-水化络合法脱除镁废渣中钙杂质的研究

doi:10.19964/j.issn.1006-4990.2022-0095

摘要/Abstract

摘要：

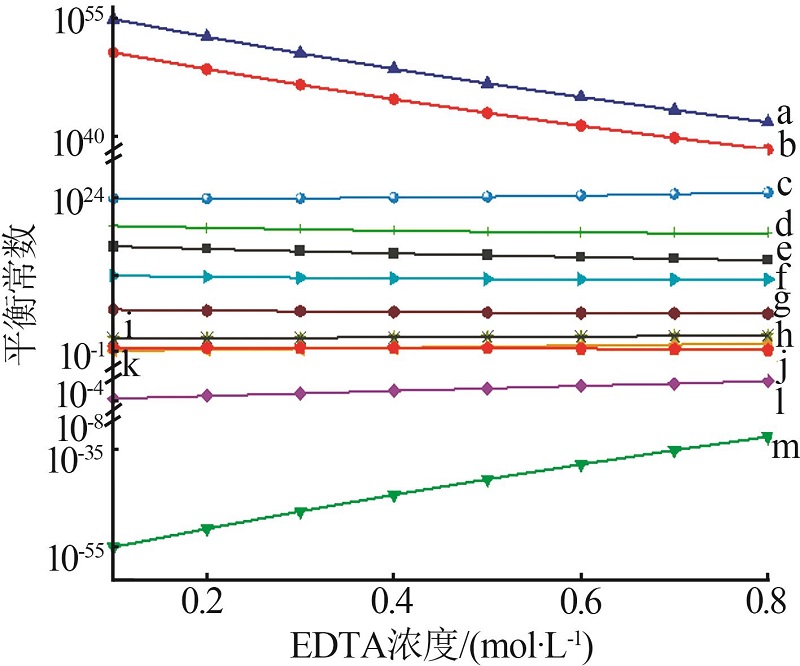

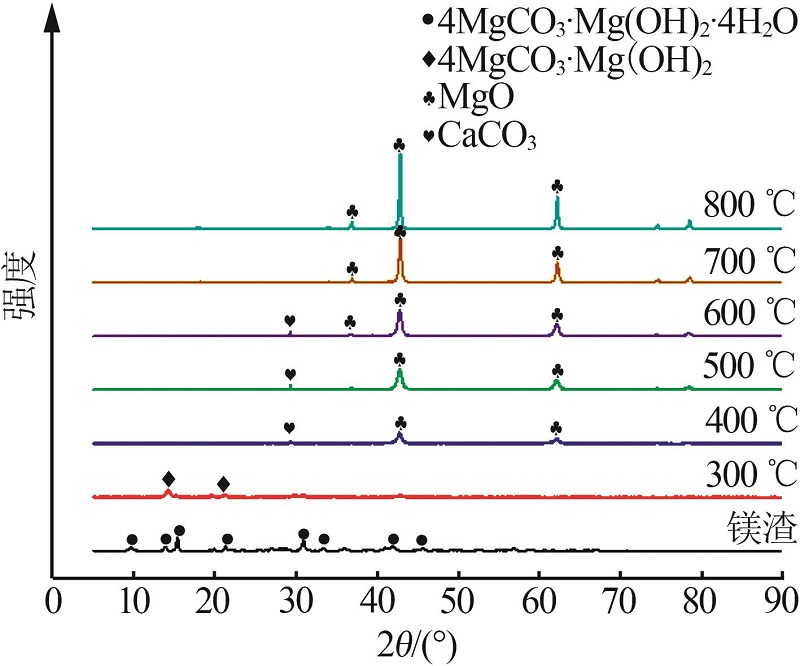

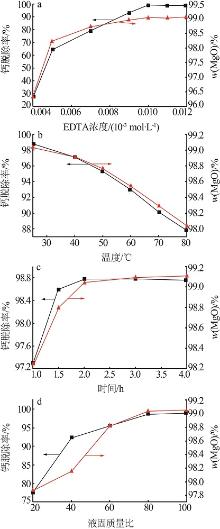

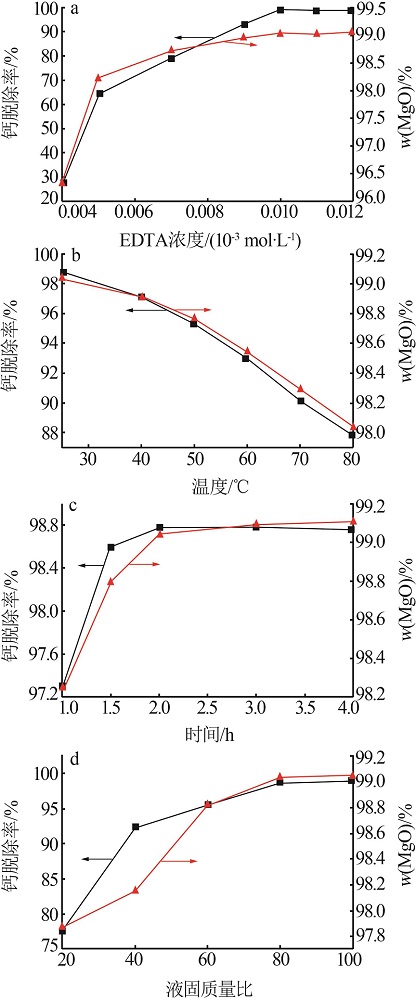

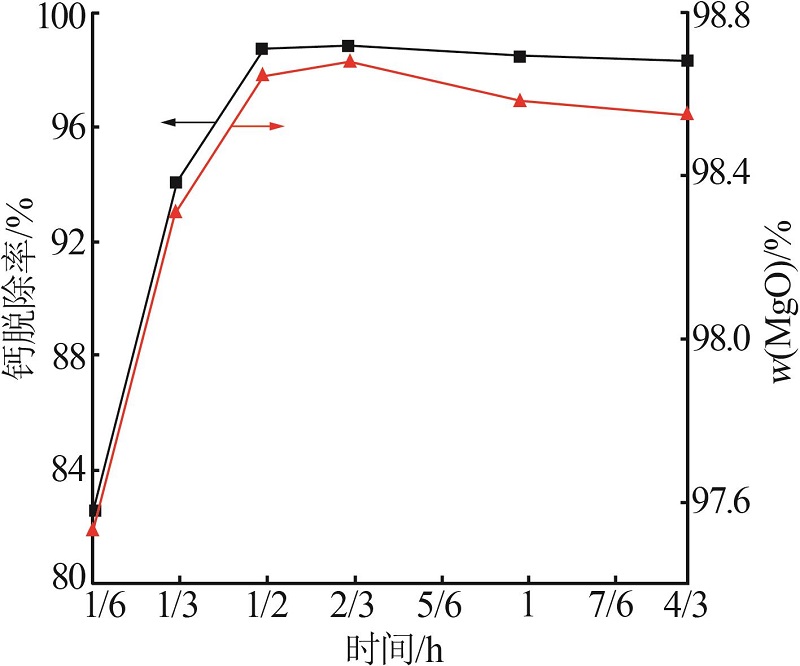

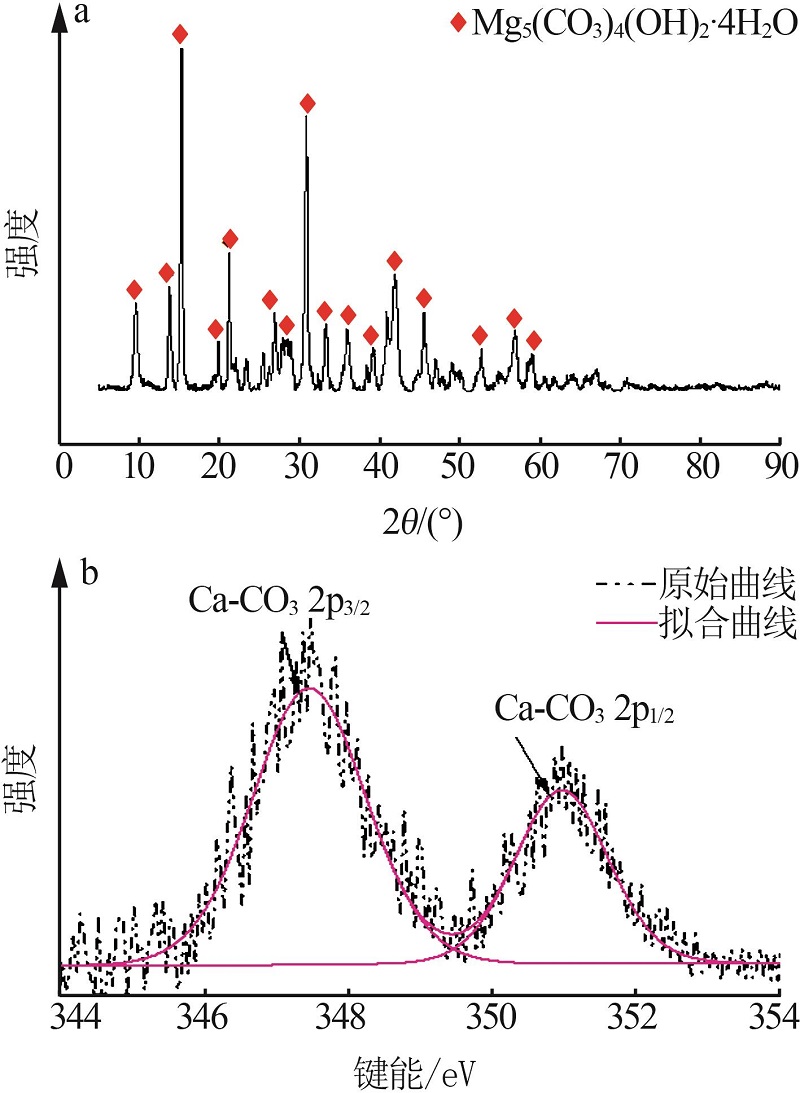

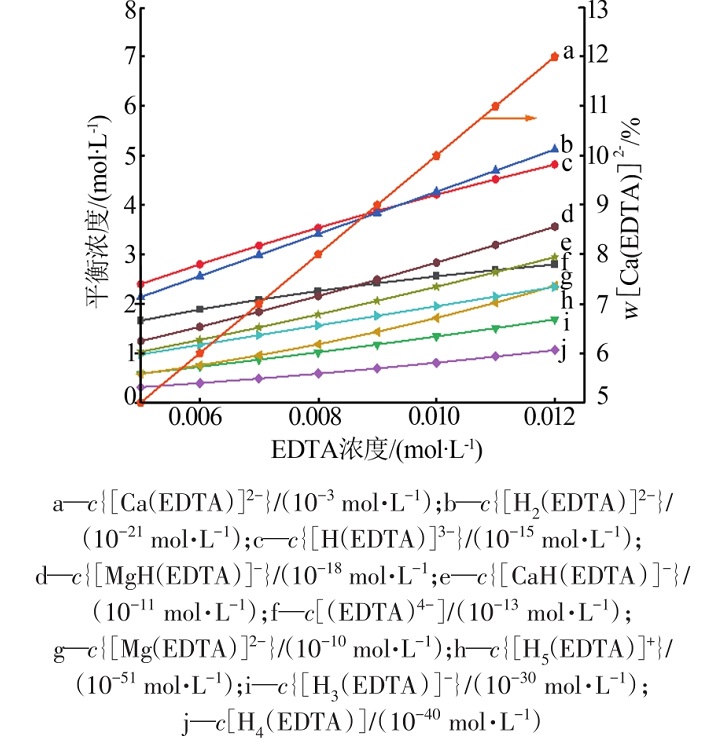

以含钙镁废渣为原料，采用高温焙烧-EDTA络合法脱除其中的钙杂质制备高纯氧化镁，探究了焙烧温度与时间、EDTA溶液浓度、络合温度、液固质量比与水化时间对钙杂质脱除效果的影响。利用X射线衍射（XRD）、X射线光电子能谱（XPS）等方法对样品结构进行表征。结果表明，镁废渣中钙、镁分别以碳酸钙（CaCO₃）和碱式碳酸镁[4MgCO₃·Mg（OH）₂·4H₂O]形式存在，经过高温焙烧过程分别分解为氧化钙（CaO）和氧化镁（MgO）。热力学计算表明，体系中钙、镁离子与EDTA的络合能力存在较大差异，EDTA与钙离子络合能力强，与镁离子络合能力极弱，络合作用促进CaO溶解，使钙离子进入液相，MgO停留在固相，实现钙、镁分离。在800 ℃、0.5 h、c（EDTA）=0.01 mol/L、液固质量比为80∶1、常温水化时间为2.0 h时，钙脱除率达到98.78%，产物经105 ℃烘干8.0 h，MgO纯度大于99.00%。

关键词: 镁废渣, 高温焙烧-EDTA络合, 氧化钙, 氧化镁

Abstract:

The high-purity magnesium oxide was prepared from calcium-magnesium-containing waste residue as raw materials by the high-temperature roasting-EDTA complexing method to remove calcium impurities.The effects of calcination temperature and time，molar concentration of EDTA solution，complexation temperature，liquid solid ratio and hydration time on removal of calcium impurities were investigated.The structure of the product was characterized by means of X-ray diffraction（XRD），X-ray photoelectron spectroscopy（XPS），and other methods.The results showed that calcium and magnesium were existed in the form of CaCO₃ and 4MgCO₃·Mg（OH）₂·4H₂O in the magnesium waste residue and decomposed into CaO and MgO after high temperature roasting，respectively.Thermodynamic calculation showed that the complexing ability of calcium，magnesium ions，and EDTA in the system was quite different.EDTA had a strong complexing ability with Ca²⁺，but very weak with Mg²⁺.The complexation promoted the dissolution of CaO and made Ca²⁺ enter the liquid phase.MgO was stayed in the solid phase to enable calcium separate from magnesium.At 800 ℃，0.5 h，c（EDTA）=0.01 mol/L，liquid solid ratio of 80∶1 and hydration at room temperature for 2.0 h，the calcium removal rate reached 98.78%.When the product was dried at 105 ℃ for 8.0 h，the purity of MgO was greater than 99.00%.

Key words: magnesium waste residue, high-temperature roasting-EDTA complexation, calcium oxide, magnesium oxide

中图分类号:

X781

曾彦捷,徐同飞,黄子良,陈志鹏,刘旭东,易美桂. 焙烧-水化络合法脱除镁废渣中钙杂质的研究[J]. 无机盐工业, 2022, 54(11): 118-123.

ZENG Yanjie,XU Tongfei,HUANG Ziliang,CHEN Zhipeng,LIU Xudong,YI Meigui. Study on removal of calcium impurities from magnesium waste residue by roasting-hydration complexing[J]. Inorganic Chemicals Industry, 2022, 54(11): 118-123.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9
