硫酸根对聚合氮化碳光催化活性的影响

doi:10.19964/j.issn.1006-4990.2022-0009

摘要/Abstract

摘要：

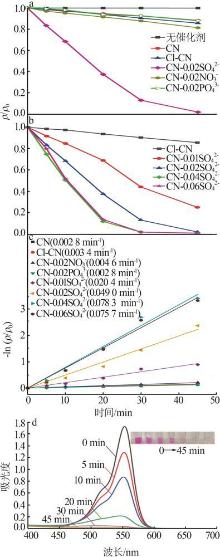

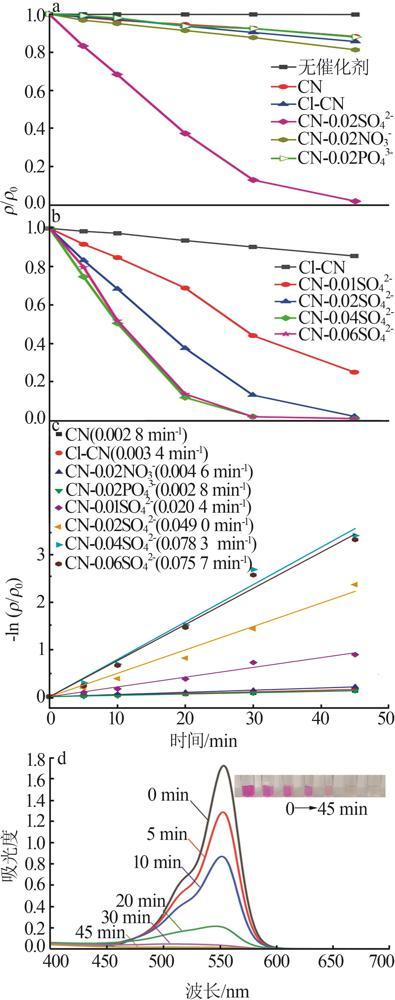

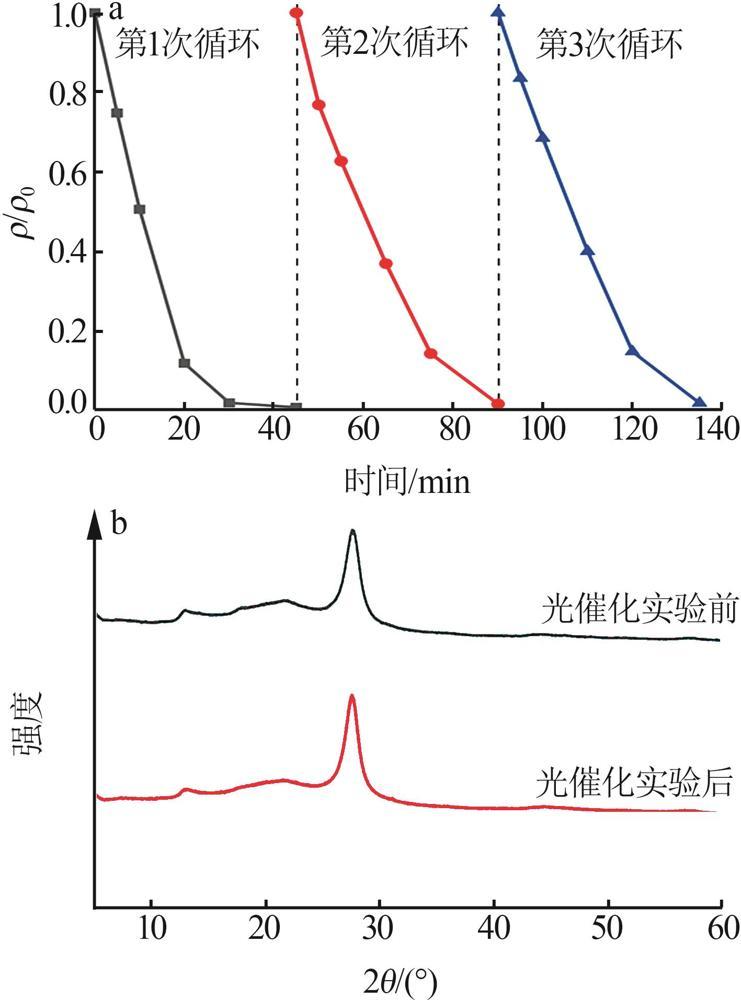

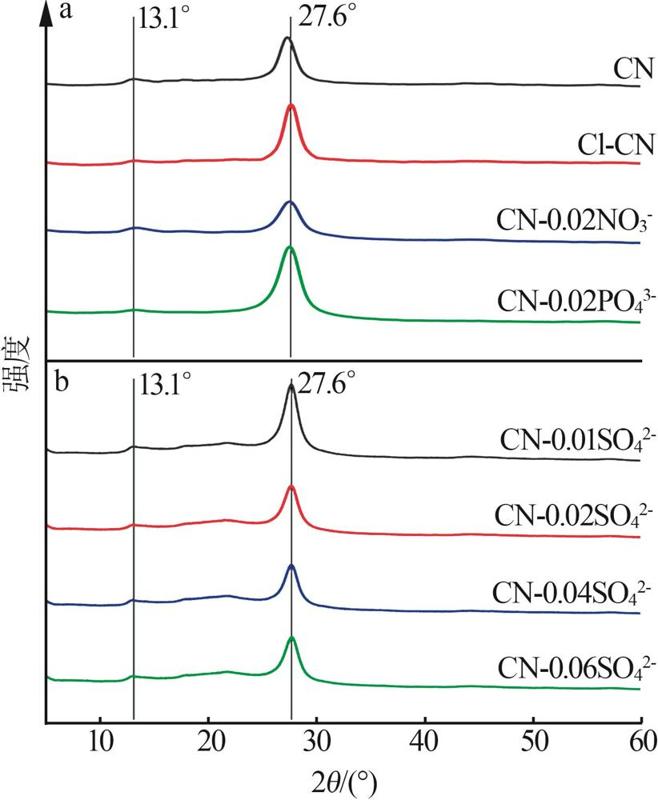

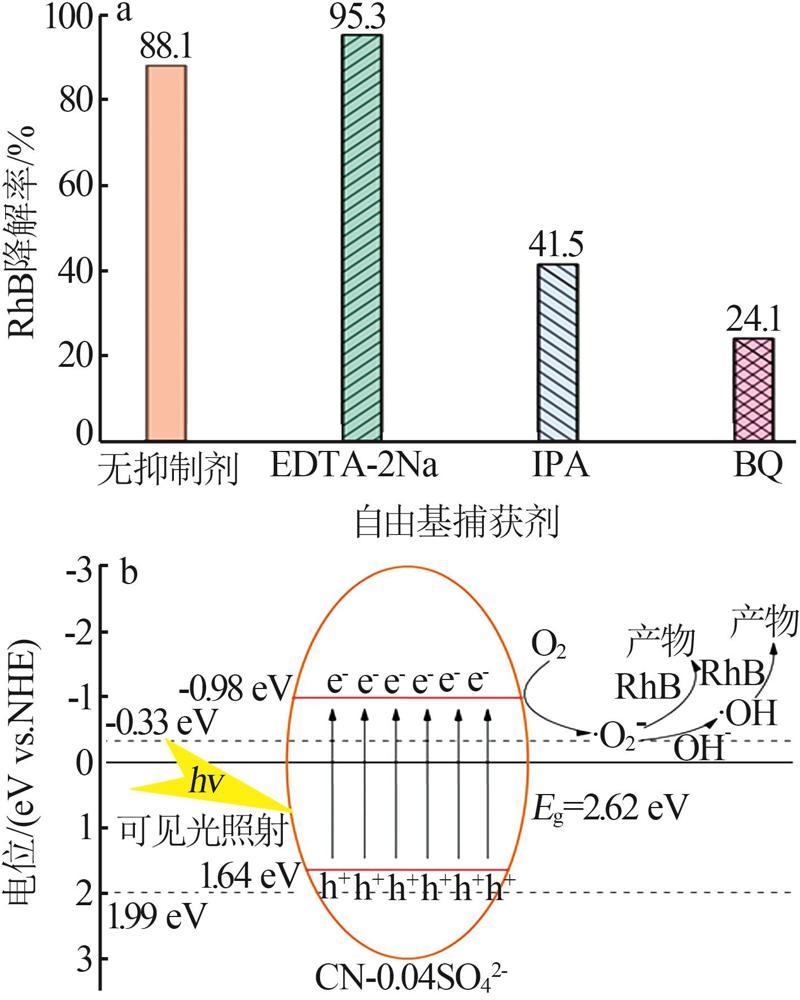

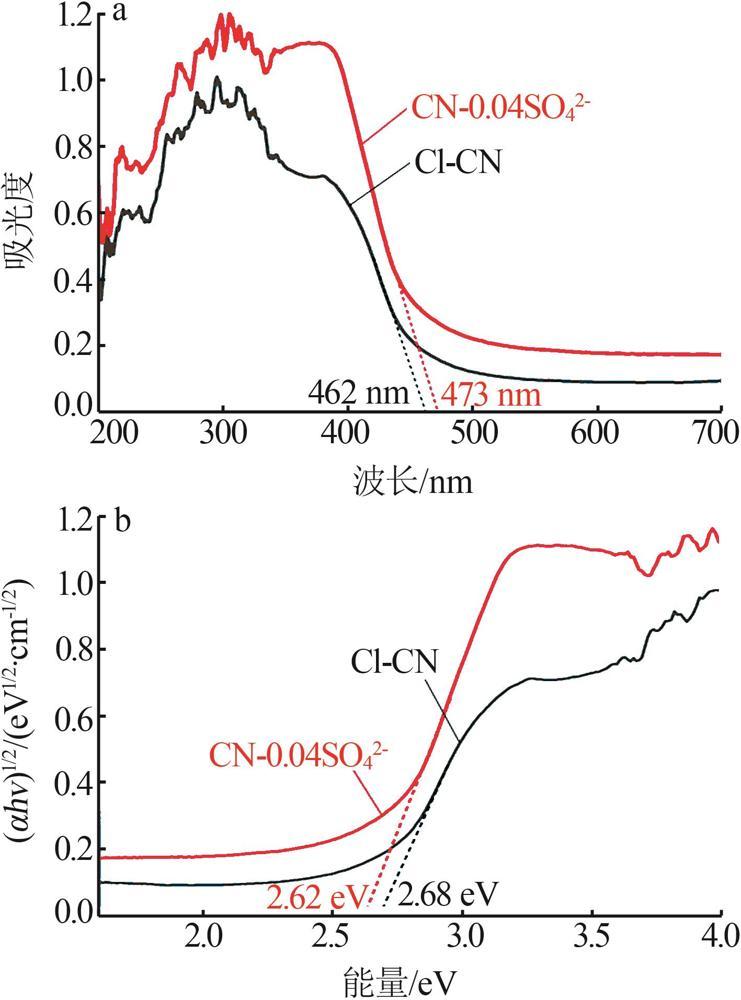

在pH=1条件下分别加入硫酸根、硝酸根、磷酸根对三聚氰胺进行处理，采用高温煅烧法制备了一系列聚合氮化碳材料，并通过X射线衍射（XRD）、扫描电子显微镜（SEM）、紫外-可见漫反射光谱（UV-Vis DRS）等分析手段对样品进行了表征。以罗丹明B（RhB）为污染物，探究了在可见光下聚合氮化碳对RhB的光催化降解性能、稳定性以及降解机理。加入0.12 mol硫酸根处理的聚合氮化碳（CN-0.04SO₄^2-）在45 min内对RhB的降解率为99.1%，其伪一级动力学常数是未加硫酸根的23.0倍，硫酸根能有效地增强聚合氮化碳的光催化活性。CN-0.04SO₄^2-经过3次循环实验对RhB的降解率略有下降，说明其具有良好的稳定性。活性物种捕获实验表明，影响光催化降解RhB的主要活性物种是·O₂^-和·OH。

关键词: 氮化碳, 光催化, 降解

Abstract:

A series of polymerized carbon nitride were prepared by high temperature calcination method after the treatment of melamine with adding SO₄^2-，NO₃^- and PO₄^3- under the condition of pH=1，respectively.The samples were characterized by X-ray diffraction（XRD），scanning electron microscopy（SEM），UV-Visible diffuse reflectance spectroscopy（UV-Vis DRS），etc.Using rhodamine B（RhB） as pollutant，the photocatalytic degradation activity，stability and degradation mechanism of polymerized carbon nitride were explored under visible light.The degradation of RhB by polymerized carbon nitride（CN-0.04SO₄^2-） with 0.12 mol SO₄^2- was 99.1% within 45 min，and its pseudo?first?order kinetic constant was 23.0 times greater than that of no SO₄^2-.SO₄^2-，which could effectively enhance the photocatalytic activity of polymerized carbon nitride.The degradation of CN-0.04SO₄^2- was decreased slightly after three cycles，indicating that it had good stability.Active species capture experiment showed that ·O₂^- and ·OH were the main active species affecting photocatalytic degradation of RhB.

Key words: carbon nitride, photocatalytic, degradation

中图分类号:

马炳香,申云霞,李娜,李敏,韦尧意,赵宇. 硫酸根对聚合氮化碳光催化活性的影响[J]. 无机盐工业, 2022, 54(9): 150-157.

MA Bingxiang,SHEN Yunxia,LI Na,LI Min,WEI Yaoyi,ZHAO Yu. Effect of sulfate on photocatalytic activity of polymerized carbon nitride[J]. Inorganic Chemicals Industry, 2022, 54(9): 150-157.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 24

[1]	ONG W J， TAN L L， NG Y H， et al.Graphitic carbon nitride（g-C₃N₄）-based photocatalysts for artificial photosynthesis and environmental remediation:Are we a step closer to achieving sustainability？[J].Chemical Reviews，2016，116（12）:7159-7329.
[2]	PELAEZ M， NOLAN N T， PILLAI S C， et al.A review on the visible light active titanium dioxide photocatalysts for environmental applications[J].Applied Catalysis B:Environmental，2012，125:331-349.
[3]	WEN Jiuqing， XIE Jun， CHEN Xiaobo， et al.A review on g-C₃N₄-based photocatalysts[J].Applied Surface Science，2017，391:72-123.
[4]	GAO Shuying， WANG Xuyu， SONG Changjian， et al.Engineering carbon-defects on ultrathin g-C₃N₄ allows one⁃pot output and dramatically boosts photoredox catalytic activity[J].Applied Catalysis B:Environmental，2021，295.Doi:0.1016/j.apcatb.2021.120272. doi: 0.1016/j.apcatb.2021.120272.
[5]	LI Xiaogang， BI Wentuan， ZHANG Lei， et al.Single⁃atom Pt as co⁃catalyst for enhanced photocatalytic H₂ evolution[J].Advanced Materials:Deerfield Beach，Fla.，2016，28（12）:2427-2431.
[6]	FU Junwei， XU Quanlong，LOW J，et al.Ultrathin 2D/2D WO₃/g-C₃N₄ step⁃scheme H₂-production photocatalyst[J].Applied Catalysis B:Environmental，2019，243:556-565.
[7]	MENG Fanpeng， WANG Jun， TIAN Wenjie， et al.Graphitic carbon nitride nanosheets via acid pretreatments for promoted photocatalysis toward degradation of organic pollutants[J].Journal of Colloid and Interface Science，2022，608:1334-1347.
[8]	李佳慧，李克艳，宋春山，等.聚合氮化碳的制备、改性及光催化还原二氧化碳性能研究[J].无机盐工业，2021，53（12）:21-28.
	LI Jiahui， LI Keyan， SONG Chunshan， et al.Study on preparation，modification and carbon dioxide photocatalytic reduction performance of polymeric carbon nitride[J].Inorganic Chemicals Industry，2021，53（12）:21-28.
[9]	WANG Longyan， HONG Yuanzhi， LIU Enli， et al.A bottom⁃up acidification strategy engineered ultrathin g-C₃N₄ nanosheets towards boosting photocatalytic hydrogen evolution[J].Carbon，2020，163:234-243.
[10]	HUANG Zhijun， LI Fengbo， CHEN Bingfeng， et al.Porous and low-defected graphitic carbon nitride nanotubes for efficient hydrogen evolution under visible light irradiation[J].RSC Advances，2015，5（124）:102700-102706.
[11]	TANG Yunqi， YUAN Meng， JIANG Baojiang， et al.Inorganic acid-derived hydrogen⁃bonded organic frameworks to form nitro⁃gen⁃rich carbon nitrides for photocatalytic hydrogen evolution[J].Journal of Materials Chemistry A，2017，5（41）:21979-21985.
[12]	ZHOU Chengyun， LAI Cui， HUANG Danlian， et al.Highly porous carbon nitride by supramolecular preassembly of monomers for photocatalytic removal of sulfamethazine under visible light driven[J].Applied Catalysis B:Environmental，2018，220:202-210.
[13]	NIU Ping， ZHANG Lili， LIU Gang， et al.Graphene⁃like carbon nitride nanosheets for improved photocatalytic activities[J].Advanced Functional Materials，2012，22（22）:4763-4770.
[14]	LIN Qiuyan， LI Li， LIANG Shijing， et al.Efficient synthesis of monolayer carbon nitride 2D nanosheet with tunable concentration and enhanced visible⁃light photocatalytic activities[J].Applied Catalysis B:Environmental，2015，163:135-142.
[15]	LIU Chuang， DONG Xiaoli， HAO Yuchen， et al.A novel supramolecular preorganization route for improving g-C₃N₄/g-C₃N₄ metal⁃free homojunction photocatalysis[J].New Journal of Chemistry，2017，41（20）:11872-11880.
[16]	ZHOU Chengyun， ZENG Zhuotong， ZENG Guangming， et al.Visible⁃light⁃driven photocatalytic degradation of sulfamethazine by surface engineering of carbon nitride:Properties，degradation pathway and mechanisms[J].Journal of Hazardous Materials，2019，380.Doi:10.1016/j.jhazmat.2019.120815. doi: 10.1016/j.jhazmat.2019.120815.
[17]	TONG Jincheng， ZHANG Li， LI Fei， et al.An efficient top-down approach for the fabrication of large⁃aspect⁃ratio g-C₃N₄nano⁃sheets with enhanced photocatalytic activities[J].Physical Chemistry Chemical Physics:PCCP，2015，17（36）:23532-23537.
[18]	CUI Yanjuan， TANG Yubin， WANG Xinchen.Template⁃free synthesis of graphitic carbon nitride hollow spheres for photocatalytic degradation of organic pollutants[J].Materials Letters，2015， 161:197-200.
[19]	CUI Yanjuan， DING Zhengxin， FU Xianzhi， et al.Construction of conjugated carbon nitride nanoarchitectures in solution at low temperatures for photoredox catalysis[J].Angewandte Chemie:International Ed.in English，2012，51（47）:11814-11818.
[20]	LI Xibao， KANG Bangbang， DONG Fan， et al.Enhanced photocatalytic degradation and H₂/H₂O₂ production performance of S-pCN/WO_2.72 S-scheme heterojunction with appropriate surface oxygen vacancies[J].Nano Energy，2021，81.Doi:10.1016/j.nanoen.2020.105671. doi: 10.1016/j.nanoen.2020.105671.
[21]	LAN Huachun， LI Lili， AN Xiaoqiang， et al.Microstructure of carbon nitride affecting synergetic photocatalytic activity:Hydrogen bonds vs.structural defects[J].Applied Catalysis B:Environmental，2017，204:49-57.
[22]	YU Kai， YANG Shaogui， HE Huan， et al.Visible light-driven photocatalytic degradation of rhodamine B over NaBiO₃:Pathways and mechanism[J].The Journal of Physical Chemistry A，2009，113（37）:10024-10032.
[23]	HU Shaozheng， MA Lin， YOU Jiguang， et al.Enhanced visible light photocatalytic performance of g-C₃N₄ photocatalysts co⁃do⁃ped with iron and phosphorus[J].Applied Surface Science，2014， 311:164-171.
[24]	班昌胜，李军，金央，等.超分子前体制备g-C₃N₄/g-C₃N₄同质结及光催化性能研究[J].无机盐工业，2022，54（3）:125-131.
	BAN Changsheng， LI Jun， JIN Yang， et al.Study on preparation of g-C₃N₄/g-C₃N₄ homojunction by supramolecular precursor and its photocatalytic property[J].Inorganic Chemicals Industry，2022，54（3）:125-131.
