超分子前体制备g-C3N4/g-C3N4同质结及光催化性能研究

doi:10.19964/j.issn.1006-4990.2021-0260

摘要/Abstract

摘要：

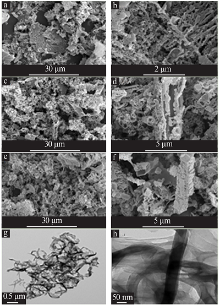

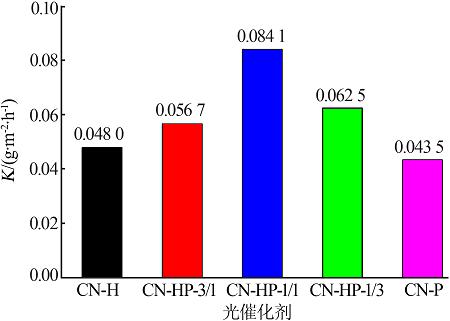

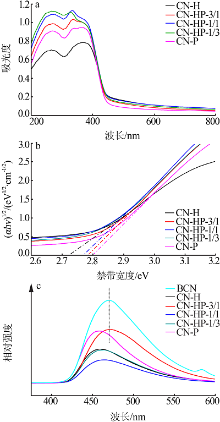

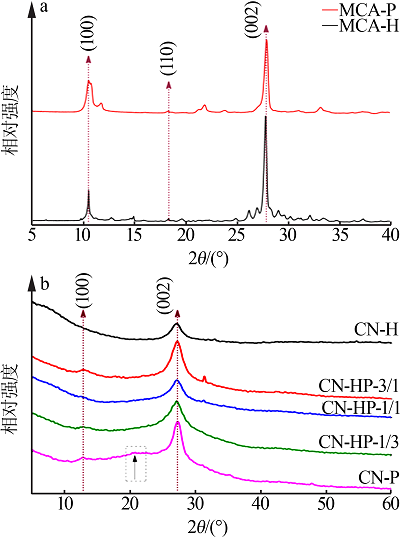

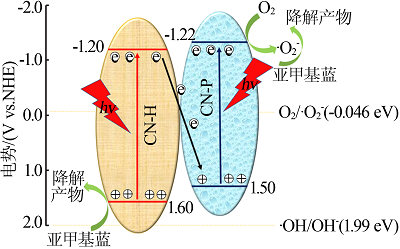

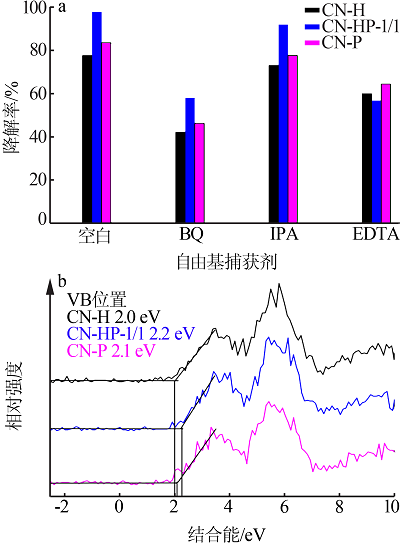

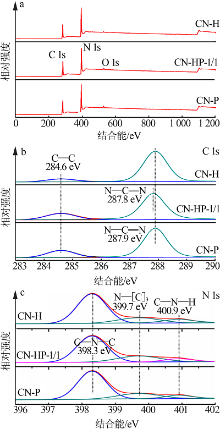

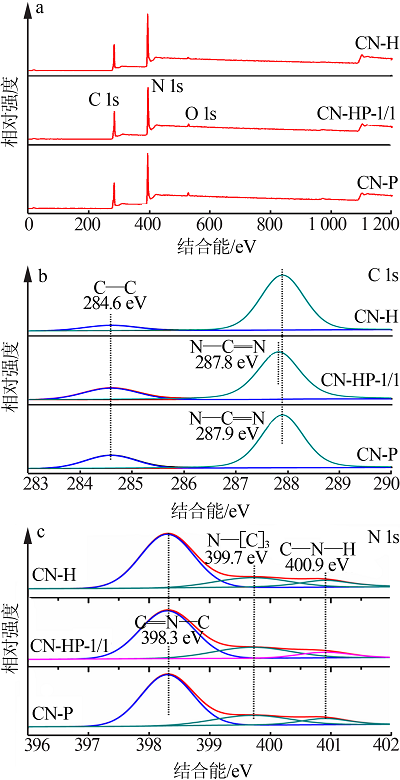

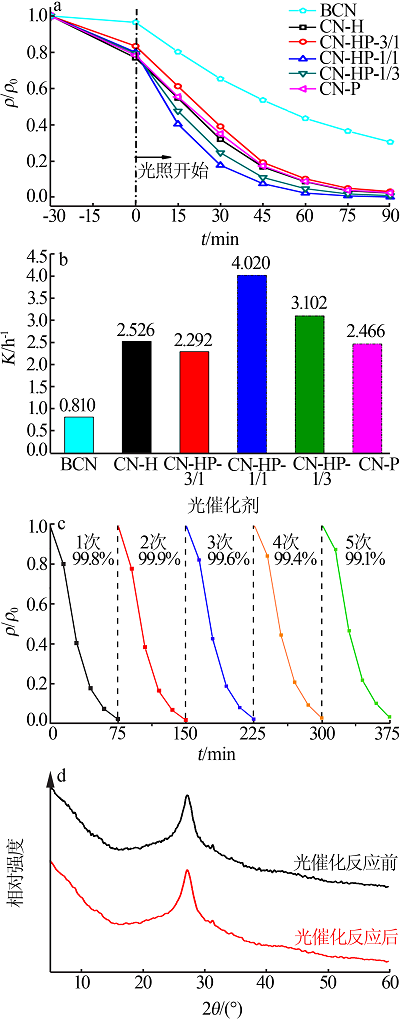

通过混合煅烧二氰二胺水热法和三聚氰胺-三聚氰酸共沉淀法制备的超分子前驱体,制备了兼具多孔纳米片和中空纳米管形貌的g-C₃N₄/g-C₃N₄同质结（CN-HP）。通过X射线衍射（XRD）、扫描电镜（SEM）、透射电镜（TEM）、紫外-可见漫反射光谱（UV-Vis DRS）、光致发光光谱（PL）等对光催化剂进行了表征。结果表明,CN-HP-1/1在75 min内对亚甲基蓝（MB）的降解率可达99.8%,伪一级动力学常数为4.02 h^-1,是块体g-C₃N₄的5倍,同时单位比表面积的反应常数提升至单体的1.8倍。PL测试表明,合适比例的三聚氰胺-三聚氰酸（MCA-H、MCA-P）超分子制备的同质结,其光生电子-空穴复合率较单体g-C₃N₄进一步降低。自由基捕获实验表明,光生空穴是光催化降解过程中的主要活性物种,并结合X射线光电子能谱价带谱测试提出了Z型电子传输机制。

关键词: 石墨相氮化碳, 超分子, 同质结, 光催化

Abstract:

g-C₃N₄/g-C₃N₄ homojunction（CN-HP） with the morphology of porous nanosheets and hollow nanotubes was pre-pared from supramolecular precursor prepared by mixed calcination of dicyanodiamine hydrothermal method and melamine-cyanuric acid coprecipitation method.The photocatalyst was characterized by X-ray diffraction（XRD）,scanning electron mi-croscopy（SEM）,transmission electron microscopy（TEM）,ultraviolet-visible diffuse reflectance（UV-Vis DRS）,photolumi-nescence spectroscopy（PL）,etc.The results showed that CN-HP-1/1 exhibited a degradation rate of 99.8% for methylene blue（MB） within 75 min,and the pseudo first-order kinetic constant was 4.02 h^-1,which was 5 times that of bulk g-C₃N₄.And the reaction constant per unit specific surface area was increased to 1.8 times that of monomeric g-C₃N₄.The PL test showed that the photogenerated electron-hole recombination rate of the homojunction prepared by the appropriate ratio of MCA was lower than that of the monomer g-C₃N₄. Free radical capture experiments showed that photo-generated holes were the main active species in the photocatalytic degradation process.Combined with XPS valence band spectroscopy tests,it was proposed that the homojunction photocatalysts had a Z-scheme electron transport mechanism.

Key words: g-C₃N₄, supramolecular, homojunctions, photocatalysis

中图分类号:

O644.1

班昌胜,李军,金央,陈明,左龙涛. 超分子前体制备g-C₃N₄/g-C₃N₄同质结及光催化性能研究[J]. 无机盐工业, 2022, 54(3): 125-131.

BAN Changsheng,LI Jun,JIN Yang,CHEN Ming,ZUO Longtao. Study on preparation of g-C₃N₄/g-C₃N₄ homojunction by supramolecular precursor and its photocatalytic property[J]. Inorganic Chemicals Industry, 2022, 54(3): 125-131.

图/表 9

图1

图2

表1

图3

图4

图5

图6

图7

图8

参考文献 14

[1]	孙海杰, 刘欣改, 陈志浩, 等. BiOI/g-C₃N₄光催化降解甲基橙研究[J]. 无机盐工业, 2021, 53(4):90-94.
[2]	殷楠, 刘婵璐, 张进. MoO₃/g-C₃N₄复合材料的制备及光催化性能[J]. 无机盐工业, 2020, 52(10):161-165.
[3]	DONG X, CHENG F. Recent development in exfoliated two-dimen-sional g-C₃N₄ nanosheets for photocatalytic applications[J]. Journal of Materials Chemistry A, 2015, 3(47):23642-23652. doi: 10.1039/C5TA07374J
[4]	庞丹丹, 李洁冰, 宋忠贤, 等. g-C₃N₄光催化剂的改性优化研究进展[J]. 环境工程, 2019, 37(4):104-111.
[5]	ZHOU C, LAI C, HUANG D, et al. Highly porous carbon nitride by supramolecular preassembly of monomers for photocatalytic removal of sulfamethazine under visible light driven[J]. Applied Catalysis B:Environmental, 2018, 220:202-210. doi: 10.1016/j.apcatb.2017.08.055
[6]	DONG H, ZHANG X, LI J, et al. Construction of morphology-con-trolled nonmetal 2D/3D homojunction towards enhancing photoca-talytic activity and mechanism insight[J]. Applied Catalysis B:En-vironmental, 2019, 263.Doi: 10.1016/j.apcatb.2019.118270. doi: 10.1016/j.apcatb.2019.118270
[7]	DENG Q, LI H, BA G, et al. The pivotal role of defects in fabrication of polymeric carbon nitride homojunctions with enhanced photoca-talytic hydrogen evolution[J]. Journal of Colloid and Interface Science, 2021, 586:748-757. doi: 10.1016/j.jcis.2020.10.144
[8]	JUN Y S, LEE E Z, WANG X C, et al. From melamine-cyanuric acid supramolecular aggregates to carbon nitride hollow spheres[J]. Ad-vanced Functional Materials, 2013, 23(29):3661-3667.
[9]	MO Z, XU H, CHEN Z, et al. Self-assembled synjournal of defect-en-gineered graphitic carbon nitride nanotubes for efficient conver-sion of solar energy[J]. Applied Catalysis B:Environmental, 2018, 225:154-161. doi: 10.1016/j.apcatb.2017.11.041
[10]	ZHOU B, DING S, ZHANG B. Dimensional transformation and mo-rphological control of graphitic carbon nitride from water-based supramolecular assembly for photocatalytic hydrogen evolution:From 3D to 2D and 1D nanostructures[J]. Applied Catalysis B:Environmental, 2019, 254:321-328. doi: 10.1016/j.apcatb.2019.05.015
[11]	LI J, LIU X, CHE H, et al. Facile construction of O-doped crys-talline/non-crystalline g-C₃N₄ embedded nano-homojunction for efficiently photocatalytic H₂ evolution[J]. Carbon, 2021, 172:602-612. doi: 10.1016/j.carbon.2020.10.051
[12]	LIANG D, HUANG Y, WU F, et al. In situ synjournal of g-C₃N₄/TiO₂ with{001} and{101} facets co-exposed for water remediation[J]. Applied Surface Science, 2019, 487:322-334. doi: 10.1016/j.apsusc.2019.05.088
[13]	吴瞳, 顾佳玉, 彭晨, 等. 石墨相氮化碳同质结(MeCN-CN)光催化处理水中双酚A的研究[J]. 中国环境科学, 2021, 41:76-87.
[14]	LIU C, DONG X, HAO Y, et al. A novel supramolecular preorgani-zation route for improving g-C₃N₄/g-C₃N₄ metal-free homojunction photocatalysis[J]. New Journal of Chemistry, 2017, 41(20):11872-11880. doi: 10.1039/C7NJ02639K

光催化剂	比表面积/ （m²·g^-1）	平均孔径/ nm	孔容/ （cm³·g^-1）
BCN	8.8	32.5	0.042
CN-H	52.6	14.5	0.193
CN-HP-3/1	40.4	18.3	0.158
CN-HP-1/1	47.8	17.5	0.174
CN-HP-1/3	49.6	17.1	0.186
CN-P	56.7	16.5	0.202
