一步吸附法纯化制取食品级氯化钾实验研究

doi:10.19964/j.issn.1006-4990.2021-0741

摘要/Abstract

摘要：

青海盐湖生产的工业氯化钾有浮选剂残留和重金属超标，将其纯化应用于食品级氯化钾可以获得巨大的经济效益。以废弃物鱼鳞为原料通过活化制得鱼鳞活性炭，以鱼鳞活性炭为吸附剂采用一步吸附法同时去除盐湖工业氯化钾中的重金属铅离子[Pb（Ⅱ）]和有机胺可获得食品级氯化钾。研究结果表明:鱼鳞经过水煮和磷酸浸渍预处理，再经过550 ℃煅烧，可制得比表面积为496.152 m²/g的鱼鳞活性炭；鱼鳞活性炭纯化工业氯化钾的过程，离子交换吸附主导了鱼鳞活性炭对Pb（Ⅱ）的吸附，而静电相互作用和范德华力相互作用在鱼鳞活性炭对十八胺的吸附过程中发挥了重要作用；当鱼鳞活性炭投加量≥7 g/L时，纯化后的工业氯化钾中重金属Pb（Ⅱ）和有机胺的含量均符合GB 25585—2010《食品添加剂:氯化钾》的要求，实现了活性生物炭一步吸附法由盐湖工业氯化钾制备食品级氯化钾。

关键词: 氯化钾, 盐湖, 吸附, 活性炭

Abstract:

The industrial potassium chloride produced by Qinghai Salt Lake has flotation agent residues and heavy metals exceeding the standard.Purification of industrial potassium chloride for use as food grade potassium chloride will yield significant economic benefits.Fish scale activated carbon was prepared by activation method using waste fish scale as raw material.Using fish scale activated carbon as adsorbent，food grade potassium chloride could be obtained by simultaneously removing heavy metal lead ions[Pb（Ⅱ）] and organic amines from industrial potassium chloride insalt lake by one?step adsorption method.The results showed that fish scales were firstly pretreated by boiling and phosphoric acid impregnation，and then calcined at 550 ℃ to obtain fish scale activated carbon with a specific surface area of 496.152 m²/g.In the purification of industrial potassium chloride from fish?scale activated carbon，ion?exchange adsorption dominated its adsorption of Pb（Ⅱ），while electrostatic interactions and van der Waals interactions played an important role in its adsorption of octadecylamine.When the dosage of fish scale activated carbon was≥7 g/L，the contents of heavy metal Pb（Ⅱ） and organic amines in purified industrial potassium chloride were in accordance with the requirements of GB 25585—2010“Food Additives Potassium Chloride”.The one?step adsorption method of activated biochar was realized to prepare food grade potassium chloride from industrial potassium chloride in salt lake.

Key words: potassium chloride, salt lake, adsorption, activated carbon

中图分类号:

TQ131.13

杜柄璇,李海朝,林泽中. 一步吸附法纯化制取食品级氯化钾实验研究[J]. 无机盐工业, 2022, 54(9): 96-101.

DU Bingxuan,LI Haichao,LIN Zezhong. Study on preparation of food?grade potassium chloride by one?step adsorption and purification[J]. Inorganic Chemicals Industry, 2022, 54(9): 96-101.

图/表 7

图1

表1

表2

图2

图3

图4

表3

参考文献 30

[1]	李兴海，赵启文，李秦鹏，等.利用低品位钾资源制备钾石盐实验研究[J].无机盐工业，2018，50（7）:51-53.
	LI Xinghai， ZHAO Qiwen， LI Qinpeng， et al.Experimental study on preparation of sylvite from low⁃grade potassium resources[J].Inorganic Chemicals Industry，2018，50（7）:51-53.
[2]	刁祥瑞，张洪满，张君，等.分光光度法测定氯化钾浮选液中十八胺含量[J].中北大学学报:自然科学版，2011，32（3）:323-328.
	DIAO Xiangrui， ZHANG Hongman， ZHANG Jun， et al.Spectrophotometric determination of octadecylamine in brine from KCl flotation[J].Journal of North University of China:Natural Science Edition，2011，32（3）:323-328.
[3]	费文丽，李贵林.大孔树脂吸附法处理卤水中钾盐浮选捕收剂十八胺[J].化工矿物与加工，2012，41（4）:17-20.
	FEI Wenli， LI Guilin.Treatment of sylvite flotation collector octadecylamine in brine with macroporous resin adsorption method[J].Industrial Minerals ＆ Processing，2012，41（4）:17-20.
[4]	LIU Runqing， LU Hongyu， WANG Li， et al.Utilization of ammonium chloride as a novel selective depressant in reverse flotation of potassium chloride[J].Minerals，2019，9（1）.Doi:10.3390/min9010041. doi: 10.3390/min9010041.
[5]	梁慧斌，杜志平，李恩泽，等.金橙-2分光光度法测定饱和盐溶液中十八胺盐酸盐的含量[J].日用化学工业，2016，46（8）:485-488.
	LIANG Huibin， DU Zhiping， LI Enze， et al.Determination of octadecylamine hydrochloride in saturated salt solution using orange Ⅱ spectrophotometric method[J].China Surfactant Detergent ＆ Cosmetics，2016，46（8）:485-488.
[6]	王宝辉，张学佳，纪巍，等.表面活性剂环境危害性分析[J].化工进展，2007，26（9）:1263-1268.
	WANG Baohui， ZHANG Xuejia， JI Wei， et al.Hazard analysis of surfactants in ecosystem[J].Chemical Industry and Engineering Progress，2007，26（9）:1263-1268.
[7]	EMAMY F H， BUMAJDAD A， LUKASZEWICZ J P.Adsorption of hexavalent chromium and divalent lead ions on the nitrogen⁃enriched chitosan⁃based activated carbon[J].Nanomaterials:Basel，Switzerland，2021，11（8）.Doi:10.3390/nano11081907. doi: 10.3390/nano11081907.
[8]	李明达.一种除去氯化钾中铵的方法:中国，104192866A[P].2014-12-10.
[9]	许超锋，王国平，汪贤玉，等.低钠高纯度氯化钾的生产方法:中国，105668592A[P].2016-06-15.
[10]	刘立平，马信华，王朝乾.精制氯化钾生产工艺:中国，101962198A[P].2011-02-02.
[11]	柯曾鹏，杨帅敏，杨志国，等.采用吸附工艺生产食品级氯化钾的方法:中国，105060315A[P].2015-11-18.
[12]	钟林，钟国林，韩科.食品级氯化钾的制造工艺方法中国，103833052A[P].2014-06-04.
[13]	熊新国，王虎臣，刘宗飞，等.一种高纯食品级氯化钾的生产方法:中国，106495189A[P].2017-03-15.
[14]	孙书双，朱亚明，赵先奕，等.生物质活性炭的制备、应用及再生利用研究进展[J].应用化工，2021，50（11）:3165-3170.
	SUN Shushuang， ZHU Yaming， ZHAO Xianyi， et al.Research progress on preparation，application and regeneration of biomass⁃based activated carbon[J].Applied Chemical Industry，2021，50（11）:3165-3170.
[15]	张净净，李海朝.磷酸活化鱼鳞活性生物炭的制备及表征[J].材料导报，2020，34（S1）:116-119.
	ZHANG Jingjing， LI Haichao.Preparation and characterization of fish scale activated carbon by phosphoric acid[J].Materials Reports，2020，34（S1）:116-119.
[16]	PATI F， ADHIKARI B， DHARA S.Isolation and characterization of fish scale collagen of higher thermal stability[J].Bioresource Technology，2010，101（10）:3737-3742.
[17]	QIN Di， BI Shichao， YOU Xinguo， et al.Development and application of fish scale wastes as versatile natural biomaterials[J].Chemical Engineering Journal，2022，428.Doi:10.1016/j.cej.2021.131102. doi: 10.1016/j.cej.2021.131102.
[18]	李海朝，纪青松，张净净，等.活性生物猪骨炭纯化盐湖工业氯化钾[J].无机盐工业，2020，52（8）:76-77，102.
	LI Haichao， JI Qingsong， ZHANG Jingjing， et al.Purification of industrial potassium chloride from salt lake by activated pig bone biochar[J].Inorganic Chemicals Industry，2020，52（8）:76-77，102.
[19]	徐茹婷，许伟，卢辛成，等.磷酸法木质活性炭除灰新工艺研究[J].生物质化学工程，2020，54（4）:37-41.
	XU Ruting， XU Wei， LU Xincheng， et al.Novel demineralization technology of phosphate⁃activated carbon[J].Biomass Chemical Engineering，2020，54（4）:37-41.
[20]	NADEEM R， ANSARI T M， KHALID A M.Fourier Transform Infrared Spectroscopic characterization and optimization of Pb（Ⅱ） biosorption by fish（Labeo rohita） scales[J].Journal of Hazardous Materials，2008，156（1/2/3）:64-73.
[21]	KAPOOR A， VIRARAGHAVAN T.Biosorption of heavy metals on Aspergillus Niger:Effect of pretreatment[J].Bioresource Tech⁃ nology，1998，63（2）:109-113.
[22]	FERREIRA L M， MELO R R， PIMENTA A S， et al.Adsorption performance of activated charcoal from castor seed cake prepared by chemical activation with phosphoric acid[J].Biomass Conversion and Biorefinery，2022，12（4）:1181-1192.
[23]	ONWORDI C T， UCHE C C， AMEH A E， et al.Comparative study of the adsorption capacity of lead（Ⅱ） ions onto bean husk and fish scale from aqueous solution[J].Journal of Water Reuse and Desalination，2019，9（3）:249-262.
[24]	VILLANUEVA-ESPINOSA J F， HERNÁNDEZ-ESPARZA M， RUIZ-TREVIÑO F A.Adsorptive properties of fish scales of oreochromis niloticus（mojarra tilapia） for metallic ion removal from waste water[J].Industrial & Engineering Chemistry Research，2001，40（16）:3563-3569.
[25]	EL-NAGAR D A， MASSOUD S A， ISMAIL S H.Removal of some heavy metals and fungicides from aqueous solutions using nano⁃hydroxyapatite，nano⁃bentonite and nanocomposite[J].Arabian Journal of Chemistry，2020，13（11）:7695-7706.
[26]	梁志，车文成，胡鑫鑫.罗非鱼鱼鳞对水中结晶紫的吸附特性和机理研究[J].化工新型材料，2019，47（4）:208-212.
	LIANG Zhi， CHE Wencheng， HU Xinxin.Adsorption of crystal violet dye on fish（tilapia） scale:Characteristics and mechanism[J].New Chemical Materials，2019，47（4）:208-212.
[27]	SHAARANI F W， HAMEED B H.Ammonia⁃modified activated carbon for the adsorption of 2，4-dichlorophenol[J].Chemical Engineering Journal，2011，169（1/2/3）:180-185.
[28]	QU Zhibin， SUN Fei， LIU Xin， et al.The effect of nitrogen⁃containing functional groups on SO₂ adsorption on carbon surface:Enhanced physical adsorption interactions[J].Surface Science，2018，677:78-82.
[29]	WANG Gaofeng， XU Jie， SUN Zhiming， et al.Surface functionalization of montmorillonite with chitosan and the role of surface properties on its adsorptive performance:A comparative study on mycotoxins adsorption[J].Langmuir:the ACS Journal of Surfaces and Colloids，2020，36（10）:2601-2611.
[30]	YANG Guo， CHEN Honglin， QIN Hangdao， et al.Amination of activated carbon for enhancing phenol adsorption:Effect of nitro⁃gen⁃containing functional groups[J].Applied Surface Science，2014，293:299-305.

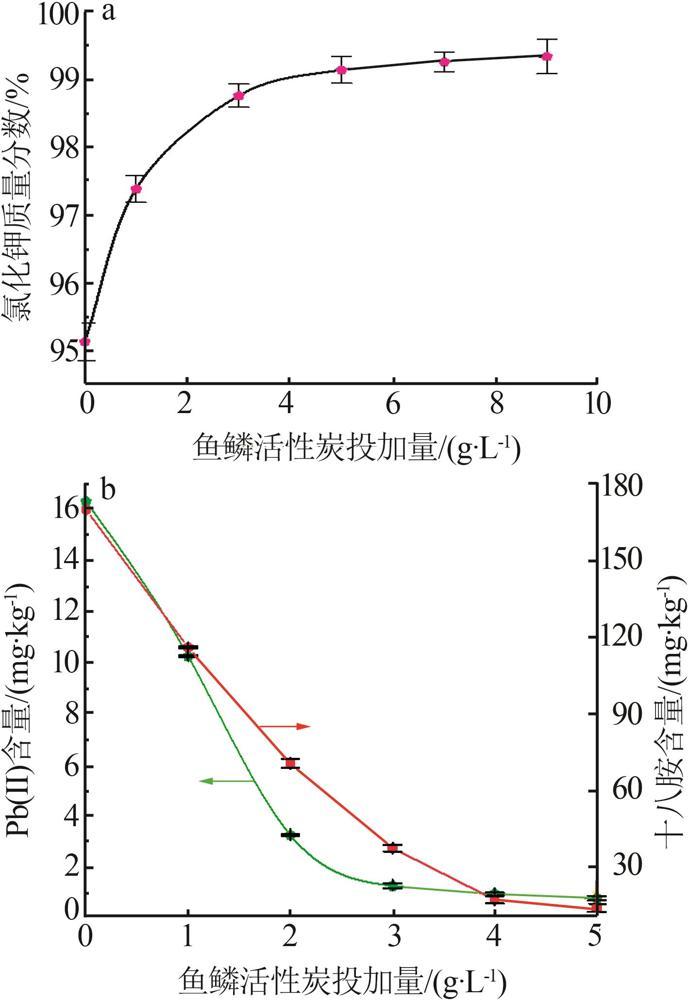

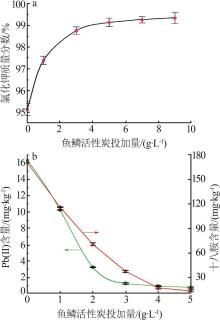

鱼鳞活性炭投加量/（g·L）	w（氯化钾）/%	杂质含量/（mg·kg^-1）
鱼鳞活性炭投加量/（g·L）	w（氯化钾）/%	钙	镁	铅	十八胺	砷
0	95.131	46.300	30.100	16.300	169.800	未检出
1	97.384	未检出	未检出	10.240	115.890	未检出
2	未检测	未检出	未检出	3.239	70.404	未检出
3	98.760	未检出	未检出	1.254	37.276	未检出
4	未检测	未检出	未检出	0.941	17.058	未检出
5	99.139	未检出	未检出	0.766	13.694	未检出
7	99.259	未检出	未检出	未检出	未检出	未检出
9	99.339	未检出	未检出	未检出	未检出	未检出
